1 Grinding

2

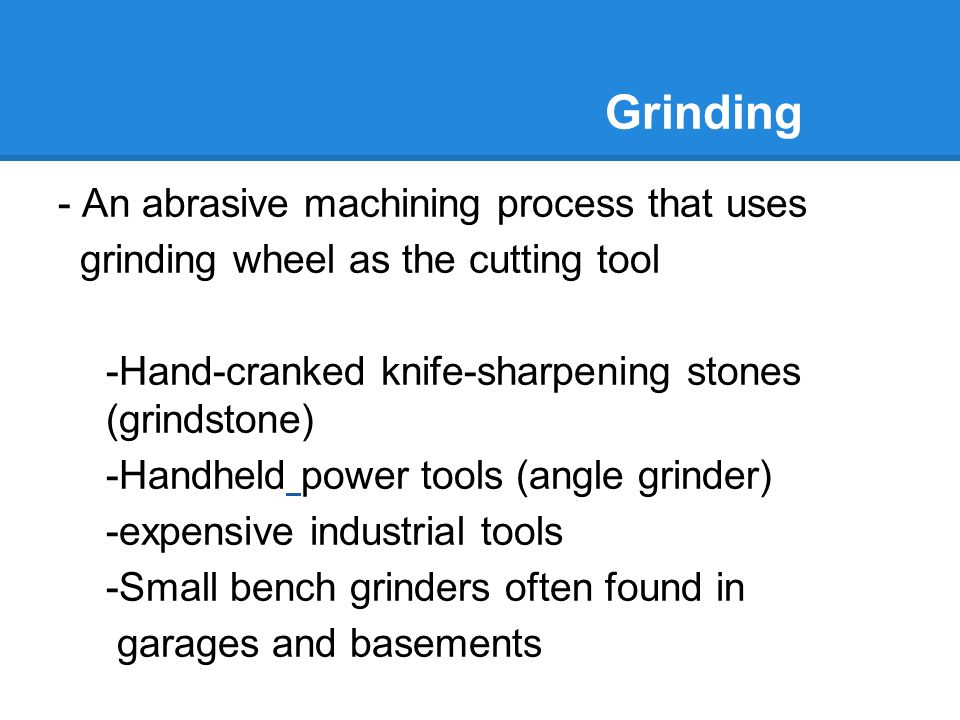

3 - An abrasive machining process that uses grinding wheel as the cutting tool -Hand-cranked knife-sharpening stones (grindstone) -Handheld power tools (angle grinder) -expensive industrial tools -Small bench grinders often found in garages and basements

4 Surface grinding - Is used to produce smooth finish on flat surfaces - Most common grinding operation - Widely used - Typical workpiece materials include cast iron and mild steel -Grinding at high temperatures could weaken the material and it is more inclined to corrode.

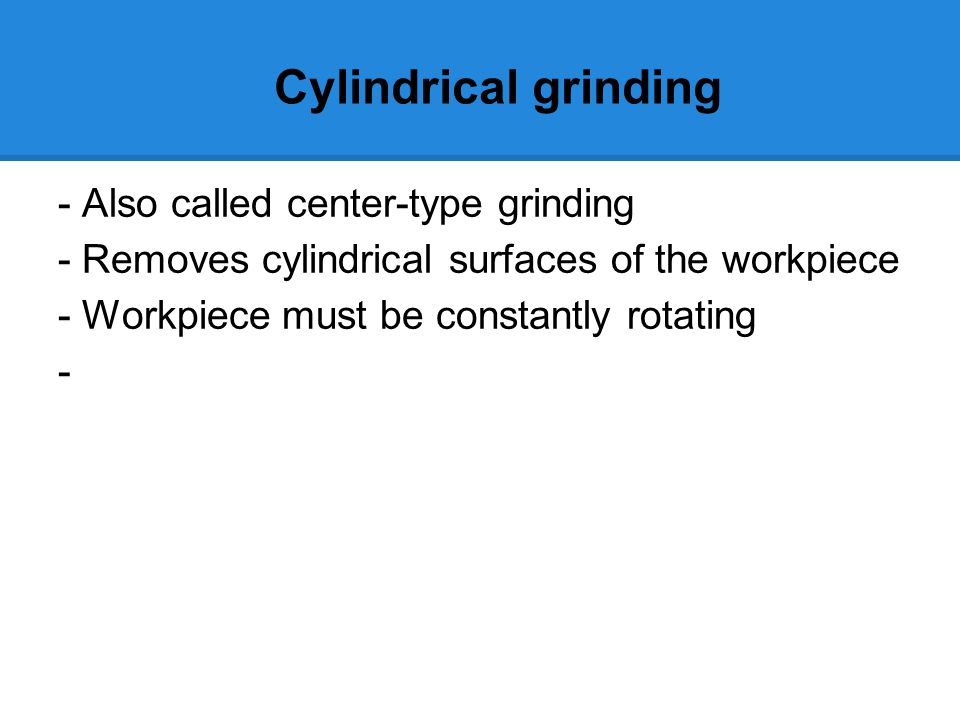

5 Cylindrical grinding - Also called center-type grinding - Removes cylindrical surfaces of the workpiece - Workpiece must be constantly rotating -

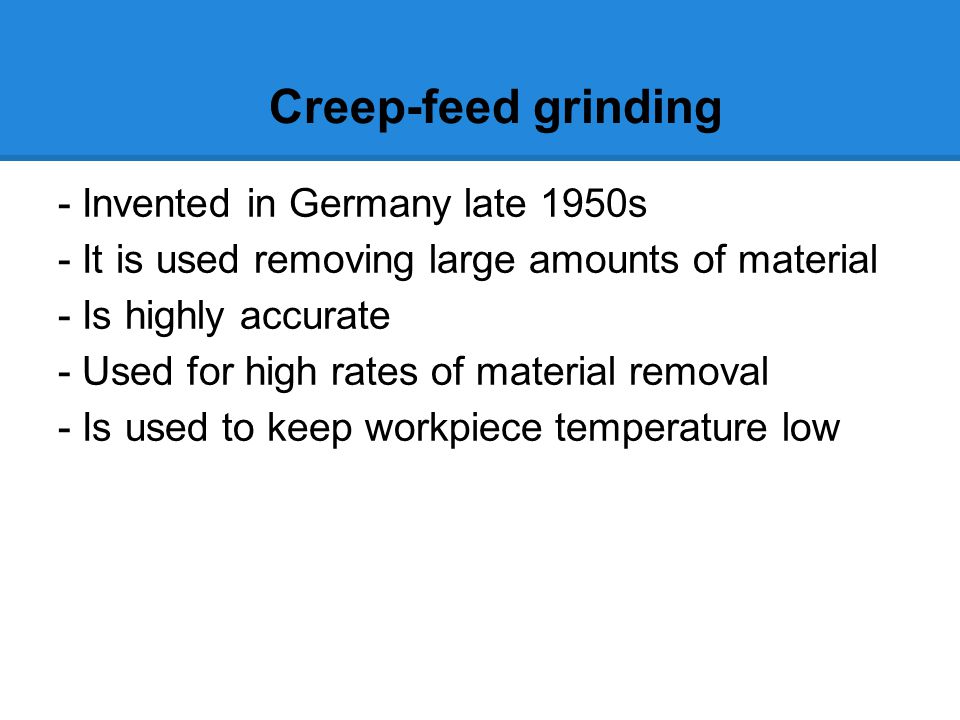

6 Creep-feed grinding - Invented in Germany late 1950s - It is used removing large amounts of material - Is highly accurate - Used for high rates of material removal - Is used to keep workpiece temperature low

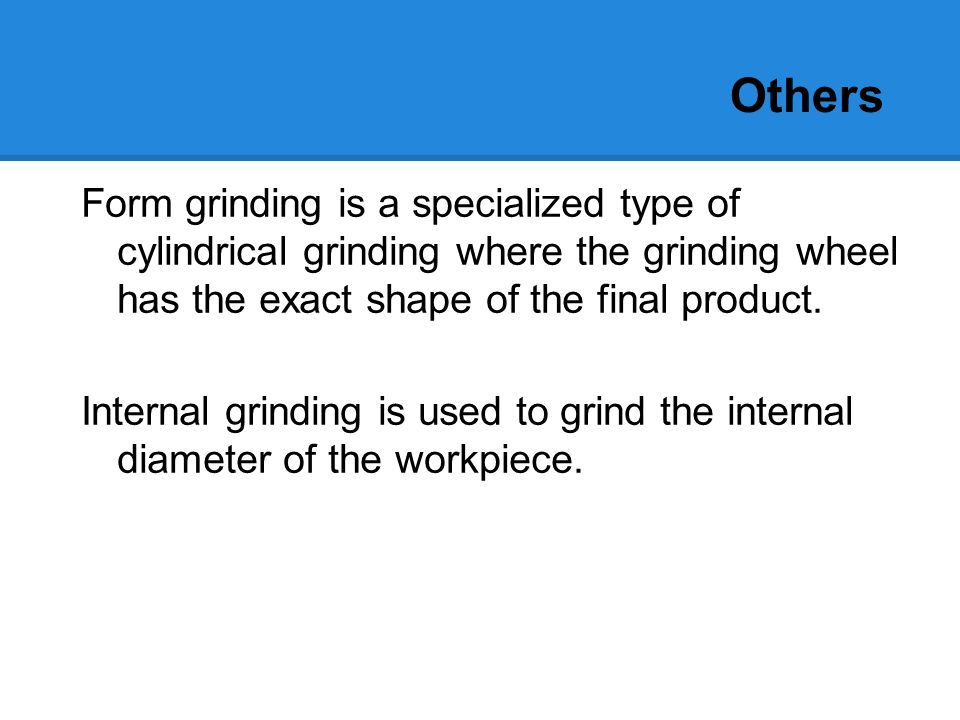

7 Others Form grinding is a specialized type of cylindrical grinding where the grinding wheel has the exact shape of the final product. Internal grinding is used to grind the internal diameter of the workpiece.

8 Others Electrochemical grinding is a type of grinding in which a positively charged workpiece in a conductive fluid is eroded by a negatively charged grinding wheel.
