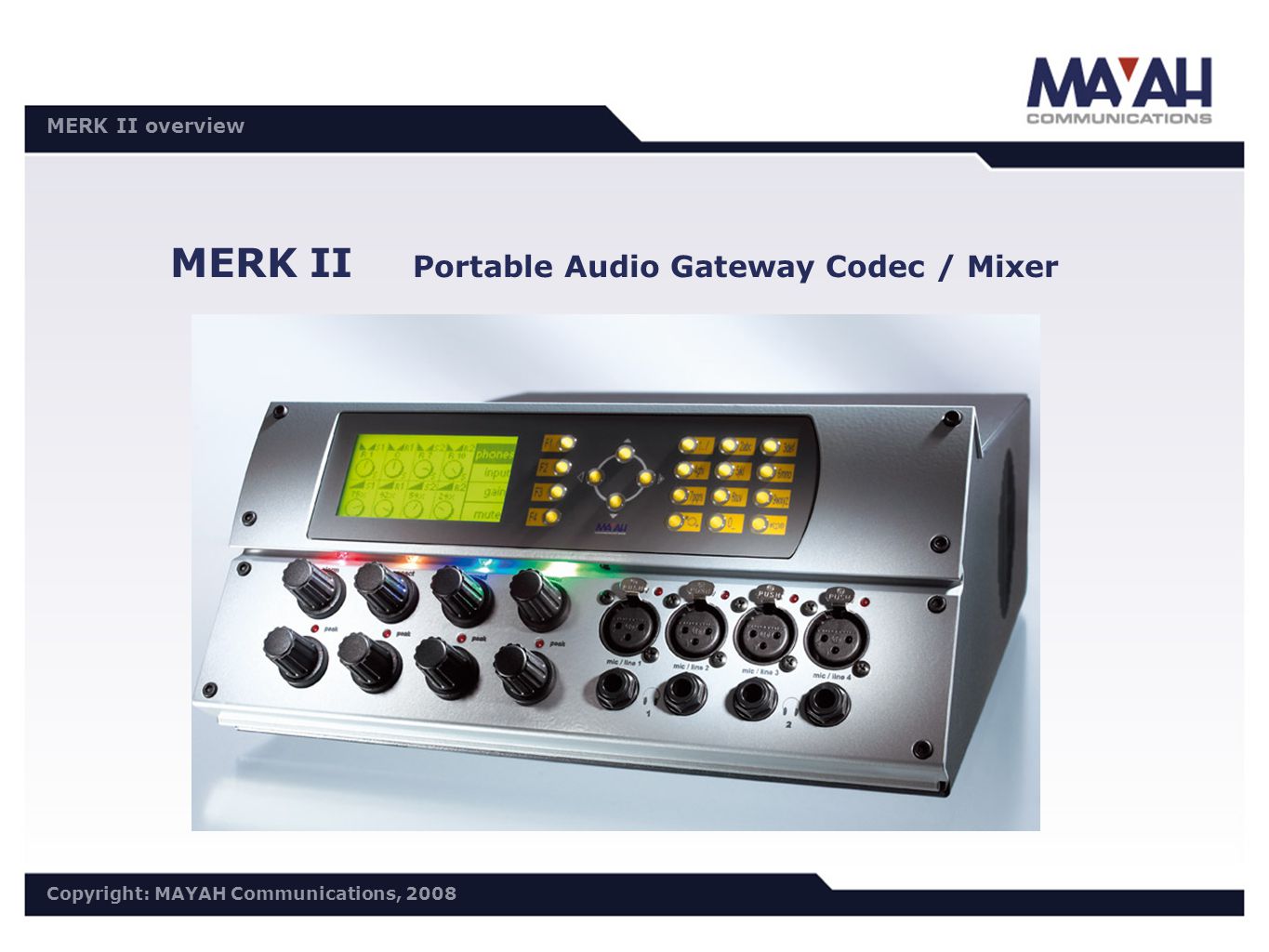

1. DISTRI Meeting 30.10./31.10.2006 Copyright: MAYAH Communications, 2006 MERK II overview Copyright: MAYAH Communications, 2008 MERK II Portable Audio Gateway Codec / Mixer

2. DISTRI Meeting 30.10./31.10.2006 Copyright: MAYAH Communications, 2006 MERK II overview Copyright: MAYAH Communications, 2008  Why MERK II Audio Gateway Codec/Mixer ? 4 switchable MIC/LINE Inputs, 2 Line In/Out, 4 Headphone Outputs Switchable Phantom Power 48V with LED indication Extended mixing capabilities including monitor & control Flashcast® compatibility Electronically controlled potentiometers for full audio mixing remote control

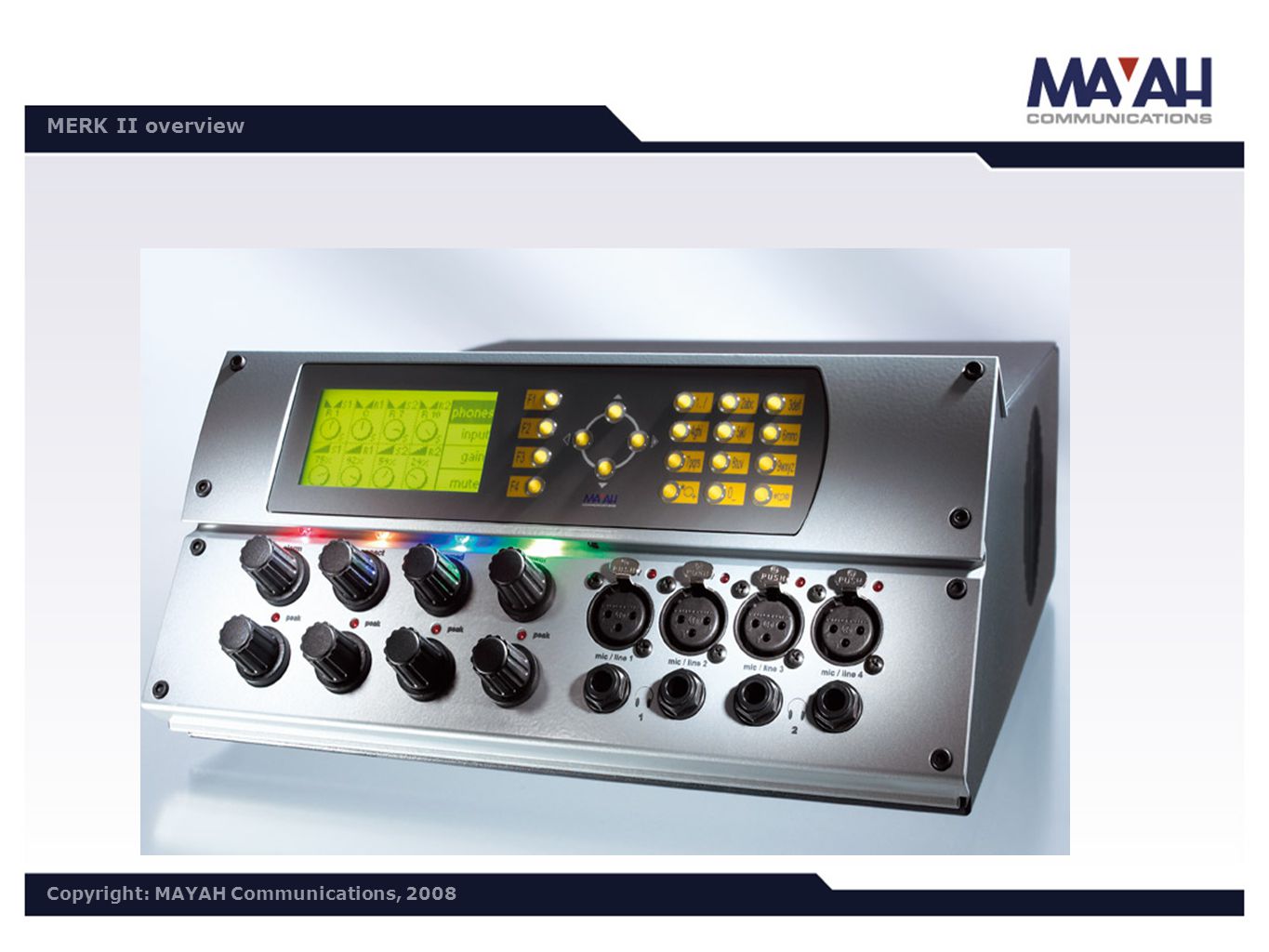

3. DISTRI Meeting 30.10./31.10.2006 Copyright: MAYAH Communications, 2006 MERK II overview Copyright: MAYAH Communications, 2008

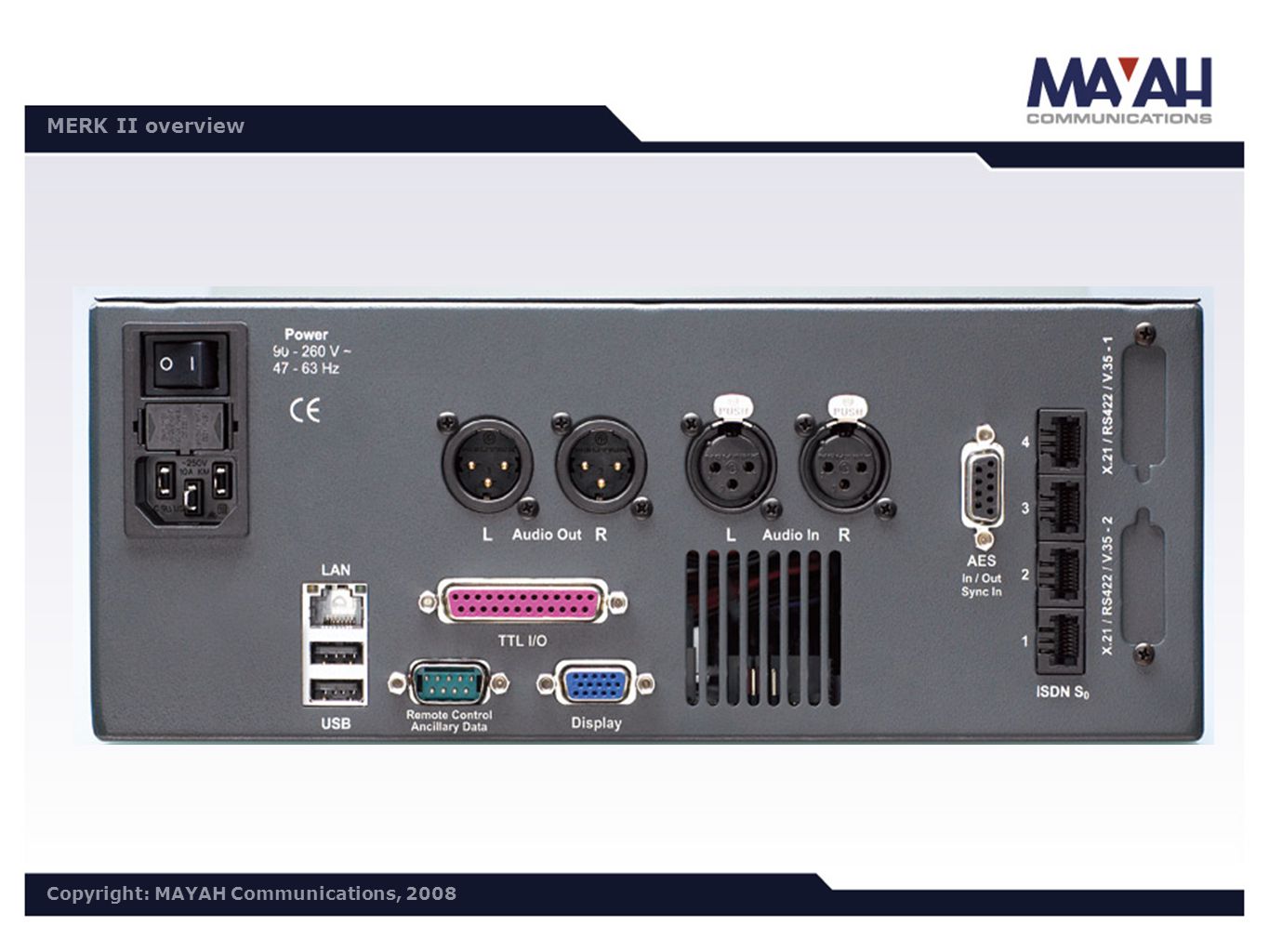

4. DISTRI Meeting 30.10./31.10.2006 Copyright: MAYAH Communications, 2006 MERK II overview Copyright: MAYAH Communications, 2008

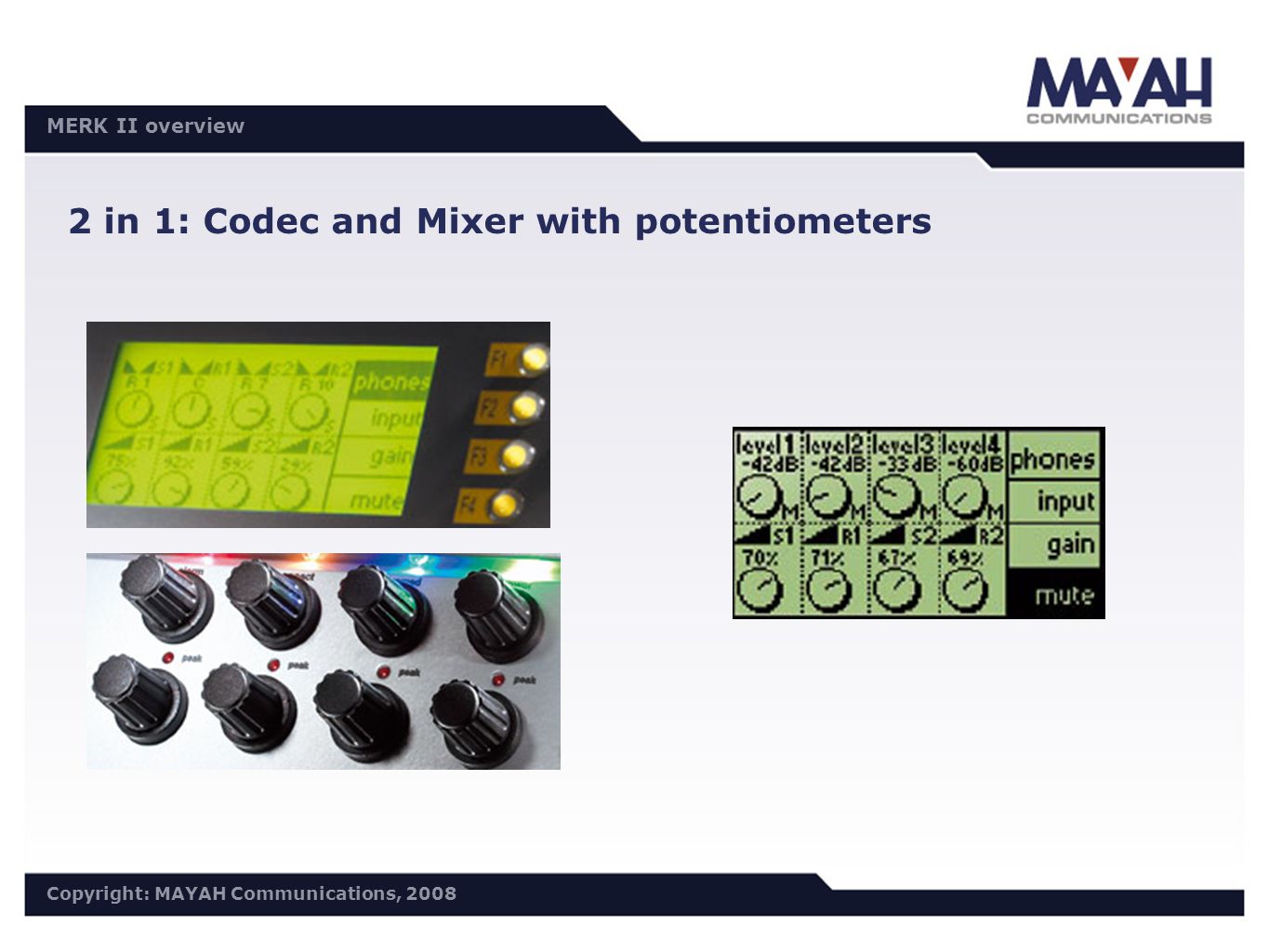

5. DISTRI Meeting 30.10./31.10.2006 Copyright: MAYAH Communications, 2006 MERK II overview Copyright: MAYAH Communications, 2008 2 in 1: Codec and Mixer with potentiometers

6. DISTRI Meeting 30.10./31.10.2006 Copyright: MAYAH Communications, 2006 MERK II overview Copyright: MAYAH Communications, 2008 MERK II Remote Mixing / Routing Software

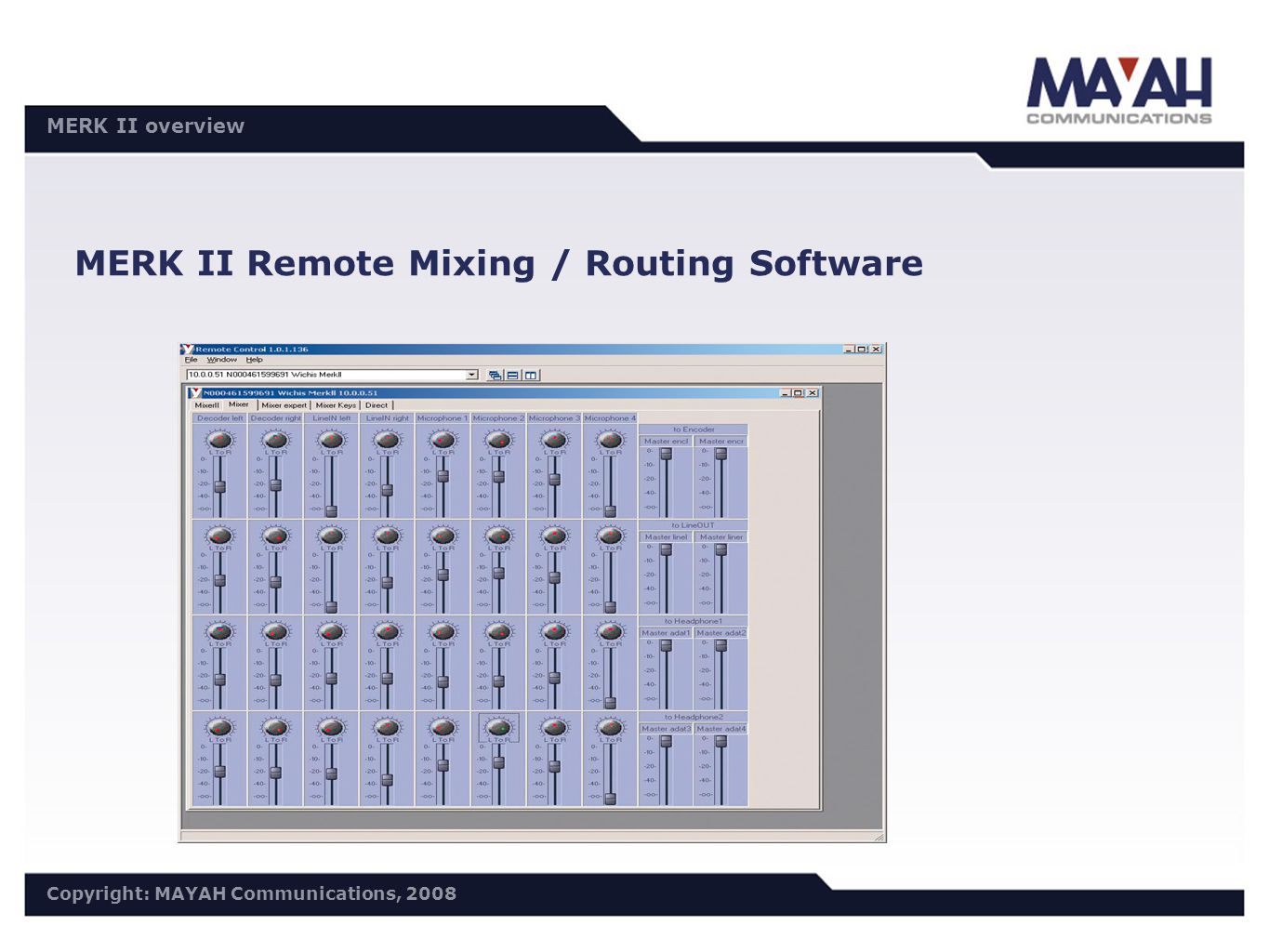

7. DISTRI Meeting 30.10./31.10.2006 Copyright: MAYAH Communications, 2006 MERK II overview Copyright: MAYAH Communications, 2008 MERK II Remote Mixing / Routing Software

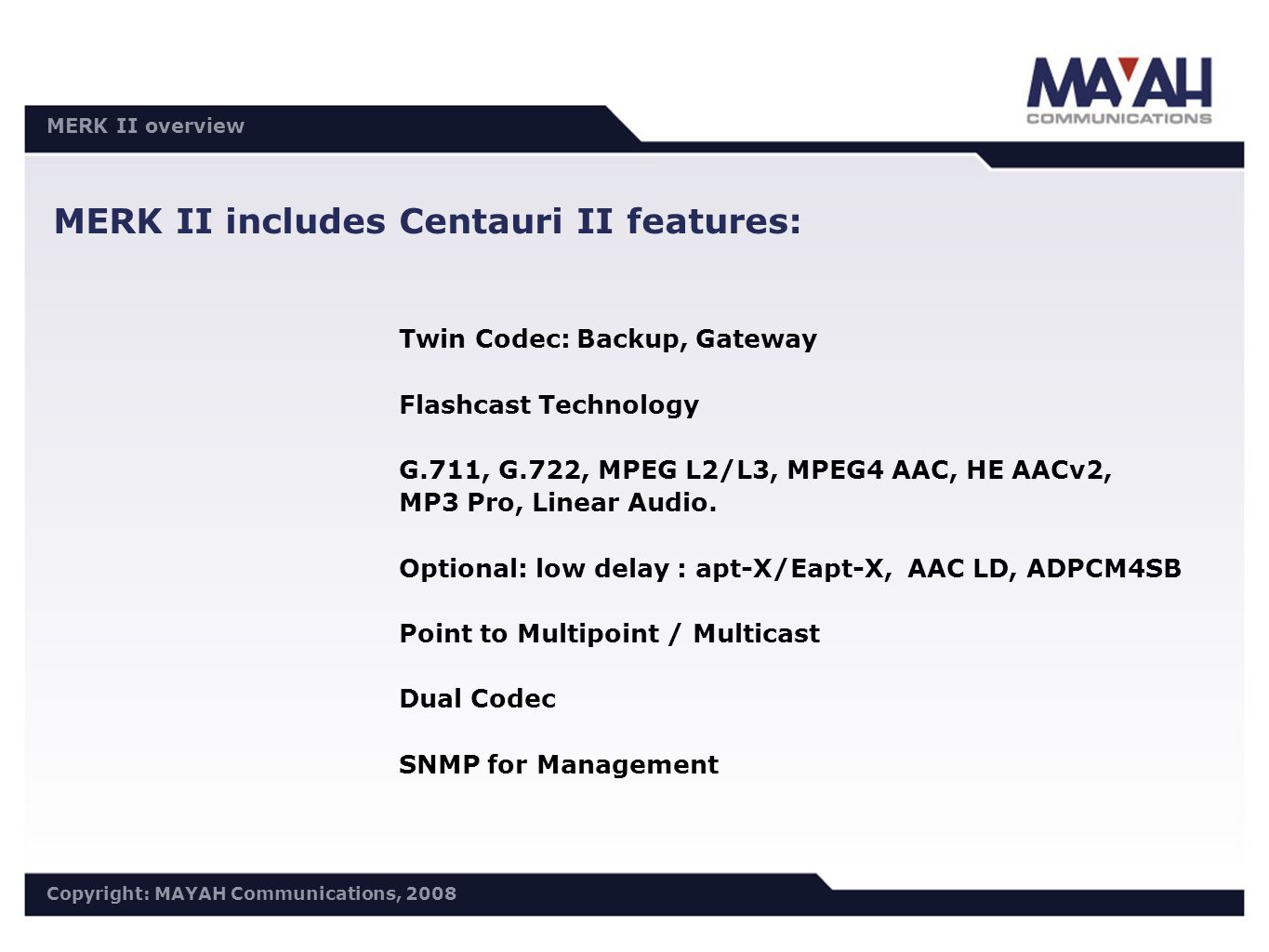

8. DISTRI Meeting 30.10./31.10.2006 Copyright: MAYAH Communications, 2006 MERK II overview Copyright: MAYAH Communications, 2008 MERK II includes Centauri II features: Twin Codec: Backup, Gateway Flashcast Technology G.711, G.722, MPEG L2/L3, MPEG4 AAC, HE AACv2, MP3 Pro, Linear Audio. Optional: low delay : apt-X/Eapt-X, AAC LD, ADPCM4SB Point to Multipoint / Multicast Dual Codec SNMP for Management

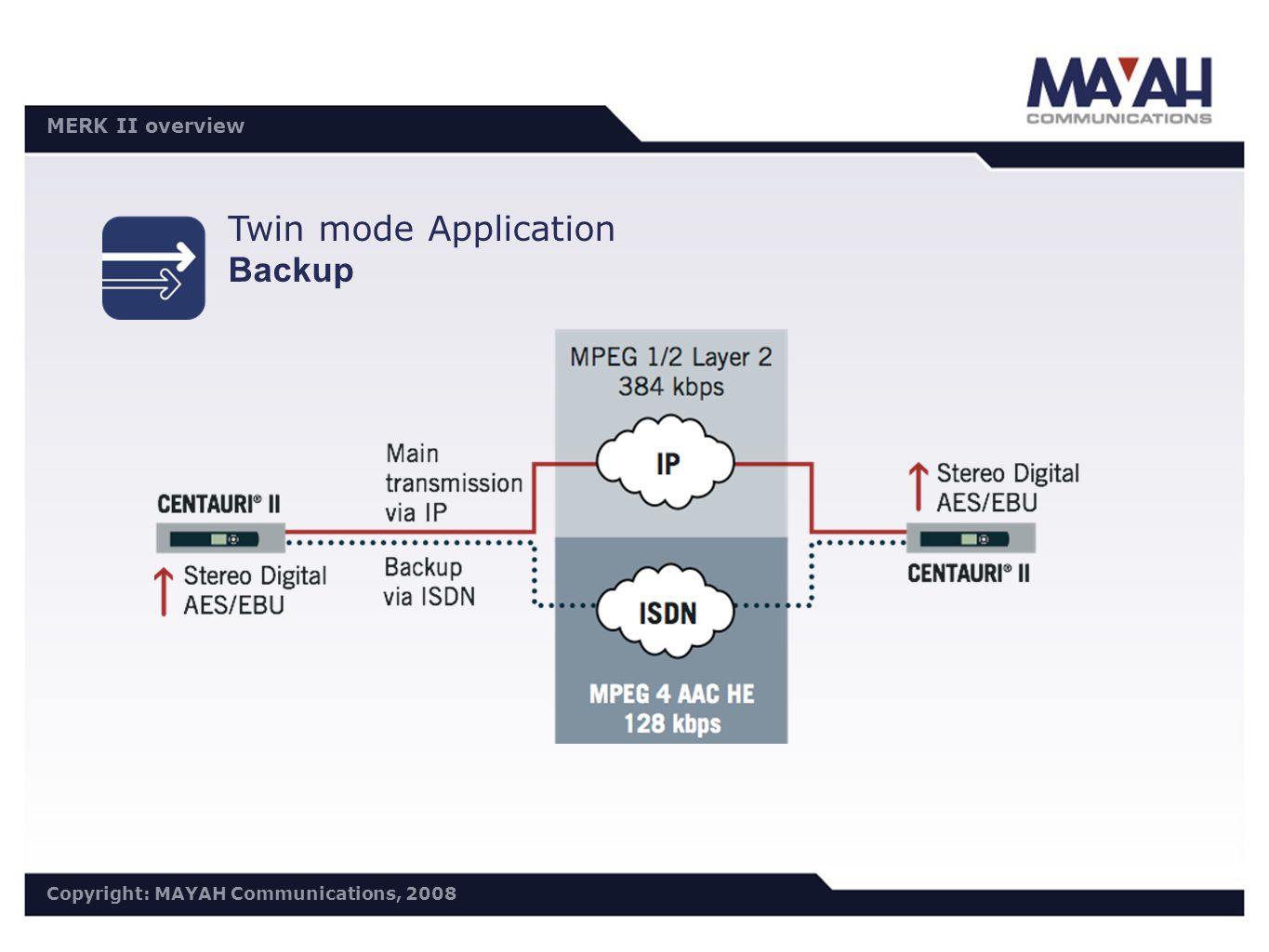

9. DISTRI Meeting 30.10./31.10.2006 Copyright: MAYAH Communications, 2006 MERK II overview Copyright: MAYAH Communications, 2008 Twin mode Application Backup

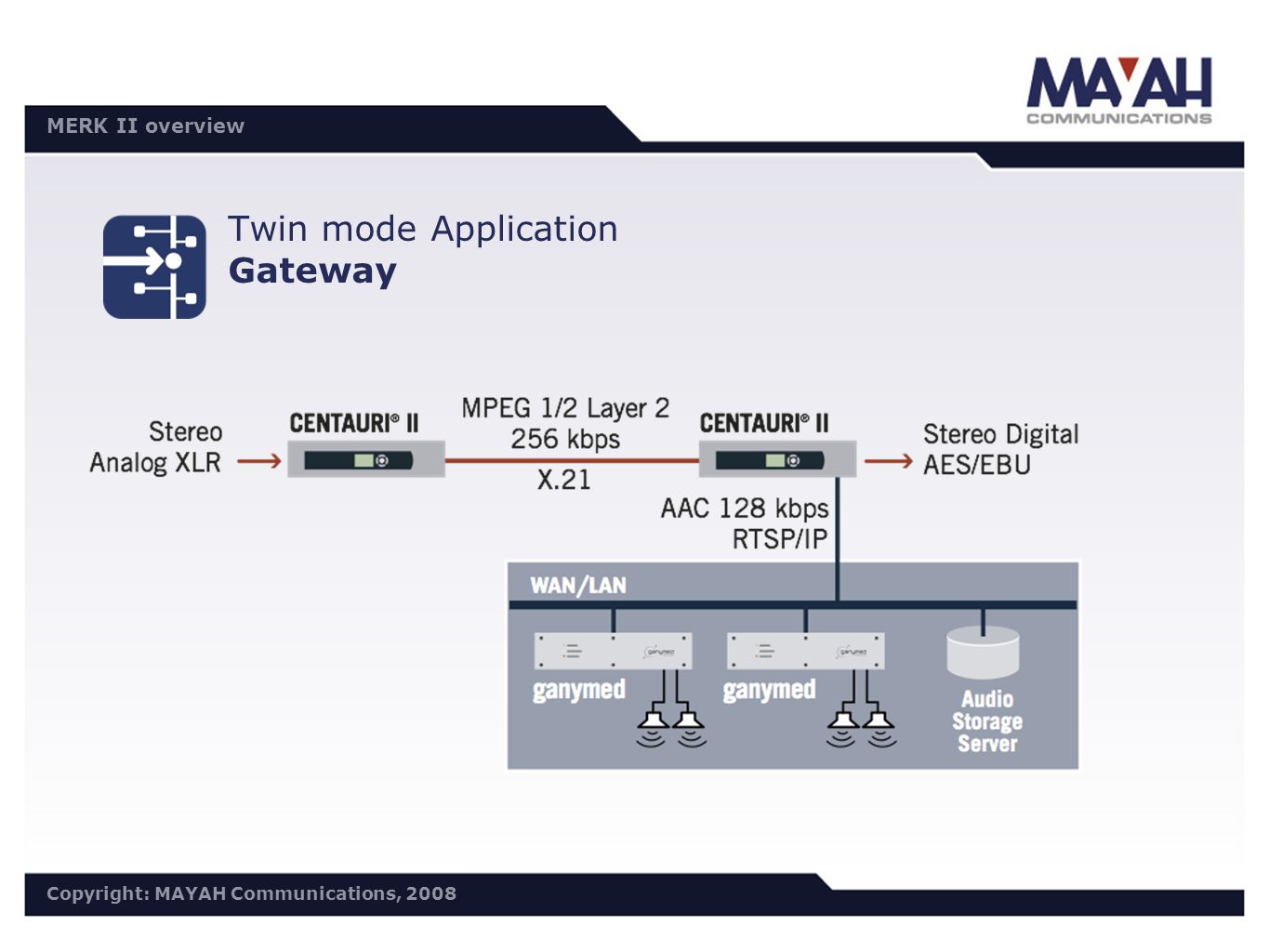

10. DISTRI Meeting 30.10./31.10.2006 Copyright: MAYAH Communications, 2006 MERK II overview Copyright: MAYAH Communications, 2008 Twin mode Application Gateway

11. DISTRI Meeting 30.10./31.10.2006 Copyright: MAYAH Communications, 2006 MERK II overview Copyright: MAYAH Communications, 2008 MAYAH's well-known compatibility (ISDN): Dialog4 VP, VP-Pro, Slimline Telos Zephyr CCS CDQPRIMA, RoadRunner, CDQ1000 AEQ and Glennsound AVT (formerly PKI) 7kHz Telephone and MAGIC RE 660/661 Audio and Anc. Data and many more  The compatibility is restricted to algorithms, bit-rates, sampling rates, inverse multiplexing algorithms and audio codecs already recognised by the MERK II. Specific software and/or firmware versions can adversely affect compatibility.

12. DISTRI Meeting 30.10./31.10.2006 Copyright: MAYAH Communications, 2006 MERK II overview Copyright: MAYAH Communications, 2008 SIP Compatibility (in progress) G711 G722 MPEG Layer-2 MPEG Layer-3 Linear Audio AAC MPEG2 AAC MPEG4 HE-AACv2 AAC ELD APT-X G711 G722 MPEG Layer-2 G711 G722 MPEG Layer-2 MPEG Layer-3 G711 G722 MPEG Layer-2

13. DISTRI Meeting 30.10./31.10.2006 Copyright: MAYAH Communications, 2006 MERK II overview Copyright: MAYAH Communications, 2008 SIP Compatibility (in progress) G711 G722 MPEG Layer-2 MPEG Layer-3 Linear Audio G711 G722 G711 G722 MPEG Layer-2 MPEG Layer-3 is in progress

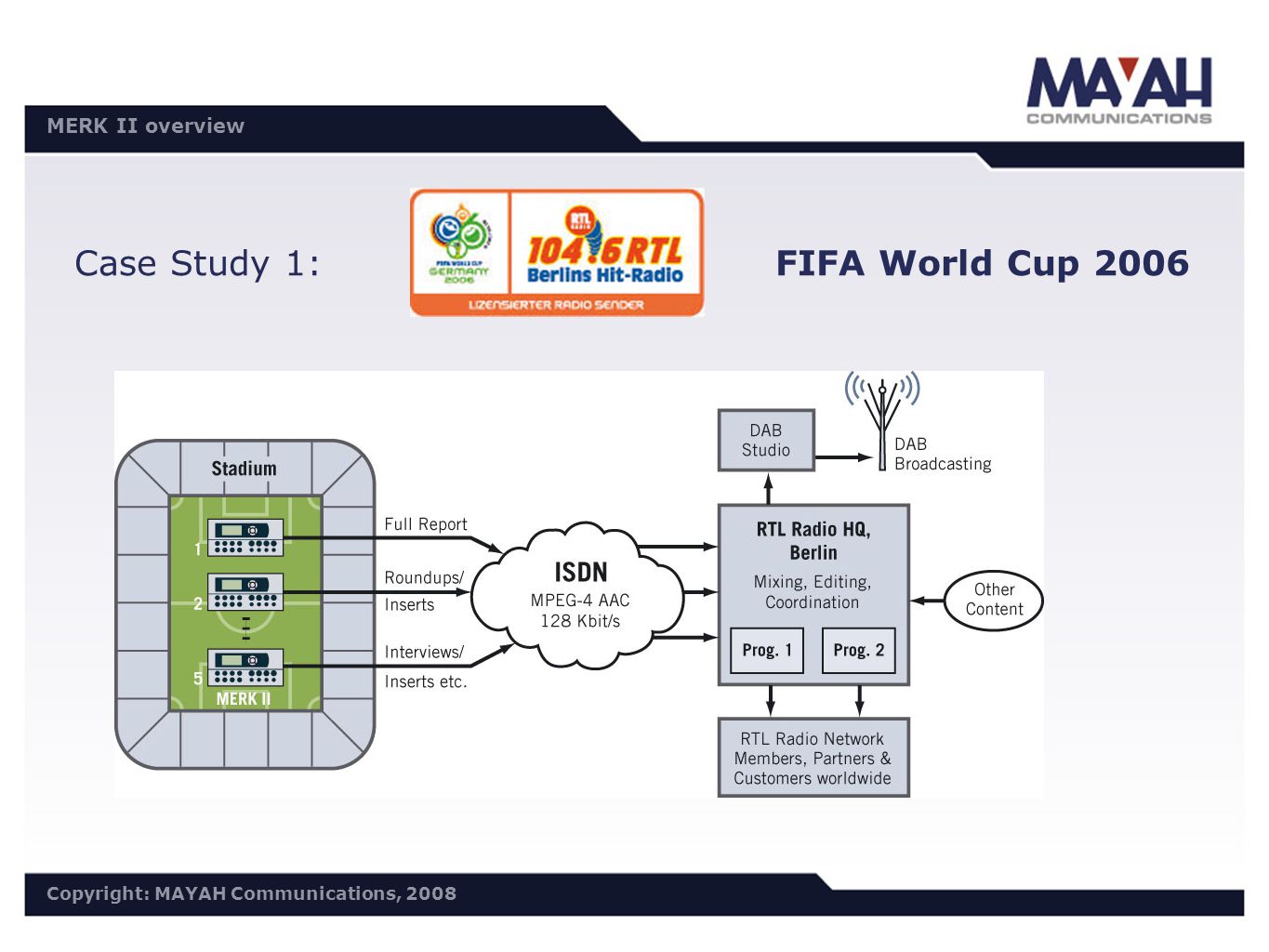

14. DISTRI Meeting 30.10./31.10.2006 Copyright: MAYAH Communications, 2006 MERK II overview Copyright: MAYAH Communications, 2008 Case Study 1: FIFA World Cup 2006

15. DISTRI Meeting 30.10./31.10.2006 Copyright: MAYAH Communications, 2006 MERK II overview Copyright: MAYAH Communications, 2008 Case Study 2:
