29 CFR 1910 Subpart H Hazardous Materials Presenter Roberto Dickinson OSHA Training Institute Instructor
2
Compressed Gas Handling - Storage and Use 10.101(b) - 133 Spray Booth - Air Velocity 10.107(b)(5)(i) - 108 Class I Liquids - Dispensing 10.106(e)(6)(ii) - 97 Spray Area - Approved Electrical Equipment 10.107(c)6) - 87 Sources of ignition - Precautions 10.106(e)(6(i) - 86 Sub H - Most Frequently Cited Standard
3
NASA MISHAP
4
OSHA STANDARDS 29 CFR 1910 General Industry 1910. Subpart H
5
1910 - Subpart H Hazardous Materials 1910.101 Compressed Gases 1910.102 Acetylene 1910.103 Hydrogen 1910.104 Oxygen 1910.105 Nitrous Oxide 1910.106 Flammable and Combustible liquids 1910.107 Spray finishing 1910.109 Explosives 1910.110 Storage and handling of LPG gases 1910.111 Storage and handling of Anhydrous ammonia 1910.119 Process safety management 1910.120 Hazardous waste operations and emergency response 1910..122-126 Dipping and coating operations
6
101(a) Inspection of compressed gas cylinders (a) Each employer shall determine that compressed gas cylinders under his control are in a safe condition to the extent that this can be determined by visual inspection. Visual and other inspections shall be conducted as prescribed in the Hazardous Materials Regulations of the Department of Transportation (49 CFR parts 171-179 and 14 CFR part 103). Where those regulations are not applicable, visual and other inspections shall be conducted in accordance with Compressed Gas Association Pamphlets C-6-1968 and C-8- 1962, which is incorporated by reference as specified in Sec. 1910.6.
7
(a) Inspection of compressed gas cylinders In safe condition by visual inspection in accordance with CGA C-6 & 8 - Gas suppliers recommend: 1910.101 - Compressed gases General requirements

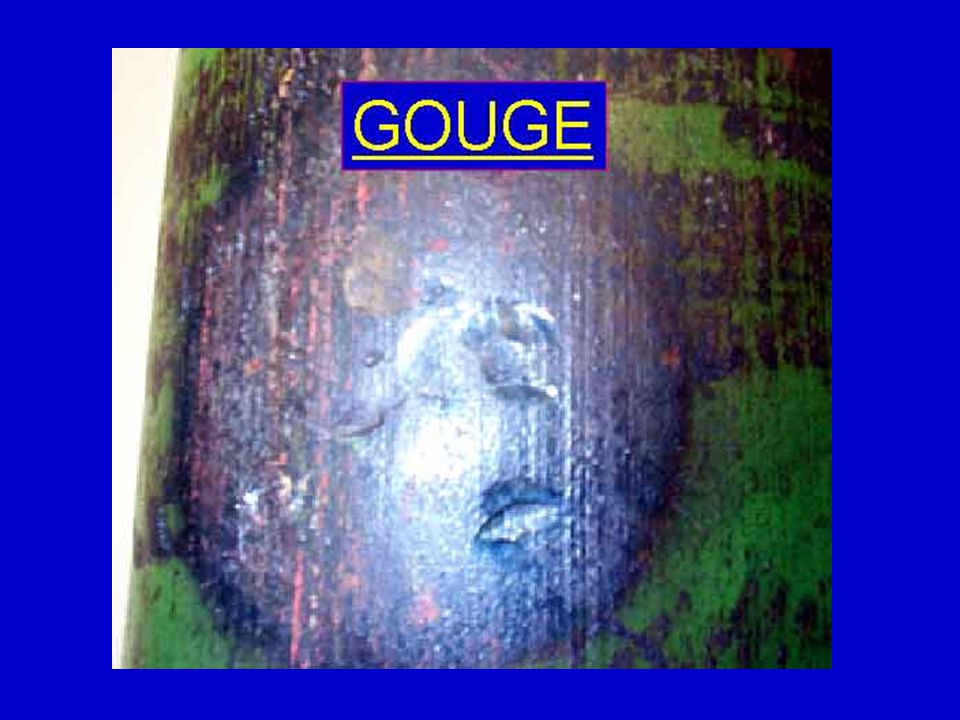

10

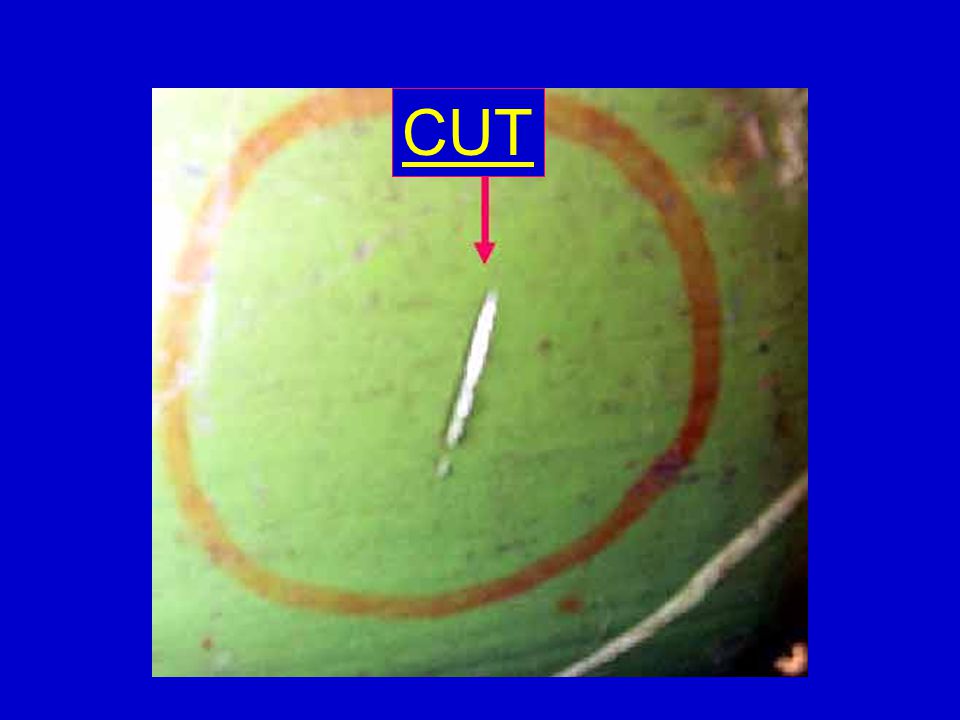

CUT
11
Pitting due to corrosion
12

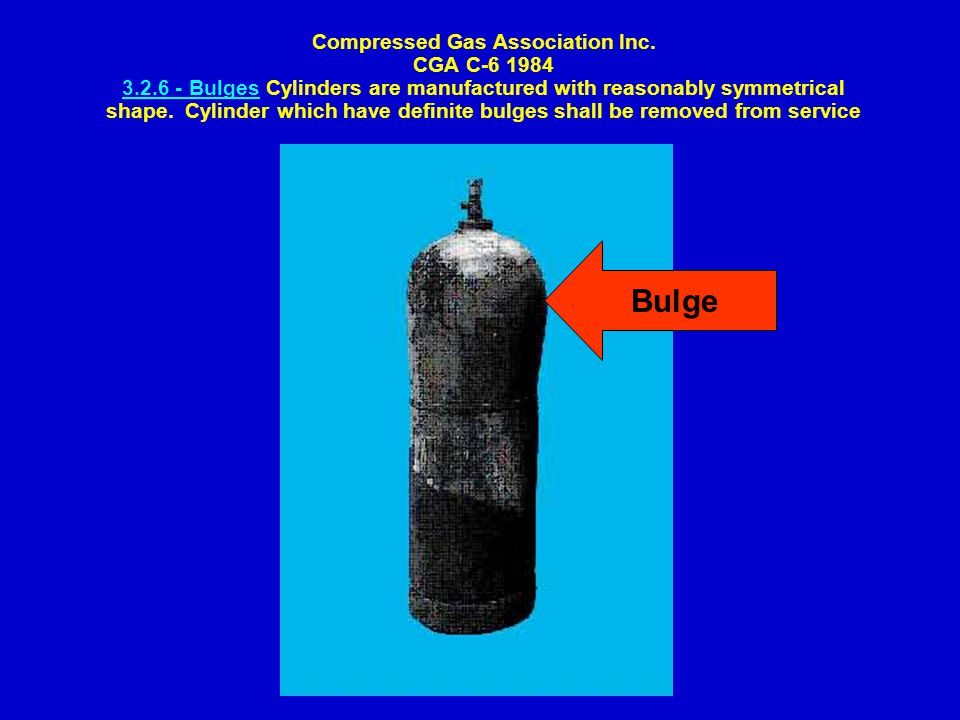

Compressed Gas Association Inc. CGA C-6 1984 3.2.6 - Bulges Cylinders are manufactured with reasonably symmetrical shape. Cylinder which have definite bulges shall be removed from service Bulge
13

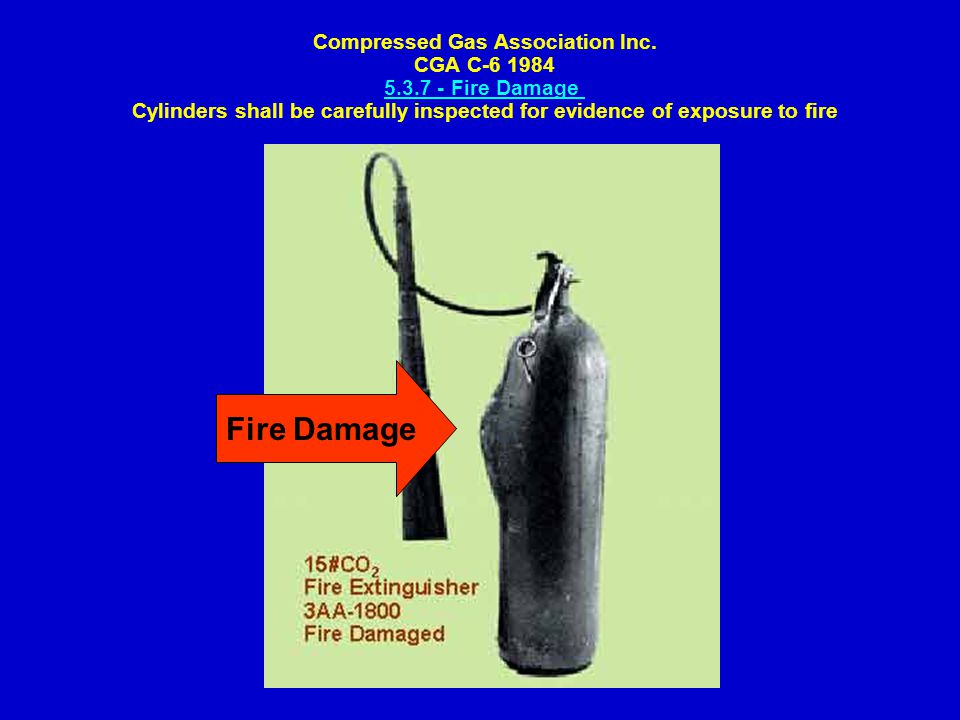

Compressed Gas Association Inc. CGA C-6 1984 5.3.7 - Fire Damage Cylinders shall be carefully inspected for evidence of exposure to fire Fire Damage
14

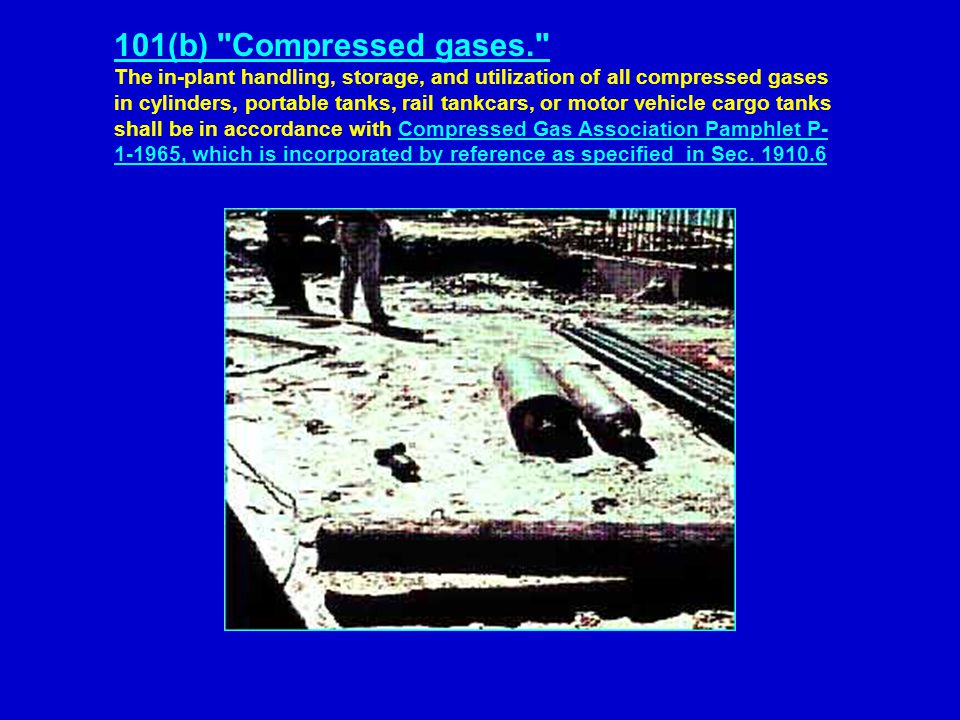

101(b) "Compressed gases." The in-plant handling, storage, and utilization of all compressed gases in cylinders, portable tanks, rail tankcars, or motor vehicle cargo tanks shall be in accordance with Compressed Gas Association Pamphlet P- 1-1965, which is incorporated by reference as specified in Sec. 1910.6
15

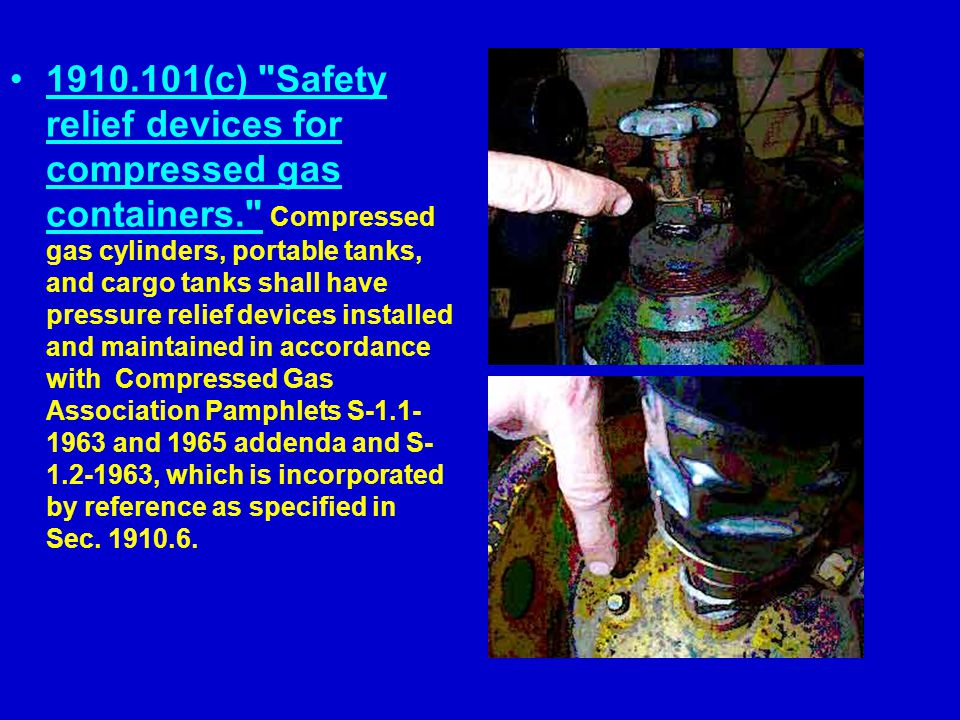

1910.101(c) "Safety relief devices for compressed gas containers." Compressed gas cylinders, portable tanks, and cargo tanks shall have pressure relief devices installed and maintained in accordance with Compressed Gas Association Pamphlets S-1.1- 1963 and 1965 addenda and S- 1.2-1963, which is incorporated by reference as specified in Sec. 1910.6.
16
Propane Tank - Relief Valve
17
1910.101(b) Compressed gas association Pamphlet P-1 –Utilization of all compressed gases in: Portable tanks Rail Tank Cars Motor Vehicle Cargo Tank
18
Pamphlet P-1 3.1General 1 DOt/ICC markings “3AA” indicates specs in 49CFR 178.37 2 Serial number with no duplications 3 Symbol of manufacturer, user, or purchaser 4 “6 56” date of mfg., month and year 5 + plus mark indicates 10% overcharged 6 Retest dates 7 * 5 pointed star indicates 10yr retest
19
ICC Regulations Charging Transferring Stamping Leaks ICC label Markings Temperature Low Temp Relief valves Repairs Valve closed Section 3.1- General
20

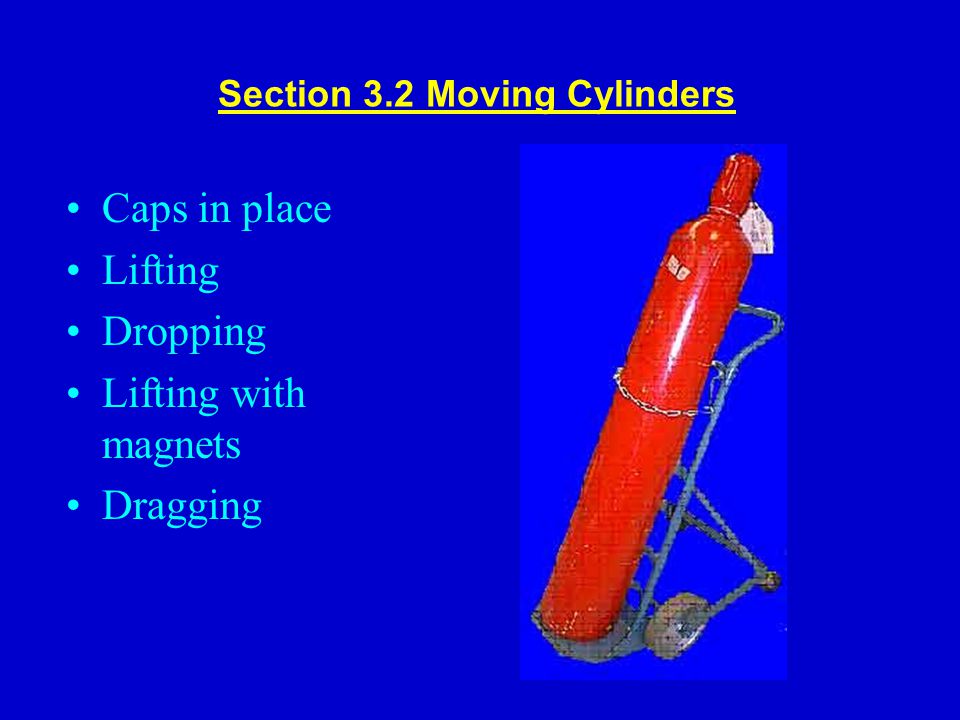

Caps in place Lifting Dropping Lifting with magnets Dragging Section 3.2 Moving Cylinders
21
3.2.6 - Suitable hand truck

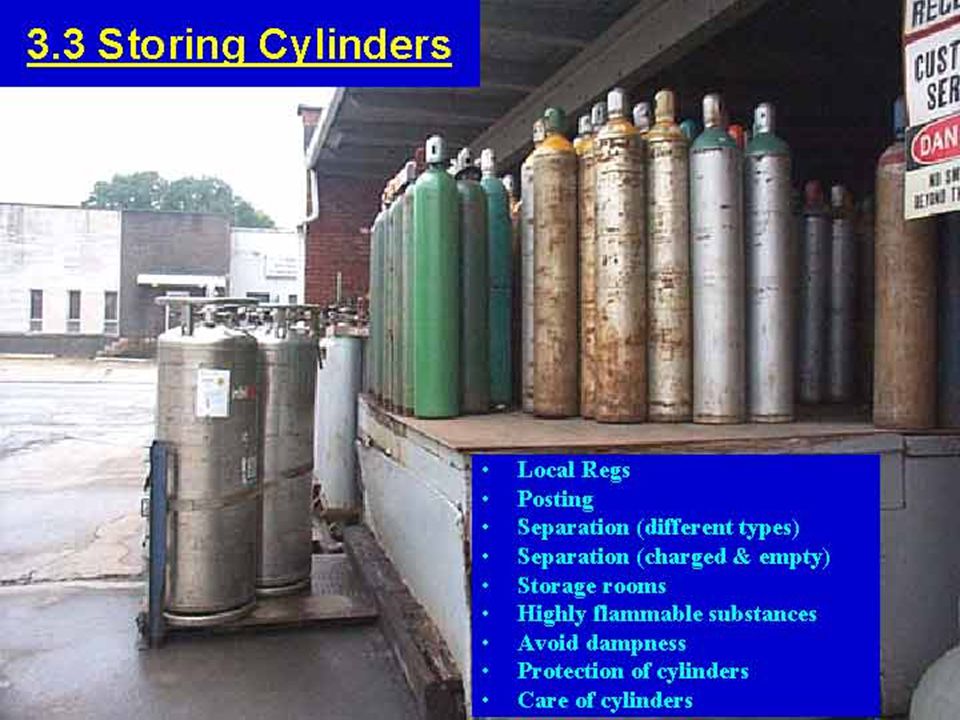

23
Improper Storage
24

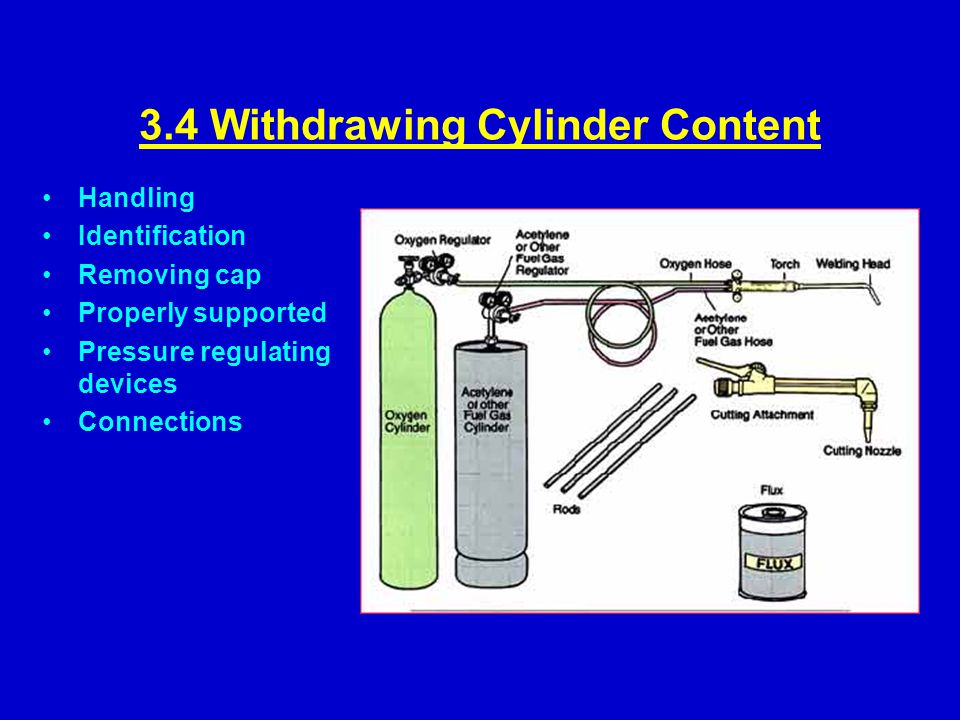

3.4 Withdrawing Cylinder Content Handling Identification Removing cap Properly supported Pressure regulating devices Connections
25
3.5.3 Separation of Flammable Gases
26
Section 4 General Precautions For Tank Car Charging Approval Stencil - ID “Dangerous Placard” Leaks Safe Handling Bureau of Explosives Relief Valve Shippers Diagram Private Track Brakes/Wheels Derails Electrical Grounding
27

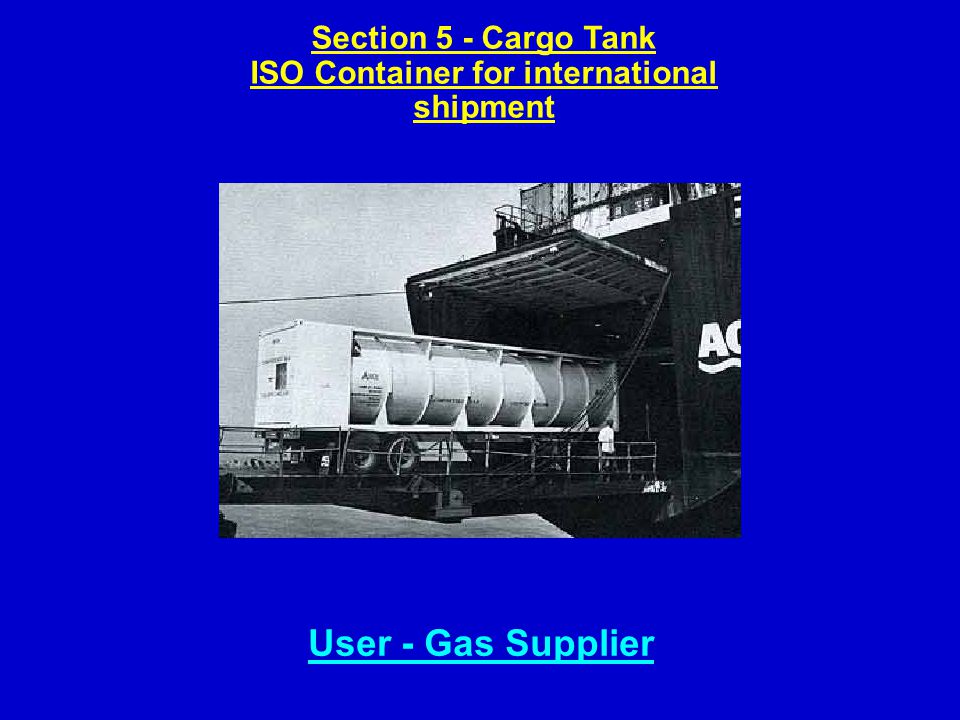

Section 5 - Cargo Tank ISO Container for international shipment User - Gas Supplier
28
1910.106 - Flammable and combustible liquids
29

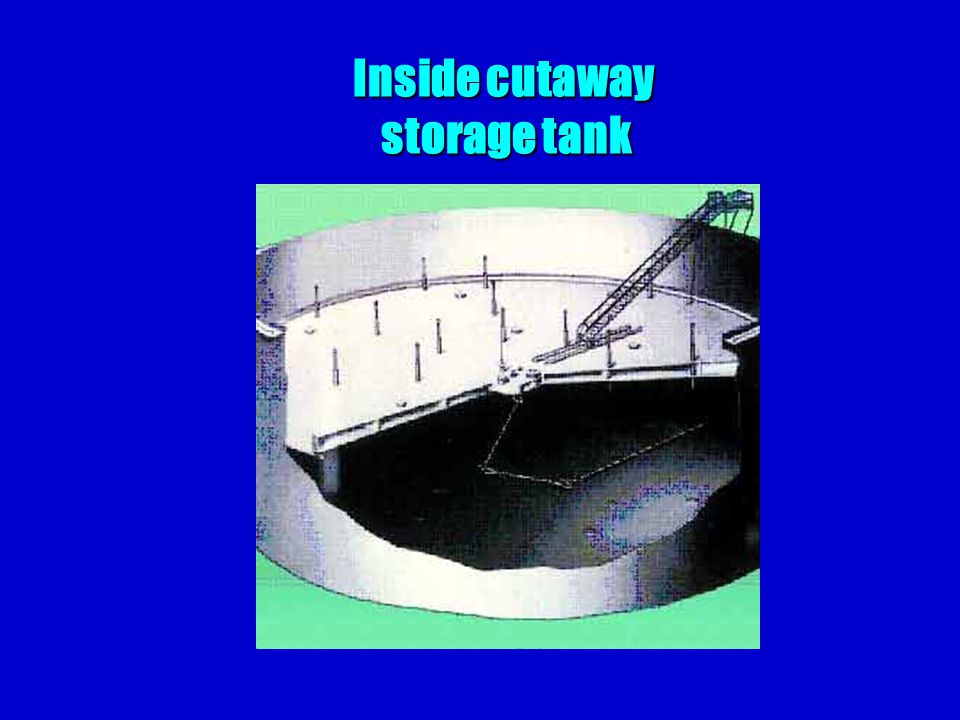

Inside cutaway storage tank
30

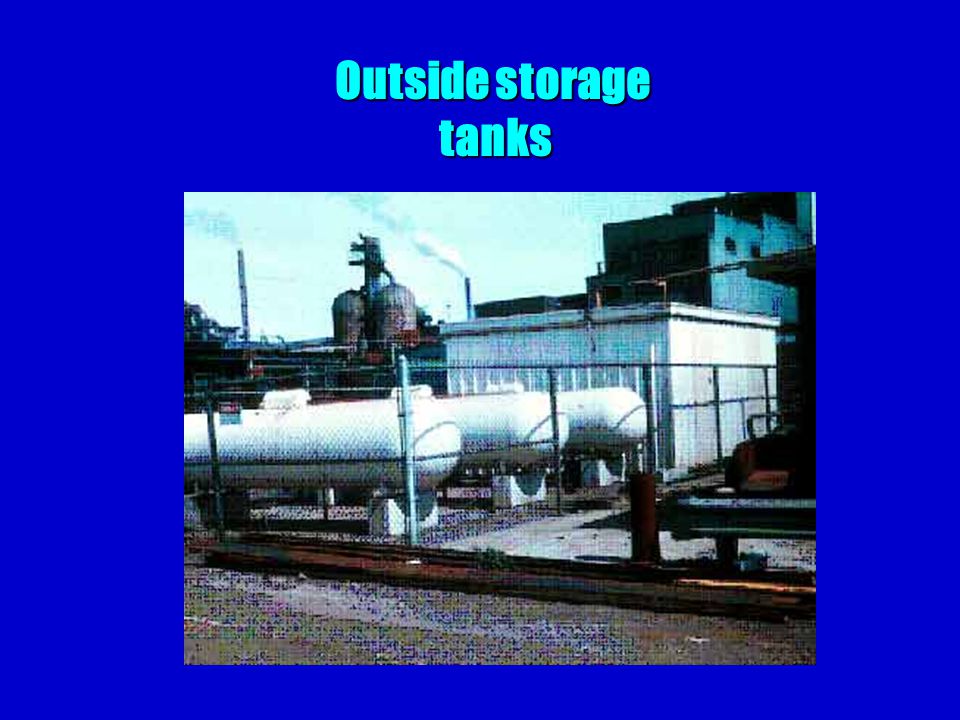

Outside storage tanks
31
tank
32
Classes of flammable and combustible liquids
33

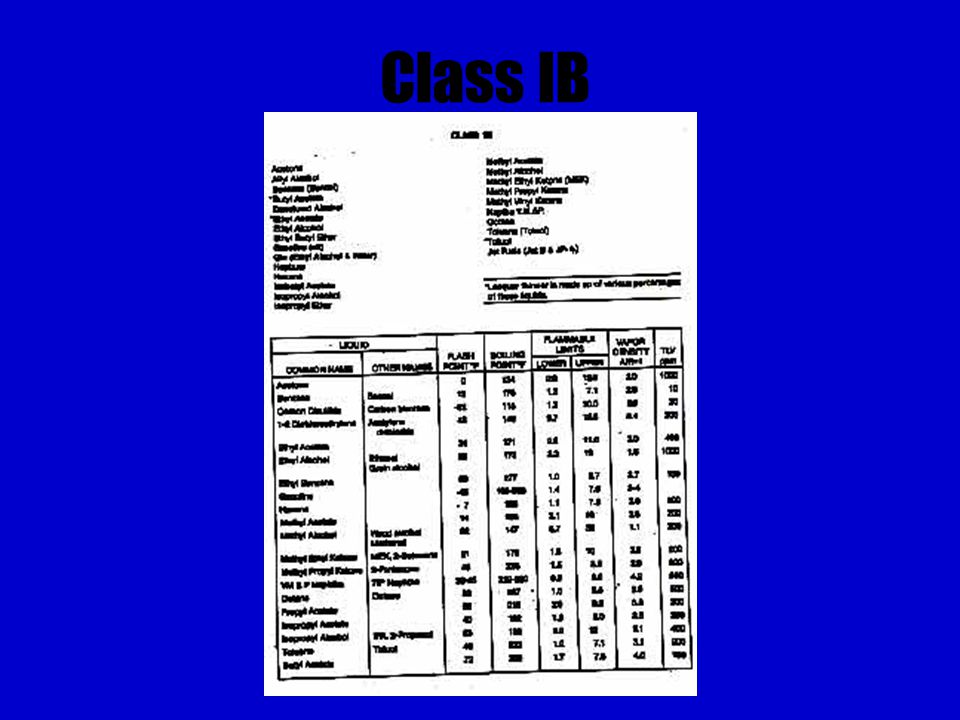

Class IB
34
Class IC
35
Combustible liquids
36
Class III liquids
37
Non flammable liquids
38
Flammable storage cabinet
39

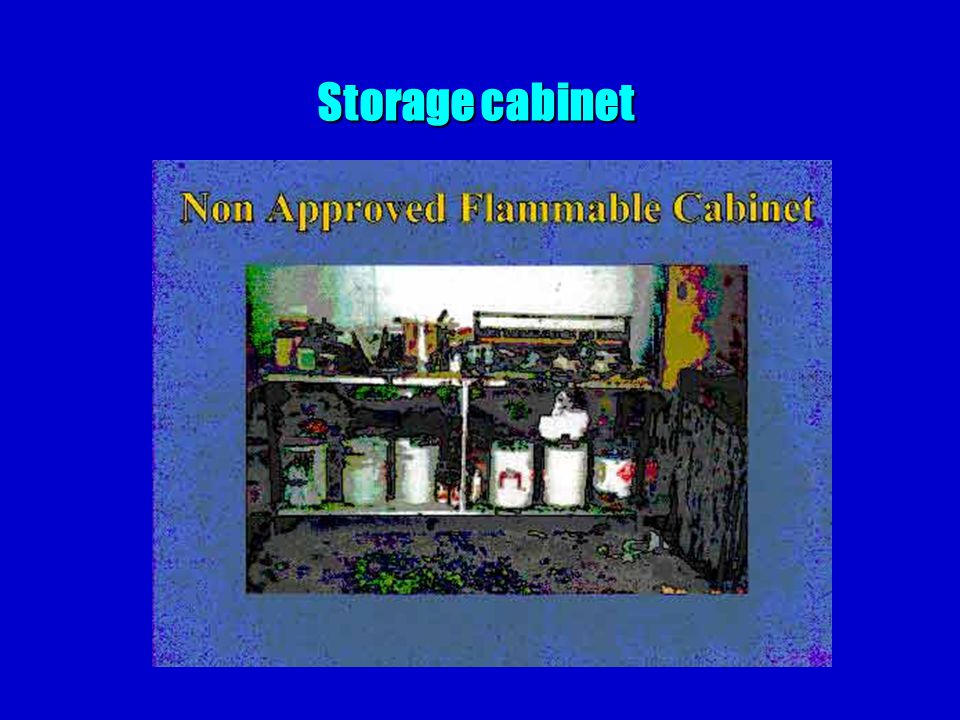

Storage cabinet
40

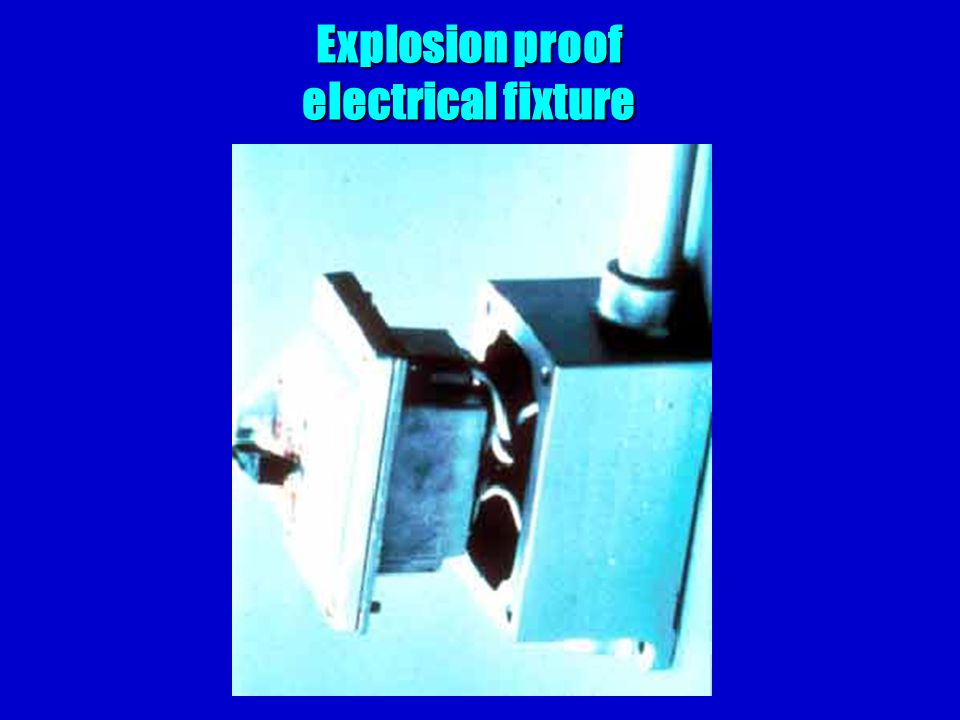

Explosion proof electrical fixture
41

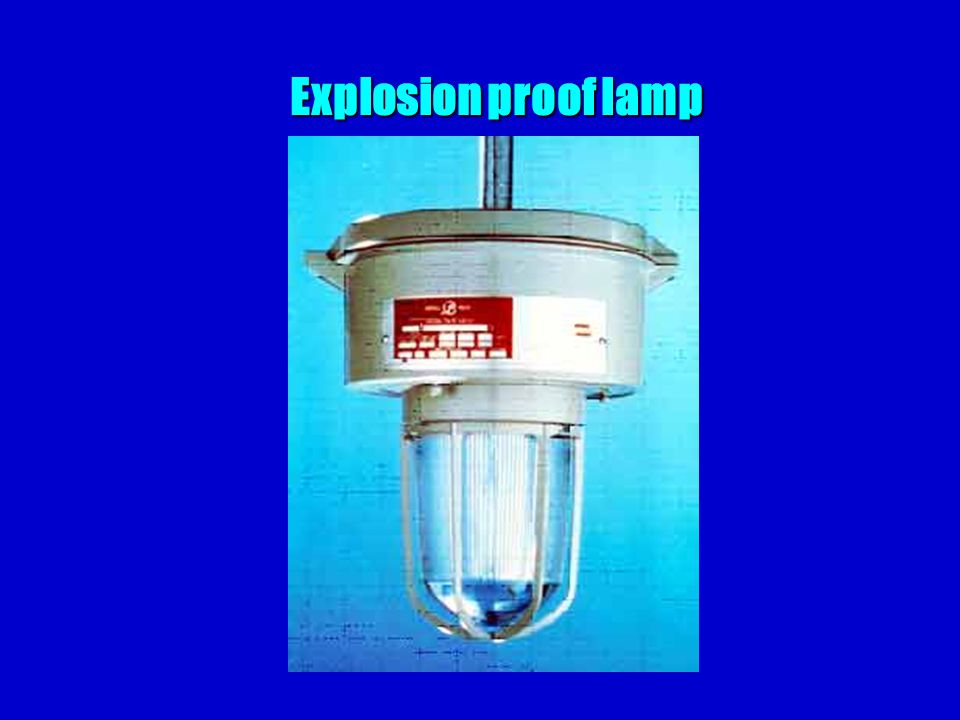

Explosion proof lamp
42
Inside storage room
43
Gasoline container (can)
44

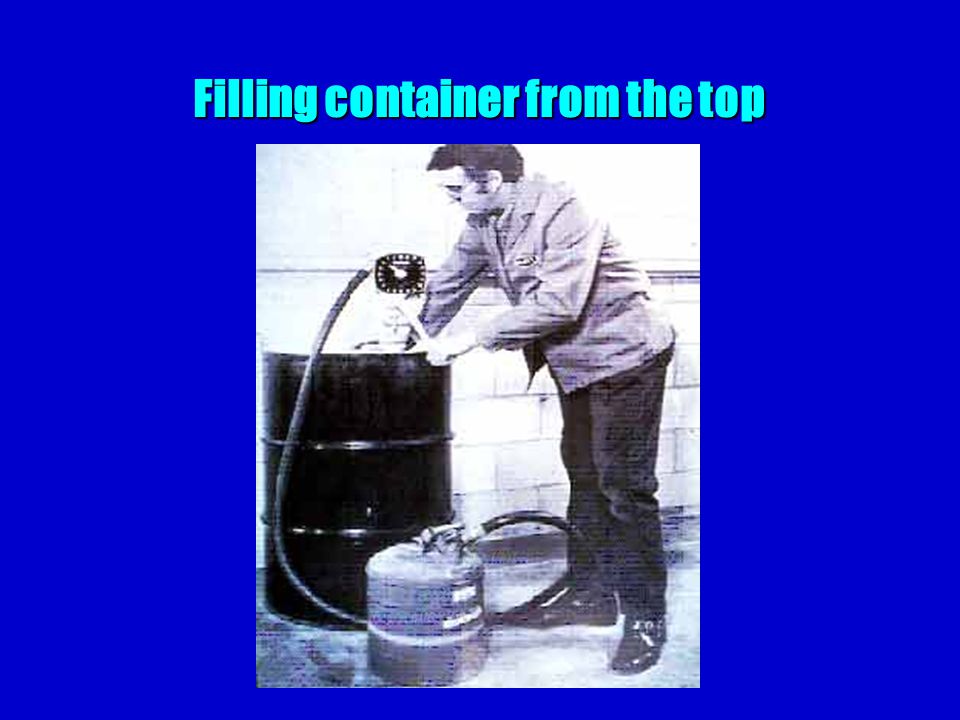

Filling container from the top Filling container from the top
45

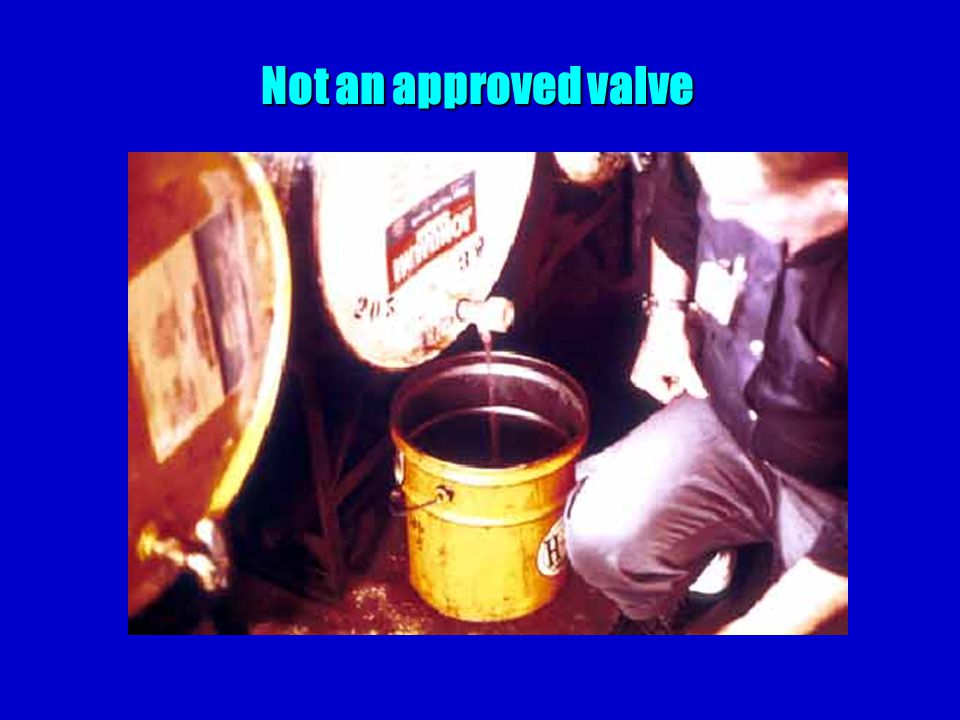

Not an approved valve
46
Open flame/ spark
47
Bonding
48

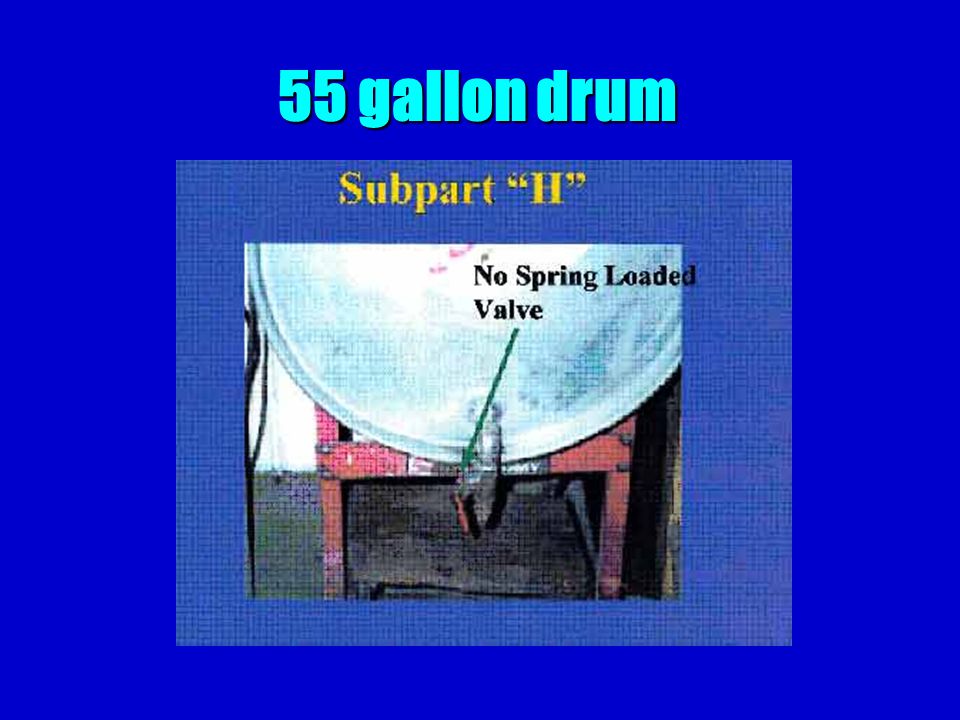

55 gallon drum
49
Not approved butterfly valve
50

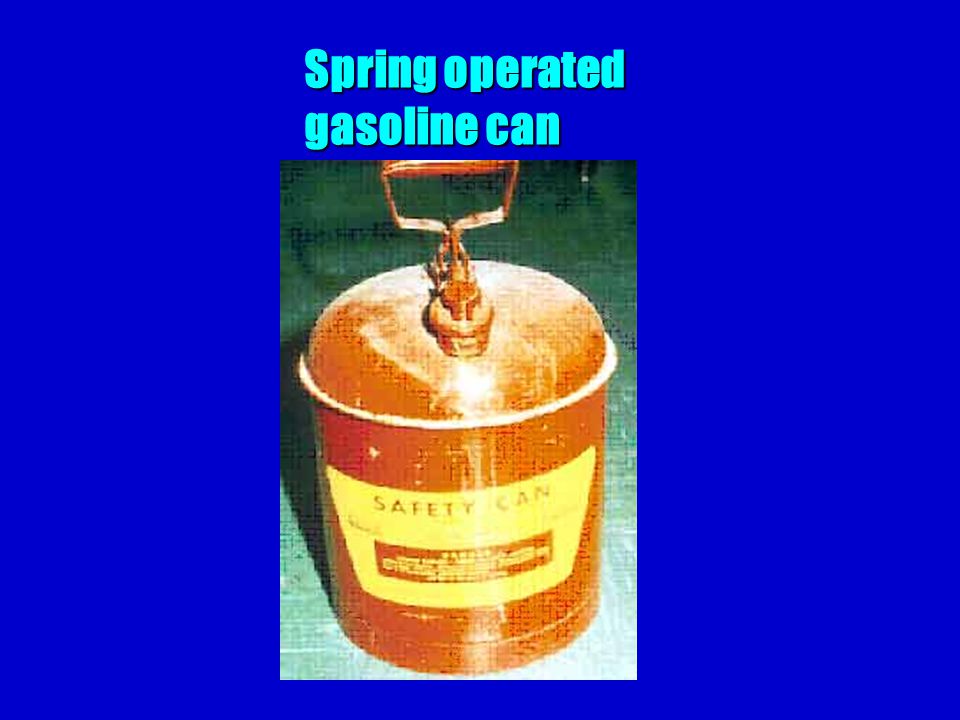

Spring operated gasoline can
52
Spray gun and equipment for spraying operations
53
Visible gauges or audible alarm
54

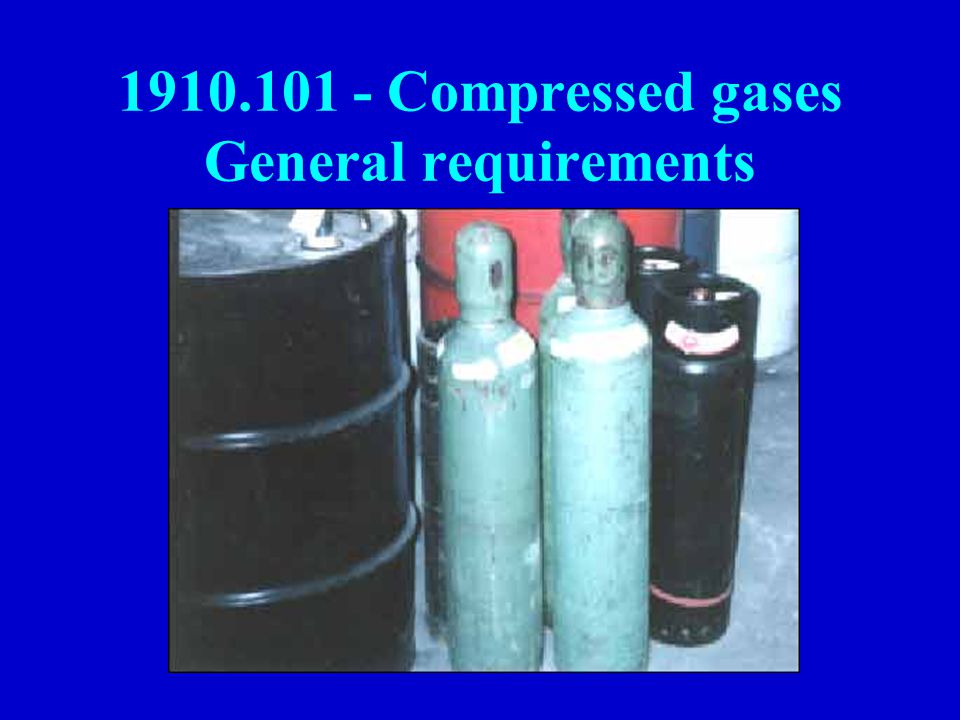

1910.101 - Compressed gases General requirements
55
Cross section cylinders
