1. Strengthening our Community Tree Canopy Through Education Module #3: Pruning Young Trees in the Urban Landscape Laura Sanagorski, Environmental Horticulture Extension Faculty

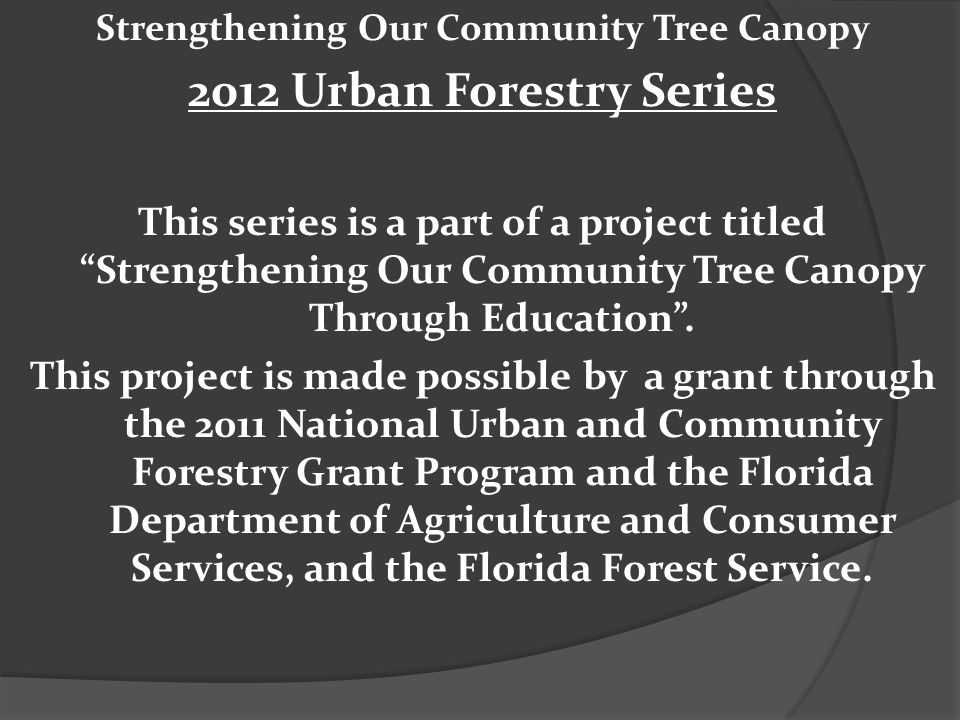

2. Strengthening Our Community Tree Canopy 2012 Urban Forestry Series This series is a part of a project titled “Strengthening Our Community Tree Canopy Through Education”. This project is made possible by a grant through the 2011 National Urban and Community Forestry Grant Program and the Florida Department of Agriculture and Consumer Services, and the Florida Forest Service.

3. Pruning Young Trees in the Urban Landscape

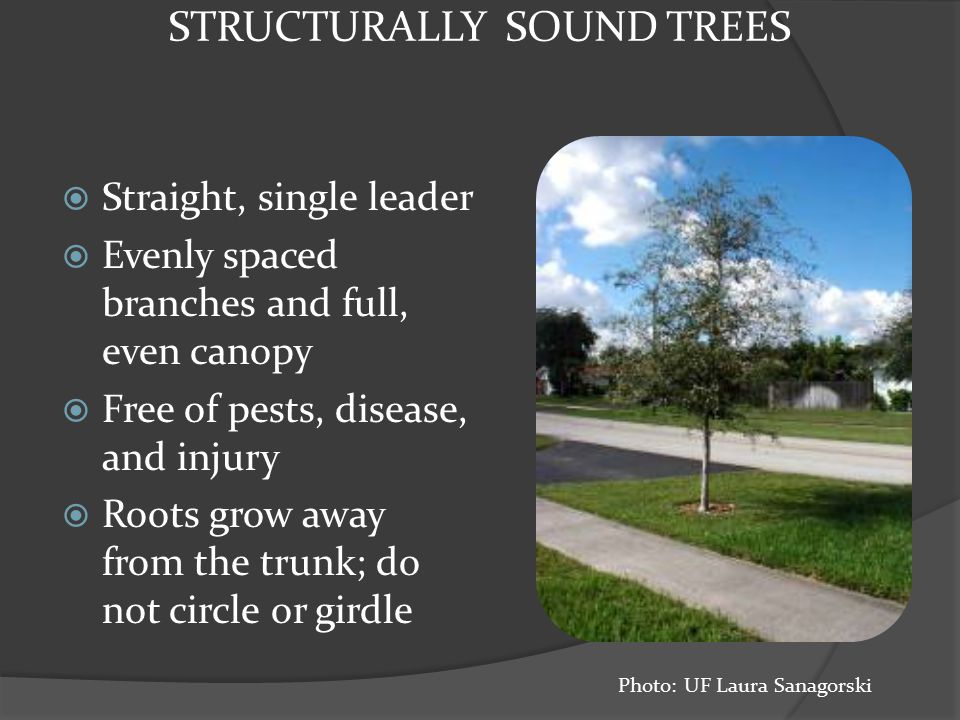

4.  Straight, single leader  Evenly spaced branches and full, even canopy  Free of pests, disease, and injury  Roots grow away from the trunk; do not circle or girdle STRUCTURALLY SOUND TREES Photo: UF Laura Sanagorski

5.  Every pruning cut: Creates potential entry points for decay organisms Promotes shoot elongation Reduces photosynthesis Causes consumption of stored carbohydrates EFFECTS OF PRUNING Photo: UF Laura Sanagorski

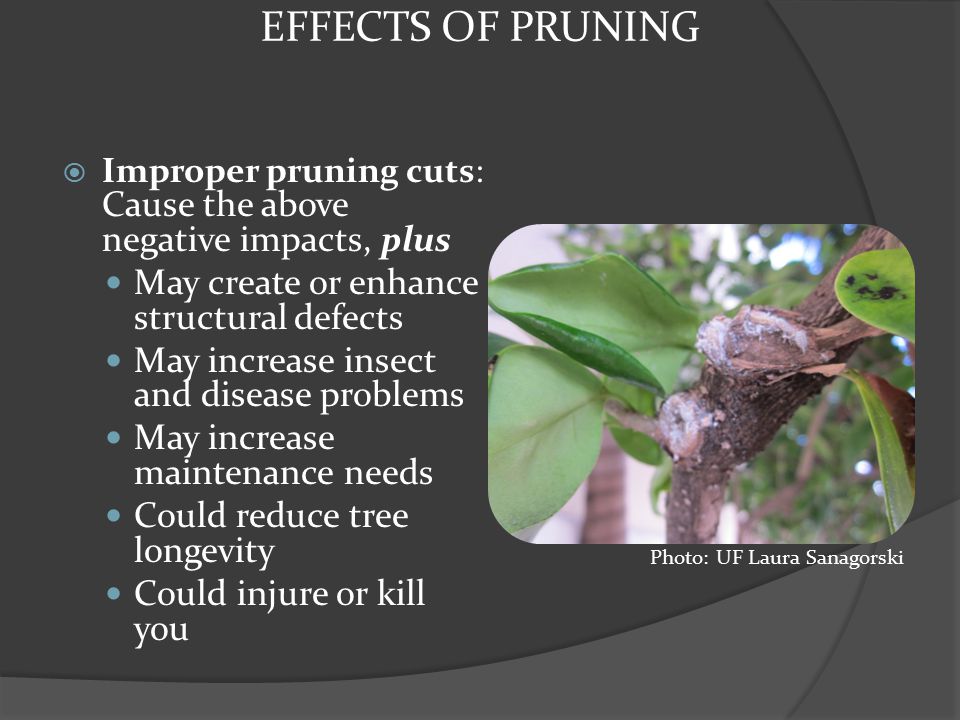

6.  Improper pruning cuts: Cause the above negative impacts, plus May create or enhance structural defects May increase insect and disease problems May increase maintenance needs Could reduce tree longevity Could injure or kill you EFFECTS OF PRUNING Photo: UF Laura Sanagorski

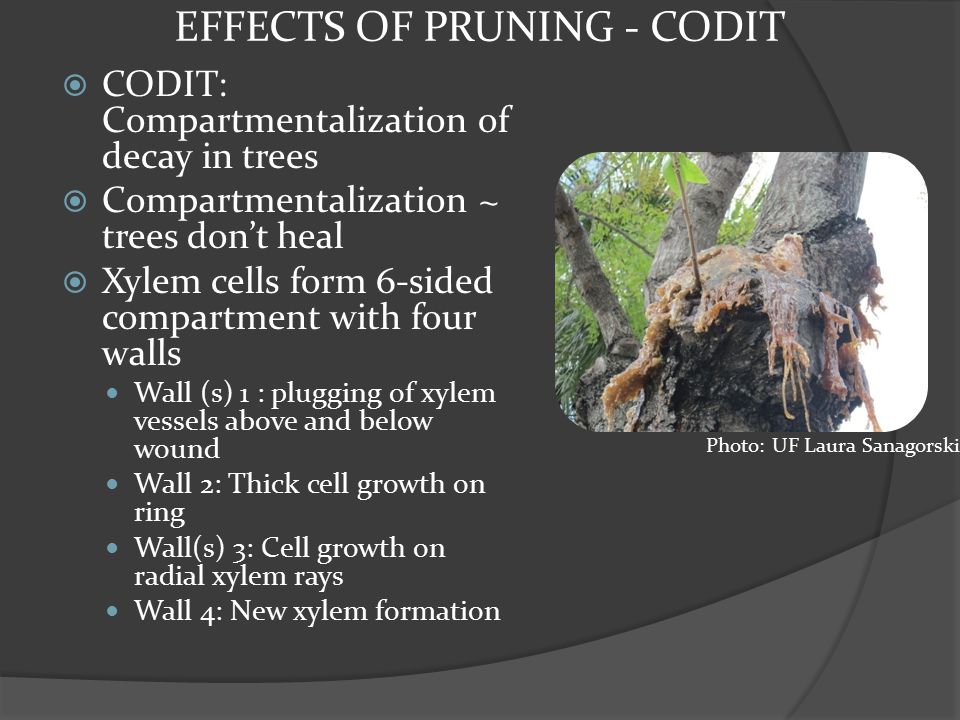

7.  CODIT: Compartmentalization of decay in trees  Compartmentalization ~ trees don’t heal  Xylem cells form 6-sided compartment with four walls Wall (s) 1 : plugging of xylem vessels above and below wound Wall 2: Thick cell growth on ring Wall(s) 3: Cell growth on radial xylem rays Wall 4: New xylem formation EFFECTS OF PRUNING - CODIT Photo: UF Laura Sanagorski

8. Compartmentalization Of Decay In Trees (CODIT) – Wall (s) 1 : plugging of xylem vessels above and below wound – Wall 2: Thick cell growth on ring – Wall(s) 3: Cell growth on radial xylem rays – Wall 4: New xylem formation USDA Forest Service - Northeastern Area Archive, USDA Forest Service, Bugwood.org

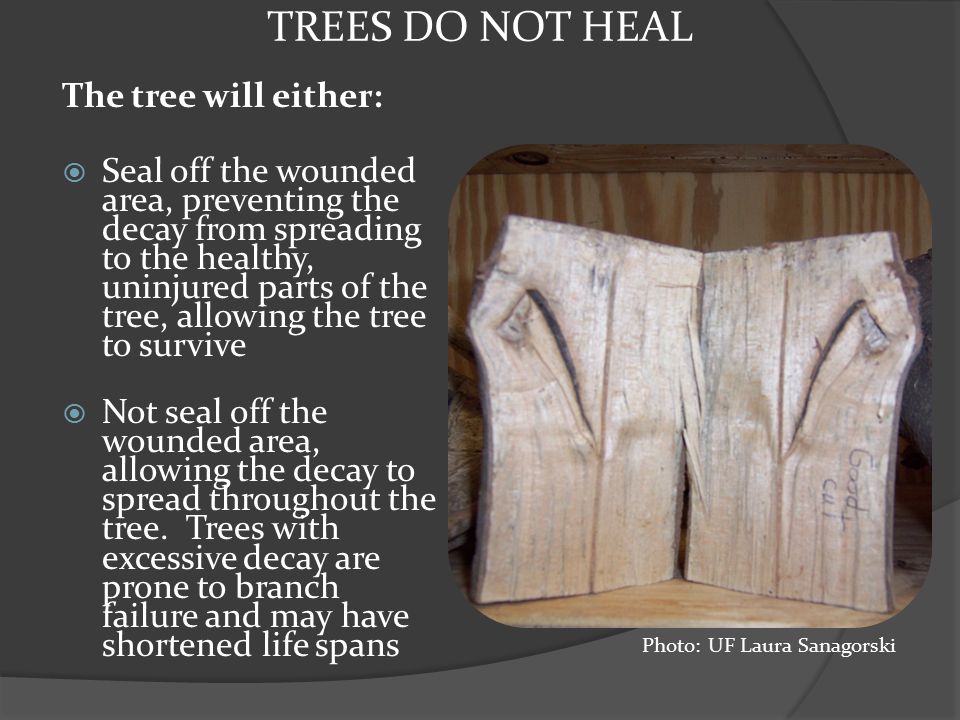

9. The tree will either:  Seal off the wounded area, preventing the decay from spreading to the healthy, uninjured parts of the tree, allowing the tree to survive  Not seal off the wounded area, allowing the decay to spread throughout the tree. Trees with excessive decay are prone to branch failure and may have shortened life spans TREES DO NOT HEAL Photo: UF Laura Sanagorski

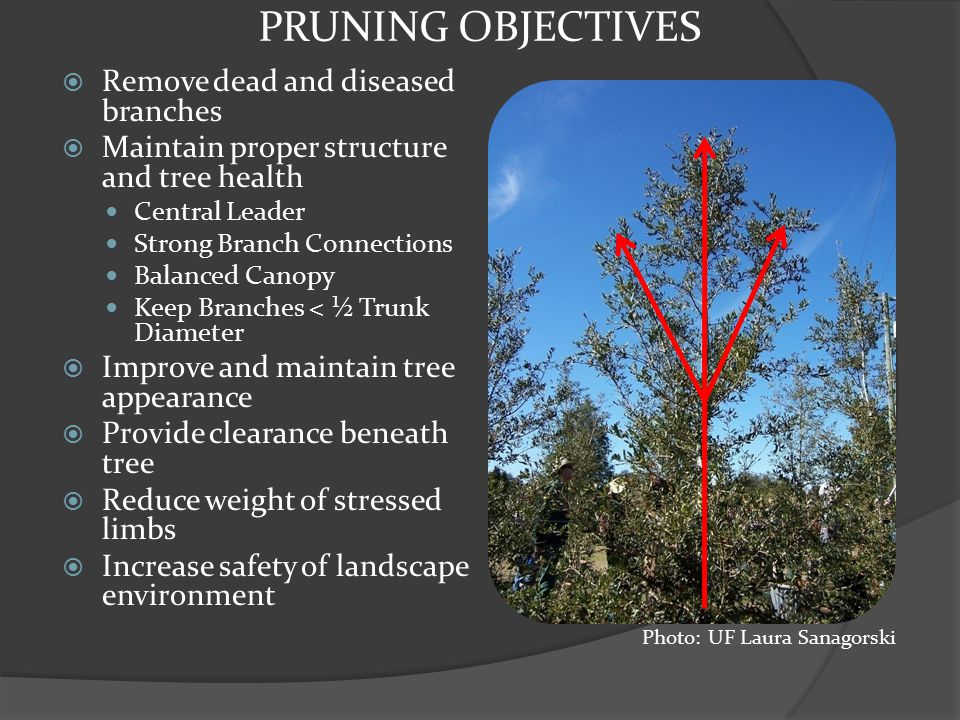

10.  Remove dead and diseased branches  Maintain proper structure and tree health Central Leader Strong Branch Connections Balanced Canopy Keep Branches < ½ Trunk Diameter  Improve and maintain tree appearance  Provide clearance beneath tree  Reduce weight of stressed limbs  Increase safety of landscape environment PRUNING OBJECTIVES Photo: UF Laura Sanagorski

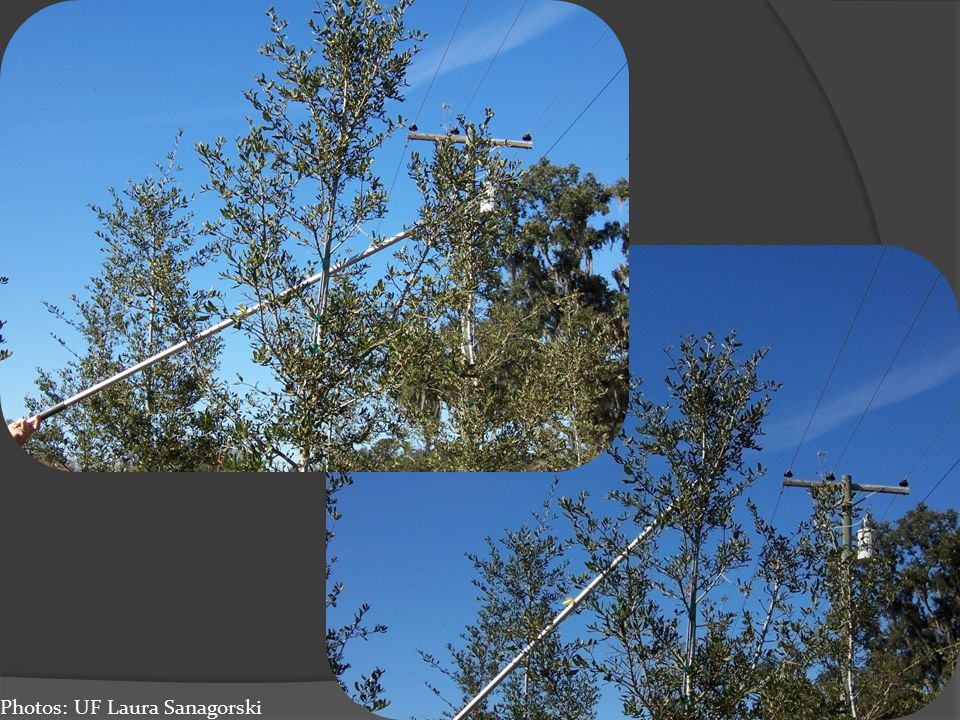

11. Photos: UF Laura Sanagorski

13.  Species’ form  Tree’s age  Tree’s reaction to pruning and strength of compartmentalization WHEN ASSESSING PRUNING NEEDS, CONSIDER Photos: UF Laura Sanagorski

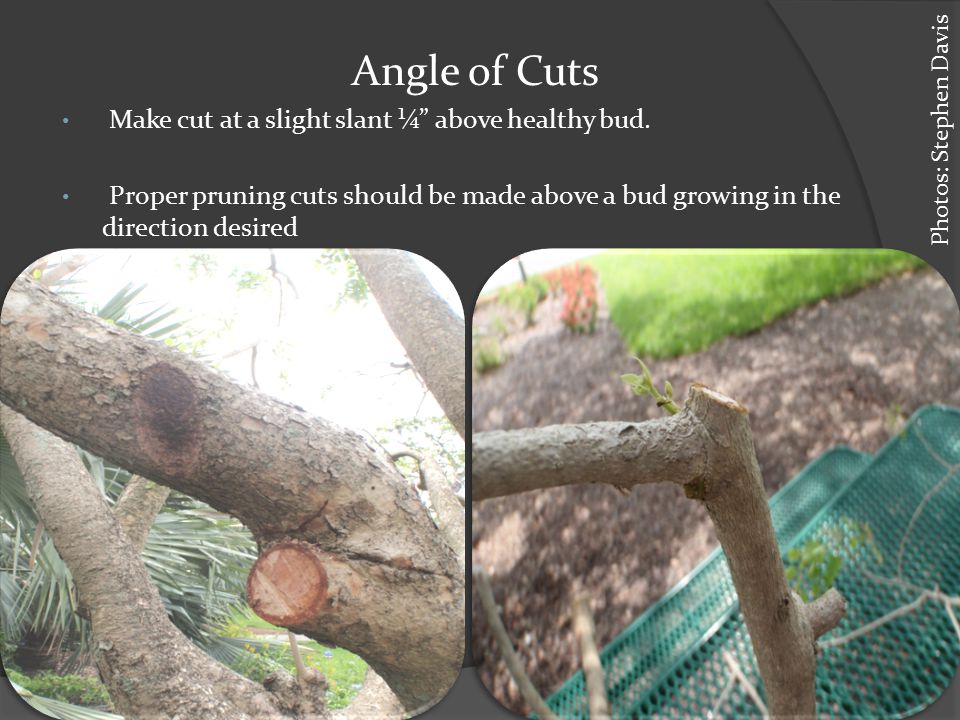

14. Angle of Cuts Make cut at a slight slant ¼” above healthy bud. Proper pruning cuts should be made above a bud growing in the direction desired Photos: Stephen Davis

15. Photo: Stephen Davis

16. Imaginary line Final Cut should be at a 45 degree angle Reduction Cut Leader Branch bark ridge Drawing: Stephen Davis

17. Pruning Tools 3/4”=Hand Pruners ¾”-1 ¾”=Lopping Shears Up to 2 ½”=Fine Toothed Hand Saw 3”-10”=Coarsely Textured Hand Saw 3”-10”=Chainsaw Pole Pruners=Up to 2” Photos: Stephen Davis

18.  Remain just outside a tree’s branch bark collar  Should not leave a stub  Should not be flush with the trunk or adjacent branch PROPER CUTS Photo: UF Laura Sanagorski

19. Larger angles = stronger attachments Branch bark collar or included bark??

20. FLUSH CUT VS PROPER CUT USDA Forest Service - Northeastern Area Archive, USDA Forest Service, Bugwood.org Natural Target Pruning (NTP)

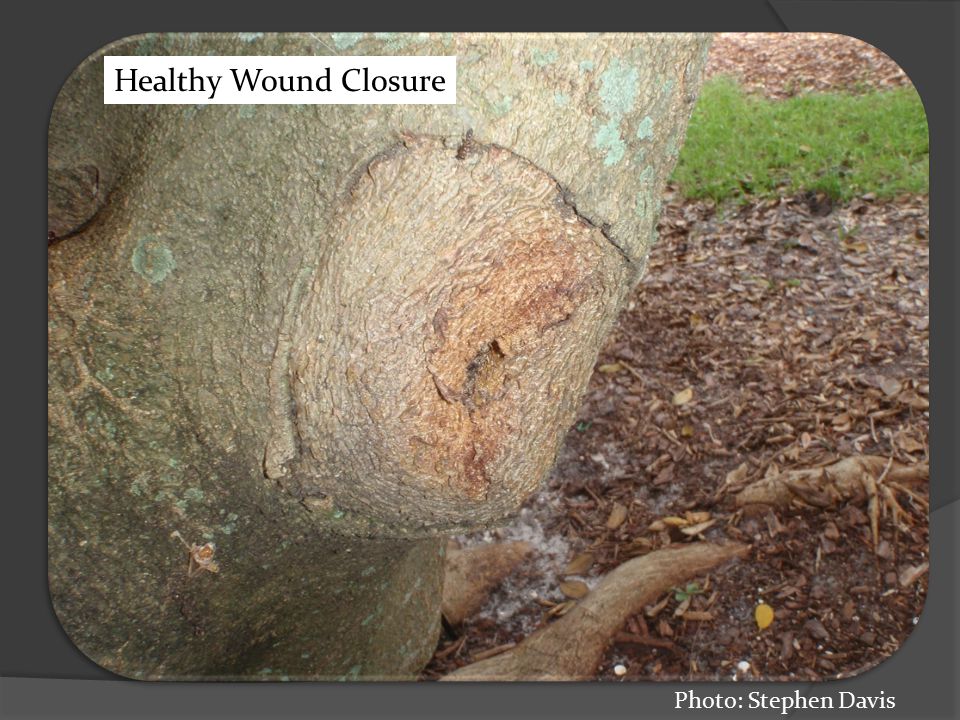

21. Photo: Stephen Davis Healthy Wound Closure

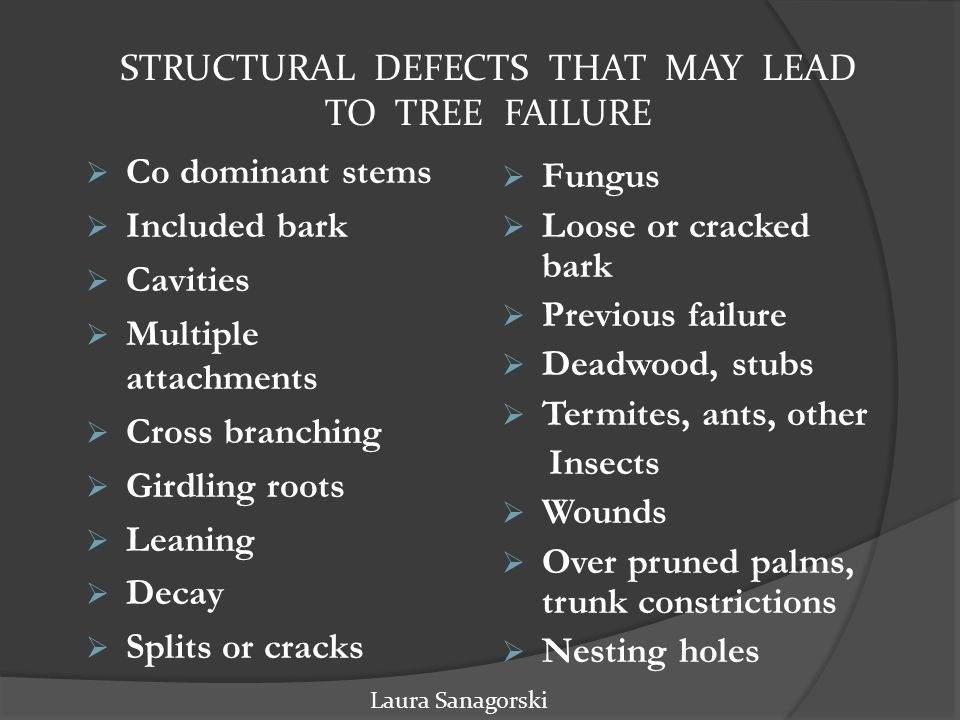

22. STRUCTURAL DEFECTS THAT MAY LEAD TO TREE FAILURE  Co dominant stems  Included bark  Cavities  Multiple attachments  Cross branching  Girdling roots  Leaning  Decay  Splits or cracks Laura Sanagorski  Fungus  Loose or cracked bark  Previous failure  Deadwood, stubs  Termites, ants, other Insects  Wounds  Over pruned palms, trunk constrictions  Nesting holes

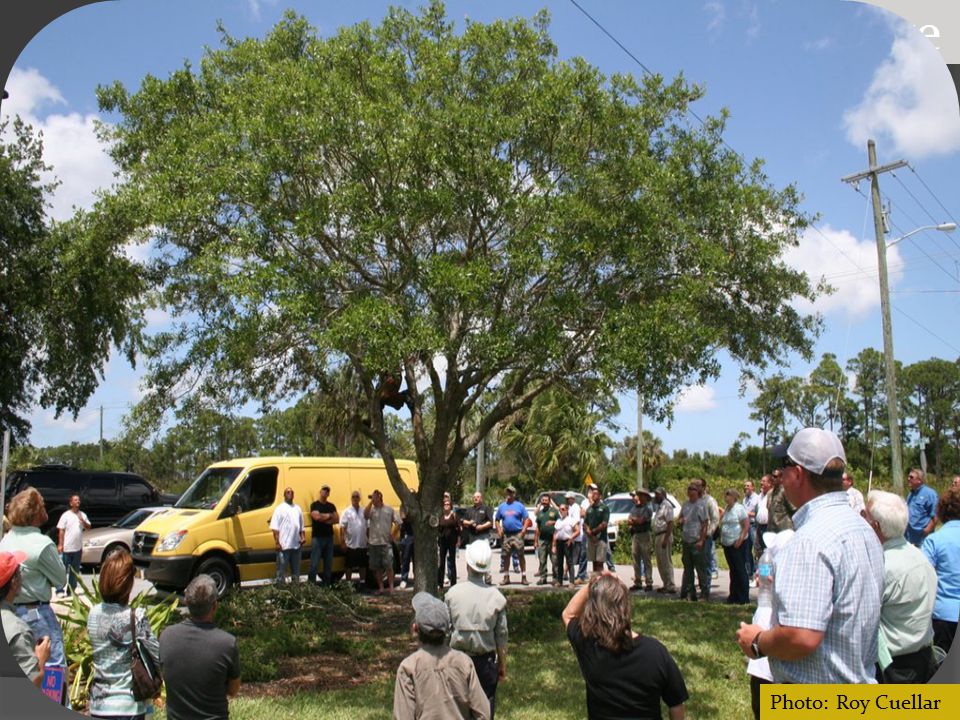

23. Before Photo: Roy Cuellar

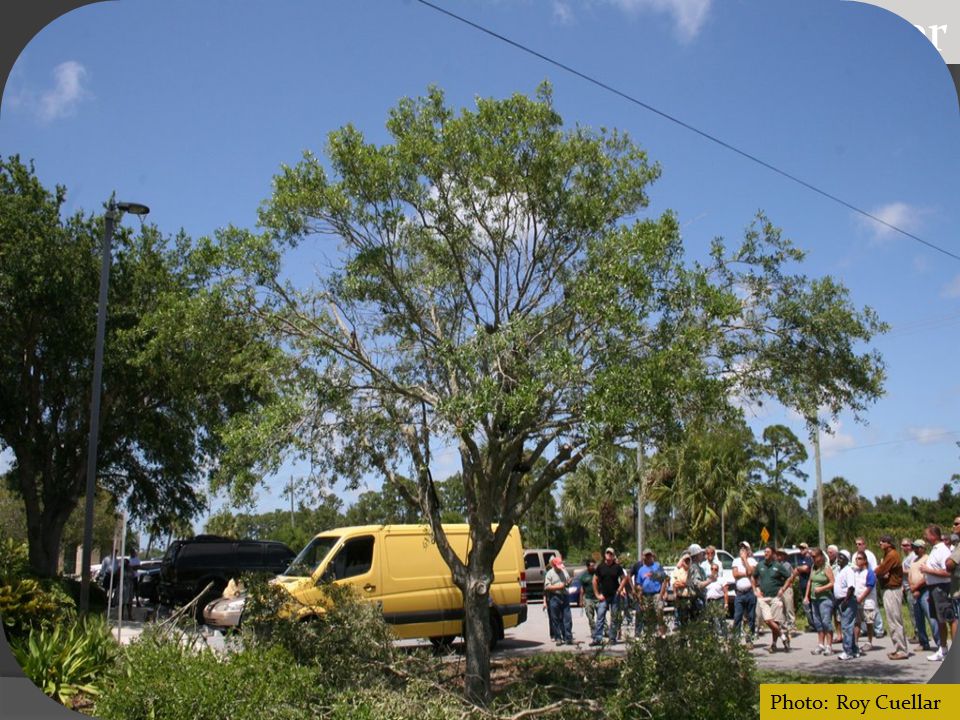

24. After Photo: Roy Cuellar

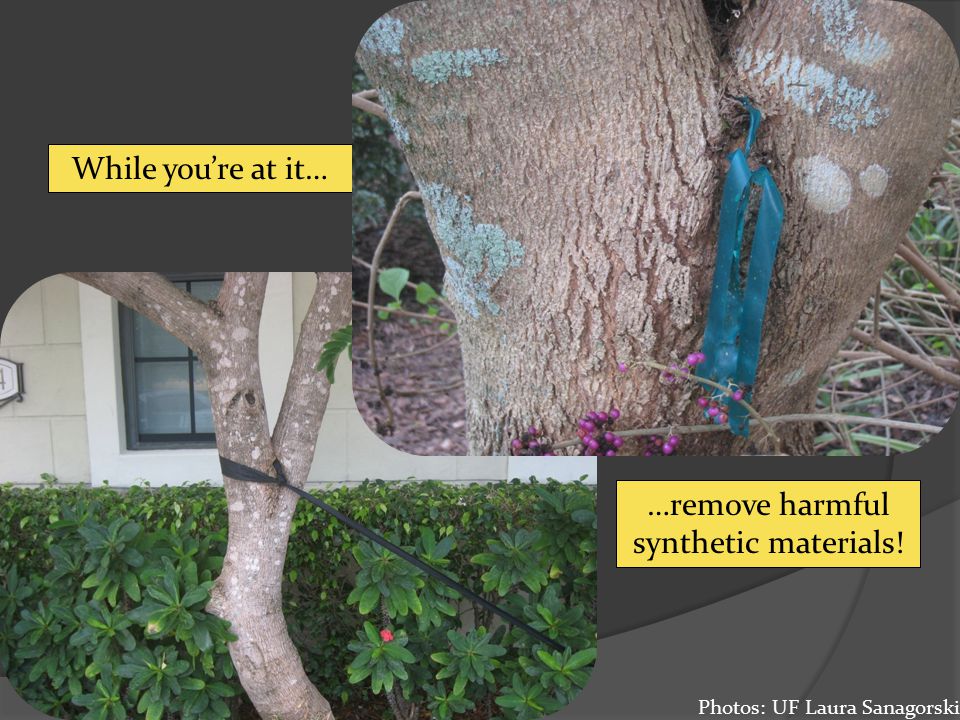

25. While you’re at it… …remove harmful synthetic materials! Photos: UF Laura Sanagorski
