1. Methodology of Data Point Model in European Banking Supervision: COREP/FINREP Ignacio Boixo, EuroFiling Coordinator Malatya, 3 th May 2012

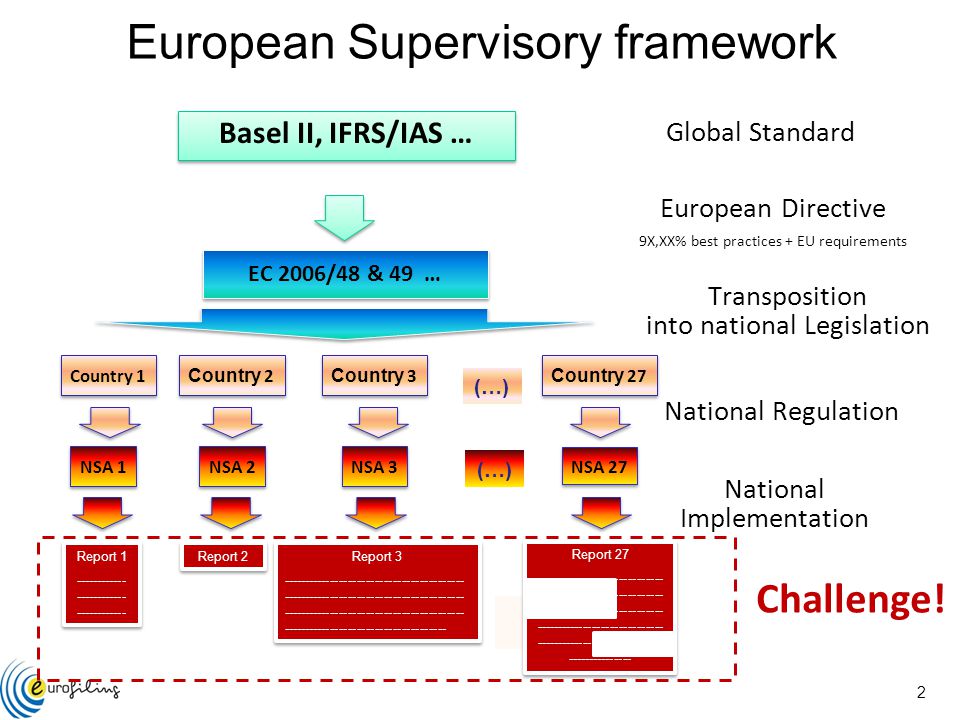

2. 2 Basel II, IFRS/IAS … EC 2006/48 & 49 … Country 1 NSA 1 Report 2 Report 1 ------------ ------------ ------------ Report 1 ------------ ------------ ------------ Country 3 Country 2 Country 27 NSA 2 NSA 3 NSA 27 Report 3 ----------------------------------------- ----------------------------------------- ----------------------------------------- ------------------------------------- Report 3 ----------------------------------------- ----------------------------------------- ----------------------------------------- ------------------------------------- Transposition into national Legislation European Directive 9X,XX% best practices + EU requirements National Regulation Challenge! Global Standard Report 27 ----------------------------- ----------------------------- ----------------------------- ----------------------------- ----------------------------- --------------- Report 27 ----------------------------- ----------------------------- ----------------------------- ----------------------------- ----------------------------- --------------- (…) National Implementation European Supervisory framework

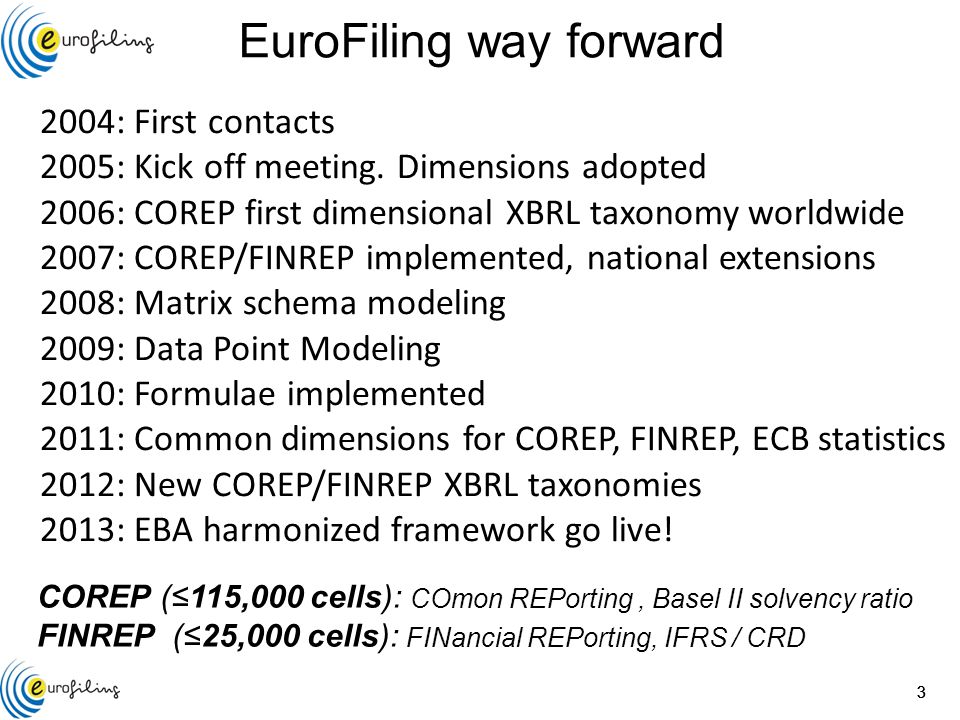

3. 333 2004: First contacts 2005: Kick off meeting. Dimensions adopted 2006: COREP first dimensional XBRL taxonomy worldwide 2007: COREP/FINREP implemented, national extensions 2008: Matrix schema modeling 2009: Data Point Modeling 2010: Formulae implemented 2011: Common dimensions for COREP, FINREP, ECB statistics 2012: New COREP/FINREP XBRL taxonomies 2013: EBA harmonized framework go live! EuroFiling way forward COREP (≤115,000 cells): COmon REPorting, Basel II solvency ratio FINREP (≤25,000 cells): FINancial REPorting, IFRS / CRD

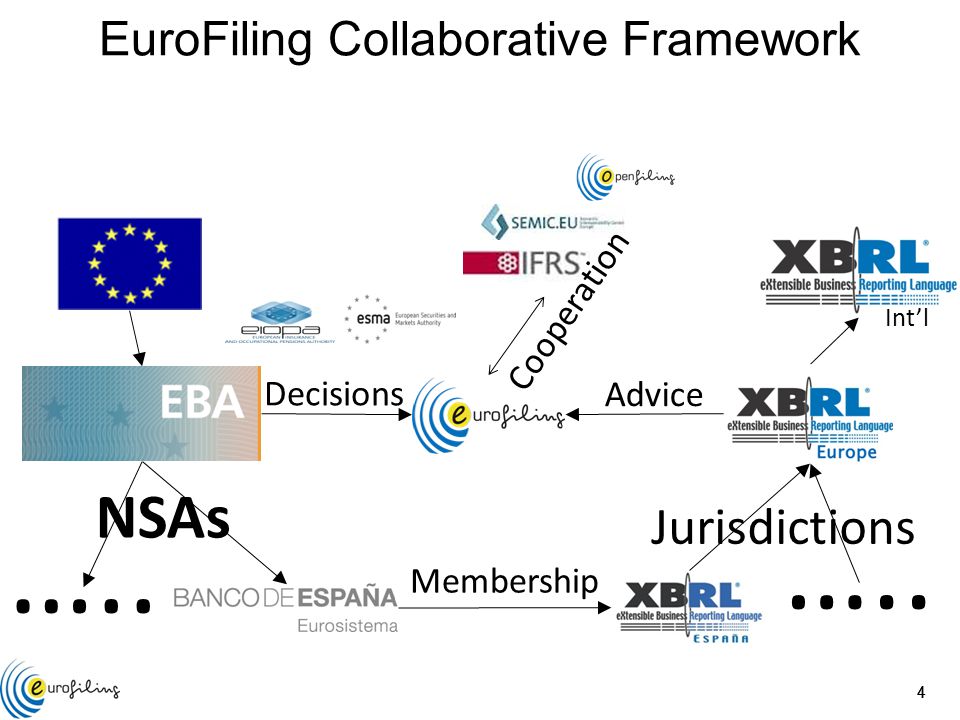

4. 444 NSAs Jurisdictions Decisions Advice ….. Membership Int’l EuroFiling Collaborative Framework Cooperation

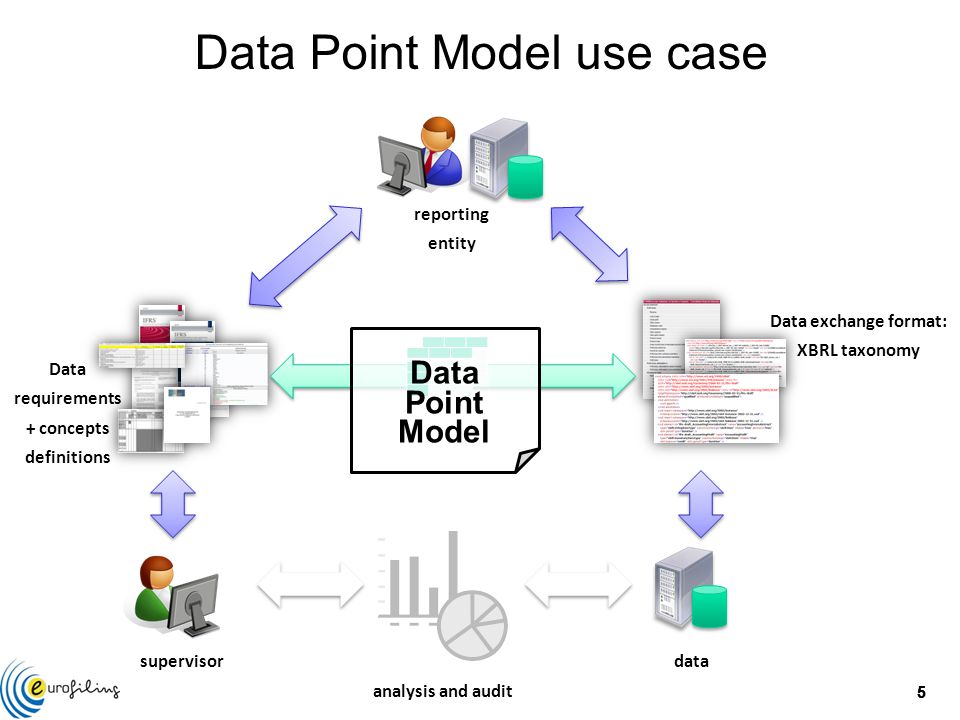

5. 555 ? ? Data requirements + concepts definitions Data exchange format: XBRL taxonomy analysis and audit supervisor data reporting entity Data Point Model use case Data Point Model

6. 666 Reporting Entity Supervisor Programmer System Requirements Programmer Regulator Business Expert IT Analyst System Requirements Java Code IT Analyst ≠ ? C++ Regulation IT Format The traditional misunderstanding problem

7. 777 Reporting Entity Supervisor Regulator IT Analyst = Business expert IT Analyst Regulation Data Point XBRL A common understanding solution?

8. 888 European Parliament, 2010-09-22, Art. 74(2), 110(2): … shall develop implementing technical standards to introduce… uniform formats … regarding IT solutions. European Banking Authority (EBA) EBA consultation paper, 2011-12-20 Reporting shall be done in accordance with the specifications included in the Data Point Model and the XBRL taxonomies, Data Point Model: structured formal representation of the data, identifying all the business concepts and its relations, as well as validation rules, oriented to all kind of implementers.

9. 9 XBRL EBA Workshop – Nov ‘07 “The same information should be produced only once” as such, certain elements have been defined as common i.e. : Elements requested by the 3 mains regulators (CB, CBFA, CSSF) Elements requested by the holding (in the consolidated financial statements)

10. 10 Data Point Model example Location of activity: Spain Amount type: Outstanding PrimaryItem: Assets Category of assets: Debt securities Counterparty sector: Monetary Financial Institutions Original maturity: ≥ 1 year < 2 year Counterparty residence: Spain Instrument original currency: EUR

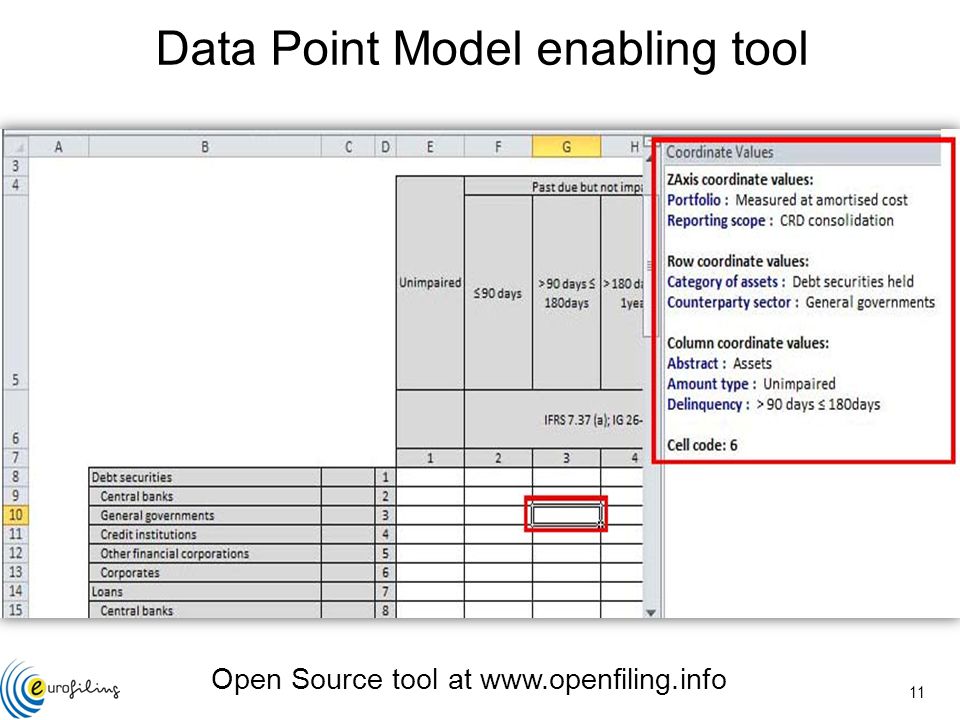

11. 11 Open Source tool at www.openfiling.info Data Point Model enabling tool

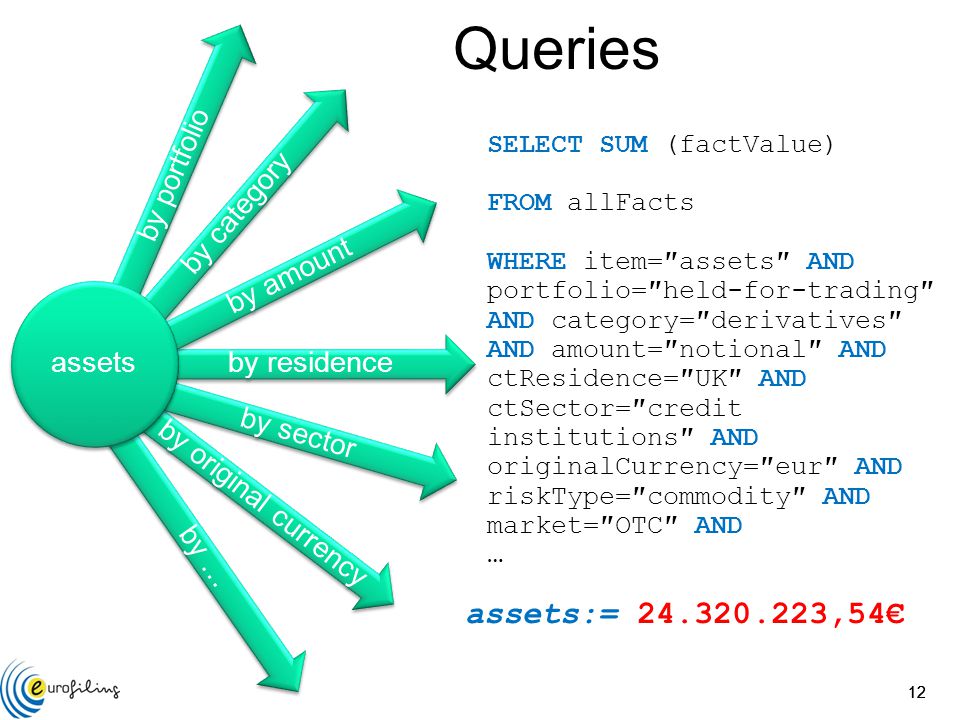

12. 12 by portfolio by category by residence by original currency by amount by … by sector assets SELECT SUM (factValue) FROM allFacts WHERE item=″assets″ AND portfolio=″held-for-trading″ AND category=″derivatives″ AND amount=″notional″ AND ctResidence=″UK″ AND ctSector=″credit institutions″ AND originalCurrency=″eur″ AND riskType=″commodity″ AND market=″OTC″ AND … assets:= 24.320.223,54€ Queries

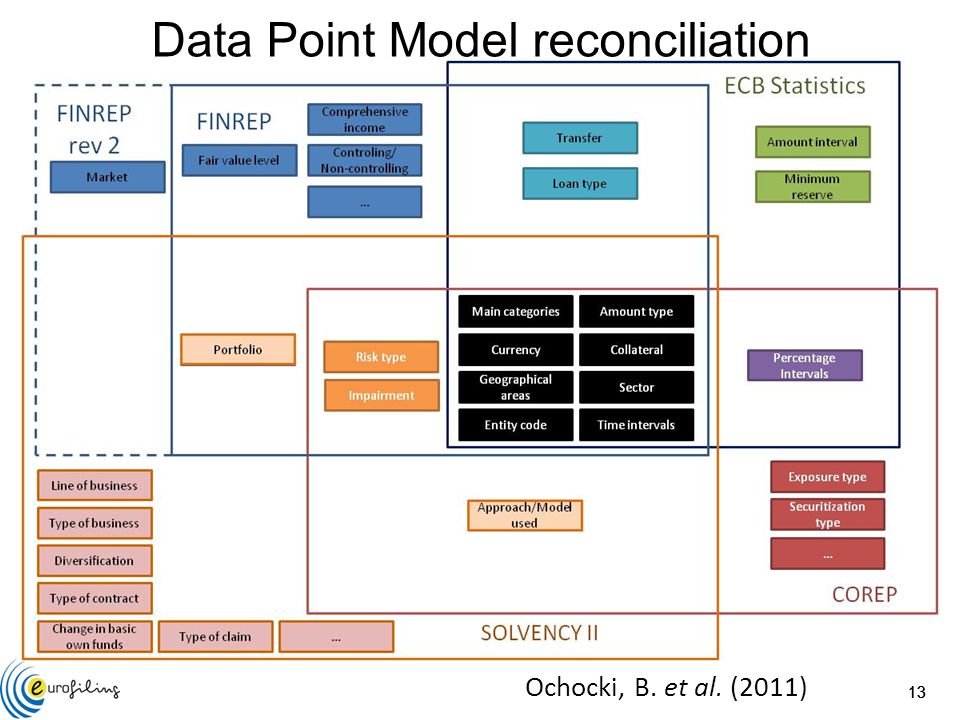

13. 13 Ochocki, B. et al. (2011) Data Point Model reconciliation

14. 14 2011 2010 Entity B XBRL int. € $ Cash 721,596 624,658 XBRL Internal Structure 721596 624658 XII 2011-06-30 iso4217:USD

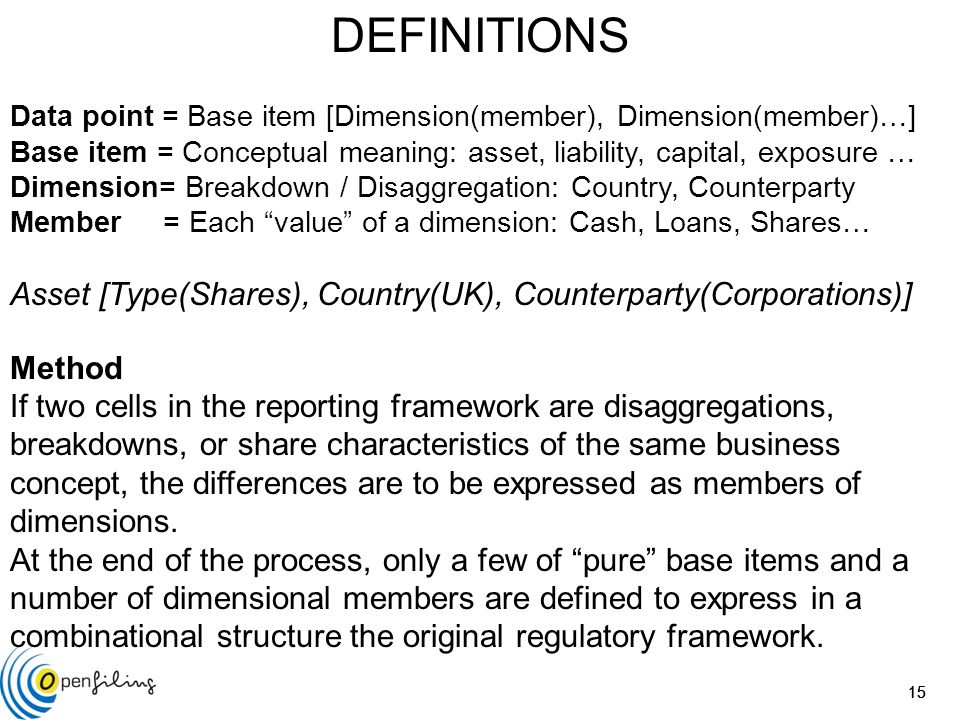

15. 15 DEFINITIONS Data point = Base item [Dimension(member), Dimension(member)…] Base item = Conceptual meaning: asset, liability, capital, exposure … Dimension= Breakdown / Disaggregation: Country, Counterparty Member = Each “value” of a dimension: Cash, Loans, Shares… Asset [Type(Shares), Country(UK), Counterparty(Corporations)] Method If two cells in the reporting framework are disaggregations, breakdowns, or share characteristics of the same business concept, the differences are to be expressed as members of dimensions. At the end of the process, only a few of “pure” base items and a number of dimensional members are defined to express in a combinational structure the original regulatory framework.

16. 16 Regulatory framework cells Cartesian product Data Point Model C D  : C  D subjective Data Point Model function

17. 17 Total number of potential data points = ∏ n i i=1 to d Total number of members ≤ ∑ n i i=1 to d ∏ n i i=1 to d ∑ n i i=1 to d ________________ d _ n = ∑ n i i=1 to d n i = number of members of the dimension i d = number of dimensions _nd ≈_nd ≈ _ _ and dn << n d Typically << as it is equivalent to: ∏ n i i=1 to d Data Point Model progression

18. 18 Main Properties: 1.Arithmetic progression in the number of members creates data points exponentially 2.Each cell defines one data point; each data point is defined by one cell (at least). 3.Each dimension would be used only zero or one times in each data point 4.A member would be shared among several dimensions 5.The dimensional expression is commutative

19. 19 COREP/FINREP implementation model Bank IT Banking Operations Counterparties Collateral … Instance ---------------- ---------------- ---- Supervisor IT Supervision Reports Other data … Presentation, Analysis… Bank operations, controls…. Basel II IFRS to XBRL from XBRL Basel II IFRS File Transfer (National) XBRL (Europe) XBRL (National) Errors National implementation Europe Institution Consultants Vendors Institution Consultants Vendors Didactic model for explanatory purposes only REGULATION Instance ---------------- ---------------- ---- INDUSTRY Internet

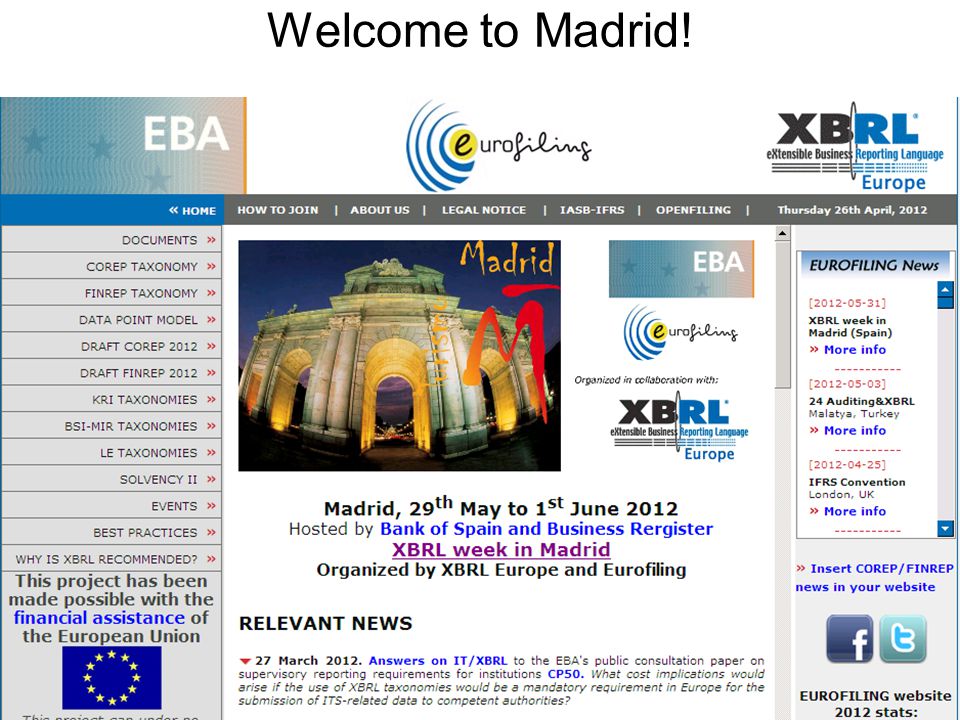

20. 20 Welcome to Madrid!

21. Ignacio Boixo boixo [at] eurofiling.info Many thanks!
