1 Intro to SharePoint 2013 Architecture Liam Cleary

2 About Me Solution Architect @ Protiviti SharePoint MVP Everything SharePoint Architecture Infrastructure Development Security SharePoint Dreamer Speak at lots of community events

3 Agenda Logical Architecture Physical Architecture Final Thoughts

4 Logical Architecture Server Farms Service Applications Application Pools Web Applications Zone Content Database Site CollectionsSitesLists & Libraries

5 Logical Architecture Default Zone Windows NTLM Internal URL Internet Zone Forms Based External URL Web Application

6 Logical Architecture Service Applications Shared Services between Web Applications and SharePoint Farms Critical Service Applications User Profile Application Search Application Managed Metadata Service New Service Applications App Management Service Marketplace Permissions and connectivity Translation Service Auto translate files and content Work Management Service Aggregate tasks from SharePoint, Exchange, Project and any other Provider based platforms

7 Physical Architecture Farm ModelRAM (Per Server)CPU (Per Server) Single Server24 GB4 Cores Small Farm 1 x WEB/APP + SQL 16 GB WEB/APP 16 GB SQL 4-8 Cores Medium Farm 2 WEB + 1-2 APP + SQL 16 GB WEB 16 GB APP 32 GB SQL 4-8 Cores Large Farm 2-3 WEB + 2-3 APP + SQL 16 GB WEB 16 GB APP 32 GB SQL 4-8 Cores Hardware Requirements http://technet.microsoft.com/en-us/library/cc262485.aspx http://technet.microsoft.com/en-us/library/cc262485.aspx

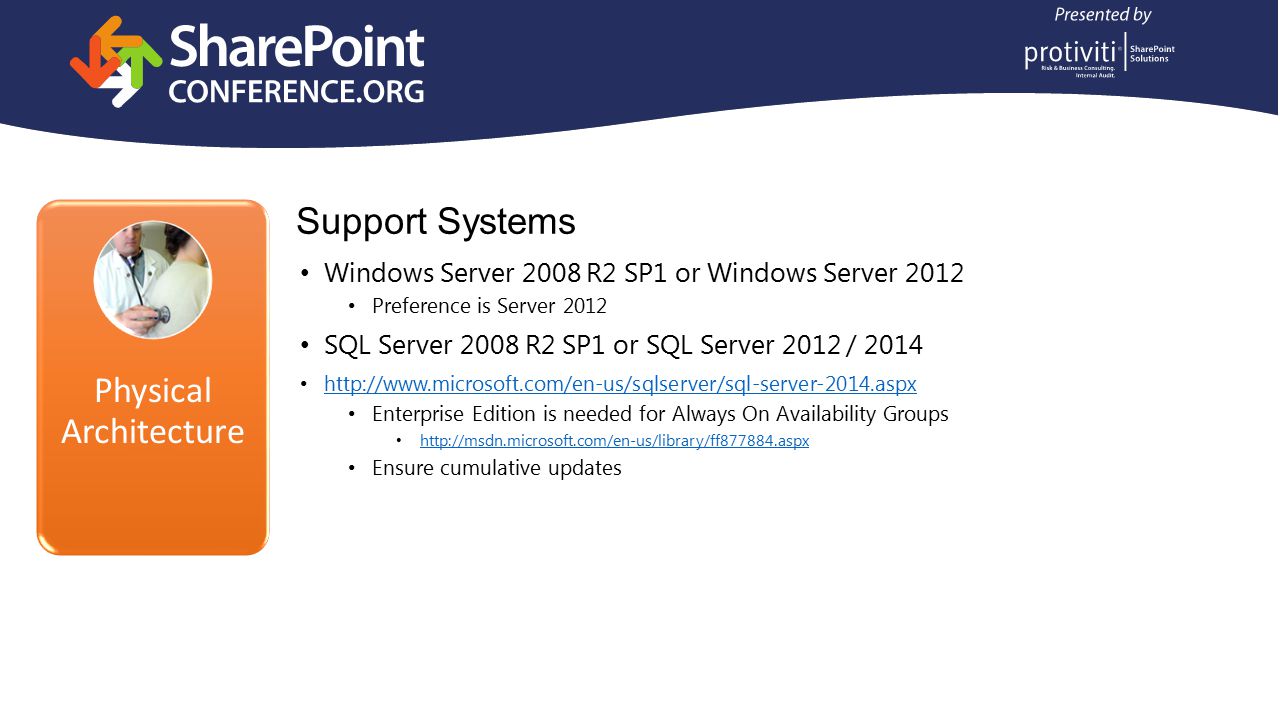

8 Physical Architecture Support Systems Windows Server 2008 R2 SP1 or Windows Server 2012 Preference is Server 2012 SQL Server 2008 R2 SP1 or SQL Server 2012 / 2014 http://www.microsoft.com/en-us/sqlserver/sql-server-2014.aspx Enterprise Edition is needed for Always On Availability Groups http://msdn.microsoft.com/en-us/library/ff877884.aspx Ensure cumulative updates

9 Physical Architecture Supported Topologies – Limited Deployments One Server FarmTwo Tier farm

10 Physical Architecture Supported Topologies – Small Multi Purpose Four Server Farm

11 Physical Architecture Supported Topologies – Medium Farm Six Server Farm

12 Physical Architecture Supported Topologies – Medium Farm + Office Web Apps Six Server Farm

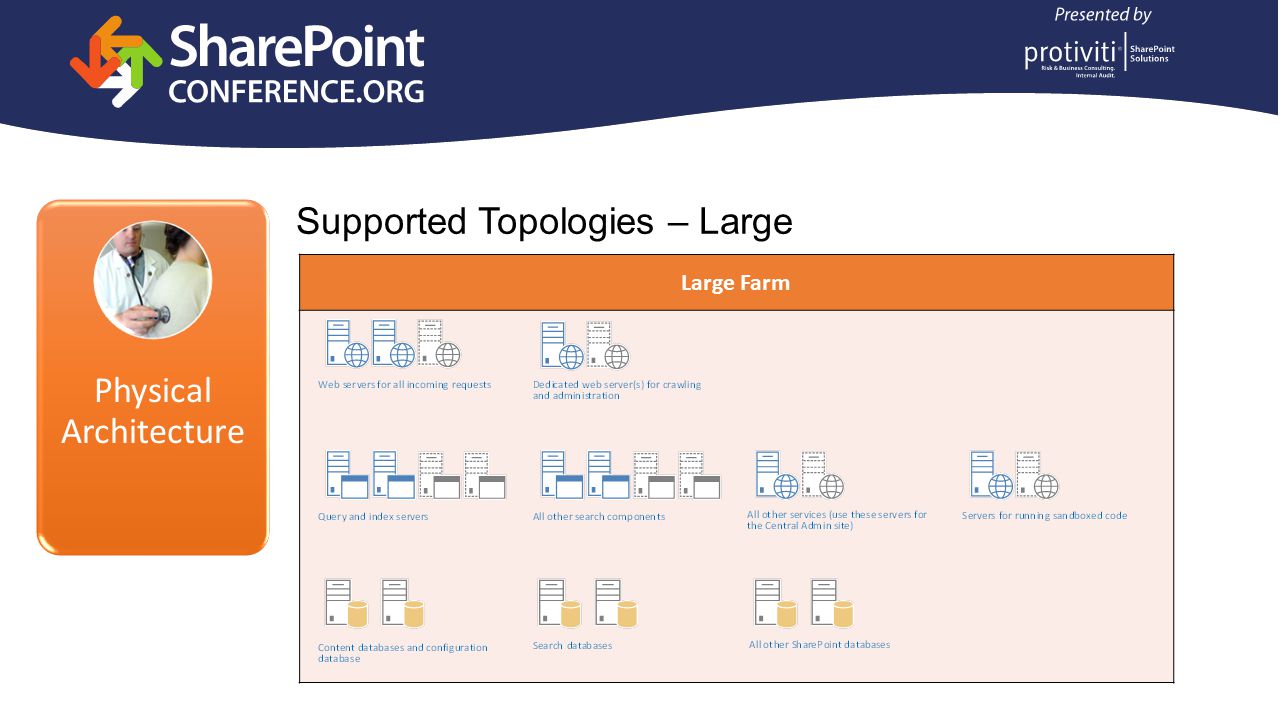

13 Physical Architecture Supported Topologies – Large Large Farm

14 Physical Architecture Supported Topologies – Hybrid Hybrid Farm

15 Physical Architecture Stretched Farm

16 Physical Architecture New Features FeatureDetails Distributed Cache Stores Login Tokens and Security Trimming Custom components can utilize Request Management Manage incoming request based on rules engine Route requests Prioritize important requests Identity and block harmful requests Azure Workflow Separate download Scale to multiple servers – Not on the SharePoint Servers Creates multiple Databases for Scale and Configuration Office Web Apps Requires it’s own server infrastructure now Connect to SharePoint, Exchange and Lync Provides the Hover Panel Document Preview Capabilities

17 Physical Architecture New Features – Request Management

18 Physical Architecture Search (Attend Bert's Search Session) Massive Scale Topologies Continuous Crawling No need for Full / Incremental Distributed Design Multi Failover – Multi Subnets Always On Clustering PowerShell is the only way to manage the topology

19 Final Thoughts Topology limitations have been removed Distributed Cache limited to 4 servers Hybrid Solutions are now a viable option Windows Azure Amazon AWS Private Cloud Office 365 Stretched Farms require high latency Service Applications now allow for better scale and control over incoming requests REMEMBER: SharePoint 2013 is a memory eater TechNet Guidance “NEEDS” to be updated – Review constantly as things will change

20 Resources Virtualization Guidance http://technet.microsoft.com/en-us/library/ff607968.aspx Logical Architectures http://technet.microsoft.com/en-us/library/ff829836.aspx Global Deployments http://technet.microsoft.com/en-us/library/gg441257.aspx Performance & Capacity http://technet.microsoft.com/en-us/library/cc262971.aspx Authentication http://technet.microsoft.com/en-us/library/ee794879.aspx Backup & High Availability / Disaster Recovery http://technet.microsoft.com/en-us/library/cc261687.aspx http://technet.microsoft.com/en-us/library/cc263031.aspx

21 Contact Liam Cleary Email: liam.cleary@Protiviti.comliam.cleary@Protiviti.com Twitter: @helloitsliam Blog: http://blog.helloitsliam.comhttp://blog.helloitsliam.com
