1. Chapter 13: Forming Processes

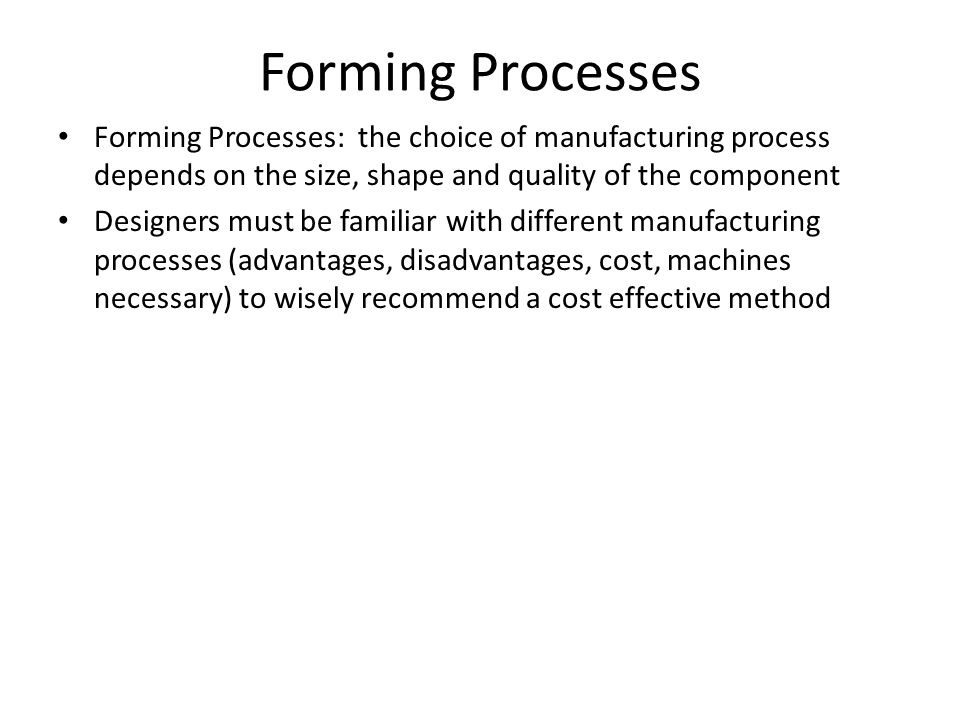

2. Forming Processes Forming Processes: the choice of manufacturing process depends on the size, shape and quality of the component Designers must be familiar with different manufacturing processes (advantages, disadvantages, cost, machines necessary) to wisely recommend a cost effective method

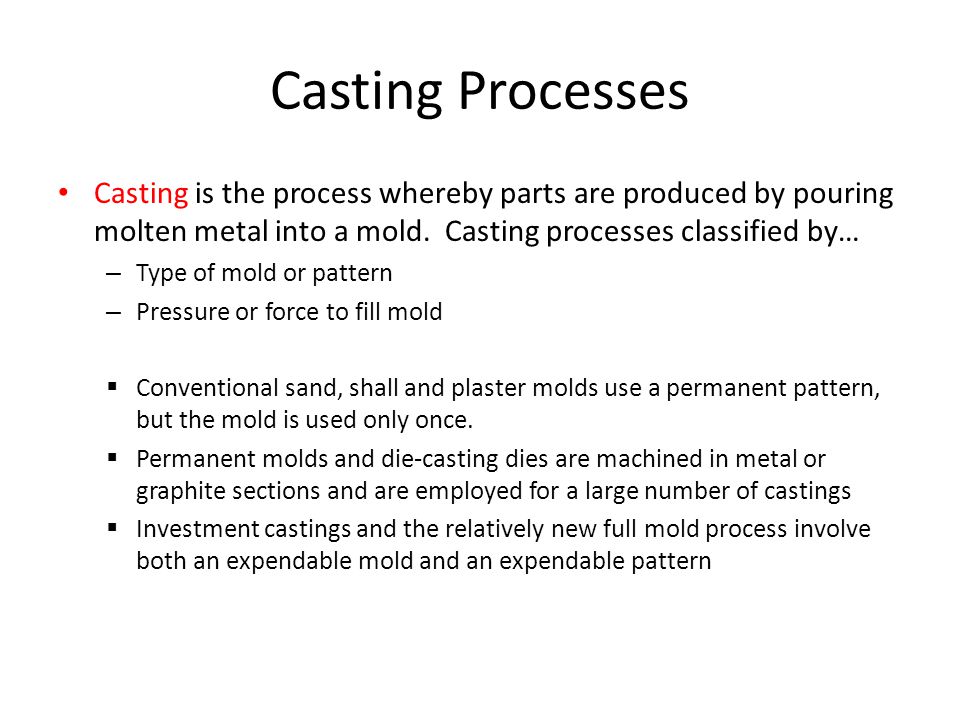

3. Casting Processes Casting is the process whereby parts are produced by pouring molten metal into a mold. Casting processes classified by… – Type of mold or pattern – Pressure or force to fill mold  Conventional sand, shall and plaster molds use a permanent pattern, but the mold is used only once.  Permanent molds and die-casting dies are machined in metal or graphite sections and are employed for a large number of castings  Investment castings and the relatively new full mold process involve both an expendable mold and an expendable pattern

4. Sand mold casting Most widely used for metals Permanent pattern of metal or wood that shapes the mold cavity when loose molding material (fine sand & a binder)is compacted around the pattern Sections: – Bottom (drag) – Top (cope) – Intermediate (cheeks) when required  Molten metal is poured into the sprue, connecting runners channel metal to the mold  Riser cavities located over heavier sections of the casting  Vents release gases  Core for hollow castings

5. Sand Mold Castings Shrinkage allowance-Metal or wooden pattern slightly larger than part to be cast Drafts or slight tapers allow for easy withdrawl from the sand mold After a sand mold is used the sand is broken and casting removed. Excess metal, gates, risers are removed and remelted

6. MANUFACTURING MATERIAL SEQUENCE IN PREPARING A SAND CASTING

7. MANUFACTURING MATERIAL MOLD CASTING TECHNIQUES

8. Other Castings Shell mold refractory sand is bonded by a resin forming a thin shell mold and a reusable, heated metal pattern plate Plaster mold plaster of paris and fillers mixed with water form a slurry which is poured around a reusable metal or rubber pattern and set to form a gypsum mold Permanent mold uses a permanent metal mold to produce many castings Investment mold investment refers to the refractory material used to encase the wax patterns. An expendable pattern and mold used Full mold a consumable pattern is made of foamed plastic (individual castings)

9. Other Casting Continued Centrifugal a permanent mold is rotated rapidly about the axis of the casting. Castings are smooth, sound, and clean on the outside Continuous continuously pouring molten metal into a water-jacketed mold. The metal solidifies in the mold & the solid billet exits continuously into a water spray (uniform section rounds, ovals, squares, rectangles, plates) Die one of the least expensive, fastest & most efficient methods to produce metal parts. Molten metal is formed into a die or mold. Used for nonferrous alloys. Submerged-plunger & cold-chamber types

10. MANUFACTURING MATERIAL PERMANENT MOLD CASTING

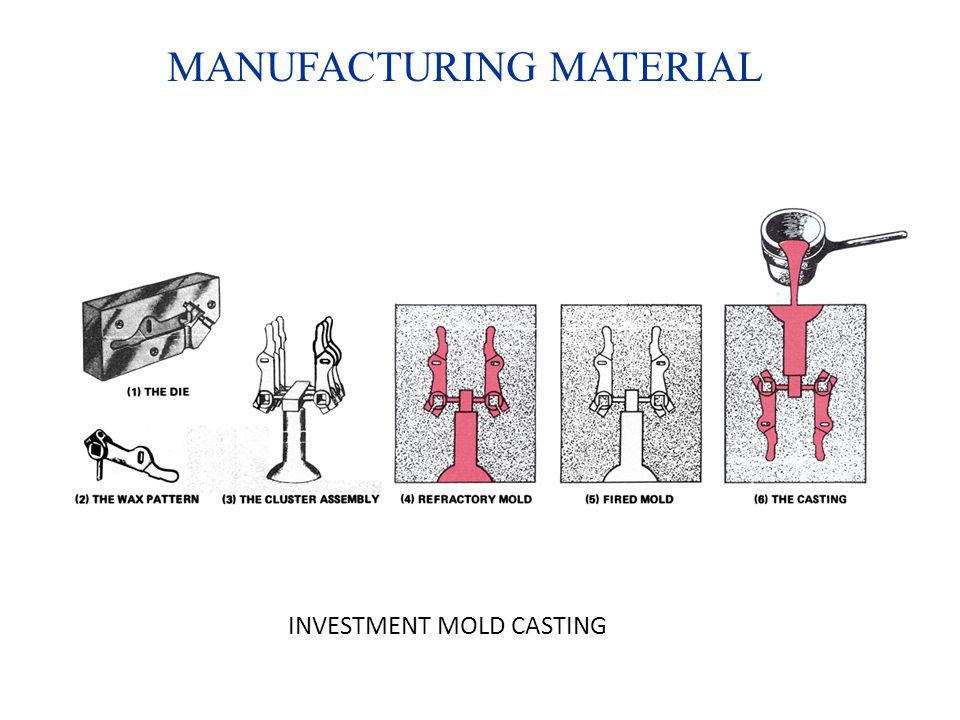

11. MANUFACTURING MATERIAL INVESTMENT MOLD CASTING

12. MANUFACTURING MATERIAL CASTING EQUIPMENT AND PROCESSES

13. Selection of Process Type of metal Number of castings required Shape & size of castings Dimensional accuracy required Casting finish required Economics The number of finishing operations-the processes that provide the closest dimensions, best surface finish, & the most intricate detail usually require the smallest number of finishing operations

14. Solidification of metal in a mold Heat dissipates from the surface through the mold Solidification commences from the outside & progresses inward in a series of layers Solidifying metal contracts in volume & a shrinkage cavity may form in the center Final castings are smaller than the mold cavity Fillets and radii at corners prevent rapid cooling/shrinkage at corners – “hot spots”

15. MANUFACTURING MATERIAL COOLING EFFECTS ON MOLD CAVITIES FILLED WITH MOLTEN METAL

16. General design rules Casting soundness-feeder heads can be placed to offset liquid shrinkage Fillet or round all sharp angles Bring the minimum number of adjoining sections together Design all sections as nearly uniform in thickness as possible Avoid abrupt section changes-eliminate sharp corners at adjoining sections: not exceed a 2:1 ratio Design ribs for maximum effectiveness-increase stiffness and reduce mass Avoid bosses & pads unless absolutely necessary

17. General design rules continued Use curved spokes-less likely to crack Use an odd number of spokes-more resilient to casting stresses Consider wall thicknesses – Gray-iron & aluminum:.16 in minimum – Malleable iron & steel:.18 in minimum – Bronze,brass,magnesium:.10 minimum  Parting lines: a line along which the pattern is divided for molding or along which sections of the mold separate (consider shape of casting, elimination of machining on draft surfaces, methods of supporting cores, location of gates & feeders)  Drill holes in castings: small holes are drilled and not cored

18. MANUFACTURING MATERIAL DESIGN MEMBERS SO THAT ALL PARTS INCREASE PROGRESSIVELY TO FEEDER RISERS

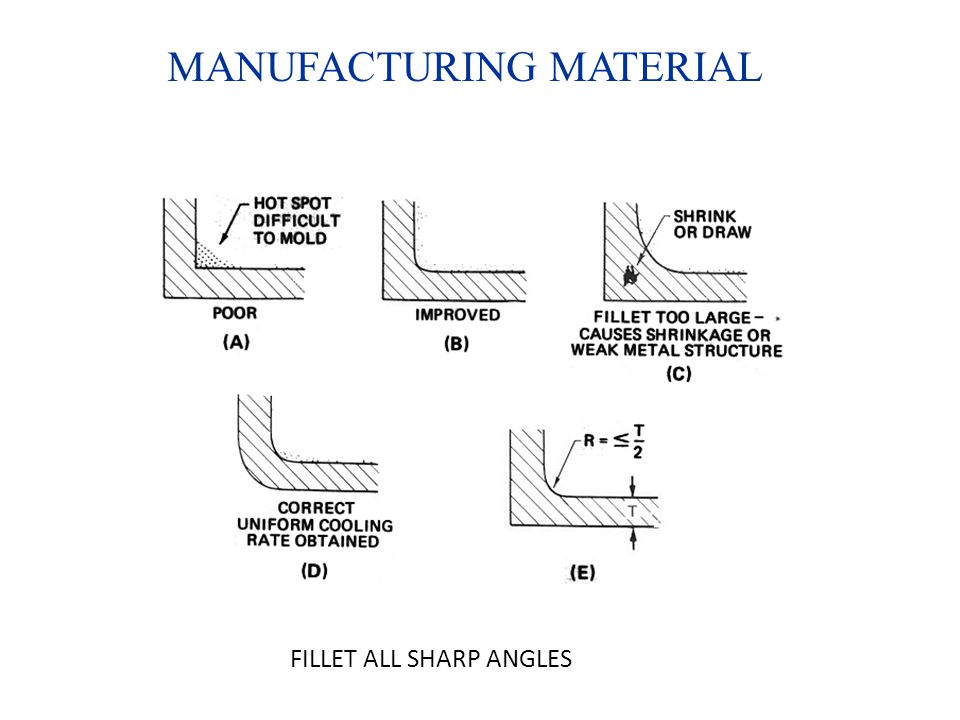

19. MANUFACTURING MATERIAL FILLET ALL SHARP ANGLES

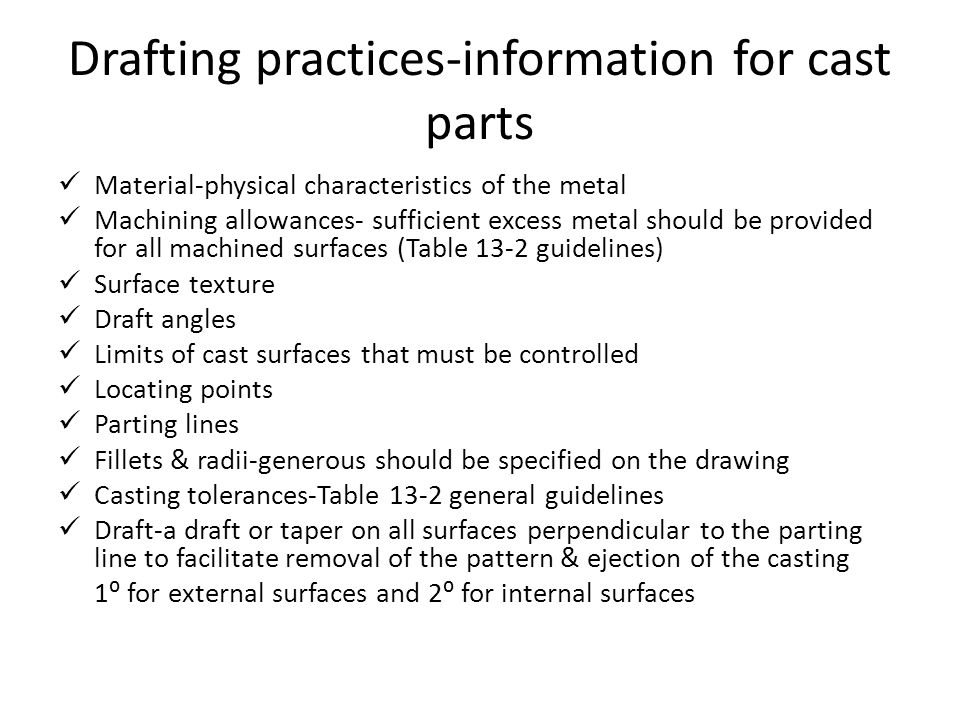

20. Drafting practices-information for cast parts Material-physical characteristics of the metal Machining allowances- sufficient excess metal should be provided for all machined surfaces (Table 13-2 guidelines) Surface texture Draft angles Limits of cast surfaces that must be controlled Locating points Parting lines Fillets & radii-generous should be specified on the drawing Casting tolerances-Table 13-2 general guidelines Draft-a draft or taper on all surfaces perpendicular to the parting line to facilitate removal of the pattern & ejection of the casting 1⁰ for external surfaces and 2⁰ for internal surfaces

21. MANUFACTURING MATERIAL CAST PART WORKING DRAWING

22. MANUFACTURING MATERIAL PATTERN WORKING DRAWING

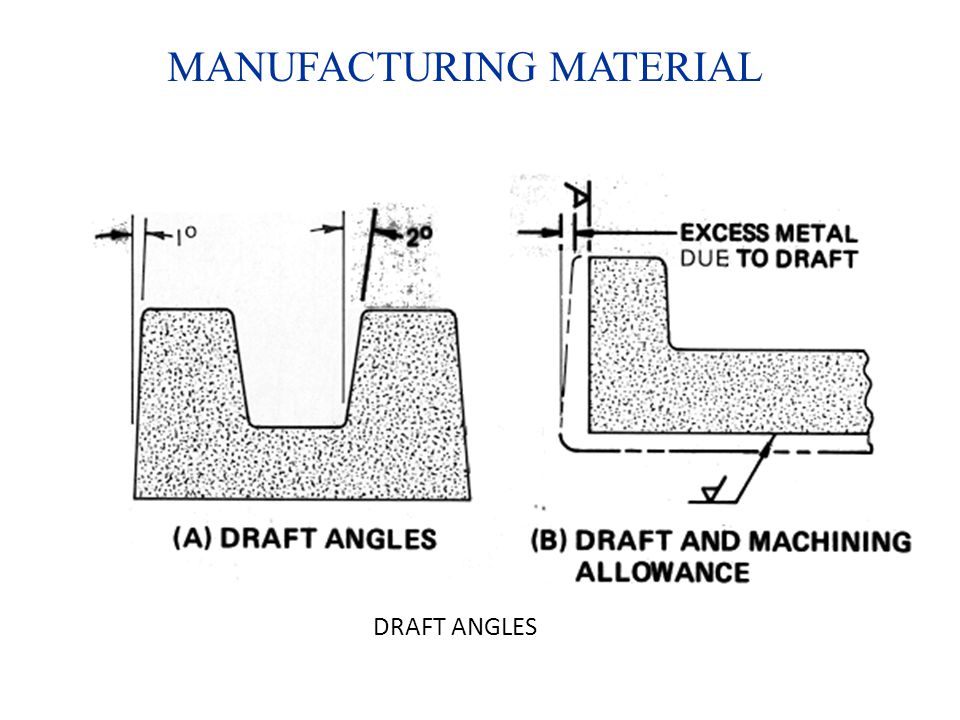

23. MANUFACTURING MATERIAL DRAFT ANGLES

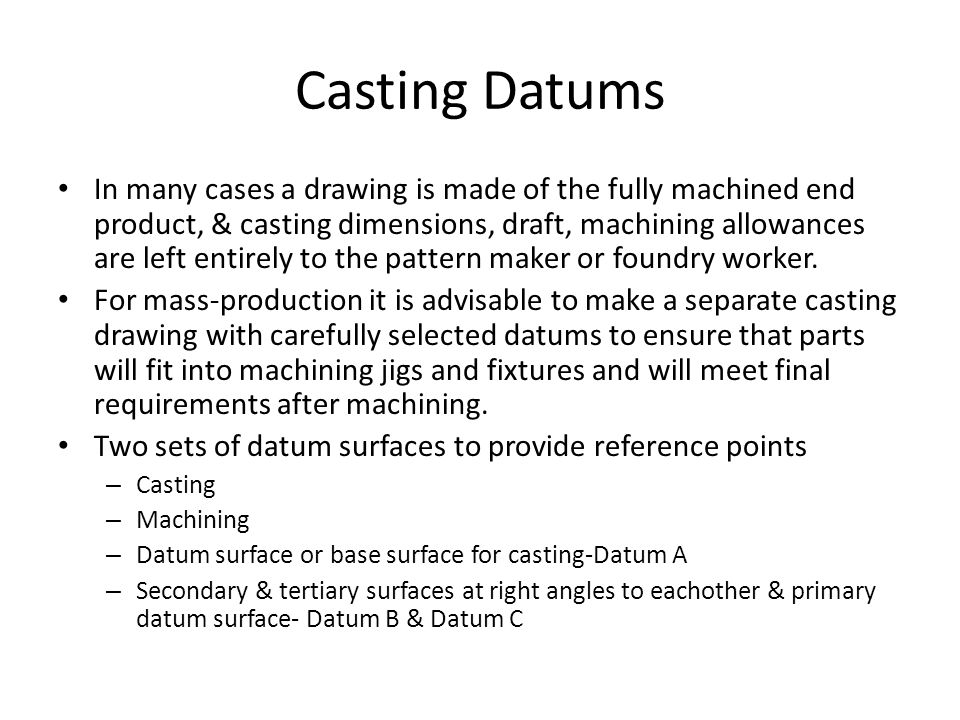

24. Casting Datums In many cases a drawing is made of the fully machined end product, & casting dimensions, draft, machining allowances are left entirely to the pattern maker or foundry worker. For mass-production it is advisable to make a separate casting drawing with carefully selected datums to ensure that parts will fit into machining jigs and fixtures and will meet final requirements after machining. Two sets of datum surfaces to provide reference points – Casting – Machining – Datum surface or base surface for casting-Datum A – Secondary & tertiary surfaces at right angles to eachother & primary datum surface- Datum B & Datum C

25. Machining Datum Primary datum surface for machining-Datum D is the first surface on the casting to be machined Secondary & Tertiary datum surfaces for dimensioning purposes Datum-locating dimension-the dimension between eaching casting datum surface and the corresponding machining datum surface Dimensions-directly from the datums to all main surfaces – Regular point-to-point used to maintain a particular relationship between 2 or more surfaces or features (thickness of ribs, height of bosses, projections, depth of grooves, diameters, radii, center distances between holes or similar features – Dimension to surfaces or surface intersections, not radii centers or nonexistent center lines & dimensions should not be repeated
