3 UNC MSK Course Day 5 Lab XR UNKNOWNS (for self study)

4 UNC MSK Course Day 5 Lab XR Location of lesion in bone Epiphyseal Metaphyseal Diaphyseal

5 UNC MSK Course Day 5 Lab XR Location of lesion in bone Epiphyseal Giant cell tumor (adults) Chondroblastoma (children) Metaphyseal All others not listed above or below Diaphyseal Osteomyeliltis Ewing’s Sarcoma Fibrous Dysplasia Paget’s disease (actually throughout bone)

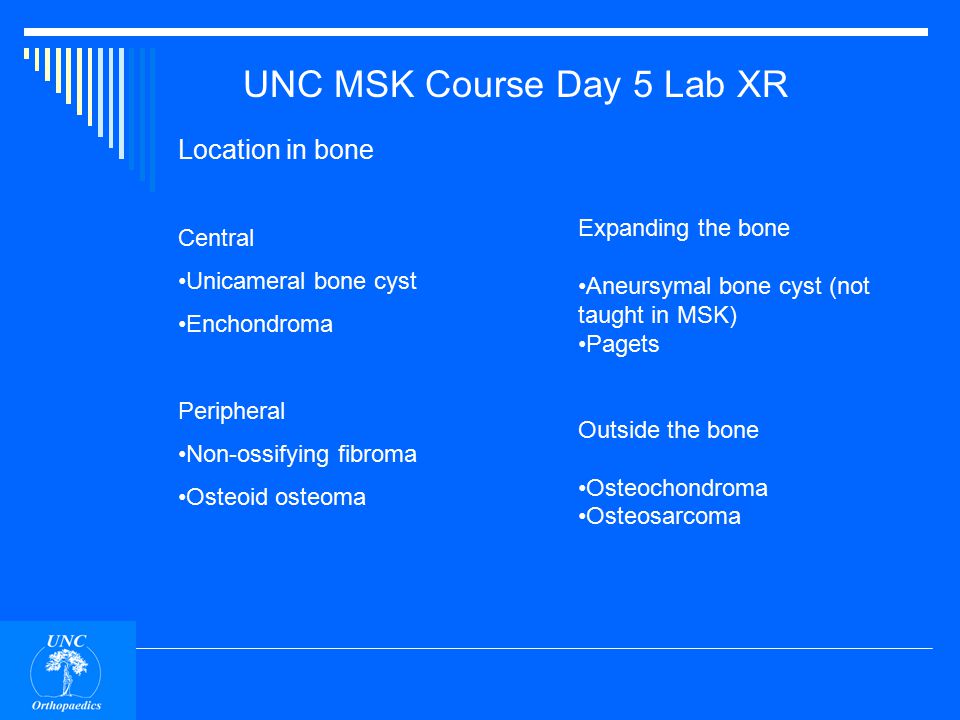

6 UNC MSK Course Day 5 Lab XR Location in bone Central Unicameral bone cyst Enchondroma Peripheral Non-ossifying fibroma Osteoid osteoma Expanding the bone Aneursymal bone cyst (not taught in MSK) Pagets Outside the bone Osteochondroma Osteosarcoma

7 UNC MSK Course Day 5 Lab XR Location in body (can occur elsewhere but have a predilection for) Hand/foot Proximal humerus At rapidly growing physes of long bones

8 UNC MSK Course Day 5 Lab XR Location in body (can occur elsewhere but have a predilection for) Hand/foot Enchondroma Proximal humerus Unicameral bone cyst At rapidly growing physes of long bones (near knee, far from elbow) Osteosarcoma

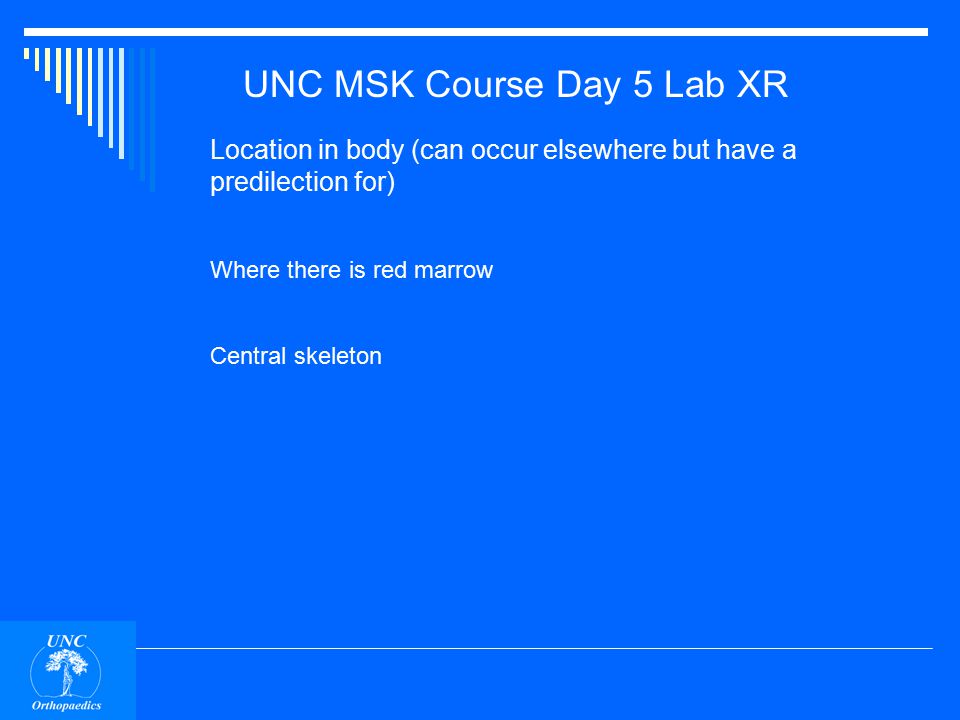

9 UNC MSK Course Day 5 Lab XR Location in body (can occur elsewhere but have a predilection for) Where there is red marrow Central skeleton

10 UNC MSK Course Day 5 Lab XR Location in body (can occur elsewhere but have a predilection for) Where there is red marrow (central bones including proximal femur and humerus) Metastases Multiple myeloma (later in disease, the destruction of the centrally located hematogenous marrow causes marrow metaplasia from fatty back to hematogenous in the long bones and subsequent spread of myeloma to limbs) Central skeleton Chondrosarcoma (as opposed to enchondroma, so that a cartilage lesion in the pelvis is much more likely to be malignant than one in the finger)

11 UNC MSK Course Day 5 Lab XR Patient age (most can occur at other ages but more common at age listed Child Adolescent

12 UNC MSK Course Day 5 Lab XR Patient age (most can occur at other ages but more common at age listed Child Rhabdosaroma Unicameral (solitary) cyst Osteomyelitis (hematogenous) Adolescent Osteosarcoma Chondroblastoma Osteochondroma (discovered in adolescence or as young adult) Non-ossifying fibroma

13 UNC MSK Course Day 5 Lab XR Patient age (most can occur at other ages but more common at age listed Young adult Middle age to elderly

14 UNC MSK Course Day 5 Lab XR Patient age (most can occur at other ages but more common at age listed Young adult Giant cell tumor Ewing’s sarcoma Osteoid osteoma Middle age to elderly Metastases Multiple myeloma Chondrosarcoma Paget’s disease Malignant fibrous histiocytoma

15 UNC MSK Course Day 5 Lab XR Lesion descriptors on XR “reactive rim of sclerotic bone” - “bone destruction with no reactive rim” – “mottled and moth eaten” – “punched out holes in bone” – “marrow cavity continues into lesion” – “onion skinning” – “Codman’s triangle” – “ground glass appearance” –

16 UNC MSK Course Day 5 Lab XR Lesion descriptors on XR “reactive rim of sclerotic bone” - benign “bone destruction with no reactive rim” – malignant “mottled and moth eaten” – osteomyelitis “punched out holes in bone” – myeloma “marrow cavity continues into lesion” – osteochondroma “onion skinning” – layered new bone caused by peeling up of the periosteum due to rapid tumor growth (common in Ewing’s but can occur in other malignancies). “Codman’s triangle” – new bone triangle that occurs at the corner of where the periosteum is stripped as above (common in osteosarcoma but can occur in other malignancies). “ground glass appearance” –the lesions in fibrous dysplasia.

17 UNC MSK Course Day 5 Lab XR Lesion descriptors on XR “lucent nidus with reactive rim of sclerotic bone” - “central in bone” – “peripheral or cortical” – “respects the disc space” - “destroying the disc space” – “sunburst” – “Calcification” –

18 UNC MSK Course Day 5 Lab XR Lesion descriptors on XR “lucent nidus with reactive rim of sclerotic bone” - osteoid osteoma “central in bone” – unicameral bone cyst and enchondroma “peripheral or cortical” – osteoid osteoma and non-ossifying fibroma “respects the disc space” (destroys bone but not the IVD) – malignancy (avoids the disc as it is avascular). “destroying the disc space” – infection (prefers the disc because it is avascular). “sunburst” – exploding rays of new bone outside the original bone, common to osteosarcoma. “Calcification” – enchondroma, can be told from ossification because there are no trabeculae (a speckled, “snowflake” appearance is common)

19 UNC MSK Course Day 5 Lab XR Lesion descriptors on XR “hypertrabeculation” - “blastic” – “lytic” – “bone within a bone” – “sequestrum” – “involucrum” –

20 UNC MSK Course Day 5 Lab XR Lesion descriptors on XR “hypertrabeculation” - Paget’s disease “blastic” – the lesion is making new bone, common to osteosarcoma, prostatic metastases and occasionally breast metastatses. “lytic” – the lesion is destroying bone, common in malignancy and infection “bone within a bone” – appearance of one vertebra inside another common in Paget’s disease of the spine “sequestrum” – a fragment of dead bone walled off inside an infection “involucrum” – new bone formed around a sequestrum.

21 Age 50 Pathology?

22 Age 50 Pathology? Benign appearing (sclerotic rims) Metaphyseal Calcified Central

23 Age 50 Pathology? Benign appearing (sclerotic rims) Metaphyseal Calcified Central Enchondroma

24 Age 25 Pathology?

25 Age 25 Pathology? “bone destruction with no reactive rim” “onion skinning” “Codman’s triangle”

26 Age 25 Pathology? Diaphyseal “bone destruction with no reactive rim” “onion skinning” “Codman’s triangle” Ewing’s Sarcoma (Differential should include infection)

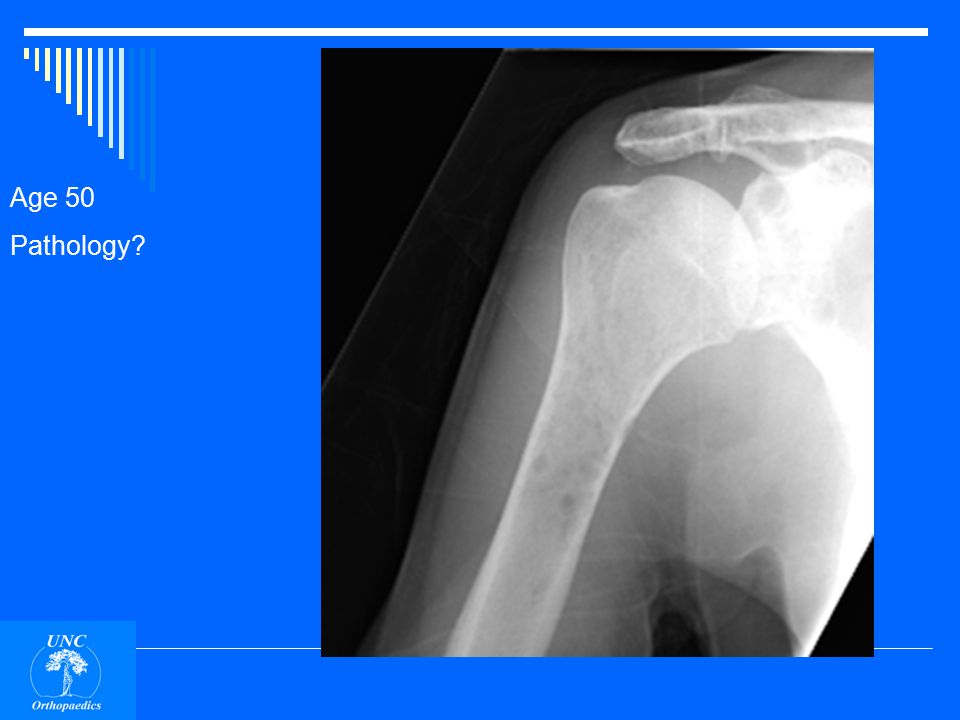

27 Age 50 Pathology?

28 Age 50 Pathology? “punched out holes in bone” Proximal humerus

29 Age 50 Pathology? “punched out holes in bone” Proximal humerus Multiple Myeloma

30 Age 25 Pathology?

31 Age 25 Pathology? “diaphyseal lesion” “reactive rim of sclerotic bone” “ground glass appearance”

32 Age 25 Pathology? Diaphyseal “reactive rim of sclerotic bone” “ground glass appearance” Fibrous dysplasia

33 Age 30 Pathology?

34 Age 30 Pathology? epiphyseal “Sclerotic rim”

35 Age 30 Pathology? Lesion in epiphysis Sclerotic rim Giant Cell Tumor

36 Age 60 Pathology?

37 Age 60 Pathology? “respects the disc space”

38 Age 60 Pathology? “respects the disc space” (cancer) Multiple myeloma (differential would include severe osteoporosis and metastatic disease)

39 Age 20 Pathology?

40 Age 20 Pathology? Eccentric Reactive rim sclerotic bone Shortly after physeal closure

41 Age 20 Pathology? Eccentric Reactive rim sclerotic bone Shortly after physeal closure Non-ossifying fibroma

42 Age 25 Pathology?

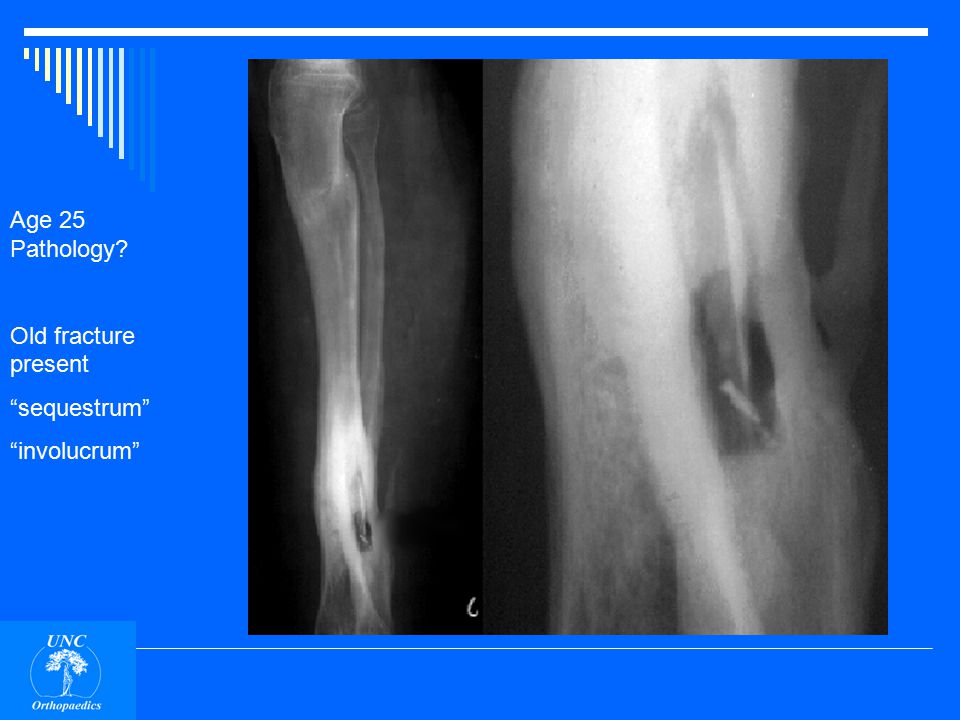

43 Old fracture present “sequestrum” “involucrum”

44 Age 25 Pathology? Old fracture present “sequestrum” “involucrum” Post traumatic osteomylitis

45 Age 16 Pathology?

46 Age 16 Pathology? “marrow cavity continues into lesion” Outside the bone Discovered during growth spurt. Stalk pointing away from growth plate.

47 Age 16 Pathology? “marrow cavity continues into lesion” Outside the bone Discovered during growth spurt. Stalk pointing away from growth plate. Osteochondroma

48 Age 17 Pathology?

49 Age 17 Pathology? “sunburst” “blastic” Outside the bone

50 Age 17 Pathology? “sunburst” “blastic” Outside the bone Osteosarcoma

51 Age 45 Pathology?

52 Age 45 Pathology? “destroying the disc space”

53 Age 45 Pathology? “destroying the disc space” Vertebral osteomyelitis

54 Age 10 Pathology?

55 Age 10 Pathology? Central in bone Proximal humerus “reactive rim of sclerotic bone”

56 Age 10 Pathology? Central in bone Proximal humerus “reactive rim of sclerotic bone” Unicameral bone cyst

57 Age 40, several months of pain in ankle Pathology?

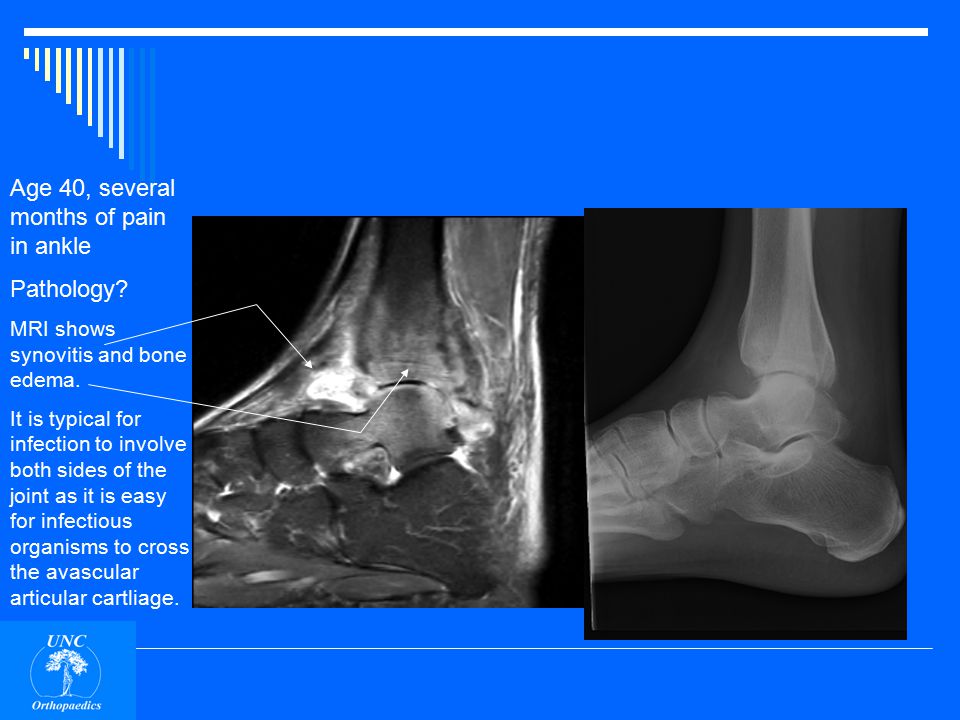

58 Age 40, several months of pain in ankle Pathology? Destruction of ankle joint with joint space narrowing, erosions of bone.

59 Age 40, several months of pain in ankle Pathology? MRI shows synovitis and bone edema. Differential diagnosis would include chronic infection such as tuberculosis or possibly monoarticular inflammatory disease.

60 Age 40, several months of pain in ankle Pathology? MRI shows synovitis and bone edema. It is typical for infection to involve both sides of the joint as it is easy for infectious organisms to cross the avascular articular cartliage.

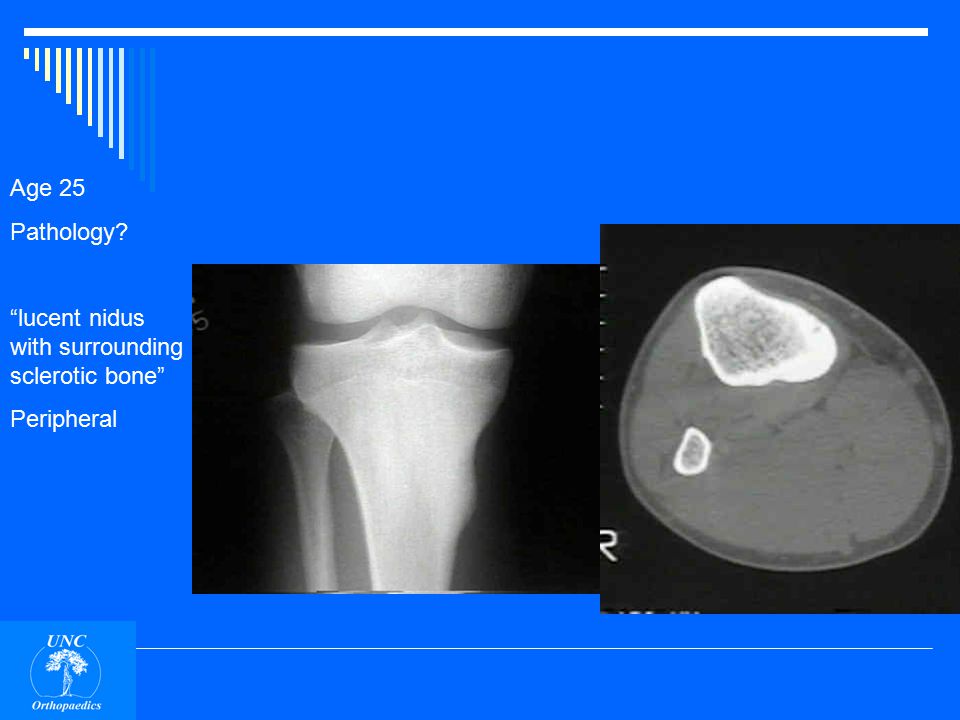

61 Age 25 Pathology? “lucent nidus with surrounding sclerotic bone” Peripheral

62 Age 25 Pathology? “lucent nidus with surrounding sclerotic bone” Peripheral Osteoid osteoma

63 Age 60 Pathology?

64 Age 60 Pathology? “hypertrabeculation” Expanding the bone Affecting entire bone

65 Age 60 Pathology? “hypertrabeculation” (looks mottled and lumpy here) Expanding the bone Affecting entire bone (innominate) Paget’s disease L innominate (patient also has nonunion of fractured ischium)

66 Age 20 Shoulder warm and swollen, moderate pain. Pathology?

67 Age 20 Shoulder warm and swollen, moderate pain. Pathology? Neuropathic (Charcot if secondary to syphilis) shoulder secondary to syringomyelia. Bone is fragmented and destroyed and warmth leads to a differential of osteomyelits. Pain is present but not as severe as you would expect for degree of bone destruction.
