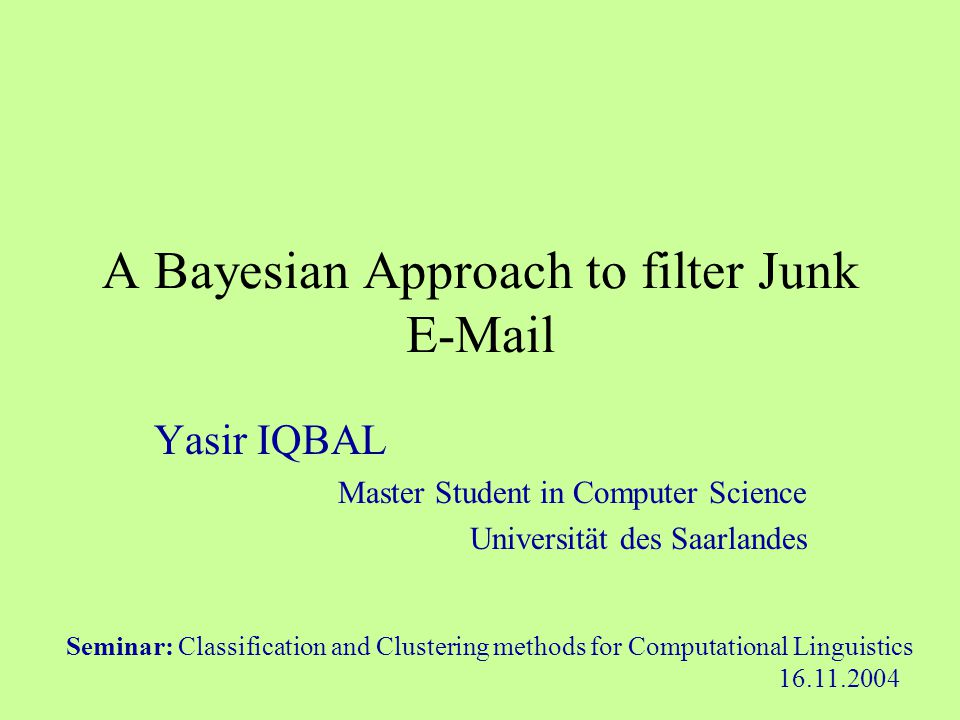

1. A Bayesian Approach to filter Junk E-Mail Yasir IQBAL Master Student in Computer Science Universität des Saarlandes Seminar: Classification and Clustering methods for Computational Linguistics 16.11.2004

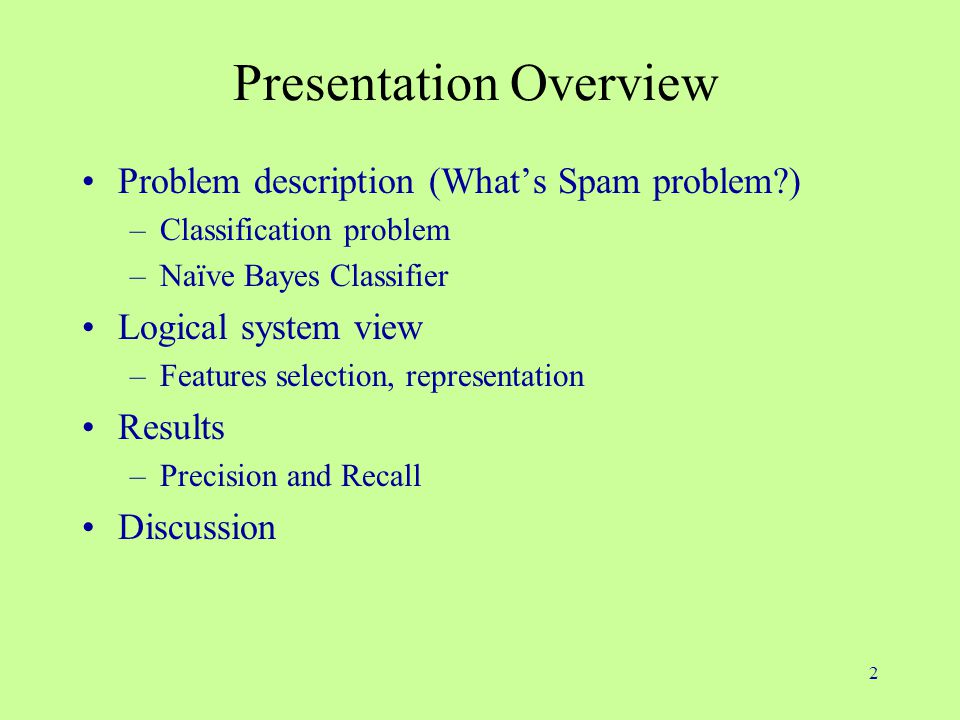

2. 2 Presentation Overview Problem description (What’s Spam problem?) –Classification problem –Naïve Bayes Classifier Logical system view –Features selection, representation Results –Precision and Recall Discussion

3. 3 Spam/junk/bulk Emails The messages you spend your time to throw out –Spam: do not want to get, unsolicited messages –Junk: irrelevant to the recipient, unwanted –Bulk: mass mailing for business marketing (or fill-up mailbox etc)

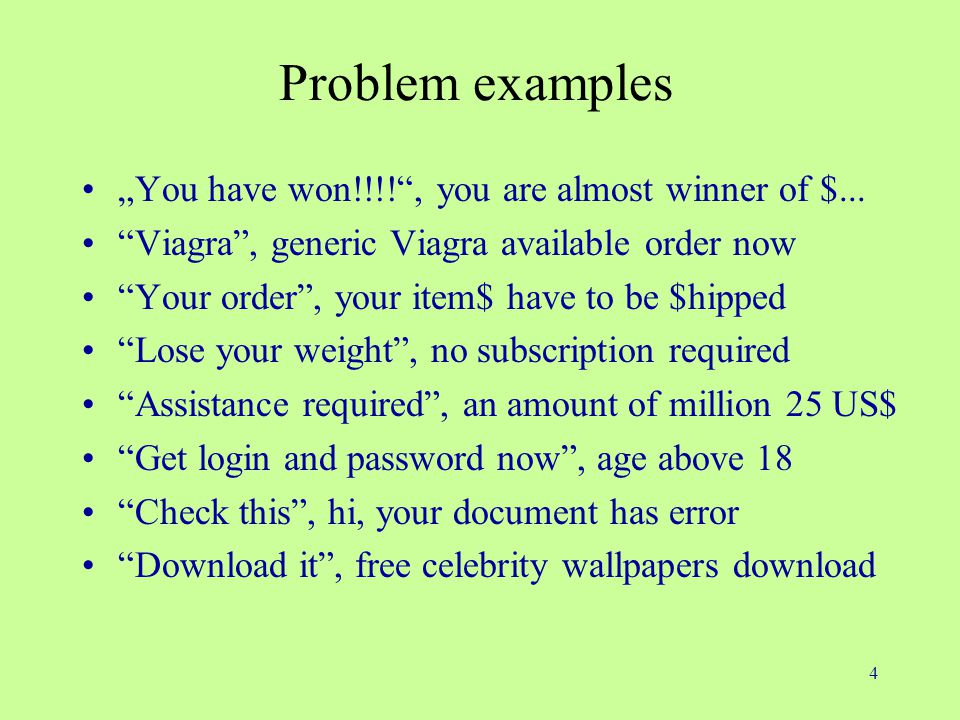

4. 4 Problem examples „You have won!!!!“, you are almost winner of $... “Viagra”, generic Viagra available order now “Your order”, your item$ have to be $hipped “Lose your weight”, no subscription required “Assistance required”, an amount of million 25 US$ “Get login and password now”, age above 18 “Check this”, hi, your document has error “Download it”, free celebrity wallpapers download

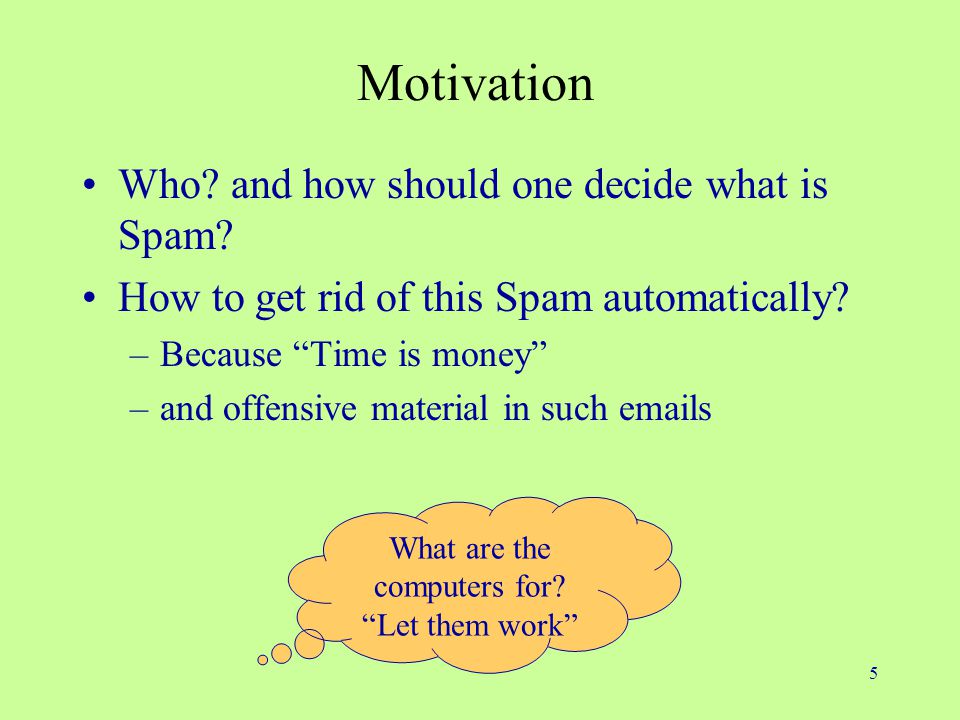

5. 5 Who? and how should one decide what is Spam? How to get rid of this Spam automatically? –Because “Time is money” –and offensive material in such emails Motivation What are the computers for? “Let them work”

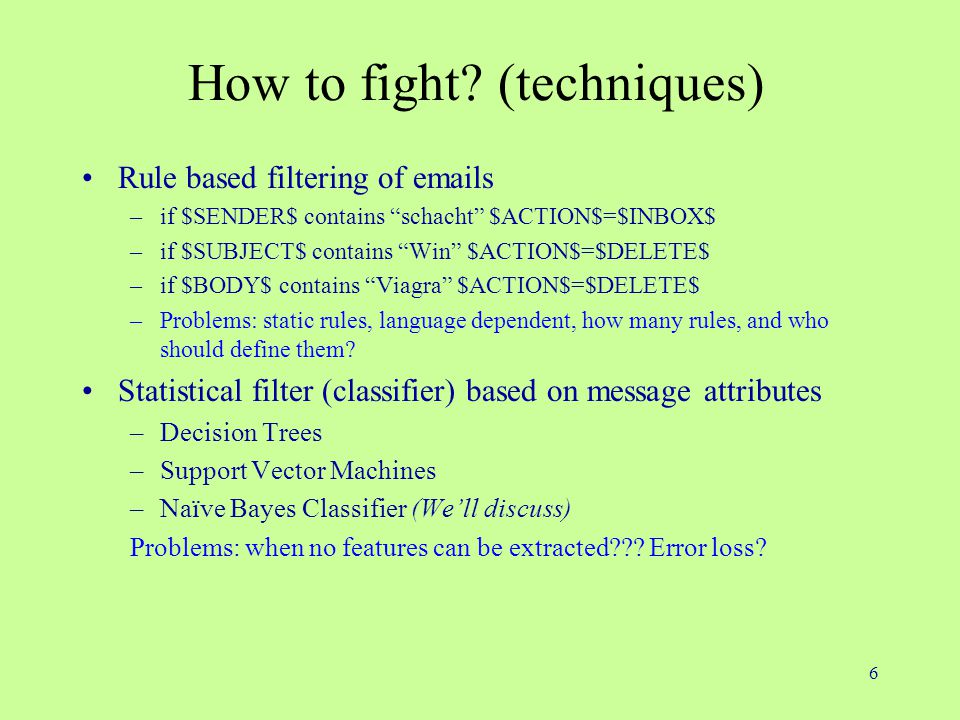

6. 6 How to fight? (techniques) Rule based filtering of emails –if $SENDER$ contains “schacht” $ACTION$=$INBOX$ –if $SUBJECT$ contains “Win” $ACTION$=$DELETE$ –if $BODY$ contains “Viagra” $ACTION$=$DELETE$ –Problems: static rules, language dependent, how many rules, and who should define them? Statistical filter (classifier) based on message attributes –Decision Trees –Support Vector Machines –Naïve Bayes Classifier (We’ll discuss) Problems: when no features can be extracted??? Error loss?

7. 7 Classification tasks These are few other classification tasks: –Text Classification (like the mail message) Content management, information retrieval –Document classification Same like text classification –Speech recognitions “what do you mean? ”: yeh you understand ;)! –Named Entity Recognition: “Reading and Bath”: Cities or simple verbs? –Biometric sensors for authentication “fingerprints”, “face”… to identify someone

8. 8 Training methods Offline learning: –some training data, prepared manually, with annotation (used to train the system before test) hi, have you thought online credit? Soha! sorry cannot reach at 18:00 Online learning: –At run-time user increases “knowledge” of the system by a kind of “feedback” to the given decision. Example: We can click on “Spam” or “Not Spam” in Yahoo mail service.

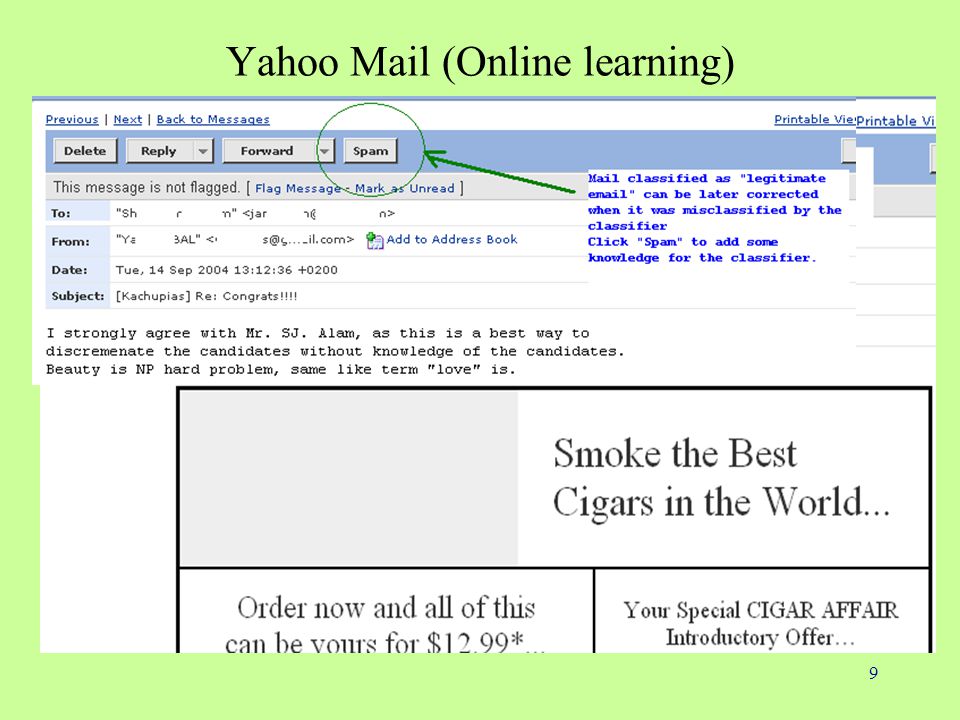

9. 9 Yahoo Mail (Online learning)

10. 10 Model overview Flow (training/test)Steps –Training data of annotated emails Emails annotated –A set of classes In our case two possible classes Can further be personalized –Feature extraction (text etc) Tokenization Domain specific features Most often features to be selected –Classify (each message/email) Calculate posterior probabilities –Evaluate results (precision/recall) test training Features extraction & selection classify Evaluate Email?Spam?

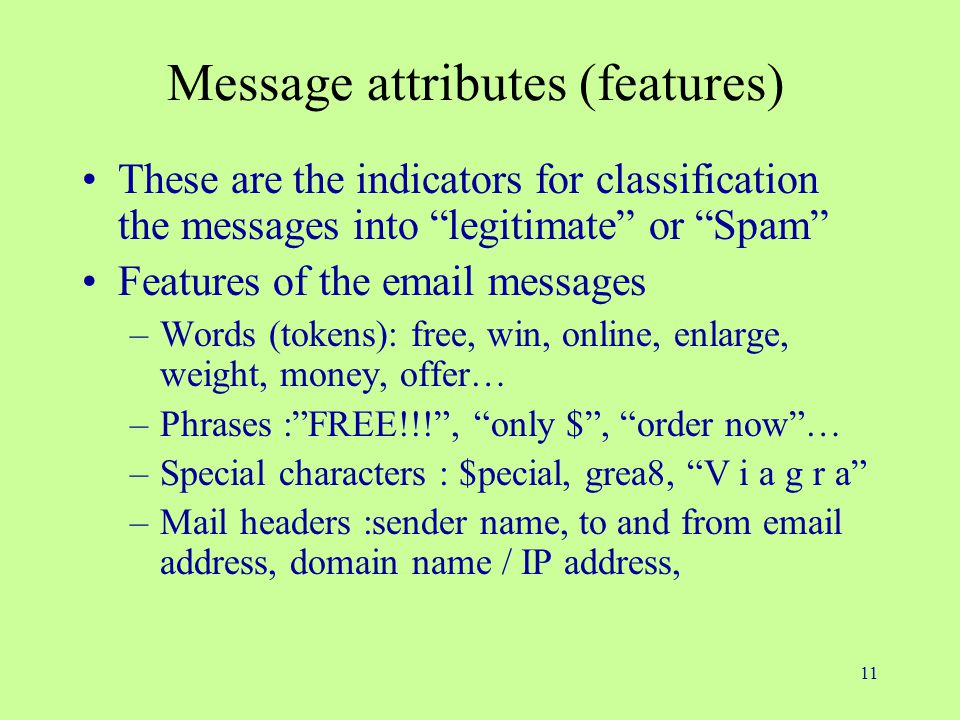

11. 11 Message attributes (features) These are the indicators for classification the messages into “legitimate” or “Spam” Features of the email messages –Words (tokens): free, win, online, enlarge, weight, money, offer… –Phrases :”FREE!!!”, “only $”, “order now”… –Special characters : $pecial, grea8, “V i a g r a” –Mail headers :sender name, to and from email address, domain name / IP address,

12. 12 Feature vector matrix (binary variables) Email#“online”“Viagra”“Order now!!!”“offer”“win”SPAM? 110101YES 211110 310010NO 401111YES 500110NO Words/phrases as features, 1 if the feature exists, otherwise 0

13. 13 Feature Selection How to select most prominent features? –Words/Tokens, phrases, header information Text of the email, HTML messages, header fields, email address –Removing insignificant features Calculate the mutual information between each feature and the class

14. 14 B Conditional probability Probability of an event B while given an observed event A –P(B | A) = P(A|B) * P(B) / P(A) Probability of even A must be > 0 (must have occurred) A Feature set SPAMEMAIL P that A and B occurred together Calculate P that these features belong to SPAM or EMAIL class

15. 15 How to apply to the problem? When X={x1, x2, x3, x4…x n } is a feature vector –a set of feature (feature vector), X={“online”, “credit”, “now!!!”…”Zinc”} C={c1, c2, c3, c4…c k } is a set of classes –in our case only two classes i.e. C={“SPAM”, “LEGITIMATE”}. P(C=c k | X = x) = P(X=x | C=c k ) * P(C=c k ) / P(X=x) –assumption is made that each feature is independent from other P(SPAM | “online credit $”) = P(“online”|SPAM) * P(“credit”|SPAM) * P(“$”|SPAM) * P(SPAM) / P(“online”) * P(“credit”) * P(“$”)

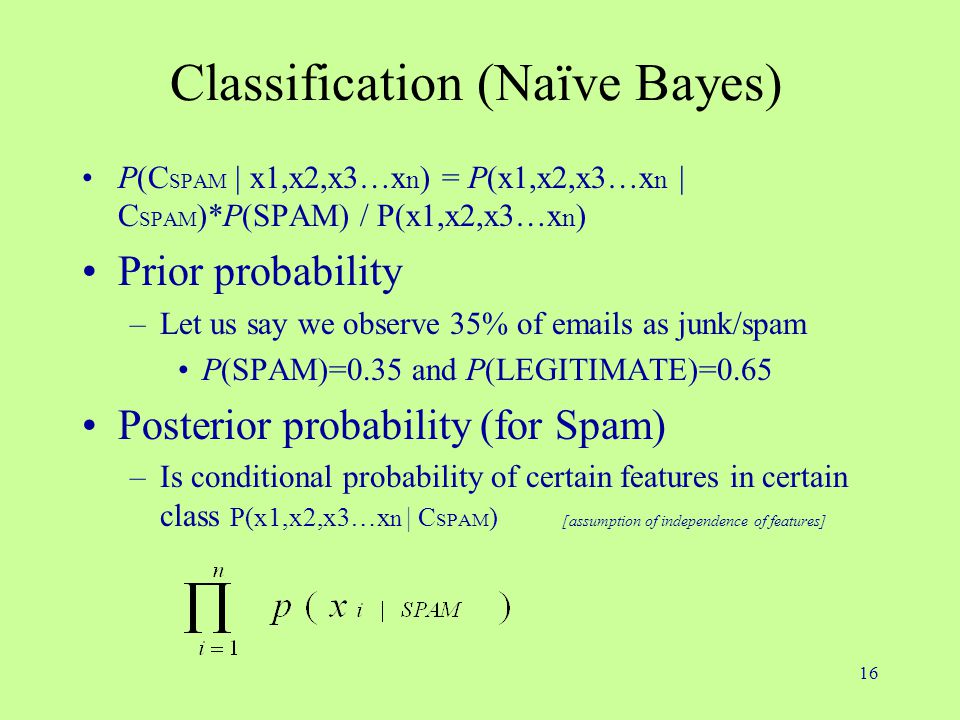

16. 16 Classification (Naïve Bayes) P(C SPAM | x1,x2,x3…x n ) = P(x1,x2,x3…x n | C SPAM )*P(SPAM) / P(x1,x2,x3…x n ) Prior probability –Let us say we observe 35% of emails as junk/spam P(SPAM)=0.35 and P(LEGITIMATE)=0.65 Posterior probability (for Spam) –Is conditional probability of certain features in certain class P(x1,x2,x3…x n | C SPAM ) [assumption of independence of features]

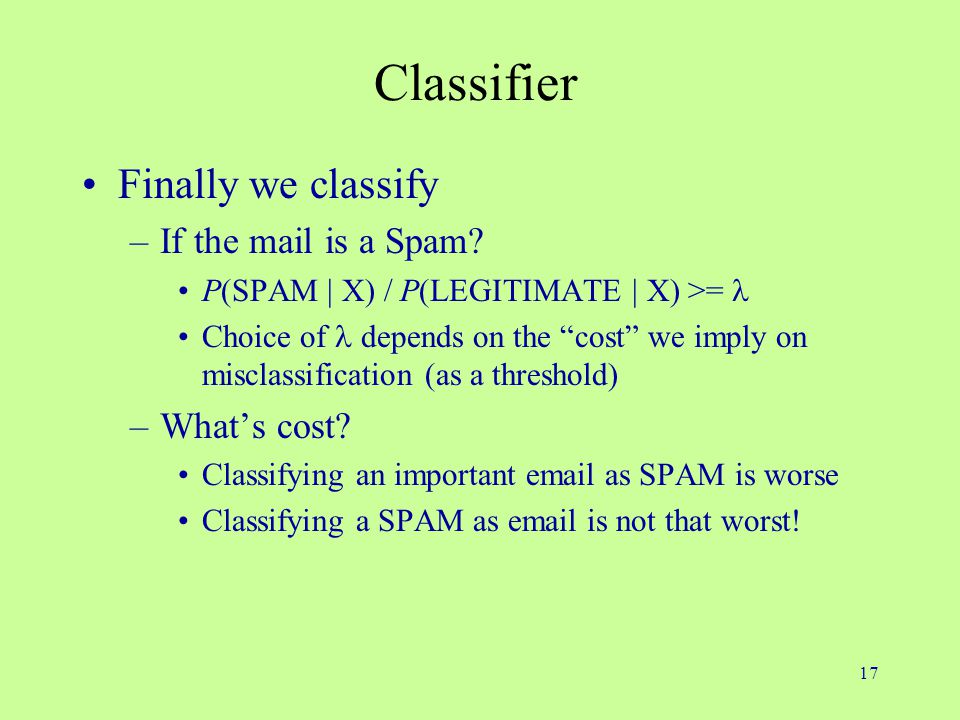

17. 17 Classifier Finally we classify –If the mail is a Spam? P(SPAM | X) / P(LEGITIMATE | X) >= Choice of depends on the “cost” we imply on misclassification (as a threshold) –What’s cost? Classifying an important email as SPAM is worse Classifying a SPAM as email is not that worst!

18. 18 Experiments Used features selection to decrease dimensions of features/data Corpus of 1789 actual (1578 junks, 211 legitimate) Features from the text tokens –removed too rare tokens –Added about 35 hand-crafted phrase features –20 non textual domain specific features –Non-Alphanumeric characters and percentage of numeric were handy indicators –Top 500 features according to Mutual Info between classes and features (greater this value )

19. 19 Evaluation? How to know how good is our classifier? –Calculate precision and recall! Precision is percentage of emails classified as SPAM, that are in fact SPAM Recall is percentage of all SPAM emails that are correctly classified as SPAM Ideal precision/recall curve 1 1 0 Recall Precision

20. 20 Results

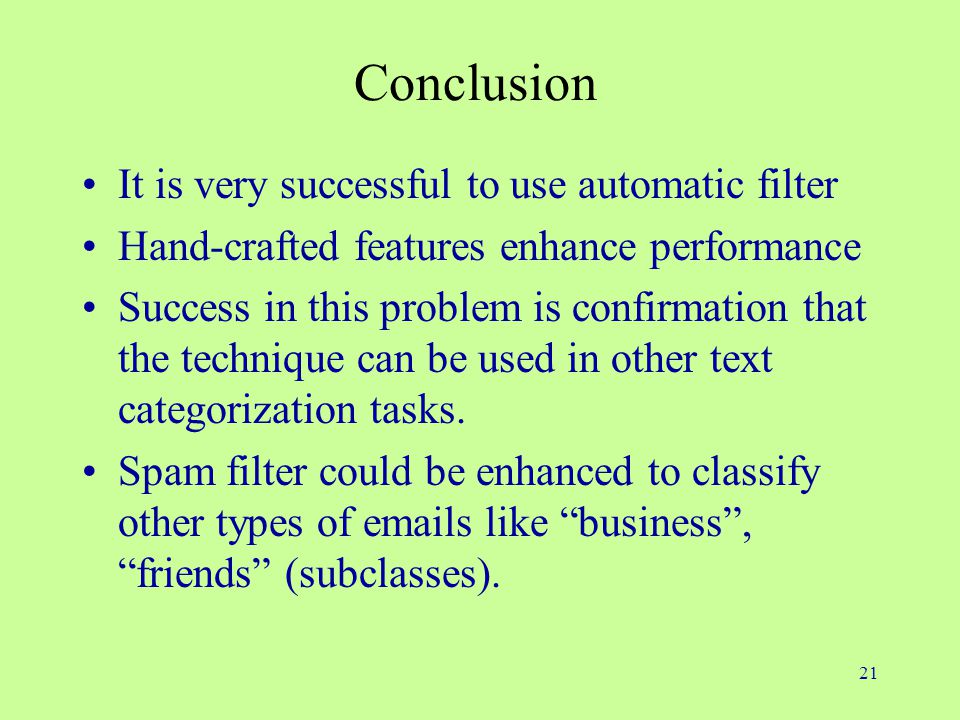

21. 21 Conclusion It is very successful to use automatic filter Hand-crafted features enhance performance Success in this problem is confirmation that the technique can be used in other text categorization tasks. Spam filter could be enhanced to classify other types of emails like “business”, “friends” (subclasses).

22. 22 Discussion What are we classifying? (Objects) What are the features? –What could be the features? Bayesian classification –Strong and weak points –Possible improvements? –Why Bayesian instead of other methods? –What are the questionable assumptions? Subclasses? How to control error loss? –When a normal email is moved to trash… or a junk mail in the inbox?

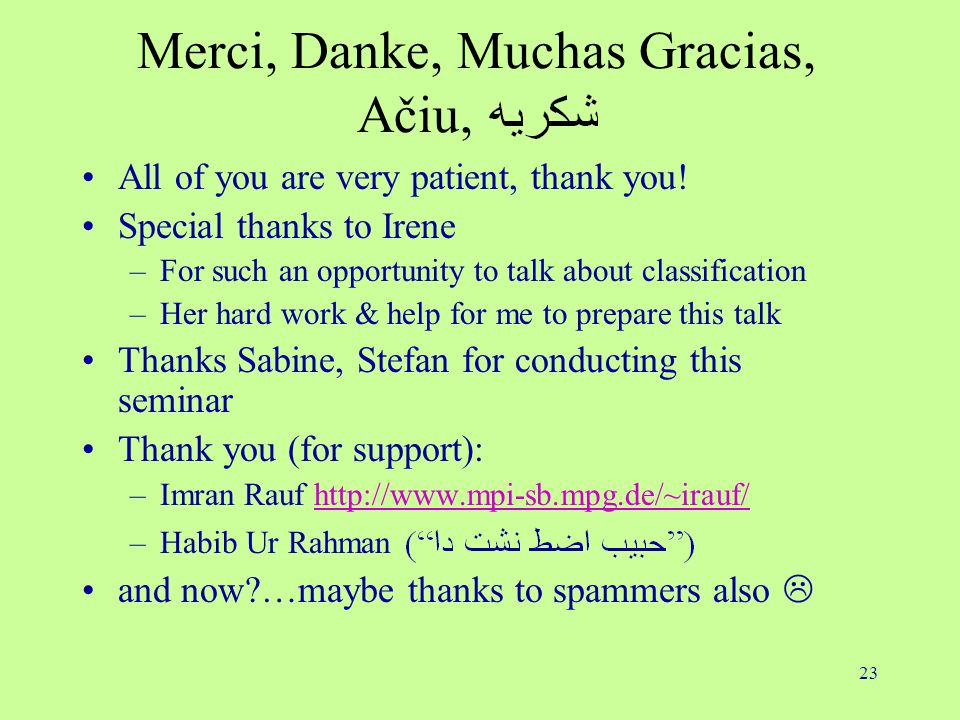

23. 23 Merci, Danke, Muchas Gracias, Ačiu, شكريه All of you are very patient, thank you! Special thanks to Irene –For such an opportunity to talk about classification –Her hard work & help for me to prepare this talk Thanks Sabine, Stefan for conducting this seminar Thank you (for support): –Imran Rauf http://www.mpi-sb.mpg.de/~irauf/http://www.mpi-sb.mpg.de/~irauf/ –Habib Ur Rahman (“ حبيب اضط نشت دا ”) and now?…maybe thanks to spammers also 

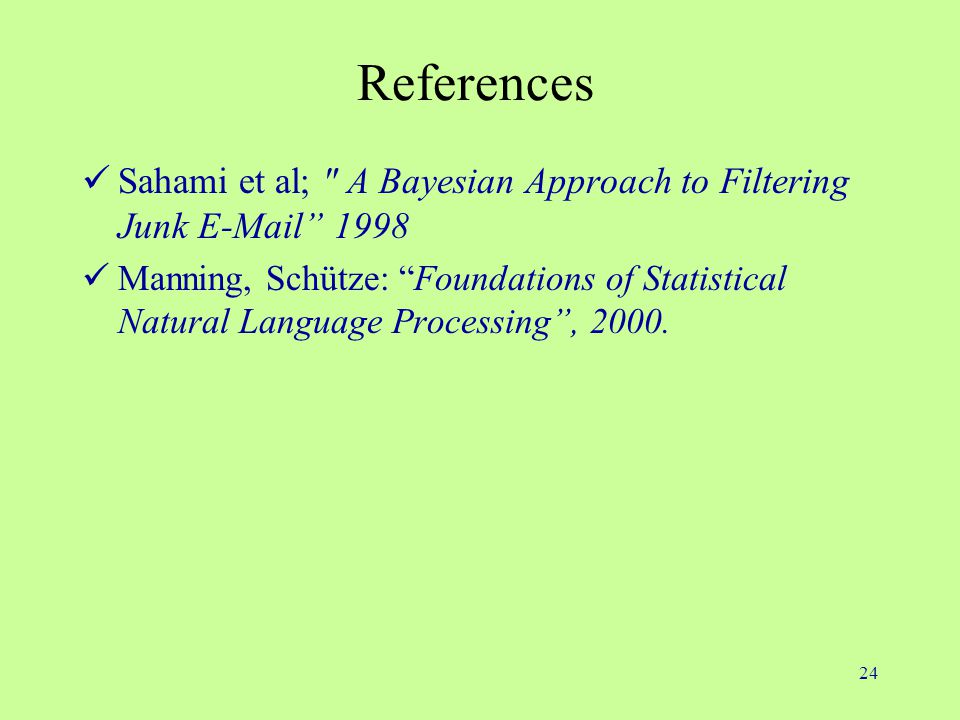

24. 24 References Sahami et al; " A Bayesian Approach to Filtering Junk E-Mail” 1998 Manning, Schütze: “Foundations of Statistical Natural Language Processing”, 2000.

25. 25 Extra slides ;) oder … 

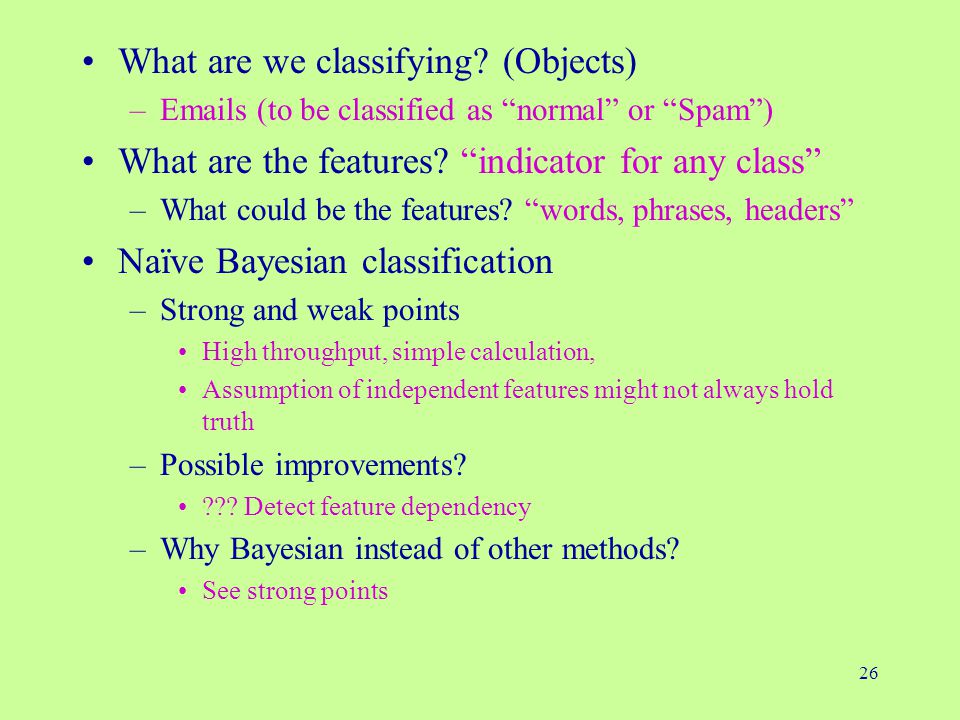

26. 26 What are we classifying? (Objects) –Emails (to be classified as “normal” or “Spam”) What are the features? “indicator for any class” –What could be the features? “words, phrases, headers” Naïve Bayesian classification –Strong and weak points High throughput, simple calculation, Assumption of independent features might not always hold truth –Possible improvements? ??? Detect feature dependency –Why Bayesian instead of other methods? See strong points

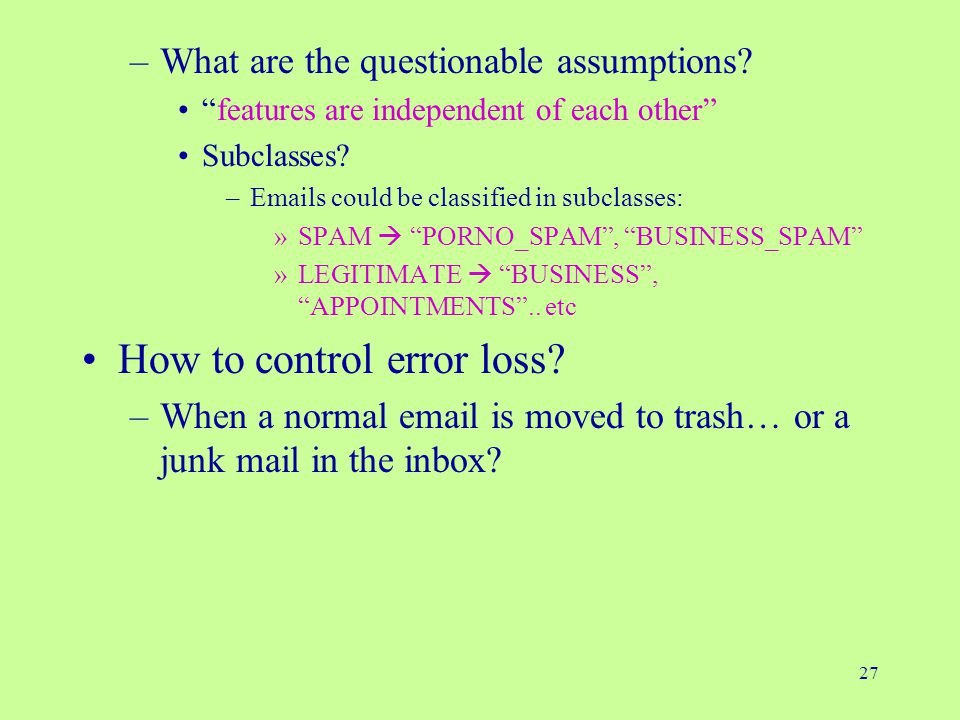

27. 27 –What are the questionable assumptions? “features are independent of each other” Subclasses? –Emails could be classified in subclasses: »SPAM  “PORNO_SPAM”, “BUSINESS_SPAM” »LEGITIMATE  “BUSINESS”, “APPOINTMENTS”.. etc How to control error loss? –When a normal email is moved to trash… or a junk mail in the inbox?

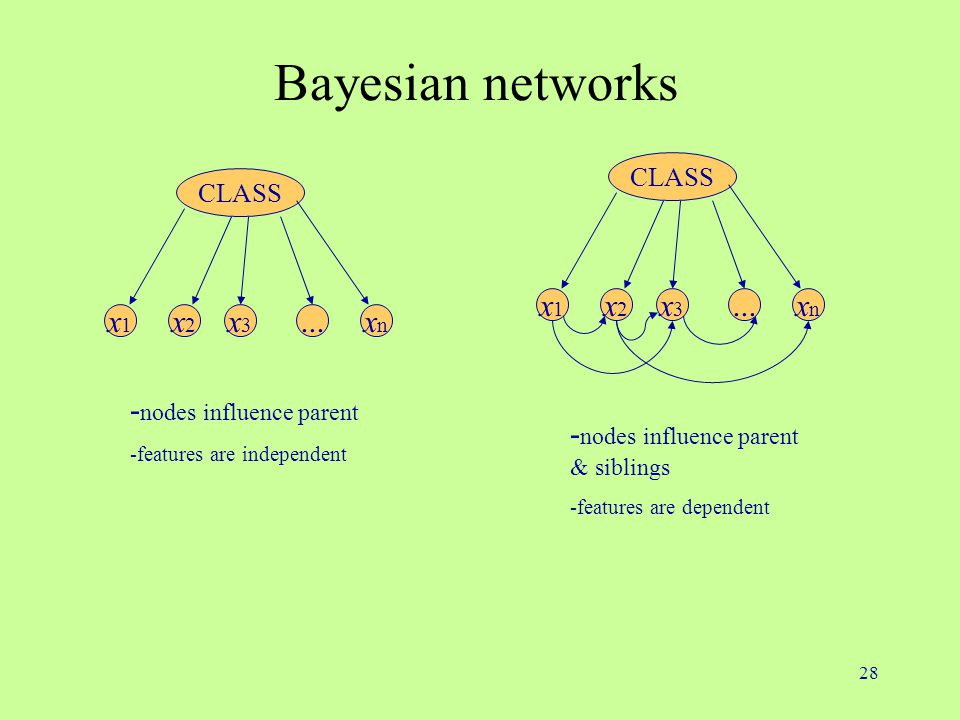

28. 28 Bayesian networks CLASS x1x1 x2x2 x3x3...xnxn - nodes influence parent -features are independent CLASS x1x1 x2x2 x3x3...xnxn - nodes influence parent & siblings -features are dependent
