1. Automated Deduction resolution (Otter) backward-chaining (Prolog)
forward-chaining (Rete, Clips, Jess)
also called “theorem provers” or “inference engines”
example application:
think about using rules to infer “right-of-way” in a driving simulation

2. Resolution first-order (with unification) example
(ab)(a’c)ᅡ(b”c”)
where q=unifier(a,a’) and b”=apply(b,q), c”=apply(c,q)
example
X works_for(X,government) v receives_pension(X)
works_for(kate,government) v works_for(kate,walmart)
works_for(kate,walmart) v receives_pension(kate)
q={X/kate}

3. resolution is refutation-complete for FOL
must convert all sentences to CNF
a ground instance of a clause is formed by instantiating all variables with some constant
P(X,Y)vQ(Y,Y) : {P(sam,bill)vQ(bill,bill); P(sam,joe)vQ(joe,joe)...}
Herbrand’s Theorem: if a set of sentences is unsatisfiable, then there exists a set of ground (propositional) instances that is unsatisfiable
Ground Resolution Theorem: if a set of propositional clauses is unsatisfiable, then there is a finite derivation of the empty clause
Lifting Lemma: If there is proof of the empty clause using ground instances, then there is parallel proof using the original clauses with variables (using unification)

4. Converting FOL sentences to CNF
eliminate implications (abᅡab)
move neg. inwards (DeMorgans’ Laws, x Pᅡx P)
standardize variables apart (if X is used in multiple quantifiers, replace instance with X1, X2...)
skolemization (replace  vars with *new* constants)
drop universal quantifiers 
distribute  over 
break conjunctions into separate clauses
“Everyone who loves all animals is loved by someone.”
x (y animal(y)loves(x,y))y loves(y,x)

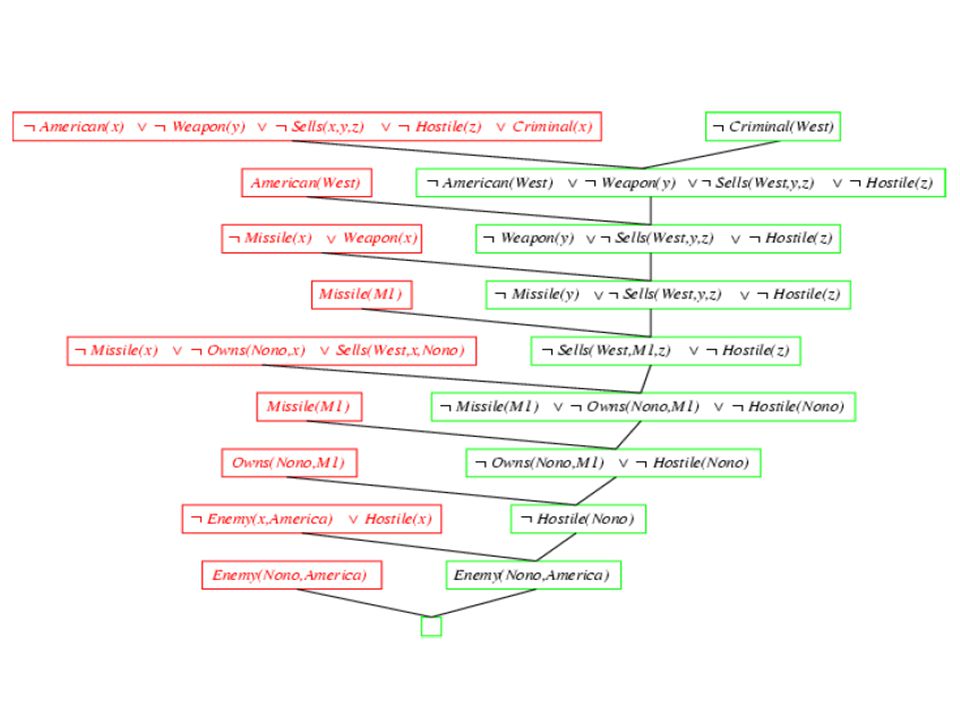

5. Example
“The law says that it is a crime for an American to sell weapons to hostile nations. The country Nono, an enemy of America, has some missles, and all of its missles were sold to it by Colonel West, who is an American.”
Prove that Colonel West is a criminal.
x,y,z american(x)&weapon(y)&sells(x,y,z)&hostile(z) criminal(x)
x owns(nono,x)&missle(x)
x owns(nono,x)&missle(x)sells(west,x,nono)
x missle(x)weapon(x)
x enemy(x,america)hostile(x)
american(west), enemy(nono,america)
negation of query: criminal(west)

6. convert to CNF
x,y,z american(x)&weapon(y)&sells(x,y,z)&hostile(z) criminal(x)
{american(x1),weapon(y1),sells(x1,y1,z1),hostile(z1), criminal(x1)}
x missle(x)weapon(x)
{missle(x2),weapon(x2)}
x owns(nono,x)&missle(x)sells(west,x,nono)
{owns(nono,x3), missle(x3),sells(west,x3,nono)}
x owns(nono,x)&missle(x)
{owns(nono,M),missle(M)} – M is a skolem constant
x enemy(x,america)hostile(x)
{enemy(x4,america),hostile(x4)}
american(west), enemy(nono,america),criminal(west)

8. maybe thousands of clauses – difficult search
search strategies: which clauses to resolve?
unit preference:
one clause must be of length 1
guarantees to reduce length of other clause (toward 0)
set of support:
one clause must be from the sos, e.g. negated query
“source” of the unsatisfiability
input resolution:
one clause must be from the input (KB or query)
linear resolution
one clause must be from negated query OR a successor derived from it
complete
Otter – a real-world resolution theorem prover

9. Backward-chaining recall: subgoal stack KB must be in Horn-clause form
try to reduce to facts; might have to back-track
KB must be in Horn-clause form
in FOL, use unification
for popped subgoal, try to unify with fact or head of some clause
Prolog – a practical implementation of a back-chaining theorem prover
funky syntax
can be used for many solving many problems
learn how to use back-chaining as “computational model”
widely employed for expert systems, intelligent agents, control applications...

10. Prolog syntax facts: predicate(args,...). rules:
no quantifiers, variables in capital letters,
written backwards, “:-” means “” , read as “if”
“,” means conjunction; no disjunction
X dog(X)  mammal(X)
mammal(X) :- dog(X).
canPlay(Child) :- hasEaten(Child,dinner),finished(Child,homework).
also support for strings, lists, numbers...

11. Problem solving by back-chaining
combinatorial enumeration/search (unbound variables)
often interested in variable binding of solution
father(X,Y) :- parent(X,Y),male(X).
mother(X,Y) :- parent(X,Y),female(X).
sibling(X,Y) :- parent(Z,X),parent(Z,Y).
grandparent(X,Y) :- parent(X,Z),parent(Z,Y).
uncle(X,Y) :- parent(Z,Y),sibling(X,Z),male(X).
male(john). male(sam). male(joe). male(bill). female(sue). female(ellen).
parent(sam,john), parent(ellen,john). parent(ellen,joe). parent(sam,joe).
parent(sue,bill). parent(al,sam). parent(sue,ellen).
query: ?- uncle(bill,john).
yes.
query: ?- uncle(sue,john).
fail.
query: ?- grandparent(X,john).
X=al; X=sue

12. Map-Coloring in Prolog
color(red).
color(green).
color(blue).
color(yellow).
valid_coloring(A,B,C,D,E) :-
color(A),color(B),color(C),color(D),color(E),
not A=B, not A=C, not A=D, not A=E,
not B=C, not B=D,
not C=D, not D=E.
effectively enumerates all combinations of colors and tests them for consistency.
will try A=red, B=red, C=red, D=red, E=red first
fail, because doesn’t satisfy not A=B.
then back-track to A=red, B=red, C=red, D=red, E=green, which fails not A=C.
and so on, until reach A=red, B=green, C=blue, D=yellow, E=green
not very efficient, but illustrative of the kind of combinatorial problem-solving that can be simulated via back-chaining

13. Negation in Prolog Can have negative literals in antecedents.
not strict FOL semantics
“negation-as-failure”
...,not p(X),... means try to prove p(X) (by back-chaining with current variable bindings)
if cannot prove it, then proceed
if can prove it, then fail and back-track
very handy – allows default inference, compact KB
canFly(X) :- bird(X),not broken(wings(X)).
bird(X) :- canary (X).
bird(X) :- penguin(X).
bird(X) :- eagle(X).
canary(tweety). penguin(opus). eagle(sam).
broken(wings(opus)).
?- canFly(B).
B=sam.
B=tweety.

14. Forward-Chaining requires Horn-clause KB
combining universally-quantified rules with ground facts can generate many inferences
how to do this efficiently
Rete algorithm
generates a graph structure
firing rules to create nodes
“production system”, basis of many expert systems
e.g. XCON or R1, for configuring computers, or MYCIN for diagnosing blood diseases
also the basis of “cognitive architectures” like ACT and SOAR (Allan Newell and Herb Simon)
based on theory that brain does symbolic pattern matching, which triggers associations that activate other concepts...

15. grandparent(sue,john)
Rete algorithm
until quiescence...
find all rules that could fire (i.e. are “activated” by a combination of input nodes, see colors below)
pick rule with highest priority (conflict resolution)
unify antecedent with incoming edges
apply unifier to consequent; create new node
uses hash tables and many other optimizations for efficiency
father(X,Y) :- parent(X,Y),male(X).
mother(X,Y) :- parent(X,Y),female(X).
sibling(X,Y) :- parent(Z,X),parent(Z,Y).
grandparent(X,Y) :- parent(X,Z),parent(Z,Y).
uncle(X,Y) :- parent(Z,Y),sibling(X,Z),male(X).
male(john). male(sam). male(joe). male(bill). female(sue). female(ellen).
parent(sam,john), parent(ellen,john). parent(ellen,joe). parent(sam,joe).
parent(sue,bill). parent(al,sam). parent(sue,ellen).
uncle(bill,john)
sibling(bill,ellen)
mother(sue)
grandparent(sue,john)

16. practical implementations of Rete (forward-chaining inference engines)
CLIPS
invented at NASA in 1980’s
used for many applications, especially discrete simulations, e.g. of traffic flow, shuttle operation, clock mechanisms, agents
encode rules in KB; executes forward-chaining by Rete
JESS
re-implementation in Java at Sandia National Lab

17. syntax: (defrule name PATTERN => ACTION)
(defrule welcome-toddlers
(person ?X) (age ?X ?Y) (< ?Y 3))
=>
(assert (toddler ?X))
(printout t "Hello, little one!" crlf))
(defrule library-rule-1
(book (name ?X) (status late) (borrower ?Y))
(borrower (name ?Y) (address ?Z))
=> (send-late-notice ?X ?Y ?Z))
pattern-match left-hand side
execute right-hand side
actions: assert, retract, printout...
can have structured “objects” with “slots”
can define functions...
can call invoke external procedures (e.g. graphics)
