1 CDA 3101 Discussion Section 03

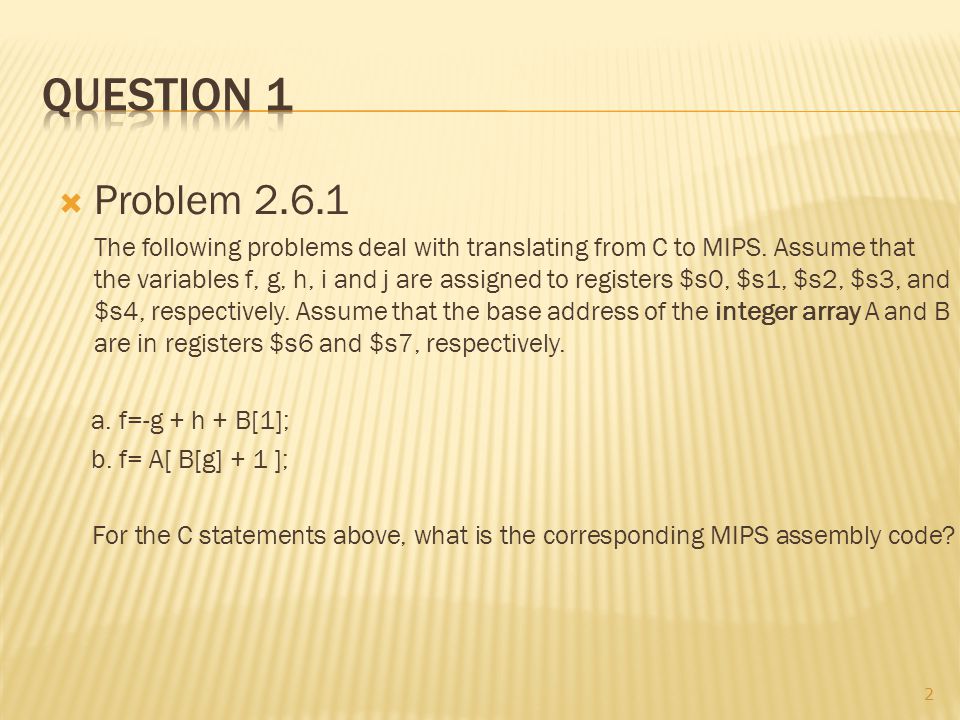

 Problem 2.6.1 The following problems deal with translating from C to MIPS. Assume that the variables f, g, h, i and j are assigned to registers \$s0, \$s1, \$s2, \$s3, and \$s4, respectively. Assume that the base address of the integer array A and B are in registers \$s6 and \$s7, respectively. a. f=-g + h + B; b. f= A[ B[g] + 1 ]; For the C statements above, what is the corresponding MIPS assembly code? 2

a) lw \$s0, 4(\$s7) sub \$s0, \$s0, \$s1 add \$s0, \$s0, \$s2 b) sll \$t0, \$s1, 2 add \$t0, \$s7, \$t0 lw \$t0, 0(\$t0) addi \$t0, \$t0, 1 sll \$t0, \$t0, 2 add \$t0, \$s6, \$t0 lw \$s0, 0(\$t0) 3

 Problem 2.6.4 The following problems deal with translating from MIPS to C. Assume that the variables f, g, h, i and j are assigned to registers \$s0, \$s1, \$s2, \$s3, and \$s4, respectively. Assume that the base address fo the array A and B are in registers \$s6 and \$s7, respectively. add \$s0, \$s0, \$s1 add \$s0, \$s3, \$s2 add \$s0, \$s0, \$s3 For the MIPS assembly code above, what is the corresponding C statement? 4

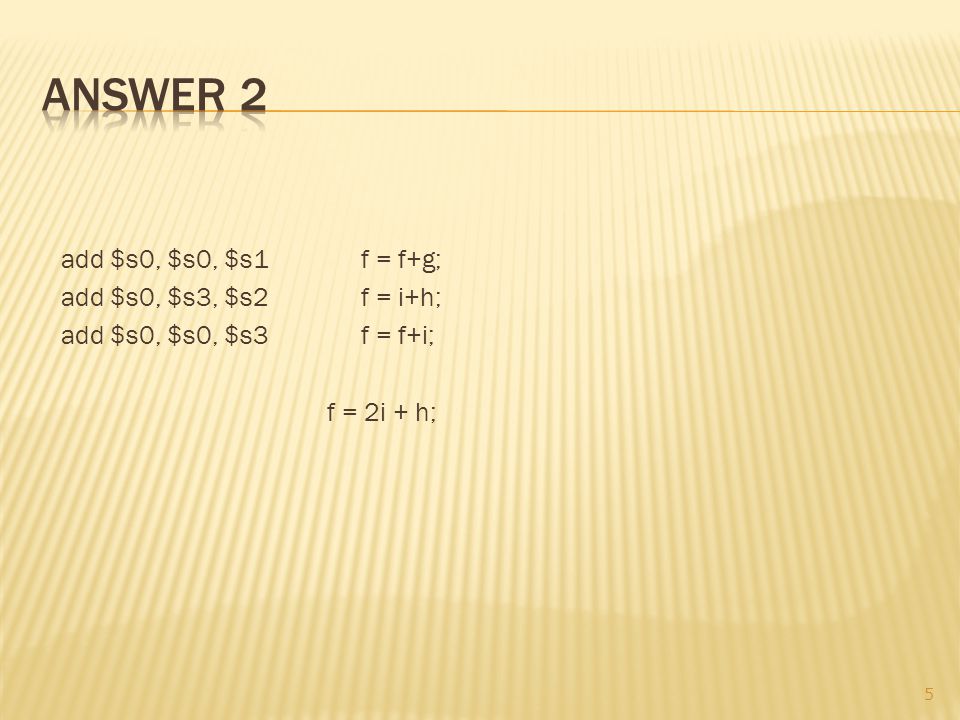

add \$s0, \$s0, \$s1 f = f+g; add \$s0, \$s3, \$s2 f = i+h; add \$s0, \$s0, \$s3 f = f+i; f = 2i + h; 5

 Problem 2.15.5 A= B & c; For the C statement above, write a minimal sequence of MIPS assembly instructions that does the identical operation? 6

Assuming \$t1 = A, \$t2 = B, \$s1 = base of Array C lw \$t3, 0(\$s1) and \$t1, \$t2, \$t3 7

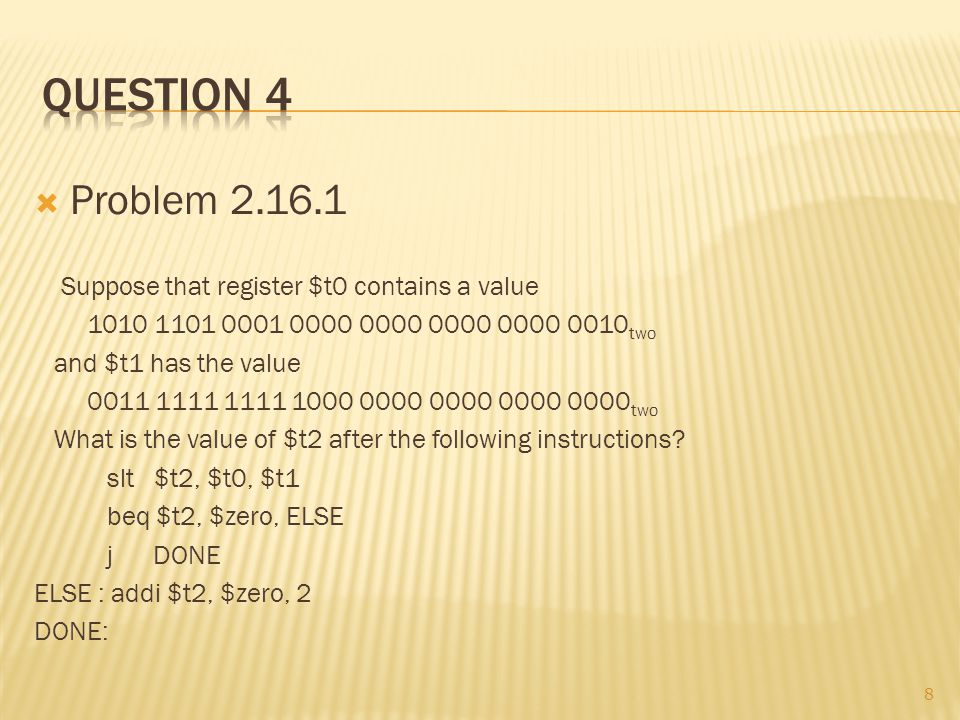

 Problem 2.16.1 Suppose that register \$t0 contains a value 1010 1101 0001 0000 0000 0000 0000 0010 two and \$t1 has the value 0011 1111 1111 1000 0000 0000 0000 0000 two What is the value of \$t2 after the following instructions? slt \$t2, \$t0, \$t1 beq \$t2, \$zero, ELSE j DONE ELSE : addi \$t2, \$zero, 2 DONE: 8

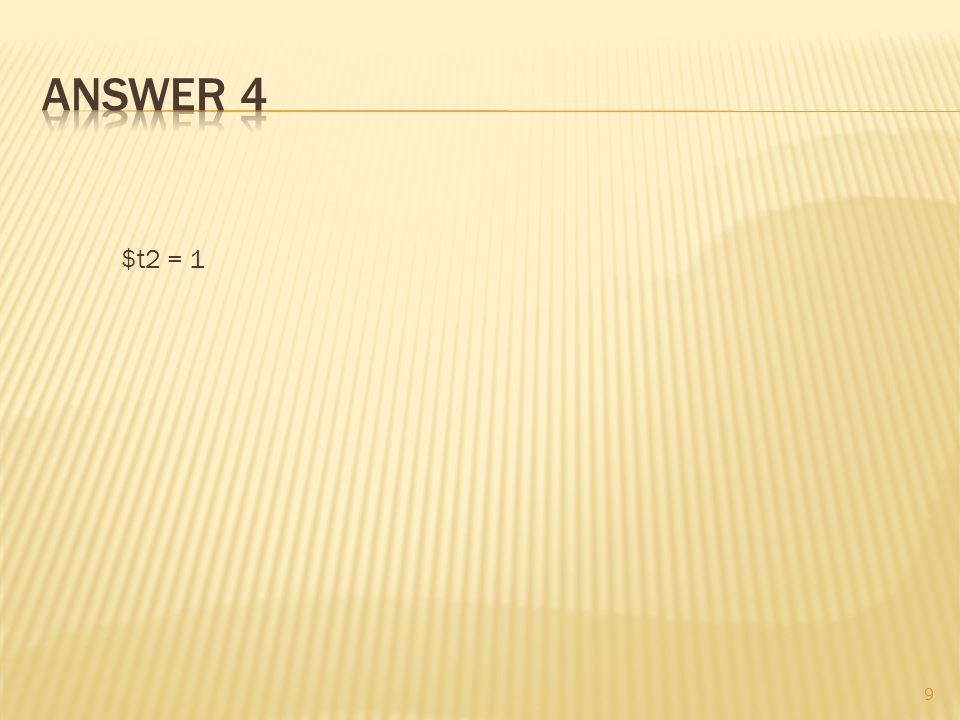

\$t2 = 1 9

 Problem 2.29 Add comments to the following MIPS code and describe in one sentence what it computes. Assume \$a0, \$a1 are input, initial value a, b; \$v0 is output. \$a0: input a; \$a1: input b; \$v0: output; add\$t0, \$zero, \$zero loop:beq \$a1, \$zero, finish add \$t0, \$t0, \$a0 sub \$a1, \$a1, 1 jloop finish:addi \$t0, \$t0, 100 add \$v0, \$t0, \$zero 10

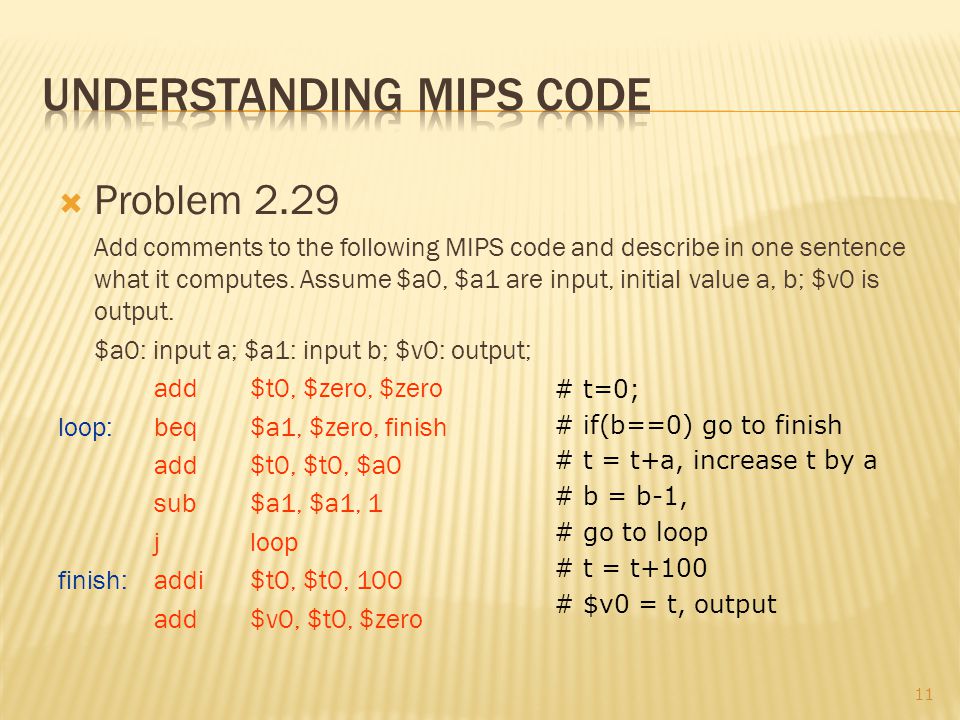

 Problem 2.29 Add comments to the following MIPS code and describe in one sentence what it computes. Assume \$a0, \$a1 are input, initial value a, b; \$v0 is output. \$a0: input a; \$a1: input b; \$v0: output; add\$t0, \$zero, \$zero loop:beq \$a1, \$zero, finish add \$t0, \$t0, \$a0 sub \$a1, \$a1, 1 jloop finish:addi \$t0, \$t0, 100 add \$v0, \$t0, \$zero 11 # t=0; # if(b==0) go to finish # t = t+a, increase t by a # b = b-1, # go to loop # t = t+100 # \$v0 = t, output

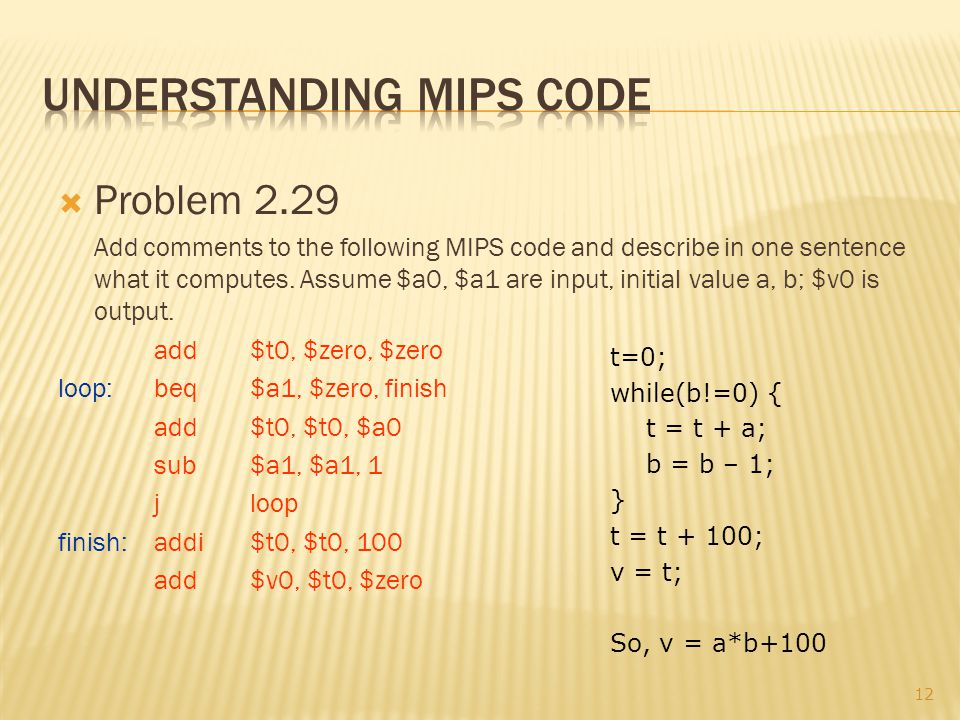

 Problem 2.29 Add comments to the following MIPS code and describe in one sentence what it computes. Assume \$a0, \$a1 are input, initial value a, b; \$v0 is output. add\$t0, \$zero, \$zero loop:beq \$a1, \$zero, finish add \$t0, \$t0, \$a0 sub \$a1, \$a1, 1 jloop finish:addi \$t0, \$t0, 100 add \$v0, \$t0, \$zero 12 t=0; while(b!=0) { t = t + a; b = b – 1; } t = t + 100; v = t; So, v = a*b+100

 Problem 2.30 Add comments to the following MIPS code and describe in one sentence what it computes. The code processes 2 arrays and produces a value in \$v0. Each array consists of 2500 words indexed 0 through 2499, the base addresses of the arrays are stored in \$a0, \$a1, and their sizes are stored in \$a2, \$a3. What will be returned in \$v0? 13

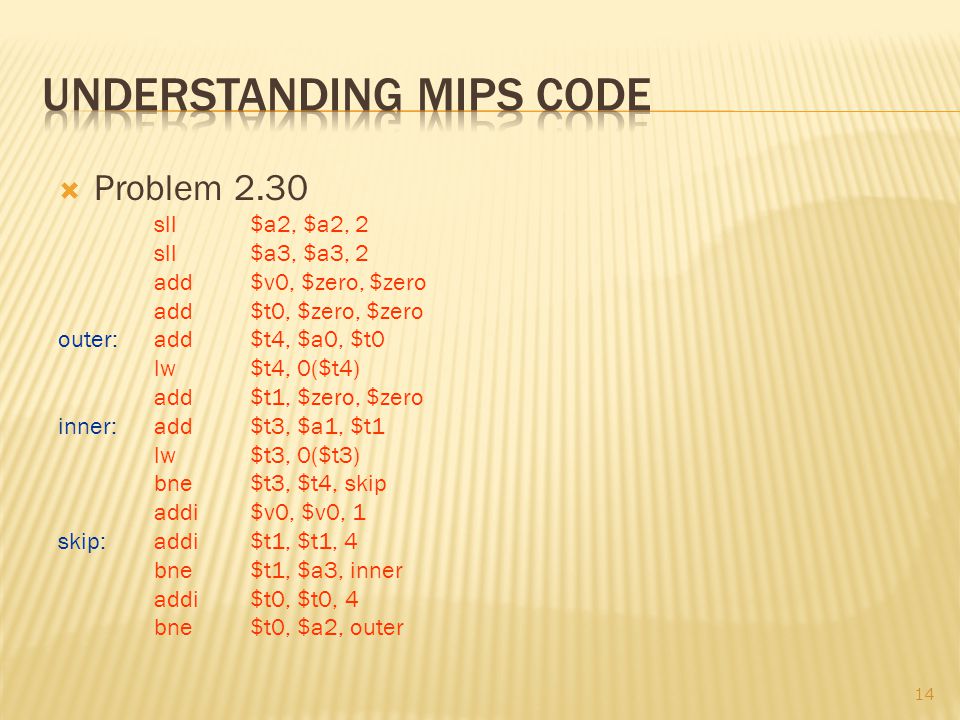

 Problem 2.30 sll\$a2, \$a2, 2 sll\$a3, \$a3, 2 add\$v0, \$zero, \$zero add\$t0, \$zero, \$zero outer:add \$t4, \$a0, \$t0 lw \$t4, 0(\$t4) add \$t1, \$zero, \$zero inner:add\$t3, \$a1, \$t1 lw\$t3, 0(\$t3) bne\$t3, \$t4, skip addi\$v0, \$v0, 1 skip:addi \$t1, \$t1, 4 bne\$t1, \$a3, inner addi \$t0, \$t0, 4 bne \$t0, \$a2, outer 14

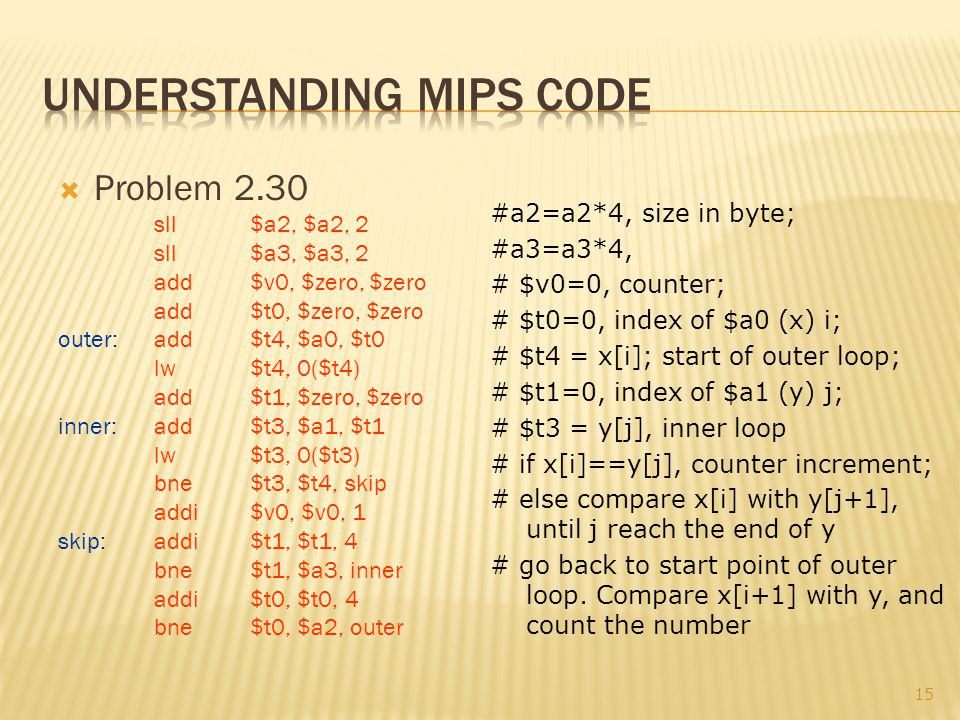

 Problem 2.30 sll\$a2, \$a2, 2 sll\$a3, \$a3, 2 add\$v0, \$zero, \$zero add\$t0, \$zero, \$zero outer:add \$t4, \$a0, \$t0 lw \$t4, 0(\$t4) add \$t1, \$zero, \$zero inner:add\$t3, \$a1, \$t1 lw\$t3, 0(\$t3) bne\$t3, \$t4, skip addi\$v0, \$v0, 1 skip:addi \$t1, \$t1, 4 bne\$t1, \$a3, inner addi \$t0, \$t0, 4 bne \$t0, \$a2, outer 15 #a2=a2*4, size in byte; #a3=a3*4, # \$v0=0, counter; # \$t0=0, index of \$a0 (x) i; # \$t4 = x[i]; start of outer loop; # \$t1=0, index of \$a1 (y) j; # \$t3 = y[j], inner loop # if x[i]==y[j], counter increment; # else compare x[i] with y[j+1], until j reach the end of y # go back to start point of outer loop. Compare x[i+1] with y, and count the number

 Problem 2.30 sll\$a2, \$a2, 2 sll\$a3, \$a3, 2 add\$v0, \$zero, \$zero add\$t0, \$zero, \$zero outer:add \$t4, \$a0, \$t0 lw \$t4, 0(\$t4) add \$t1, \$zero, \$zero inner:add\$t3, \$a1, \$t1 lw\$t3, 0(\$t3) bne\$t3, \$t4, skip addi\$v0, \$v0, 1 skip:addi \$t1, \$t1, 4 bne\$t1, \$a3, inner addi \$t0, \$t0, 4 bne \$t0, \$a2, outer 16 Assume \$a0->x, \$a1->y, it equals to a nested loop in C code: count = 0; for(i=0; i<2500; i++) { for(j=0; j<2500; j++) { if(x[i] == y[j]) count ++; } }
