1 4/16/20151 PSU’s CS 587 16. Concurrency Control and Recovery (only for DBs with updates…..!)- Review  Concurrency Control  Transaction  ACID  Isolation Schedules Guaranteeing isolation Serializability Serializability ⇔ Isolation Locking Strict Two Phase Locking Strict 2PL ⇒ Serializable

2 4/16/20152 PSU’s CS 587 Learning Objectives  Define ACID, schedule, isolated, equivalent, serializable, S2PL, conflict serializable, precedence graph, recoverable.  Know the implications on slide 25 and when the converses hold  Explain lock management, multiple granularity locks, phantoms, locking in BTrees, optimistic concurrency control

3 4/16/20153 PSU’s CS 587 Example Transaction  Transfer $100 from A to B  Read A; Verify A; Write A-100; then  Read B; Verify B; Write B+100  Are all 6 steps necessary?  Which steps require disc access?  When can an abort occur without damage?  Write is as in a program’s write  What damage can an abort cause?  How can you avoid such damage?

4 4/16/20154 PSU’s CS 587 Transaction (cont.) User (application developer) must indicate:  Begin transaction  read/write/modify statements intermixed with other programming language statements  plus either  commit - indicates successful completion or  abort - indicates program wants to roll back (erase the transaction)  All or nothing! (Atomic)

5 4/16/20155 PSU’s CS 587 ACID Supporting the ACID Properties of Transactions  A  A tomicity: All actions in a transaction happen in their entirety or not at all.  C  C onsistency: If the DB starts in a consistent state, (this notion is defined by the user; some of it may be enforced by integrity constraints) and if a transaction executes with no other queries active, then the DB ends up in a consistent state.  I  I solation: Each transaction is isolated from other transactions. The effect on the DB is as if each transaction executed by itself.  D  D urability: If a transaction commits, its changes to the database state persist. Recovery System Recovery System Concurrency Control System Programmers

6 4/16/20156 PSU’s CS 587 Isolation/Concurrency Control T1:BEGIN A+=100, B-=100 END T2:BEGIN A=1.06*A, B=1.06*B END  What is each of these transactions doing?  A schedule of T1 and T2 is an interleaving of the steps of these transactions so that each transaction’s order is preserved.

7 4/16/20157 PSU’s CS 587 Which of these is a Schedule of T1 and T2? T1: A+=100, B-=100 T2: A=1.06*A, B=1.06*B T1: A+=100, B-=100 T2: A=1.06*A, B=1.06*B T1: A+=100, B-=100 T2: A=1.06*A, B=1.06*B T1: A+=100, B-=100 T2: B=1.06*B, A=1.06*A T1: A+=100, B-=100 T2: A=1.06*A,B=1.06*B

8 4/16/20158 PSU’s CS 587 Isolated Schedules  A schedule is isolated if its effect on the DB is as if each transaction executed by itself, serially.  Which of the schedules on the next page is isolated?  Hint: Calculate the effect of the schedule on a sample state of the DB, for example A has $1,000, B has $500. This won’t tell you the effect on all states, but it’s helpful information.

9 4/16/20159 PSU’s CS 587 Which Schedules are Isolated? T1: A+=100, B-=100 T2: A=1.06*A, B=1.06*B T1: A+=100, B-=100 T2: A=1.06*A, B=1.06*B T1: A+=100, B-=100 T2: A=1.06*A, B=1.06*B  Goal of Concurrency Control subsystem: Guarantee only isolated schedules. T1: A+=100, B-=100 T2: A=1.06*A,B=1.06*B T1: A+=100,B-=100 T2: A=1.06*A, B=1.06*B

10 4/16/201510 PSU’s CS 587 Equivalent Schedules  Two schedules are equivalent if given any starting DB state, they produce the same result.  Which of these schedules is equivalent? T1: A+=100, B-=100 T2: A=1.06*A, B=1.06*B T1: A+=100, B-=100 T2: A=1.06*A, B=1.06*B T1: A+=100, B-=100 T2: A=1.06*A, B=1.06*B T1: A+=100, B-=100 T2: A=1.06*A,B=1.06*B

11 4/16/201511 PSU’s CS 587 Serializable Schedules  A schedule is serializable if it is equivalent to a serial schedule.  Which of these schedules is serializable? T1: A+=100, B-=100 T2: A=1.06*A, B=1.06*B T1: A+=100, B-=100 T2: A=1.06*A, B=1.06*B T1: A+=100, B-=100 T2: A=1.06*A, B=1.06*B T1: A+=100, B-=100 T2: A=1.06*A,B=1.06*B

12 4/16/201512 PSU’s CS 587 The goal of Concurrency Control  Recall the goal of concurrency control: To ensure that all schedules are isolated  Theorem: A schedule is Serializable ⇔ it is Isolated ⇒: Serializable ⇒ equivalent to some serial schedule, and in a serial schedule, each Xact. is isolated ⇐: If each xact runs alone, the schedule must be serial  But serializability is hard to verify  How can we, in real time, check each schedule?  So the Concurrency Control Subsystem needs more work.

13 4/16/201513 PSU’s CS 587 Locking  Transaction must get a lock – before it can read or update data  There are two kinds of locks: shared (S) locks and exclusive (X) locks  To read a record you MUST get an S lock To modify or delete a record you MUST get an X lock  Lock info maintained by a “lock manager”

14 4/16/201514 PSU’s CS 587 How Locks Work  If a Xact has an S lock on a data object, new transactions can get S locks on that object, but not X locks.  If a Xact has an X lock, no other Xact can get any lock (S or X) on that data object.  If a transaction can’t get a lock, it waits (in a queue). -- SX S X ok ok no no ok ok no Lock compatibility lock on data item lock you want

15 4/16/201515 PSU’s CS 587 Strict Two Phase Locking Protocol (S2PL) Strict 2PL is a way of managing locks during a transaction  A Xact gets (S and X) locks gradually, as needed  The Xact holds all locks until end of transaction (commit/abort) time  # of locks held by a transaction T All locks are released at the end, upon commit or abort 0 2 1 4 3 5

16 4/16/201516 PSU’s CS 587 Strict 2PL guarantees serializability  Idea of the Proof: a Strict 2PL schedule is equivalent to the serial schedule in which each transaction runs instantaneously at the time that it commits  This is huge: A property of each transaction (S2PL) implies a property of any set of transactions (serializability)  No need to check serializability of any schedules  Real DBMSs use S2PL to enforce serializability  In reality, users can and do choose lower levels of concurrency for all but the most sensitive transactions

17 4/16/201517 PSU’s CS 587 17. Concurrency Control  Conflicts  Conflicting Actions  Conflict Equivalent  Conflict Serializable  Conf. Ser. ⇒ Serializable  Precedence Graph  Conf. Serializable ⇔ Precedence graph is acyclic  Strict 2PL ⇒ Recoverable  2PL ¬ ⇒ Recoverable  Locks  Management  Deadlocks Waits-for  Multiple Granularity  Phantoms Predicate, Index locking  Locking in B+ Trees  Optimistic CC Inefficiency of locking Optimistic CC idea

18 4/16/201518 PSU’s CS 587 17.1 Conflict Serializable Schedules  Conflicting actions: Actions that access the same data and at least one of which is a write  Note that changing the order of these two actions might yield different results.  Two schedules are conflict equivalent if:  They involve the same actions of the same transactions in the same order  Every pair of conflicting actions is ordered the same way  Schedule S is conflict serializable if S is conflict equivalent to some serial schedule 17. CC

19 4/16/201519 PSU’s CS 587 Which are conflict serializable? T1: R(A), W(A) T2: R(A), W (A), R(B) T1: R(B), W(A), W(B) T2: R(A), W (A), R(B) T1: R(A), W(A) T2: W(A) T3: W(A) 17. CC T1: R(A),W(A), R(B),W(B) T2: R(A),W(A), R(B),W(B)

20 4/16/201520 PSU’s CS 587 Conflict Serializable ⇒ Serializable  If two actions do not conflict, then commuting them results in an equivalent schedule.  Suppose S is conflict serializable. Then there is a sequence of commuting actions I = {I 1,…,I n } so that a)Each of the I i commutes nonconflicting actions b)I applied to S is a serial schedule  Because of (a), I does not change the state of any database. Thus S, and I applied to S, are equivalent and I applied to S is serial (b), so S is serializable.

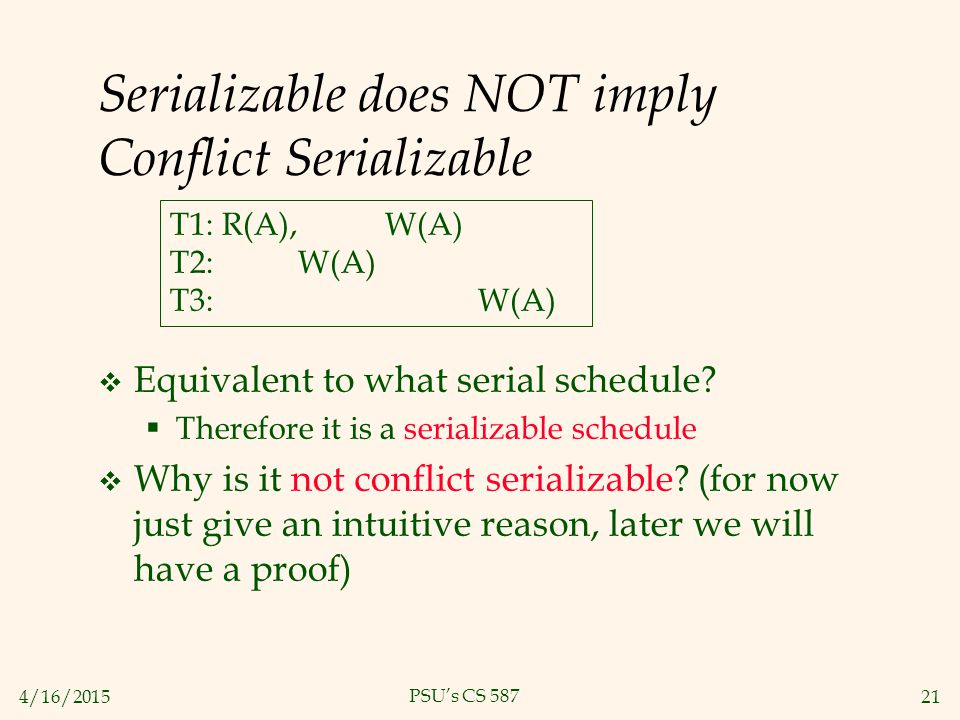

21 4/16/201521 PSU’s CS 587 Serializable does NOT imply Conflict Serializable  Equivalent to what serial schedule?  Therefore it is a serializable schedule  Why is it not conflict serializable? (for now just give an intuitive reason, later we will have a proof) T1: R(A), W(A) T2: W(A) T3: W(A)

22 4/16/201522 PSU’s CS 587 Precedence graphs  Why is this graph not conflict serializable?  The cycle in the graph illustrates the problem. T1 must precede T2, and T2 must precede T1, in any conflict equivalent serial schedule. T1: R(A), W(A), R(B), W(B) T2: R(A), W(A), R(B), W(B) T1T2 A B Precedence graph 17. CC

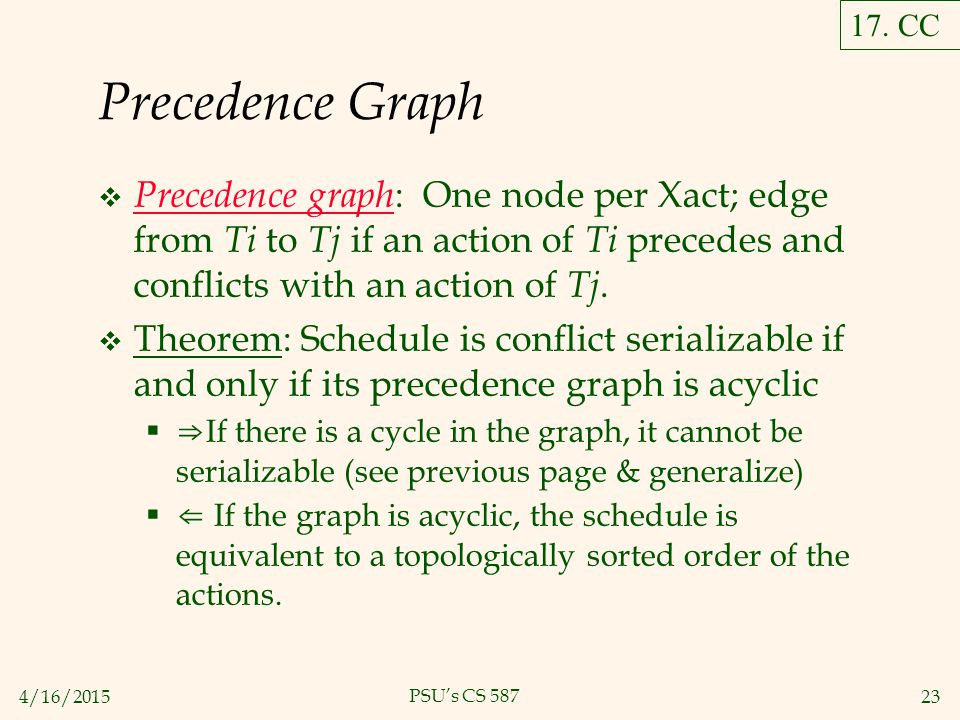

23 4/16/201523 PSU’s CS 587 Precedence Graph  Precedence graph : One node per Xact; edge from Ti to Tj if an action of Ti precedes and conflicts with an action of Tj.  Theorem: Schedule is conflict serializable if and only if its precedence graph is acyclic  ⇒ If there is a cycle in the graph, it cannot be serializable (see previous page & generalize)  ⇐ If the graph is acyclic, the schedule is equivalent to a topologically sorted order of the actions. 17. CC

24 4/16/201524 PSU’s CS 587 Example of acyclic graph  Is this graph acyclic?  What is a topological sort of it?  Is a schedule, for which this is a precedence graph, equivalent to a serial schedule?  Can we move all actions of T4 to occur before T2, without reversing conflicting actions?  How about T1 before T4? T1T2 T4T3

25 4/16/201525 PSU’s CS 587 Summary Each Xact in a schedule is Isolated Isolated Xact: same results as if it ran alone The schedule is Serializable Serializable Schedule: Same result as a serial schedule    The schedule is Conflict Serializable Conflict Serializable : Conflict Equivalent to a Serializable Schedule  The Schedule’s Precedence Graph is Acyclic  The schedule is consistent with Strict 2PL. Strict 2PL: There is a locking schedule where all locks are held until EOT     Deadlock is possible Deadlock: There is a cycle in the Waitsfor graph. 

26 4/16/201526 PSU’s CS 587 Strict 2PL ⇒ Recoverable  A schedule is recoverable if, during it, all transactions commit only after all transactions whose data they have read commit.  Why is recoverability desirable? Otherwise, T1 may read the data of T2 ( a so-called dirty read ), then T1 commit, then T2 abort and roll back. Then T1 has read a value that does not exist.

27 4/16/201527 PSU’s CS 587 Two-Phase Locking (2PL)  Two-Phase Locking Protocol  Each Xact must obtain a S ( shared ) lock on object before reading, and an X ( exclusive ) lock on object before writing.  A transaction can not request additional locks once it releases any locks.  2PL implies that all schedules have acyclic precedence graphs, so are serializable.  However, they are not recoverable, so Strict 2PL is used in practice. 17. CC

28 4/16/201528 PSU’s CS 587 Lock Management  Lock and unlock requests are handled by the lock manager  Lock table entry:  IDs of transactions currently holding a lock  Type of lock held (shared or exclusive)  Pointer to queue of lock requests If there is an S lock on an object O and T1 requests an X lock, what happens? What if then T2 requests an S lock?  Locking and unlocking have to be atomic operations  How is this enforced?  Lock upgrade: transaction that holds a shared lock can be upgraded to hold an exclusive lock if no one else has a shared lock. 17. CC

29 4/16/201529 PSU’s CS 587 New Lock Type of lock? Queue empty? S EnQ  lock? NY Grant S lock N Type of lock? Y S EnQ X  lock? X Grant X lock N EnQ Y Managing a new lock (simplified)

30 4/16/201530 PSU’s CS 587 Managing a lock release (simplified) Release Lock  Other locks? Y Exit N DeQ xact from Q, give it a lock What type of lock was it? Exit X Is there an S lock on top of the Q? Y S N

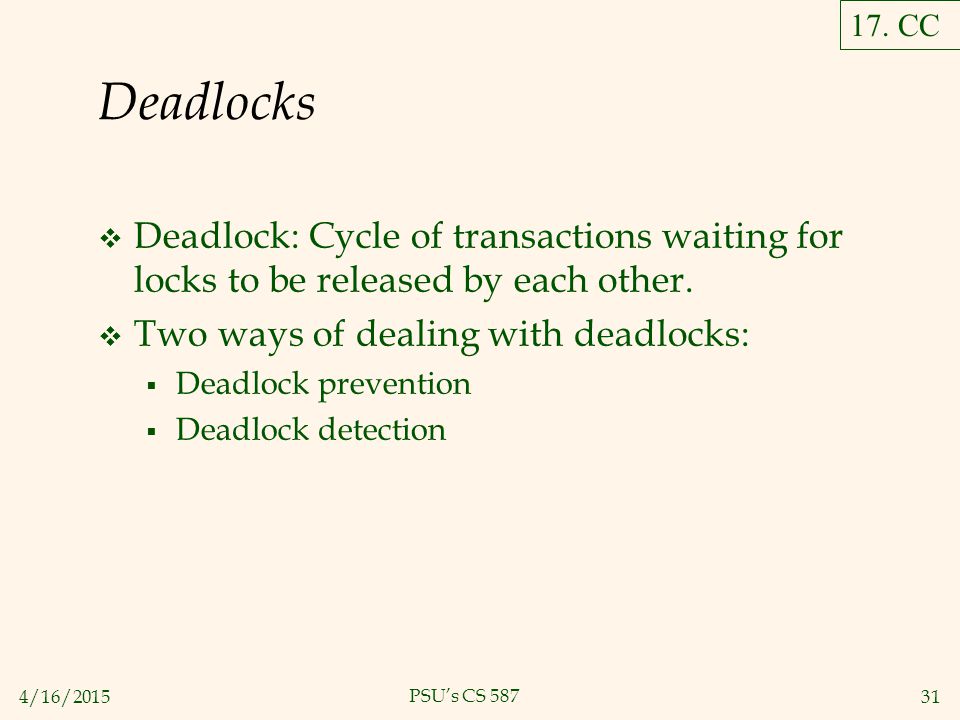

31 4/16/201531 PSU’s CS 587 Deadlocks  Deadlock: Cycle of transactions waiting for locks to be released by each other.  Two ways of dealing with deadlocks:  Deadlock prevention  Deadlock detection 17. CC

32 4/16/201532 PSU’s CS 587 Deadlock Prevention  Theory  Assign priorities based on timestamps. Older transactions get higher priority.  Assume Ti wants a lock that Tj holds. Two policies are possible: Wait-Die: It Ti has higher priority, Ti waits for Tj; otherwise Ti aborts Wound-wait: If Ti has higher priority, Tj aborts; otherwise Ti waits  If a transaction re-starts, make sure it has its original timestamp  Practice: deadlocks.html deadlocks.html 17. CC

33 4/16/201533 PSU’s CS 587 Deadlock Detection  Create a waits-for graph:  Nodes are transactions  There is an edge from Ti to Tj if Ti is waiting for Tj to release a lock  Periodically check for cycles in the waits-for graph  Note that waits-for graph is opposite direction of precedence graph. 17. CC

34 4/16/201534 PSU’s CS 587 Deadlock Detection (Continued) Example: T1: S(A), R(A), S(B) T2: X(B),W(B) X(C) T3: S(C), R(C) X(A) T4: X(B) T1T2 T4T3 T1T2 T4T3 17. CC

35 4/16/201535 PSU’s CS 587 Multiple-Granularity Locks  Hard to decide what granularity to lock (tuples vs. pages vs. tables).  Shouldn’t have to decide!  Data “containers” are nested: Tuples Tables Pages Database contains 17. CC

36 4/16/201536 PSU’s CS 587 Solution: New Lock Modes, Protocol  Allow Xacts to lock at each level, but with a special protocol using new “intention” locks: v Before locking an item, Xact must set “intention locks” on all its ancestors. v IX(IS): Intend to X(S) lock a subset. v SIX: S & IX at the same time. Used to scan and update selected records. -- ISIX -- IS IX      SX   S X       17. CC

37 4/16/201537 PSU’s CS 587 Multiple Granularity Lock Protocol  Each Xact starts from the root of the hierarchy.  To get S or IS lock on a node, must hold IS or IX on parent node.  To get X or IX or SIX on a node, must hold IX or SIX on parent node.  Must release locks in bottom-up order.  Sometimes hard to decide granularity of locks. Can start small and use lock escalation. 17. CC

38 4/16/201538 PSU’s CS 587 Examples  T1 scans R, and updates a few tuples:  T1 gets an SIX lock on R, then repeatedly gets an S lock on tuples of R, and occasionally upgrades to X on the tuples.  T2 uses an index to read only part of R:  T2 gets an IS lock on R, and repeatedly gets an S lock on tuples of R.  T3 reads all of R:  T3 gets an S lock on R.  OR, T3 could behave like T2; can use lock escalation to decide which. -- ISIX -- IS IX      SX   S X       17. CC

39 4/16/201539 PSU’s CS 587 Dynamic Databases: Phantoms  If we allow updates, even Strict 2PL will not assure serializability:  T1 finds oldest sailor in each rank  T2 inserts(Rohi,1,27) and deletes John  Schedule is  This schedule is Strict 2PL, but not serializable!  Result of this schedule is (1,Pehr)(2,Lorr)  Result of T1;T2 is (1,Pehr)(2,John)  Result of T2;T1 is (1,Rohi)(2,Lorr) 17. CC NameRankAge Pehr125 John226 Lorr223 T1 rank 1 T1 rank 2 T2 inserts Rohi, deletes John

40 4/16/201540 PSU’s CS 587 The Problem  When T1 retrieved the oldest sailor of rank 1, it locked each sailor of rank 1 with a read lock.  None of these locks applied to the new record (a phantom) inserted by T2.  We need a mechanism to prevent phantoms; to allow T1 to lock present and future sailors with rank 1.  There are two such mechanisms, index locking and predicate locking. 17. CC

41 4/16/201541 PSU’s CS 587 Index Locking  If there is a dense index on the rating field using Alternative (2), T1 should lock the index page(s) containing the data entries with rating = 1.  If there are no records with rating = 1, T1 must lock the index page where such a data entry would be, if it existed!  If there is no suitable index, T1 must lock all pages, and lock the file/table to prevent new pages from being added, to ensure that no new records with rating = 1 are added. r=1 Data Index

42 4/16/201542 PSU’s CS 587 Predicate Locking  Grant lock on all records that satisfy some logical predicate, e.g. age > 2*salary.  Index locking is a special case of predicate locking for which an index supports efficient implementation of the predicate lock.  What is the predicate in the sailor example?  In general, predicate locking has a lot of locking overhead. 17. CC

43 4/16/201543 PSU’s CS 587 Locking in B+ Trees  How can we efficiently lock a B+ tree?  Btw, don’t confuse this with multiple granularity locking!  One solution: Ignore the tree structure, just lock pages while traversing the tree, following 2PL.  This has terrible performance!  Root node (and many higher level nodes) become bottlenecks because every tree access begins at the root. This single threads all updates to the tree. 17. CC

44 4/16/201544 PSU’s CS 587 Two Useful Observations  Higher levels of the tree only direct searches for leaf pages.  For inserts/deletes, a node on a path from root to modified leaf must be locked (in X mode, of course), only if a split can propagate up to it from the modified leaf.  We can exploit these observations to design efficient locking protocols that guarantee serializability even though they violate 2PL. 17. CC

45 4/16/201545 PSU’s CS 587 A Tree Locking Algorithm  Search: Start at root and go down; repeatedly, S lock child then unlock parent.  Insert/Delete: Start at root and go down, obtaining X locks as needed. Once child is locked, check if it is safe:  If child is safe, release all locks on ancestors.  Safe node: Node such that the change will not propagate up beyond this node.  Inserts: Node is not full.  Deletes: Node is not half-empty. 17. CC

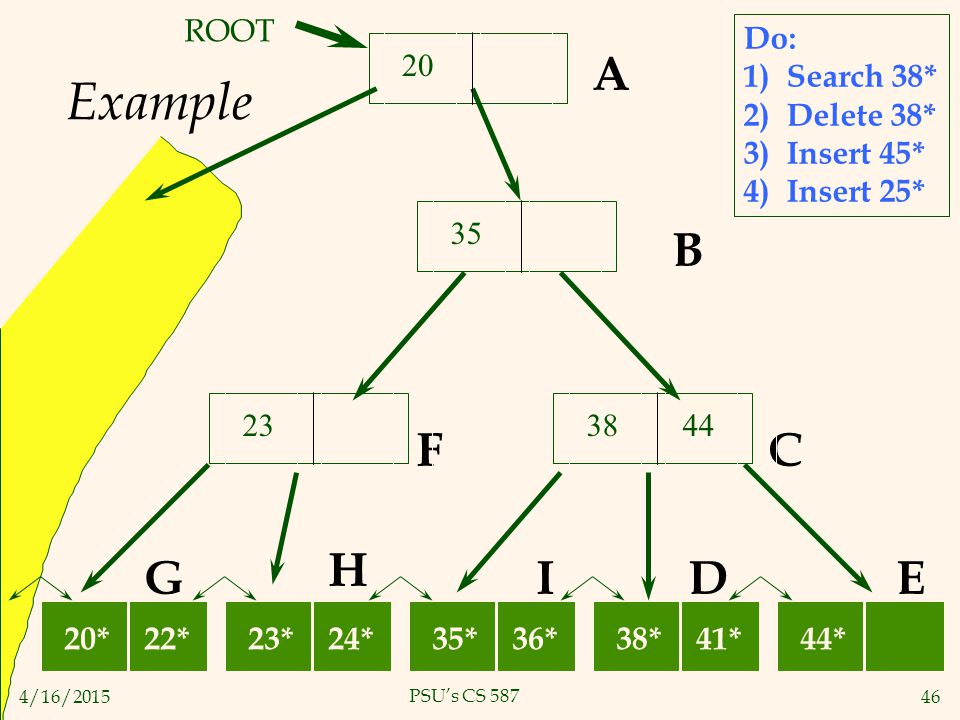

46 4/16/201546 PSU’s CS 587 Example ROOT A B C DE F G H I 35 20* 3844 22*23*24*35*36*38*41*44* Do: 1) Search 38* 2) Delete 38* 3) Insert 45* 4) Insert 25* 23 20 35 23 35 38 44

47 4/16/201547 PSU’s CS 587 Optimistic CC (Kung-Robinson)  Locking is a conservative approach in which conflicts are prevented. Disadvantages:  Lock management overhead.  Deadlock detection/resolution.  Lock contention for heavily used objects.  If conflicts are rare, we might be able to gain concurrency by not locking, and instead checking for conflicts before Xacts commit.  A version of this optimistic approach is used by PostgreSQL and Oracle 17. CC

48 4/16/201548 PSU’s CS 587 Kung-Robinson Model  Xacts have three phases:  READ: Xacts read from the database, but make changes to private copies of objects.  VALIDATE: Check for conflicts.  WRITE: Make local copies of changes public. ROOT old new modified objects 17. CC

49 4/16/201549 PSU’s CS 587 Validation  Each Xact is assigned a numeric id.  Just use a timestamp.  Xact ids assigned at end of READ phase, just before validation begins.  ReadSet(Ti): Set of objects read by Xact Ti.  WriteSet(Ti): Set of objects modified by Ti. 17. CC

50 4/16/201550 PSU’s CS 587 Test 1  For all i and j such that TSi < TSj, check that Ti completes before Tj begins. Ti Tj RVW RVW 17. CC

51 4/16/201551 PSU’s CS 587 Test 2  For all i and j such that Ti < Tj, check that:  Ti completes before Tj begins its Write phase +  WriteSet(Ti) ReadSet(Tj) is empty. Ti Tj RVW RVW Does Tj read dirty data? Does Ti overwrite Tj’s writes? 17. CC

52 4/16/201552 PSU’s CS 587 Test 3  For all i and j such that Ti < Tj, check that:  Ti completes Read phase before Tj does +  WriteSet(Ti) ReadSet(Tj) is empty +  WriteSet(Ti) WriteSet(Tj) is empty. Tj Ti RVW RVW Does Tj read dirty data? Does Ti overwrite Tj’s writes? 17. CC

53 4/16/201553 PSU’s CS 587 Overheads in Optimistic CC  Must record read/write activity in ReadSet and WriteSet per Xact.  Must create and destroy these sets as needed.  Must check for conflicts during validation, and must make validated writes ``global’’.  Critical section can reduce concurrency.  Scheme for making writes global can reduce clustering of objects.  Optimistic CC restarts Xacts that fail validation.  Work done so far is wasted; requires clean-up. 17. CC
