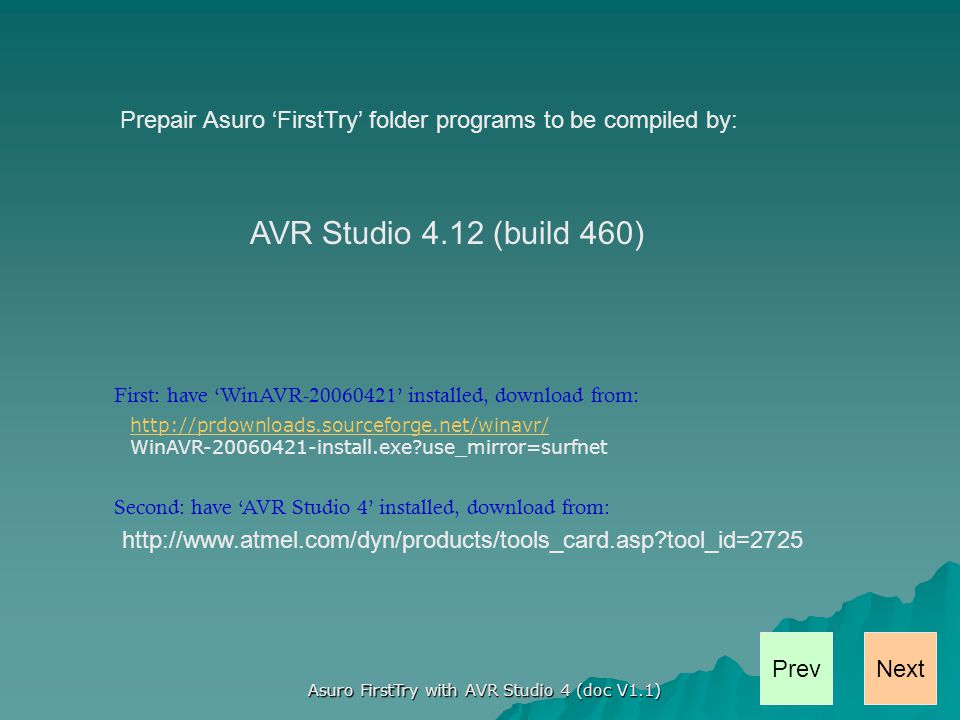

1. NextPrev Asuro FirstTry with AVR Studio 4 (doc V1.1) Prepair Asuro ‘FirstTry’ folder programs to be compiled by: http://www.atmel.com/dyn/products/tools_card.asp?tool_id=2725 AVR Studio 4.12 (build 460) Second: have ‘AVR Studio 4’ installed, download from: http://prdownloads.sourceforge.net/winavr/ WinAVR-20060421-install.exe?use_mirror=surfnet First: have ‘WinAVR-20060421’ installed, download from:

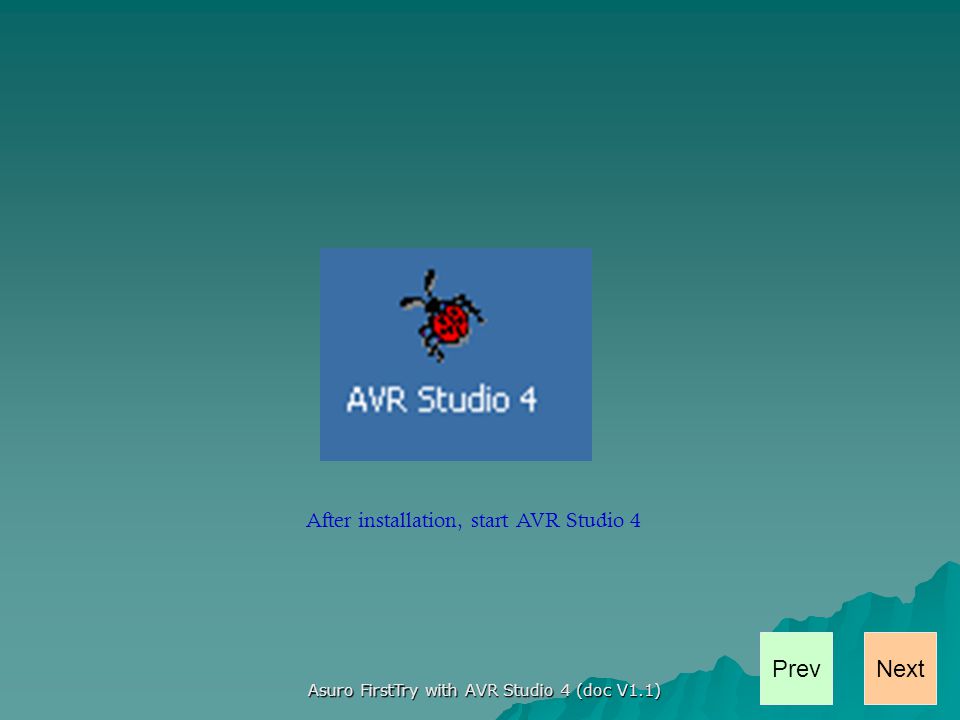

2. NextPrev Asuro FirstTry with AVR Studio 4 (doc V1.1) After installation, start AVR Studio 4

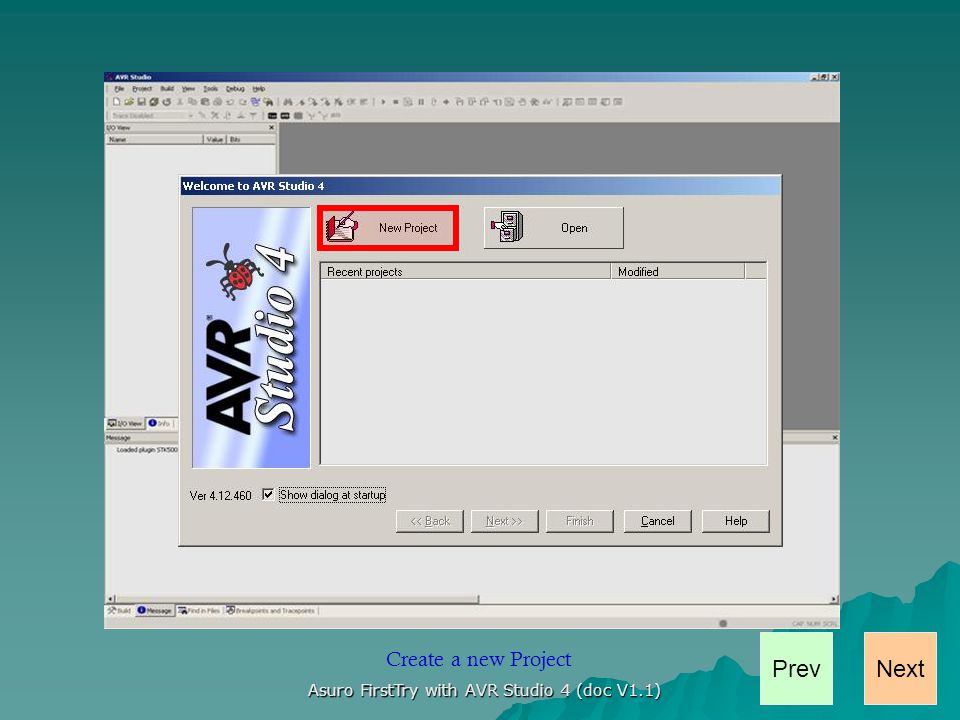

3. NextPrev Asuro FirstTry with AVR Studio 4 (doc V1.1) Create a new Project

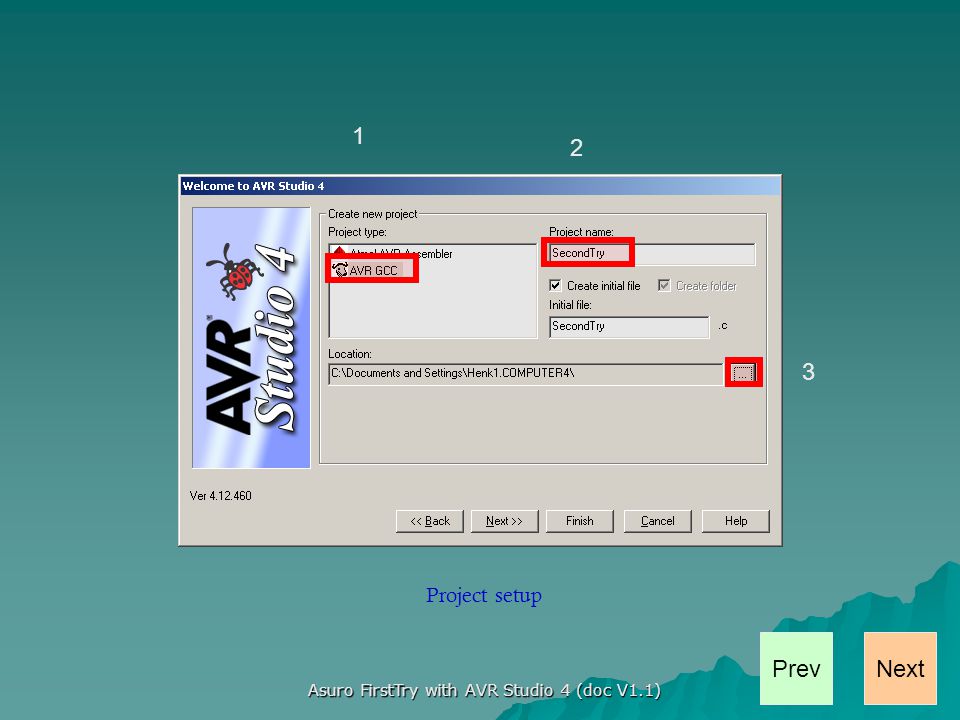

4. NextPrev Asuro FirstTry with AVR Studio 4 (doc V1.1) 1 2 3 Project setup

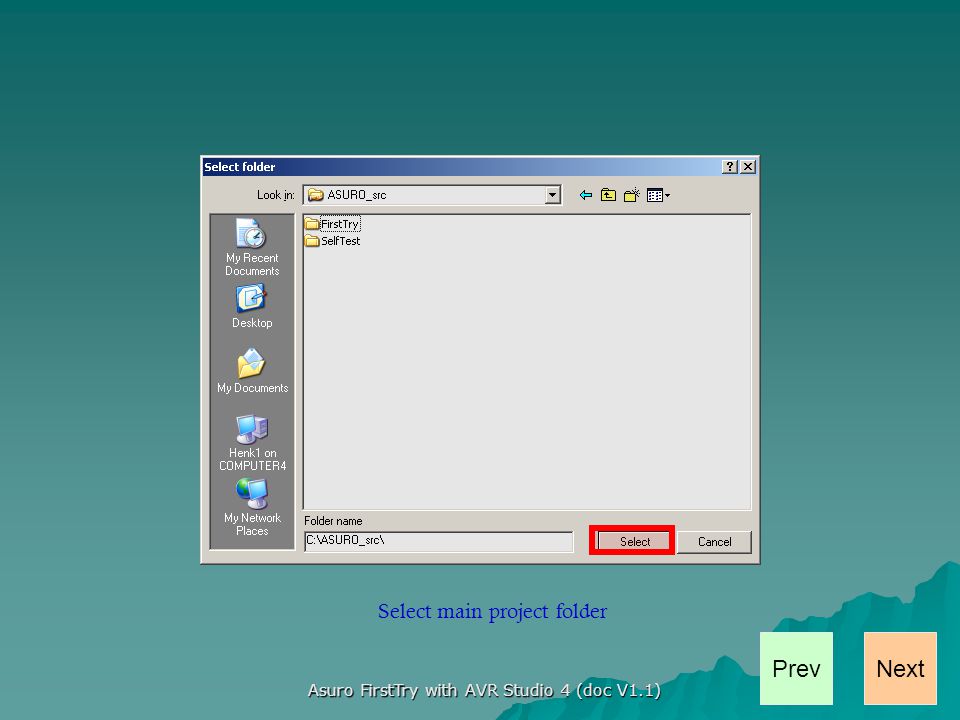

5. NextPrev Asuro FirstTry with AVR Studio 4 (doc V1.1) Select main project folder

6. NextPrev Asuro FirstTry with AVR Studio 4 (doc V1.1) Create project

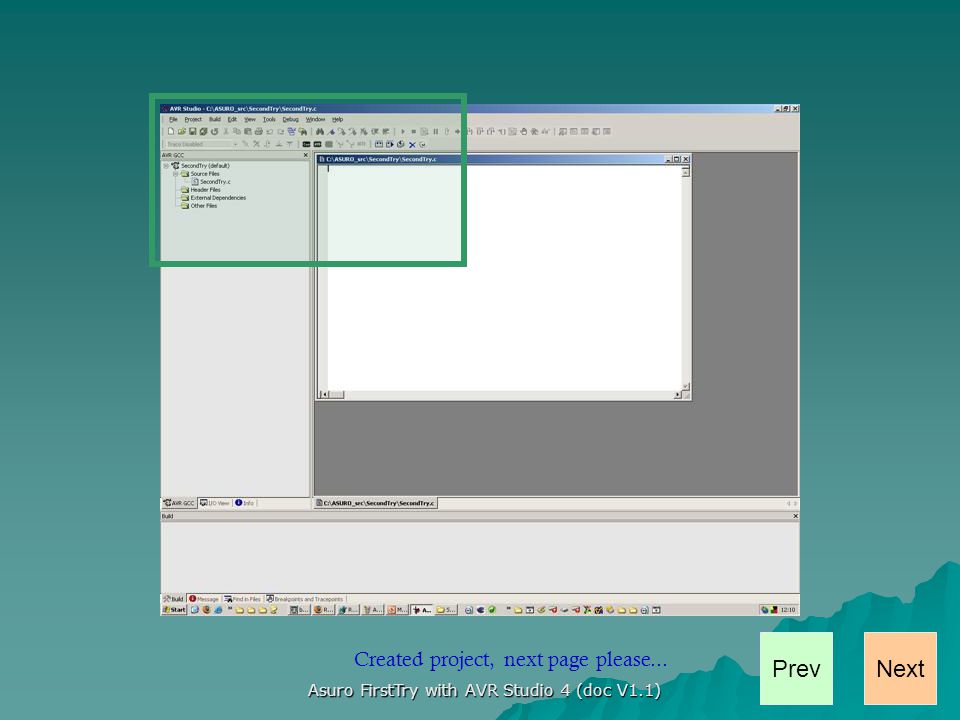

7. NextPrev Asuro FirstTry with AVR Studio 4 (doc V1.1) Created project, next page please...

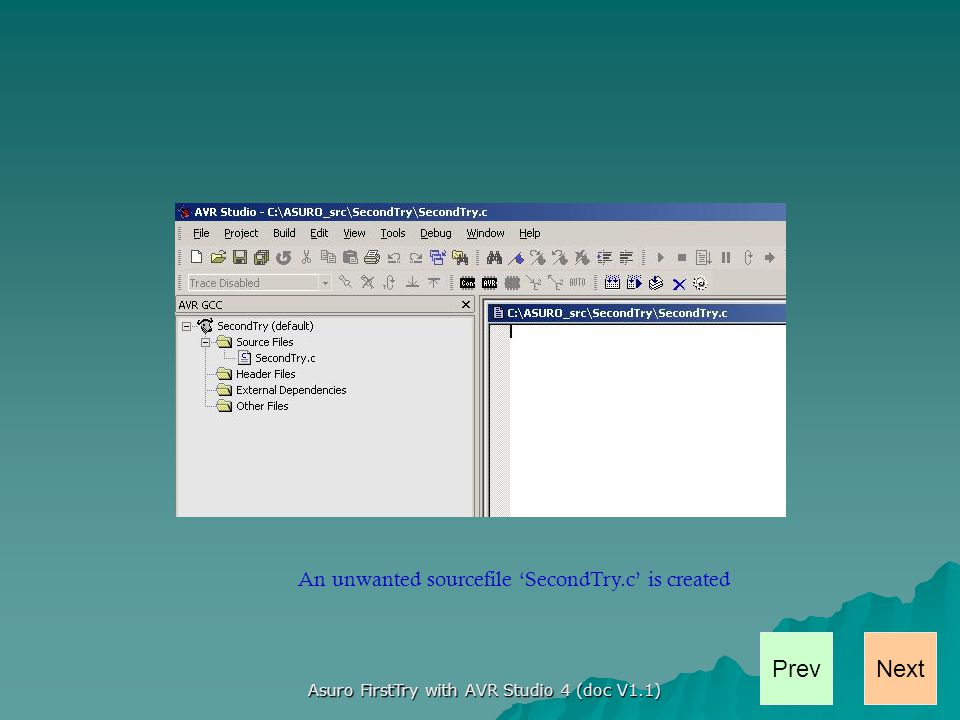

8. NextPrev Asuro FirstTry with AVR Studio 4 (doc V1.1) An unwanted sourcefile ‘SecondTry.c’ is created

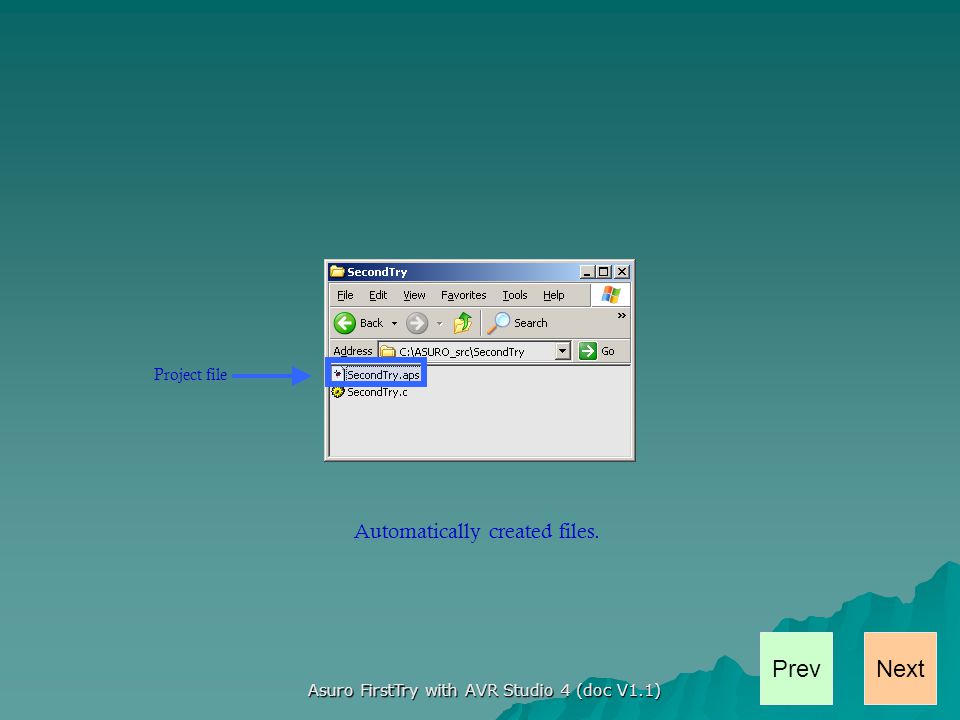

9. NextPrev Asuro FirstTry with AVR Studio 4 (doc V1.1) Automatically created files. Project file

10. NextPrev Asuro FirstTry with AVR Studio 4 (doc V1.1) Right mouse click... Delete unwanted sourcefile ‘SecondTry.c’

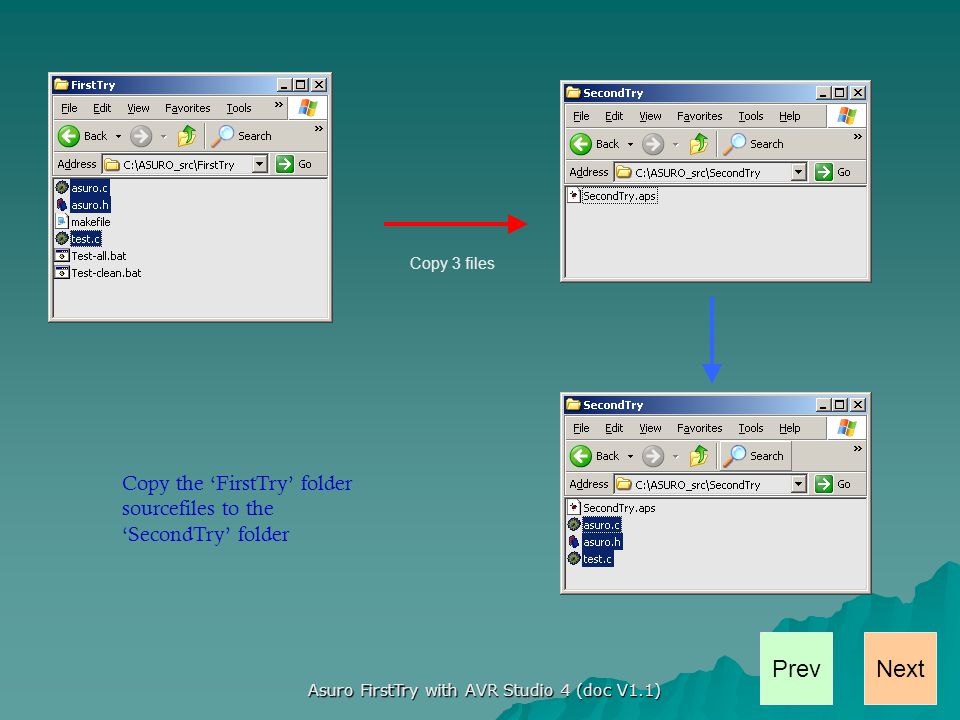

11. NextPrev Asuro FirstTry with AVR Studio 4 (doc V1.1) Copy 3 files Copy the ‘FirstTry’ folder sourcefiles to the ‘SecondTry’ folder

12. NextPrev Asuro FirstTry with AVR Studio 4 (doc V1.1) Add sourcefiles to project

13. NextPrev Asuro FirstTry with AVR Studio 4 (doc V1.1) Sourcefiles are added to the project

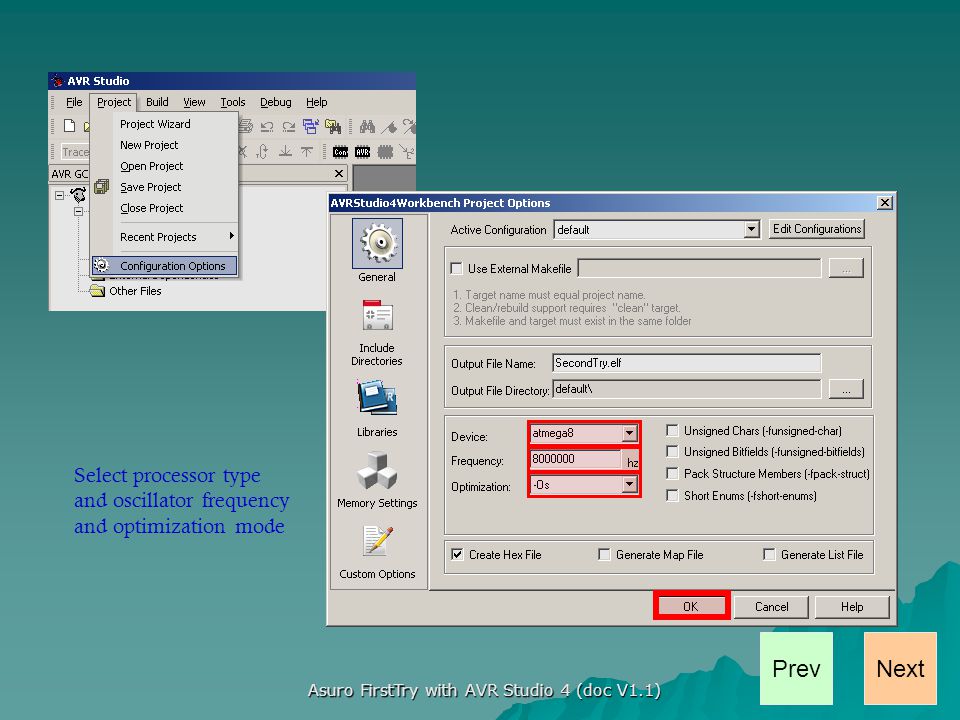

14. NextPrev Asuro FirstTry with AVR Studio 4 (doc V1.1) Select processor type and oscillator frequency and optimization mode

15. NextPrev Asuro FirstTry with AVR Studio 4 (doc V1.1) Compile (Build) the project...

16. NextPrev Asuro FirstTry with AVR Studio 4 (doc V1.1) Extra info appears and......Build succeeded with 0 warnings

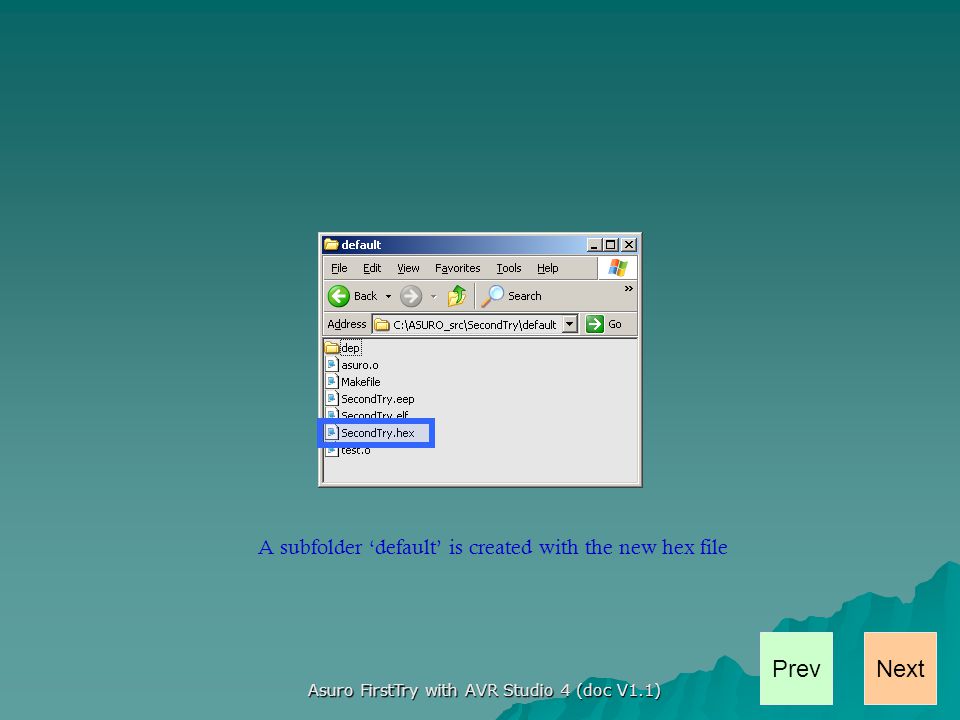

17. NextPrev Asuro FirstTry with AVR Studio 4 (doc V1.1) A subfolder ‘default’ is created with the new hex file

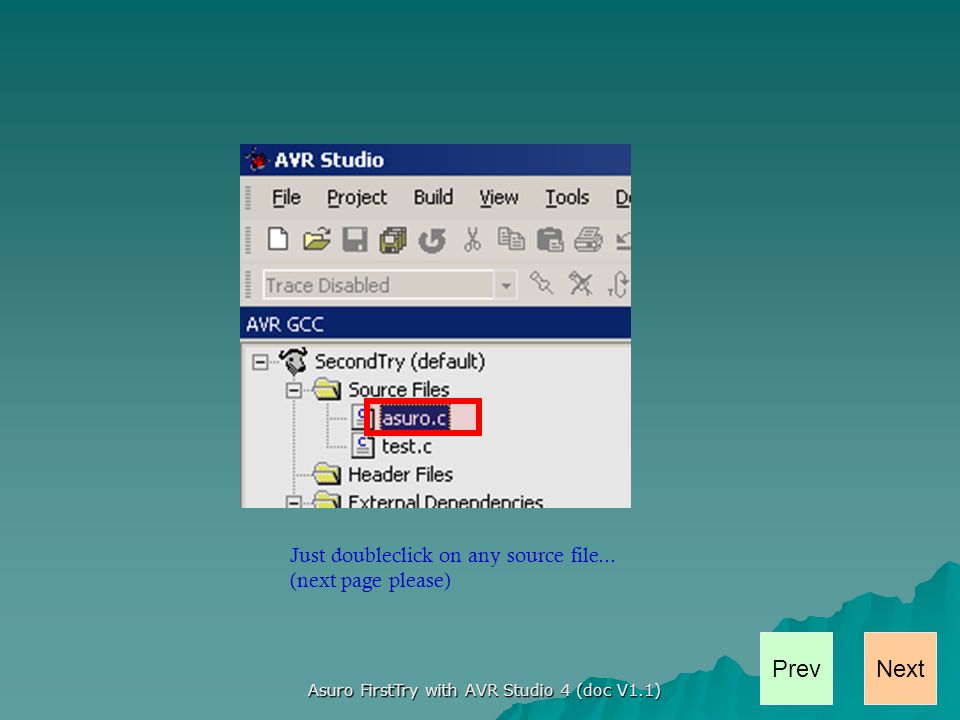

18. NextPrev Asuro FirstTry with AVR Studio 4 (doc V1.1) Just doubleclick on any source file... (next page please)

19. NextPrev Asuro FirstTry with AVR Studio 4 (doc V1.1)...to open the sourcefile

20. NextPrev Asuro FirstTry with AVR Studio 4 (doc V1.1) That all Folks! Arexx-Henk h.van.winkoop@wxs.nl
