1 Central Visual Processes

2 Anthony J Greene2 Central Visual Pathways I.Primary Visual Cortex Receptive Field Columns Hypercolumns II.Spatial Frequency III.Nerve or Cortical Damage IV.Higher Visual Areas

3 Anthony J Greene3 Occipital Lobe

4 Anthony J Greene4 Occipital Lobe: Calcarine Sulcus -- V1 -- Striate Cortex

5 Anthony J Greene5 Cells in V1

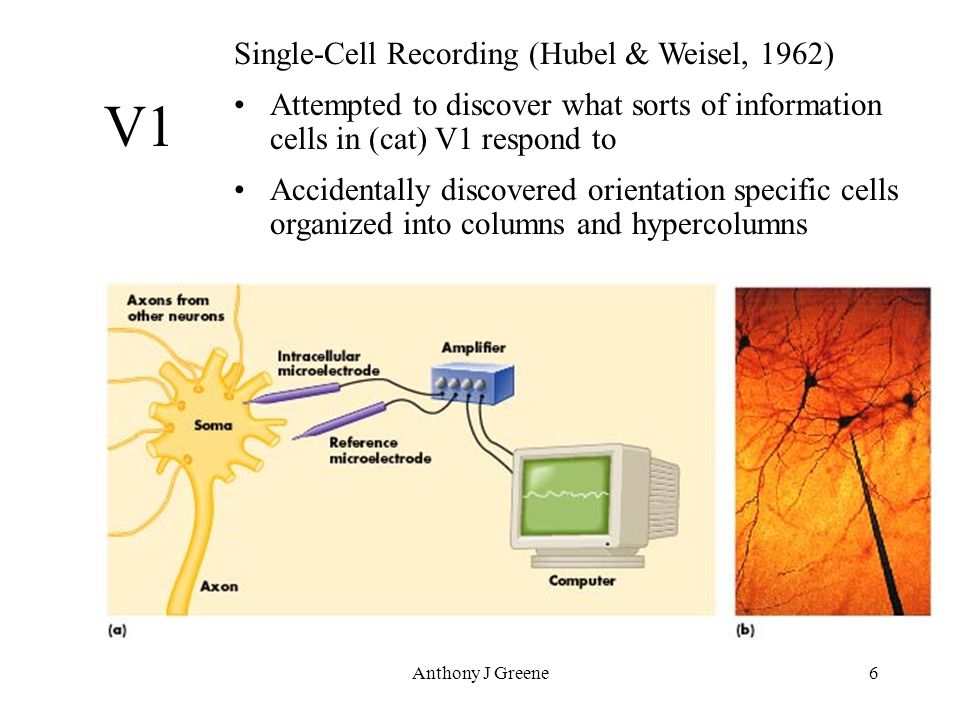

6 Anthony J Greene6 Single-Cell Recording (Hubel & Weisel, 1962) Attempted to discover what sorts of information cells in (cat) V1 respond to Accidentally discovered orientation specific cells organized into columns and hypercolumns V1

7 Anthony J Greene7

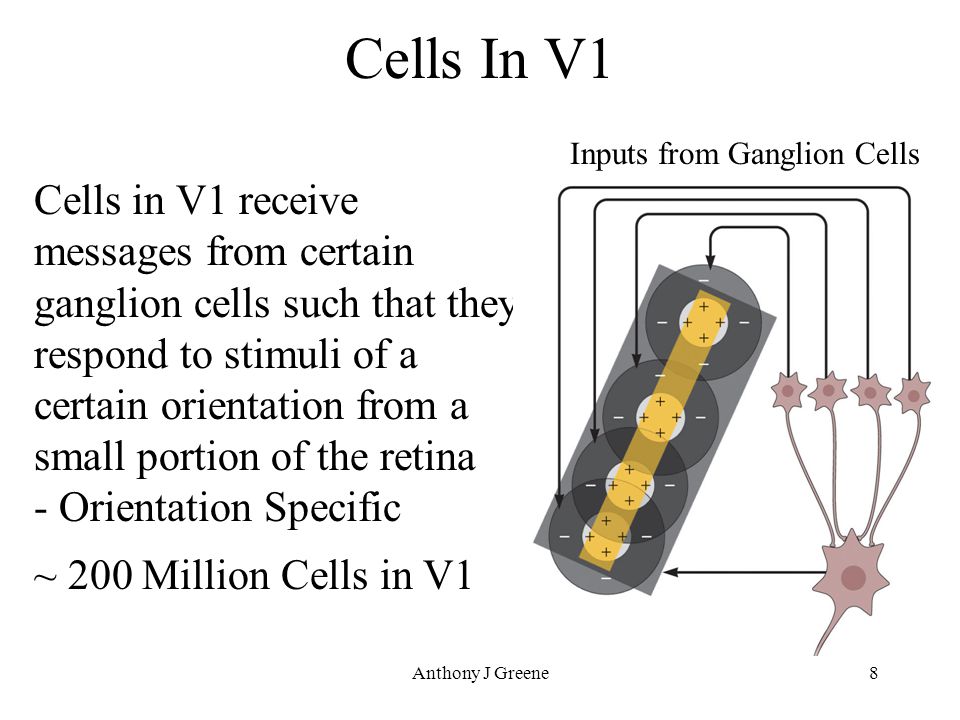

8 8 Cells In V1 Cells in V1 receive messages from certain ganglion cells such that they respond to stimuli of a certain orientation from a small portion of the retina - Orientation Specific ~ 200 Million Cells in V1 Inputs from Ganglion Cells

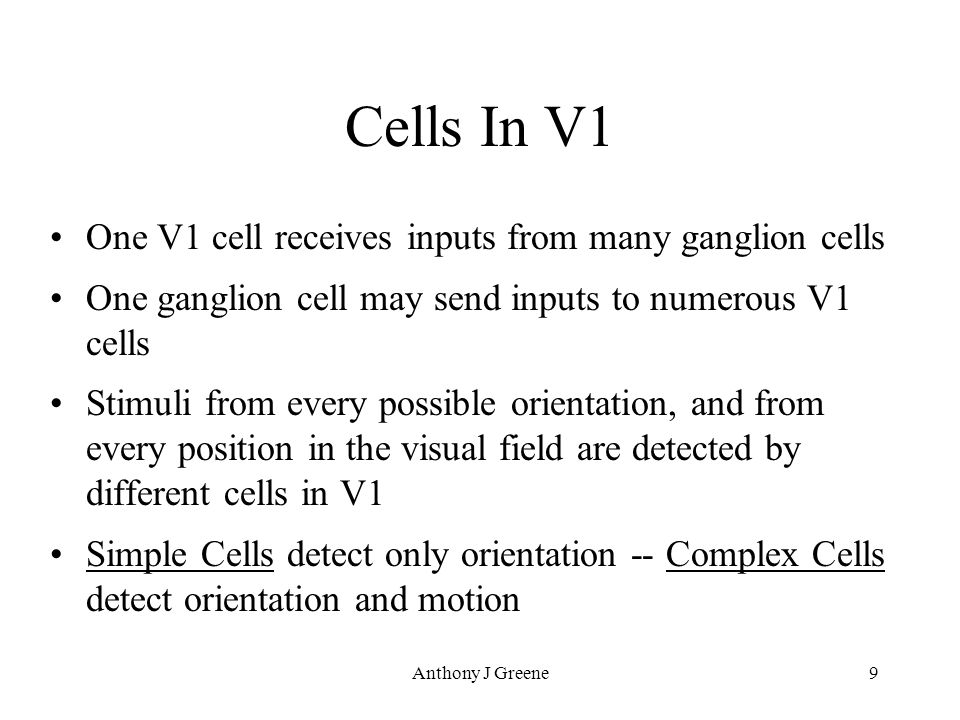

9 Anthony J Greene9 Cells In V1 One V1 cell receives inputs from many ganglion cells One ganglion cell may send inputs to numerous V1 cells Stimuli from every possible orientation, and from every position in the visual field are detected by different cells in V1 Simple Cells detect only orientation -- Complex Cells detect orientation and motion

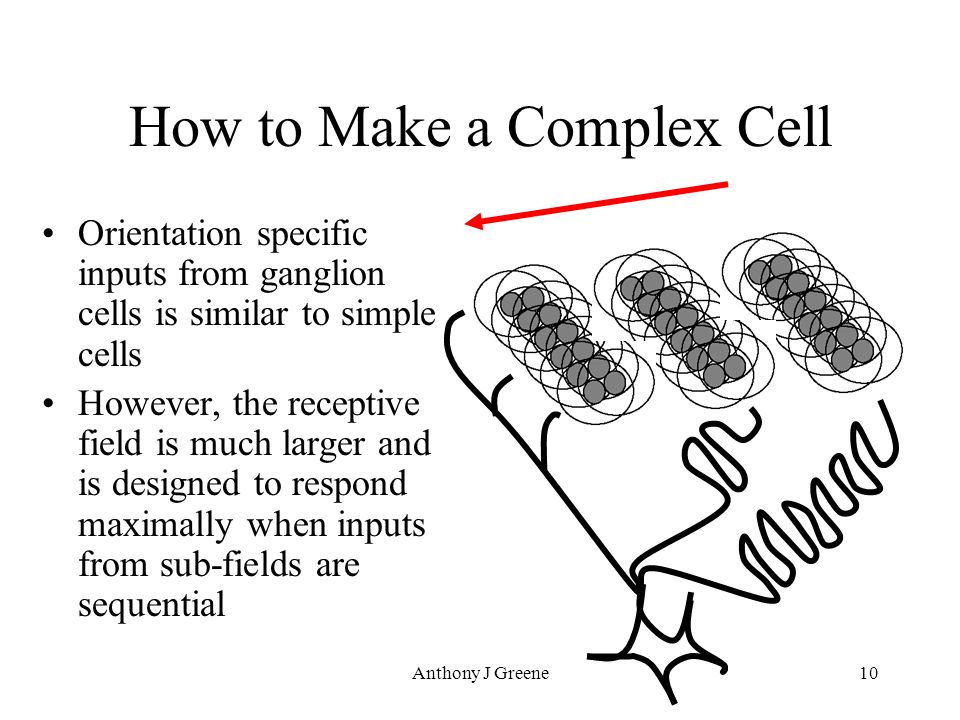

10 Anthony J Greene10 How to Make a Complex Cell Orientation specific inputs from ganglion cells is similar to simple cells However, the receptive field is much larger and is designed to respond maximally when inputs from sub-fields are sequential

11 Anthony J Greene11 Cells in V1 Occular Dominance

12 Anthony J Greene12 Columns in V1

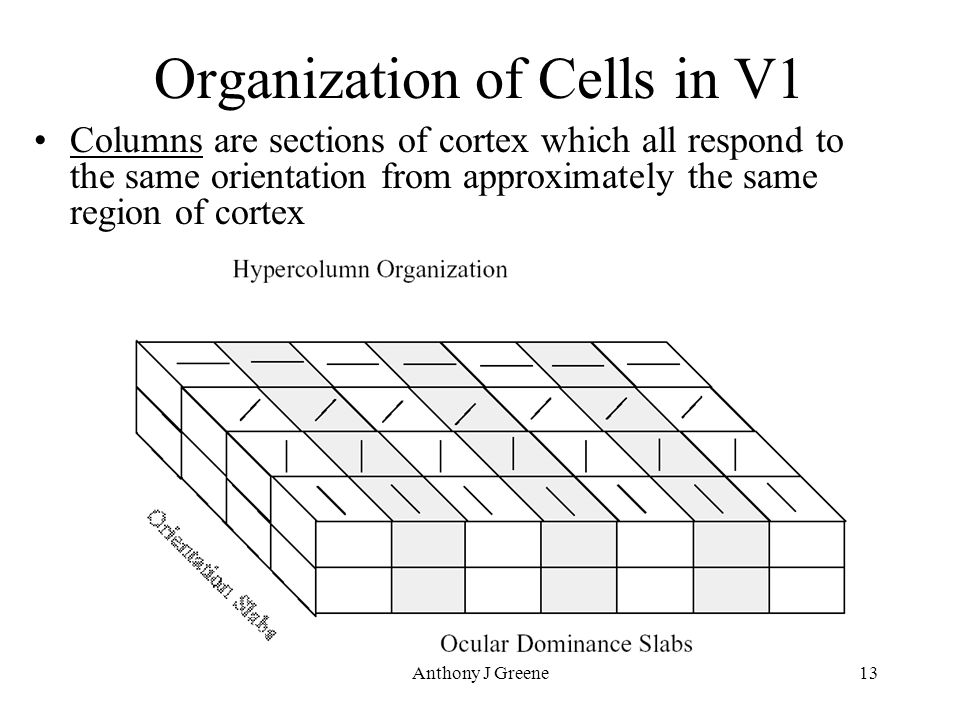

13 Anthony J Greene13 Organization of Cells in V1 Columns are sections of cortex which all respond to the same orientation from approximately the same region of cortex

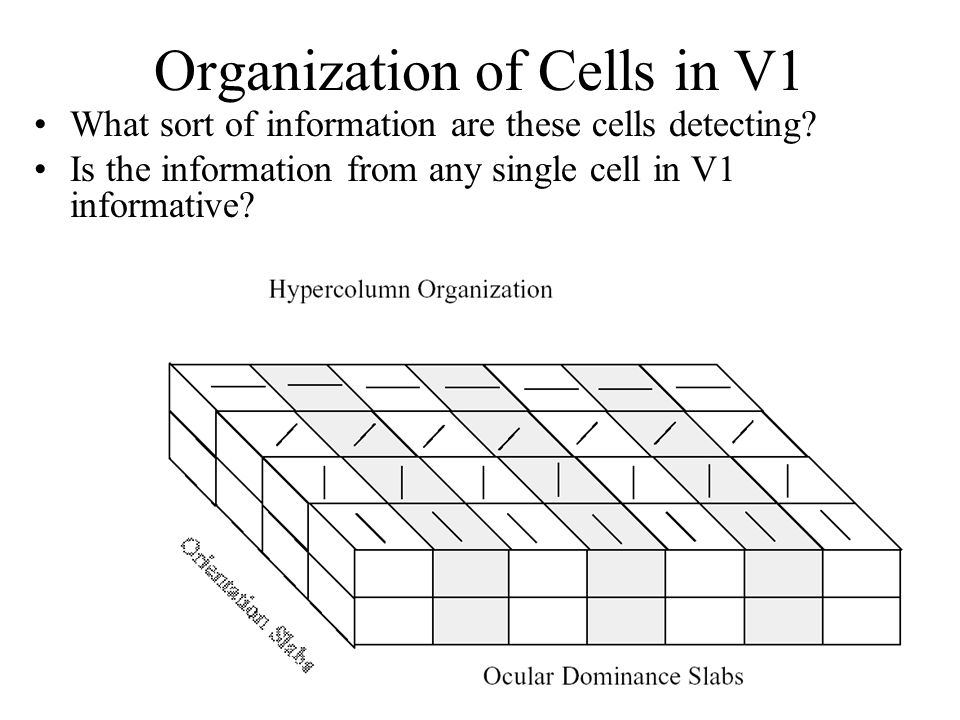

14 Anthony J Greene14 Organization of Cells in V1 Hypercolumns are groups of columns, from both eyes, which are influenced by the same minute portion of the visual field

15 Anthony J Greene15 Organization of Cells in V1 What sort of information are these cells detecting? Is the information from any single cell in V1 informative?

16 Anthony J Greene16 Response Properties of Cells in V1 The extent to which columns will respond to stimuli with no interactions from other columns Orientation Column Position on Occular Dominance Slab Cellular Activity

17 Anthony J Greene17 Lateral Inhibition The column with the strongest response to a given stimuli will suppress the respondse of neighboring columns + -

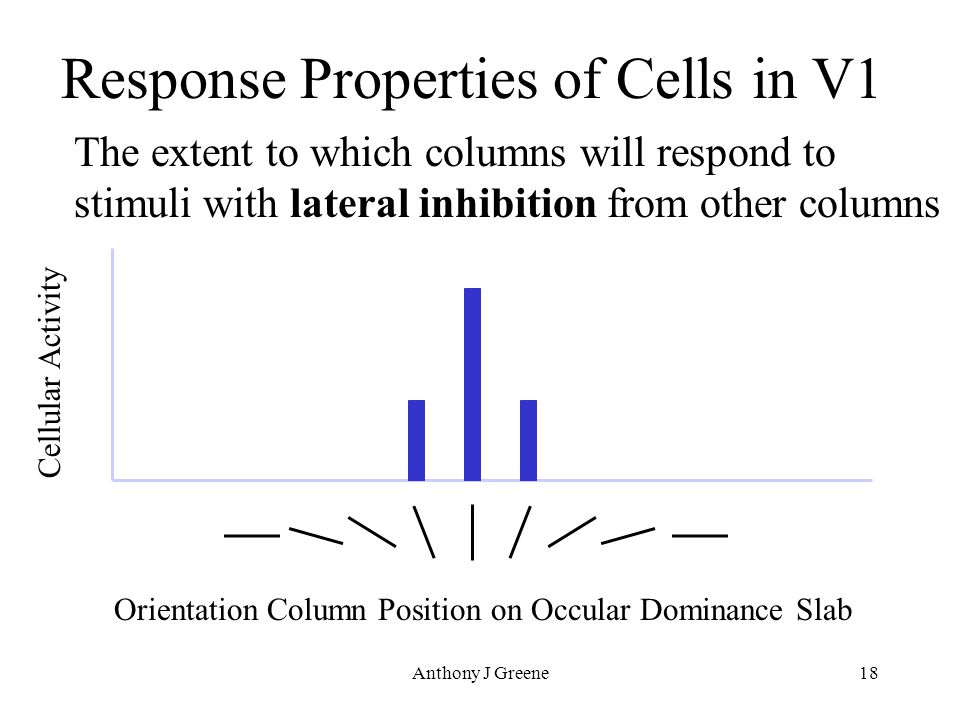

18 Anthony J Greene18 Response Properties of Cells in V1 The extent to which columns will respond to stimuli with lateral inhibition from other columns Orientation Column Position on Occular Dominance Slab Cellular Activity

19 Anthony J Greene19 Processing at V1 Is Edge Detection

20 Anthony J Greene20 Edge Detection While lateral inhibition normally improves the accuracy of edge detection, in this case it creates the “Deli Wall Illusion”

21 Anthony J Greene21

22 Anthony J Greene22 Understanding Acuity: Spatial Frequency Analysis Measuring visual acuity: –Eye doctors use distance (e.g., 20/20) –Vision scientists use visual angle

23 Anthony J Greene23 Understanding Acuity: Spatial Frequency

24 Anthony J Greene24 Understanding Acuity: Spatial Frequency

25 Anthony J Greene25 Describing Processes in V1: Spatial Frequency Analysis

26 Anthony J Greene26 Describing Processes in V1: Spatial Frequency Analysis (cont.) Orientation Frequency Contrast Decreasing Contrast

27 Anthony J Greene27 Spatial Frequency Analysis (cont.) Fourier - French mathematician, came up with theory that one can create any complex wave through a summation of Sinusoids (or sub-parts, sub-waves) Fourier Analysis divides all orientation specific cells in V1 according to the width of their receptive fields or Spatial Frequency 1) Low 2) Medium 3) High

28 Anthony J Greene28 Spatial Frequency Analysis (cont.) Neurons can then be viewed as Spatial Filters which separately analyze differing levels of detail or scale Any scene can then be decomposed into images with varying spatial frequencies - low frequency images are blurry and only the most prominent features are represented - high frequency images exaggerate the fine details Construing form vision in terms of an emergent property of these different scales of receptors is referred to as the Multichannel Model

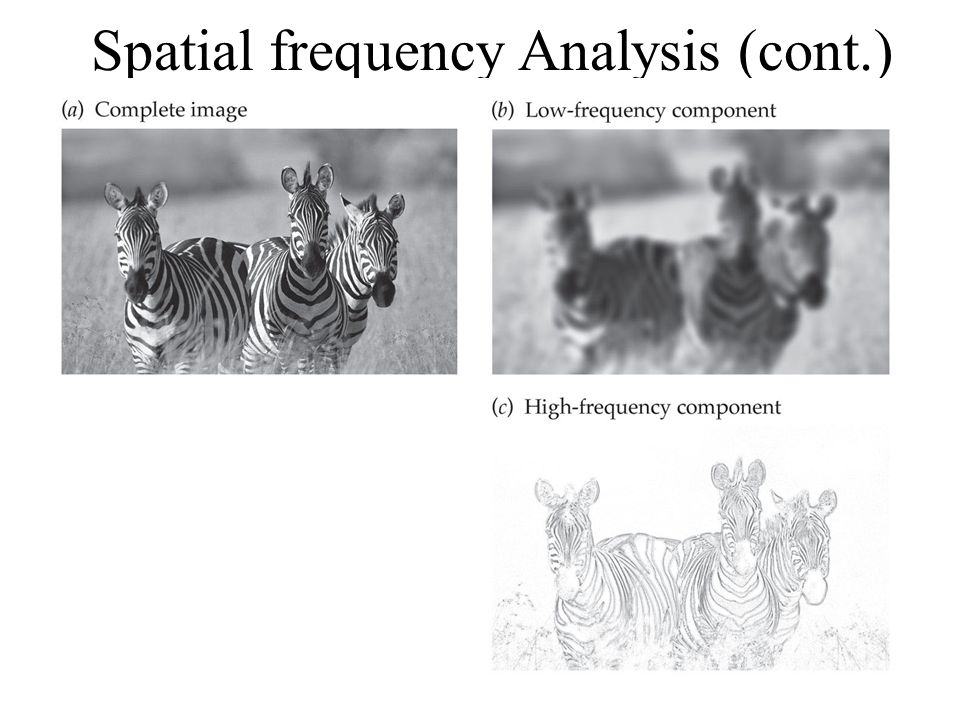

29 Anthony J Greene29 Spatial frequency Analysis (cont.)

30 Anthony J Greene30 Spatial frequency Analysis (cont.)

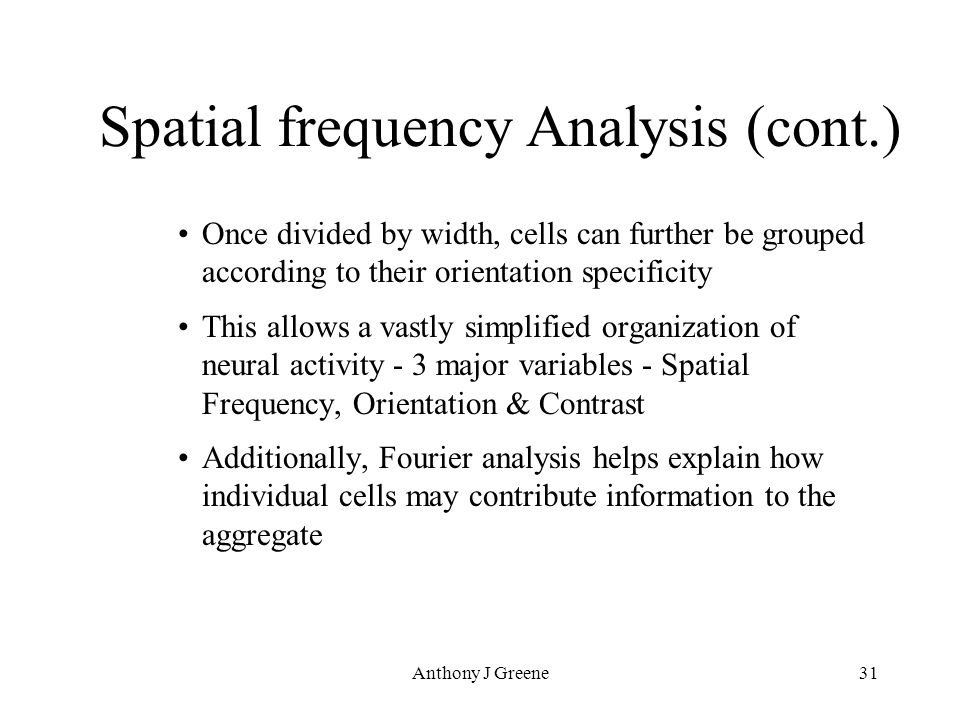

31 Anthony J Greene31 Spatial frequency Analysis (cont.) Once divided by width, cells can further be grouped according to their orientation specificity This allows a vastly simplified organization of neural activity - 3 major variables - Spatial Frequency, Orientation & Contrast Additionally, Fourier analysis helps explain how individual cells may contribute information to the aggregate

32 Anthony J Greene32 Spatial frequency Analysis (cont.)

33 Anthony J Greene33 Spatial frequency Analysis (cont.)

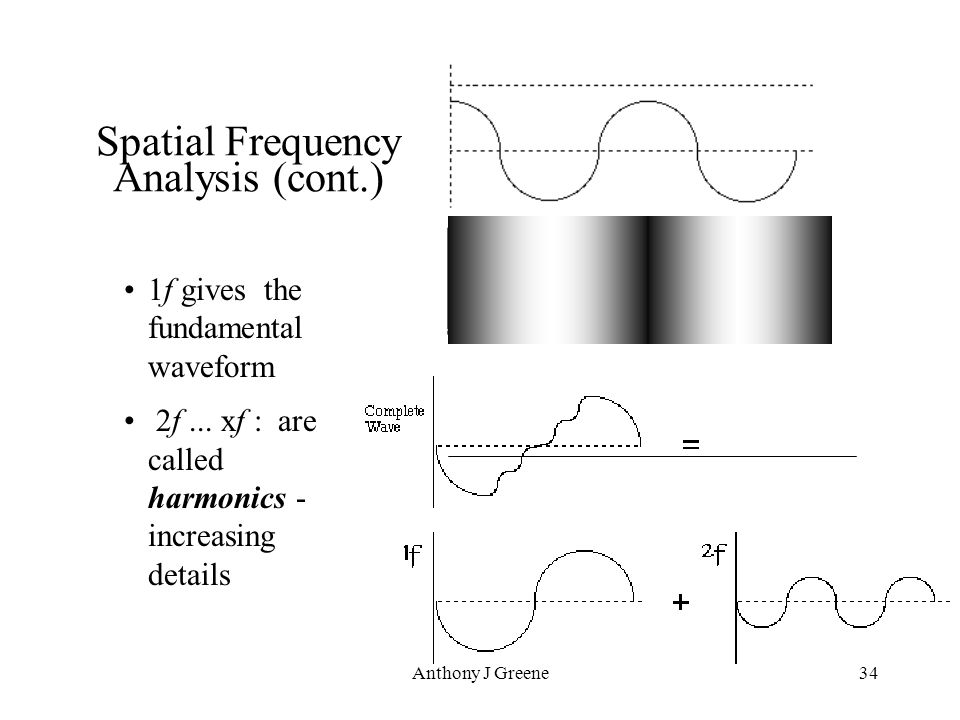

34 Anthony J Greene34 Spatial Frequency Analysis (cont.) 1f gives the fundamental waveform 2f... xf : are called harmonics - increasing details

35 Anthony J Greene35 Spatial Frequency Analysis (cont.)

36 Anthony J Greene36 Spatial Frequency Illusions

37 Anthony J Greene37 Spatial Frequency Illusions

38 Anthony J Greene38 Spatial Frequency Illusions

39 Anthony J Greene39 Spatial Frequency Illusions

40 Anthony J Greene40 Color at V1 Among cells selective for orientation are patches of cells selective for color (and not orientation), which are known as Blobs. Other cell (orientation specific cells) regions are known as interblobs.

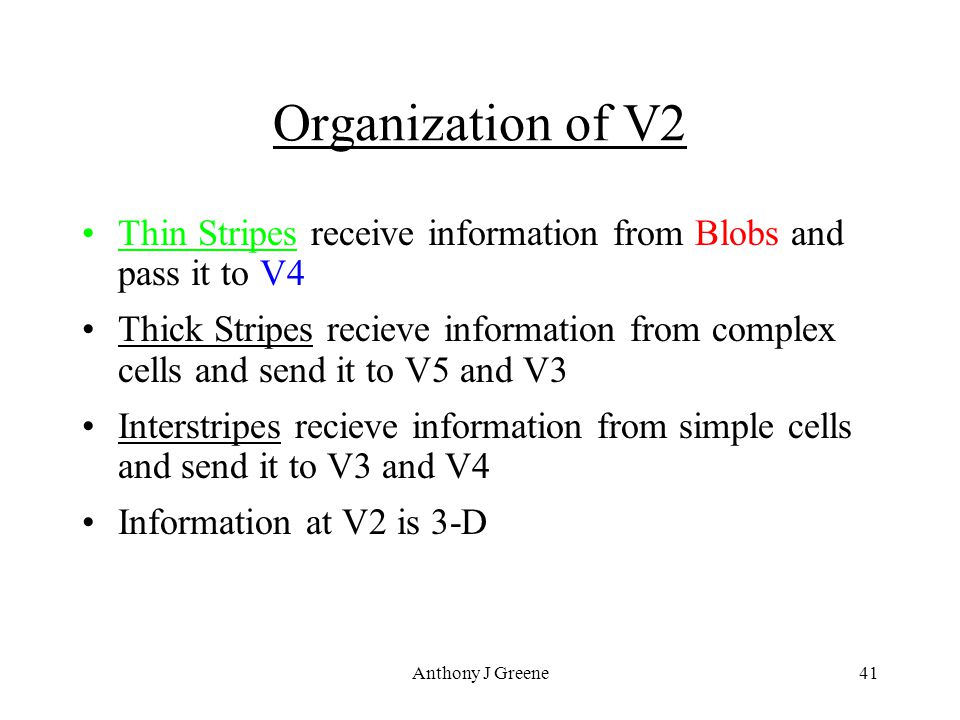

41 Anthony J Greene41 Organization of V2 Thin Stripes receive information from Blobs and pass it to V4 Thick Stripes recieve information from complex cells and send it to V5 and V3 Interstripes recieve information from simple cells and send it to V3 and V4 Information at V2 is 3-D

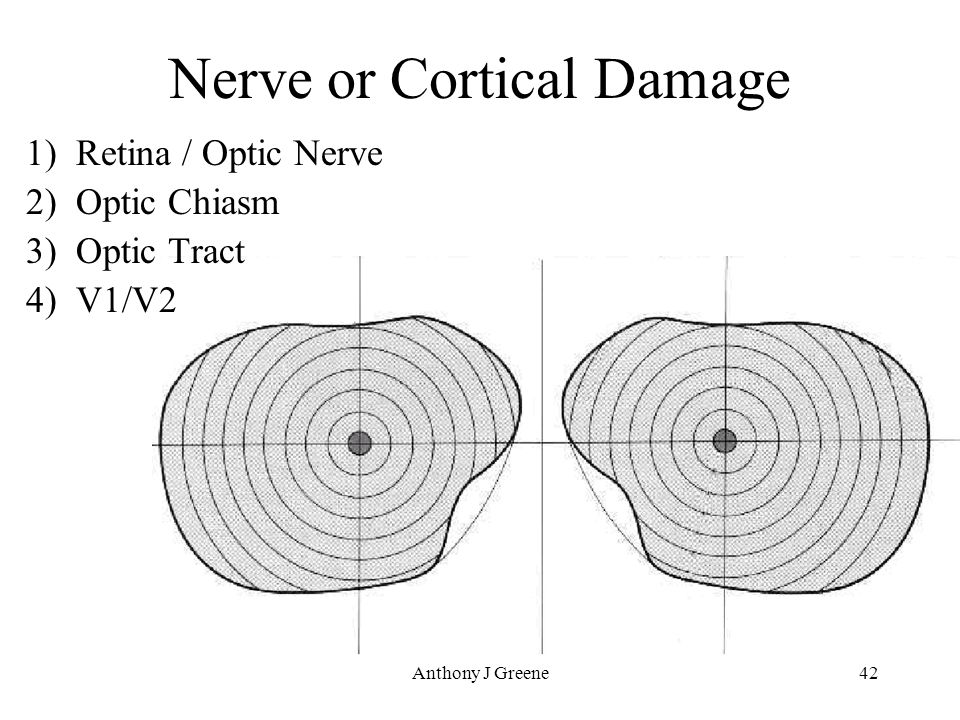

42 Anthony J Greene42 Nerve or Cortical Damage 1) Retina / Optic Nerve 2) Optic Chiasm 3) Optic Tract 4) V1/V2

43 Anthony J Greene43 Nerve or Cortical Damage Retina/Optic Nerve: Monocular blindness

44 Anthony J Greene44 Nerve or Cortical Damage Optic Chiasm: Nasal field blindness

45 Anthony J Greene45 Nerve or Cortical Damage Optic Chiasm: Bitemporal field blindness

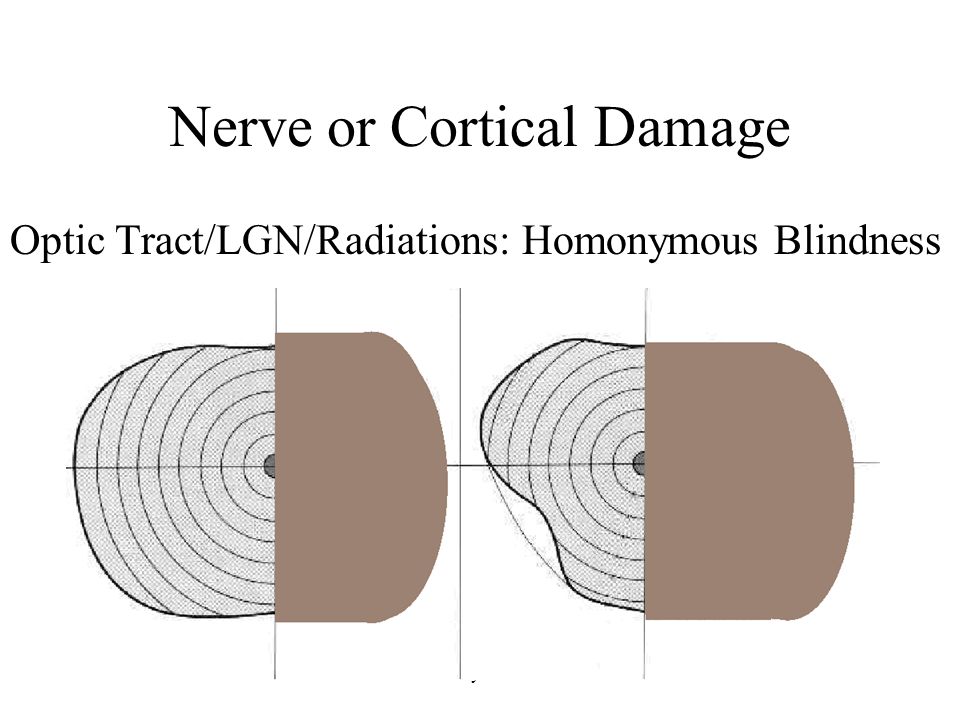

46 Anthony J Greene46 Nerve or Cortical Damage Optic Tract/LGN/Radiations: Homonymous Blindness

47 Anthony J Greene47 Nerve or Cortical Damage V1: Quadrantic blindness

48 Anthony J Greene48 Nerve or Cortical Damage V1/V2: Scotoma Complete blindness case of Blindsight

49 Anthony J Greene49 Higher Visual Areas V3: Form & Dynamic Form V4: Color V5: Motion IT: What System: Object Recognition –Lingual Gyrus of IT: Face Recognition PP: Where System: Object Location and Navigation

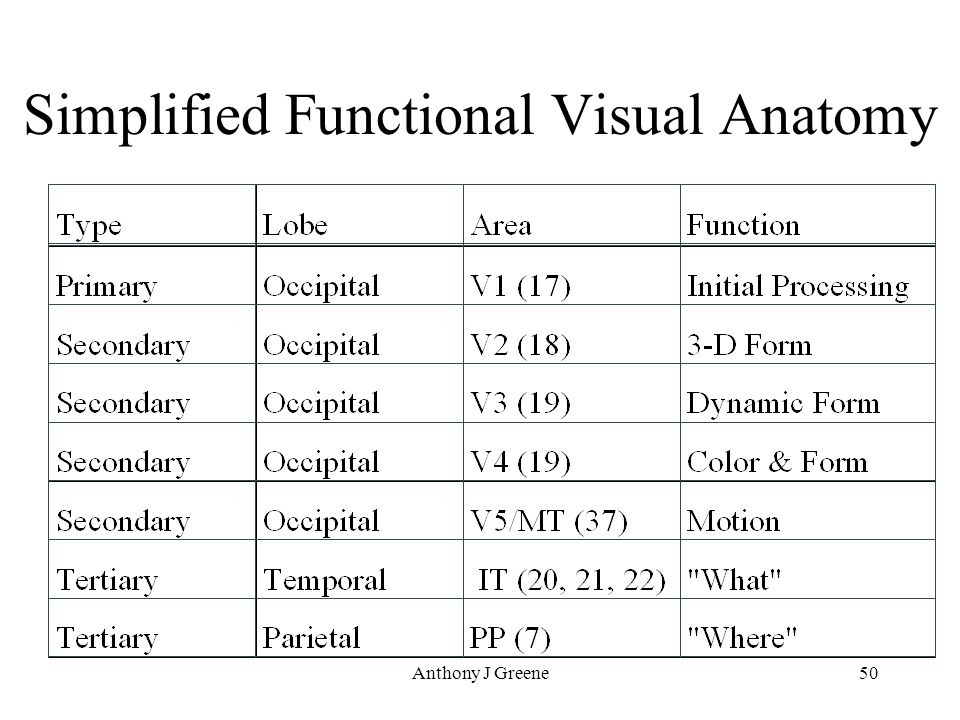

50 Anthony J Greene50 Simplified Functional Visual Anatomy

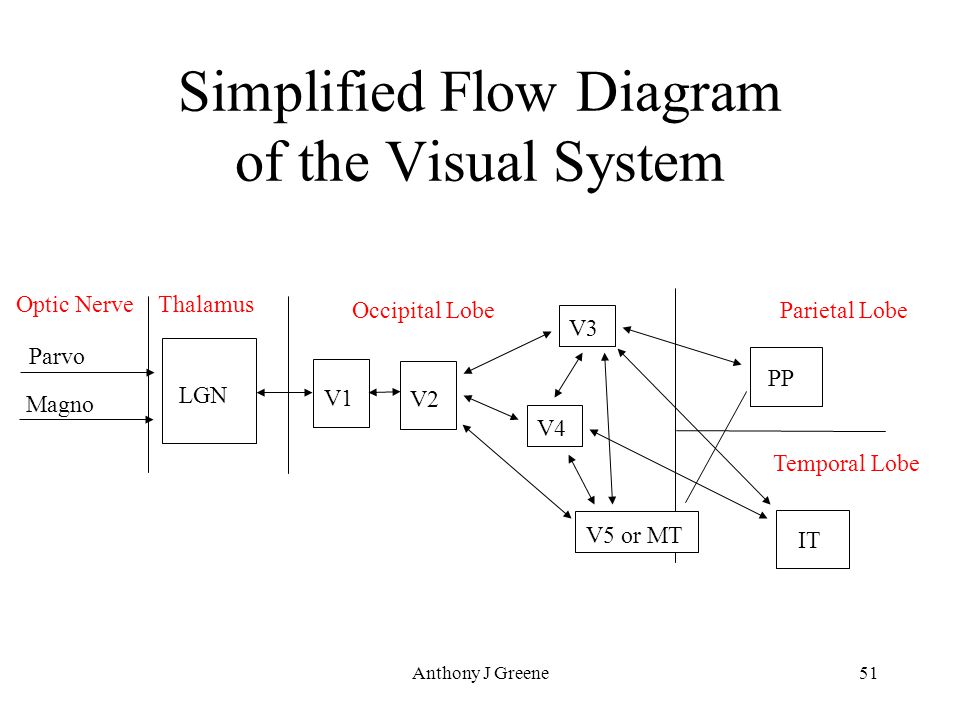

51 Anthony J Greene51 Simplified Flow Diagram of the Visual System LGN Parvo Magno Thalamus Occipital Lobe Temporal Lobe Parietal Lobe V1 V2 V3 V4 V5 or MT IT Optic Nerve PP

52 Anthony J Greene52 Summary } } }
