1. Multi-core and tera- scale computing A short overview of benefits and challenges CSC 2007 Andrzej Nowak, CERN 28.08.2007

3. Multi-core and tera-scale computing - Andrzej Nowak, CERN3 The “free” bonus > Silicon technology advances more quickly than design capabilities > Single CPU complexity is rising slowly > Moving from 90nm and 65nm processes to 45nm and 32nm processes > Free transistors available  Take all you want… eat all you take

4. Multi-core and tera-scale computing - Andrzej Nowak, CERN4 The multi-core revolution > What do we do with extra silicon?  Copy what we already have > First shot at the PC consumer market – Intel’s Hyper- Threading in the Xeons and Pentium 4 (SMT)  Idea: do work when nothing is happening  Some resources in the CPU core were shared  The relation to extra space on die was not direct > First popular dual-core CPU for Joe Average – the Intel Core Duo  Idea: copy a big part of the processor  Less resources are shared > Next generations of x86-like CPUs are coming  6, 8, 16 cores

5. Multi-core and tera-scale computing - Andrzej Nowak, CERN5 Multi-core designs > Many other multi-core CPUs are on the market  AMD x2 (and x4 coming soon)  ARM specifications for multi-core CPUs (your iPod is dual core!)  Sun’s Niagara processor (8 cores)  Cell processor in Playstation 3 units > Programmers need to take advantage of the new features  CERN openlab and Intel are organizing a multi- threading and parallelism workshop on the beginning of October!

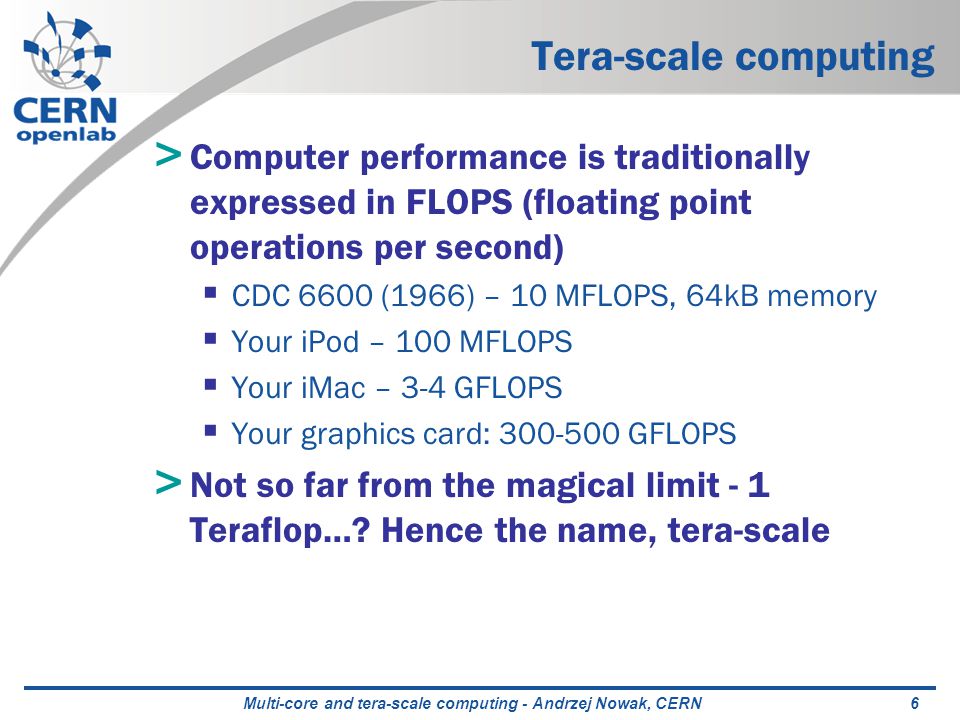

6. Multi-core and tera-scale computing - Andrzej Nowak, CERN6 Tera-scale computing > Computer performance is traditionally expressed in FLOPS (floating point operations per second)  CDC 6600 (1966) – 10 MFLOPS, 64kB memory  Your iPod – 100 MFLOPS  Your iMac – 3-4 GFLOPS  Your graphics card: 300-500 GFLOPS > Not so far from the magical limit - 1 Teraflop…? Hence the name, tera-scale

7. Multi-core and tera-scale computing - Andrzej Nowak, CERN7 Processors in GPUs (digression) > Newest trend – heavily multi-core (up to 128) > Blazing fast > Toolkits available (i.e. NVIDIA CUDA) > But…  Floating point operations are not precise enough or non-standard  Data types are limited  Memory handling is not optimized for general purpose computing  Tiny cache, if at all  ~150W… for the chip only

8. Multi-core and tera-scale computing - Andrzej Nowak, CERN8 Tera-scale computing ctd. > Intel’s Polaris  80-core prototype  ~1 TFLOPS > Intel’s Larrabee design  16-24 core x86-GPU hybrid  ~3 TFLOPS > Research directions  How do you feed 80 hungry cores?  Parallelism – fine grained or coarse?  Effective virtualization  Memory access and bus optimization  Resource sharing

9. Multi-core and tera-scale computing - Andrzej Nowak, CERN9 Questions for the future > How many cores does your mother need? > How many cores do you, a scientist, need? > How do you effectively use what you have? > What is the best level to introduce parallelism? Do you need to redesign your software? > GRID computing or tera-scale homogenous computers? Will virtualization be effective enough?

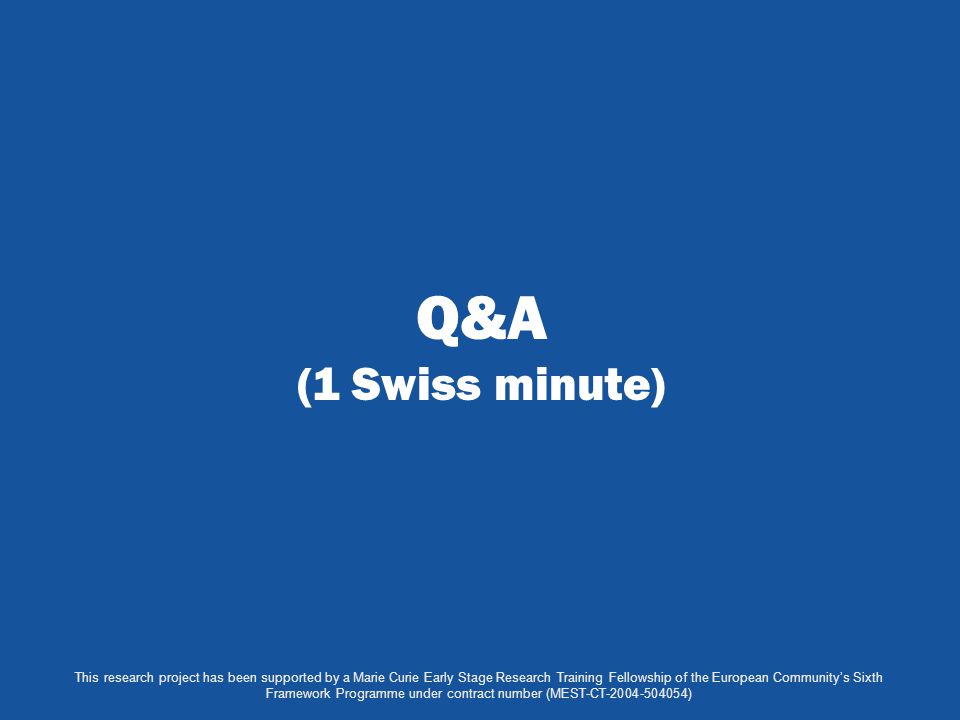

10. Q&A (1 Swiss minute) This research project has been supported by a Marie Curie Early Stage Research Training Fellowship of the European Community’s Sixth Framework Programme under contract number (MEST-CT-2004-504054)
