Data Mining (Apriori Algorithm)DCS 802, Spring 2002 1 DCS 802 Data Mining Apriori Algorithm Spring of 2002 Prof. Sung-Hyuk Cha School of Computer Science.

Similar presentations


Presentation on theme: "Data Mining (Apriori Algorithm)DCS 802, Spring 2002 1 DCS 802 Data Mining Apriori Algorithm Spring of 2002 Prof. Sung-Hyuk Cha School of Computer Science."— Presentation transcript:

1

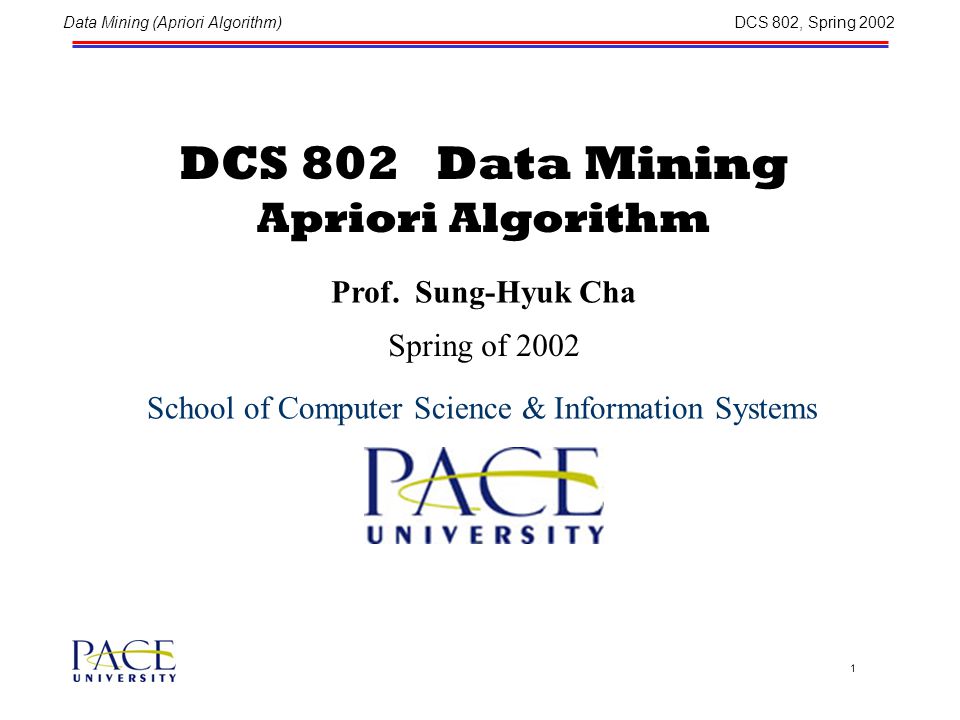

2 Data Mining (Apriori Algorithm)DCS 802, Spring 2002 1 DCS 802 Data Mining Apriori Algorithm Spring of 2002 Prof. Sung-Hyuk Cha School of Computer Science & Information Systems

3 Data Mining (Apriori Algorithm)DCS 802, Spring 2002 2 Association Rules Definition: Rules that state a statistical correlation between the occurrence of certain attributes in a database table. Given a set of transactions, where each transaction is a set of items, X 1,..., X n and Y, an association rule is an expression X 1,..., X n  Y. This means that the attributes X 1,..., X n predict Y Intuitive meaning of such a rule: transactions in the database which contain the items in X tend also to contain the items in Y.

4 Data Mining (Apriori Algorithm)DCS 802, Spring 2002 3 Measures for an Association Rule Support : Given the association rule X 1,..., X n  Y, the support is the percentage of records for which X 1,..., X n and Y both hold. The statistical significance of the association rule. Confidence : Given the association rule X 1,..., X n  Y, the confidence is the percentage of records for which Y holds, within the group of records for which X 1,..., X n hold. The degree of correlation in the dataset between X and Y. A measure of the rule’s strength.

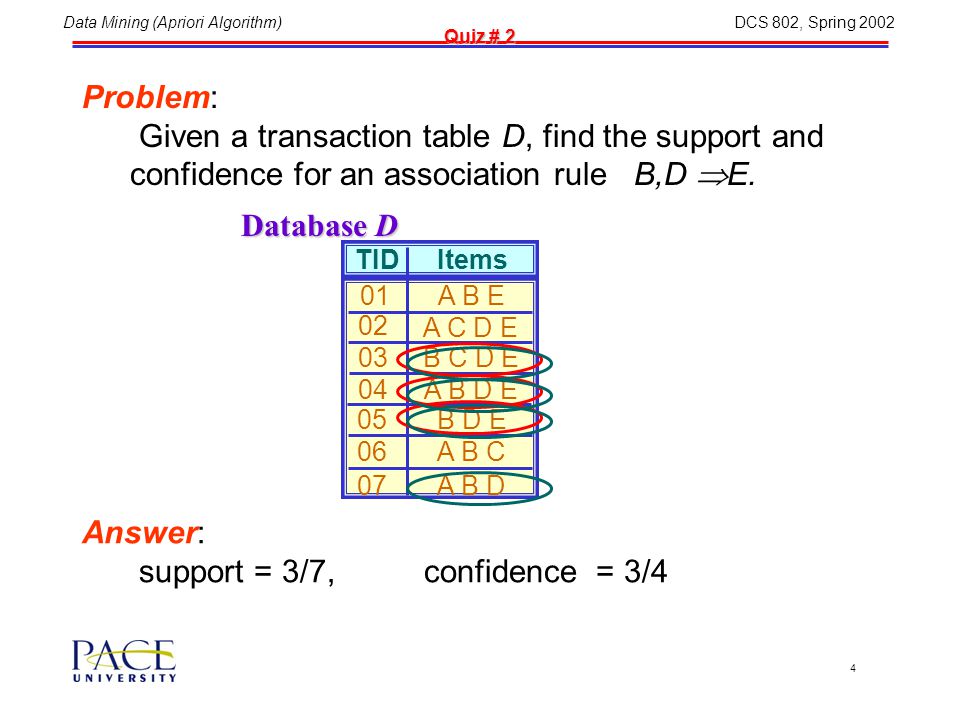

5 Data Mining (Apriori Algorithm)DCS 802, Spring 2002 4 Quiz # 2 Problem: Given a transaction table D, find the support and confidence for an association rule B,D  E. Database D TIDItems 01 02 03 04 A B E A C D E B C D E A B D E 05 06 B D E A B C 07A B D Answer: support = 3/7, confidence = 3/4

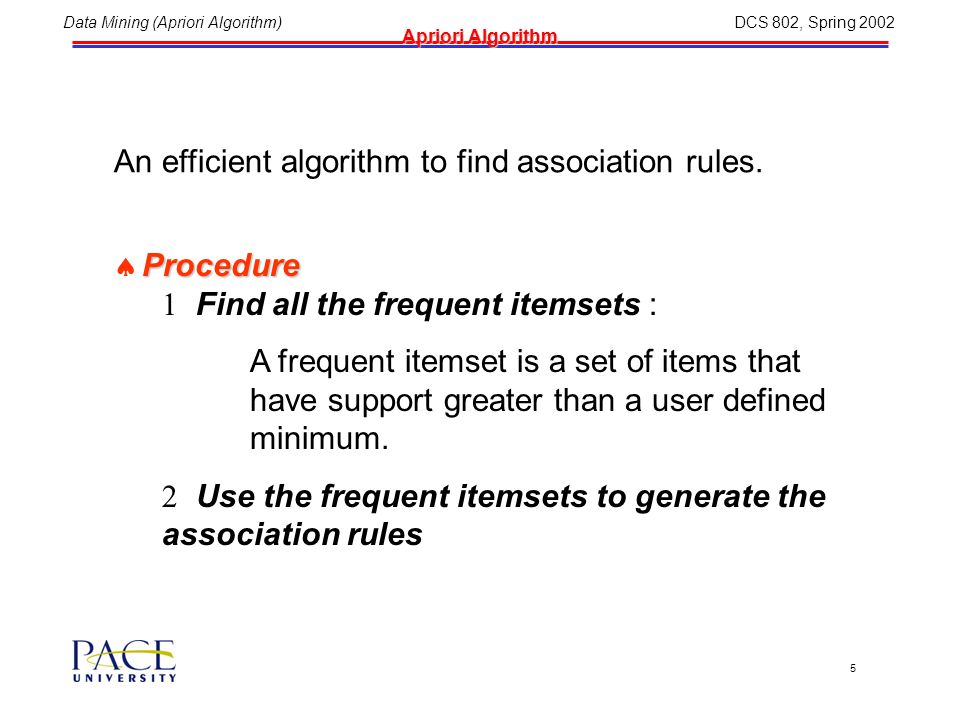

6 Data Mining (Apriori Algorithm)DCS 802, Spring 2002 5 Apriori Algorithm An efficient algorithm to find association rules. Procedure  Procedure  Find all the frequent itemsets :  Use the frequent itemsets to generate the association rules A frequent itemset is a set of items that have support greater than a user defined minimum.

7 Data Mining (Apriori Algorithm)DCS 802, Spring 2002 6 Notation An itemset having k items. k-itemset LkLk Set of candidate k-itemsets (those with minimum support). Each member of this set has two fields: i) itemset and ii) support count. CkCk Set of candidate k-itemsets (potentially frequent itemsets). Each member of this set has two fields: i) itemset and ii) support count. The sample transaction database D The set of all frequent items.F

8 Data Mining (Apriori Algorithm)DCS 802, Spring 2002 7 Example TIDItems 100 200 300 400 A C D B C E A B C E B E Database D C1C1C1C1 Support {A}.50 {B} {C} {D} {E} L1L1L1L1.75.25.75 Y Y Y N Y (k = 1) itemset C2C2C2C2 Support {A,B}.25 {A,C} {A,E} {B,C} {B,E} L2L2L2L2 N (k = 2) itemset C3C3C3C3 Support {B,C,E} L3L3L3L3.50Y (k = 3) itemset {C,E}.50.25.50.75 Y N Y Y.50Y C4C4C4C4 Support {A,B,C,E} L4L4L4L4.25N (k = 4) itemset * Suppose a user defined minimum =.49 * n items implies O(n - 2) computational complexity? 2

9 Data Mining (Apriori Algorithm)DCS 802, Spring 2002 8 Procedure Apriorialgo() { F =  ; L k = {frequent 1-itemsets}; k = 2; /* k represents the pass number. */ while (L k-1 !=  ) { F = F U L k ; C k = New candidates of size k generated from L k-1 ; for all transactions t  D increment the count of all candidates in C k that are contained in t ; L k = All candidates in C k with minimum support ; k++ ; } return ( F ) ; }

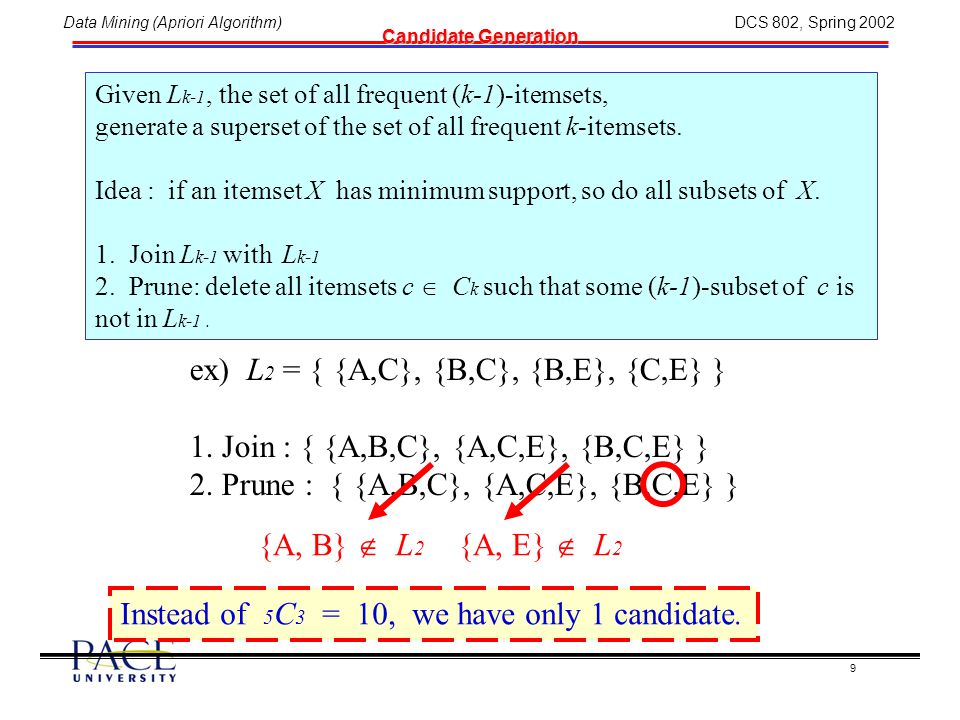

10 Data Mining (Apriori Algorithm)DCS 802, Spring 2002 9 Candidate Generation Given L k-1, the set of all frequent (k-1)-itemsets, generate a superset of the set of all frequent k-itemsets. Idea : if an itemset X has minimum support, so do all subsets of X. 1. Join L k-1 with L k-1 2. Prune: delete all itemsets c  C k such that some (k-1)-subset of c is not in L k-1. ex) L 2 = { {A,C}, {B,C}, {B,E}, {C,E} } 1. Join : { {A,B,C}, {A,C,E}, {B,C,E} } 2. Prune : { {A,B,C}, {A,C,E}, {B,C,E} } {A, E}  L 2 Instead of 5 C 3 = 10, we have only 1 candidate. {A, B}  L 2

11 Data Mining (Apriori Algorithm)DCS 802, Spring 2002 10 Thoughts Association rules are always defined on binary attributes.  Need to flatten the tables. ex) CIDGenderEthnicityCall MFWBHADICID Phone Company DB. - Support for Asian ethnicity will never exceed.5. - No need to consider itemsets {M,F}, {W,B} nor {D,I}. - M  F or D  I are not of interest at all. * Considering the original schema before flattening may be a good idea.

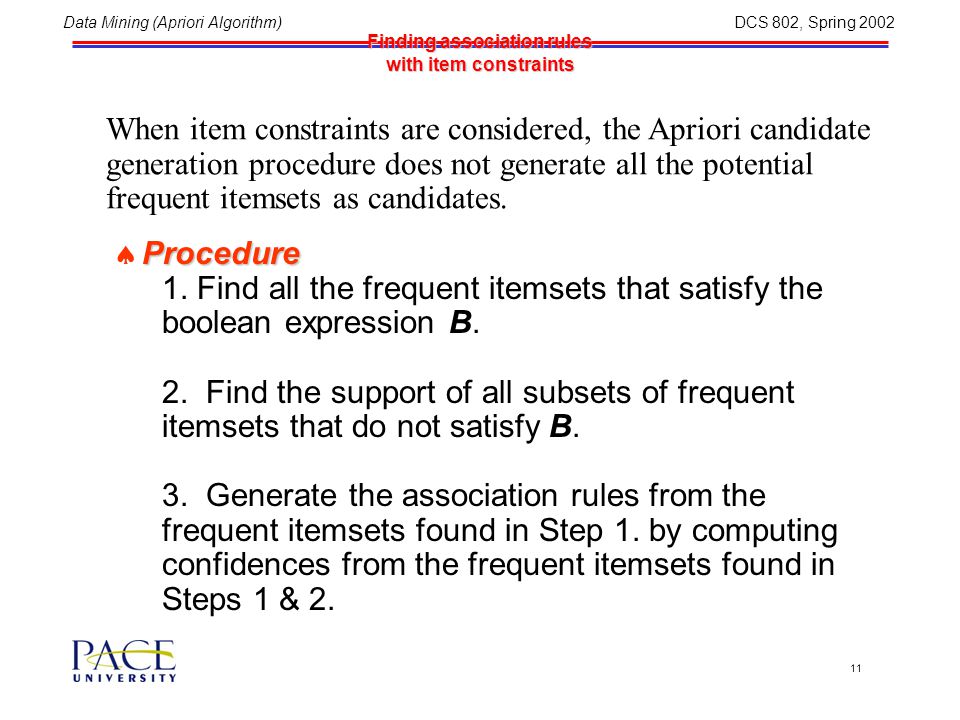

12 Data Mining (Apriori Algorithm)DCS 802, Spring 2002 11 Finding association rules with item constraints When item constraints are considered, the Apriori candidate generation procedure does not generate all the potential frequent itemsets as candidates. Procedure  Procedure 1. Find all the frequent itemsets that satisfy the boolean expression B. 2. Find the support of all subsets of frequent itemsets that do not satisfy B. 3. Generate the association rules from the frequent itemsets found in Step 1. by computing confidences from the frequent itemsets found in Steps 1 & 2.

13 Data Mining (Apriori Algorithm)DCS 802, Spring 2002 12 L s(k) Set of frequent k-itemsets that contain an item in S. Additional Notation BBoolean expression with m disjuncts: B = D 1  D 2 ...  D m DiDi N conjuncts in D i, D i = a i,1  a i,2 ...  a i,n SSet of items such that any itemset that satisfies B contains an item from S. L b(k) Set of frequent k-itemsets that satisfy B. C s(k) Set of candidate k-itemsets that contain an item in S. C b(k) Set of candidate k-itemsets that satisfy B.

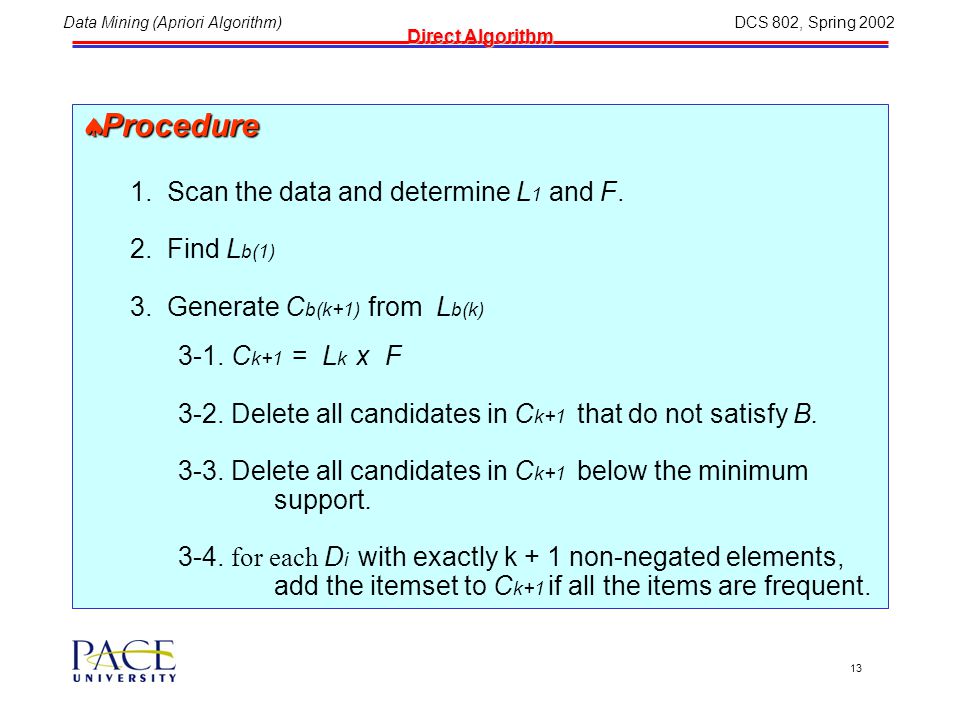

14 Data Mining (Apriori Algorithm)DCS 802, Spring 2002 13  Procedure 1. Scan the data and determine L 1 and F. 2. Find L b(1) 3. Generate C b(k+1) from L b(k) 3-1. C k+1 = L k x F 3-2. Delete all candidates in C k+1 that do not satisfy B. 3-3. Delete all candidates in C k+1 below the minimum support. 3-4. for each D i with exactly k + 1 non-negated elements, add the itemset to C k+1 if all the items are frequent. Direct Algorithm

15 Data Mining (Apriori Algorithm)DCS 802, Spring 2002 14 TIDItems 100 200 300 400 A C D B C E A B C E B E Database D Example Given B = (A  B)  (C   E) step 1 & 2 L b(1) = { C } C 1 = { {A}, {B}, {C}, {D}, {E} } L 1 = { {A}, {B}, {C}, {E} } C 2 = L b(1) x F = { {A,C}, {B,C}, {C,E} } step 3-2step 3-1 C b(2) = { {A,C}, {B,C} } step 3-3 L 2 = { {A,C}, {B,C} } step 3-4 L b(2) = { {A,B}, {A,C}, {B,C} } C 3 = L b(2) x F = { {A,B,C}, {A,B,E}, {A,C,E}, {B,C,E} } step 3-2step 3-1 C b(3) = { {A,B,C}, {A,B,E} } step 3-3 L 3 =  step 3-4 L b(3) = 

16 Data Mining (Apriori Algorithm)DCS 802, Spring 2002 15 MultipleJoins and Reorder algorithms to find association rules with item constraints will be added.

17 Data Mining (Apriori Algorithm)DCS 802, Spring 2002 16 Mining Sequential Patterns Given a database D of customer transactions, the problem of mining sequential patterns is to find the maximal sequences among all sequences that have certain user-specified minimum support. - Transaction-time field is added. - Itemset in a sequence is denoted as

18 Data Mining (Apriori Algorithm)DCS 802, Spring 2002 17 Sequence Version of DB Conversion 11222344451122234445 CustomerID Jun 25 93 Jun 30 93 Jun 10 93 Jun 15 93 Jun 20 93 Jun 25 93 Jun 30 93 July 25 93 Jun 12 93 Transaction Time 30 90 10,20 30 40,60,70 30,50,70 30 40,70 90 Items D 1234512345 CustomerID Customer Sequence Sequential version of D’ Answer set with support >.25 = {, } * Customer sequence : all the transactions of a customer is a sequence ordered by increasing transaction time.

19 Data Mining (Apriori Algorithm)DCS 802, Spring 2002 18 Definitions Def 1. A sequence is contained in another sequence if there exists integers i 1 < i 2 < … < i n such that a 1  b i1, a 2  b i2, …, a n  b in ex) is contained in. is contained in. Def 2. A sequence s is maximal if s is not contained in any other sequence. - T i is transaction time. - itemset(T i ) is transaction the set of items in T i. - litemset : an item set with minimum support. Yes No

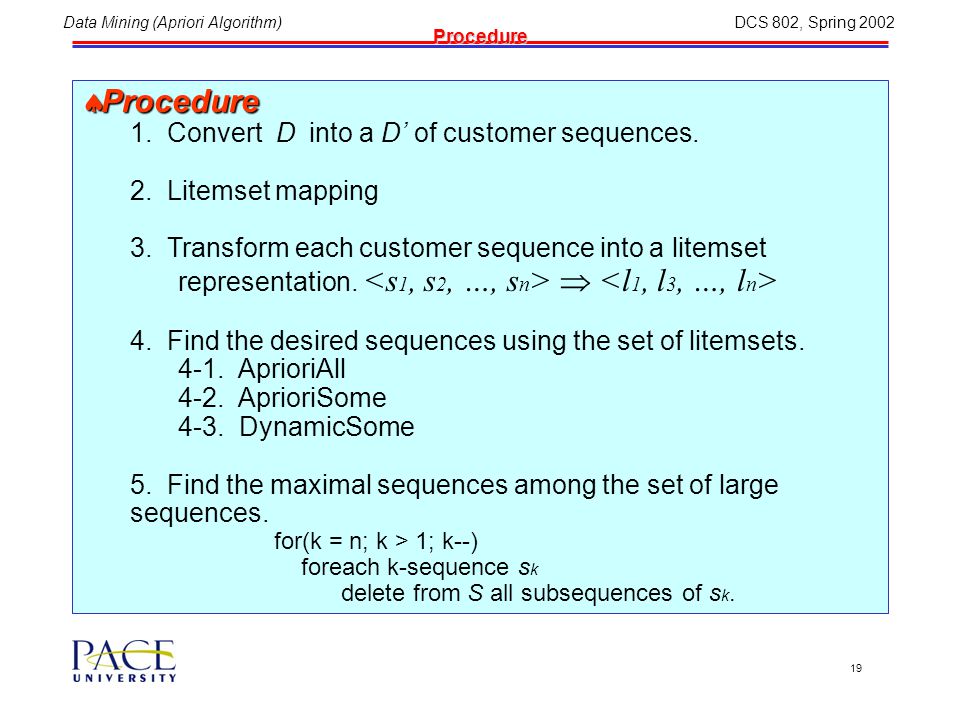

20 Data Mining (Apriori Algorithm)DCS 802, Spring 2002 19  Procedure 1. Convert D into a D’ of customer sequences. 2. Litemset mapping 3. Transform each customer sequence into a litemset representation.  4. Find the desired sequences using the set of litemsets. 4-1. AprioriAll 4-2. AprioriSome 4-3. DynamicSome 5. Find the maximal sequences among the set of large sequences. for(k = n; k > 1; k--) foreach k-sequence s k delete from S all subsequences of s k. Procedure

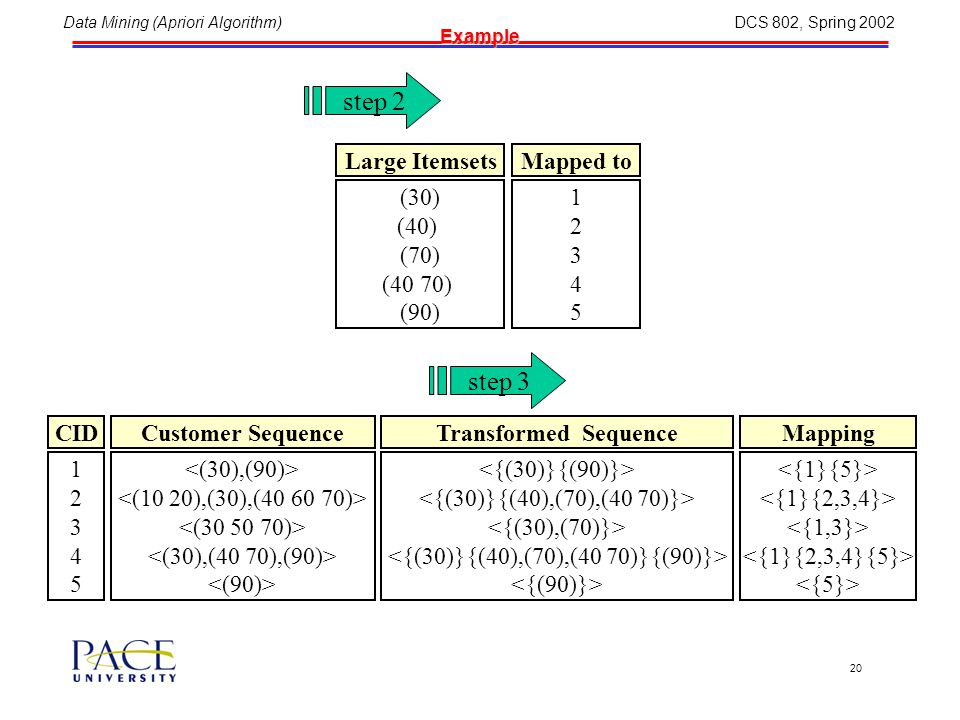

21 Data Mining (Apriori Algorithm)DCS 802, Spring 2002 20 1234512345 Mapped to (30) (40) (70) (40 70) (90) Large Itemsets Example step 2 1234512345 CID Customer Sequence step 3 Transformed Sequence Mapping

22 Data Mining (Apriori Algorithm)DCS 802, Spring 2002 21 AprioriAll Aprioriall() { L k = {frequent 1-itemsets}; k = 2; /* k represents the pass number. */ while (L k-1 !=  ) { F = F U L k ; C k = New candidates of size k generated from L k-1 ; for each customer-sequence c  D increment the count of all candidates in C k that are contained in c ; L k = All candidates in C k with minimum support ; k++ ; } return ( F ) ; }

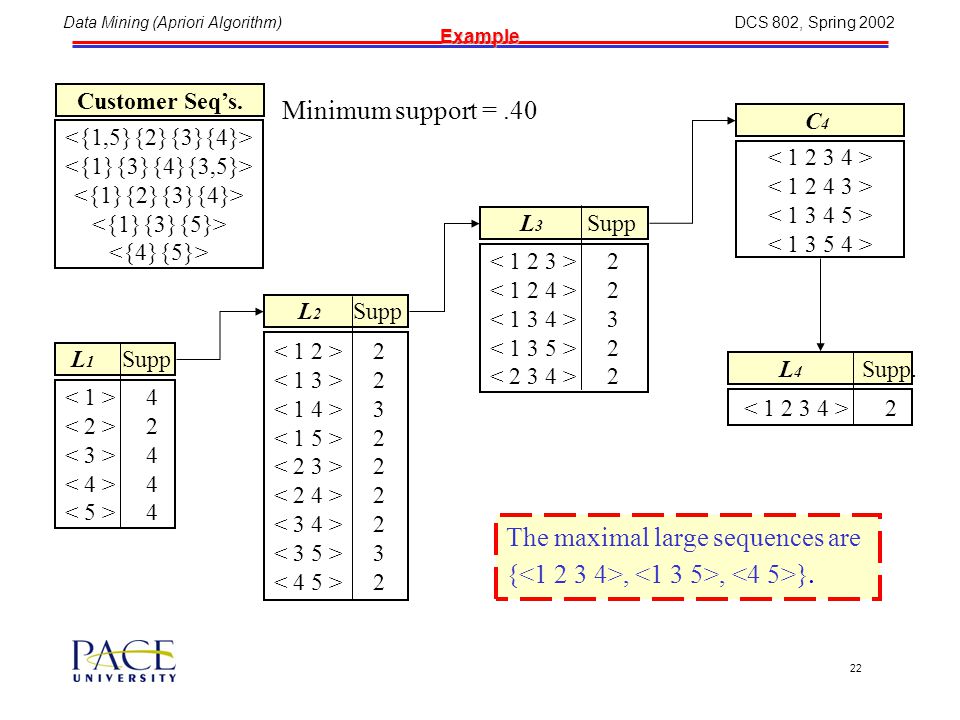

23 Data Mining (Apriori Algorithm)DCS 802, Spring 2002 22 2 3 2 L 3 Supp Example C4C4 2 L 4 Supp. Customer Seq’s. Minimum support =.40 4 2 4 L 1 Supp 2 3 2 3 2 L 2 Supp The maximal large sequences are {,, }.

24 Data Mining (Apriori Algorithm)DCS 802, Spring 2002 23 AprioriSome and DynamicSome algorithms to find association rules with sequential patterns will be added.
