1. CIS100 Test 2 Review REACH CRC © 2011 REACH CRC. All Rights Reserved.Spring 2011

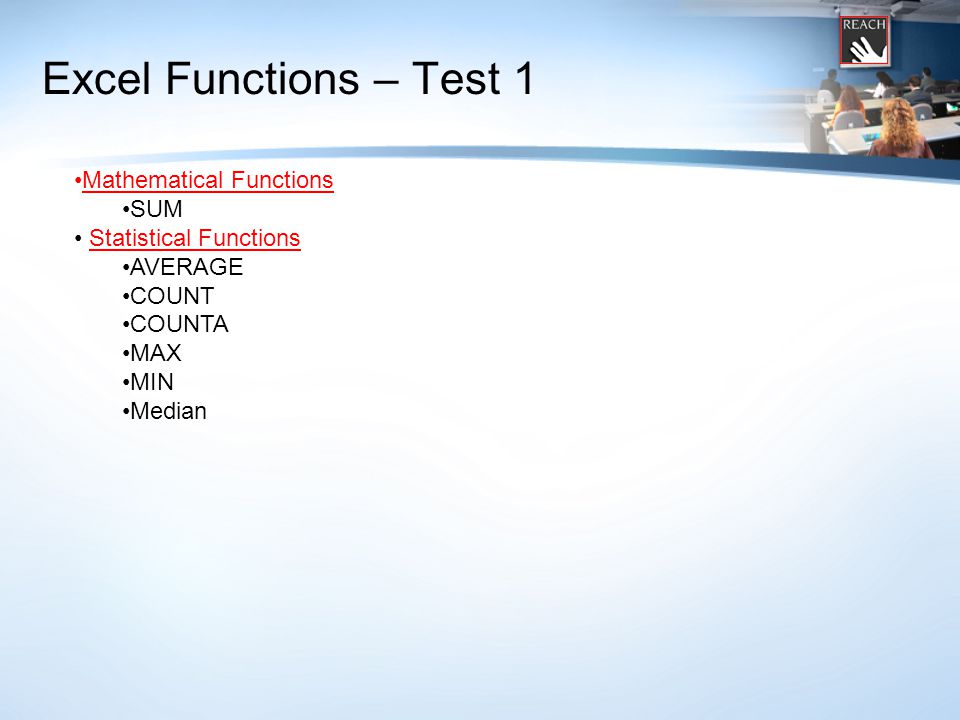

2. Excel Functions – Test 1 Mathematical Functions SUM Statistical Functions AVERAGE COUNT COUNTA MAX MIN Median

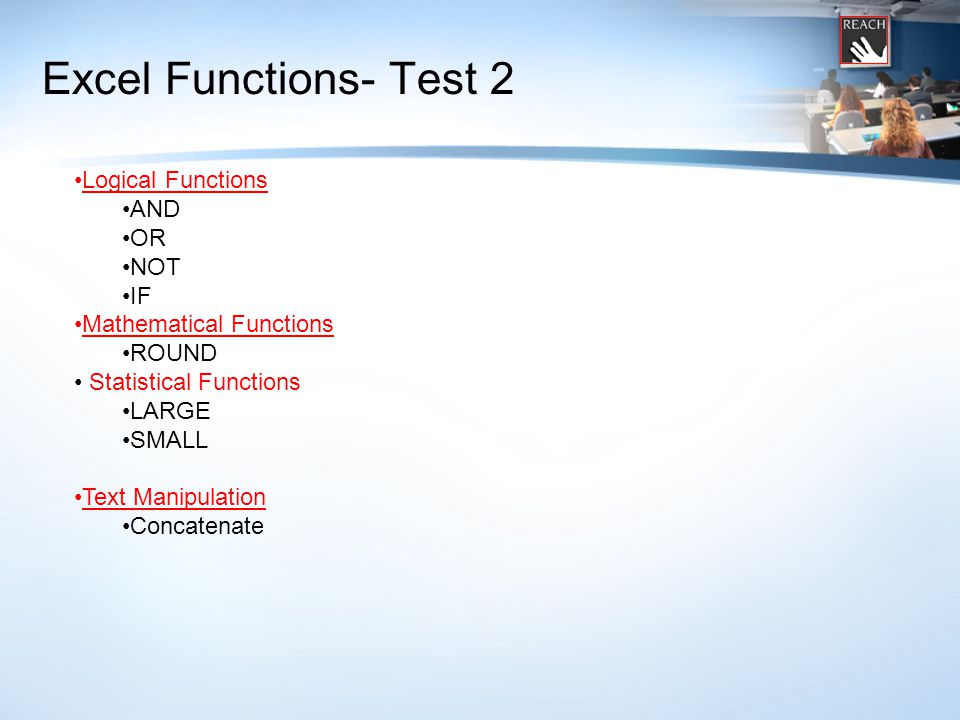

3. Excel Functions- Test 2 Logical Functions AND OR NOT IF Mathematical Functions ROUND Statistical Functions LARGE SMALL Text Manipulation Concatenate

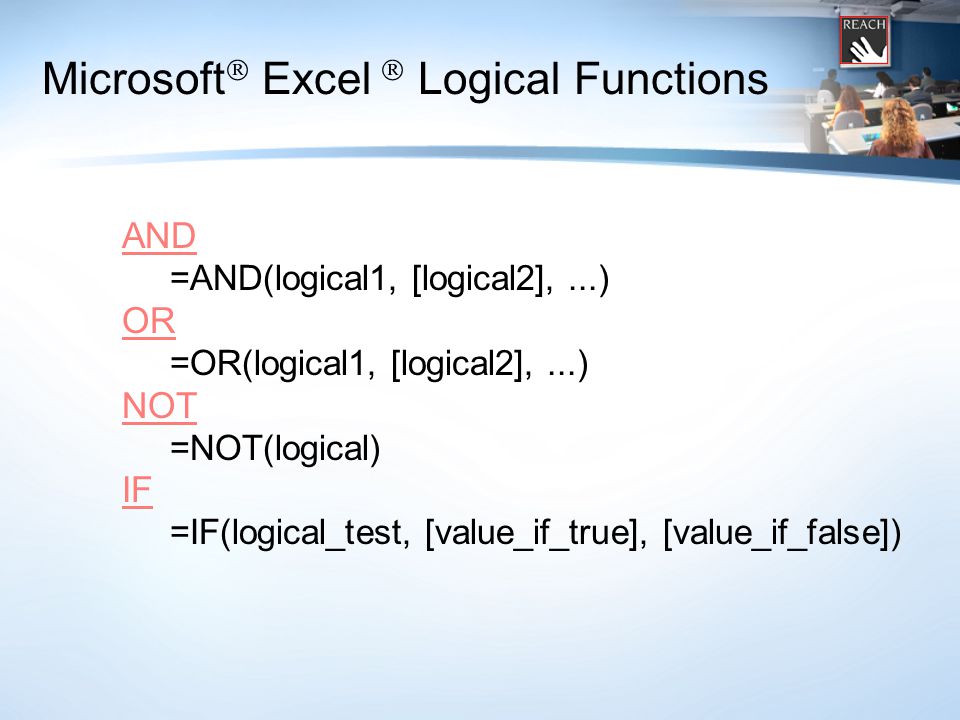

4. Microsoft  Excel  Logical Functions AND =AND(logical1, [logical2],...) OR =OR(logical1, [logical2],...) NOT =NOT(logical) IF =IF(logical_test, [value_if_true], [value_if_false])

5. Microsoft ® Excel ® Logical Functions Syntax: =AND(logical1, [logical2],...) Arguments: logical1 Required  The first condition that you want to test that can evaluate to either TRUE or FALSE. logical2,... Optional  Additional conditions that you want to test that can evaluate to either TRUE or FALSE, up to a maximum of 255 conditions.

6. Microsoft ® Excel ® Logical Functions Description: Returns FALSE if one or more arguments is FALSE Otherwise, all arguments must evaluate TRUE Remarks: Arguments must evaluate to logical values Arguments must be arrays or references that contain logical values Text and empty cells are ignored in arrays or references Errors: #VALUE – If no logical values exist in a specified range

7. Microsoft ® Excel ® Logical Functions 

8. Microsoft ® Excel ® Logical Functions 

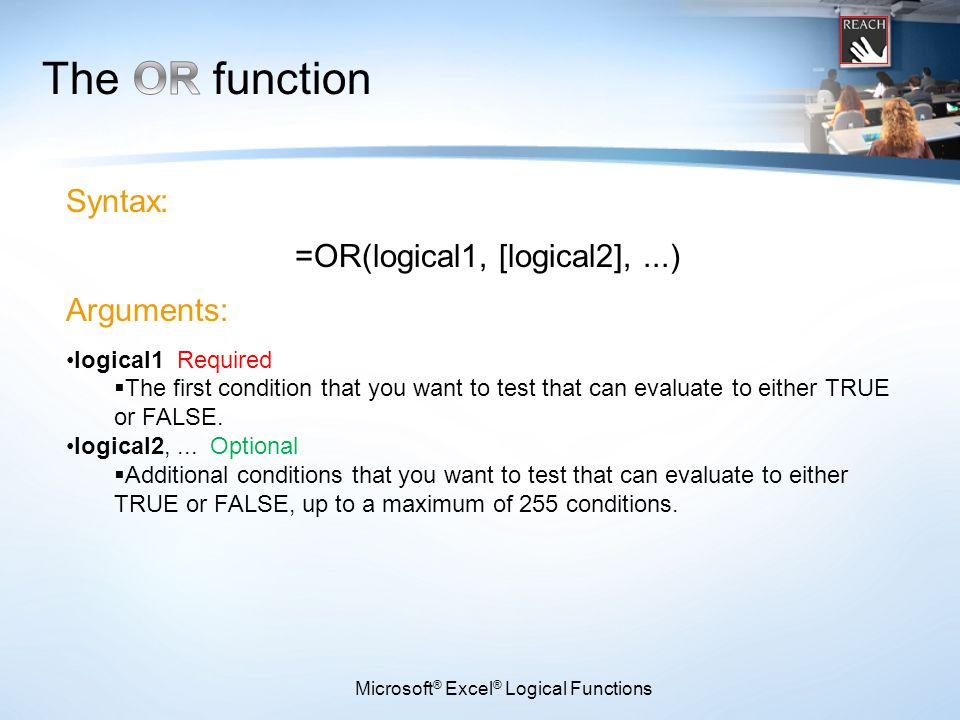

9. Microsoft ® Excel ® Logical Functions Syntax: =OR(logical1, [logical2],...) Arguments: logical1 Required  The first condition that you want to test that can evaluate to either TRUE or FALSE. logical2,... Optional  Additional conditions that you want to test that can evaluate to either TRUE or FALSE, up to a maximum of 255 conditions.

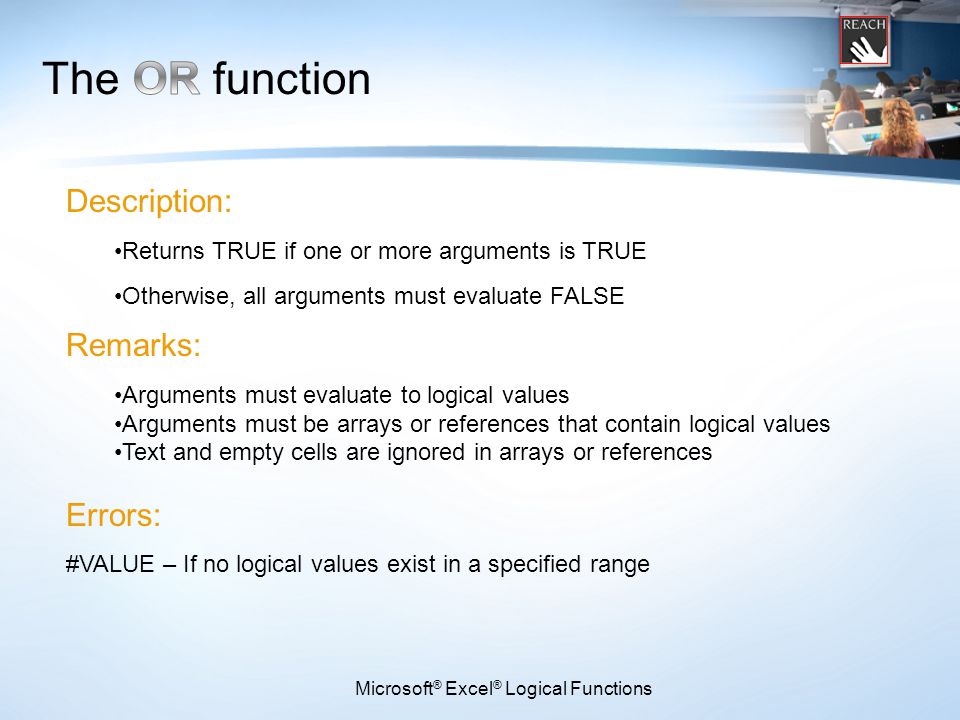

10. Microsoft ® Excel ® Logical Functions Description: Returns TRUE if one or more arguments is TRUE Otherwise, all arguments must evaluate FALSE Remarks: Arguments must evaluate to logical values Arguments must be arrays or references that contain logical values Text and empty cells are ignored in arrays or references Errors: #VALUE – If no logical values exist in a specified range

11. Microsoft ® Excel ® Logical Functions  

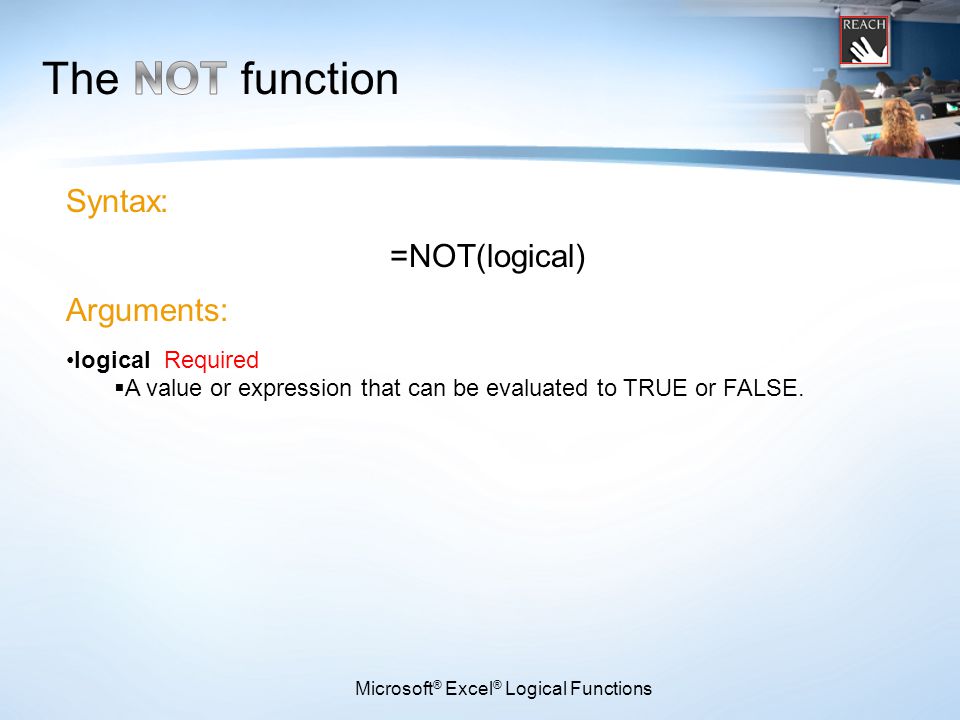

12. Microsoft ® Excel ® Logical Functions Syntax: =NOT(logical) Arguments: logical Required  A value or expression that can be evaluated to TRUE or FALSE.

13. Microsoft ® Excel ® Logical Functions Description: Reverses the value of its argument. Remarks: If logical is FALSE, NOT returns TRUE if logical is TRUE, NOT returns FALSE Errors: None

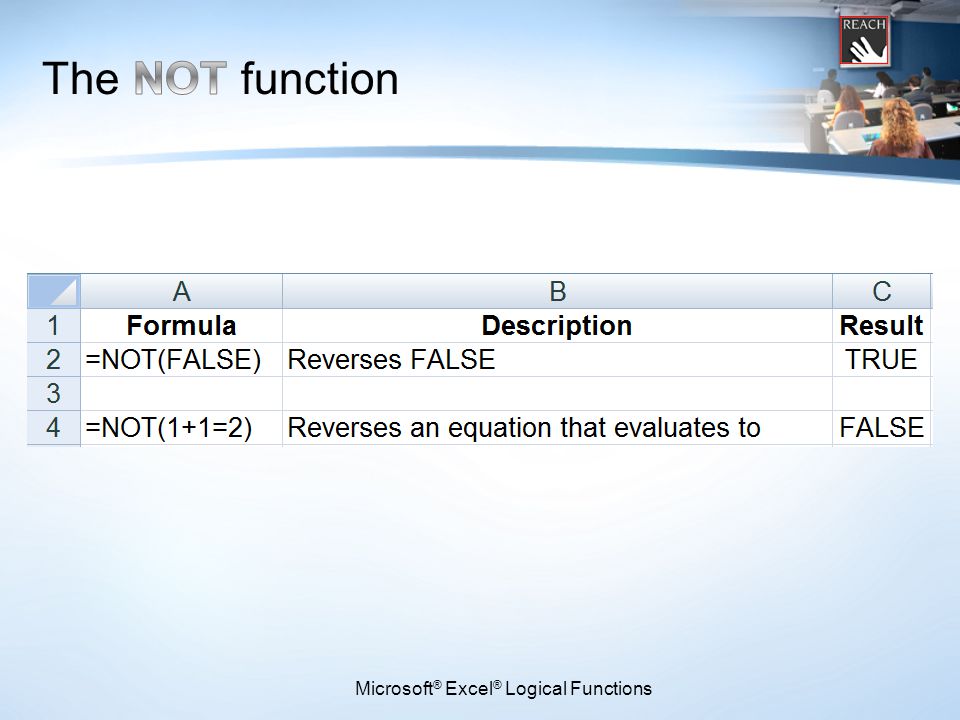

14. Microsoft ® Excel ® Logical Functions

15. Syntax: =IF(logical_test, [value_if_true], [value_if_false]) Arguments: logical_test Required  Any value or expression that can be evaluated to TRUE or FALSE. value_if_true Optional The value that you want to be returned if the logical_test argument evaluates to TRUE. If logical_test evaluates to TRUE and the value_if_true argument is omitted (that is, there is only a comma following the logical_test argument), the IF function returns 0 (zero). To display the word TRUE, use the logical value TRUE for the value_if_true argument.

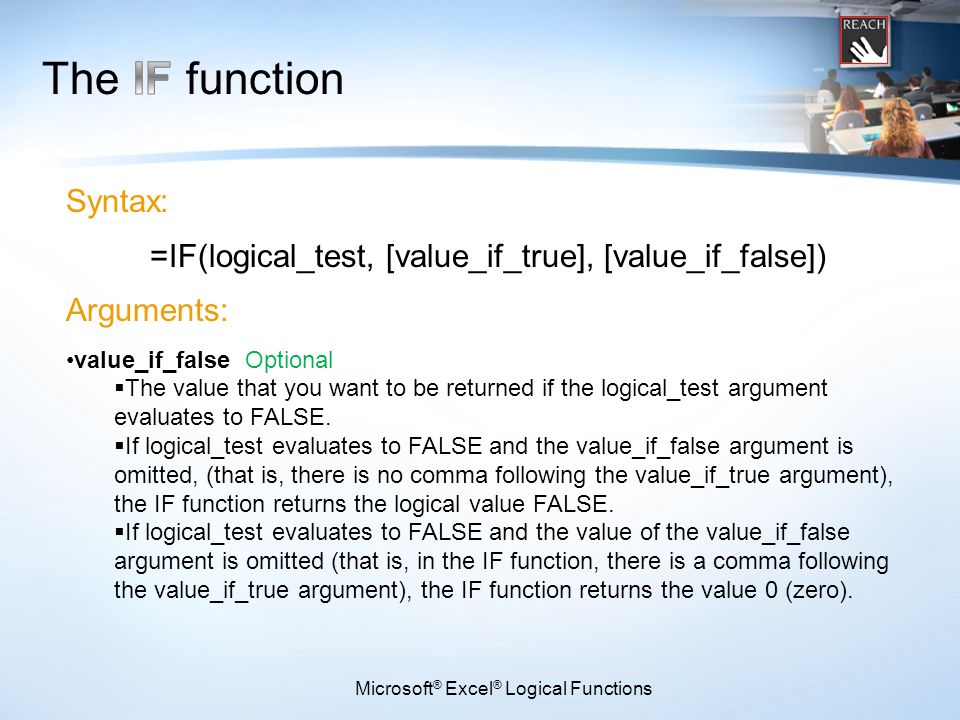

16. Microsoft ® Excel ® Logical Functions Syntax: =IF(logical_test, [value_if_true], [value_if_false]) Arguments: value_if_false Optional  The value that you want to be returned if the logical_test argument evaluates to FALSE.  If logical_test evaluates to FALSE and the value_if_false argument is omitted, (that is, there is no comma following the value_if_true argument), the IF function returns the logical value FALSE.  If logical_test evaluates to FALSE and the value of the value_if_false argument is omitted (that is, in the IF function, there is a comma following the value_if_true argument), the IF function returns the value 0 (zero).

17. Microsoft ® Excel ® Logical Functions Description: The IF function returns one value if a condition you specify evaluates to TRUE, and another value if that condition evaluates to FALSE. Remarks: Up to 7 IF functions can be nested as value_if_true and value_if_false arguments to construct more elaborate tests. (2003) Up to 64 IF functions can be nested as value_if_true and value_if_false arguments to construct more elaborate tests. (2007) If any of the arguments to IF are arrays, every element of the array is evaluated when the IF statement is carried out. Errors: None

18. Microsoft ® Excel ® Logical Functions value_if_true  [value_if_false]

19. Nested If in Excel http://www.fontstuff.com/excel/exltut01.htm A nested IF statement says something like... "If the answer is yes, do this. If the answer is no do this or this (depending on...“ Syntax: IF( condition1, value_if_true, IF( condition2, value_if_true, value_if_false )) Microsoft ® Excel ® Date Functions

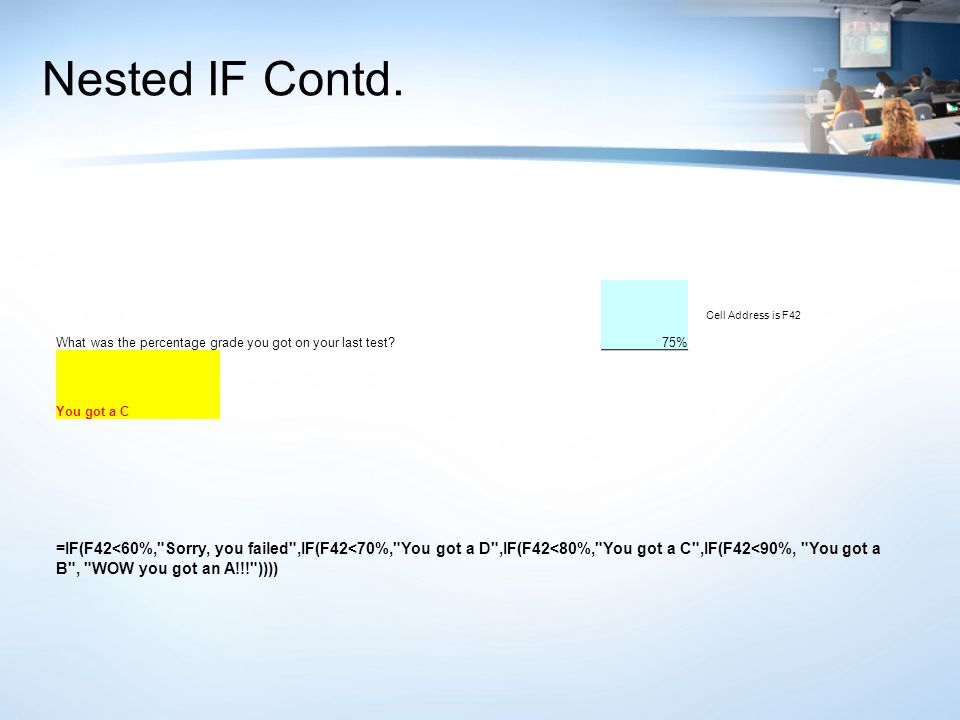

20. Nested IF Contd. What was the percentage grade you got on your last test?75% You got a C =IF(F42<60%,"Sorry, you failed",IF(F42<70%,"You got a D",IF(F42<80%,"You got a C",IF(F42<90%, "You got a B", "WOW you got an A!!!")))) Cell Address is F42

21. Example- Nested IF Excel) A customer applies for a 30-year mortgage at their employer-sponsored credit union, which offers borrowing terms based on the customer's "FICO" (which has been set-up as a defined name in a worksheet) credit score. Write a formula to determine the rate. –Mortgage application denied if score is less than 600 –Interest rate of 6% if score is 600-699 –Interest rate of 5% if score is 700-799 –Interest rate of 4% if score is over 800 =IF (FICO<600,"Denied",IF(FICO<700,6%, IF(FICO<800,5%,4%)))

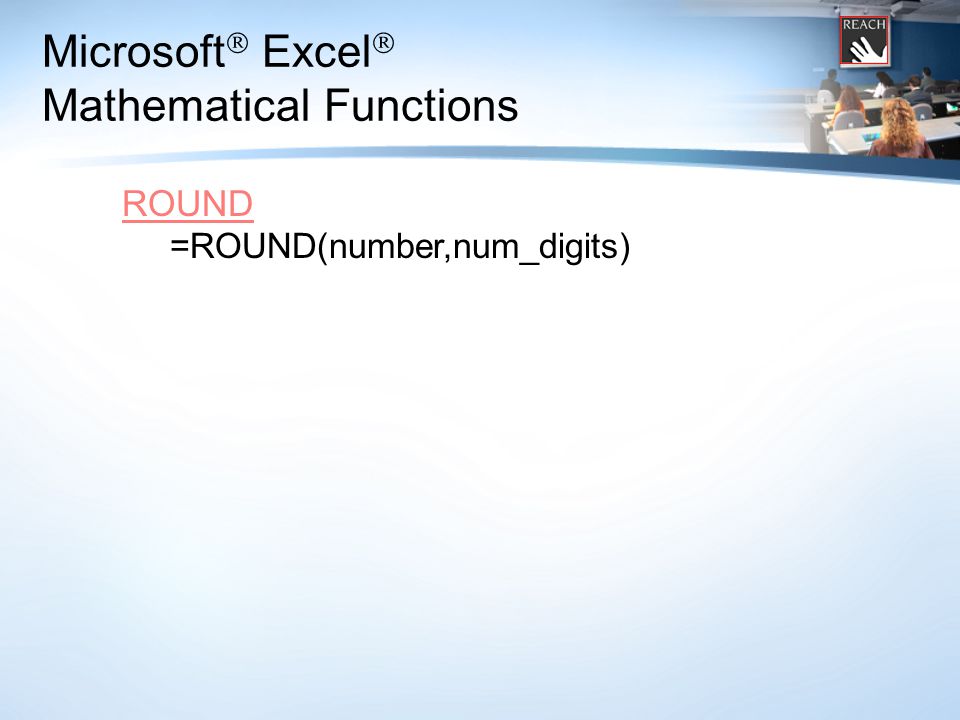

22. Microsoft  Excel  Mathematical Functions ROUND =ROUND(number,num_digits)

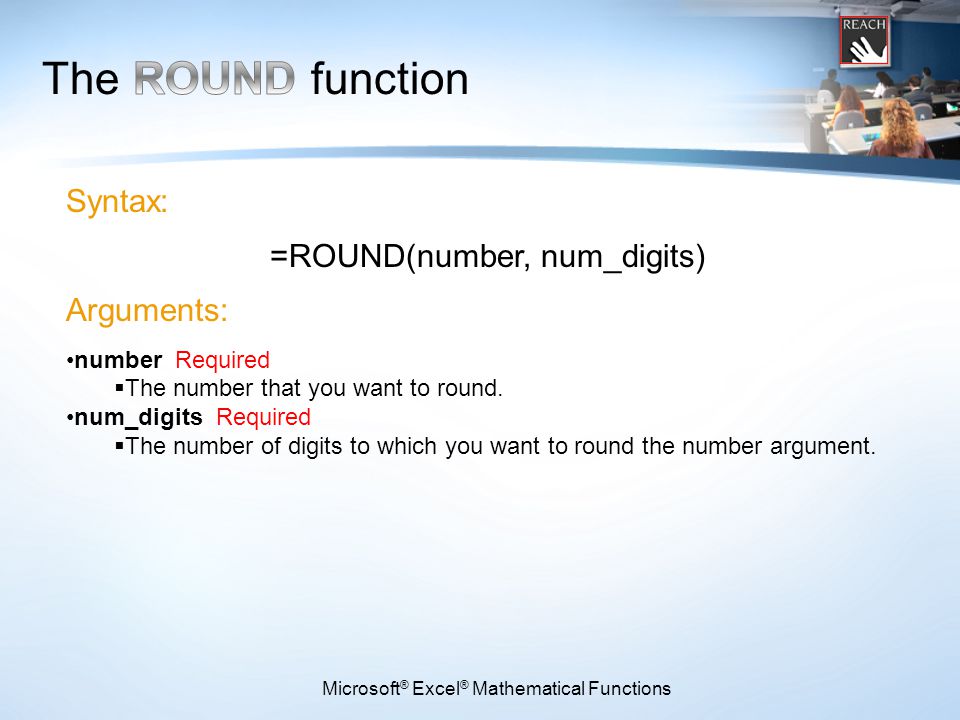

23. Microsoft ® Excel ® Mathematical Functions Syntax: =ROUND(number, num_digits) Arguments: number Required  The number that you want to round. num_digits Required  The number of digits to which you want to round the number argument.

24. Microsoft ® Excel ® Mathematical Functions Description: Rounds a number to a specified number of digits. Remarks: If num_digits is greater than 0 (zero), then number is rounded to the specified number of decimal places. If num_digits is 0, the number is rounded to the nearest integer. If num_digits is less than 0, the number is rounded to the left of the decimal point. Errors: None

25. Microsoft ® Excel ® Mathematical Functions =ROUND(-1.475,2) Rounds -1.475 to two decimal places

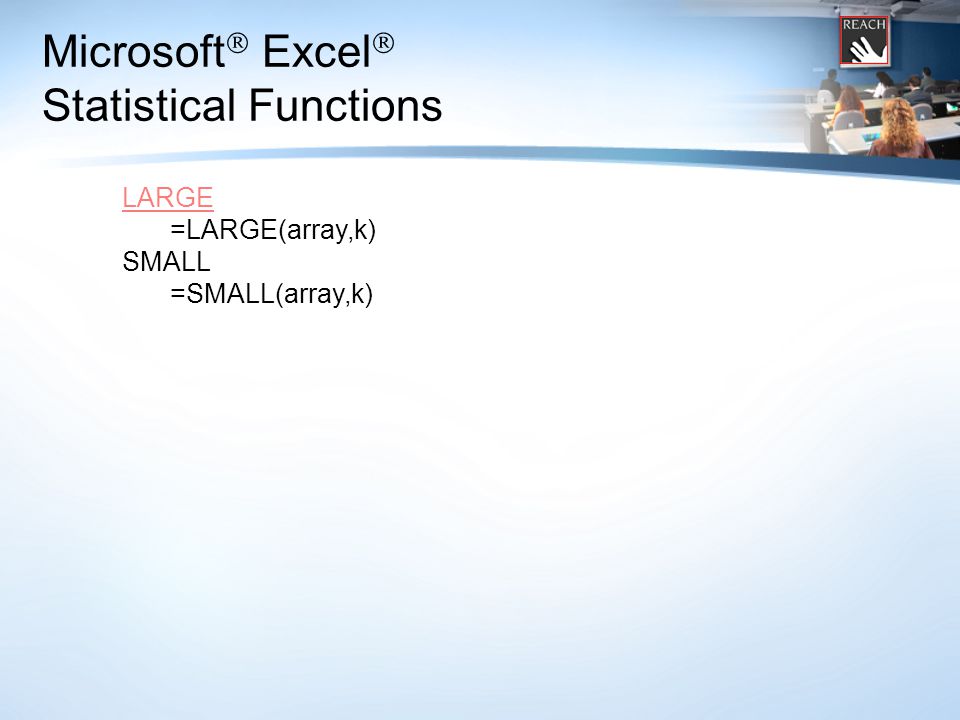

26. Microsoft  Excel  Statistical Functions LARGE =LARGE(array,k) SMALL =SMALL(array,k)

27. Microsoft ® Excel ® Statistical Functions Syntax: =LARGE(array,k) Arguments: array Required  The array or range of data for which you want to determine the k-th largest value.  k Required  The position (from the largest) in the array or cell range of data to return.

28. Microsoft ® Excel ® Statistical Functions Description: Returns the k-th largest value in a data set. Remarks: If n is the number of data points in a range, then LARGE(array,1) returns the largest value. If n is the number of data points in a range, then LARGE(array,n) returns the smallest value. Errors: #NUM! – If array is empty #NUM! – If k ≤ 0 #NUM! – If k is greater than the number of data points

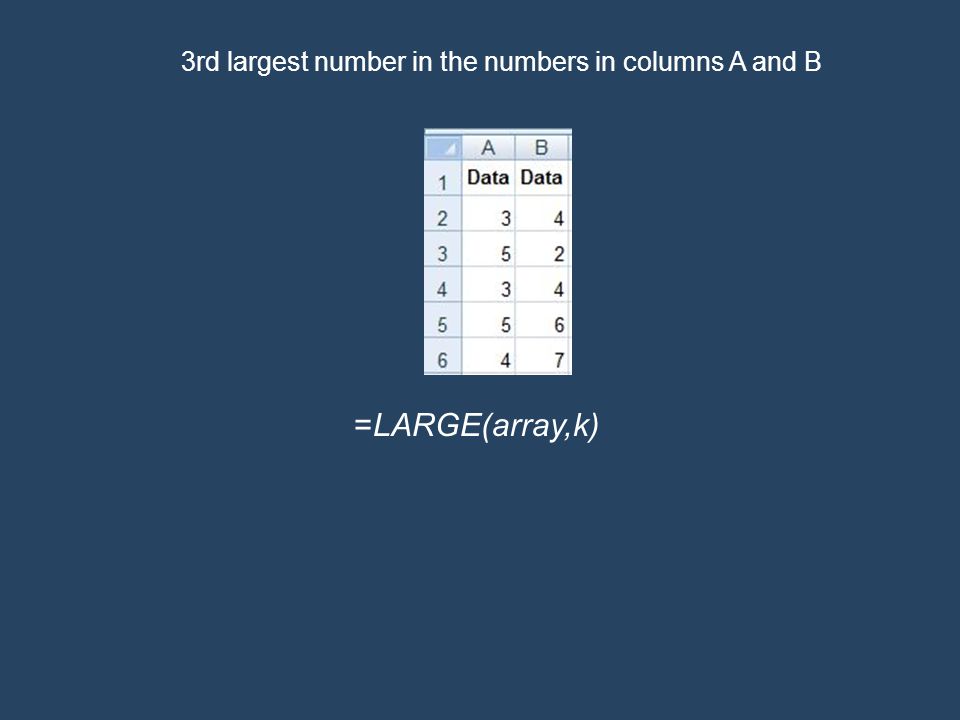

29. =LARGE(array,k) 3rd largest number in the numbers in columns A and B

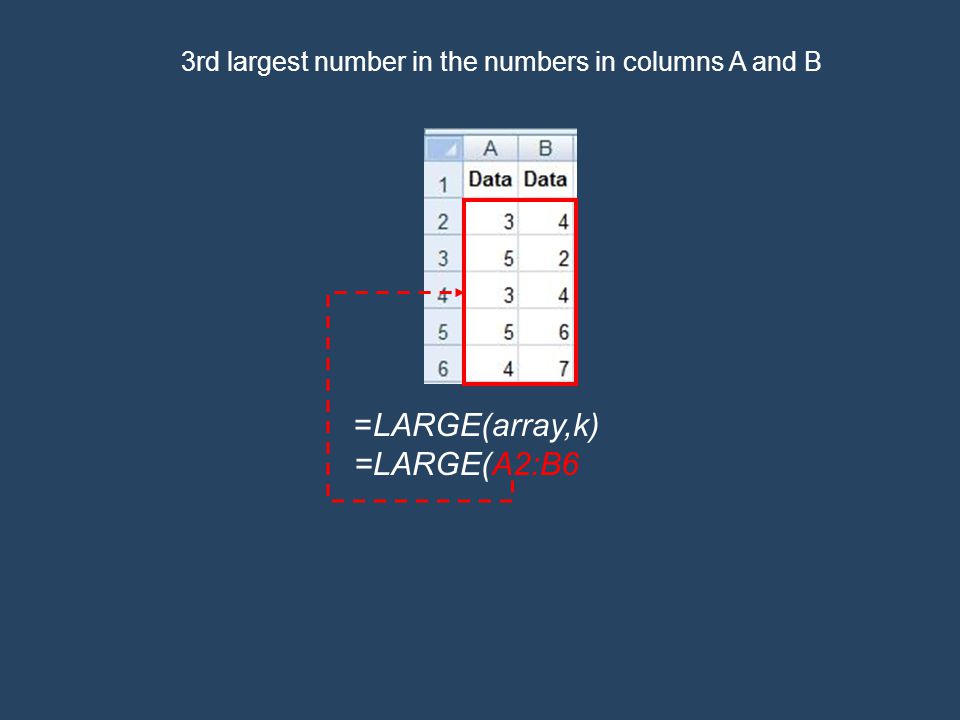

30. =LARGE(array,k) =LARGE(A2:B6 3rd largest number in the numbers in columns A and B

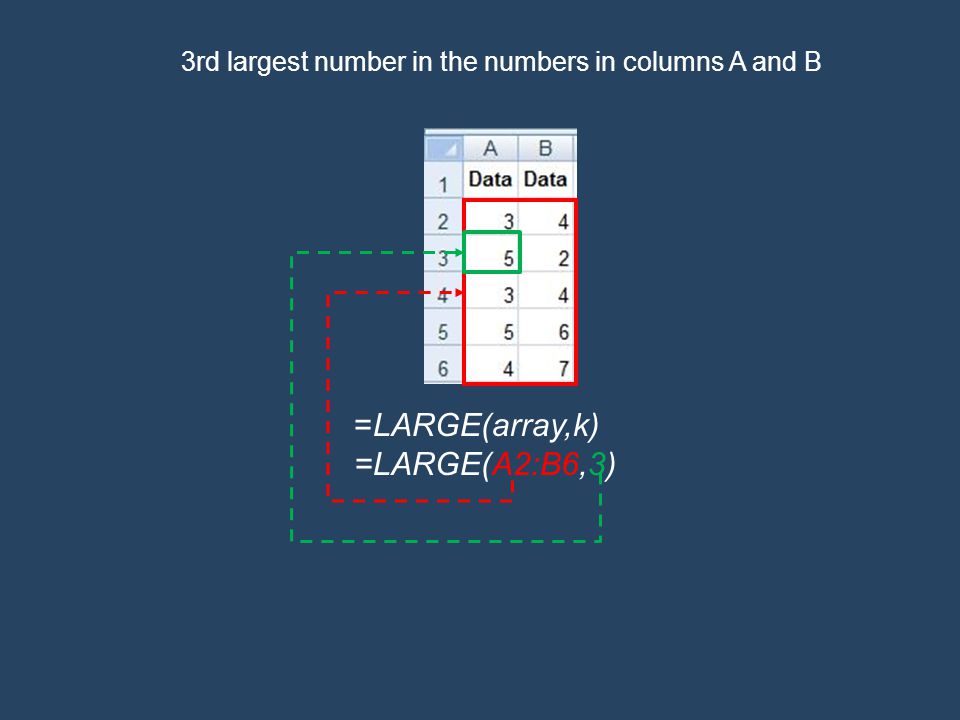

31. =LARGE(array,k) =LARGE(A2:B6,3) 3rd largest number in the numbers in columns A and B

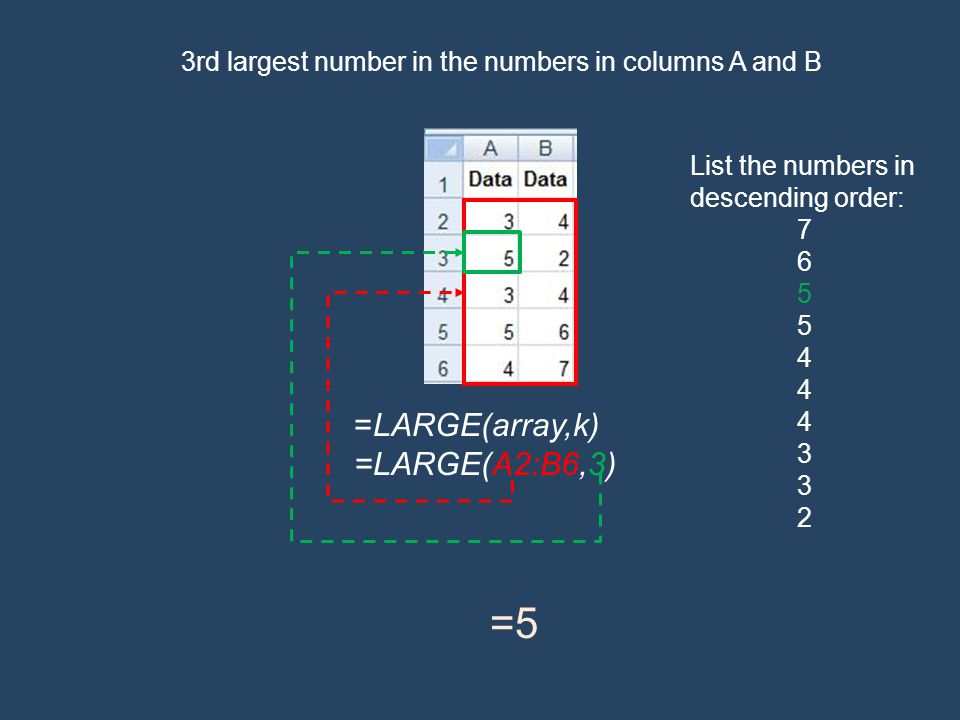

32. =LARGE(array,k) =LARGE(A2:B6,3) 3rd largest number in the numbers in columns A and B List the numbers in descending order: 7 6 5 4 3 2 =5

33. =LARGE(array,k) 7th largest number in the numbers in columns A and B

34. =LARGE(array,k) =LARGE(A2:B6 7th largest number in the numbers in columns A and B

35. =LARGE(array,k) =LARGE(A2:B6,7) 7th largest number in the numbers in columns A and B

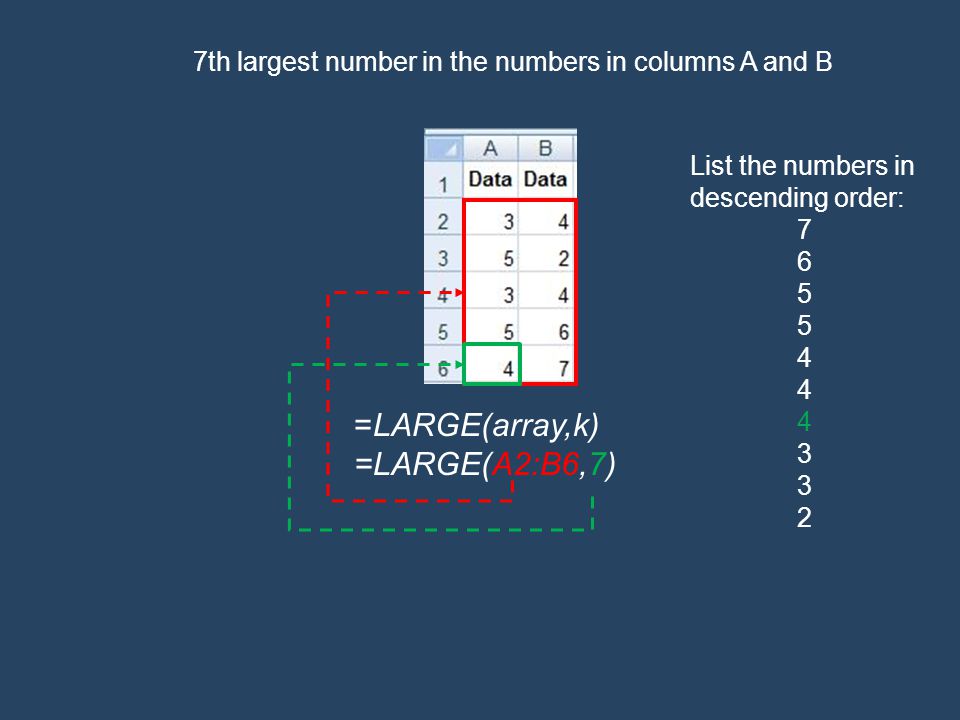

36. =LARGE(array,k) =LARGE(A2:B6,7) 7th largest number in the numbers in columns A and B List the numbers in descending order: 7 6 5 4 3 2

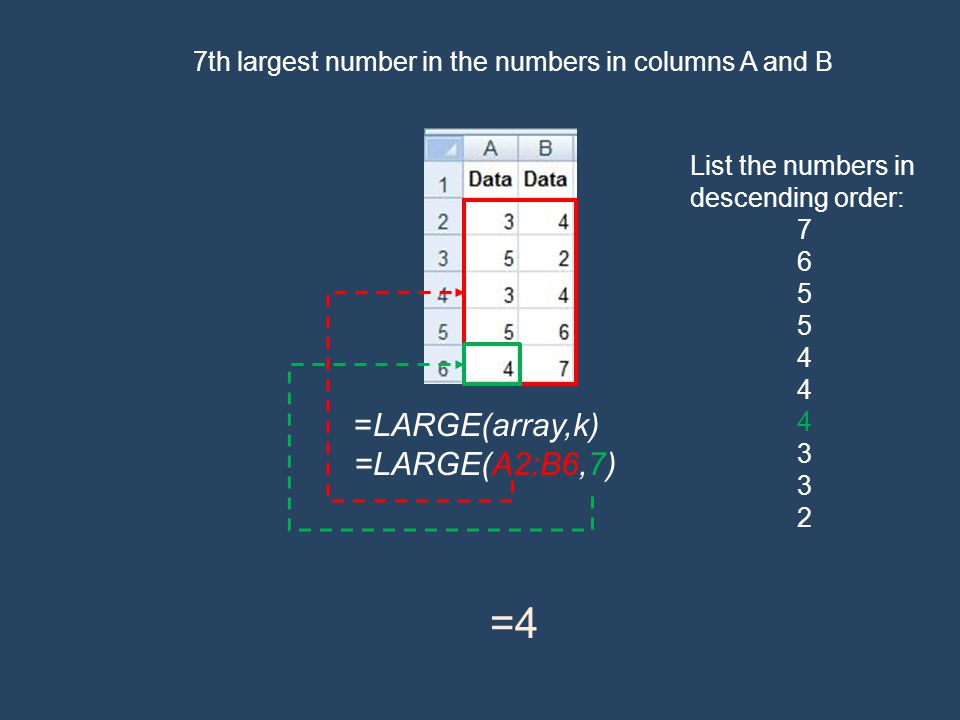

37. =LARGE(array,k) =LARGE(A2:B6,7) 7th largest number in the numbers in columns A and B List the numbers in descending order: 7 6 5 4 3 2 =4

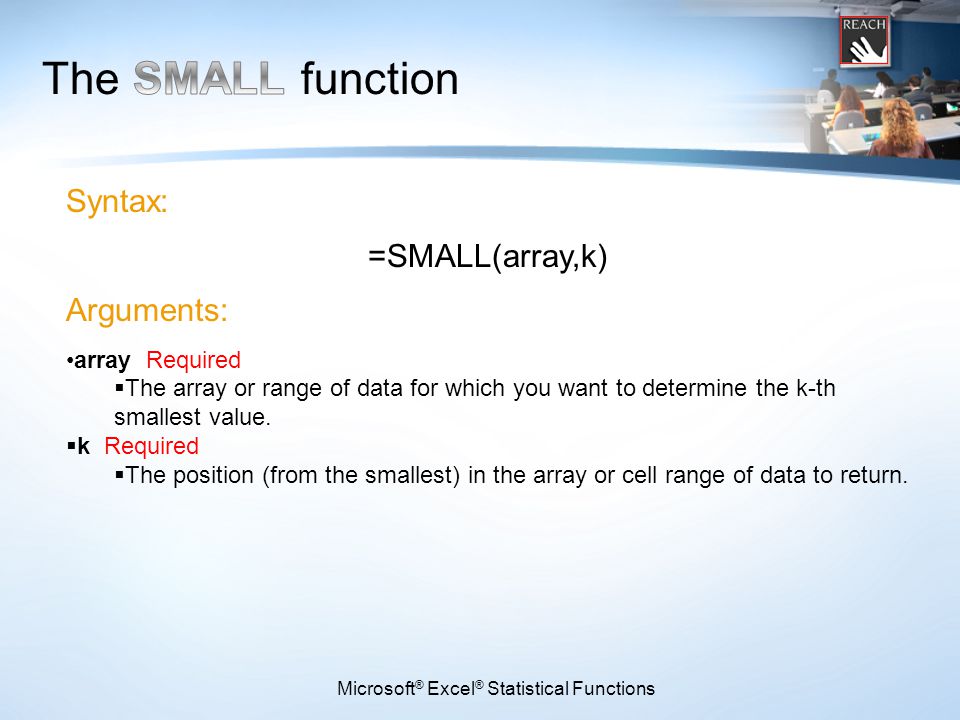

38. Microsoft ® Excel ® Statistical Functions Syntax: =SMALL(array,k) Arguments: array Required  The array or range of data for which you want to determine the k-th smallest value.  k Required  The position (from the smallest) in the array or cell range of data to return.

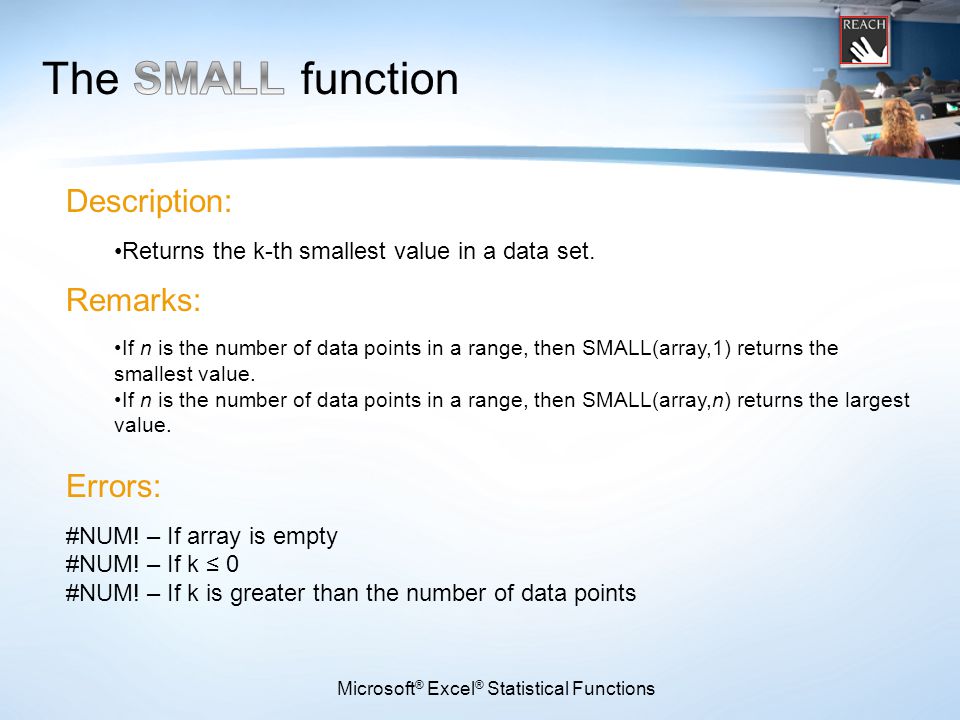

39. Microsoft ® Excel ® Statistical Functions Description: Returns the k-th smallest value in a data set. Remarks: If n is the number of data points in a range, then SMALL(array,1) returns the smallest value. If n is the number of data points in a range, then SMALL(array,n) returns the largest value. Errors: #NUM! – If array is empty #NUM! – If k ≤ 0 #NUM! – If k is greater than the number of data points

40. =SMALL(array,k) 4th smallest number in first column

41. =SMALL(array,k) =SMALL(A2:A10 4th smallest number in first column

42. =SMALL(array,k) =SMALL(A2:A10,4) 4th smallest number in first column List the numbers in ascending order: 2 3 4 5 6 7

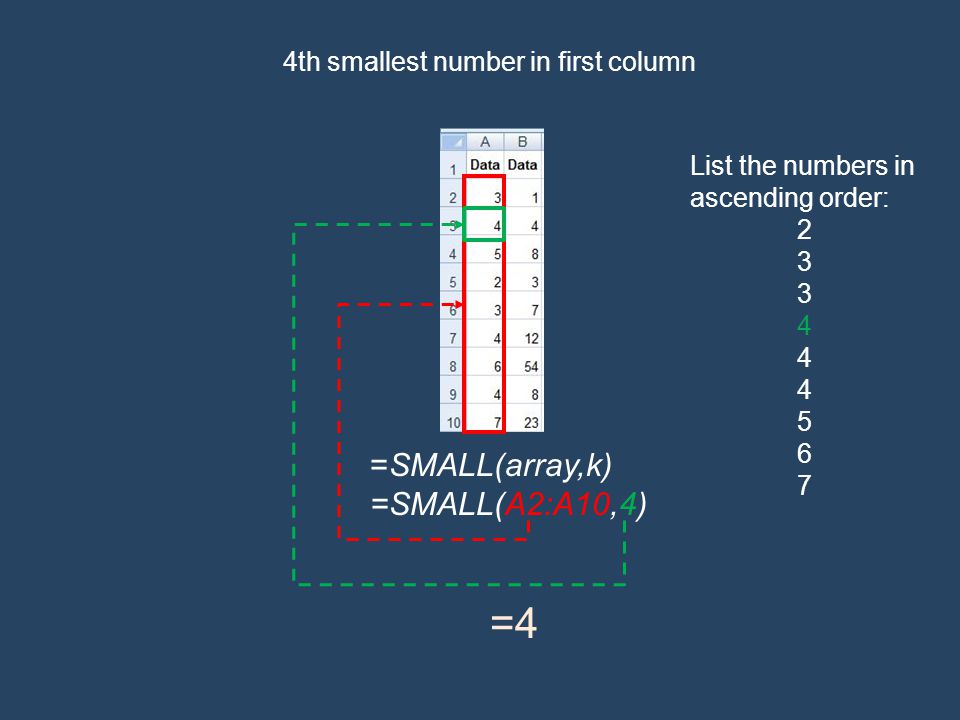

43. =SMALL(array,k) =SMALL(A2:A10,4) 4th smallest number in first column List the numbers in ascending order: 2 3 4 5 6 7 =4

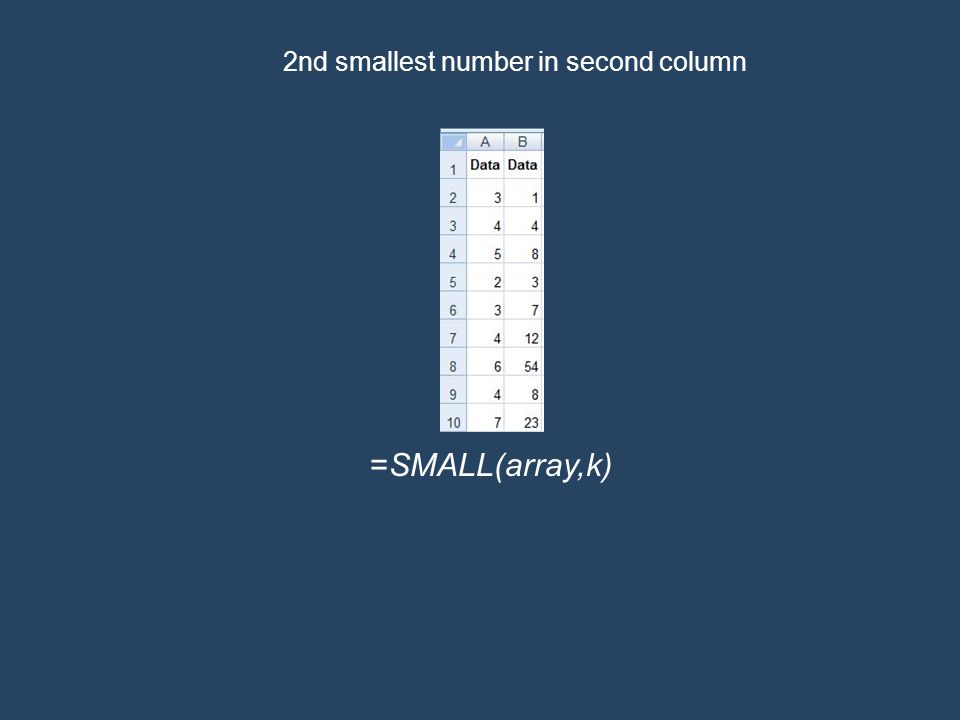

44. =SMALL(array,k) 2nd smallest number in second column

45. =SMALL(array,k) =SMALL(B2:B10 2nd smallest number in second column

46. =SMALL(array,k) =SMALL(B2:B10,2) 2nd smallest number in second column List the numbers in ascending order: 1 3 4 7 8 12 23 54

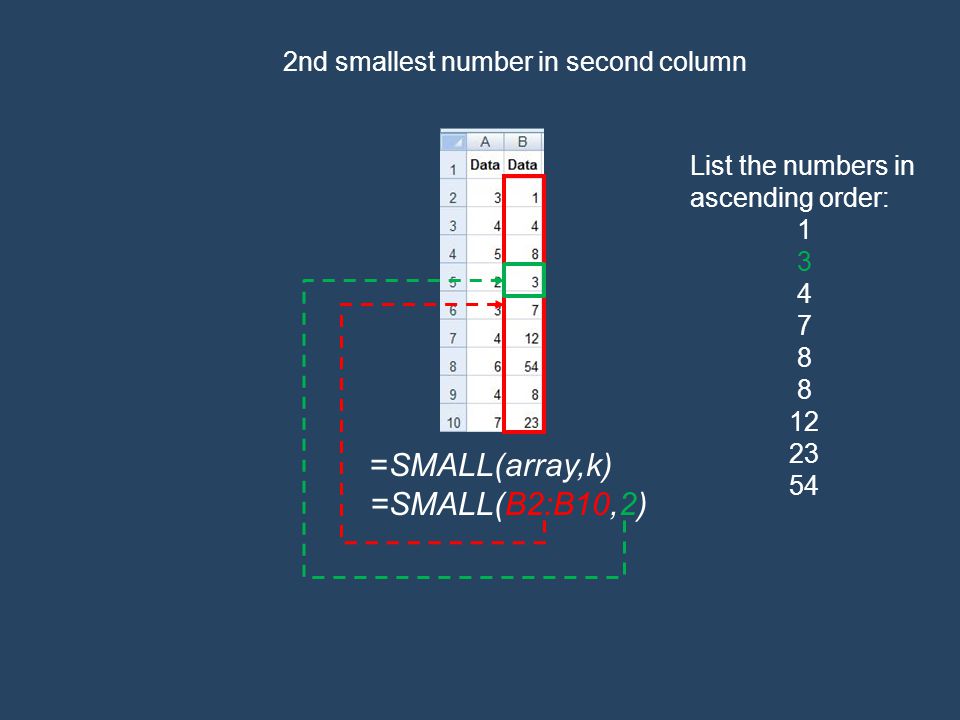

47. =SMALL(array,k) =SMALL(B2:B10,2) 2nd smallest number in second column =3 List the numbers in ascending order: 1 3 4 7 8 12 23 54

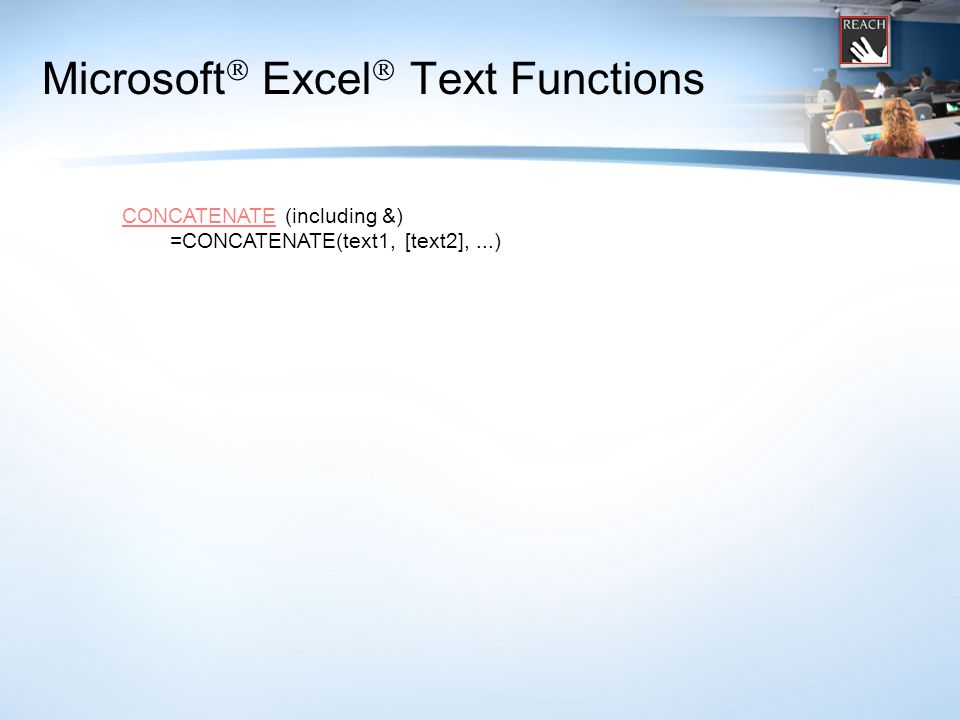

48. Microsoft  Excel  Text Functions CONCATENATECONCATENATE (including &) =CONCATENATE(text1, [text2],...)

49. Microsoft ® Excel ® Text Functions Syntax: =CONCATENATE(text1, [text2],...) Arguments: text1 Required  The first text item to be concatenated. text2 Optional  Additional text items, up to a maximum of 255 items, which must be separated by commas.

50. Microsoft ® Excel ® Text Functions Description: Joins up to 255 text strings into one text string. Remarks: The joined items can be text, numbers, cell references, or a combination of those items.

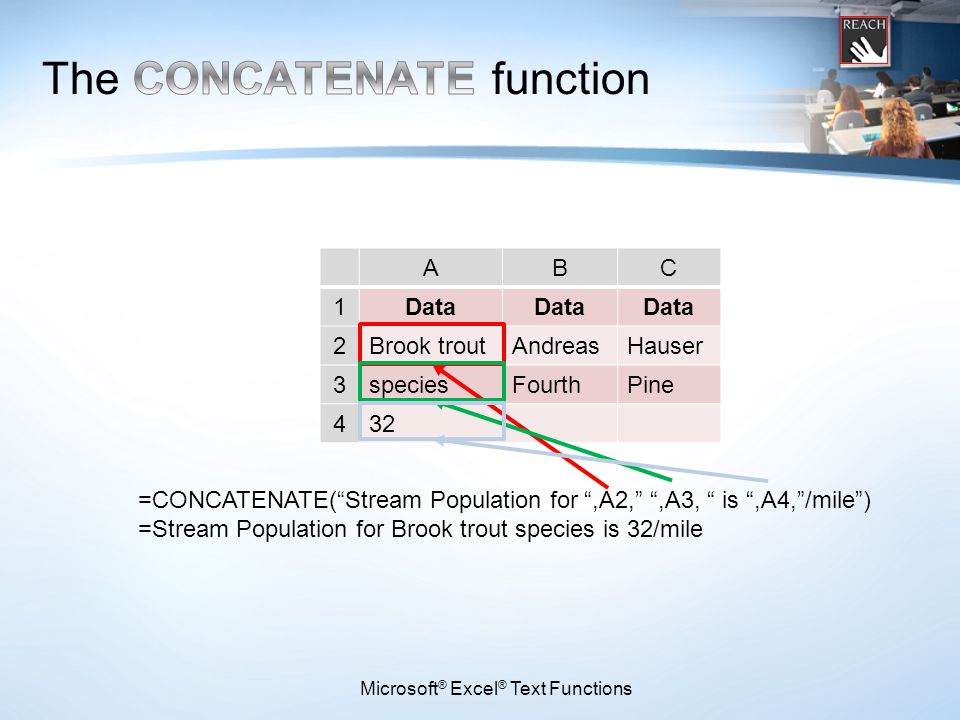

51. Microsoft ® Excel ® Text Functions ABC 1Data 2Brook troutAndreasHauser 3speciesFourthPine 432 =CONCATENATE(“Stream Population for “,A2,” “,A3, “ is “,A4,”/mile”) =Stream Population for Brook trout species is 32/mile

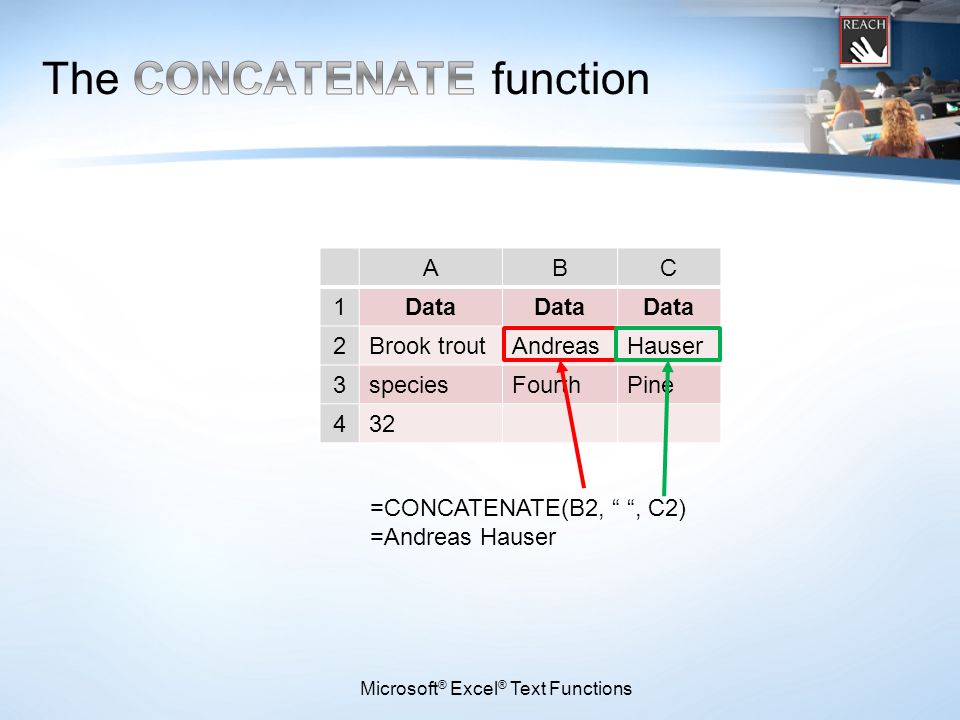

52. Microsoft ® Excel ® Text Functions ABC 1Data 2Brook troutAndreasHauser 3speciesFourthPine 432 =CONCATENATE(B2, “ “, C2) =Andreas Hauser

53. Microsoft ® Excel ® Text Functions ABC 1Data 2Brook troutAndreasHauser 3speciesFourthPine 432 =CONCATENATE(C2, “, “, B2) =Hauser, Andreas

54. Microsoft ® Excel ® Text Functions ABC 1Data 2Brook troutAndreasHauser 3speciesFourthPine 432 =CONCATENATE(B3, “ & “, C3) =Fourth & Pine

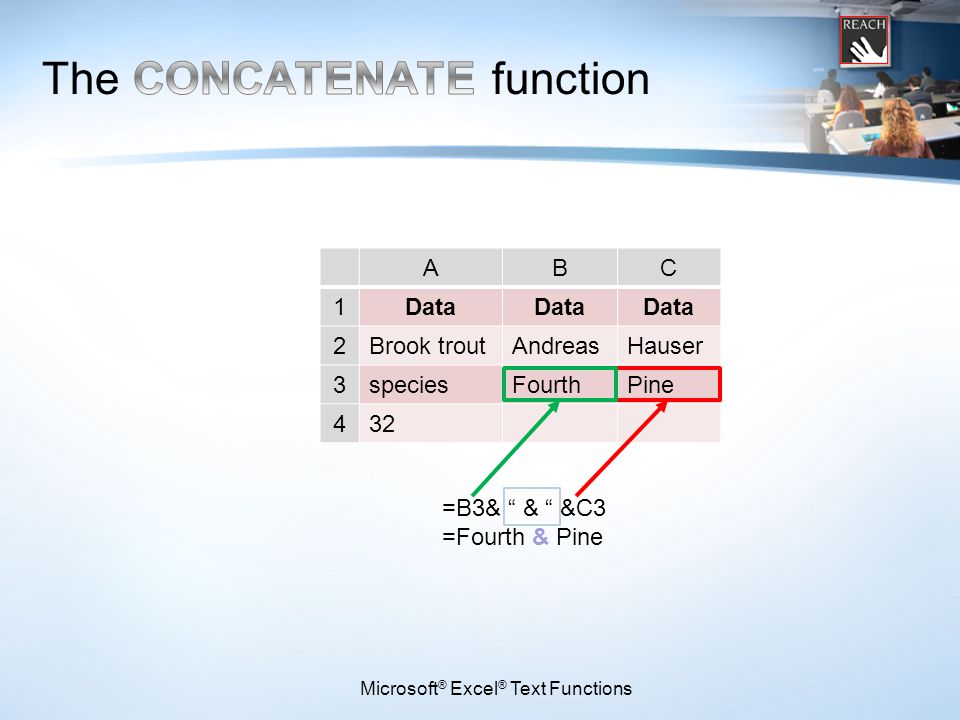

55. Microsoft ® Excel ® Text Functions ABC 1Data 2Brook troutAndreasHauser 3speciesFourthPine 432 =B3& “ & “ &C3 =Fourth & Pine

56. EXCEL PRACTICE (Excel) You are creating a new forecast for your company's Marketing group and have entered the sales for 2005 into cell B4 of a spreadsheet. The expected rate of increase is in cell C2. What formula would you enter in cell C4 to compute the sales for 2006, given that you will copy that formula to cells D4:E4 to calculate the forecast for 2007 and 2008? A. =B$4+B$4*C$2 B. =$B$4+$B$4*C2 C. =$B4+$B4*$C2 D. =B4*(1+$C$2) E. =B4+B4*C2

57. EXCEL PRACTICE

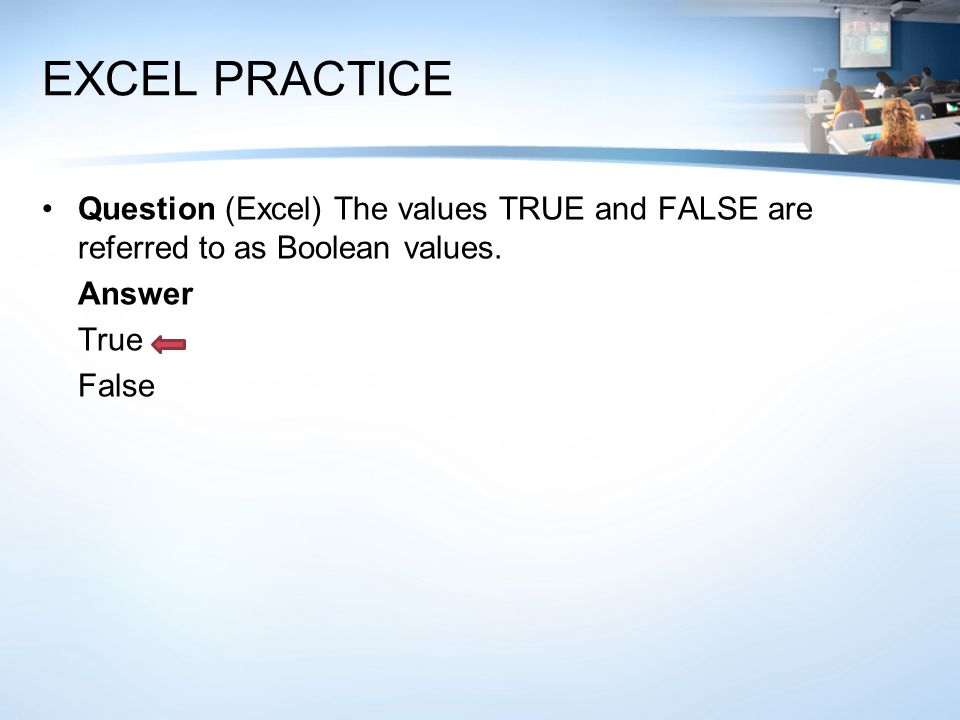

58. Question (Excel) The values TRUE and FALSE are referred to as Boolean values. Answer True False

59. EXCEL PRACTICE Question (Excel) Open the attached template file and examine the data closely. What would be the result of the following Excel formula? =IF(LARGE(D5:D9, 2) < SMALL(C5:C9, 2), "D5", D7) Answer 55 65 D5 D7 None of the answers provided is correct

60. EXCEL PRACTICE Question (Excel) Assume that cell E4 in a spreadsheet has the following formula: =AB$4 + $C44 What formula will result from copying it into cell D8? Answer =AA$4 + $C48

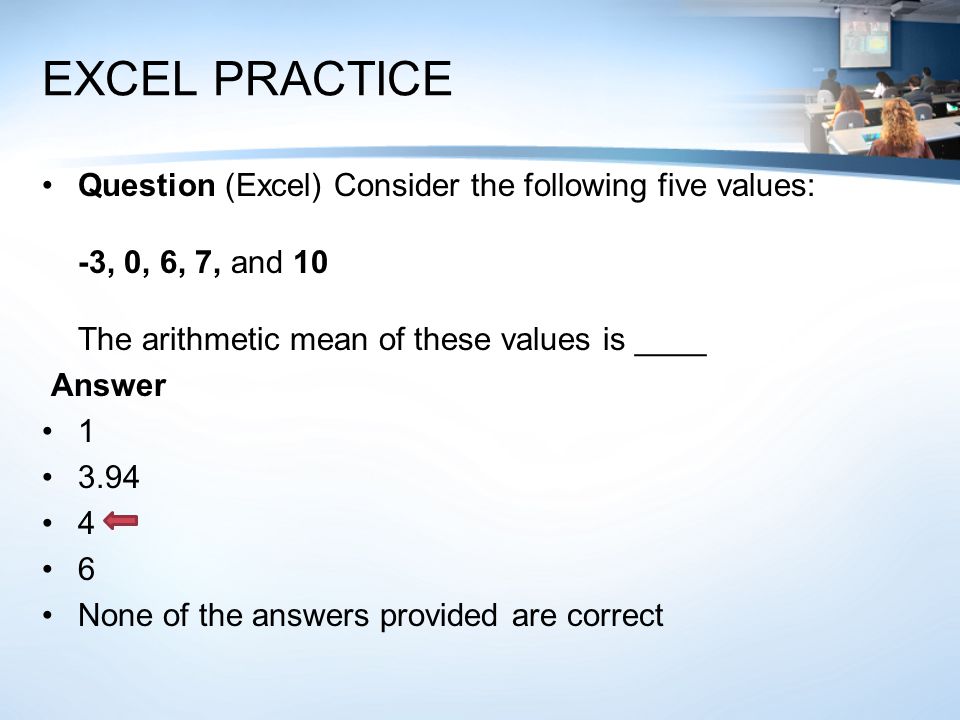

61. EXCEL PRACTICE Question (Excel) Consider the following five values: -3, 0, 6, 7, and 10 The arithmetic mean of these values is ____ Answer 1 3.94 4 6 None of the answers provided are correct

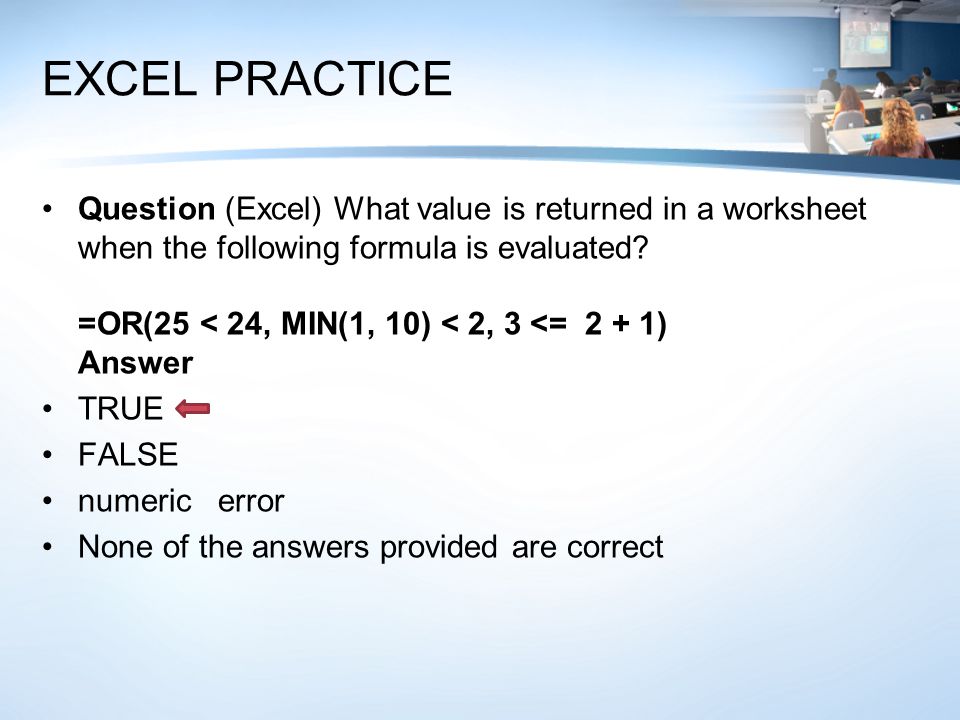

62. EXCEL PRACTICE Question (Excel) What value is returned in a worksheet when the following formula is evaluated? =OR(25 < 24, MIN(1, 10) < 2, 3 <= 2 + 1) Answer TRUE FALSE numeric error None of the answers provided are correct

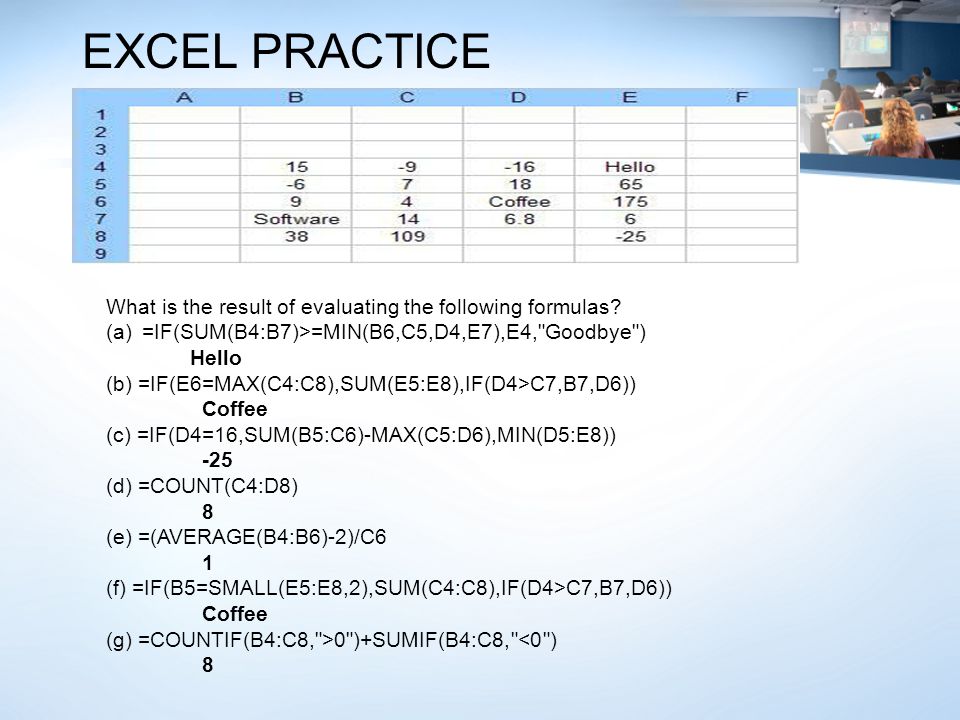

63. What is the result of evaluating the following formulas? (a)=IF(SUM(B4:B7)>=MIN(B6,C5,D4,E7),E4,"Goodbye") Hello (b) =IF(E6=MAX(C4:C8),SUM(E5:E8),IF(D4>C7,B7,D6)) Coffee (c) =IF(D4=16,SUM(B5:C6)-MAX(C5:D6),MIN(D5:E8)) -25 (d) =COUNT(C4:D8) 8 (e) =(AVERAGE(B4:B6)-2)/C6 1 (f) =IF(B5=SMALL(E5:E8,2),SUM(C4:C8),IF(D4>C7,B7,D6)) Coffee (g) =COUNTIF(B4:C8,">0")+SUMIF(B4:C8,"<0") 8 EXCEL PRACTICE

64. Question (Excel) In Oldham County, speeders pay a predetermined fine for exceeding the posted speed limit. Using the Excel template provided below, replace the respective 'xxx' cells with the proper formula to respond to each of the three questions that follow. (2 points each) A) What is the formula that should be used in cell E5 to show "No Fine" if the driver was not speeding, but levy a fine of $138 plus $2 for each MPH over the stated speed limit? [PartA] B) What formula should be placed in cell D10 to determine the third slowest speed of any driver in column D? [PartB] Part A=IF(D5<=C5,"No Fine",138+(D5-C5)*2) Part B =SMALL(D5:D9,3) EXCEL PRACTICE

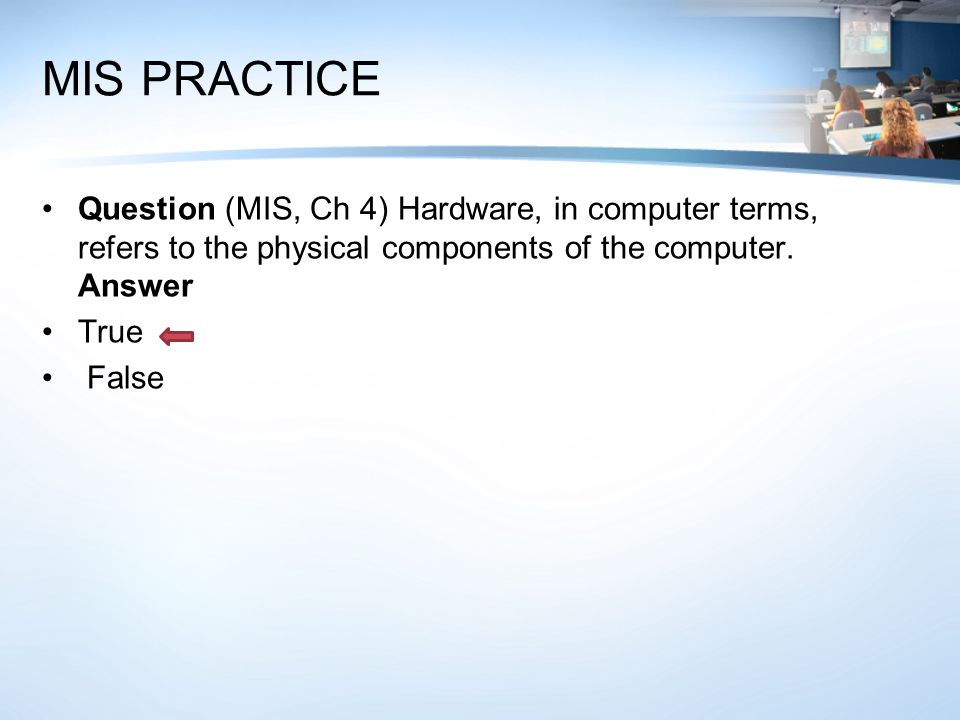

65. MIS PRACTICE Question (MIS, Ch 4) Hardware, in computer terms, refers to the physical components of the computer. Answer True False

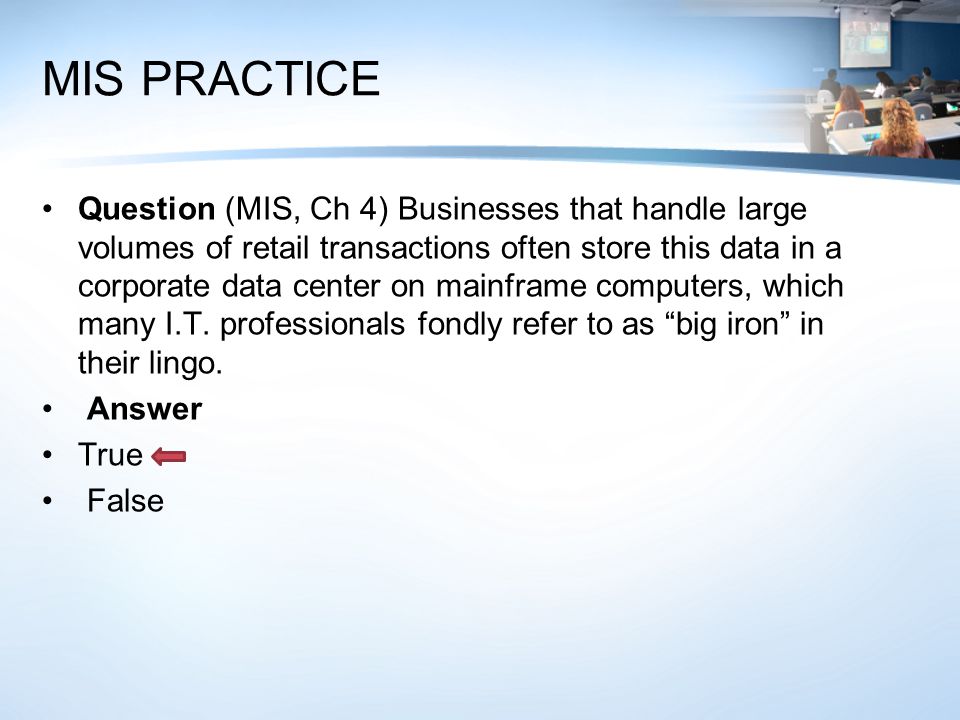

66. MIS PRACTICE Question (MIS, Ch 4) Businesses that handle large volumes of retail transactions often store this data in a corporate data center on mainframe computers, which many I.T. professionals fondly refer to as “big iron” in their lingo. Answer True False

67. MIS PRACTICE Question (MIS, Ch 4) Because _____ reduces the amount of paper in organizations, some of its most enthusiastic adopters are companies in paper-intensive fields such as law, retail, insurance, and banking. Answer processing OMR imaging printing

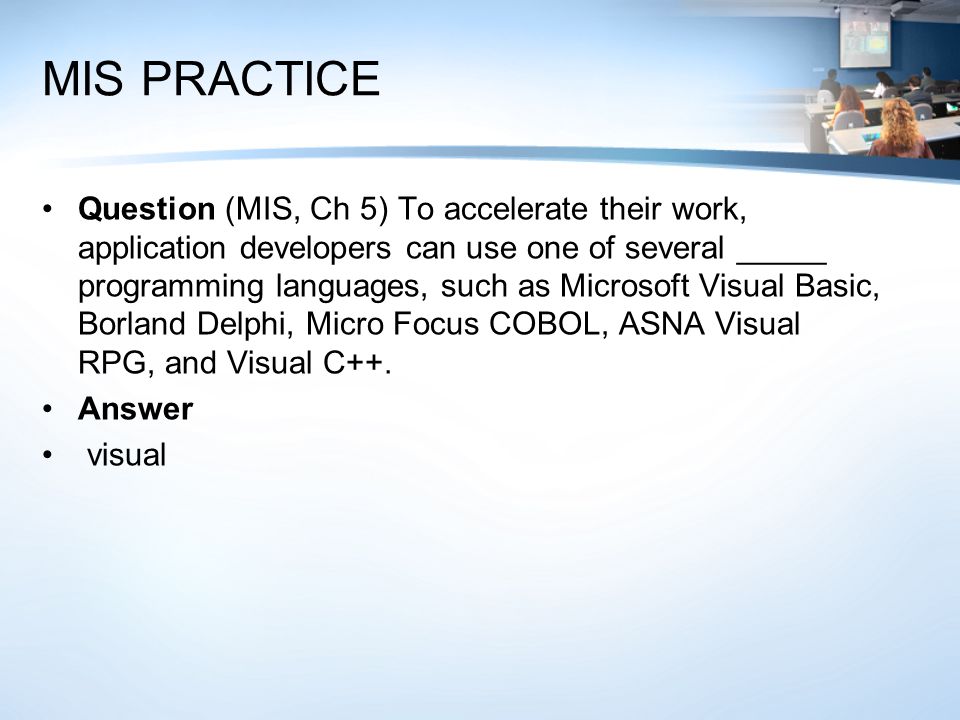

68. MIS PRACTICE Question (MIS, Ch 5) To accelerate their work, application developers can use one of several _____ programming languages, such as Microsoft Visual Basic, Borland Delphi, Micro Focus COBOL, ASNA Visual RPG, and Visual C++. Answer visual

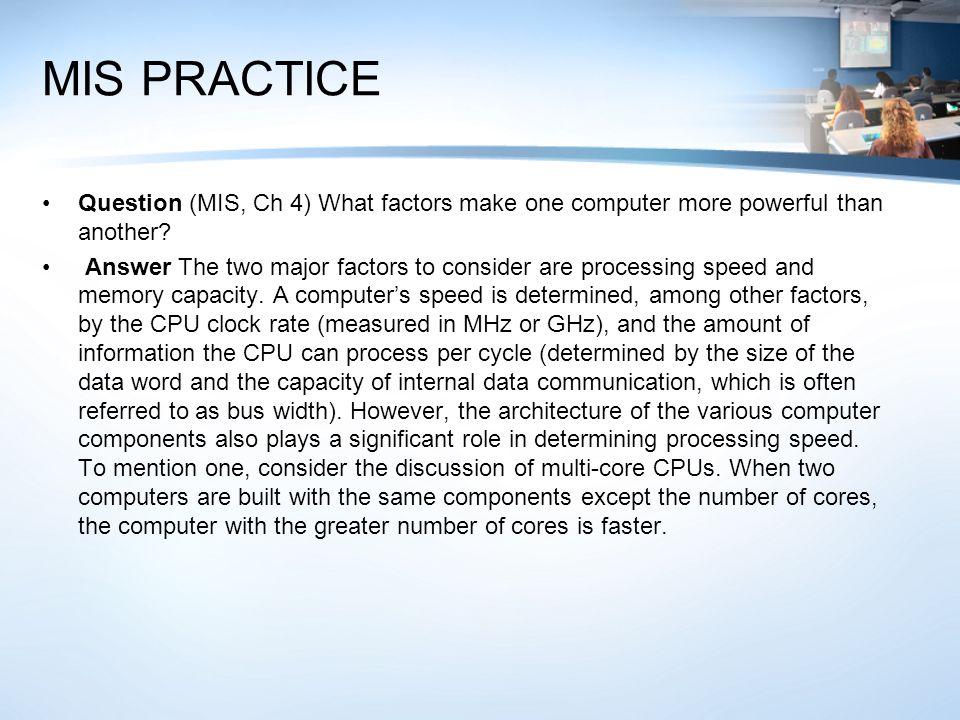

69. MIS PRACTICE Question (MIS, Ch 4) What factors make one computer more powerful than another? Answer The two major factors to consider are processing speed and memory capacity. A computer’s speed is determined, among other factors, by the CPU clock rate (measured in MHz or GHz), and the amount of information the CPU can process per cycle (determined by the size of the data word and the capacity of internal data communication, which is often referred to as bus width). However, the architecture of the various computer components also plays a significant role in determining processing speed. To mention one, consider the discussion of multi-core CPUs. When two computers are built with the same components except the number of cores, the computer with the greater number of cores is faster.

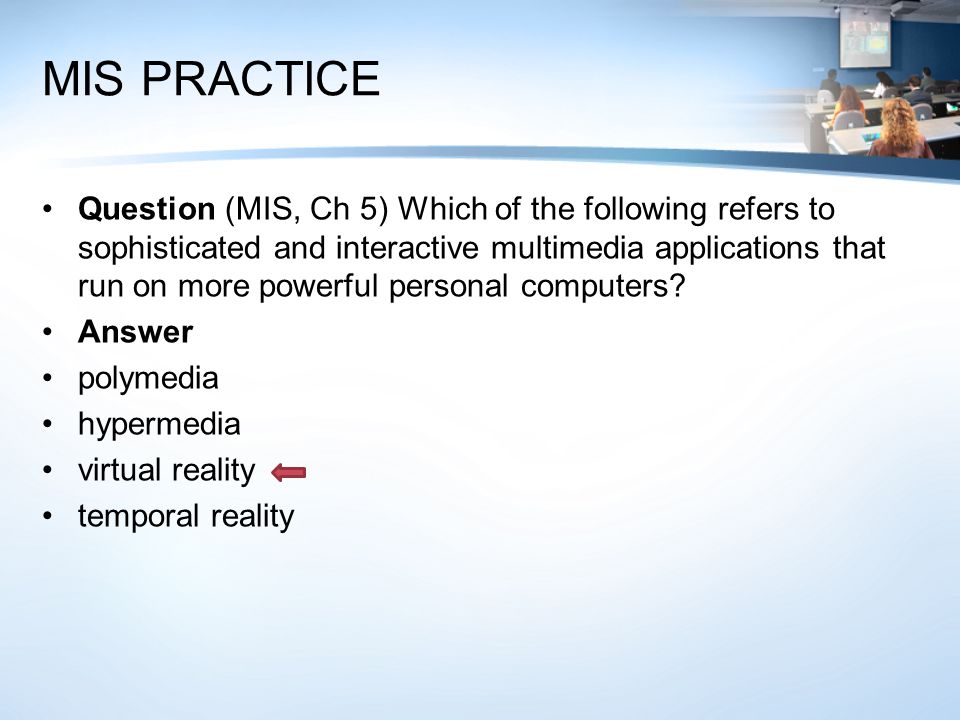

70. MIS PRACTICE Question (MIS, Ch 5) Which of the following refers to sophisticated and interactive multimedia applications that run on more powerful personal computers? Answer polymedia hypermedia virtual reality temporal reality

71. MIS PRACTICE Question (MIS, Ch 5) The most sophisticated virtual reality (VR) devices provide which of the following elements? (select one or more answers) Answer immersion interaction intersection immobility

72. Sample Questions Question (MIS, Ch 4) The data access mode for tape storage devices is: (A)direct (B) random (C) sequential (D) none of the above

73. Sample Questions Question (MIS, Ch 5) Which of the following is considered to be a type of systems software? (A) compilers (B) communications (C) interpreters (D) utilities (E) all of the above

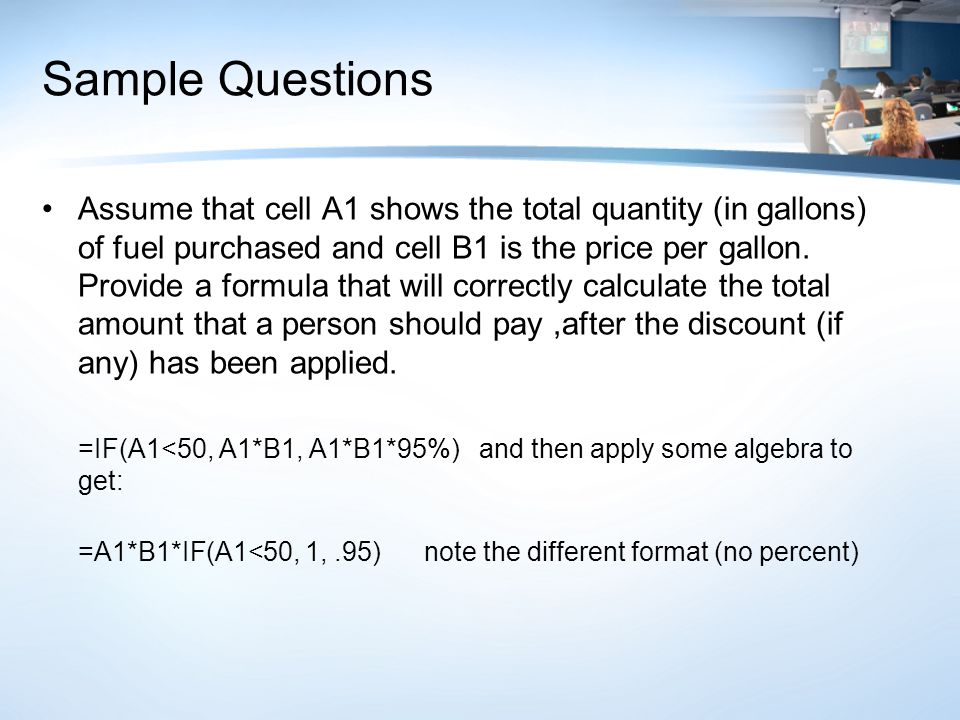

74. Sample Questions Assume that cell A1 shows the total quantity (in gallons) of fuel purchased and cell B1 is the price per gallon. Provide a formula that will correctly calculate the total amount that a person should pay,after the discount (if any) has been applied. =IF(A1<50, A1*B1, A1*B1*95%) and then apply some algebra to get: =A1*B1*IF(A1<50, 1,.95) note the different format (no percent)

75. Sample Questions Question (MIS, Ch 5) Since Microsoft does not make the source code for Internet Explorer available for end users to review and update, the product is considered proprietary. True False

76. THANK YOU
