1
Peer-to-Peer Applications From BitTorrent to Privacy Arnaud Legout INRIA, Sophia Antipolis, France Projet Planète Email: arnaud.legout@inria.fr This work is licensed under the Creative Commons BY-NC-SA License. To view a copy of this license, visit http://creativecommons.org/licenses/by-nc-sa/3.0/ version 2 January 2012
2
Outline Overview What is a P2P application? Popularity of P2P applications? Content Replication BitTorrent Privacy Arnaud Legout © 2006-2012 2
3
Definition: Overlay Overlay Network Network at the application layer (layer 7) Arnaud Legout © 2006-2012 3
4
Definition: Overlay Formed by communicating among themselves Dedicated machines End-users Types of overlay General purpose overlay (application-layer multicast) Application specific overlay (CDN) Overlay construction Network topology Network metrics (delay, bandwidth, etc.) Arnaud Legout © 2006-2012 4
5
Definition: Overlay Why do we need overlays? Create a service that is not (or that cannot be) provided by the network (layer 3) Create an application layer service Example of services Application layer multicast Content Delivery Network (CDN) DNS (IP only provides IP addresses and don’t know how to route on names) Arnaud Legout © 2006-2012 5
6
Definition: Peer Peer A computer, an end-user, an application, etc. Depends on the context Always an end system, but an end system is not always a peer An end system can be a dedicated video server that is part of a CDN, or a BitTorrent client that is part of a P2P network Arnaud Legout © 2006-2012 6
7
Definition: Peer Leecher A peer that is client and server In the context of content delivery Has a partial copy of the content Seed A peer that is only server In the context of content delivery Has a full copy of the content Arnaud Legout © 2006-2012 7
8

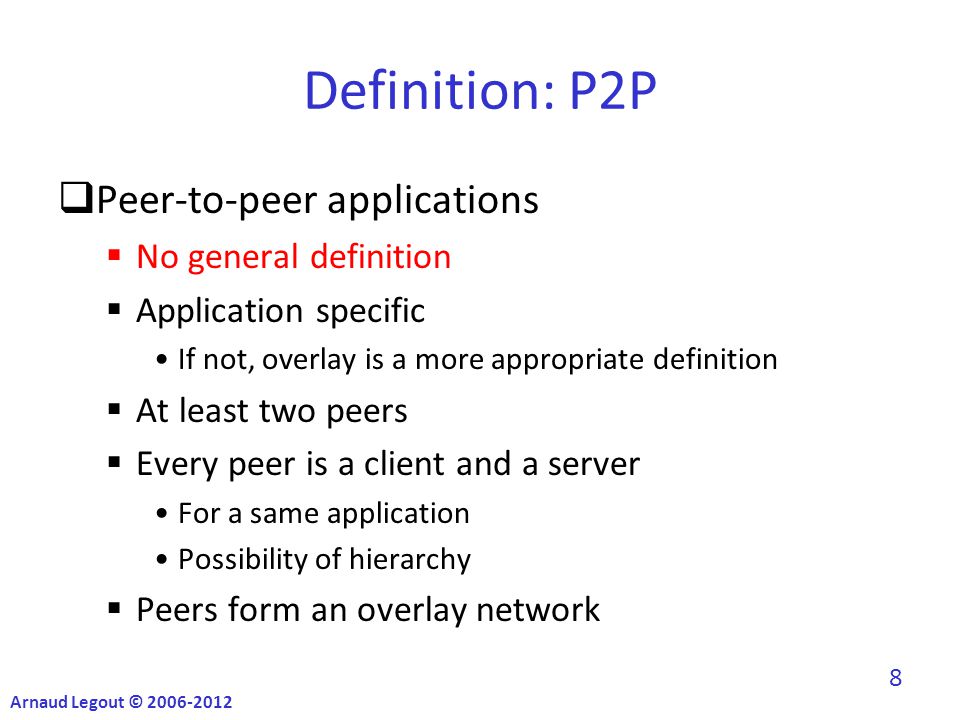

Definition: P2P Peer-to-peer applications No general definition Application specific If not, overlay is a more appropriate definition At least two peers Every peer is a client and a server For a same application Possibility of hierarchy Peers form an overlay network Arnaud Legout © 2006-2012 8
9
Definition: P2P Overlay Network vs. P2P applications A P2P application forms an overlay network An overlay network is not always a P2P application Trend to define a P2P application as overlay network formed by end-users Depends on the definition of P2P Overlay P2P Arnaud Legout © 2006-2012 9
10
Example: Web The case of the Web Service: HTML pages access Pages served only by dedicated machines (HTTP servers) End-users cannot serve HTML pages No share of HTML pages among servers: servers are not communicating among themselves, but with clients This is not an overlay network! Arnaud Legout © 2006-2012 10
11
Example: Email Servers The case of Email servers Service: Email delivery POP/SMTP/IMAP servers are dedicated machine Email servers communicate to deliver emails This is an overlay network! But, not a P2P application Probably the oldest example of overlay Arnaud Legout © 2006-2012 11
12
The New P2P Paradigm Web, Email, etc. is an old technology Is overlay network an old techno? Yes, when applied to servers But, its applications to end-users is recent New applications New problems New techniques, algorithms, protocols This is P2P! Arnaud Legout © 2006-2012 12
13
The New P2P Paradigm Why P2P applications became popular in mid- 2000 only? High speed Internet connections Power shift from servers to end-users End-to-end argument [7] (1984) undoubtedly visionary –Still alive (01/2006): http://lwn.net/Articles/169961/ P2P applications are a true revolution Aside TCP/IP and the Web Arnaud Legout © 2006-2012 13
14
New P2P applications P2P applications capitalize on any resource from anybody P2P applications can share CPU, bandwidth and storage seti@home (not P2P, but distributed) BitTorrent, Emule, Gnutella Skype, Google talk Publius Arnaud Legout © 2006-2012 14
15
Focus of this Course P2P file sharing applications Main focus on file replication This was the true revolution that you must know And also privacy This is the hot research topic Arnaud Legout © 2006-2012 15
16
Localization Not the subject of this course, but good to know To read Chord[25] Impact of DHT routing geometry [29] Interesting read (because well known) Kademlia[27]: used in BitTorrent and Emule Pastry[26] CAN[28] Arnaud Legout © 2006-2012 16
17
P2P file sharing taxonomy Current taxonomy for P2P file sharing [11] Unstructured P2P: BitTorrent, Gnutella, KaZaA, etc. Structured: DHT (e.g., Chord, CAN, Pastry, Kademlia, etc.) What is wrong? Assume that P2P applications must be classified according to their content localization architecture Arnaud Legout © 2006-2012 17
18
P2P file sharing taxonomy Proposed taxonomy for P2P file sharing Content localization Unstructured Structured Content replication Parallel download File splitting Piece selection –rarest first, random, sequential, etc. Peer selection –choke algorithm, tit-for-tat, priority queue, etc. Arnaud Legout © 2006-2012 18
19
P2P file sharing taxonomy Is it better? No more a focus on content localization Decouple file localization and file replication See the discussion thread on the P2Prg http://www1.ietf.org/mail-archive/web/p2prg/current/msg00816.html No agreement This is a complex problem (many applications of P2P from sensor networks to BitTorrent) Taxonomy depends on where is your expertise The one I proposed is still weak Arnaud Legout © 2006-2012 19
20
Outline Overview What is a P2P application? Popularity of P2P applications? Content Replication BitTorrent Privacy Arnaud Legout © 2006-2012 20
21
Measurement of P2P traffic Hard to perform P2P traffic measurements Known techniques [3,4] Port detection Can be easily circumvented Layer 7 inspection Do not work with encrypted payload Database of signatures hard to maintain Heuristic Hard to identify, similar to other applications Arnaud Legout © 2006-2012 21
22
Dominant Traffic with Time [1] Arnaud Legout © 2006-2012 22
23
History of BitTorrent Usage End 2004 Cache Logic study [1] Deep packet inspection BitTorrent is dominating the Internet traffic 30% of the internet traffic! Shift of demand from music to movies Major sources of torrent file discontinued due to legal actions (e.g., Suprnova.org) Arnaud Legout © 2006-2012 23
24
History of BitTorrent Usage 2005 Cache Logic study [1] Deep packet inspection Shift from BitTorrent to eDonkey eDonkey is fully decentralized Many clients and localization But, this is not the end of the story Decentralized versions of BitTorrent New large BitTorrent services (ThePirateBay, mininova, isohunt, etc.) Arnaud Legout © 2006-2012 24
25
History of BitTorrent Usage 2006 to 2008 Unofficial numbers from FT (September 2006) 80% to 90% of P2P traffic Only 10% to 20% of P2P traffic due to BitTorrent The rest is due to Emule Traffic captured at a BAS Aggregate several DSLAMs (thousands of peers) Claimed layer 7 inspection, but no access to the data and methodology 78% of P2P traffic in Japan in 2008 [41] Arnaud Legout © 2006-2012 25
26
History of BitTorrent Usage 2010 Sandvine (Fall 2010) BitTorrent is dominating P2P Except in Latin America where it is Ares But Ares implements BitTorrent, thus it is not clear how much Ares traffic is BitTorrent P2P is dominating upstream traffic Real-time entertainment (audio and video streaming) is dominating the downstream traffic But, P2P share has significantly increased since 2009 (doubled in some regions) Arnaud Legout © 2006-2012 26
27
BitTorrent Usage in 2011 Sandvine Report [53] Customers ISPs Internet traffic statistics Voluntarily submitted by a representative cross- section of Sandvine’s customer base In this report 220 ISPs in 85 countries –Hundreds of millions of subscribers Arnaud Legout © 2006-2012 27
28
BitTorrent Usage in 2011 Arnaud Legout © 2006-2012 28
29
BitTorrent Usage in 2011 Arnaud Legout © 2006-2012 29
30
BitTorrent Usage in 2011 Arnaud Legout © 2006-2012 30
31
BitTorrent Usage in 2011 Arnaud Legout © 2006-2012 31
32
BitTorrent Usage in 2011 Arnaud Legout © 2006-2012 32
33
BitTorrent Usage in 2011 Arnaud Legout © 2006-2012 33
34
Lessons Learned From the Past Specific events might significantly impact popularity of P2P protocols Disconnection of popular services Suprnova, mininova, ThePirateBay Specific laws 3-strikes, lawsuits This has always been a transient impact Arnaud Legout © 2006-2012 34
35
Why to Study P2P (Old Version) P2P represents most of the Internet traffic Don’t you think there is a need for such a service And, in this case which techno will you use to reach millions of users without huge distribution costs Yes, but it is for illegal contents. P2P applications are evil Yes, but people should pay for the service and we need to keep control on it P2P Arnaud Legout © 2006-2012 35
36
Why to Study P2P (New Version) BiTorrent is super fast to distribute contents Start to be used by several big companies Twitter is using Murder to update Twitter servers (July 2010) 75x faster http://engineering.twitter.com/2010/07/murder-fast-datacenter- code-deploys.html http://engineering.twitter.com/2010/07/murder-fast-datacenter- code-deploys.html Arnaud Legout © 2006-2012 36
37
With Murder Murder Without Murder Credit: Larry Gadea Arnaud Legout © 2006-2012 37
38
Murder Performance Credit: Larry Gadea Arnaud Legout © 2006-2012 38
39
P2P in the Research Community P2P is no more a hot topic What is hot in the community is not a well balanced choice, but close to a fashion decision It is very hard to publish classical P2P in major conferences However Privacy issues in P2P is still a hot topic Focus of the second part of this course Arnaud Legout © 2006-2012 39
40
Outline Overview Content Replication P2P performance Parallel Download Piece and Peer selection BitTorrent Privacy Arnaud Legout © 2006-2012 40
41
Definitions Service capacity Number of peers that can serve a content It is 1 for client-server, constant with time Flash crowd of n Simultaneous request of n peers (e.g., soccer match, availability of a patch, etc.) Piece (a.k.a. chunk, block) A content is split in pieces Each piece can be independently downloaded Arnaud Legout © 2006-2012 41
42
Why P2P is so efficient? The service capacity grows exponentially with time With a flash crowd of n peers, the mean download time is in log(n) It is in n for a client server model The mean download time decreases in 1/(# of pieces) when the # of pieces increases Do not take into account the overhead Arnaud Legout © 2006-2012 42
43
Intuition P2P Client-server Arnaud Legout © 2006-2012 43
44
P2P vs. Client-Server Time to serve a content: 10 minutes P2P Capacity of service C(t)=O(e t ), where t is time Client-server Capacity of service C(t)=1, where t is time Time to serve a content: 10 minutes Arnaud Legout © 2006-2012 44
45
45 P2P vs. Client-Server P2P Download completion time D(n)=O(log(n)), when n is the number of peers Client-server Download completion time D(n)=n, where n is the number of client Time to serve a content: 10 minutes 10 million minutes 200 minutes Arnaud Legout © 2006-2012
46
Content Transfer Model Simple deterministic model [5] (to read) Each peer serves only one peer at a time The unit of transfer is the content n-1 peers want the content We assume n=2 k T is the time to complete an upload T=s/b, s content size, b upload capacity Peer selection strategy Easy with global knowledge: Binary tree Arnaud Legout © 2006-2012 46
47
Proof: Capacity Capacity of service C t=0, C=2 0 peers t=T C=2 1 peers t=2T C=2 2 peers …… t=iT C=2 i peers C=2 t/T peers time t=0 t=T t=2T Seed Arnaud Legout © 2006-2012 47
48
Proof: Finish Time Finish time Seed has the content at t=0 2 0 peers finish at t=T 2 1 peers finish at t=2T …… 2 k-1 peers finish at t=kT We covered the n peers 1+ 2 0 + 2 1 + 2 2 +…+ 2 k-1 = 2 k = n time t=0 t=T t=2T Seed Arnaud Legout © 2006-2012 48
49
Proof: Finish Time Finish time All peers have finished at t=kT=T.log 2 n time t=0 t=T t=2T Seed Arnaud Legout © 2006-2012 49
50
Proof: Finish Time Mean download time See refresher Arnaud Legout © 2006-2012 50
51
Refresher Arnaud Legout © 2006-2012 51
52
Model Discussion Each peer has the same upload capacity No network bottleneck Idealized peer selection strategy Each peer always knows to which peer P to send the content at a given time This peer P does not have the content yet This peer P is not chosen by any other peer Conflict resolution solved with global knowledge No peer dynamics, i.e., arrival and departure No piece selection strategy No advanced hypothesis: reciprocation, parallel download, etc. Arnaud Legout © 2006-2012 52
53
Piece Transfer Model Piece based deterministic model [5] (2004) Each peer serves only one peer per time slot The unit of transfer is a piece n-1 peers want the content We assume n=2 k There are m pieces of the same size We assume m>k S=s/(bm)=T/m is a time slot, s content size, b upload capacity Arnaud Legout © 2006-2012 53
54
Results Summary Finished time t= (T/m).log 2 n + T Decreases in 1/m compared to the content based model Does not account for pieces overhead Arnaud Legout © 2006-2012 54
55
Piece Transfer Model Peer selection strategy (used in the model) We define A i as the set of peers that have piece i. We do not count in this set the seed Two strategies First strategy, when at least one peer has no piece Peers send pieces to peers that has not yet obtained any piece. Arnaud Legout © 2006-2012 55 A
56
Piece Transfer Model Peer selection strategy Second strategy, when all peers have at least one piece The set of peers A i with n/2 copies of i replicate i on the n/2-1 other peers. The n/2-1 other peers and the seed replicate pieces not present on the peers of A i. For instance, at k+1, A 1 replicate 1 on all the A i, i=2,…,k and the A i, i=2,…,k plus the seed replicate a piece on A 1 At each round one peer of A i is idle Arnaud Legout © 2006-2012 56 A
57
First Peer Selection Strategy At t=0 Seed has all pieces At t=S |A 1 |=2 0 At t=2S |A 1 |=2 1, |A 2 |=2 0 At t=3S |A 1 |=2 2, |A 2 |=2 1, |A 3 |=2 0 time t=0 t=S t=2S 1 1 11 1 1 1 2 223 Seed Arnaud Legout © 2006-2012 57 A
58
First Peer Selection Strategy At t=jS |A i |=2 j-i, i≤j This strategy ends when j=k All n-1=2 k -1 leechers have a piece time t=0 t=S t=2S 1 1 11 1 1 1 2 223 Seed Arnaud Legout © 2006-2012 58 A
59

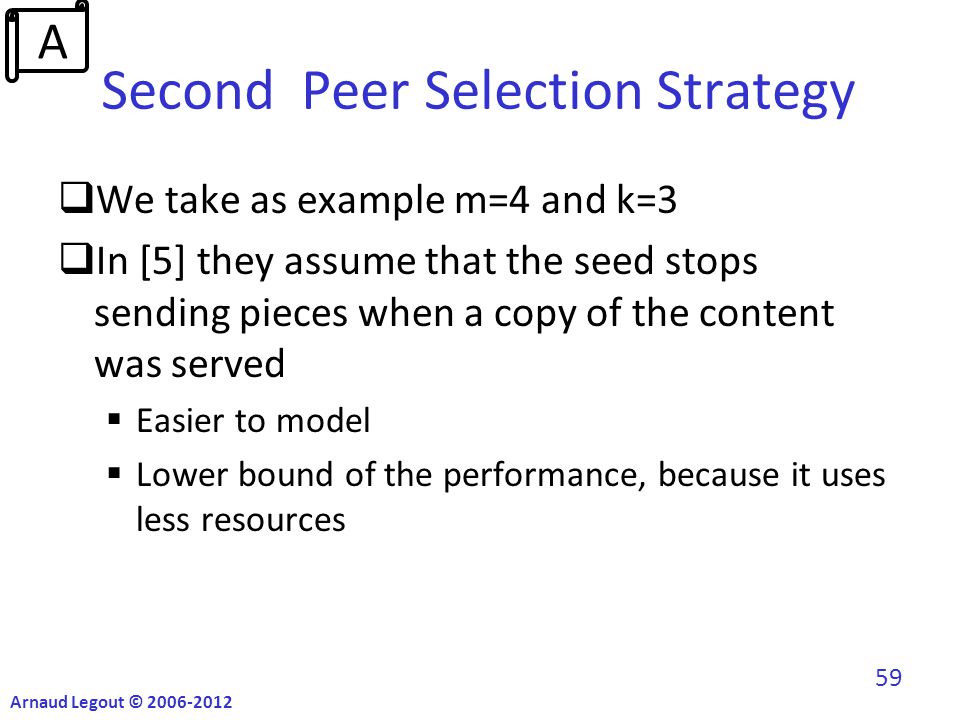

Second Peer Selection Strategy We take as example m=4 and k=3 In [5] they assume that the seed stops sending pieces when a copy of the content was served Easier to model Lower bound of the performance, because it uses less resources Arnaud Legout © 2006-2012 59 A
60
Second Peer Selection Strategy We confirm that for k=3 all peers have a piece t=3S There are 2 3 /2 piece 1 There are 2 3 /2 2 piece 2 There are 2 3 /2 3 piece 3 t=4S All have piece 1 There are 2 3 /2 piece 2 There are 2 3 /2 2 piece 3 There are 2 3 /2 3 piece 4 time t=3S 11 1 122 3 t=4S t=5S t=7S t=6S 2121 3131 1212 1313 4141 2121 1212 2121 231231 312312 213213 241241 321321 412412 321321 42314231 312312 213213 32413241 43214321 34123412 ALL Arnaud Legout © 2006-2012 60 A
61
Second Peer Selection Strategy t=5S All have piece 1 and 2 There are 2 3 /2 piece 3 There are 2 3 /2 2 piece 4 t=6S All have piece 1, 2, and 3 There are 2 3 /2 piece 4 t=7S All have piece 1, 2, 3, and 4 time t=3S 11 1 122 3 t=4S t=5S t=7S t=6S 2121 3131 1212 1313 4141 2121 1212 2121 231231 312312 213213 241241 321321 412412 321321 42314231 312312 213213 32413241 43214321 34123412 ALL Arnaud Legout © 2006-2012 61 A
62
Results At t=kS each peer has a single piece |A i |=2 k-i, i≤k At slot k+i for i ≤ m Each peer has pieces 1,…,i |A i+1 |=n/2 peers have piece i+1 and replicate it on the n/2-1 other peers The seed already has piece i+1 Each other peer replicates a piece on the peers in A i+1 At the m slot, the seed stops serving pieces For all j>i+1, |A j | 2*|A j | Arnaud Legout © 2006-2012 62 A
63
Results Finished time At each slot the number of copy of each piece is doubled When there are n=2 k peers, a piece needs k+1 slots to be on all peers We consider that the first slot for piece x is when x is sent by the seed to the first peer For m pieces, k+m slots a required to distribute all pieces on all peers Arnaud Legout © 2006-2012 63 A
64
Results Finished time All peers have finished at t=(k+m)S t=(k+m)S=T(k+m)/m=(T/m).log 2 n + T Decreases in 1/m compared to the content based model Does not account for pieces overhead Arnaud Legout © 2006-2012 64 A
65
Results Mean download time With the proposed strategy, at kS each peer has only one piece As the number of pieces double at each slot, one needs k+m-1 slots for half of the peers to have all the pieces At k, 1 piece; at k+1, 2 pieces; at k+m-1, m pieces But at m, the seed stops serving pieces, thus at k+m-1 only half of the peers have m pieces, the rest have m-1 pieces The other half receives the last pieces at k+m Arnaud Legout © 2006-2012 65 A
66
Results Mean download time Arnaud Legout © 2006-2012 66 A
67
Model Discussion Each peer has the same upload capacity No network bottleneck Idealized peer selection strategy Each peer always knows to which peer P to send the content at a given time Conflict resolution solved with global knowledge No peer dynamics, i.e., arrival and departure Idealized piece selection strategy Global knowledge A peer is never blocked because it does not have the right piece to upload No advanced hypothesis: reciprocation, parallel download, etc. Read [5,6] for more sophisticated models Arnaud Legout © 2006-2012 67
68
Model Discussion The results obtained with this model hold for more complex models Stochastic Lesson A simple model can give fundamental results Understand the assumptions and limitations No need for complexity if it is at the price of stronger or additional assumptions Arnaud Legout © 2006-2012 68
69
Discussion of the Results P2P is very efficient when There is always a peer to send data to There is always a piece to send to this peer Peer and piece selection are at the core of an efficient P2P protocol P2P efficiency can be from the idealized model to even worse than client-server How to select peers and pieces discussed in the following Arnaud Legout © 2006-2012 69
70
Outline Overview Content Replication P2P performance Dynamic Parallel Download Piece and Peer selection BitTorrent Privacy Arnaud Legout © 2006-2012 70
71
Dynamic Parallel Download Introduced by Rodriguez et al. [8] (2000) in the context of web cache Parallel download The principle to download from several server in parallel Dynamic parallel download A parallel download with the following strategy Strategy Request first one piece from every server with the content Each time a server has completed its upload of a piece, request a piece from this server that has not yet been requested from any other server Arnaud Legout © 2006-2012 71
72
Dynamic Parallel Download: 4 pieces example CS1S1 S2S2 1 2 1 2 3 4 3 4 Arnaud Legout © 2006-2012 72
73
Performance Issues All servers must be busy sending pieces Two performance issues Interblock idle time Pipelining Termination idle time End game mode (Terminology introduced in BitTorrent) Arnaud Legout © 2006-2012 73
74
Interblock Idle Time Time to receive a new request after sending the last byte of a piece Idle time = 1 RTT Problem Server underutilized Solution Pipelining CS1S1 1 1 3 4 3 4 Idle Arnaud Legout © 2006-2012 74
75
Pipelining Keep enough requests pending so that the server is never idle 1 st solution Send request before the end of the current piece RTT estimate Piece transmission time > RTT CS1S1 1 1 2Idle 1 1 2 NO YES RTT Arnaud Legout © 2006-2012 75
76
Pipelining 2 nd solution Always have n pending requests Still need RTT estimate No need for accuracy Overestimate does not harm CS1S1 Request 1, 2,3 1 2 4 3 5 Arnaud Legout © 2006-2012 76
77
Termination Idle Time For dynamic parallel download from M servers P is the number of pieces not yet received When P<M, M-P servers are idle Solution: end game mode When P<M request pending blocks to all the idle servers Several servers upload the same piece at the same time The fastest win Bandwidth waste: request + partial download Arnaud Legout © 2006-2012 77
78
Termination Idle Time Without end game mode Last pieces download speed unknown With end game mode Last pieces download speed equal to at least the one of the fastest server Arnaud Legout © 2006-2012 78
79
Experimental Evaluation Java client that implements dynamic parallel download Does no implement pipelining Implement a basic version of end game mode Connect to real mirror of public web servers in the Internet Study performed in 1999/2000 For each figure is given the optimum transmission time Ideal download time that would have been achieved in case there is neither interblock nor termination idle time (computed a posteriori) Arnaud Legout © 2006-2012 79
80
No Shared Bottleneck The client connects to 4 mirror spread in the Internet: Japan, Portugal, Slovakia, Australia High probability of disjoint paths, which implies no shared bottleneck Arnaud Legout © 2006-2012 80
81
Results: No Shared Bottleneck Content size 763KB # of pieces 80 Parallel 4 No shared bottleneck Parallel close to optimum Credit: Rodriguez et al. [8] Arnaud Legout © 2006-2012 81
82
Shared Bottleneck What happens when the bottleneck is the access link? The client is connected through a modem link (56kbit/s) Connected to two slow servers (24kbit/s) and one fast server (56kbit/s) The fastest server is enough to saturate the access link Dynamic parallel download will create TCP competition on a saturated link. What is the impact of that? Arnaud Legout © 2006-2012 82
83
Results: Shared Bottleneck Content size 256KB # of pieces 20 Parallel 3 Modem access line Shared Bottleneck Close to the fastest server Difference due to the interblock idle time Credit: Rodriguez et al. [8] Arnaud Legout © 2006-2012 83
84
Single Server vs. Multiple Servers Parallel Download Is it as efficient to perform parallel download from a single server as from multiple servers? The case of two mirrors: 1 fast and one slow The client connects to a single mirror The client connects to two mirrors in parallel The client opens two TCP connections to the same mirror Arnaud Legout © 2006-2012 84
85
Results: Single Server Parallel Content size 256KB # of pieces 20 Parallel 2 No shared Bottleneck Close to the fastest server, but no need for server selection Credit: Rodriguez et al. [8] Arnaud Legout © 2006-2012 85
86
Properties Automatically adapt to the best servers and bottlenecks No need for server selection No complex resource discovery History based parallel access performs significantly worse Tradeoff Piece request message overhead Increase the number of TCP connections Arnaud Legout © 2006-2012 86
87
Dynamic Parallel Download for P2P Dynamic parallel download In the context of client-server For a small number of parallel downloads P2P Every peer is a client and a server Parallel download and parallel upload Large peer set Very different context How to apply dynamic parallel download to P2P? Arnaud Legout © 2006-2012 87
88
Dynamic Parallel Download for P2P A straightforward application to P2P Every peer performs global dynamic parallel download to every other peer Problems Not possible to maintain a large number of TCP connections per peer Why a peer should send data to another peer? Not viable: free rider problem Arnaud Legout © 2006-2012 88
89
Dynamic Parallel Download for P2P Free rider problem A free rider is a peer that downloads without contributing anything To scale, each peer in a P2P system must act as a client and a server With global dynamic parallel download no incentive to do so We do not leave in an ideal word: selfish assumption Arnaud Legout © 2006-2012 89
90
Dynamic Parallel Download for P2P Assume an ideal word Each peer cooperate Can we use dynamic parallel download? Studies on dynamic parallel upload In P2P the content flow is from the initial seed toward leechers Easier to model dynamic parallel upload than dynamic parallel download Equivalent properties Arnaud Legout © 2006-2012 90
91
Dynamic Parallel Download for P2P Dynamic parallel upload vs. download Download The client want to download as fast as possible Upload The source want to upload as fast as possible Same problem Find the fastest peer among a set without any knowledge Arnaud Legout © 2006-2012 91
92
Dynamic Parallel Download for P2P Outdegree Number of parallel uploads from a peer Tradeoff Increasing the outdegree increases the number of peers served at the same time, but decreases the service rate to each peer [5][9] Arnaud Legout © 2006-2012 92
93
Dynamic Parallel Download for P2P Results Biersack et al. [9] showed that and outdegree of 3 is optimal. An outdegree of 2 or 4 gives almost the same result Static scenario Forest of tree Assume uniform capacity of the peers –Upload=download –Same capacity for all peers Arnaud Legout © 2006-2012 93
94
Dynamic Parallel Download for P2P Results Yang et al. [5] showed that increasing the outdegree adversely impact the service capacity in case of static peers (no leave at the end of the download) But, in case of dynamic peers (peers leave the system with a given probability after completing the download) parallel upload can improve the service capacity. Outdegree should be less than 10, marginal gain above 4 Branching process model (stochastic) Arnaud Legout © 2006-2012 94
95
Conclusion Even in an ideal world the outdegree should be small Around 4 This number might be increased in case of high upload capacity, but no study to understand the real impact Probably makes sense in case of heterogeneous peers The fast peer increases its number of parallel uploads to saturate its upload capacity Probably dangerous in case of homogeneous peers All peers increase their number of parallel uploads to saturate their upload capacity. But, in this case the global efficiency decreases as shown in [5,9] Used by BitTorrent mainline if max upload > 42 kB/s uploads = int(math.sqrt(rate *.6)) Arnaud Legout © 2006-2012 95
96
Conclusion We are not in an ideal world In case of free riders The system is not viable The analytical results do not hold Dynamic Parallel upload cannot be used How to prevent free riders? Arnaud Legout © 2006-2012 96
97
Outline Overview Content Replication P2P performance Parallel Download Piece and Peer selection BitTorrent Privacy Arnaud Legout © 2006-2012 97
98
Why a Peer and Piece Selection? Lets go back to the simple model Assumptions Always find a peer with an interesting piece to upload from (Global knowledge) Never idle or seeking for a peer A peer never refuses to upload a piece No free riders If any of these assumptions is relaxed No model for the system No idea of its performance (at least worse) No parallel download (selfish environment) Arnaud Legout © 2006-2012 98
99
Why a Peer and Piece Selection? Additional assumptions All peers have the same upload capacity Always the best match No network bottleneck Still the best match This is not reality If best match relaxed Performance decreases But, a good match is still possible in real life Arnaud Legout © 2006-2012 99
100
Which Peer and Piece Selection? No specification except for BitTorrent Always focus on content localization No similar problem in another field No general study of the problem Always based on BitTorrent Arnaud Legout © 2006-2012 100
101
Which Peer and Piece Selection? Gnutella Designed for efficient content localization No file splitting in the specification 0.6 [16] Partial file transfer introduced in [17] Allows peers with partial content to answer queries Same heuristic for piece and peer selection Select the first peer that answers the content request Possibility of parallel download Poor overall performance No specific study of the file transfer efficiency Mostly used for small contents (mp3) Arnaud Legout © 2006-2012 101
102
Which Peer and Piece Selection? Edonkey2000/Emule/Overnet Designed for efficient content localization Only differ by their localization protocol File splitting [13] Rarest pieces first + other criteria with lesser priority Peer selection (Time spent in the priority queue) * (credit modifier based of upload and download rate) Slow reactivity Possibility of parallel download Average overall performance No specific study of the file transfer efficiency Arnaud Legout © 2006-2012 102
103
Which Peer and Piece Selection? BitTorrent (described in details later in the course) Designed for efficient file transfer File splitting [13] Rarest pieces first Peer selection Choke algorithm based on short term peer upload speed estimation Fast adaptation Use of parallel download Good overall performance Several specific studies Arnaud Legout © 2006-2012 103
104
Which Peer and Piece Selection? Common mistakes made about BitTorrent (BT) With BT contents are hard to find Right, BT is a file transfer protocol not a localization protocol Does it make sense to say that with HTTP contents are hard to find? With BT a torrent die when there is no more seed Right, BT is a file transfer protocol, not an infrastructure that manage persistency Does it make sense to say that HTTP does not guarantee that your web server is always up? BT is a P2P file transfer protocol, nothing more Arnaud Legout © 2006-2012 104
105
Which Peer and Piece Selection? In the following, general discussion, but based on the experience gathered with BitTorrent BitTorrent is the state of the art Might be improved, but need a deep understanding Arnaud Legout © 2006-2012 105
106
Which Peer and Piece Selection? Peer selection task Always find a peer to upload from Prevent free riders Converge to the best upload-download match Piece selection task Piece diversity is called entropy With ideal entropy, each peer always has an interesting piece for any other peer Arnaud Legout © 2006-2012 106
107
Which Peer and Piece Selection? Peer selection must not have a piece constraint Ideal entropy is the target Peer selection should be based on capacity only, not on piece availability Arnaud Legout © 2006-2012 107
108
Selection Order Performs piece then peer selection Puts a constraint on the peer to select The selected peer is unlikely to be a good match Depending on the piece selection, may create hot spots Rare piece selection, with an initial seed with all the pieces Focus on the piece then on the capacity of service Arnaud Legout © 2006-2012 108 A
109
Selection Order Performs peer then piece selection Select first the best match peer Then apply the piece selection on that peer Focus on the capacity of service first Peer and piece selections are interlinked To find the best match you may need pieces to download to test if it is the best match No sense to select a peer with no interesting pieces Arnaud Legout © 2006-2012 109 A

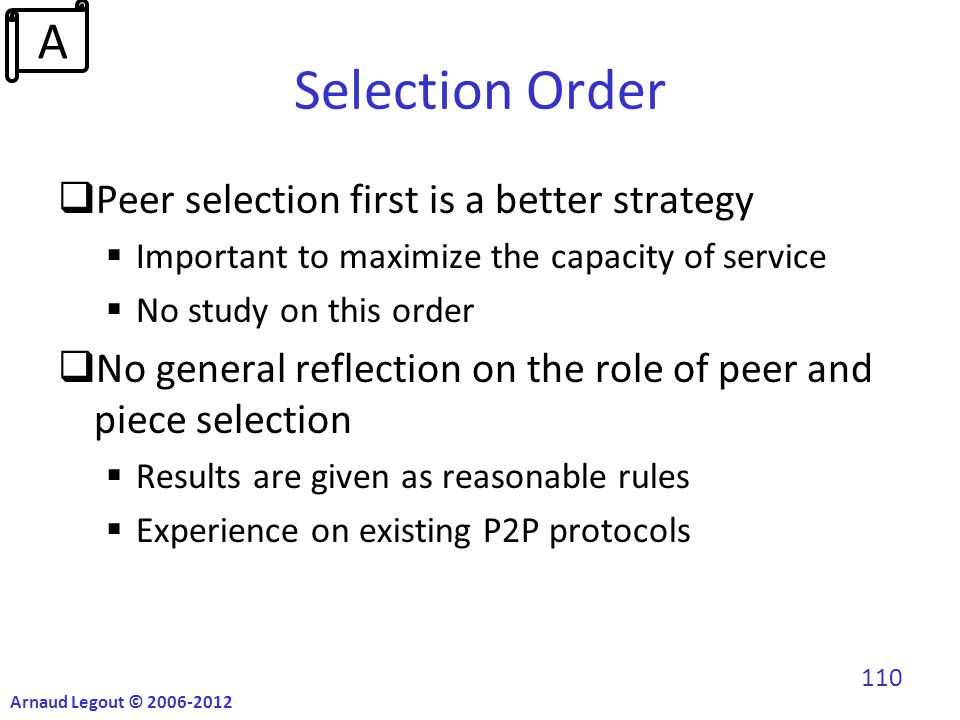

110
Selection Order Peer selection first is a better strategy Important to maximize the capacity of service No study on this order No general reflection on the role of peer and piece selection Results are given as reasonable rules Experience on existing P2P protocols Arnaud Legout © 2006-2012 110 A
111
Piece Selection Random piece selection Each peer selects at random a piece to download Global rarest first Each peer maintains globally the number of copies of each piece Select the globally rarest piece to download Require global knowledge Arnaud Legout © 2006-2012 111
112
Piece Selection Local rarest first (LRF) Approximation of global rarest first Each peer maintains the number of copies in its peer set of each piece Select the locally rarest piece to download When peer selection is performed first, rarest first piece selection is applied on the pieces available on the selected peer Arnaud Legout © 2006-2012 112
113
:1 :2 :1 :2 Local rarest first algorithm Choose the pieces that are locally rarest :2 Piece Selection: LRF P1P2P3 coolContent.xvid Arnaud Legout © 2006-2012 113
114
Piece Selection Properties Random piece selection performs poorly [33] Last pieces problem Poor entropy, i.e., high constraint on peer selection Global rarest first [33] Good entropy Local rarest first [18, 33, 34] Good entropy with a large peer set Care should be taken to the graph construction (random graph) Inspire yourself from BitTorrent Arnaud Legout © 2006-2012 114
115
Piece Encoding Do not use raw pieces but encoded pieces To solve the piece scheduling (selection) problem Initial seed erasure code [15] k is the number of original pieces n is the number of encoded pieces Any k among the k+n pieces are enough to reconstruct the content Still need piece selection Network coding: avalanche [14] Each node computes erasure code Each piece sent is a linear combination of all the already received pieces. Coefficients are chosen at random No more need for piece selection Arnaud Legout © 2006-2012 115 A
116
Network Coding (NC) Theorem[30]: Assume that the source rates are such that without network coding, the network can support each receiver in isolation (i.e., each receiver can decode all sources when it is the only receiver in the network). With an appropriate choice of linear coding coefficients, the network can support all receivers simultaneously Arnaud Legout © 2006-2012 116 A
117

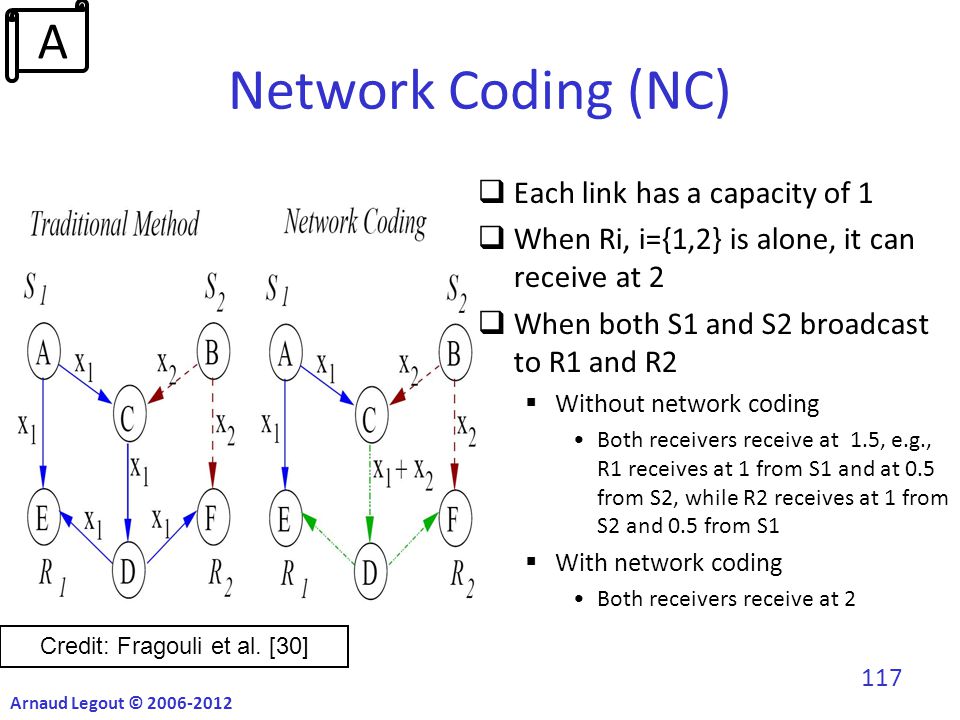

Network Coding (NC) Credit: Fragouli et al. [30] Each link has a capacity of 1 When Ri, i={1,2} is alone, it can receive at 2 When both S1 and S2 broadcast to R1 and R2 Without network coding Both receivers receive at 1.5, e.g., R1 receives at 1 from S1 and at 0.5 from S2, while R2 receives at 1 from S2 and 0.5 from S1 With network coding Both receivers receive at 2 Arnaud Legout © 2006-2012 117 A
118
Network Coding (NC) For a good general introduction to NC read [30] Simple example for a file F = [x 1 x 2 ], where x i is a piece Define code E i (a i,1, a i,2 ) = a i,1 *x 1 + a i,2 *x 2, where a i,1, a i,2 are numbers There is an infinite number of E i ’s Any two linearly independent E i (a i,1, a i,2 ) can recover [x 1 x 2 ] Similar as solving a system of linear equations Arnaud Legout © 2006-2012 118 A
119
Network Coding (NC) In practice, coefficients are chosen in a finite field, such as GF(2 16 ) On a finite field the size of the encoded packets is constant The size of the field gives the overhead On a GF(2 16 ) there are 2 bytes per coefficient For 1000 pieces, there are 2 bytes * 1000 = 2000 bytes of overhead per packet For a packet size of 256 kB there is a 1% overhead Arnaud Legout © 2006-2012 119 A
120
Network Coding No more need for piece selection as any encoded piece is useful for anybody Low probability of linearly dependent coefficient Always close to optimal entropy Is it the universal solution? Arnaud Legout © 2006-2012 120 A
121
Network Coding: Drawbacks Heavy computations (each node needs to solve linear systems at each packet received) Authors shown it can run on Pentium 4 desktops with 20% CPU usage [31] Thus, cannot run on PDAs, cell phones, sensors, or desktops that cannot afford this load Security issues (a single corrupted block propagate fast among peers) Authors proposed a solution based on secure random checksum [32] But, as for any security issue, needs time to convince and demonstrate Arnaud Legout © 2006-2012 121 A
122
Network Coding : Drawbacks Overall complexity Authors argue that it was surprisingly easy to implement because there is no piece selection issues But, the algorithmic of local rarest first is much simpler than the one of network coding Network coding is harder to assess Arnaud Legout © 2006-2012 122 A
123
NC vs. LRF NC performs well in any situation (at least theoretically) But, no large deployment to validate Computation, security, and complexity LRF requires a large peer set 80 is enough and practical for millions of peers Validated on large deployment Close to optimality in practice (details in the following) Arnaud Legout © 2006-2012 123 A
124
NC vs. LRF My recommendation (I may be wrong, this is an active and complex research issue) Always use LRF when a large peer set is feasible In some cases a large peer set is not feasible, thus NC can be an appropriate solution in such cases Windows update requires SSL, but a PC machine cannot maintain 80 SSL connections at a time (complex crypto) Ad hoc networks may have limited connectivity when in a sparse environment LRF is experimentally validated for no more than a few 100 000 of peers, not clear how NC will perform Arnaud Legout © 2006-2012 124 A
125
Peer Selection No serious alternative to the BitTorrent Choke algorithm Choke algorithm [18] Different algorithm in leecher and seed state Peer selection performed in the peer set Choke/unchoke A chokes B if A decides to do not upload to B A unchokes B if A decides to upload to B Interested/not interested A is interested in B if B has at least one piece that A does not have A is not interested in B if B has a subset of the pieces A already has Arnaud Legout © 2006-2012 125
126

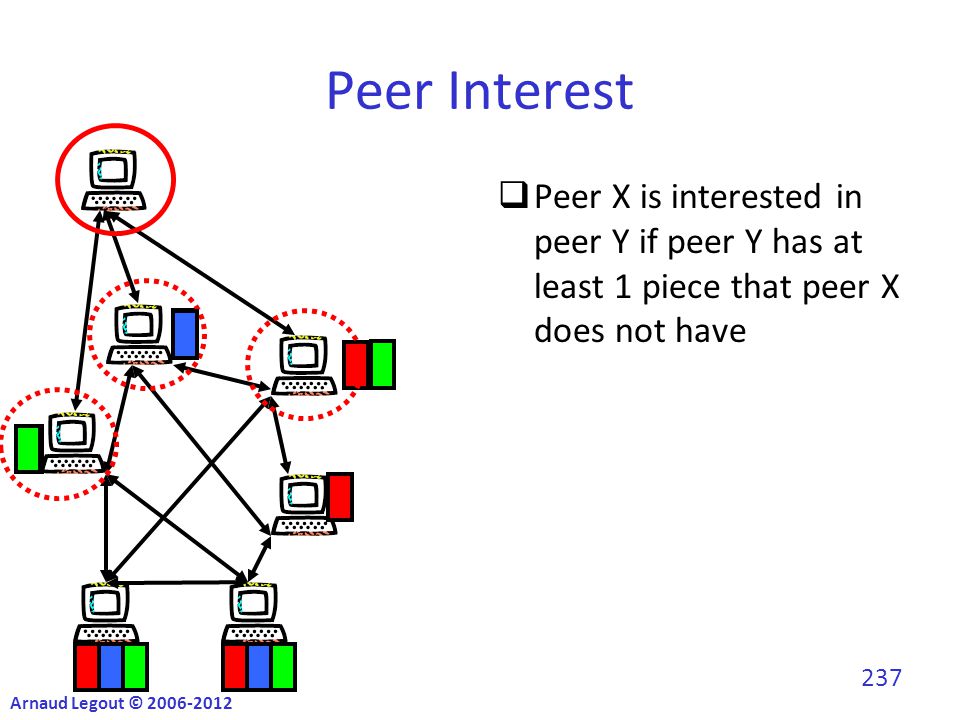

Peer Interest Peer X is interested in peer Y if peer Y has at least 1 piece that peer X does not have Arnaud Legout © 2006-2012 126
127
Choke Algorithm: LS Leecher state (high level description) Every 10 seconds the peers are ordered according to their download rate to the local peer The 3 fastest and interested peers are unchoked Every 30 seconds, one additional interested peer is unchoked at random Called the optimistic unchoke Arnaud Legout © 2006-2012 127
128
Choke Algorithm: LS Leecher state (high level description) No more than 4 interested peers are unchoked at the same time Arnaud Legout © 2006-2012 128
129
Choke Algorithm: LS 10s Time (10 seconds slots) Peer ID : OU : RU 1 2 3 4 5 6 7 8 9 10 Arnaud Legout © 2006-2012 129
130
Real Torrent, LS 1 seed, 26 leechers At torrent startup 350 MB Few peers with a lot of RU Uniform OU Arnaud Legout © 2006-2012 130
131
Choke Algorithm: SS Seed state, version FU (high level description) FU: Favor Upload Oldest version, but still largely used today Same as in leecher state, but peers are ordered according to their upload rate from the local peer In seed state, there is no download Arnaud Legout © 2006-2012 131
132
Choke Algorithm: SS Seed state, version RR (high level description) RR: Round Robin Appeared after the version FU, but not largely used today Every 10 seconds the interested peers are ordered according to the time they were last unchoked For two consecutive periods of 10 seconds, the 3 first peers are unchoked and an additional 4 th interested peer is unchoked at random For the third period of 10 seconds, the 4 first peers are unchoked Arnaud Legout © 2006-2012 132
133
11 Choke Algorithm: SS 10s Time (10 seconds slots) Peer ID (oldest first) : SRU : SKU 1 2 3 4 5 6 7 8 9 10 12 60 seconds Arnaud Legout © 2006-2012 133
134
Real Torrent, SS 1 seed, 26 leechers At torrent startup 350 MB Random SRU Arnaud Legout © 2006-2012 134
135
Choke Algorithm Properties Leecher state Robust to free riders Only contributing peers get a good service from a leecher Leechers unchoked based on download evaluation Selects the fastest interested peers Optimistic unchoke Capacity discovery mechanism Global properties (see later) Clusters peers according to their upload speed Ensures efficient sharing incentive Achieves high upload utilization Arnaud Legout © 2006-2012 135
136
Choke Algorithm Properties Seed state Algorithm FU still implemented in every client except mainline 4.x.y, Ctorrent Algorithm FU Not robust to free riders –The fastest peers get the service even if they do not contribute anything Bad piece diversity –A single free rider can get most of the pieces Arnaud Legout © 2006-2012 136
137
Choke Algorithm Properties Seed state Algorithm RR robust to free riders Every peer gets the same service time Increases the piece diversity Why FU more popular than RR RR is not well known (deployed experimentally on mainline 4.x.y) FU is more efficient in the present context Few contributing peers with a large capacity Arnaud Legout © 2006-2012 137
138
Peer and Piece Selection Local rarest first piece selection [34] Close to ideal entropy Simple and efficient No alternative today except network coding Choke algorithm (seed algorithm RR) [34,35] Achieves high upload utilization Clusters peers with similar upload capacity Ensures effective sharing incentive Robust to free riders P2P fair Arnaud Legout © 2006-2012 138
139

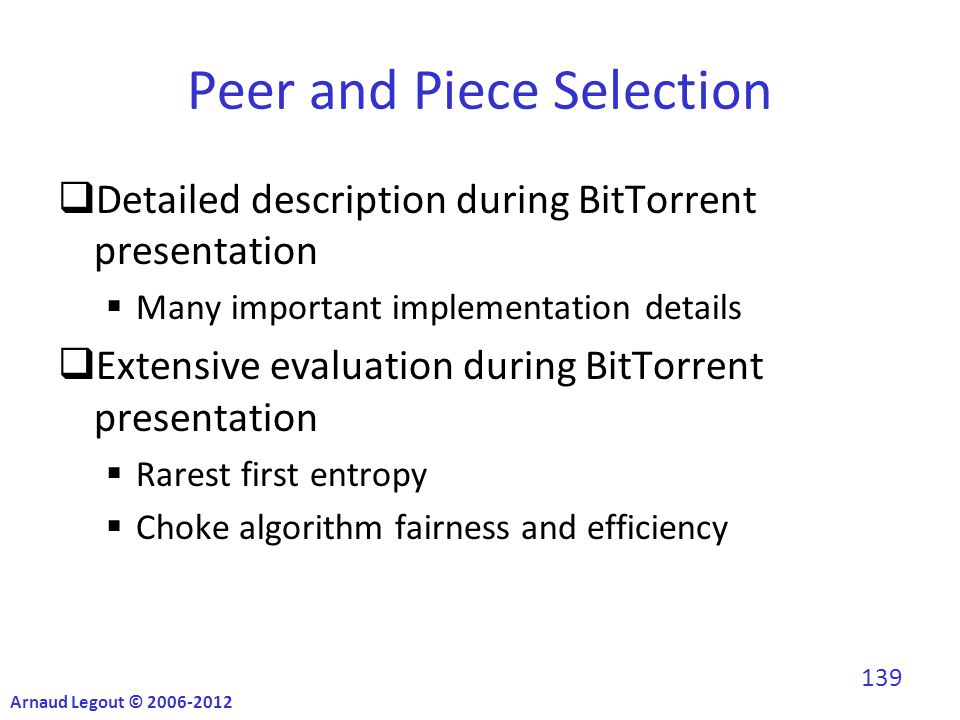

Peer and Piece Selection Detailed description during BitTorrent presentation Many important implementation details Extensive evaluation during BitTorrent presentation Rarest first entropy Choke algorithm fairness and efficiency Arnaud Legout © 2006-2012 139
140
Outline Overview Content Replication BitTorrent Protocol Overview Algorithm details Evaluation Advanced subjects Privacy Arnaud Legout © 2006-2012 140
141
BitTorrent Overview Web server Tracker Get a.torrent file that contains the address of the tracker Get a random peer set P1P2P3 coolContent.xvid Initial Seed Arnaud Legout © 2006-2012 141
142
BitTorrent Specificities Specification [48] (obsolete [18][19]) Unlike any other P2P protocol, there is one session per content A session is called a torrent Torrents are content based Torrents are independent You get no benefit from previous or current torrents No enforcement to stay as a seed Arnaud Legout © 2006-2012 142
143
Pieces and Blocks Content is split into pieces, which are split into blocks Piece 1Piece 2Piece mPiece m-1 Content Block 1Block 2Block kBlock k-1 Arnaud Legout © 2006-2012 143
144
Pieces and Blocks Pieces The smaller unit of retransmission Typically 256/512/1024/2048 kByte Size adapted to have a reasonably small.torrent file One SHA-1 hash per piece in the.torrent file Blocks 16kB (hard coded) Used for pipelining Always 5 requests pending Arnaud Legout © 2006-2012 144
145
.torrent file .torrent file encoded using bencoding [48][18] Info key Length on the content in bytes md5 hash of the content (optional) –Not used by the protocol –pieces SHA-1 hash are enough File Name Piece length (256kB, 512kB, 1024kB, etc.) Concatenation of all pieces SHA-1 hash Arnaud Legout © 2006-2012 145
146
.torrent file .torrent file encoded using bencoding [48][18] Info key slightly different for multi file content Announce URL of the tracker (HTTP) Possibility of announce list for backup trackers –See http://www.bittorrent.org/beps/bep_0012.html Some optional fields Creation date, comment, created by Arnaud Legout © 2006-2012 146
147
Arnaud Legout © 2006-2012 147
148
Peer ID Peer ID=client ID + random string Client ID: name of the client + its version Random string: different each time the client is restarted (take as seed the system clock + the IP address of the peer) Examples [49]: M4-0-2--41dabfd4760b AZ2306-LwkWkRU95L9s AZ2402-YbqhPheosA4a BC0062->*\xb1\xfdMm\xb9\x96\x96\xf0\xb8\xd9 UT1500-\xb5\x81\xf1+\xa3\xd3\xc7\xf3\x7f|\x1a\xb0 Arnaud Legout © 2006-2012 148
149
Peer Bootstrap A peer download a.torrent file from a web server The peer client retrieves the tracker’s URL and connect to it (HTTP GET) The peer sends Info_hash (SHA-1 of the info key) Peer ID Port the client listen on Number of peers wanted (default 50) Various statistics Uploaded, downloaded, left, event (started, stopped, completed) Arnaud Legout © 2006-2012 149
150
Peer Bootstrap The tracker returns Failure raison Interval between statistics A random list of peers already in the torrent Peer ID, peer IP, peer port Typically 50 peers Statistics Complete/incomplete (seed/leechers) Arnaud Legout © 2006-2012 150
151
Peer Bootstrap Tracker not involved in file distribution Low overhead Web server acts as a certification authority If a.torrent file is certified by the web server, there is no way to corrupt the torrent Each piece SHA-1 hash is in the.torrent file No strict certification Arnaud Legout © 2006-2012 151
152
Peer Bootstrap Peer connects to each peer returned by the tracker At most 40 outgoing connections Remaining peers kept as a pool of peers to connect to Peer set (neighbor set) size 80 Maximum 40 outgoing connections Maximum 80 connections in total Results in a well connected graph (random graph) Recent peers get a chance to be connected to old peers Arnaud Legout © 2006-2012 152
153
Graph Construction The tracker allows to construct a random graph Robust to churn Low diameter D In log (d-1) N where d is the outdegree and N is the number of peers For d=80 and N=10 000, D=2.1 For d=80 and N=100 000, D=2.63 For d=80 and N=1 000 000, D=3.16 Low diameter is important for LRF Arnaud Legout © 2006-2012 153
154
Tracker connectivity matrix 1000 peers 40 maximum number of outgoing connections Not a random graph Still well connected Refer to [44] Impact of the maximum number of outgoing connections Arnaud Legout © 2006-2012 154
155
Bottleneck index Ratio of the number of connections between the first 80 peers and the rest of the peers, to the maximum possible number of such connections (80 ¤ 80 = 6400 connections). Indication of the presence of a bottleneck between the initial seed peer set and the rest of the torrent Arnaud Legout © 2006-2012 155
156
Tracker connectivity matrix [44] Arnaud Legout © 2006-2012 156
157
Tracker Overhead Reconnect to the tracker If the peer set size falls below 20 Ask for new peers Small enough to avoid frequent tracker requests Every 30 minutes For statistics: amount of bytes uploaded/downloaded, number of bytes left When the peer leaves the torrent For statistics To update the list of peers Arnaud Legout © 2006-2012 157
158
Tracker Peer Maintenance NAT check is performed in the mainline client Not described in the protocol Not in the protocol Peer health check A peer that crashes will not report its disconnection Intelligent random peer selection No predefined ratio of leechers and seeds Seeds can be returned to a seed Arnaud Legout © 2006-2012 158
159
Tracker Scrape Mode Used to get statistics on torrents complete: # of seeds incomplete: # of leechers downloaded: # of peers who completed a download name: (optional) name of the torrent in the.torrent file (not used in most popular tracker) Arnaud Legout © 2006-2012 159
160

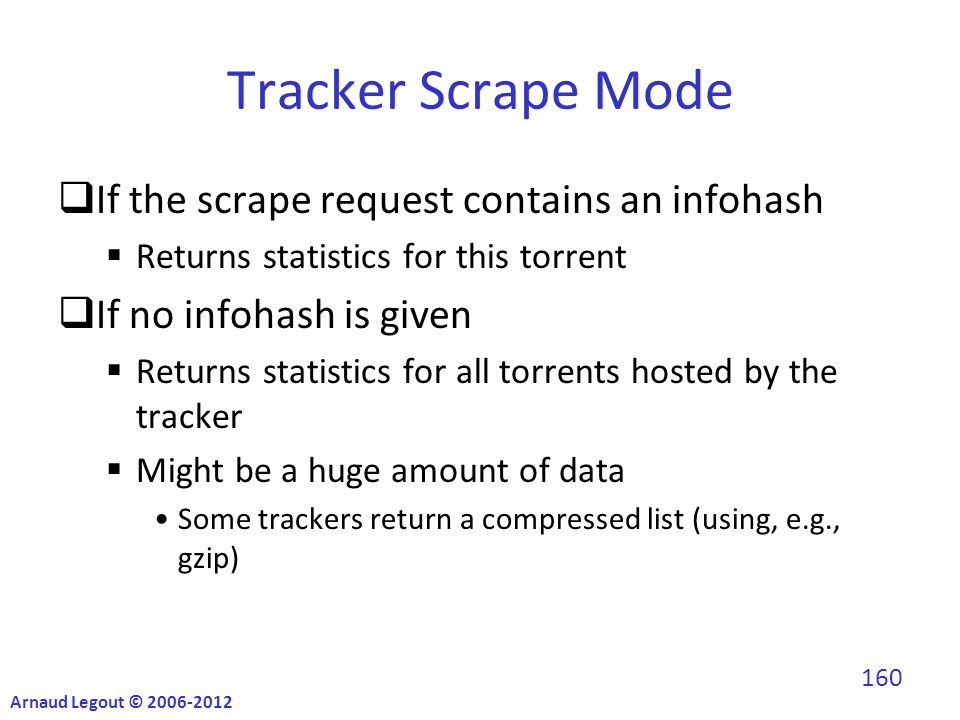

Tracker Scrape Mode If the scrape request contains an infohash Returns statistics for this torrent If no infohash is given Returns statistics for all torrents hosted by the tracker Might be a huge amount of data Some trackers return a compressed list (using, e.g., gzip) Arnaud Legout © 2006-2012 160
161
State of the Art Tracker Opentracker http://erdgeist.org/arts/software/opentracker/ http://erdgeist.org/arts/software/opentracker/ http://opentracker.blog.h3q.com/ http://opentracker.blog.h3q.com/ Used by ThePirateBay Used by the opentracker infrastructure Arnaud Legout © 2006-2012 161
162
Alternative Peer Bootstrap Strategies Most recent clients (uTorrent, mainline, Vuze) might use a different bootstrap Magnet link (BEP 9) DHT (BEP 5) Peer Exchange (PEX) No limit on the number of incoming connections Not well studied Might impact the connectivity matrix, thus the efficiency Arnaud Legout © 2006-2012 162
163

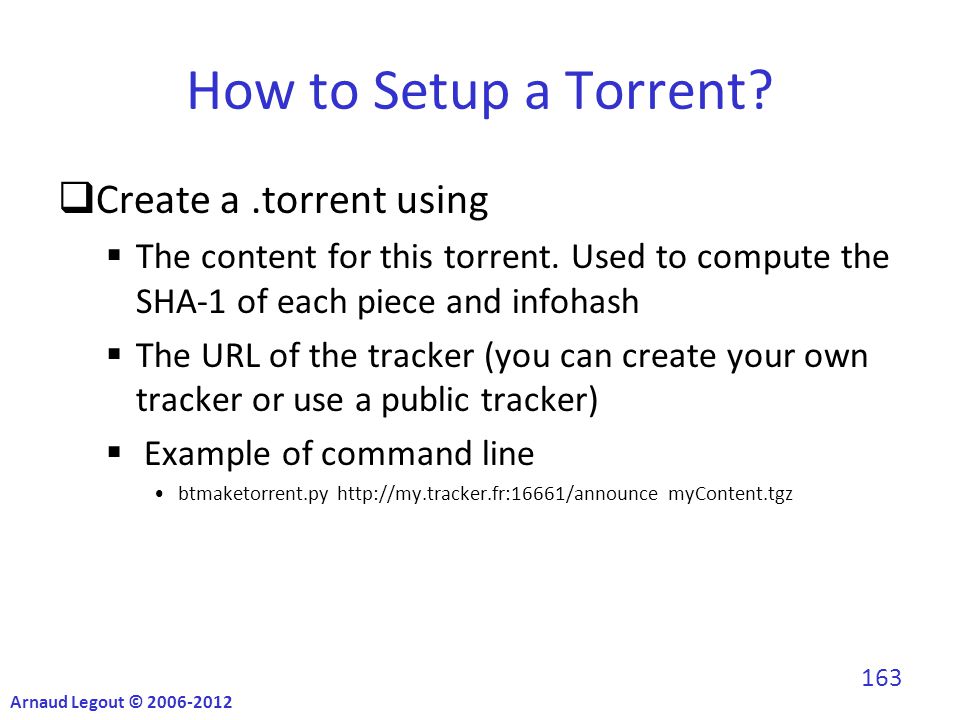

How to Setup a Torrent? Create a.torrent using The content for this torrent. Used to compute the SHA-1 of each piece and infohash The URL of the tracker (you can create your own tracker or use a public tracker) Example of command line btmaketorrent.py http://my.tracker.fr:16661/announce myContent.tgz Arnaud Legout © 2006-2012 163
164
How to Setup a Torrent? Upload the.torrent file to a torrent discovery site (Mininova, ThePirateBay, etc.) Seed the content Simply start a client using the.torrent file and the content to be seeded Example of command line btdownloadheadless.py --minport 16662 --maxport 16662 --save_as myContent.tgz myContent.tgz.torrent Arnaud Legout © 2006-2012 164
165

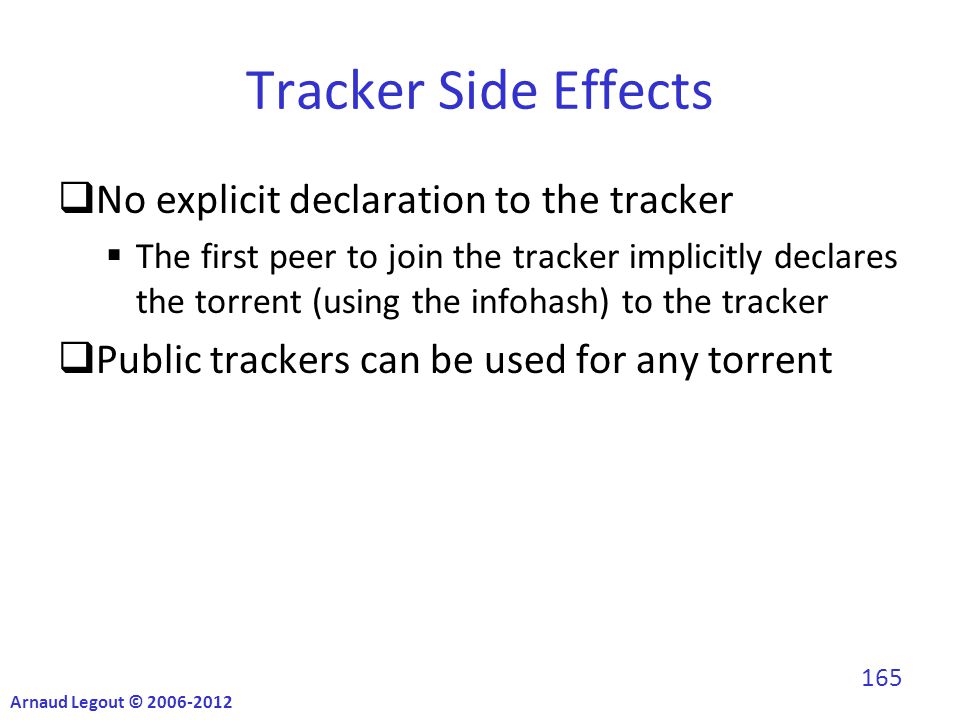

Tracker Side Effects No explicit declaration to the tracker The first peer to join the tracker implicitly declares the torrent (using the infohash) to the tracker Public trackers can be used for any torrent Arnaud Legout © 2006-2012 165
166

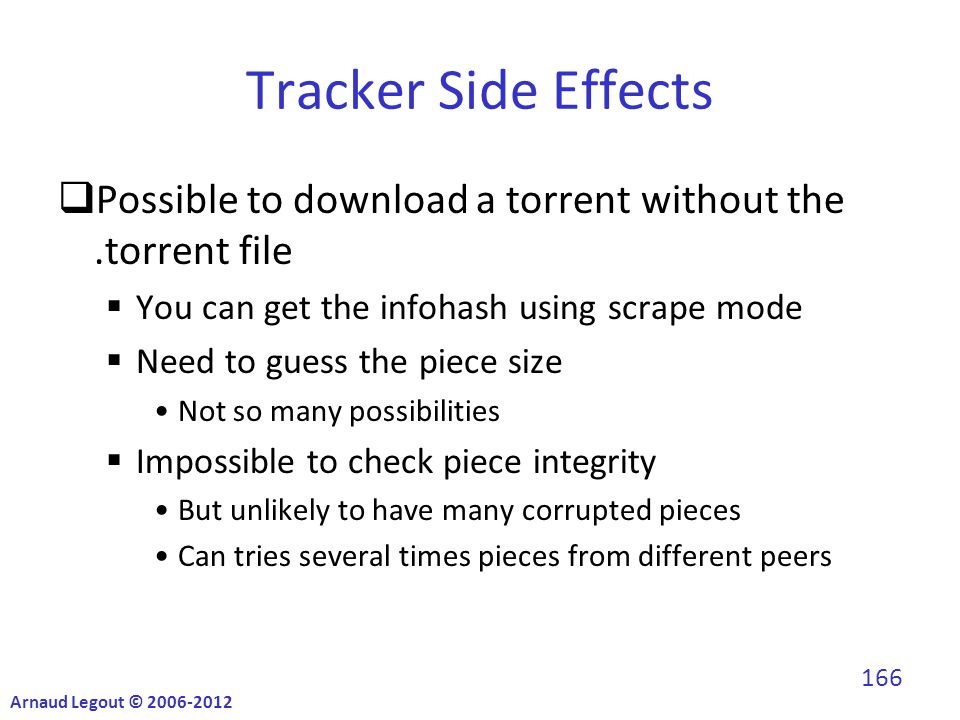

Tracker Side Effects Possible to download a torrent without the.torrent file You can get the infohash using scrape mode Need to guess the piece size Not so many possibilities Impossible to check piece integrity But unlikely to have many corrupted pieces Can tries several times pieces from different peers Arnaud Legout © 2006-2012 166
167
Peer-to-Peer Protocol State Each peer maintains for each remote peer it is connected to the following state am_choking: the local peer is choking this remote peer am_interested: the local peer is interested in at least one piece on this remote peer peer_choking: this remote peer is choking the local peer peer_interested: this remote peer is interested in at least one piece of this local peer Arnaud Legout © 2006-2012 167
168
Peer-to-Peer Protocol State The local peer can receive data from a remote peer if The local peer is interested in the remote peer The remote peer unchoked the local peer Arnaud Legout © 2006-2012 168
169
Peer-to-Peer Protocol [48] Unlike client-server architectures, this is not the client who decides when to receive data A peer can always refuse to serve another peer The decision to unchoke a peer is taken by the choke algorithm The choice of the piece to request is taken using the rarest first algorithm Arnaud Legout © 2006-2012 169
170
Transport Protocol BitTorrent can use TCP or uTP TCP/IP header overhead 40 bytes uTP New transport protocol designed by BitTorrent Inc. for uTorrent Arnaud Legout © 2006-2012 170
171
uTP Why a new transport protocol DSL and cable modems can buffer several seconds worth of packets All traffic crossing this buffer will experience seconds of delays –Very bad for interactive applications like VoIP, Web browsing, games, etc. BitTorrent is very aggressive –Opens tens of connections Arnaud Legout © 2006-2012 171
172
uTP Current solution is to cap the upload rate to 80% of the capacity Suboptimal uTP solution Use end-to-end delay variations to adapt upload speed When delay increases slowdown When delay decreases speedup Less aggressive than TCP Arnaud Legout © 2006-2012 172
173
uTP uTP is on top of UDP IP/UDP/uTP overhead 20 bytes for IP 8 bytes UDP 20 bytes uTP uTP specification BEP 29 Arnaud Legout © 2006-2012 173
174
TCP and uTP usage [53] Credit: sandvine 2011 [53] Arnaud Legout © 2006-2012 174
175

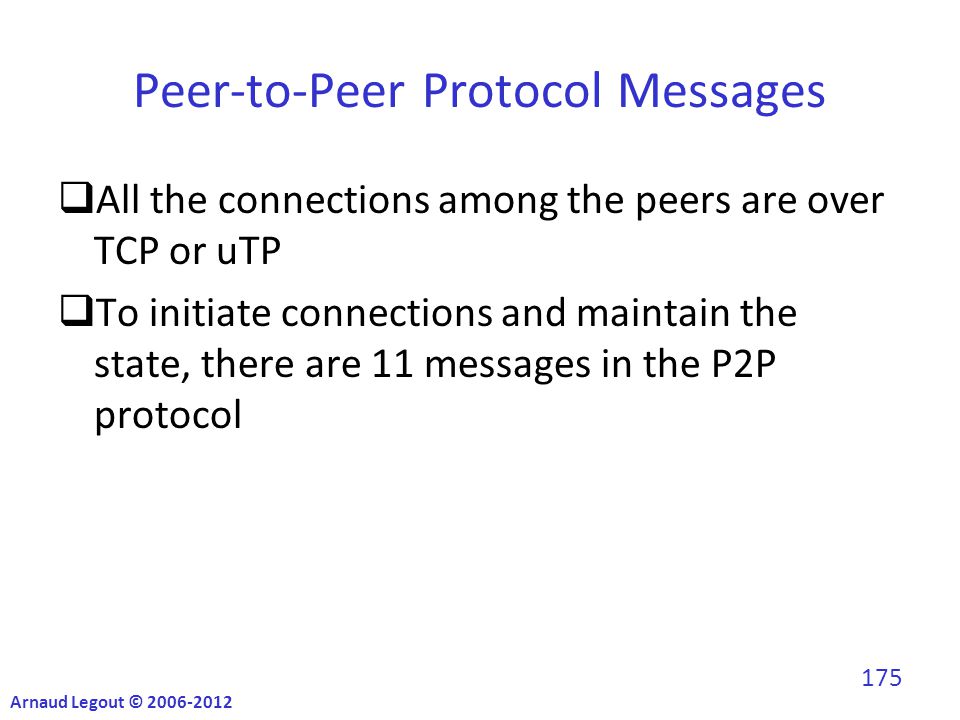

Peer-to-Peer Protocol Messages All the connections among the peers are over TCP or uTP To initiate connections and maintain the state, there are 11 messages in the P2P protocol Arnaud Legout © 2006-2012 175
176
Peer-to-Peer Protocol Messages HANDSHAKE Two way handshake To initiate a connection between two peers Once initiated, the connection is symmetric Contains (68 bytes) Pstrlen=19 (protocol string identifier length) Pstr=“BitTorrent protocol” Reserved (8 bytes) Info_hash Peer ID Arnaud Legout © 2006-2012 176
177
Peer-to-Peer Protocol Messages Once a connection is initiated, all the messages on this connection are of the form : 4 bytes (max length: 2 32 ) : decimal char : message dependant Arnaud Legout © 2006-2012 177
178
Peer-to-Peer Protocol Messages KEEP ALIVE (4 bytes) Sent every 2 minutes unless another message is sent Because there is no way to find that a TCP connection is dead unless sending a message CHOKE (5 bytes) Sent from A to B when A choke B Arnaud Legout © 2006-2012 178
179
Peer-to-Peer Protocol Messages UNCHOKE (5 bytes) Sent from A to B when A unchoke B INTERESTED (5 bytes) Sent from A to B when A is interested in B NOT_INTERESTED (5 bytes) Sent from A to B when A is not interested in B Arnaud Legout © 2006-2012 179
180
Peer-to-Peer Protocol Messages HAVE (9 bytes) Sent from a peer to all the peers in its peer set when it just received the piece with ID, and that the SHA-1 of this piece is checked Send HAVE to peers that already have the piece Send HAVE to the seeds Arnaud Legout © 2006-2012 180
181
Peer-to-Peer Protocol Messages HAVE HAVE sent to each peer in the peer set is not required for the correct protocol operation Suppress HAVE for all peers that already have the piece? However, this information is useful for torrent monitoring Exactly knows who has what Mainline 5.0.5 comment in source code # should we send a have message if peer already has the piece? # yes! it is low bandwidth and useful for that peer. Arnaud Legout © 2006-2012 181
182
Peer-to-Peer Protocol Messages BITFIELD (Ceil[(# of pieces)/8] + 5 bytes) First message sent after the handshake No more sent in the following Sent by both peers once the connection is initialized Bit i in the bitfield is set to 1 if the peer has piece i, 0 otherwise Arnaud Legout © 2006-2012 182
183
Peer-to-Peer Protocol Messages REQUEST (17 bytes) Sent from peer A to peer B to request to peer B the block Of the piece with index Starting with an offset within the piece Of length Arnaud Legout © 2006-2012 183
184
Peer-to-Peer Protocol Messages REQUEST The message allows to specify the block length, but it is hard coded in the client Changing the block size may be useful to improve pipelining under certain conditions No study on the block size impact Block size larger than 2 17 is forbidden Arnaud Legout © 2006-2012 184
185
Peer-to-Peer Protocol Messages PIECE (2 14 + 13 bytes for a standard block size) Only one message used to send blocks Sent from peer A to peer B to send a block of data to peer B Of the piece with index Starting with an offset within the piece Payload is Arnaud Legout © 2006-2012 185
186
Peer-to-Peer Protocol Messages CANCEL (17 bytes) Used in end game mode only Sent from peer A to peer B to cancel a request already sent to peer B for the block Of the piece with index Starting with an offset within the piece Of a length Arnaud Legout © 2006-2012 186
187
BitTorrent BEP BEP: BitTorrent Enhancement Proposal http://bittorrent.org/ http://bittorrent.org/ List of current accepted and draft BEP http://bittorrent.org/beps/bep_0000.html http://bittorrent.org/beps/bep_0000.html BEP 6: Fast Extension http://bittorrent.org/beps/bep_0006.html http://bittorrent.org/beps/bep_0006.html Based on experience on the protocol No standard yet Arnaud Legout © 2006-2012 187
188
Outline Overview Content Replication BitTorrent Protocol Overview Algorithm details Evaluation Advanced subjects Privacy Arnaud Legout © 2006-2012 188
189
BitTorrent Version All results in this section from mainline client 4.0.2 Mainline is the reference BitTorrent implementation Written in python Developed by Bram Cohen, still maintained by his company Mainline 4.0.2 was released in may 2005 Major modifications since 2005 Tracker less extension GUI improvement Localization UPnP Etc. No major modification to the core algorithms (peer and piece selection) Arnaud Legout © 2006-2012 189
190
BitTorrent Version Are the results given in this course still relevant? 4.0.2 is the BitTorrent implementation as specified in the BitTorrent official specification (BEP 3) + the RR choke algorithm in seed state Current (2010) uTorrent/mainline algorithms are the same as 4.0.2 with FU seed state algorithm Arnaud Legout © 2006-2012 190
191
Piece Selection 4 policies Strict priority Random first piece Local rarest first Endgame mode Arnaud Legout © 2006-2012 191
192
Strict Priority Once a block of a piece has been requested, request all the other blocks of the same piece before a block of any other piece Rationale Pieces are the unit of replication It is important to download a piece as fast as possible, only complete pieces can be retransmitted Arnaud Legout © 2006-2012 192
193
Strict Priority Strict priority improves piece download speed Never blocking If a peer is choked during a piece download and this piece is not available on any other peer, a new piece will be requested. As soon as the partially downloaded piece is available, request the remaining blocks with highest priority Arnaud Legout © 2006-2012 193
194
Random First Piece For the first 4 downloaded pieces, the pieces are selected at random Rationale Rare pieces may be slower to download In particular if present on a single peer A peer without a piece cannot reciprocate Must wait for an optimistic unchoke The first piece is most of the time received from several other peers that performs OU Arnaud Legout © 2006-2012 194
195

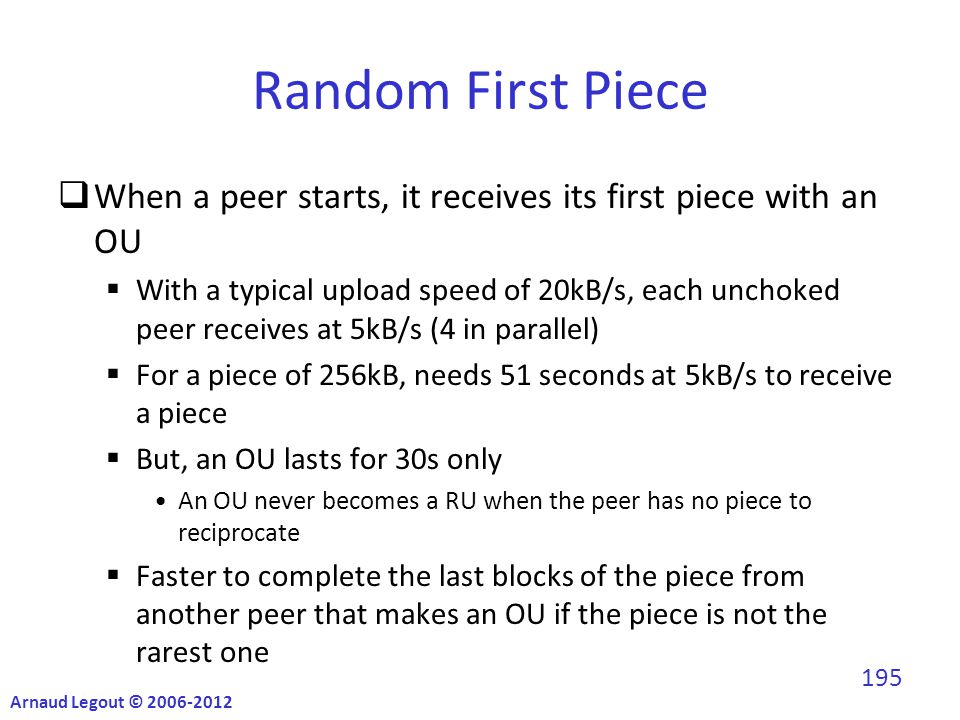

Random First Piece When a peer starts, it receives its first piece with an OU With a typical upload speed of 20kB/s, each unchoked peer receives at 5kB/s (4 in parallel) For a piece of 256kB, needs 51 seconds at 5kB/s to receive a piece But, an OU lasts for 30s only An OU never becomes a RU when the peer has no piece to reciprocate Faster to complete the last blocks of the piece from another peer that makes an OU if the piece is not the rarest one Arnaud Legout © 2006-2012 195
196
Random First Piece Random first piece makes more likely to complete the first piece faster Not optimal, but a good tradeoff between simplicity and efficiency (the random piece may be a rarest one) Only impacts the startup phase of a peer Then switches to local rarest first Arnaud Legout © 2006-2012 196
197
Local Rarest First Download first the pieces that are rarest in the peer set of the peer Rationale Cannot maintain the state for all peers Require a connection to all peers or a centralized component Peer selection should not be constrained by piece availability Entropy The initial seed should send as fast a possible a first copy of the content Arnaud Legout © 2006-2012 197
198
Local Rarest First Improve the entropy of the pieces Peer selection is not biased Better survivability of the torrent Even without a seed the torrent is not dead Increase the speed at which the initial seed delivers a first copy of the content The seed can leave early without killing the torrent Arnaud Legout © 2006-2012 198
199
Endgame Mode When all blocks are either received or have pending requests, request all not yet received blocks to all peers. Cancel request for blocks received. Rationale Prevent the termination idle time Arnaud Legout © 2006-2012 199
200
Endgame Mode Improve the termination idle time Not a major impact at the scale of a download Do not solve the last pieces problem An overloaded peer remains overloaded Arnaud Legout © 2006-2012 200
201
Piece Selection Code For each remote peer (Downloader.py) def _want(self, index): # self.have[index] is true if the remote peer has the piece with ID index # do_I_have_requests returns true if there are still blocks missing for the piece with ID index, or if the piece was not downloaded at all yet. return self.have[index] and self.downloader.storage.do_I_have_requests(index) # self.have.numfalse == 0 true if the remote peer is a seed self.downloader.picker.next(self._want, self.have.numfalse == 0) Arnaud Legout © 2006-2012 201 A
202
Piece Selection Code PiecePicker.py def next(self, havefunc, seed = False): #bests: pieces to be selected with strict priority bests = None bestnum = 2 ** 30 # s is a list of the partially downloaded pieces. # not clear why they make a distinction between # seeds and leechers. if seed: s = self.seedstarted #pieces partially downloaded from seeds else: s = self.started #pieces partially downloaded from leechers Arnaud Legout © 2006-2012 202 A
203
Strict priority for i in s: #havefunc(i) (means want_(i)): selects the rarest pieces among the ones already requested if havefunc(i): if self.numinterests[i] < bestnum: bests = [i] bestnum = self.numinterests[i] elif self.numinterests[i] == bestnum: bests.append(i) if bests: #returns one element of bests at random return choice(bests) Piece Selection Code Number of peers with piece i Arnaud Legout © 2006-2012 203 A
204
Piece Selection Code Random first if self.numgot < self.config['rarest_first_cutoff']: #scrambled: random list of pieces for i in self.scrambled: if havefunc(i): return i return None Number of pieces already received Arnaud Legout © 2006-2012 204 A
205
Piece Selection Code Rarest first #xrange(1,n) returns elements from 1 to n #without list creation, unlike range() for i in xrange(1, min(bestnum, len(self.interests))): #start with the rarest pieces for j in self.interests[i]: if havefunc(j): return j return None interests is a list that contains at the indice i the list of the pieces that are copied i times in the peer set. Arnaud Legout © 2006-2012 205 A
206
Peer Selection Choke algorithm Leecher state Seed state Arnaud Legout © 2006-2012 206
207
Choke Algorithm Leecher State Algorithm Called (round) Every 10 seconds In addition algorithm called Each time an unchoked and interested peer leaves the peer set Each time an unchoked peer becomes interested or not interested Shorten the reactivity Arnaud Legout © 2006-2012 207
208
Choke Algorithm Leecher State Every 3 rounds (30 seconds) An interested and choked peer is selected at random Planned optimistic unchoke It will be unchoked later in the algorithm Arnaud Legout © 2006-2012 208
209
Choke Algorithm Leecher State Each time the algorithm is called Order the peers interested and not snubbed according to their download rate (to the local peer) Snubbed –Did not send a block in the last 30 seconds –Favor peers that have contributed recently Unchoke the 3 fastest peers If the planned optimistic unchoke is not part of the 3 fastest, it is unchoked, DONE Arnaud Legout © 2006-2012 209
210
Choke Algorithm Leecher State Each time the algorithm is called If the planned optimistic unchoke is one of the 3 fastest Choose another peer at random –New planned optimistic unchoke If this new planned optimistic unchoke is interested, unchoke it, DONE If this new planned optimistic unchoke is not interested, unchoke it and chose another planned optimistic unchoke at random, loop again Arnaud Legout © 2006-2012 210
211
Choke Algorithm Leecher State At most 4 peers can be interested and unchoked But, more than 4 peers can be unchoked In case an unchoked peer becomes interested, the choke algorithm is called immediately Improve the reactivity in case there are few interested peers Arnaud Legout © 2006-2012 211
212
Choke Algorithm Seed State Algorithm RR Algorithm Called (round) Every 10 seconds In addition algorithm called Each time an unchoked and interested peer leaves the peer set Each time an unchoked peer becomes interested or not interested Shorten the reactivity Arnaud Legout © 2006-2012 212 A
213
Choke Algorithm Seed State Peers unchoked and interested less than 20 seconds ago or that have pending requests for blocks are ordered according to the time they were last unchoked, most recently unchoked peers first Peers should be active or recent Upload rate discriminate among peers with the same unchoke time U1U1 U2U2 U3U3 U1U1 U2U2 U1U1 U2U2 U3U3 Last unchoked time: T 1 U 2 >U 3 T1T1 T2T2 T3T3 Arnaud Legout © 2006-2012 213 A
214
Choke Algorithm Seed State All the other peers unchoked and interested are ordered according to their upload rate, with the lowest priority U1U1 U2U2 U3U3 U1U1 U2U2 U1U1 U2U2 U3U3 U1U1 U2U2 U3U3 U4U4 Last unchoked time: T 1 U 2 >U 3 >U 4 T1T1 T2T2 T3T3 Only upload rate Arnaud Legout © 2006-2012 214 A
215
Choke Algorithm Seed State For two rounds out of three the three first peers are kept unchoked, and an additional peer choked and interested is unchoked at random For the third round, the four first peers are kept unchoked U1U1 U2U2 U3U3 U1U1 U2U2 U1U1 U2U2 U3U3 U1U1 U2U2 U3U3 U4U4 Last unchoked time: T 1 U 2 >U 3 >U 4 T1T1 T2T2 T3T3 Only upload rate Arnaud Legout © 2006-2012 215 A
216

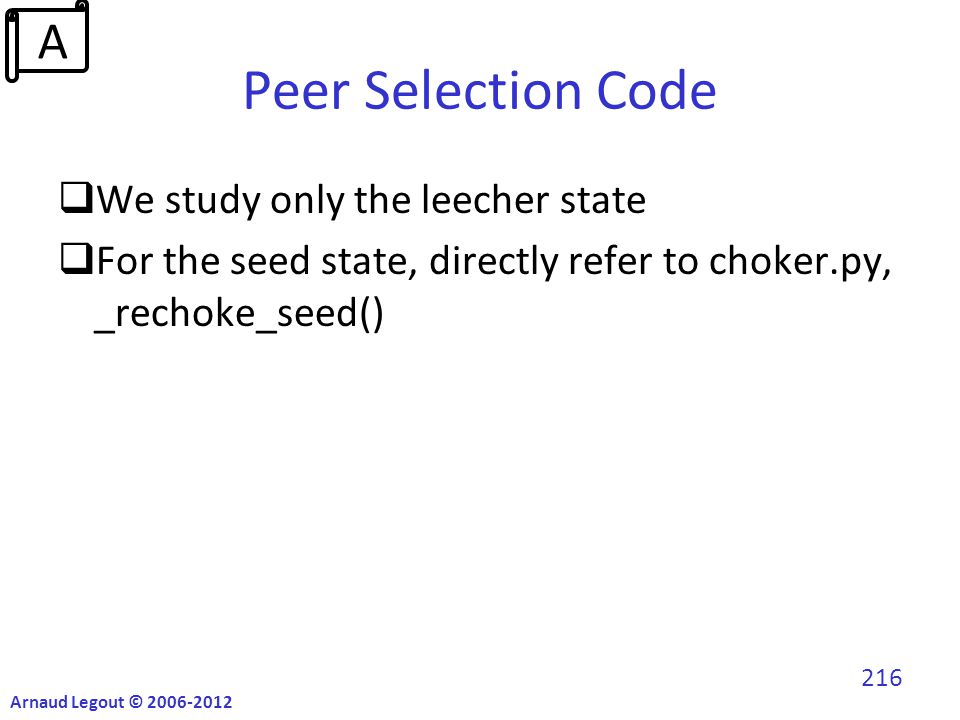

Peer Selection Code We study only the leecher state For the seed state, directly refer to choker.py, _rechoke_seed() Arnaud Legout © 2006-2012 216 A
217
Peer Selection Code Choker.py class Choker(object): def __init__(self, config, schedule, done = lambda:False): schedule(self._round_robin, 10) Build connections[] #maintain the list in a random order def connection_made(self, connection): p = randrange(len(self.connections) + 1) self.connections.insert(p, connection) Arnaud Legout © 2006-2012 217 A
218
Peer Selection Code Call to _rechoke() def connection_lost(self, connection): self.connections.remove(connection) if connection.upload.interested and not connection.upload.choked: self._rechoke() def interested(self, connection): if not connection.upload.choked: self._rechoke() def not_interested(self, connection): if not connection.upload.choked: self._rechoke() Arnaud Legout © 2006-2012 218 A
219
Peer Selection Code Round and planned optimistic unchoke def _round_robin(self): self.schedule(self._round_robin, 10) self.count += 1 if self.done(): #test if it is a seed self._rechoke_seed(True) return if self.count % 3 == 0: #planned optimistic unchoke for i in xrange(len(self.connections)): u = self.connections[i].upload if u.choked and u.interested: #i first in connections[], no optimistic unchoke flag self.connections = self.connections[i:] + self.connections[:i] break self._rechoke() Arnaud Legout © 2006-2012 219 A
220
Peer Selection Code _rechoke() def _rechoke(self): if self.done(): #test if it is in seed state self._rechoke_seed() return preferred = [] #sorted uploaders, fastest first for i in xrange(len(self.connections)): c = self.connections[i] if c.upload.interested and not c.download.is_snubbed(): preferred.append((-c.download.get_rate(), i)) preferred.sort() Arnaud Legout © 2006-2012 220 A
221
Peer Selection Code #SLICING: A[a,b] is inclusive in a, but exclusive in b #A=(1,2,3,4), A[2:]=(3,4) A[:2]=(1,2) #prefcount: nb of RU to perform (3 if len(preferred)>2) prefcount = min(len(preferred), 3) mask = [0] * len(self.connections) for _, i in preferred[:prefcount]: mask[i] = 1 Arnaud Legout © 2006-2012 221 A
222
Peer Selection Code count = max(1, 2 - prefcount) #nb of OU to perform (2 if prefcount=0) for i in xrange(len(self.connections)): c = self.connections[i] u = c.upload #RU if mask[i]: u.unchoke(self.count) #OU elif count > 0: if u.interested: count -= 1 u.unchoke(self.count) #self.count ≠ count else: u.choke() Arnaud Legout © 2006-2012 222 A
223
Maximum Number of Interested Peers to Unchoke Default behavior A maximum of 4 interested peers to unchoke in parallel Depending on the implementations Increase this number according to the upload capacity Rational is that the higher your upload capacity the higher the number of parallel uploads Increase this number with a configuration parameter Arnaud Legout © 2006-2012 223
224
Maximum Number of Interested Peers to Unchoke No clear evaluation of the benefit to increase the number of parallel uploads when the upload capacity is high May be beneficial is your upload capacity is larger than 4 times the mean download capacity of the peers For a mean maximum download speed of 1 Mbit/s your upload speed must be higher than 4 Mbit/s No study on the mean maximum download speed Studies on the number of parallel uploads do not take into account this asymmetry Arnaud Legout © 2006-2012 224
225
Outline Overview Content Replication BitTorrent Overview Algorithm details Evaluation Advanced subjects Privacy Arnaud Legout © 2006-2012 225
226
BitTorrent Use Case BitTorrent is for efficient file replication It is not for Content localization May be hard to find a content Content availability Torrents can die fast, no incentive to keep a torrent up Both issues are important, but orthogonal Arnaud Legout © 2006-2012 226
227
BitTorrent Evaluation Studies Tracker log analysis [20,21,22] Old ones (2003-2004), historical interest Large scale crawl [42, 43] Client side instrumentation [18,34,35] Choke and rarest first algorithm evaluation Simulations [33] Experimentation [18,34,35] Arnaud Legout © 2006-2012 227
228
Study 1 [18,34]
229
Why Studying BitTorrent Peer and Piece Selection? Implemented in all BitTorrent clients Very popular protocol Large fraction of the internet traffic Focus on efficient data dissemination Very simple algorithms Fast to compute Minimal state Easy to implement Arnaud Legout © 2006-2012 229
230

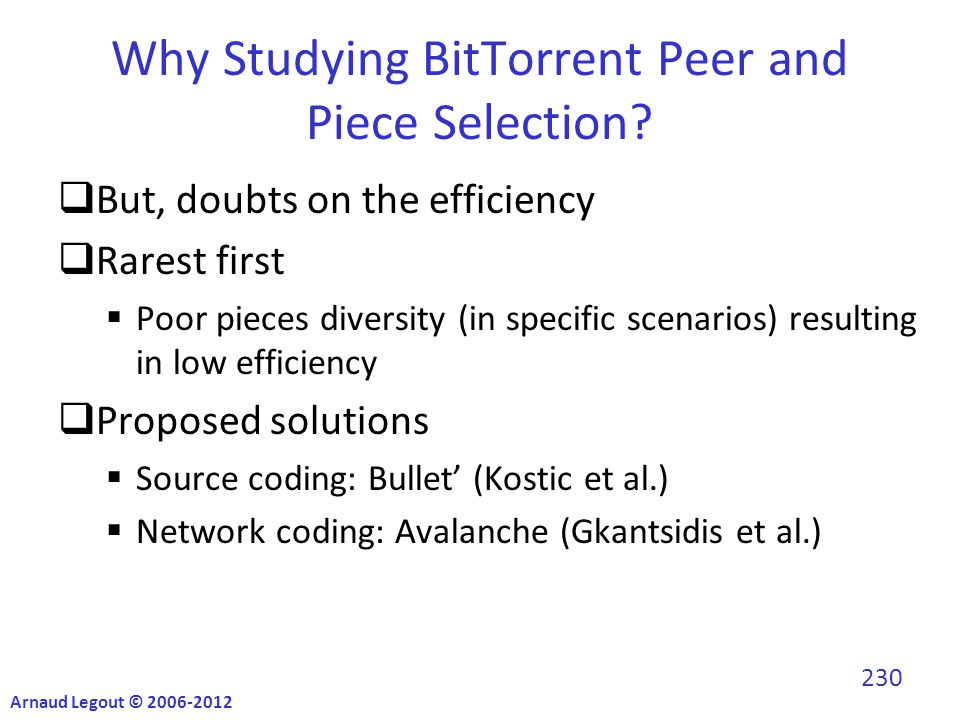

Why Studying BitTorrent Peer and Piece Selection? But, doubts on the efficiency Rarest first Poor pieces diversity (in specific scenarios) resulting in low efficiency Proposed solutions Source coding: Bullet’ (Kostic et al.) Network coding: Avalanche (Gkantsidis et al.) Arnaud Legout © 2006-2012 230
231
Why Studying BitTorrent Peer and Piece Selection? Choke algorithm Unfair Favors free riders Proposed solutions Based on strict byte reciprocation Do we see the claimed deficiencies in real torrents? Study [34], some results come from [18] Arnaud Legout © 2006-2012 231
232

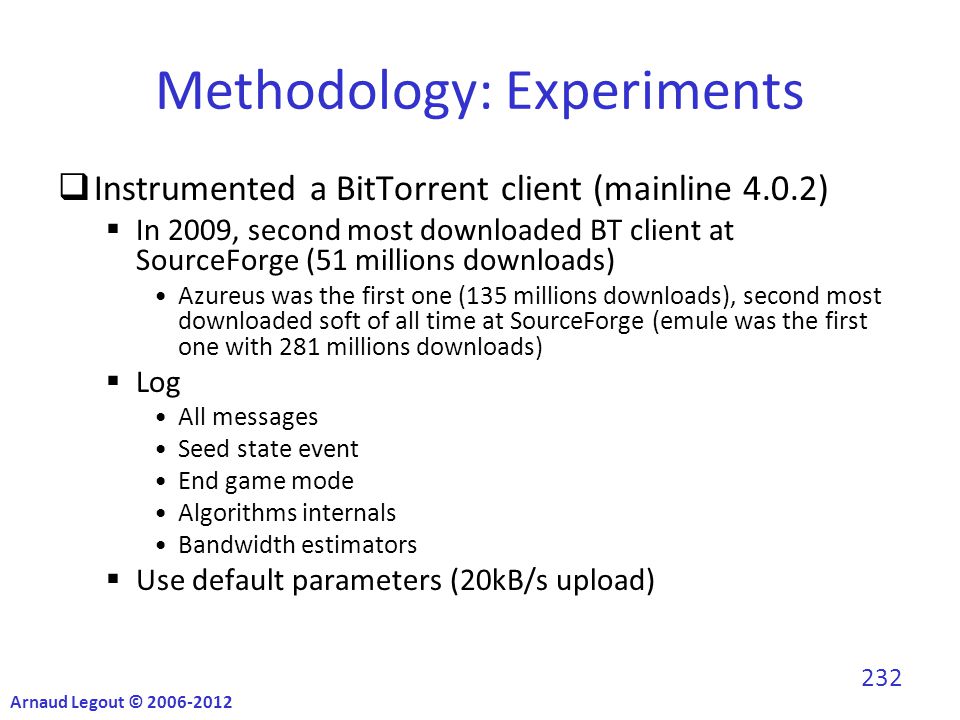

Methodology: Experiments Instrumented a BitTorrent client (mainline 4.0.2) In 2009, second most downloaded BT client at SourceForge (51 millions downloads) Azureus was the first one (135 millions downloads), second most downloaded soft of all time at SourceForge (emule was the first one with 281 millions downloads) Log All messages Seed state event End game mode Algorithms internals Bandwidth estimators Use default parameters (20kB/s upload) Arnaud Legout © 2006-2012 232
233
Methodology: Experiments Connected this client to real torrents Single client to be unobtrusive No assumption on the other real peers Connected to 80 peers selected at random 8 hours experiments per torrent Arnaud Legout © 2006-2012 233
234

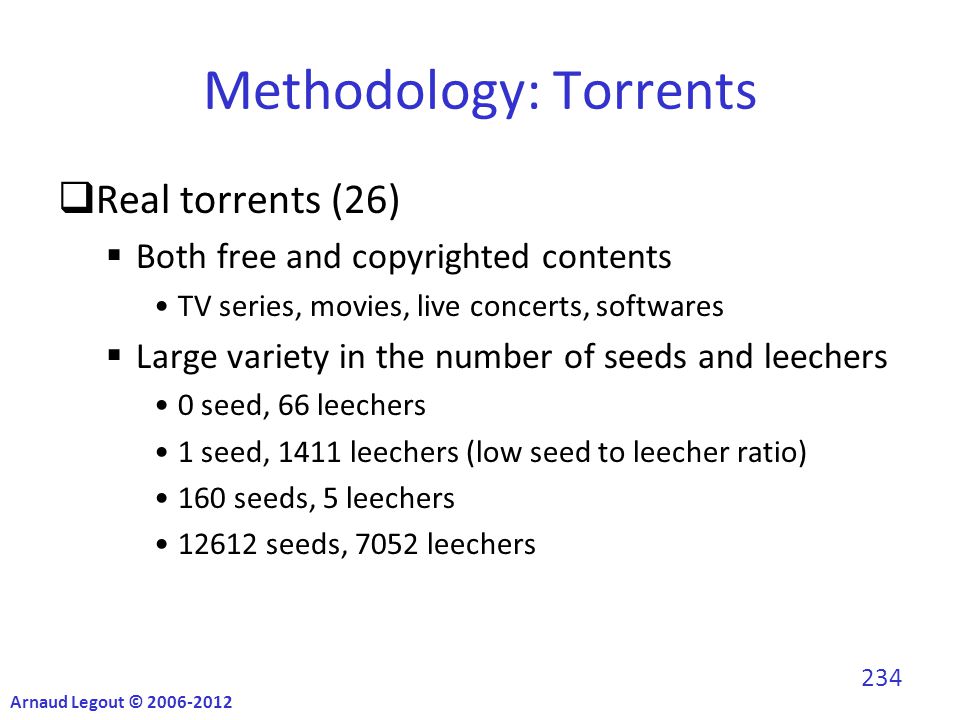

Methodology: Torrents Real torrents (26) Both free and copyrighted contents TV series, movies, live concerts, softwares Large variety in the number of seeds and leechers 0 seed, 66 leechers 1 seed, 1411 leechers (low seed to leecher ratio) 160 seeds, 5 leechers 12612 seeds, 7052 leechers Arnaud Legout © 2006-2012 234
235
Methodology: Torrents Arnaud Legout © 2006-2012 235
236
Methodology: Limitations Single client instrumentation Partial view Is it representative? Unobtrusive, behavior of a new peer Only real torrents No reproducibility No statistics Work on a representative set Arnaud Legout © 2006-2012 236
237
Peer Interest Peer X is interested in peer Y if peer Y has at least 1 piece that peer X does not have Arnaud Legout © 2006-2012 237
238
Peer Availability Peer availability of Y (according to peer X) Peer availability=1 X is always interested in peer Y Peer availability=0 X is never interested in peer Y Peer availability=0.5 X interested in peer Y half of the time peer Y has spent in the peer set of peer X Arnaud Legout © 2006-2012 238
239
Peer Availability What is the peer availability achieved by rarest first? Peer availability is a characterization of piece entropy Arnaud Legout © 2006-2012 239
240
Ideal Piece Selection For each peer X the peer availability of all peers Y (according to X) must be 1 How far is rarest first to an ideal piece selection strategy? Arnaud Legout © 2006-2012 240
241
Peer Availability Local peer always in leecher state Case of seeds not relevant for the peer availability Local peer point of view Cannot conclude on the entire torrent But, yet an important result Arnaud Legout © 2006-2012 241
242
High peer availability Low peer availability Peer Availability Increasing number of seeds Increasing peer availability 3 to 12612 seeds0 to 1 seed 20 th 50 th 80 th Arnaud Legout © 2006-2012 242
243
Peer Availability Rare pieces Pieces only on the initial seed Available pieces Pieces with at least 2 copies in the torrent Poor peer availability for some torrents, but not all, with at most 1 seed Torrents in transient state Initial seed has not yet sent one copy of each piece (see next slide) Peer availability close to one for the others Arnaud Legout © 2006-2012 243
244
Deeper Look at Torrent 8 The initial seed has not yet sent one copy of each piece (transient state) 1 seed, 861 leechers, 863 pieces 36kB/s Arnaud Legout © 2006-2012 244
245
Deeper Look at Torrent 8 There is 0 copy for the least replicated piece for most of the experiment There are missing pieces Continuous increase of the mean number of copies Missing pieces served at the constant rate of 36kB/s Likely it is the upload speed of the initial seed, but no guarantee Arnaud Legout © 2006-2012 245
246
Transient State Torrents with poor peer availability are in transient state The initial seed has not yet sent one copy of each piece Some pieces are rare (only present on the initial seed) Rare pieces served at the upload speed of the seed (constant rate) Other pieces (available pieces) served with a capacity of service increasing exponentially Arnaud Legout © 2006-2012 246
247
Peer Availability in Transient State Reason of the poor peer availability Higher probability to have peers with the same subset of pieces as available pieces are replicated faster than rare pieces are injected in the torrent by the seed Leecher with all the available pieces are not interested in any peer, except the initial seed Arnaud Legout © 2006-2012 247
248
Peer Availability in Transient State This is a provisioning problem, not a piece selection problem Cannot significantly improve on rarest first as the bottleneck is the upload speed of the initial seed Rarest first is an efficient piece selection strategy on real torrents Network coding theoretically optimal in all cases, but more complex Rarest first as efficient as network coding on real torrents (availability close to 1), but much simpler Large peer set (80) Arnaud Legout © 2006-2012 248
249
Deeper Look at Torrent 7 The initial seed has already sent one copy of each piece (steady state) 1 seed, 713 leechers Arnaud Legout © 2006-2012 249
250
Deeper Look at Torrent 7 Mean number of copies well bounded by min and max Closely follow the evolution of the peer set size Min curve closely follow mean but does not get closer Is it a problem of rarest first? Consistent decrease in the number of rarest pieces Each time a peer leave of join the peer set the rarest pieces set change Arnaud Legout © 2006-2012 250
251
Steady State Torrents with a high peer availability are in steady state The initial seed has already served one copy of each piece It is no more a bottleneck for the torrent There is no rare piece Arnaud Legout © 2006-2012 251
252

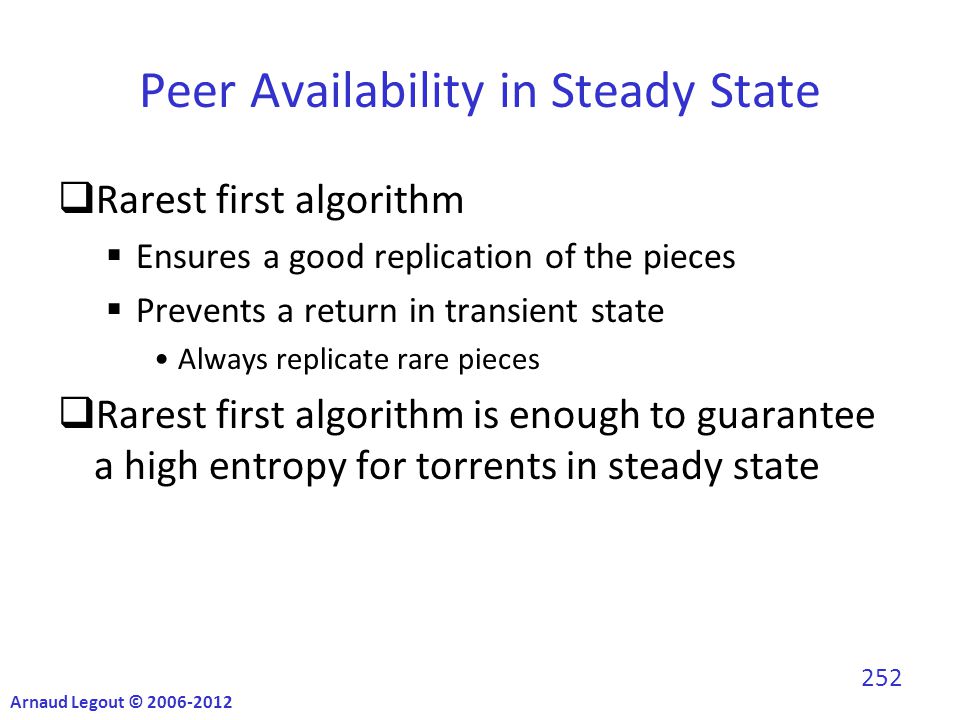

Peer Availability in Steady State Rarest first algorithm Ensures a good replication of the pieces Prevents a return in transient state Always replicate rare pieces Rarest first algorithm is enough to guarantee a high entropy for torrents in steady state Arnaud Legout © 2006-2012 252
253
Peer Availability: Conclusion Rarest first is enough to guarantee a high peer availability on the real torrents considered The poor peer availability for torrents in transient state cannot be much improved using network coding because the bottleneck is the initial seed Arnaud Legout © 2006-2012 253
254
Peer Availability: Conclusion But, this is only a local view and a restricted number of torrents Do not extrapolate those results to any case Peer set of 80 Peers in the Internet: everybody can join everybody (except in case of NAT/firewall) Medium to large contents No guarantee that the peer availability is uniform in the torrent (even if it is likely) This is a first step, but it already provides important results Arnaud Legout © 2006-2012 254
255
Last Pieces Problem Do we observe a last pieces problem? Arnaud Legout © 2006-2012 255 A
256
Last Pieces Problem Few pieces on some overloaded peers Detected at the end of the download because fast peers are chosen first End game mode does not help Is there a last pieces problem? Pieces are unit of replication, but blocks are unit of transmission Is there a last blocks problem? Arnaud Legout © 2006-2012 256 A
257
Last Pieces Problem: Torrent 10 1 seed, 1207 leechers, 1393 pieces No last pieces problem for torrents in steady state But, first pieces problem Arnaud Legout © 2006-2012 257 A
258
Last Blocks Problem: Torrent 10 1 seed, 1207 leechers, 1393 pieces No last blocks problem for torrents in steady state But, first blocks problem Arnaud Legout © 2006-2012 258 A
259
Last Pieces or Blocks Problem: Conclusion No last pieces or blocks problem Appears rarely on torrents in transient state Last pieces on the initial seed only First blocks problem Slow startup phase Area of improvement in particular for small contents Arnaud Legout © 2006-2012 259 A
260
Block Splitting What is the impact of block splitting on piece replication? Arnaud Legout © 2006-2012 260 A
261
Piece Intra Arrival Time [18] Arnaud Legout © 2006-2012 261 A
262
Piece Intra Arrival Time [18] Some pieces have a large piece intra arrival time Pieces downloaded from multiple peers Strict priority mitigates the problem Only complete pieces can be retransmitted What is the impact of the piece intra arrival time on the piece download speed? Arnaud Legout © 2006-2012 262 A
263
Impact of Block Splitting [18] Arnaud Legout © 2006-2012 263 A
264
Impact of Block Splitting: Conclusion [18] Block splitting does not have an impact of piece download throughput Strict priority mitigates successfully the impact of multi peer piece download Arnaud Legout © 2006-2012 264 A
265
Choke Algorithm Which fairness is achieved by the choke algorithm? Arnaud Legout © 2006-2012 265
266
Choke algorithm fairness challenged in several studies Does not guarantee strict byte reciprocation Based on a short term throughput estimation Tit-for-tat Fairness Peer A can download data from peer B if: Tit-for-Tat Fairness (bytes downloaded from B - bytes uploaded to B) < threshold Arnaud Legout © 2006-2012 266
267
Tit-for-Tat Fairness Tit-for-tat fairness problems Does not take into account extra capacity Seeds cannot evaluate the reciprocation of leechers Leechers may have asymmetric capacity May lead to deadlock, as it is complex to find appropriate thresholds Need for another notion of fairness Arnaud Legout © 2006-2012 267
268
Peer-to-Peer Fairness Two criteria (inspired from BitTorrent) Any leecher i with upload speed U i should get a lower download speed than any other leecher j with an upload speed U j >U i A leecher must not receive a higher service than any other leecher that contributes more than himself Do not steal capacity if it is used by someone else No strict reciprocation A seed must give the same service time to each leecher Distribute evenly spare capacity Arnaud Legout © 2006-2012 268
269
Peer-to-Peer Fairness Excess capacity is used No need to maintain thresholds or enforce strict reciprocation Foster reciprocation and penalize free riders Free riders cannot receive a higher capacity of service than contributing peers In case of seeds, the larger the number of contributing leechers, the lower the amount of data received by free riders Arnaud Legout © 2006-2012 269
270
1-56-1011-1521-2526-3016-20 Fairness of the Choke Algorithm LS Arnaud Legout © 2006-2012 270
271
Choke Algorithm: Leecher State We created 6 sets of 5 remote peers each The blue (most left) corresponds to the five peers that receive the most The black (most right) corresponds to the 26 to 30 peers that receive the most Set created based on upload speed (top subplot next slide) Same set kept for the bottom subplot of the next slide Arnaud Legout © 2006-2012 271
272
Fairness of the Choke Algorithm LS 1-56-1011-1516-2021-25 26-30 Good reciprocation for torrents in steady state Choke algorithm biased by poor peer availability for torrents in transient state Arnaud Legout © 2006-2012 272
273
Choke Algorithm: Leecher State Peers that received the most are also peers that gave the most For torrents in steady state, the five best uploaders receive most of the bytes (stable active peer set) Torrent 19 The local peer does not have any leecher in its peer set Arnaud Legout © 2006-2012 273
274
Choke Algorithm: Leecher State 1 seed, 713 leechers, torrent 7 No correlation between interested time and unchoke duration Peers unchoked based on their download rate Arnaud Legout © 2006-2012 274
275
Leecher State: Torrent 7 Most peers OU, few peers RU a lot of time No correlation between RU and the remote peers interested time Correlation between OU and remote peers interested time Because OU is random Choke algorithm in leecher state converge to an equilibrium Arnaud Legout © 2006-2012 275
276

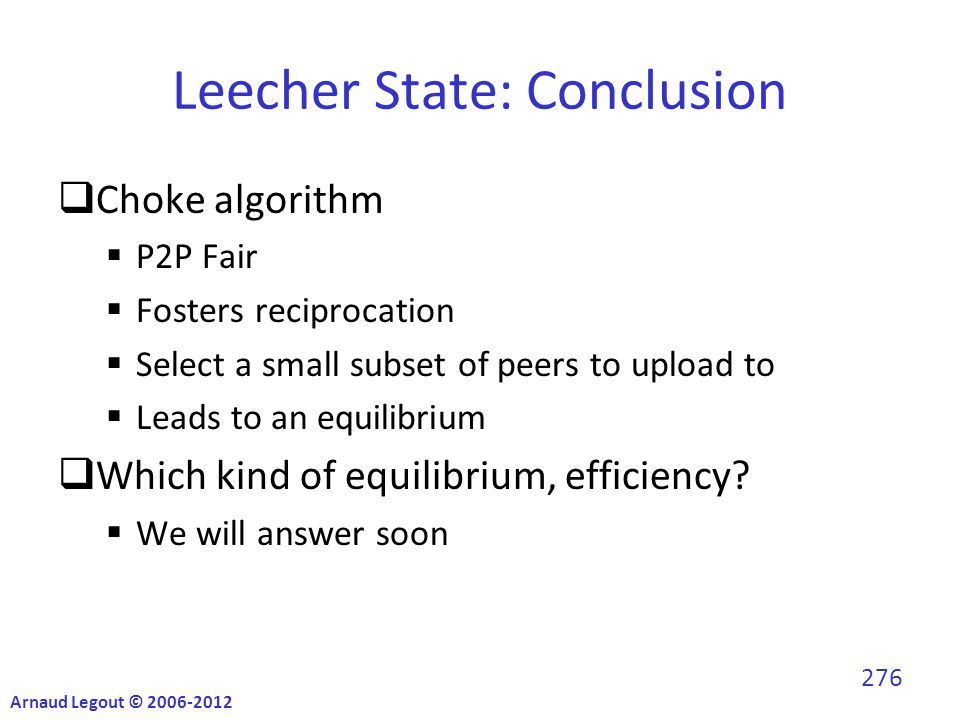

Leecher State: Conclusion Choke algorithm P2P Fair Fosters reciprocation Select a small subset of peers to upload to Leads to an equilibrium Which kind of equilibrium, efficiency? We will answer soon Arnaud Legout © 2006-2012 276
277
Choke Algorithm: Seed State We created 6 sets of 5 remote peers each The blue corresponds to the five peers that receive the most The black corresponds to the 26 to 30 peers that receive the most Arnaud Legout © 2006-2012 277
278
Choke Algorithm: Seed State Arnaud Legout © 2006-2012 278
279
Choke Algorithm: Seed State 1 seed, 713 leechers, torrent 7 Correlation between interested time and unchoke duration Peers more likely to be unchoked when they are interested longer in the seed Arnaud Legout © 2006-2012 279
280

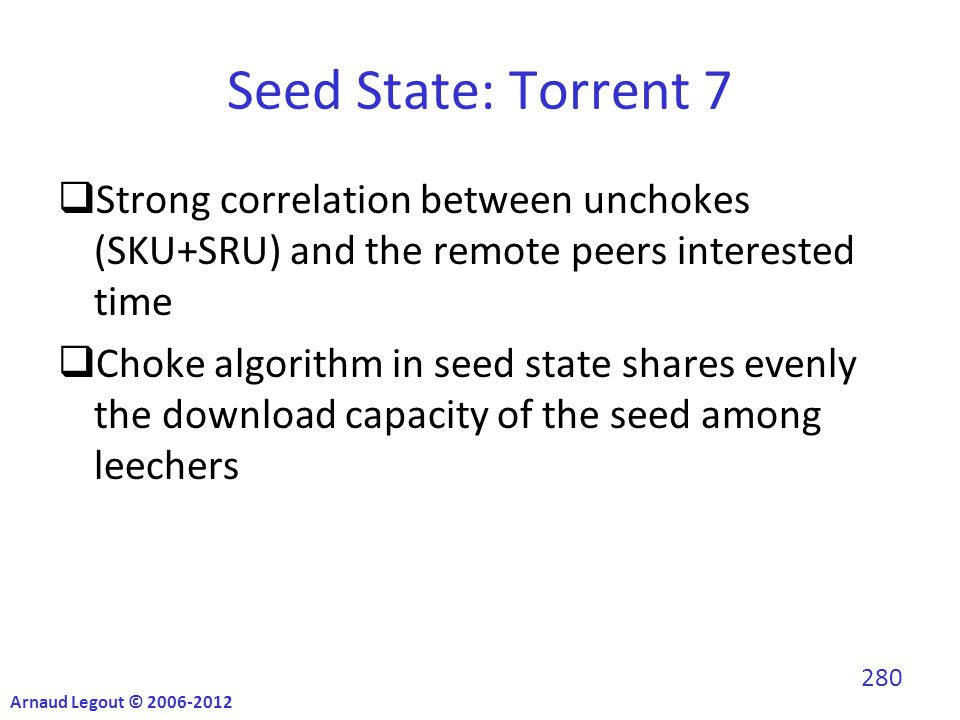

Seed State: Torrent 7 Strong correlation between unchokes (SKU+SRU) and the remote peers interested time Choke algorithm in seed state shares evenly the download capacity of the seed among leechers Arnaud Legout © 2006-2012 280
281
Seed State: Conclusions Same service time to all the leechers Depends on the time spent in the peer set Benefits Entropy improved Everybody receives the same amount of pieces Free riders cannot receive more than contributing leechers Better resilience of the torrent in the startup phase Arnaud Legout © 2006-2012 281
282
Protocol Overhead What is the overhead of the BitTorrent protocol? Arnaud Legout © 2006-2012 282
283
Protocol Overhead: Messages [18] Arnaud Legout © 2006-2012 283
284
Protocol Overhead: Bytes [18] Count the TCP/IP header (40 bytes) Arnaud Legout © 2006-2012 284
285
Protocol Overhead [18] We count as overhead the 40 bytes of the TCP/IP header for each message exchanged plus the BitTorrent message overhead We count as payload the bytes received or sent in a PIECE message without the PIECE message overhead Upload overhead Ratio of all the sent messages overhead over the total amount of bytes sent (overhead + payload) Download overhead Ratio of all the received messages overhead over the total amount of bytes received (overhead + payload) Arnaud Legout © 2006-2012 285
286

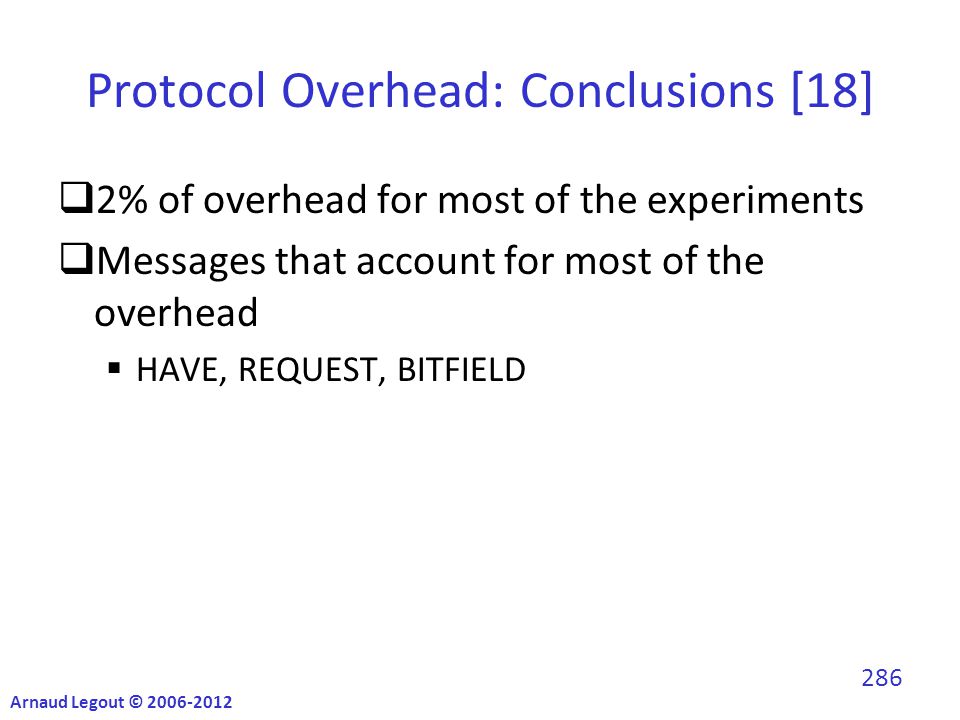

Protocol Overhead: Conclusions [18] 2% of overhead for most of the experiments Messages that account for most of the overhead HAVE, REQUEST, BITFIELD Arnaud Legout © 2006-2012 286
287
Protocol Overhead: Conclusions [18] Download overhead Peers that stay long in a torrent in seed state Do not receive any payload data anymore Continue to receive messages (HAVE, REQUEST, BITFIELD) Increases moderately Unavoidable if a peer acts as a seed, which does not receive anything by definition Arnaud Legout © 2006-2012 287
288
Protocol Overhead: Conclusions [18] Upload overhead Peers that stay few time in a torrent in seed state or that have a small upload speed Bytes uploaded in seed state reduce the upload overhead But, most of the upload overhead is created in leecher state: all the HAVE and REQUEST messages sent in leecher state Arnaud Legout © 2006-2012 288
289
BT Algorithms Conclusions Rarest first guarantees a high peer availability No need for more complex solution in the monitored torrents Transient state is a seed provisioning issue No last pieces problem Choke algorithm is fair and fosters reciprocation Robust to free riders Rarest first and choke algorithms are enough on real torrents Simple and efficient on real torrents Arnaud Legout © 2006-2012 289
290
BT Algorithms Conclusions Keep in mind the limitations of this study Single client instrumentation Limited torrent set Keep in mind the context Torrents in the Internet: good connectivity Medium to large contents Arnaud Legout © 2006-2012 290
291
Properties of the Choke Algorithm We have seen that the choke algorithm in leecher state leads to an equilibrium Questions are what is the efficiency of this equilibrium and what is the reason of this equilibrium? We have just taken the point of view of a single peer Do our results still hold if we take a global point of view? We now focus on the choke algorithm Arnaud Legout © 2006-2012 291
292
Study 2 [35]
293
Methodology: Experiments Instrumentation of around 40 peers on PlanetLab 1 single initial seed always connected for the duration of the experiment 40 leechers join at the same time (flash crowd) and leave as soon as they have the content All peers (seed + leechers) use the instrumented client of study 1 Content: 113MB, 453 pieces (256kB each) Arnaud Legout © 2006-2012 293
294
Methodology: Experiments Run three types of experiments U max is the maximum upload speed Two-class 20 leechers with U max = 20kB/s 20 leechers with U max = 200kB/s Three-class 13 slow leechers with U max = 20kB/s 14 medium leechers with U max = 50kB/s 13 fast leechers with U max = 200kB/s Uniform Uniform max upload distribution with a 5kB/s step starting from 20kB/s Arnaud Legout © 2006-2012 294
295
Methodology: Experiments Seed upload limit Three types of experiments 200 kB/s, 100 kB/s, and 20 kB/s No download limitation for leechers Arnaud Legout © 2006-2012 295
296
Experiments Rational Does the choking algorithm Converge to an equilibrium? Speed and stability Provide effective sharing incentives? How much do I gain if I contribute Reach optimal efficiency? How far is it from a 100% upload utilization What is the impact of the initial seed upload capacity on those properties ? Arnaud Legout © 2006-2012 296
297
Experiments Rational Clustering Peers with same upload speed should interact It may seem clear But A unchokes B, because B has been uploading fast to A B continues uploading fast to A only if A starts uploading fast to B Relationship initiated via an OU unchoke, but OU are performed at random (no guarantee that A and B will ever meet) To create and preserve clustering OU should initiate interactions between peers with similar upload speeds. Such interactions should persist, despite potential disruptions (OU by others, network bandwidth fluctuations) Arnaud Legout © 2006-2012 297
298
Metrics Clustering index (cluster creation) Convergence? Completion time (sharing incentives) How does a peer’s upload speed affects its download speed? Upload utilization (efficiency) What is the peers’ upload utilization? Arnaud Legout © 2006-2012 298
299
Fast Seed What are the choke algorithm properties with a fast seed? Clustering Sharing incentive Upload utilization Arnaud Legout © 2006-2012 299
300
Peer Clustering: Fast Seed seed Three-class scenario, averaged over all 13 runs Seed max upload speed: 200kB/s We see clusters per class Two artifacts Slow class squares are darker since peers take longer to complete Peer 27 slower than other peers in its class (problem with a PlanetLab node): Reciprocates mainly with the slow leechers 20 19 slowmedium fast Peer 27 Arnaud Legout © 2006-2012 300
301
Clustering Index Clustering index of a peer P for class C I C (P)=1 if P unchoked only peers in class C I C (P)=0 if P unchoked only peers not in class C I C (P)=0.3 if P unchoked peers uniformly at random (with 3 classes) Arnaud Legout © 2006-2012 301
302
Peer Clustering: Fast Seed Three-class scenario, averaged over all 13 runs Seed max upload speed: 200kB/s Each peer has a high clustering index to peers in its class Peers of a specific class prefer to unchoke peers in the same class 7 7 90th 10th Clusters of peers in the same class Arnaud Legout © 2006-2012 302
303
Sharing Incentive: Fast Seed Three-class scenario, for all 13 runs Seed max upload speed: 200kB/s Fast peers complete close to earliest possible completion time The more you contribute the faster you complete Earliest possible completion time Effective sharing incentive Arnaud Legout © 2006-2012 303
304
Upload Utilization: Fast Seed Three-class scenario, for all 13 runs Seed max upload speed: 200kB/s Each dot is the average upload utilization over all peers for a single run Upload utilization close to 1 Room for improvement at the beginning High upload utilization Arnaud Legout © 2006-2012 304
305
Slow Seed What are the choke algorithm properties with a slow seed? Clustering Sharing incentive Upload utilization Arnaud Legout © 2006-2012 305
306
Three-class scenario, averaged over all 8 runs Seed max upload speed: 100kB/s seed Peer Clustering: Slow Seed No discernible clusters Fast peers break all clusters Arnaud Legout © 2006-2012 306
307
Peer Clustering: Slow Seed Fast peers have poor peer availability to other peers Fast peers reciprocate with slower peers (when fast peers are not interested in any other fast peer), thus they break clusters for slower peers Arnaud Legout © 2006-2012 307
308
Sharing Incentive: Slow Seed Three-class scenario, for all 8 runs Seed max upload speed: 100kB/s Most peers complete close to the earliest completion time Choking algorithm does not provide effective sharing incentive when the seed is underprovisioned Earliest completion time longer than with a fast seed Earliest possible completion time No effective sharing incentives Arnaud Legout © 2006-2012 308
309
Upload Utilization: Slow Seed Three-class scenario, for all 8 runs Seed max upload speed: 100kB/s Each dot is the average upload utilization over all peers for a single run Still fairly high upload utilization With an initial seed at 20kB/s the upload utilization falls to 0.2 Upload utilization depends on seed upload speed Arnaud Legout © 2006-2012 309
310
Summary Seed provisioning is critical to the choking algorithm’s effectiveness Well-provisioned initial seed Cluster formation, effective sharing incentive, good upload utilization Underprovisioned initial seed No clustering, ineffective sharing incentives, upload utilization can still be high What is the practical impact of these results? Arnaud Legout © 2006-2012 310
311
Seed provisioning It has been known that the initial seed upload speed is critical to the service capacity of torrents in their starting phase We have shown that it is also critical to the robustness of the torrent to free riders The seed should be at least as fast as the fastest leechers to support a robust torrent during the startup phase Arnaud Legout © 2006-2012 311
312

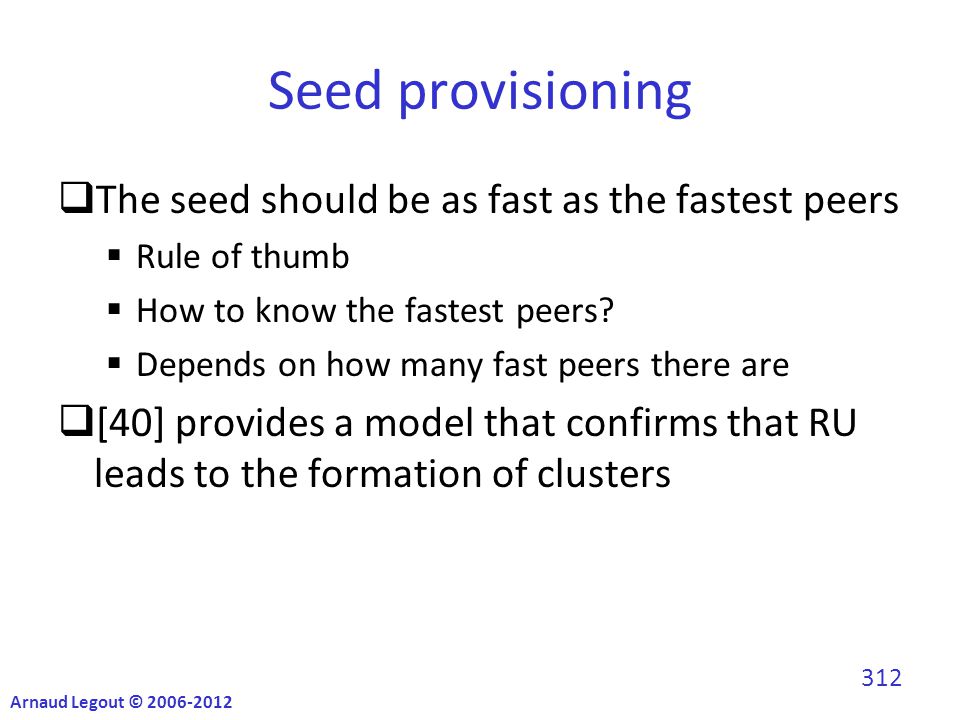

Seed provisioning The seed should be as fast as the fastest peers Rule of thumb How to know the fastest peers? Depends on how many fast peers there are [40] provides a model that confirms that RU leads to the formation of clusters Arnaud Legout © 2006-2012 312
313
Outline Overview Content Replication BitTorrent Overview Algorithm details Evaluation Advanced subjects Privacy Arnaud Legout © 2006-2012 313
314
Defeating BitTorrent
315
Defeating BitTorrent: Myth or Reality Several studies [36-39] claim that BitTorrent can be defeated, i.e., free riding is possible No strong result up to now Those studies either consider the FU choke algorithm in seed state The RR choke algorithm render those attacks impossible Or they use tricks to improve the upload speed of free riders A contributing peer will always receive a higher service rate than a free rider, thus the sharing incentive still exist Arnaud Legout © 2006-2012 315
316
Defeating BitTorrent: Myth or Reality To really defeat BT, one would need to find a way for a free rider to receive a higher service rate than a contributing peer Nobody has found such an attack up to now Arnaud Legout © 2006-2012 316
317
BitTorrent Locality [43] A
318
11 TCP flows: What is BitTorrent Locality? Transit AS Stub AS Inter-AS link 6 5 3 3 3 1 1 2 1 1 random local Why do we care? Arnaud Legout © 2006-2012 318 A
319
Why Do We Care? Content provider save money by using P2P content distribution No need for dedicated infrastructure ISPs suffer from P2P content distribution Do not take into account ISPs topology and in particular peering links Peering links are expensive and loaded ones ISPs block P2P traffic Arnaud Legout © 2006-2012 319 A
320
Why Do We Care? Content providers need ISPs adoption of P2P Do not create a higher load than classical client- server or CDN distribution Do not overload peering links No specific support can be assumed from the ISPs Do not ask for specific servers Do not ask for collaboration (disclosing structure of their network) Arnaud Legout © 2006-2012 320 A
321
1 1 2 1 1 Transit AS Stub AS 1 1 1 1 What Are the Issues? partition How far can we push BiTorrent locality? Arnaud Legout © 2006-2012 321 A
322
Transit AS Stub AS What Are the Issues? 20,000 ASes Very rare torrents larger than 20,000 peers What is the reduction of traffic at the Internet scale? Arnaud Legout © 2006-2012 322 A
323
How far can we push BitTorrent locality? Arnaud Legout © 2006-2012 323 A
324
Methodology Experiments on a cluster (grid5000) 1000 peers, 10 ASes, 100MB content 3 scenarios Slow seed: all peers upload at 20kB/s Fast seed: all peers upload at 20kB/s, the seed at 100kB/s Heterogeneous: 1/3 upload at 20kB/s, 1/3 at 50kB/s, 1/3 at 100kB/s, the seed at 100kB/s Arnaud Legout © 2006-2012 324 A
325
Locality Policy For each AS, we limit the number of TCP connections between peers within the AS and peers outside the AS Locality of X means there are X TCP connection between peers inside the AS and peers outside Arnaud Legout © 2006-2012 325 A
326
Overhead on Inter-AS Links # of inter-AS TCP connections Overhead Arnaud Legout © 2006-2012 326 A
327
Peers Slowdown # of inter-AS TCP connections Slowdown Arnaud Legout © 2006-2012 327 A
328
Summary High overhead reduction is possible without performance losses Validated with Various torrent sizes (from 100 to 10,000 peers) Various AS sizes (from 10 to 5000 peers per AS) Inter-AS bottlenecks Churn Arnaud Legout © 2006-2012 328 A
329
What is the traffic reduction at the Internet scale? Arnaud Legout © 2006-2012 329 A
330

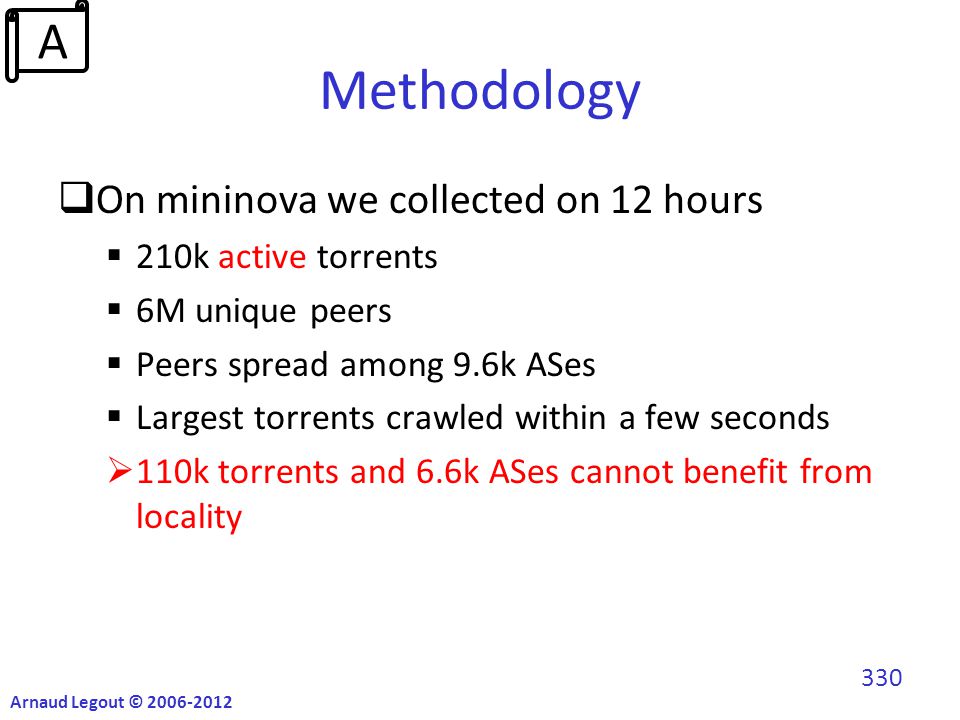

Methodology On mininova we collected on 12 hours 210k active torrents 6M unique peers Peers spread among 9.6k ASes Largest torrents crawled within a few seconds 110k torrents and 6.6k ASes cannot benefit from locality Arnaud Legout © 2006-2012 330 A
331
Methodology Run real controlled experiments using real AS distribution for representative torrents For each torrent, locality savings mainly depend on the number of peers per AS We used the average experimental savings to compute savings on all torrents Arnaud Legout © 2006-2012 331 A
332
AS Distribution of a Typical Torrent # ASes (log scale) # peers (log scale) 9,844 peers 1,043 ASes 386 peers in biggest AS 458 ASes with 1 peer Arnaud Legout © 2006-2012 332 A
333
Benefits at the Internet Scale Cumulated inter-AS traffic (TB) Torrent ID (sorted by decreasing inter-AS traffic, log scale) 11.6PB 41% savings 56% savings Arnaud Legout © 2006-2012 333 A
334

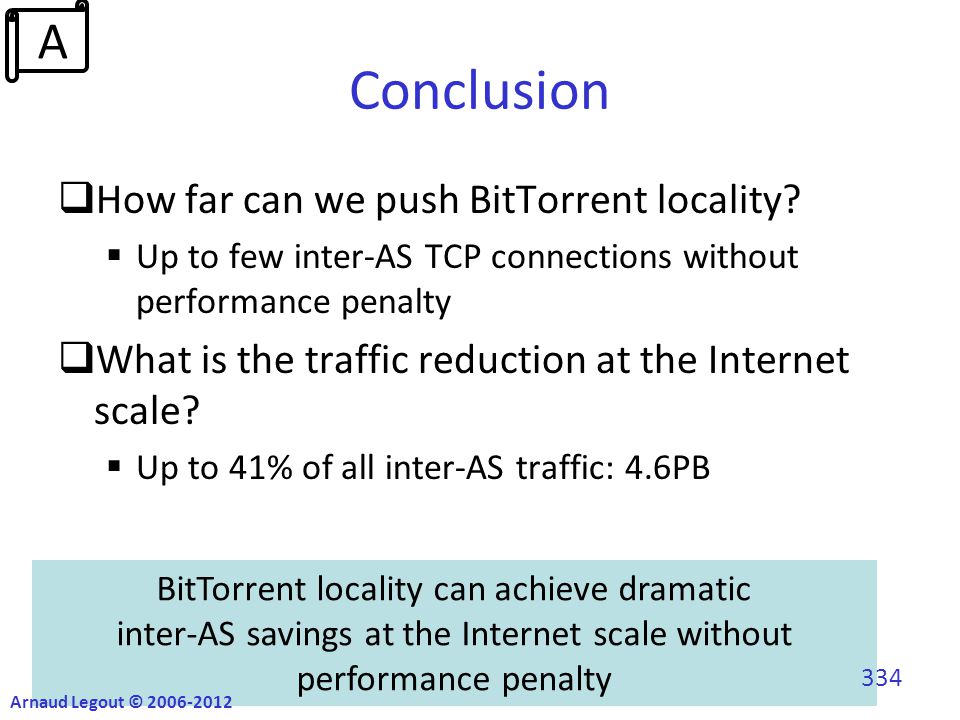

Conclusion How far can we push BitTorrent locality? Up to few inter-AS TCP connections without performance penalty What is the traffic reduction at the Internet scale? Up to 41% of all inter-AS traffic: 4.6PB BitTorrent locality can achieve dramatic inter-AS savings at the Internet scale without performance penalty Arnaud Legout © 2006-2012 334 A
335
Important Studies [45] (T. Karagiannis et al.) Seminal work that introduces the notion of P2P locality and shows that it makes sense (you can reduce traffic) [46] (H. Xie et al. ) Proposition of an infrastructure called P4P to enable P2P locality Arnaud Legout © 2006-2012 335 A
336
Important Studies [47] (D. R. Choffnes et al.) Implementation of a Vuze plugin called Ono to implement locality with client support only [43] (Le Blond et al.) Experimental evaluation of the impact of locality of inter-AS traffic reduction and BitTorrent users download completion time Arnaud Legout © 2006-2012 336 A
337

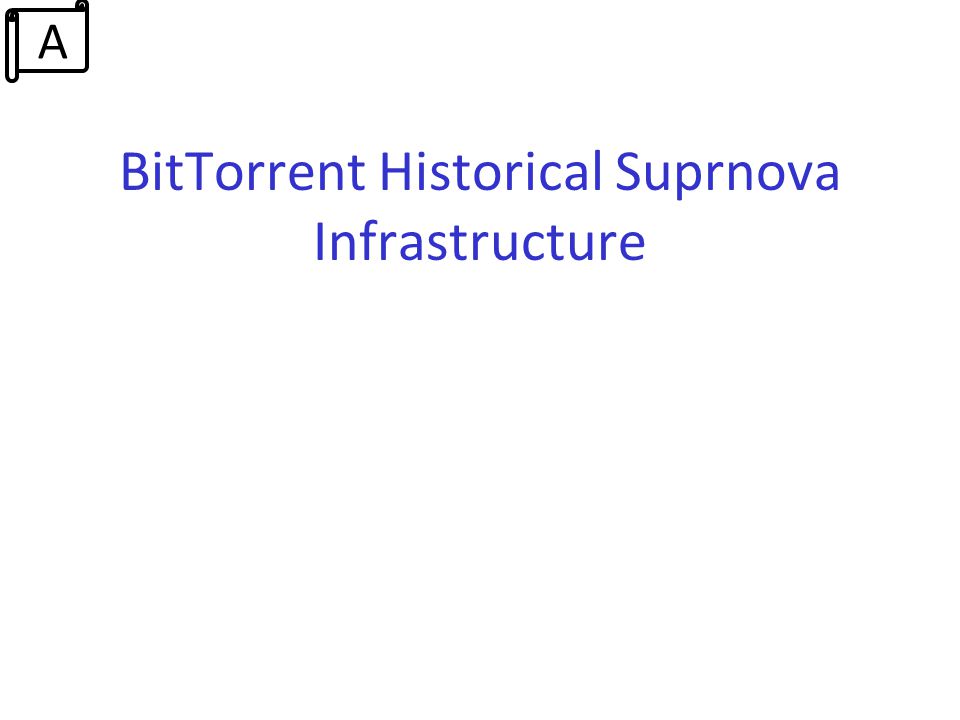

BitTorrent Historical Suprnova Infrastructure A
338
Focus of This Section Give old but well known and referenced results on BitTorrent Between 2003 and 2004 Historically interesting Shows the famous suprnova infrastructure Arnaud Legout © 2006-2012 338 A
339
Architecture Availability [20] What is the availability of architecture web site/tracker? Study conducted on Suprnova Around 46000 available files (October 2004) Discontinued December 2005 Arnaud Legout © 2006-2012 339 A
340
Architecture Availability [20] Suprnova architecture Web site is mirrored for load balancing 1 200 000 visitors per day (Oct 2004) Different servers host the.torrent files Different servers are trackers Frequent DoS attacks, GB daily bandwidth Manual moderation Very efficient fake detection Moderated/unmoderated submitters Arnaud Legout © 2006-2012 340 A
341
Architecture Availability [20] Dec03-Jan04 Daily cycle Number of user depends on availability Credit: Pouwelse et al. [20] Arnaud Legout © 2006-2012 341 A
342
Architecture Availability [20] 1941 trackers 50% have average uptime lower than 1.5 day 234 mirrors 50% have average uptime lower than 2.1 days 95.torrent servers Poor availability Credit: Pouwelse et al. [20] Arnaud Legout © 2006-2012 342 A
343
Architecture Availability [20] Centralized component failures impact availability Need for decentralized components But, centralized component made the strength of Suprnova Moderation Single interface Arnaud Legout © 2006-2012 343 A
344

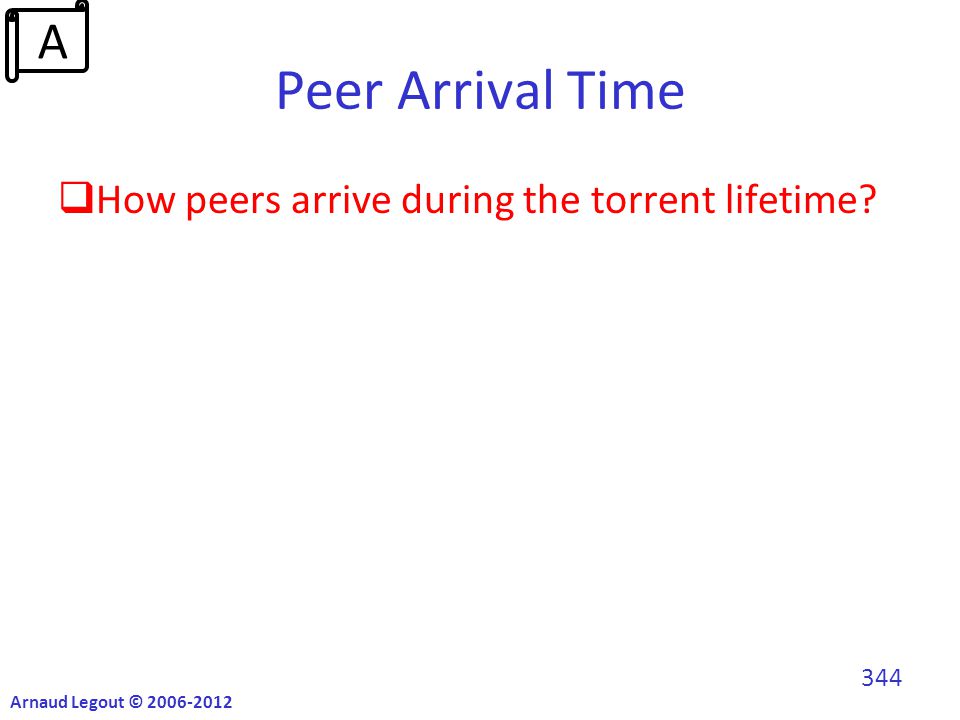

Peer Arrival Time How peers arrive during the torrent lifetime? Arnaud Legout © 2006-2012 344 A
345
Flash Crowd [20] Lord of the ring III 1.87GB Only 1 seed for 5 days Peerping scripts give lower number due to firewall issues See also [21] Credit: Pouwelse et al. [20] Arnaud Legout © 2006-2012 345 A
346
Peer Requests With Time [22] Trace collected from a single tracker (550 torrents) during 48 days end of 2003 Exponential decrease with time Credit: Guo et al. [22] Arnaud Legout © 2006-2012 346 A
347
Peer Arrival Time Number of peers increases exponentially during the flash crowd Number of peers decreases exponentially after the flash crowd, but at a slower rate Arnaud Legout © 2006-2012 347 A
348
Peer Availability [20] How long does a peer stay in seed state? Ubisoft PC game “Beyond Good and Evil” Available using BT in December 10, 2003 Torrent died on March 11, 2004 90 155 different peers identified, but only 53 883 can be tracked (firewall problem) Arnaud Legout © 2006-2012 348 A
349
Peer Availability in Seed State [20] 17% have uptime > 1 hour 3.1% have uptime > 10 hours 0.34% have uptime > 100 hours Credit: Pouwelse et al. [20] Arnaud Legout © 2006-2012 349 A
350
Torrent Lifetime How long is a torrent alive? Can we extrapolate this result to any torrent? All studies on copyrighted contents: high incentive to do not stay as a seed But, even for legal content availability may be poor as if many contents are downloaded, not all can be seeded by the peer at the same time Torrent availability must be provided by a dedicated infrastructure Arnaud Legout © 2006-2012 350 A
351

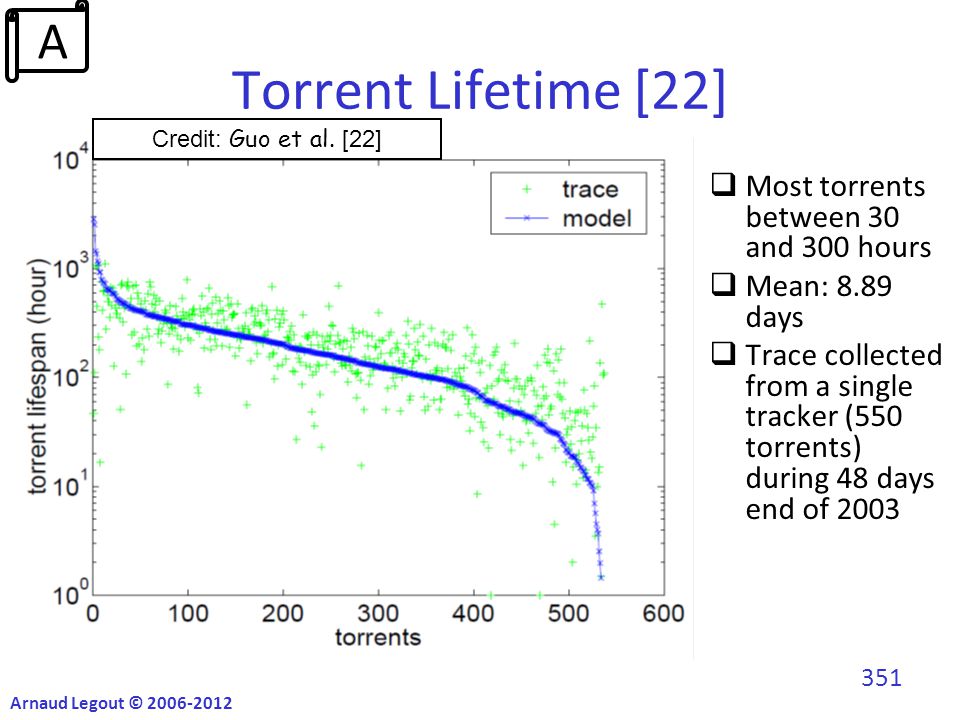

Torrent Lifetime [22] Most torrents between 30 and 300 hours Mean: 8.89 days Trace collected from a single tracker (550 torrents) during 48 days end of 2003 Credit: Guo et al. [22] Arnaud Legout © 2006-2012 351 A
352

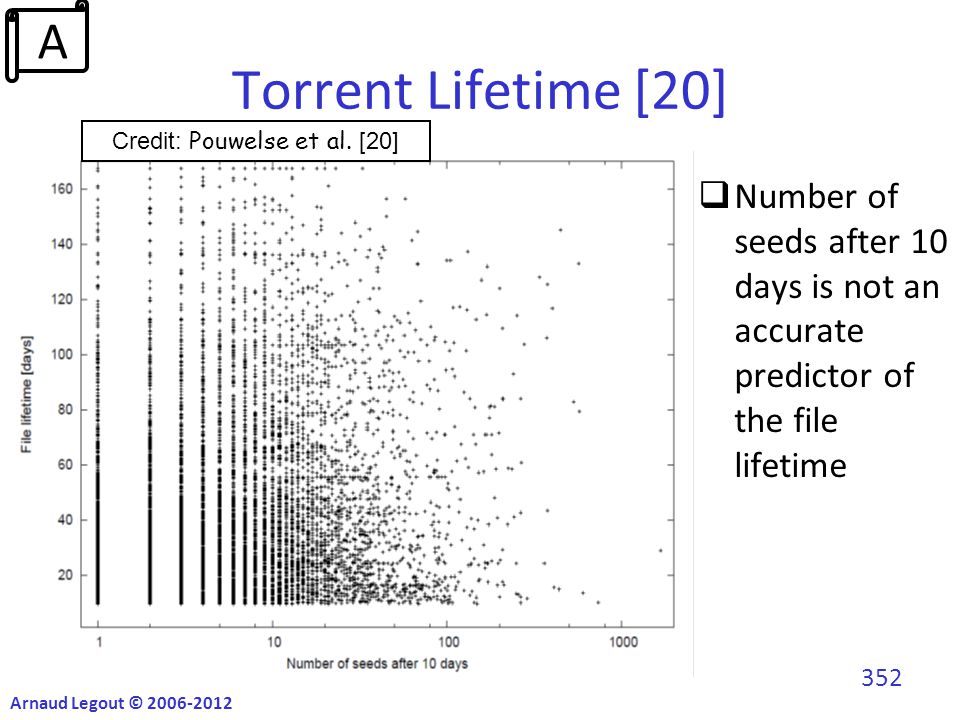

Torrent Lifetime [20] Number of seeds after 10 days is not an accurate predictor of the file lifetime Credit: Pouwelse et al. [20] Arnaud Legout © 2006-2012 352 A
353
Torrent Lifetime [20] Possible reasons The initial seed mainly determines the life time of the torrent Therefore, the number of seeds after 10 days does not bring any information Check whether there is still the initial seed? One seed mainly determines the life time of the torrent Check how long each seed is a seed Arnaud Legout © 2006-2012 353 A
354
Torrent Lifetime [20] Possible reasons The initial seed might just have sent the last piece at day 10 Many seeds are due to leechers completing that will leave soon Need 10 days to seed a content of 1 GB at 9.7kbit/s Arnaud Legout © 2006-2012 354 A
355
Outline Overview Content Replication BitTorrent Privacy Privacy Foundations Privacy attacks Arnaud Legout © 2006-2012 355
356
Foundations You MUST read [23] [24] Small papers (2 and 4 pages only) Best examples on how to use mathematics the simplest and best way Current work Tor, Freenet, Publius, OceanStore, etc. Arnaud Legout © 2006-2012 356
357
Foundations Highly recommended read [51] Easy to read Book to understand the difference between theory and practice Arnaud Legout © 2006-2012 357
358

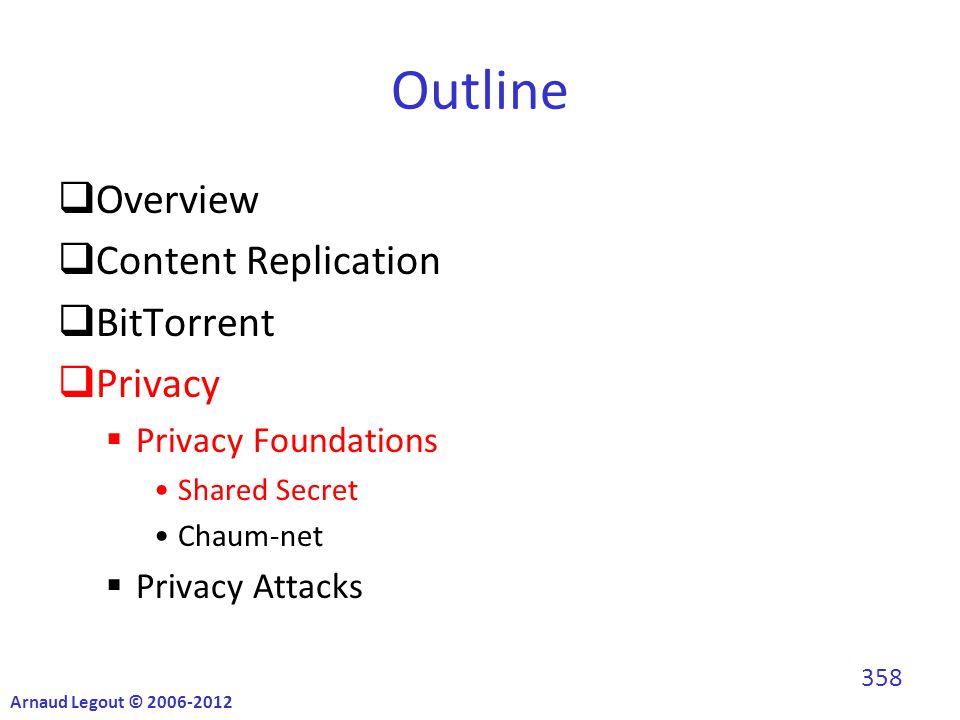

Outline Overview Content Replication BitTorrent Privacy Privacy Foundations Shared Secret Chaum-net Privacy Attacks Arnaud Legout © 2006-2012 358
359
How to Share a Secret [23] Problem 11 scientists are working on a super secret project They don’t trust each other The project is in a digital safe To open the digital safe, at least 6 out of the 11 scientists must be present Apply to any problem with a group of suspicious individuals with conflicting interests that must cooperate Arnaud Legout © 2006-2012 359
360
(k,n) Threshold Scheme Formal definition of the previous example: (k,n) threshold scheme Let D be some secret data Lets divide D into n pieces D 1,…, D n such that Knowledge on any k or more D i pieces makes D easily computable Knowledge of any k-1 or fewer D i pieces leaves D completely undetermined Very useful when D is a decryption key Arnaud Legout © 2006-2012 360
361
Trivial Solution Let’s take a simple problem 11 scientists are working on a secret project The project is encrypted To decrypt the project at least 6 scientists have to be present Trivial solution Encrypt the content N times Each encryption key is split into 6 fragments Arnaud Legout © 2006-2012 361
362
Trivial Solution Arnaud Legout © 2006-2012 362
363

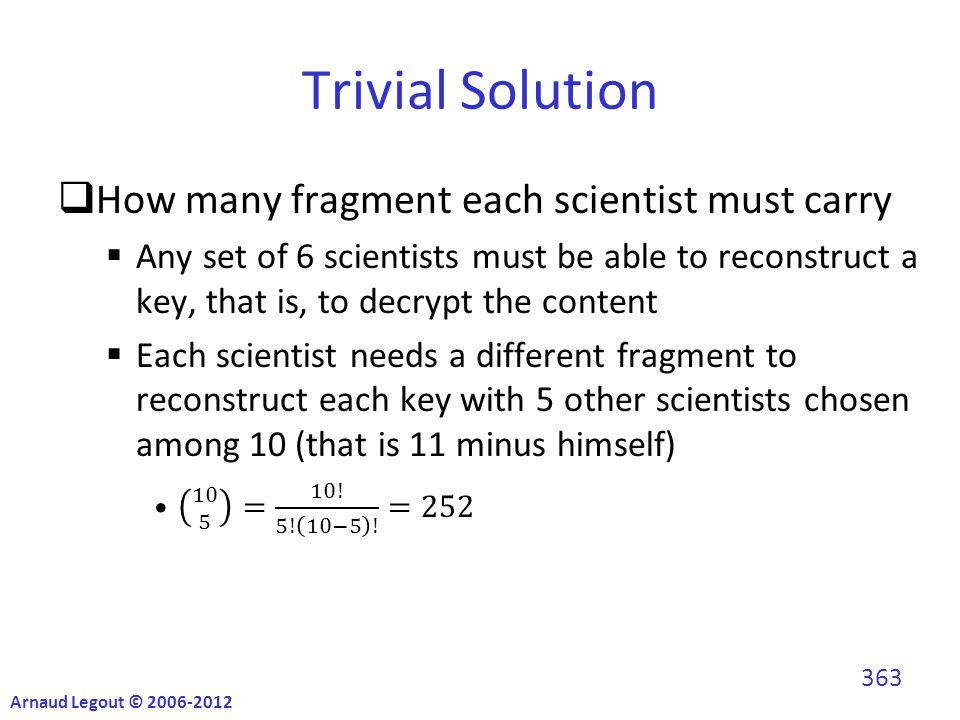

Trivial Solution Arnaud Legout © 2006-2012 363
364

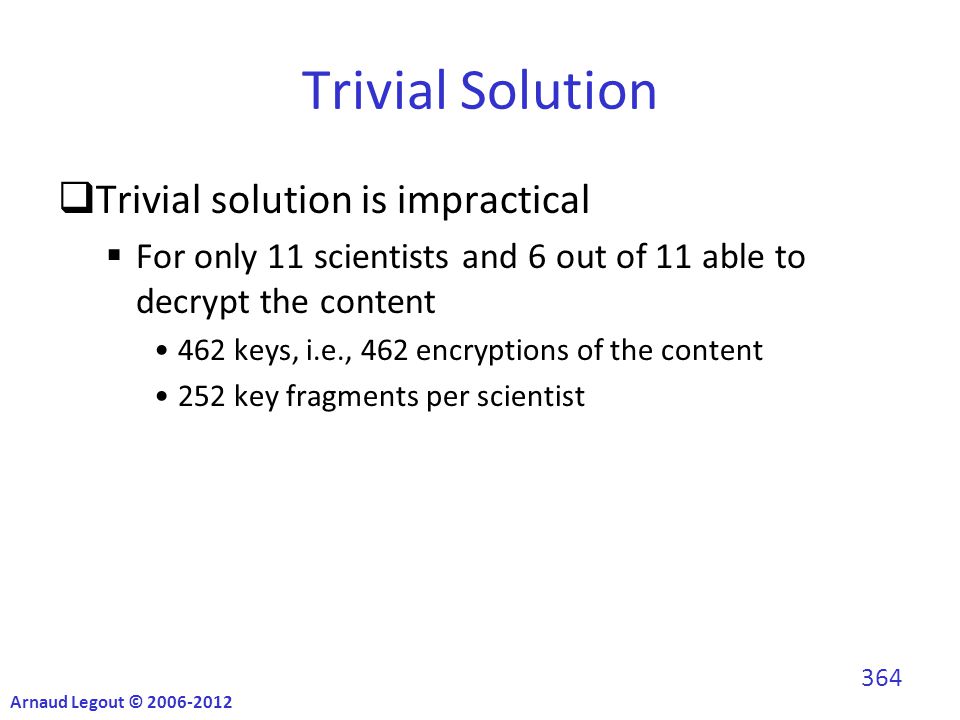

Trivial Solution Trivial solution is impractical For only 11 scientists and 6 out of 11 able to decrypt the content 462 keys, i.e., 462 encryptions of the content 252 key fragments per scientist Arnaud Legout © 2006-2012 364
365
Shamir’s (k,n) Threshold Scheme Basic idea A polynomial of degree k-1 is uniquely defined by k points 2 points for a line, 3 points for a parabola, 4 points for a cubic curve, etc. With k-1 points only there is an infinity of k polynomial that can cross those points So you need at least k points to find the polynomial equation g(x) using Lagrange interpolation The secret is g(0) Arnaud Legout © 2006-2012 365
366
Implementation on Galois Field All the arithmetic is modular arithmetic on Galois field (finite field) Mandatory to provide perfect secrecy, that is k-1 pieces do not give any information on the secret under a (k,n) threshold scheme The set of integers modulo a prime number p forms a field in which interpolation is possible Arnaud Legout © 2006-2012 366
367
Implementation (k,n) Threshold Scheme Secret DRandom Arnaud Legout © 2006-2012 367
368
Implementation (k,n) Threshold Scheme Create the n fragments Compute D 1 =g(1) mod p, D 2 =g(2) mod p, …, D n =g(n) mod p Distribute the tuples (i,D i ) Arnaud Legout © 2006-2012 368
369
Implementation (k,n) Threshold Scheme Retrieve D based on k fragments (x i, D i ) Use Lagrange polynomial interpolation to reconstruct the polynomial g(0) = D is the secret Arnaud Legout © 2006-2012 369
370
Example for (k=3,n=5) The secret is D=148 Let’s take p=997 (prime), a 1 =59 (random), a 2 =340(random) g(x)=148 + 59x + 340x 2 We compute 5 fragments D 1 = g(1) mod 997= 547 D 2 = g(2) mod 997 = 1626 mod 997 = 629 D 3 = g(3) mod 997 = 3385 mod 997 = 394 D 4 = g(4) mod 997 = 5824 mod 997 = 839 D 5 = g(5) mod 997 = 8943 mod 997 = 967 Arnaud Legout © 2006-2012 370
371
Example for (k=3,n=5) Arnaud Legout © 2006-2012 371
372
Properties of Shamir’s Scheme The size of each fragment does not exceed the size of the secret (if p is the same size order as the secret) New fragments can be generated at any time without affecting existing ones All fragments can be changed without changing the secret by generating a new polynomial Arnaud Legout © 2006-2012 372
373
Properties of Shamir’s Scheme Possibility of hierarchical schemes by giving a different number of fragments depending on roles (e.g., president 3 fragments, executives 1 fragment) No unproven assumptions (unlike cryptographic or hash protocols) Arnaud Legout © 2006-2012 373
374
Outline Overview Content Replication BitTorrent Privacy Privacy Foundations Shared Secret Chaum-net Privacy Attacks Arnaud Legout © 2006-2012 374
375
Chaum-net [24] Chaum-net = mix-net Basis for onion routing Problem Alice wants to send a message M to Bob Assume an unsecure communication network Nobody knows who is the sender (even Bob) Nobody knows who is the receiver (except Alice) Nobody, except Bob, is able to get M Arnaud Legout © 2006-2012 375
376
Notations Assume a public key cryptosystem (e.g., RSA) M is a message K is a public key, K -1 is the corresponding private key K( K -1 (M) ) = K -1 ( K(M) ) = M Arnaud Legout © 2006-2012 376
377
Sealed Message A message M is sealed with public key K if only the holder of K -1 can retrieve M K(M) is not sealed because anyone can verify the guess K(N) = K(M) Keep in mind that M might be easy to guess due to its semantic The attacker might know M and just want to find who is sending it Arnaud Legout © 2006-2012 377
378
Sealed Message Solution Create a large random string R (e.g., 256 bits large) Append R to the message M: R,M The sealed message is K(R,M) As R is a large random string, not practical to guess R,M Once Bob get K(R,M) Compute K -1 ( K(R,M) ) = R,M Remove R (easy if R is fixed length) Arnaud Legout © 2006-2012 378
379
Mix A mix is a machine Might be a dedicated machine, a router, an end- user in an overlay Mix purpose Hide correspondences between incoming and outgoing messages Not possible to map a source and an outgoing message (apart for the mix) No possible to map a receiver and an incoming message (apart for the mix) Arnaud Legout © 2006-2012 379
380
Trust in Mix But, the mix can make the correspondence between incoming and outgoing messages If the mix compromised Possible to know the sender and receiver for each message But, impossible to find what is the message Arnaud Legout © 2006-2012 380
381
Trust in Mix Use a cascade of mixes A single mix in the cascade is enough to hide correspondences between incoming and outgoing messages Work with a partially trusted set of mixes As long as one mix in the cascade can be trusted Or, as long as all untrusted mixes in the cascade do not cooperate Arnaud Legout © 2006-2012 381
382
Cascade of Mixes No guarantee that it works Increasing the number of mixes in the cascade Increases the confidence But, increases the end-to-end delay Tor uses at least 3 mixes selected at random (see [50] for details) Called a Circuit Periodically select new random mixes to form a new circuit Arnaud Legout © 2006-2012 382
383

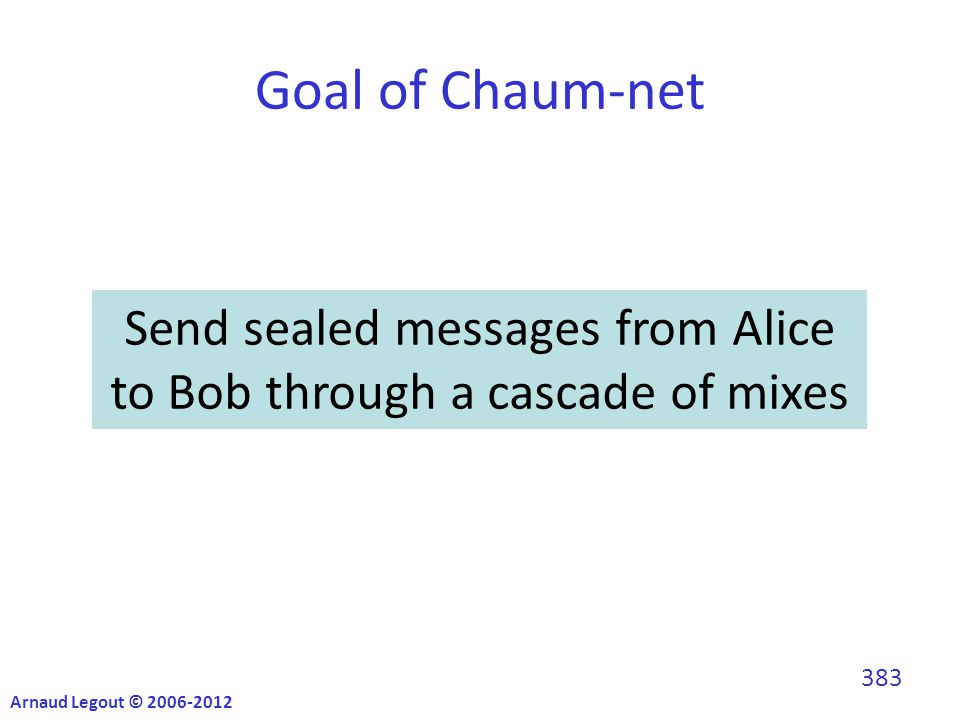

Goal of Chaum-net Send sealed messages from Alice to Bob through a cascade of mixes Arnaud Legout © 2006-2012 383
384
How It Works? Assume an overlay of end-users Each end-user has a couple of private and public keys We note the public key K A for end-user A The public keys and the address of owners are publicly available (K A,IP A ) for each end-user A In a central repository, using a distributed storage, etc. Arnaud Legout © 2006-2012 384
385
How It Works? Alice wants to send the message M to Bob Any other end-user may act as a mix Alice selects at random a few end-users Get their public key and address Typically select 3 mixes Arnaud Legout © 2006-2012 385
386
How to Send the Message? The path is A -> B -> C -> Bob Create layered (onion) sealed messages from Bob to A Alice BobABC Arnaud Legout © 2006-2012 386
387
How to Send the Message? Alice BobABC K Bob (R 0,M) Bob Arnaud Legout © 2006-2012 387
388
How to Send the Message? K C (Bob,R 1,K Bob (R 0,M)) Bob C Next hop address Alice BobABC Arnaud Legout © 2006-2012 388
389
How to Send the Message? K B (C,R 2,K C (Bob,R 1,K Bob (R 0,M))) Bob C B Next hop address Alice BobABC Arnaud Legout © 2006-2012 389
390
How to Send the Message? K A (B,R 3,K B (C,R 2,K C (Bob,R 1,K Bob (R 0,M)))) Bob C B A Next hop address Alice BobABC Arnaud Legout © 2006-2012 390
391
K A (B,R 3,K B (C,R 2,K C (Bob,R 1,K Bob (R 0,M)))) B,R 3,K B (C,R 2,K C (Bob,R 1,K Bob (R 0,M))) How to Relay the Message? Alice BobABC Next Hop Arnaud Legout © 2006-2012 391
392
K B (C,R 2,K C (Bob,R 1,K Bob (R 0,M))) C,R 2,K C (Bob,R 1,K Bob (R 0,M)) How to Relay the Message? Alice BobABC Next Hop Arnaud Legout © 2006-2012 392
393
K C (Bob,R 1,K Bob (R 0,M)) Bob,R 1,K Bob (R 0,M) How to Relay the Message? Alice BobABC Next Hop Arnaud Legout © 2006-2012 393
394
K Bob (R 0,M) M How to Relay the Message? Alice BobABC Arnaud Legout © 2006-2012 394
395
From Theory To Practice Attacks still possible Timing Correlate when packets are received and sent at each mix Can be solved using batches Active end-users Possible to know who is sending and who is receiving Can be solved with padding, but highly costly Read [24] and [50] Arnaud Legout © 2006-2012 395
396
Outline Overview Content Replication BitTorrent Privacy Privacy Foundations Privacy Attacks Introduction to Privacy Practical Attacks Arnaud Legout © 2006-2012 396
397
Who (Really) Cares About Privacy? Privacy has an ambivalent status Law/states fails to protect privacy of users in the internet It is on a per-country basis, but the internet is worldwide Users spread personal information all over the internet Anonymizing IP addresses is ineffective Extremely complex to preserve privacy Arnaud Legout © 2006-2012 397
398
Why Should I Care? “I do nothing illegal” Where? No problem to publish all your browsing history of the past 2 years? “I do not leave any personal information” Are you browsing the Web? Arnaud Legout © 2006-2012 398
399

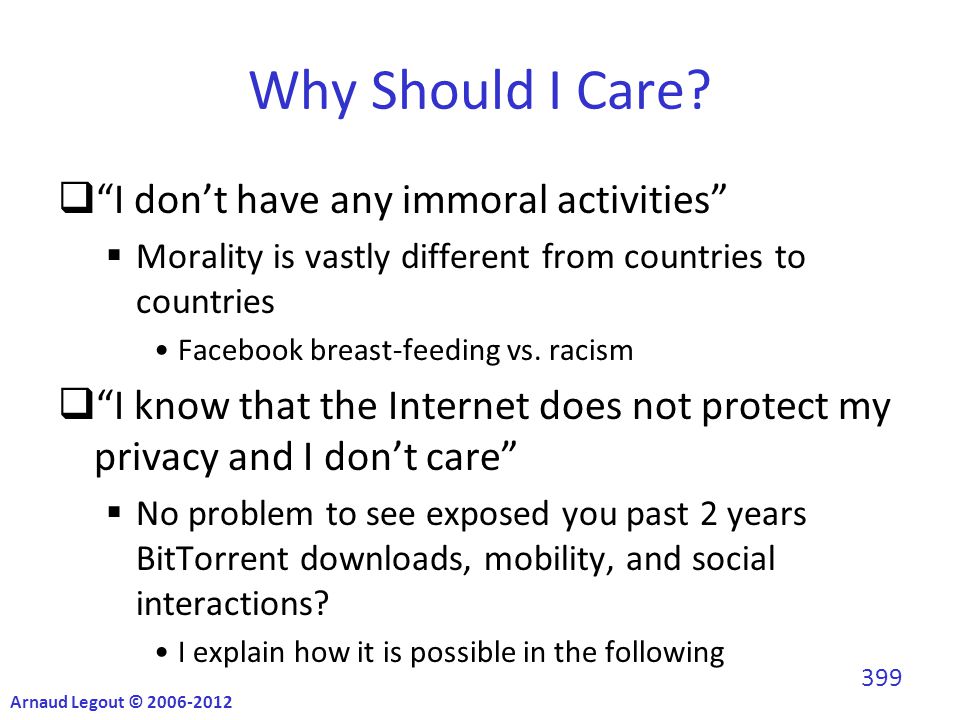

Why Should I Care? “I don’t have any immoral activities” Morality is vastly different from countries to countries Facebook breast-feeding vs. racism “I know that the Internet does not protect my privacy and I don’t care” No problem to see exposed you past 2 years BitTorrent downloads, mobility, and social interactions? I explain how it is possible in the following Arnaud Legout © 2006-2012 399
400

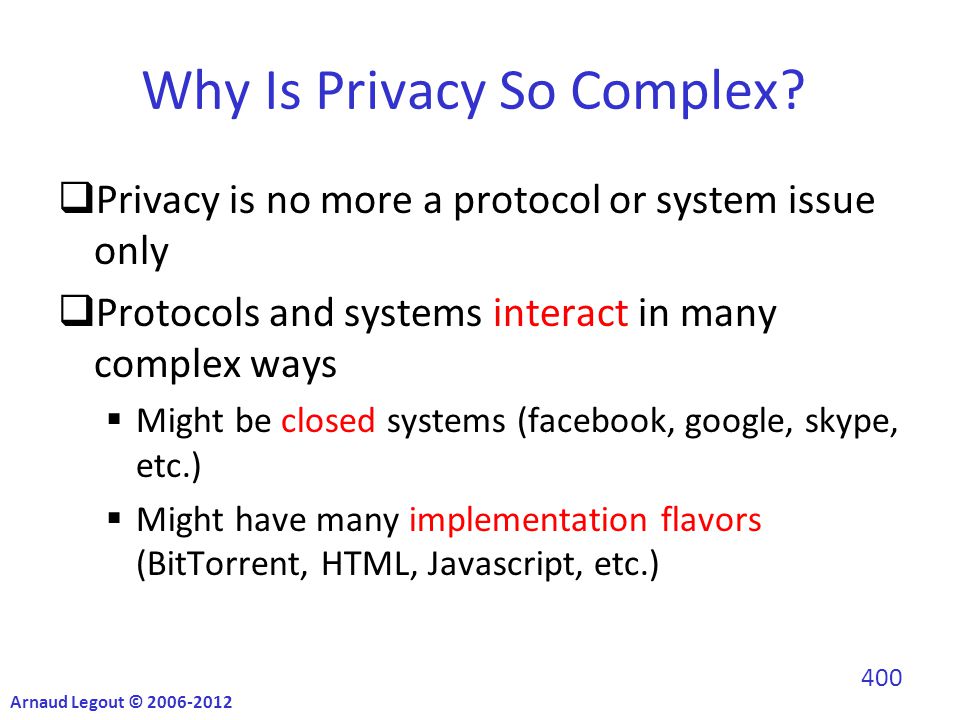

Why Is Privacy So Complex? Privacy is no more a protocol or system issue only Protocols and systems interact in many complex ways Might be closed systems (facebook, google, skype, etc.) Might have many implementation flavors (BitTorrent, HTML, Javascript, etc.) Arnaud Legout © 2006-2012 400
401
Definition of Privacy Threat There is a privacy threat (or attack) when Anonymization is breaking this link activity is linked to identity Arnaud Legout © 2006-2012 401
402
Definition of Activity Your activity at any network layer Web history Localization (based on IP, MAC, etc.) BitTorrent download history VoIP conversation (who and what) Etc. Arnaud Legout © 2006-2012 402
403

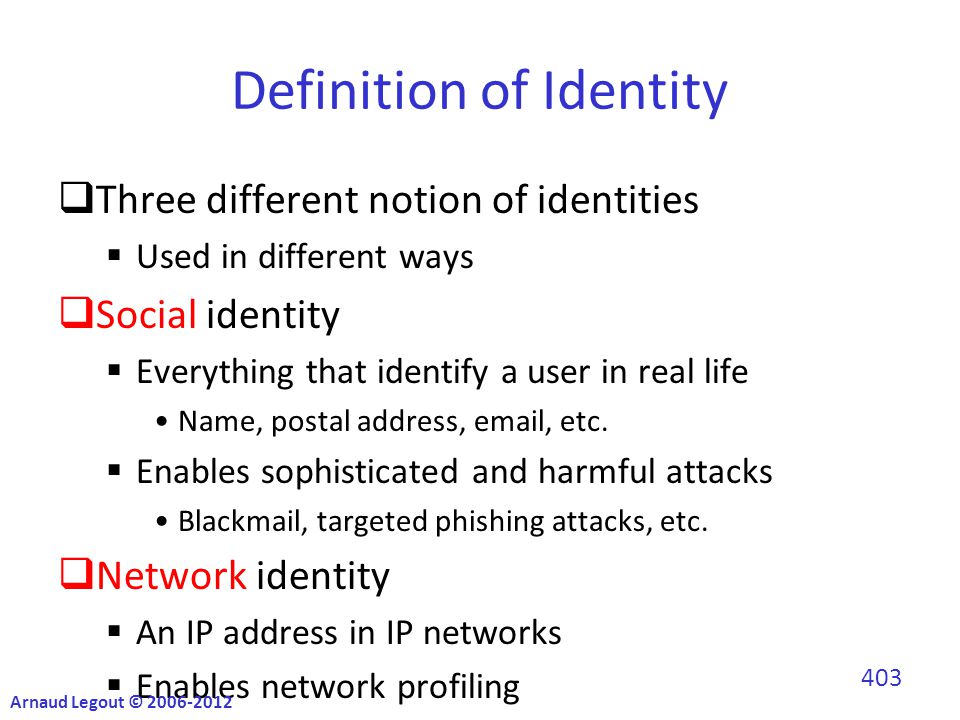

Definition of Identity Three different notion of identities Used in different ways Social identity Everything that identify a user in real life Name, postal address, email, etc. Enables sophisticated and harmful attacks Blackmail, targeted phishing attacks, etc. Network identity An IP address in IP networks Enables network profiling Arnaud Legout © 2006-2012 403
404
Definition of Identity Application identity An application specific unique identity Temporary (cookie) or permanent (skype ID) Enables attacks targeted to applications Not always possible to exploit the network identity The more identities an attacker knows, the more severe the attack Arnaud Legout © 2006-2012 404
405
IP Address and Social Identity The IP address is a signature of your network activity Only your ISP knows the mapping (IP address, social identity) Some big companies might know Strong privacy issue if an individual can link IP address and social identity More sophisticated attacks Arnaud Legout © 2006-2012 405
406
Who Can Perform a Privacy Attacks Big companies or ISPs Google, Facebook, Dropbox, Amazon, etc. Anybody that can ask data to those companies National security agencies, judge, etc. Individuals No dedicated infrastructure No access to privileged information Can be an employer, a relative, a criminal, etc. Arnaud Legout © 2006-2012 406
407
What Can Big Companies Do?
408
Which of Your Data Are Available to Big Companies? Data published with user consent Facebook, twitter, Google apps, Dropbox, blogs, Web site, etc. Data published without user consent Web history, localization, identifiers (IP, port, unique user ID, etc.) Data published with consent on which you lost control Correlate data User profiling Arnaud Legout © 2006-2012 408
409
Users trust big companies (Google, etc.) They gave their consent by accepting the “Terms of use” and “privacy policy” But, they don’t read them Contradictory and never preserve privacy Data Published With User Consent Arnaud Legout © 2006-2012 409
410
Dropbox terms of service: To be clear, aside from the rare exceptions we identify in our Privacy Policy, no matter how the Services change, we won’t share your content with others, including law enforcement, for any purpose unless you direct us to. Arnaud Legout © 2006-2012 410
411
Dropbox privacy policy: We may disclose […] information about you that we collect when we have a good faith belief that disclosure is reasonably necessary Arnaud Legout © 2006-2012 411
412
Informed consent impossible People don’t know where their data are Data covered by the law that apply to The data location or nationality of the company Choice always made at the detriment of privacy Data Published With User Consent Arnaud Legout © 2006-2012 412
413
Data Published Without User Consent Every site that embeds javascript from other sites might leak that you are visiting it Facebook Twitter Google analytics (you don’t even see a button) xvideos.com (alexa rank: 48), pornhub.com (67), youporn.com (80) isohunt.com, 4chan.org (can you believe it?) Arnaud Legout © 2006-2012 413
414
Companies use all collected data to Offer a better service Run their business of targeted advertisements Comply with law enforcement requests Why Private Data Are Collected Arnaud Legout © 2006-2012 414
415
Risk assessment Risk Huge amount of collected information Know your social and network identities Mitigate risk Core business based on user satisfaction. No user, no business Under scrutiny Subject to laws Why Private Data Are Collected Arnaud Legout © 2006-2012 415
416
What Can An Individual Do?
417

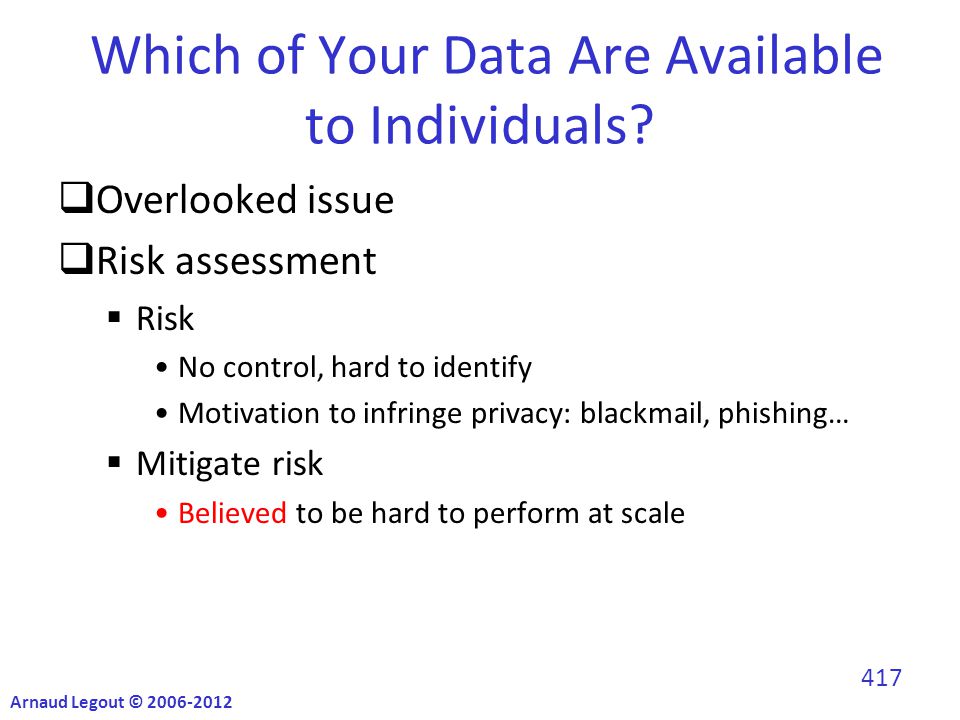

Which of Your Data Are Available to Individuals? Overlooked issue Risk assessment Risk No control, hard to identify Motivation to infringe privacy: blackmail, phishing… Mitigate risk Believed to be hard to perform at scale Arnaud Legout © 2006-2012 417
418
We explore whether it is possible for an individual to access all your legal activities that you don’t want to disclose for any reason (it is your privacy) Can be used for blackmail, phishing, social attacks, etc. We show that anybody (not a government, not a big company) can severely infringe users privacy Focus of Bluebear Arnaud Legout © 2006-2012 418
419
Bluebear Publications [52] Spying the World from your Laptop - Identifying and Profiling Content Providers and Big Downloaders in BitTorrent Map IP addresses to all their BitTorrent downloads 148M IP addresses in 1.2M torrent during 103 days Find IP addresses of BitTorrent sources 70% of all BitTorrent sources TR: Angling for Big Fish in BitTorrent Arnaud Legout © 2006-2012 419
420
Bluebear Publications [55] One Bad Apple Spoils the Bunch: Exploiting P2P Applications to Trace and Profile Tor Users Identify the public IP addresses of BitTorrent users on Tor Bad apple attack Intra-circuit and inter-circuit Map non BitTorrent streams to the IP addresses Arnaud Legout © 2006-2012 420
421

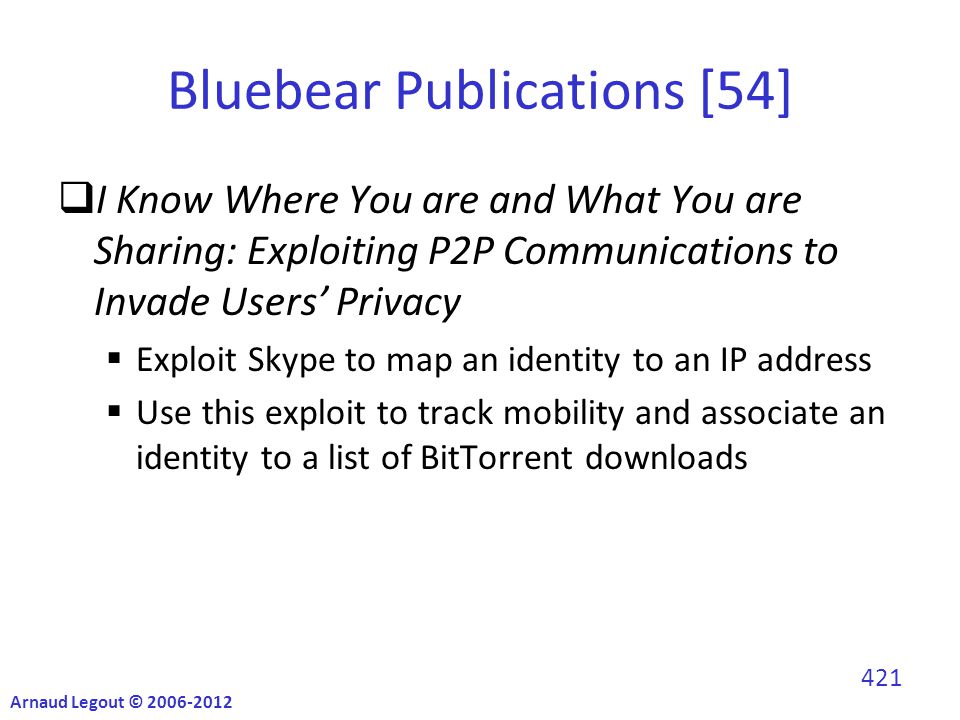

Bluebear Publications [54] I Know Where You are and What You are Sharing: Exploiting P2P Communications to Invade Users’ Privacy Exploit Skype to map an identity to an IP address Use this exploit to track mobility and associate an identity to a list of BitTorrent downloads Arnaud Legout © 2006-2012 421
422
Outline Overview Content Replication BitTorrent Privacy Privacy Foundations Privacy Attacks Introduction to Privacy Practical Attacks Arnaud Legout © 2006-2012 422
423
Unraveling the BitTorrent Ecosystem [42]
424
Focus of This Section Give up-to-date results on BitTorrent large scale measurements [42] from July 2008 to May 2009 Introduce large scale crawl techniques Do not need access to tracker logs Most trackers do not keep any logs Not linked to a specific tracker or site Arnaud Legout © 2006-2012 424
425
Large Scale BitTorrent Crawl Three main components to crawl Torrent discovery sites (Mininova, ThePirateBay, Isohunt,Torrent Reactor, BTmonster, Torrent Portal, etc.).torrent files, meta information (comments, uploader, etc.) Trackers (ThePirateBay, Mininova, etc.) Scrape information, list of (IP,port) per infohash Peers Contribution (free rider?), upload/download speed Arnaud Legout © 2006-2012 425
426
BitTorrent Ecosystem Focus of [42] Credit: Zhang et al. [42] Arnaud Legout © 2006-2012 426
427
Torrent discovery sites All sites are web portals Most sites also provide.torrent files Some sites also provide a tracker infrastructure Much different from the suprnova infrastructure Today sites have a dedicated heavy infrastructure Arnaud Legout © 2006-2012 427
428
Most Popular Torrent Discovery Sites Credit: Zhang et al. [42] Arnaud Legout © 2006-2012 428
429
Torrent Discovery Sites Crawl Torrent discovery sites (Mininova, ThePirateBay, Torrent Reactor, BTmonster, Torrent Portal) Crawl once the entire site (huge amount of data) Then just get new torrents: all sites have a new torrent web page from which one can extract what is new Arnaud Legout © 2006-2012 429
430
Torrent Discovery Sites Crawl In [42] they crawled 4.6 million unique infohash on nine months (july 2008-may 2009) 8.8 million.torrent, but some overlap (different.torrent file for the same infohash) Only 1.2 million torrents are active At least one peer Arnaud Legout © 2006-2012 430
431
New.torrent File per Day There is currently a few thousands of new.torrent files indexed per day .torrent are either crawled (from other sites) or inserted by an uploader Credit: Zhang et al. [42] Arnaud Legout © 2006-2012 431
432
Redundancy of Torrent Discovery Sites Pairwise intersection of active torrents (at least one peer) and highly active torrents (at least 100 peers) shown in paratheses Large overlap Credit: Zhang et al. [42] Arnaud Legout © 2006-2012 432
433
Uploaders Activity Uploader: user that inserted the.torrent file in the torrent discovery site. Identified by its login Credit: Zhang et al. [42] Arnaud Legout © 2006-2012 433
434
Trackers Crawl Reminder: a infohash is known by a tracker when the tracker URL is in the.torrent file for this torrent and at least one peer contacted the tracker for this torrent The tracker don’t know any information on the torrent, only its infohash and the peers (IP, port) currently on that torrent Arnaud Legout © 2006-2012 434
435
Trackers Crawl: Scrape Trackers provide scrape information Specific request to the tracker (infohash, # seeds, #leechers) for all infohash hosted by this tracker Very large amount of data (several GBytes) Arnaud Legout © 2006-2012 435
436
Trackers Crawl: Scrape Usage of this crawl Aggregate statistics per torrent Discover infohash not referenced in torrent discovery sites # seed + # leechers used as a stop criterion for (IP,port) crawls Arnaud Legout © 2006-2012 436
437
Trackers Crawl: (IP,port) Trackers provide all (IP,port) per torrent Trackers return by default at random 50 (IP,port), but they return up to 200 (IP,port) when asked for (set number of peers wanted to 200 in the request sent to the tracker) For large torrents need to request several times the tracker Arnaud Legout © 2006-2012 437
438

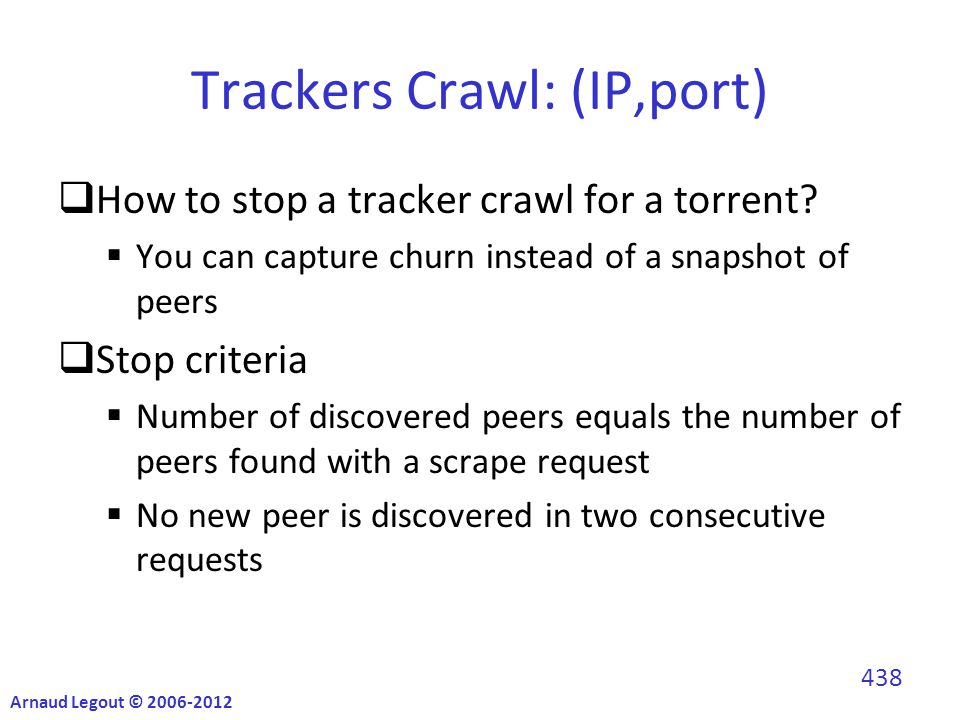

Trackers Crawl: (IP,port) How to stop a tracker crawl for a torrent? You can capture churn instead of a snapshot of peers Stop criteria Number of discovered peers equals the number of peers found with a scrape request No new peer is discovered in two consecutive requests Arnaud Legout © 2006-2012 438
439
Trackers Crawl: (IP,port) Usage of this crawl Get an accurate picture of peers identified by (IP,port) for each torrent hosted by the tracker (IP,port) gives Geographical information AS information Follow up with time Arnaud Legout © 2006-2012 439
440
Trackers Statistics 38,996 different trackers found in the in the 8.8 million crawled.torrent files Only 728 are active (with at least one active torrent) Most BitTorrent clients (uTorrent, Vuze) allows to create trackers. Thus, most trackers are ephemeral Arnaud Legout © 2006-2012 440
441
Most Popular Trackers Credit: Zhang et al. [42] Arnaud Legout © 2006-2012 441
442
Most Popular Trackers 26% (190) of the trackers track more than 1000 peers 28% tracks more than 100 torrents Credit: Zhang et al. [42] Arnaud Legout © 2006-2012 442
443
Tracker Location Active tracker: at least on active torrent Highly active tracker: at least 1000 peers Sweden has the largest number of highly active trackers (ThePirateBay) Credit: Zhang et al. [42] Arnaud Legout © 2006-2012 443
444
Number of Trackers per.torrent A large number of tracker URLs improves torrent reliability in case of tracker failure BT Clients test URLs sequentially until one works 71% of torrents are tracked by at least 2 active trackers Credit: Zhang et al. [42] Arnaud Legout © 2006-2012 444
445
Tracker Crawl (IP,port) Methodology Performed on 22 April 2009 Single snapshot captured on 12 hours Collected 5 millions unique (IP,port) Corresponding to 1 million torrents Arnaud Legout © 2006-2012 445
446
How to Uniquely Identify a Peer in Crawls? Modern trackers do not return a Peer ID, but only (IP,port) Compact mode Reduce bandwidth overhead on trackers NAT and dynamic IP addresses prevent using an (IP,port) as a unique identifier of a peer Most popular BT client multiplex all torrents on a single port chosen at random at client installation Adding the port to IP improves uniqueness Arnaud Legout © 2006-2012 446
447
How to Uniquely Identify a Peer in Crawls? For a single snapshot (IP,port) is a reasonable unique identifier Two peers cannot share the same (IP,port) at the same time even with NAT and dynamic IP addresses In reality snapshots are not instantaneous May take a few hours to capture Arnaud Legout © 2006-2012 447
448
How to Uniquely Identify a Peer in Crawls? For multiple snapshots Two different (IP,port) can be the same peer at different moment in time One (IP,port) can represent two different peers at different moment in time Hard to conclude in that case Need clever heuristics –Content correlation with time –Statistical analysis of port distribution per IP Arnaud Legout © 2006-2012 448
449
Number of Peers per Torrent 1% of torrents have more than 100 peers 82% of the torrents have less than 10 peers Heroes TV show 150,000 peers Credit: Zhang et al. [42] Arnaud Legout © 2006-2012 449
450
Number of Parallel Torrents per Peer Parallel torrents for the 12 hours snapshot Only 4% of peers join more than 10 torrents at the same time Credit: Zhang et al. [42] Arnaud Legout © 2006-2012 450
451
Distribution of Peer per Country Diurnal pattern might bias this result No information of the start time of the 12 hours period Credit: Zhang et al. [42] Arnaud Legout © 2006-2012 451
452
BitTorrent Clients Popularity BT clients popularity for content sharing 5 torrents selected at random with different size and content type BT clients popularity to create.torrent files Credit: Zhang et al. [42] Arnaud Legout © 2006-2012 452
453
Correlation Torrent Age and Number of Peers Torrents are grouped by periods of 1 week Torrents appearing the same week are grouped together Number of peers depends on the age up to 40 weeks Torrents still alive after 250 weeks Credit: Zhang et al. [42] Arnaud Legout © 2006-2012 453
454
Torrents Age Distribution Legend Top 100 torrents largest torrents Highly active More than 100 peers Small active Lower than 10 peers Median age Top 100: 20 days Highly active: 100 days Active: 300 days Credit: Zhang et al. [42] Arnaud Legout © 2006-2012 454
455
Conclusion on Crawls It is very easy to crawl all public torrents in the Internet Privacy issues Current torrent discovery sites and trackers do not take any step to solve those crawling issues They want to be crawled for replication and indexing Arnaud Legout © 2006-2012 455
456
Spying the World From Your Laptop [52]
457
Why BitTorrent? BitTorrent widely popular Several 10M of users at any moment in time Several 100M of users cumulated over months BitTorrent most efficient P2P protocol The only one candidate for legal P2P delivery What is the privacy implication of BitTorrent usage? Arnaud Legout © 2006-2012 457
458
Alice in wonderland BitTorrent Overview Web server Tracker Get a.torrent file that contains the address of the tracker random peer set Alice in wonderland Arnaud Legout © 2006-2012 458
459
BitTorrent Overview Who inserts contents? Who is downloading what? Arnaud Legout © 2006-2012 459
460
Why Is It Hard? No way to get this information directly Very good engineering of the implementations Many blacklisting policies Need to correlate many different sources of information Deep understanding of protocols and implementations Experiments and measurements Arnaud Legout © 2006-2012 460
461
Why Is It Hard? Design goal Data collection without dedicated infrastructure and without being blacklisted High volume of data 148M IP addresses * 1.2M contents 2000M downloads 3TB of storage on a NAS 3.6exabytes exchanged Challenge in collecting and analyzing the data Arnaud Legout © 2006-2012 461
462
Who inserts contents? Arnaud Legout © 2006-2012 462
463
State of the Art BitTorrent Introduction in 2000 Half of the Internet traffic in 2004 Nobody ever looked at content providers Believed to be impossible Initial private phase for torrents Content providers lies on their status Arnaud Legout © 2006-2012 463
464

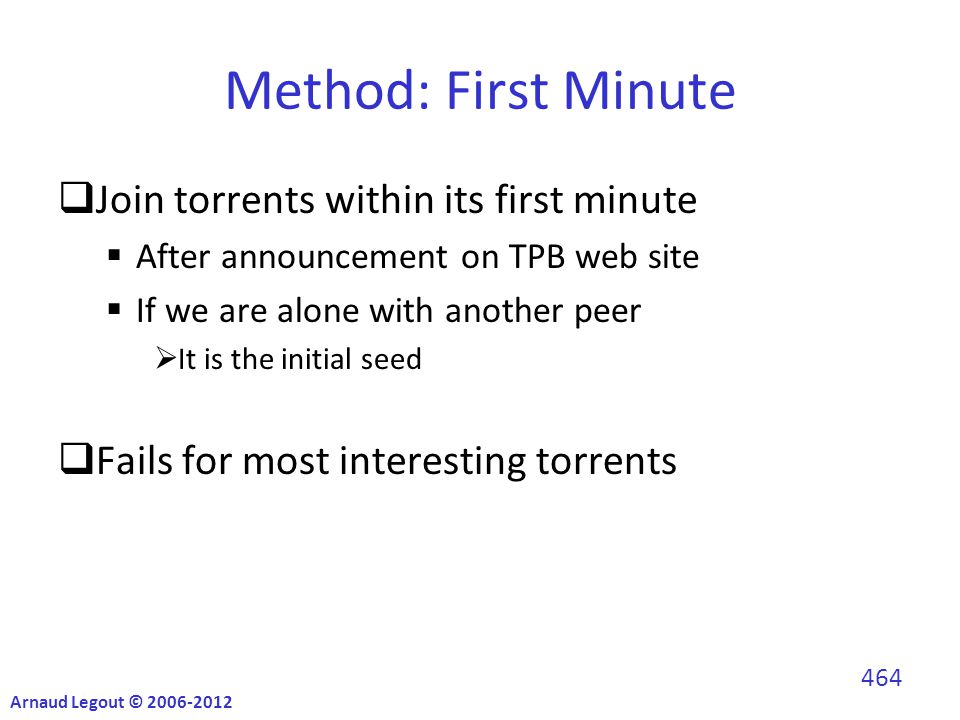

Join torrents within its first minute After announcement on TPB web site If we are alone with another peer It is the initial seed Fails for most interesting torrents Method: First Minute Arnaud Legout © 2006-2012 464
465
Method: Correlation Arnaud Legout © 2006-2012 465
466
Success of the Method Most interesting torrents Arnaud Legout © 2006-2012 466
467
Who is downloading what? Arnaud Legout © 2006-2012 467
468
Method Retrieved continuously IP addresses of most BitTorrent peers For 103 days, every two hours 700 000 torrents per snapshot 5M to 10M IP addresses 148M IP addresses in 1.2M torrents downloading 2000M of contents Analysis of such a large amount of data is complex Arnaud Legout © 2006-2012 468
469
How To Identify Heavy Downloaders? Lets take top 10,000 IP addresses Subscribed to at least 1636 contents Do we find the heavy downloaders? Arnaud Legout © 2006-2012 469
470
Who Are These Peers? Number of ports Number of Contents Spying infrastructures Middleboxes Arnaud Legout © 2006-2012 470
471
I Know Where You are and What You are Sharing [54]
472
Link an IP address to a social identity Arnaud Legout © 2006-2012 472
473
Homer’s Skype ID Can We Find the IP Address of Homer Using Skype? Step 1: Can we find Homer’s Skype ID? Step 2: Can we find Homer’s IP address from Skype? Step 3: Can we find Homer’s IP address silently? ? ? ? ? ? ? ? ? ? John doe calling His name is Homer What is his IP address? Arnaud Legout © 2006-2012 473
474
Step 1: Can We Find Homer’s Skype ID? 560M Skype users 88% provides their birth name 82% provides either age, country, URL, etc. Search for Homer on Skype directory Remove duplicates based on country and city Call Candidates Homer Disambiguate using the found IP address based on known locations Enterprise, University, Internet coffee Arnaud Legout © 2006-2012 474
475
Step 2: What Is Homer’s IP Address From Skype? All communications encrypted Not possible to get Homer IP address from the message payload Caller communicates with tens of peers Who is the Homer out of 100 peers? We perform a VoIP call to Homer We identified specific traffic patterns with the callee Arnaud Legout © 2006-2012 475
476
One Example of Pattern Homer online & NATed Caller always public UDP:28B UDP:3B We can find Homer’s IP address from the IP header Arnaud Legout © 2006-2012 476
477
Step 3: Can We Find Homer’s IP Address Silently? TCP+UDP TCP SYN Pattern CallerHomer Supernode TCP Handshake Pattern John doe calling Arnaud Legout © 2006-2012 477
478
We Can Link an IP Address to an Social Identity Works for all 560M Skype users Undetectable and unstoppable No dedicated infrastructure Arnaud Legout © 2006-2012 478
479
Mobility of Skype Users Arnaud Legout © 2006-2012 479
480
What Is the Problem to Track My Mobility? Tracking mobility means Knowing where you are Knowing who you meet and where Tracking social interactions is a huge privacy concern Arnaud Legout © 2006-2012 480
481
Real Use-Case: What Can We Get? Name Gender Birthday Language City of residence Job Photos Friends Arnaud Legout © 2006-2012 481
482
Real Use-Case: What Can We Get? Do we observe mobility for any Skype user? Arnaud Legout © 2006-2012 482
483
Can We Call Many Users Hourly? With a simple optimization We can track from a single machine 340 Skype users per hour With 30 machines we can track 10,200 Skype users hourly Cost $500 per week on Amazon EC2 Using virtualization we can significantly reduce cost (down to $50 per week) Arnaud Legout © 2006-2012 483
484
Do We Observe Availability? CDF of users Availability 20% of users avail >50% Availability of Skype users Arnaud Legout © 2006-2012 484
485
User ID rank (sorted) Number of locations 4% mobile among countries 19% mobile among ASes ~40% mobile among cities Do We Observe Mobility? Mobility of Skype users Arnaud Legout © 2006-2012 485
486
We Can Massively Track Mobility Works for all 560M Skype users Undetectable and unstoppable No costly infrastructure We observe real mobility Arnaud Legout © 2006-2012 486
487
File-Sharing usage of Skype Users Arnaud Legout © 2006-2012 487
488
Can We Associate Identified Users to Their Downloads? Do we find IP addresses using both Skype and BitTorrent? Do NATs introduce false positives? Can we identify users despite NATs? “What am I downloading?” Arnaud Legout © 2006-2012 488
489
Methodology Daily crawl 100,000 active Skype users Chosen out of 1M random Skype users Crawl every hours 50,000 most popular torrents If an IP address appears in both Skype and BitTorrent it is a suspected user Arnaud Legout © 2006-2012 489
490
Do We Find IP Addresses Using Both Skype and BitTorrent? Skype BitTorrent 15% of Skype users suspected to use both Skype and BitTorrent Arnaud Legout © 2006-2012 490
491
Do NATs Introduce False Positives? CDF of BitTorrent users # ports (log) More than 50% of users are NATed Arnaud Legout © 2006-2012 491
492
Can We Identify Users Despite NATs? Arnaud Legout © 2006-2012 492
493
Can We Identify Users Despite NATs? Arnaud Legout © 2006-2012 493
494
Verifying Downloaders Difference User rank (sorted) 52% verified user Verification reveals ~48% of false positives Arnaud Legout © 2006-2012 494
495
Personal Info for the Top10 Verified Downloaders We find BitTorrent users identity without ISP support Arnaud Legout © 2006-2012 495
496
Conclusion We can with no dedicated infrastructure or ISP collaboration Link an IP address to a social identity Massively track mobility Link BitTorrent downloads to a social identity Works for all Skype Users (560M) Very hard to prevent such privacy attacks Arnaud Legout © 2006-2012 496
497
Does Rejecting Calls From Strangers Protect Against Tracking? No Arnaud Legout © 2006-2012 497
498
Does Blocking Attacker’s Account Protect Against Tracking? John doe No Arnaud Legout © 2006-2012 498
499
Can We Protect Against These Attacks? Get rid of packet patterns Relay calls from strangers Relay calls from certain friends We can only make tracking harder Arnaud Legout © 2006-2012 499
500
Thank you for attending this course
501
Sources of this Presentation Note: References in bold are highly recommended reads. [1] Cache Logic http://www.cachelogic.com/research/http://www.cachelogic.com/research/ [2] Keith W. Ross and Dan Rubenstein “P2P Systems”. Infocom 2004 tutorial. http://cis.poly.edu/~ross/tutorials/P2PtutorialInfocom.pdf http://cis.poly.edu/~ross/tutorials/P2PtutorialInfocom.pdf [3] S. Sen and Jia Wang “Analysing peer-to-peer traffic across large networks”. ACM SIGCOMM’02 [4] T. Karagiannis, A. Broido, M. Faloutsos, Kc Claffy “Transport Layer Identification of P2P Traffic”. ACM IMC’04 [5] X. Yang and G. de Veciana “Service Capacity of Peer to Peer Networks”. IEEE Infocom’04 [6] D. Qiu and R. Srikant “Modeling and Performance Analysis of BitTorrent-Like Peer-to-Peer Networks”. ACM SIGCOMM’04 [7] J. H. Saltzer, D. P. Reed, and D. D. Clark “End-to-end arguments in system design”. ACM Transactions on Computer Systems 2, 4 (November 1984) pages 277-288 [8] P. Rodriguez, E. W. Biersack “Dynamic Parallel Access to Replicated Content in the Internet”. IEEE/ACM Transactions on Networking, August 2002 (Also in IEEE/Infocom 2000) [9] E. W. Biersack, P. Rodriguez, P. Felber “Performance Analysis of Peer-to-Peer Networks for File Distribution”. Research Report RR-04-108. April 2004. [10] P. A. Felber and E. W. Biersack. Self-scaling Networks for Content Distributions. In Ozalp Babaoglu et~al., editors, Self- Star Properties in Complex Information Systems, volume 3460 of Lecture Notes in Computer Science. Springer-Verlag, 2005. [11] E. K. Lua et al. “A Survey and Comparison of Peer-to-Peer Overlay Network Schemes”, IEEE Communications survey and tutorial, March 2004. [12] Jian Liang, Rakesh Kumar, Keith Ross,”The KaZaA Overlay: A Measurement Study”, Computer Networks (Special Issue on Overlays), to appear. [13] Y. Kulbak, D. Bickson “The eMule Protocol Specification” January 2005 [14] C. Gkantsidis, P. Rodriguez “Network Coding for Large Scale Content Distribution” Arnaud Legout © 2006-2012 501
502
Sources of this Presentation Note: References in bold are highly recommended reads. [15] Dejan Kostic, A. Rodriguez, J. Albrecht, and A. Vahdat “Bullet: High Bandwidth Data Dissemination Using an Overlay Mesh” SOSP’03, October 2003. [16] T. Klingberg, R. Manfredi, “Gnutella Protocol Development v0.6”, June 2002 [17] T. Klingberg, “Partial File Sharing Protocol”, August 2002 [18] A. Legout, G. Urvoy-Keller, and P. Michiardi. ‘’Understanding BitTorrent: An Experimental Perspective’’. Technical Report (inria-00000156, version 3 - 9 November 2005), INRIA, Sophia Antipolis, November 2005. [18] BitTorrent Protocol Specification v1.0. http://wiki.theory.org/BitTorrentSpecificationhttp://wiki.theory.org/BitTorrentSpecification [19] Bram Cohen, “Incentives Build Robustness in BitTorrent”, May 2003 [20] J.A Pouwelse et al., “The BitTorrent P2P File-Sharing System: Measurements and Analysis”, IPTPS 2005 [21] M. Izal et al., “Dissecting BitTorrent: Five Months in a Torrent’s Lifetime”, PAM 2004 [22] L. Guo et al., ”Measurements, Analysis, and Modeling of BitTorrent-like Systems” IMC 2005 [23] Shamir “How to Share a Secret” Communications of the ACM, 1979 [24] D. L. Chaum “Untraceable Electronic Mail, Return Addresses and Digital Pseudonyms” Communications of the ACM, 1981 [25]Stoica et al. “Chord: A Scalable Peer-to-Peer Lookup Service for Internet Applications” ACM SIGCOMM’01 [26]Rowstron and Druschel “Pastry: Scalable, decentralized object location and routing for large-scale peer-to-peer systems” [27] Maymounkov and Mazières “Kademlia: A peer-to-peer Information System Based on the XOR Metric” [28] Ratnasamy et al. “A Scalable Content-Addressable Network”, SIGCOMM’01 [29] Gummadi et al. “The Impact of DHT Routing Geometry on Resilience Proximity” Arnaud Legout © 2006-2012 502
503
Sources of this Presentation Note: References in bold are highly recommended reads. [30] C. Fragouli, J.-Y. Le Boudec and J. Widmer “Network Coding: An Instant Primer”. ACM Sigcomm Computer Communication Review, Vol. 36, Nr. 1, pp. 63-68, 2006. [31] C. Gkantsidis, J. Miller, P. Rodriguez "Comprehensive view of a Live Network Coding P2P system“. ACM SIGCOMM/USENIX IMC'06, Brasil. Oct 2006. [32] C. Gkantsidis, P. Rodriguez "Cooperative Security for Network Coding File Distribution“. IEEE/INFOCOM'06, Barcelona, April 2006. [33] A. R. Bharambe, C. Herley, and V. N. Padmanabhan "Analyzing and Improving a BitTorrent Network’s Performance Mechanisms". In Proc. of Infocom’06, Barcelona, Spain, April 2006. [34] A. Legout, G. Urvoy-Keller, and P. Michiardi “Rarest First and Choke Algorithms Are Enough”. In Proc. of ACM SIGCOMM/USENIX IMC'2006, Rio de Janeiro, Brazil, October 2006. [35] A. Legout, N. Liogkas, E. Kohler, and L. Zhang “Clustering and Sharing Incentives in BitTorrent Systems”. Technical Report (inria-00112066, version 1 - 21 November 2006), INRIA, Sophia Antipolis, November 2006. [36] S. Jun and M. Ahamad."Incentives in BitTorrent Induce Free Riding". In Proc. of the Workshop on Economics of Peer-to- Peer Systems (P2PEcon’05), Philadelphia, PA, August 2005. [37] N. Liogkas, R. Nelson, E. Kohler, and L. Zhang. "Exploiting Bittorrent For Fun (But Not Profit)". In Proc. of IPTPS’06, Santa Barbara, CA, February 2006. [38] T. Locher, P. Moor, S. Schmid, and R.Wattenhofer. "Free Riding in BitTorrent is Cheap." In Proc. of HotNets-V, Irvine, CA, November 2006. [39] J. Shneidman, D. Parkes, and L. Massoulie. "Faithfulness in Internet Algorithms". In Proc. of theWorkshop on Practice and Theory of Incentives and Game Theory in Networked Systems (PINS’04), Portland, OR, September 2004. [40] B Fan, DM chiu and JCS Lui, "The Delicate Tradeoff of BitTorrent-like File Sharing Protocol Design", IEEE ICNP 2006 Arnaud Legout © 2006-2012 503
504
Sources of this Presentation Note: References in bold are highly recommended reads. [41] Kenjiro Cho, Kensuke Fukuda, Hiroshi Esaki,Akira Kato “Observing Slow Crustal Movement in Residential User Traffic”. CoNext’2008, December 2008. [42] C. Zhang, P. Dunghel, D. Wu, K.W. Ross, “Unraveling the BitTorrent Ecosystem”. To appear in IEEE Transactions on Parallel and Distributed Systems. [43] Stevens Le Blond, Arnaud Legout, Walid Dabbous. “Pushing BitTorrent Locality to the Limit”. Computer Networks, October 2010, ISSN 1389-1286, DOI: 10.1016/j.comnet.2010.09.014. [44] Anwar Al Hamra, Nikitas Liogkas, Arnaud Legout, Chadi Barakat. “Swarming Overlay Construction Strategies”. In Proc. of ICCCN'2009, August 2--6, 2009, San Francisco, CA, USA. [45] T. Karagiannis, P. Rodriguez, and K. Papagiannaki. “Should internet service providers fear peer-assisted content distribution?” In Proc. of IMC'05, Berkeley, CA, USA, October 2005. [46] H. Xie, Y. R. Yang, A. Krishnamurthy, Y. Liu, and A. Silberschatz. “P4p: Provider portal for applications.” In Proc. of ACM SIGCOMM, Seattle, WA, USA, August 2008. [47] D. R. Choffnes and F. E. Bustamante. “Taming the torrent: A practical approach to reducing cross-isp traffic in p2p systems.” In Proc. of ACM SIGCOMM, Seattle, WA, USA, August 2008. [48] The BitTorrent Protocol Specification, BEP 3, http://www.bittorrent.org/beps/bep_0003.htmlhttp://www.bittorrent.org/beps/bep_0003.html [49] Peer ID Conventions, BEP 20, http://www.bittorrent.org/beps/bep_0020.htmlhttp://www.bittorrent.org/beps/bep_0020.html [50] R. Dingledine, N. Mathewson, P. Syverson. “Tor: The Second-Generation Onion Router.” In proc. of Usenix Security’2004, San Diego, CA, USA, August 2004. [51] Niels Ferguson, Bruce Schneier, Tadayoshi Kohno. “Cryptography Engineering.” 2010, Wiley. Arnaud Legout © 2006-2012 504
505
Sources of this Presentation Note: References in bold are highly recommended reads. [52] Stevens Le Blond, Arnaud Legout, Fabrice Lefessant, Walid Dabbous, Mohamed Ali Kaafar. “Spying the World from your Laptop - Identifying and Profiling Content Providers and Big Downloaders in BitTorrent.” In Proc. of LEET'10, April 27, 2010, San Jose, CA, USA. [53] Sandvine. “Global Internet Phenomena Report”, Spring 2011. [54] Stevens Le Blond, Chao Zhang, Arnaud Legout, Keith Ross, and Walid Dabbous. “ I Know Where You are and What You are Sharing: Exploiting P2P Communications to Invade Users' Privacy. ” In Proc. of ACM SIGCOMM/USENIX IMC'11, Nov. 2-- 3, 2011, Berlin, Germany. [55] Stevens Le Blond, Pere Manils, Abdelberi Chaabane, Mohamed Ali Kaafar, Claude Castelluccia, Arnaud Legout, Walid Dabbous. “ One Bad Apple Spoils the Bunch: Exploiting P2P Applications to Trace and Profile Tor Users. ” In Proc. of LEET'11, March 29, 2011, Boston, MA, USA. Arnaud Legout © 2006-2012 505
506
Internet Timeline From 1962 to 1991 Disclaimer: I found this timeline long ago, but I don’t remember where. If you did it and want to be credited for it, send me an email.
507
Internet Timeline 1962 Kleinrock thesis describes underlying principles of packet-switching technology 1966 ARPANET project Larry Roberts of MIT’s Lincoln Lab is hired to manage the ARPANET project. ARPA computer network, a packet-switched network with minicomputers acting as gateways for each node using a standard interface. 1967 Packet switching Donald Davies, of the National Physical Laboratory in Middlesex, England, coins the term packet switching to describe the lab’s experimental data transmission. Arnaud Legout © 2006-2012 507
508
Internet Timeline 1968 Interface message processors Bolt Beranek and Newman, Inc. (BBN) wins a DARPA contract to develop the packet switches called interface message processors (IMPs). 1969 DARPA deploys the IMPs First transmission between UCLA and Stanford: “lo” 1970 Initial ARPANET host-to-host protocol Network Working Group (NWG), formed at UCLA by Steve Crocker, deploys the initial ARPANET host-to-host protocol, called the Network Control Protocol (NCP). The primary function of the NCP is to establish connections, break connections, switch connections, and control flow over the ARPANET, which grows at the rate of one new node per month. Arnaud Legout © 2006-2012 508
509
Internet Timeline 1972 First e-mail program Ray Tomlinson at BBN writes the first e-mail program to send messages across the ARPANET. In sending the first message to himself to test it out, he uses the @ sign—the first time it appears in an e-mail address. 1972 First public demonstration of the new network technology Robert Kahn at BBN, who is responsible for the ARPANET’s system design, organizes the first public demonstration of the new network technology at the International Conference on Computer Communications in Washington, D.C., linking 40 machines and a Terminal Interface Processor to the ARPANET. 1973 Paper describes basic design of the Internet and TCP Robert Kahn and Vinton Cerf, "A Protocol for Packet Network Interconnection" in IEEE Transactions on Communications. 1974 F.F. Kuo “ALOHA System”, January 1974 Arnaud Legout © 2006-2012 509
510
Internet Timeline 1976 TCP/IP incorporated in Berkeley Unix 1977 Demonstration of independent networks to communicate Cerf and Kahn organize a demonstration of the ability of three independent networks to communicate with each other using TCP protocol. 1981 TCP/IP standard adopted Postel, J., "Internet Protocol", STD 5, RFC 791, September 1981. Postel, J., "Transmission Control Protocol", STD 7, RFC 793, September 1981. 1982 ARPANET hosts convert to new TCP/IP protocols All hosts connected to ARPANET are required to convert to the new TCP/IP protocols by January 1, 1983. The interconnected TCP/IP networks are generally known as the Internet. Arnaud Legout © 2006-2012 510
511
Internet Timeline 1983 UNIX scientific workstation introduced Sun Microsystems introduces its UNIX scientific workstation. TCP/IP, now known as the Internet protocol suite, is included, initiating broad diffusion of the Internet into the scientific and engineering research communities 1983 The Internet ARPANET, and all networks attached to it, officially adopts the TCP/IP networking protocol. From now on, all networks that use TCP/IP are collectively known as the Internet. The number of Internet sites and users grow exponentially 1984 Advent of Domain Name Service. Developed by Paul Mockapetris and Craig Partridge 1984 J. H. Saltzer, D. P. Reed, and D. D. Clark “End-to-end arguments in system design” ACM Transactions on Computer Systems, November 1984 Arnaud Legout © 2006-2012 511
512
Internet Timeline 1984 John Nagle “Congestion Control in IP/TCP Internetworks” October 1984 October 1986 First Congestion Collapse From 32 Kbps to 40 bps 1988 Van Jacobson “Congestion Avoidance and Control” SIGCOMM’88, August 1988 1991 World Wide Web software developed CERN releases the World Wide Web software developed earlier by Tim Berners-Lee. Specifications for HTML (hypertext markup language), URL (uniform resource locator), and HTTP (hypertext transfer protocol) launch a new era for content distribution. Arnaud Legout © 2006-2012 512
Similar presentations
© 2024 SlidePlayer.com Inc.
All rights reserved.
