1. SPIRIT IV A Prospective, Randomized Trial Comparing an Everolimus-Eluting Stent and a Paclitaxel-Eluting Stent in Patients with Coronary Artery Disease One Year Clinical Results Gregg W. Stone, MD for the SPIRIT IV Investigators

2. Gregg W. Stone, MD Advisory board for Abbott Vascular and Boston Scientific Disclosures

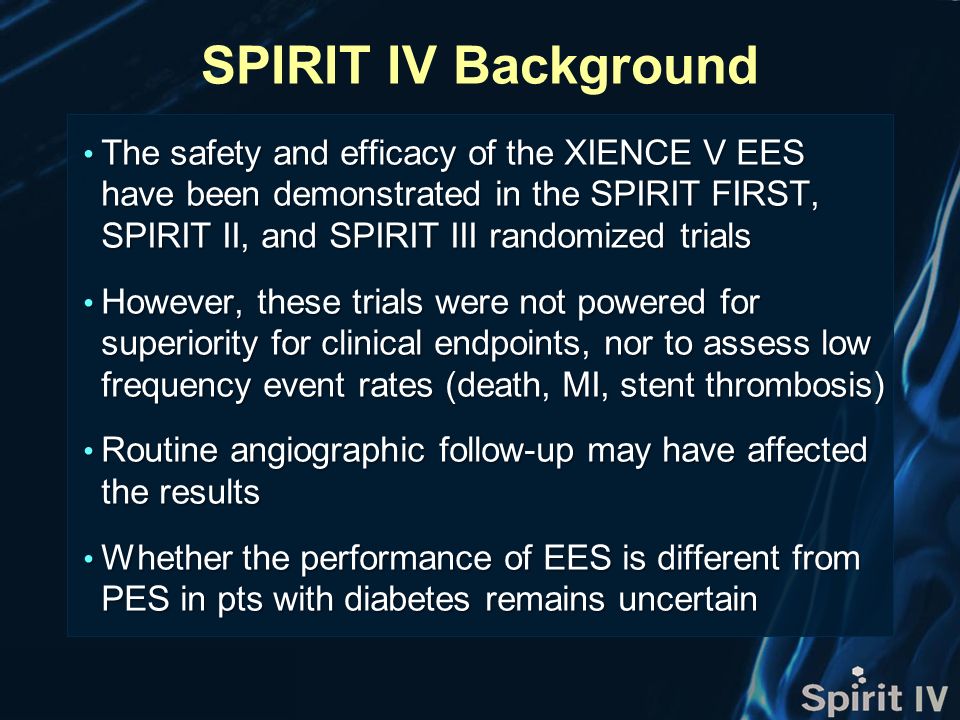

3. The safety and efficacy of the XIENCE V EES have been demonstrated in the SPIRIT FIRST, SPIRIT II, and SPIRIT III randomized trials The safety and efficacy of the XIENCE V EES have been demonstrated in the SPIRIT FIRST, SPIRIT II, and SPIRIT III randomized trials However, these trials were not powered for superiority for clinical endpoints, nor to assess low frequency event rates (death, MI, stent thrombosis) However, these trials were not powered for superiority for clinical endpoints, nor to assess low frequency event rates (death, MI, stent thrombosis) Routine angiographic follow-up may have affected the results Routine angiographic follow-up may have affected the results Whether the performance of EES is different from PES in pts with diabetes remains uncertain Whether the performance of EES is different from PES in pts with diabetes remains uncertain SPIRIT IV Background

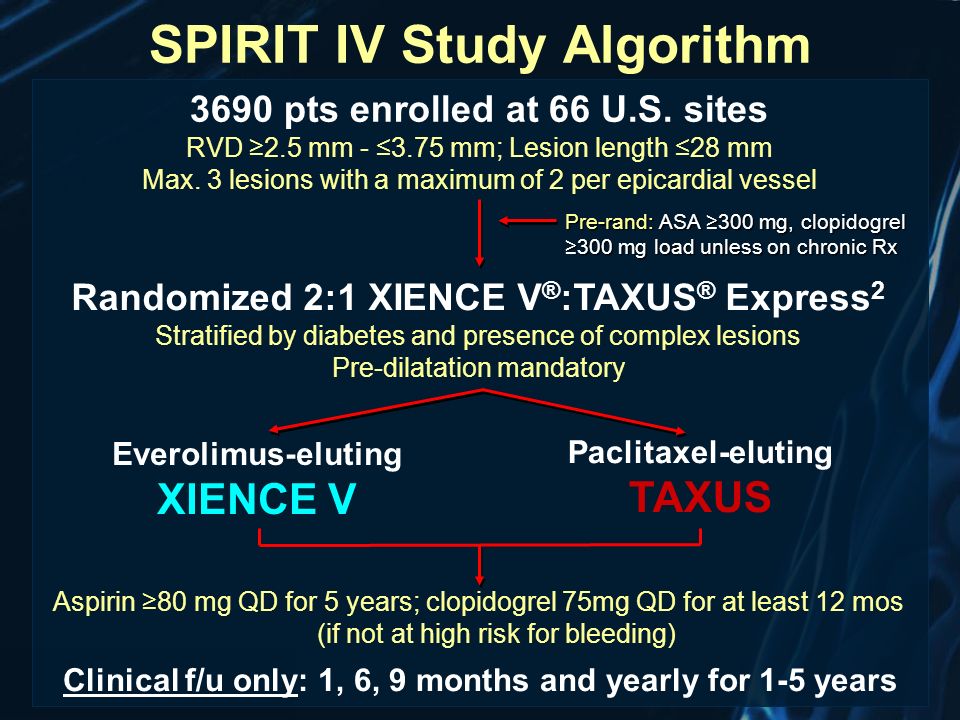

4. Everolimus-eluting XIENCE V Paclitaxel-eluting TAXUS 3690 pts enrolled at 66 U.S. sites RVD 2.5 mm - 3.75 mm; Lesion length 28 mm Max. 3 lesions with a maximum of 2 per epicardial vessel Pre-rand: ASA 300 mg, clopidogrel300 mg load unless on chronic Rx Randomized 2:1 XIENCE V ® :TAXUS ® Express 2 Stratified by diabetes and presence of complex lesions Pre-dilatation mandatory Clinical f/u only: 1, 6, 9 months and yearly for 1-5 years Aspirin 80 mg QD for 5 years; clopidogrel 75mg QD for at least 12 mos (if not at high risk for bleeding) SPIRIT IV Study Algorithm

5. Major Exclusion Criteria Any target lesion or vessel meets any of the following: Left main or ostial LAD/LCX In or distal to a bypass graft conduit Bifurcation with sidebranch diameter 2 mm AND ostial DS >50% OR requiring pre-dilatation Total occlusion, thrombus, restenotic, excessive tortuosity, angulation or heavy calcification Prior coronary brachytherapy High probability of additional PCI within 9 mos

6. SPIRIT IIISPIRIT IV N patients10023687 Max. N lesions per pt23 Max. N vessels per pt23 Max. N lesions per vessel12 Bifurcation lesions <50% ostial DS and <2.0 mm <50% ostial DS or <2.0 mm Ostial RCA lesionsNoYes N pts with diabetes mellitus290/999 (29.0%)1185/3683 (32.2%) N pts with intended angio F/U564 (56.3%)0 SPIRIT III / SPIRIT IV Differences

7. Primary endpoint: Target lesion failure (TLF) at 1 year Major secondary endpoints: Ischemia-driven TLR at 1 year Composite endpoint of cardiac death or target vessel MI at 1 year All 3 endpoints powered for sequential noninferiority and superiority testing TLF = cardiac death, target vessel MI, or ischemia-driven TLR SPIRIT IV Endpoints

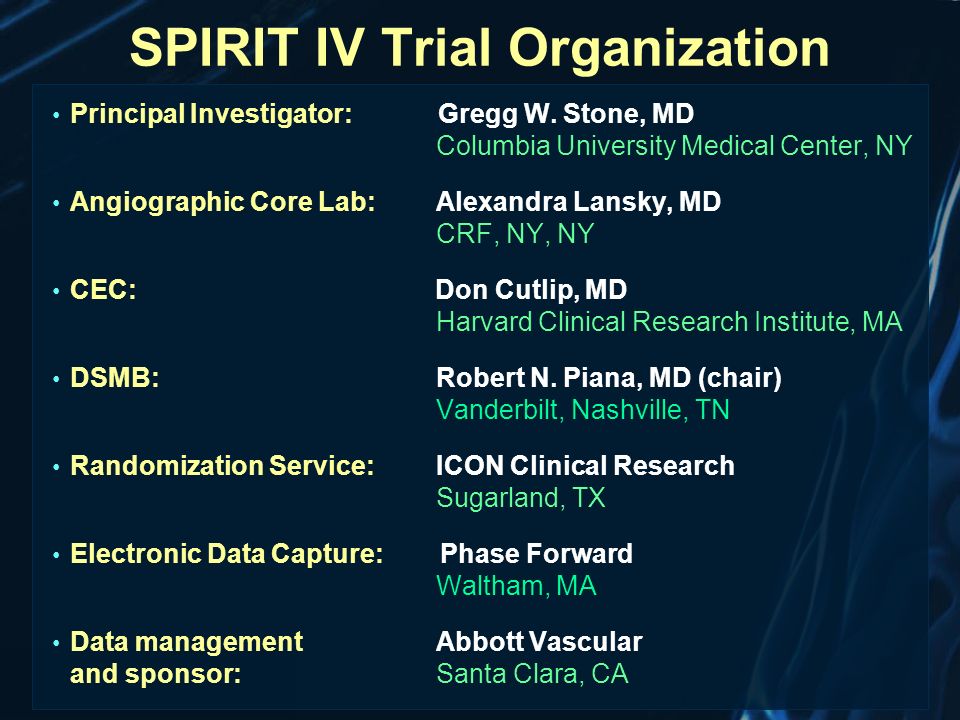

8. Principal Investigator: Gregg W. Stone, MD Columbia University Medical Center, NY Angiographic Core Lab: Alexandra Lansky, MD CRF, NY, NY CEC: Don Cutlip, MD Harvard Clinical Research Institute, MA DSMB: Robert N. Piana, MD (chair) Vanderbilt, Nashville, TN Randomization Service: ICON Clinical Research Sugarland, TX Electronic Data Capture: Phase Forward Waltham, MA Data managementAbbott Vascular and sponsor:Santa Clara, CA SPIRIT IV Trial Organization

9. Patients A. Rizvi The Heart Center of IN, Indianapolis, IN 292 J. Williams Presbyterian Hospital, Charlotte, NC 112 W. Newman Wake Medical Center, Raleigh, NC 263 M. Collins Columbia Univ. Med. Ctr., New York, NY 86 K. Mastali St. Joseph Medical Center, Towson, MD 196 P. Gordon The Miriam Hospital, Providence, RI 82 J. Wang Union Memorial Hospital, Baltimore, MD 155 M. Turco WA Adventist Hosp., Takoma Park, MD 81 D. Kereiakes The Christ Hospital, Cincinnati, OH 153 S. Hearne Peninsula Reg. Med. Ctr., Salisbury, MD 78 R. Caputo St. Josephs Hospital, Syracuse, NY 153 H. Dauerman Fletcher Allen Healthcare, Burlington, VT 71 N. Farhat EMH Regional Medical Center, Elyria, OH 138 F. Fleischhauer Sacred Heart Hospital, Pensacola, FL 70 R. Applegate N. Carolina Baptist Hosp., NC 124 C. Hirsch The Valley Hospital, Ridgewood, NJ 62 L. Cannon Northern Michigan Hospital, Petoskey, MI 123 K. Skelding Geisinger Medical Center, Danville, PA 57 J. Maddux St. Patrick Hospital, Missoula, MT 114 T. Fischell Borgess MedicalCenter, Kalamazoo, MI 57 SPIRIT IV Top 20 Enrollers

10. XIENCE V (N=2416) Randomized(N=3687) (N=2458) TAXUS (N=1229) 1-Year Follow-up* (N=3611; 97.9%) Lost to f/u = 35 Withdrawal = 7 Other = 0 24 = Lost to f/u 8 = Withdrawal 2 = Other *F/U window: ± 28 days SPIRIT IV Patient Flow Enrolled(N=3690) 3 = Randomization errors TAXUS (N=1195)

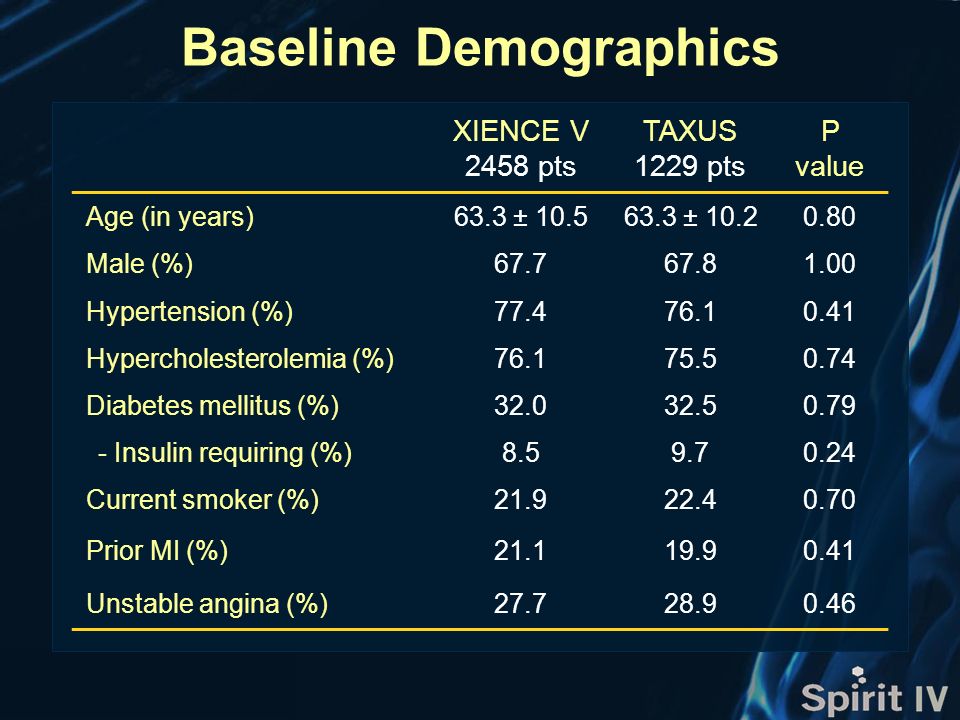

11. XIENCE V 2458 pts TAXUS 1229 pts P value Age (in years)63.3 ± 10.563.3 ± 10.20.80 Male (%)67.767.81.00 Hypertension (%)77.476.10.41 Hypercholesterolemia (%)76.175.50.74 Diabetes mellitus (%)32.032.50.79 - Insulin requiring (%)8.59.70.24 Current smoker (%)21.922.40.70 Prior MI (%)21.119.90.41 Unstable angina (%)27.728.90.46 Baseline Demographics

12. XIENCE V 3142 lesions TAXUS 1585 lesions P value Lesion location LAD40.5%39.8%0.68 LCX24.2%25.4%0.35 RCA35.4%34.8%0.68 LMCA0.0% - QCA RVD (mm)2.75 ± 0.482.75 ± 0.460.59 MLD (mm)0.75 ± 0.380.76 ± 0.390.36 % DS72.3 ± 12.672.0 ± 12.80.44 Lsn length (mm)14.8 ± 6.714.5 ± 6.60.24 Baseline Angiography

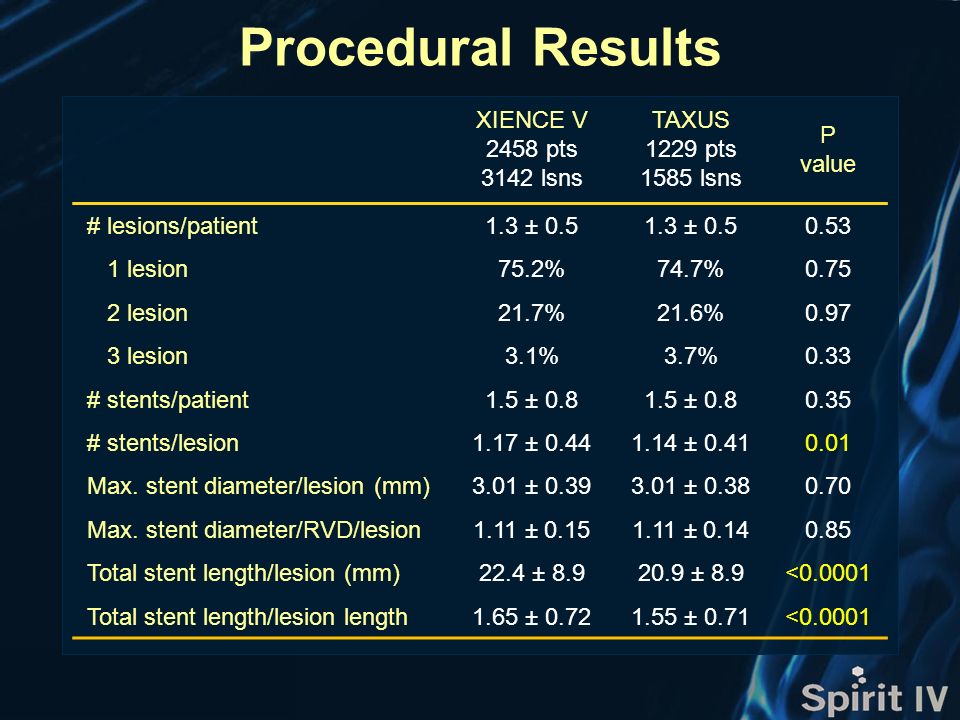

13. XIENCE V 2458 pts 3142 lsns TAXUS 1229 pts 1585 lsns P value # lesions/patient1.3 ± 0.5 0.53 1 lesion75.2%74.7%0.75 2 lesion21.7%21.6%0.97 3 lesion3.1%3.7%0.33 # stents/patient1.5 ± 0.8 0.35 # stents/lesion1.17 ± 0.441.14 ± 0.410.01 Max. stent diameter/lesion (mm)3.01 ± 0.393.01 ± 0.380.70 Max. stent diameter/RVD/lesion1.11 ± 0.151.11 ± 0.140.85 Total stent length/lesion (mm)22.4 ± 8.920.9 ± 8.9<0.0001 Total stent length/lesion length1.65 ± 0.721.55 ± 0.71<0.0001 Procedural Results

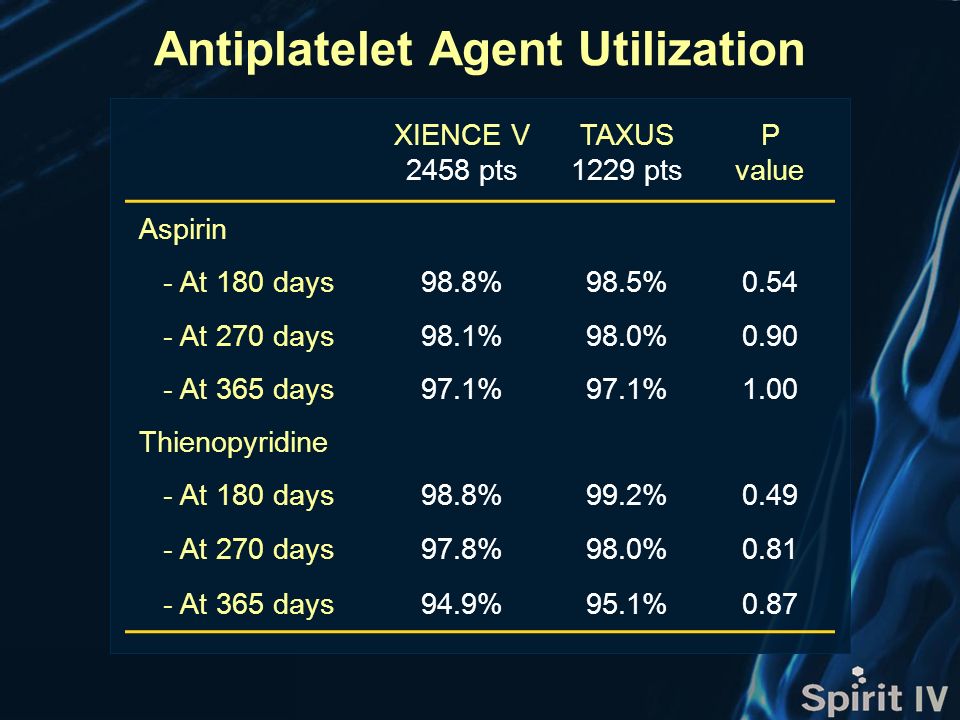

14. XIENCE V 2458 pts TAXUS 1229 pts P value Aspirin - At 180 days98.8%98.5%0.54 - At 270 days98.1%98.0%0.90 - At 365 days97.1% 1.00 Thienopyridine - At 180 days98.8%99.2%0.49 - At 270 days97.8%98.0%0.81 - At 365 days94.9%95.1%0.87 Antiplatelet Agent Utilization

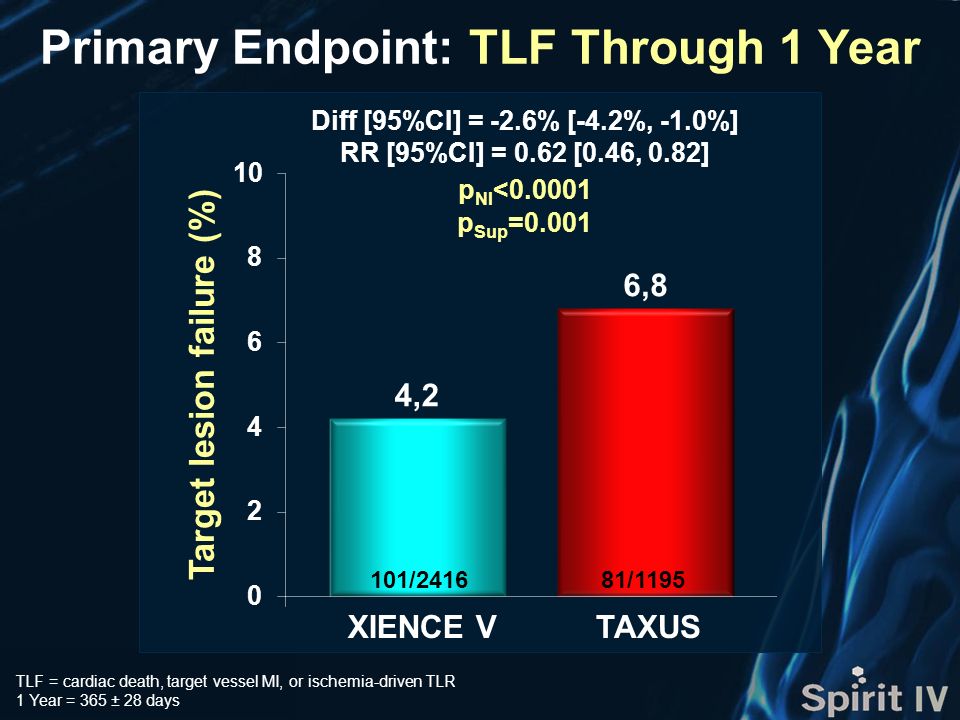

15. Target lesion failure (%) 101/241681/1195 XIENCE VTAXUS Primary Endpoint: TLF Through 1 Year TLF = cardiac death, target vessel MI, or ischemia-driven TLR 1 Year = 365 ± 28 days Diff [95%CI] = -2.6% [-4.2%, -1.0%] RR [95%CI] = 0.62 [0.46, 0.82] p NI <0.0001 p Sup =0.001

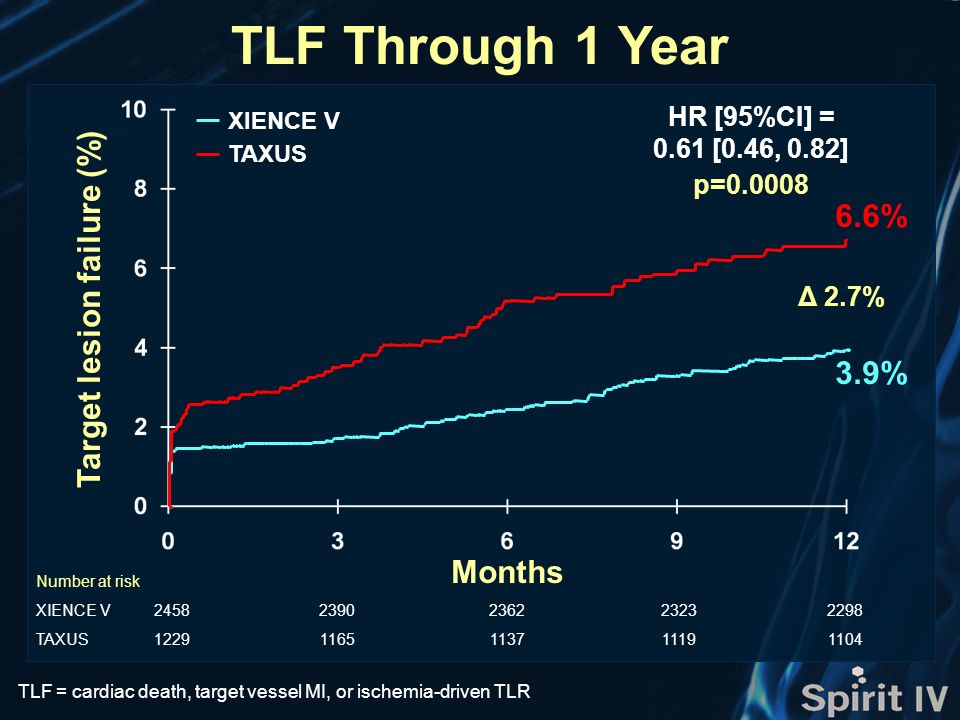

16. Number at risk XIENCE V2458 239023622323 2298 TAXUS1229 116511371119 1104 6.6% 3.9% Target lesion failure (%) Months p=0.0008 HR [95%CI] = 0.61 [0.46, 0.82] Δ 2.7% TLF Through 1 Year XIENCE V TAXUS TLF = cardiac death, target vessel MI, or ischemia-driven TLR

17. TVF RR [95%CI] = 0.71 [0.55, 0.92] p=0.009 RR [95%CI] = 0.62 [0.46, 0.82] p=0.001 RR [95%CI] = 0.62 [0.46, 0.82] p=0.0009 82/1195 102/2416 81/1195 101/2416 94/1195 135/2416 TLF MACE % TVF, TLF, and MACE Through 1 Year TLF = cardiac death, target vessel MI, or ID-TLR; MACE = cardiac death, all MI, or ID-TLR; TVF = cardiac death, all MI, or ID-TVR. 1 Year = 365 ± 28 days XIENCE VTAXUS

18. Ischemia-driven TLR (%) 61/241655/1195 XIENCE V TAXUS Major 2° Endpoint: ID-TLR Through 1 Year 1 Year = 365 ± 28 days Diff [95%CI] = -2.1% [-3.4%, -0.7%] RR [95%CI] = 0.55 [0.38, 0.78] p NI <0.0001 p Sup =0.001

19. Ischemia-driven TLR (%) Ischemia-Driven TLR Through 1 Year Number at risk XIENCE V2458 241923922353 2328 TAXUS1229 118511581140 1125 Months p=0.0008 HR [95%CI] = 0.54 [0.38, 0.78] XIENCE V TAXUS 4.5% 2.3% Δ 2.2%

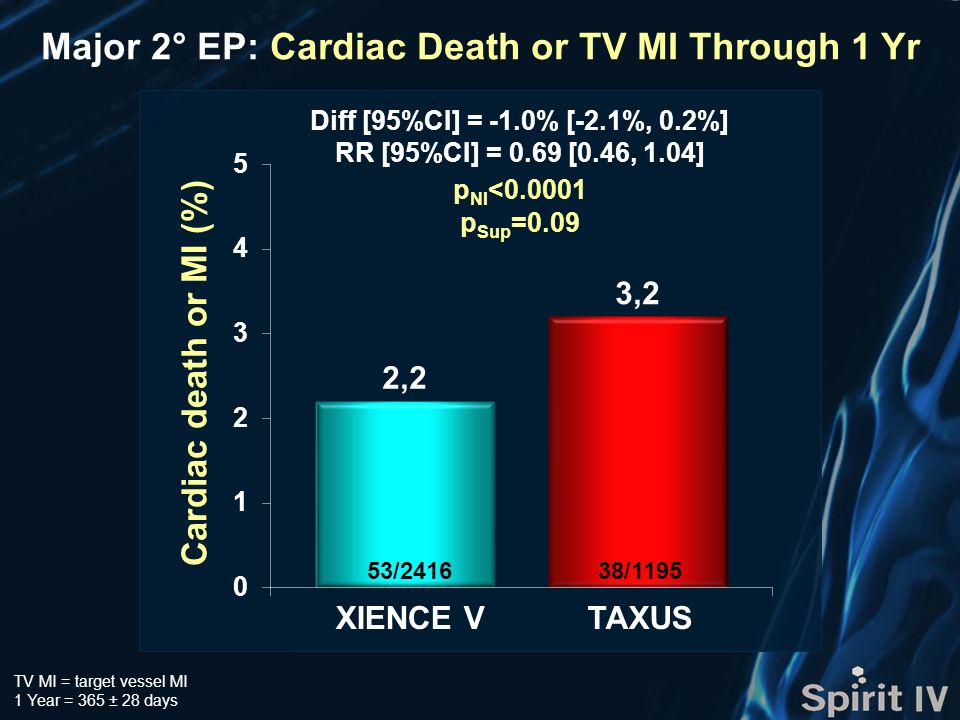

20. Cardiac death or MI (%) 53/241638/1195 XIENCE VTAXUS Major 2° EP: Cardiac Death or TV MI Through 1 Yr TV MI = target vessel MI 1 Year = 365 ± 28 days Diff [95%CI] = -1.0% [-2.1%, 0.2%] RR [95%CI] = 0.69 [0.46, 1.04] p NI <0.0001 p Sup =0.09

21. Cardiac death or MI (%) MI = Target Vessel MI Cardiac Death or TV MI Through 1 Year Number at risk XIENCE V2458 239323782353 2339 TAXUS1229 117911651154 1146 3.1% 2.2% Months p=0.08 HR [95%CI] = 0.69 [0.46, 1.05] Δ 0.9% XIENCE V TAXUS

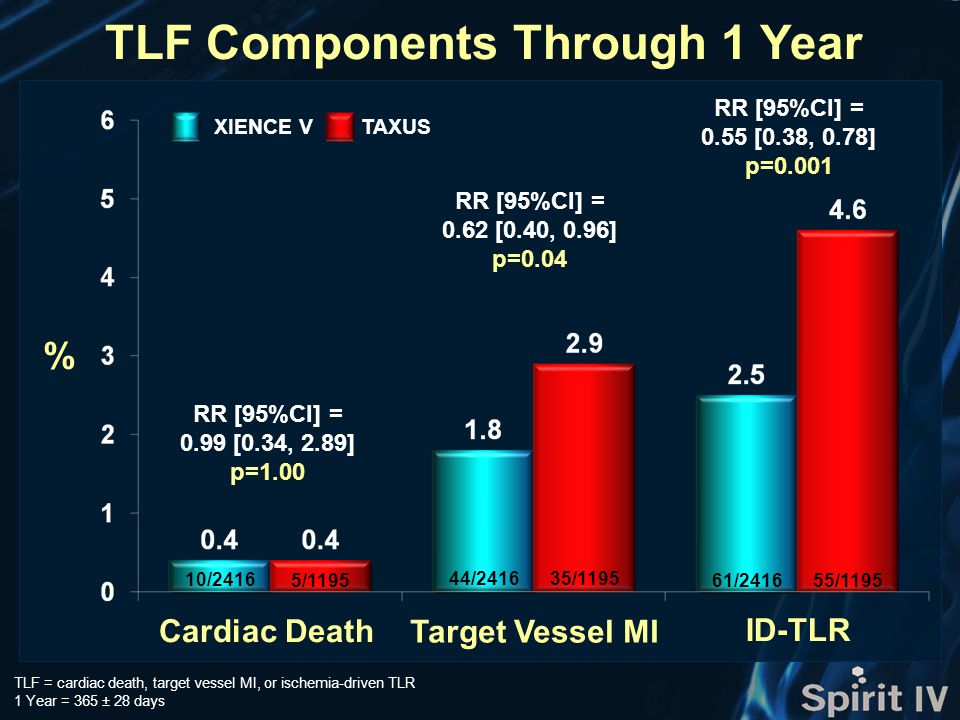

22. Cardiac Death RR [95%CI] = 0.99 [0.34, 2.89] p=1.00 RR [95%CI] = 0.62 [0.40, 0.96] p=0.04 RR [95%CI] = 0.55 [0.38, 0.78] p=0.001 55/1195 61/2416 35/1195 44/2416 5/1195 10/2416 XIENCE VTAXUS Target Vessel MI ID-TLR % TLF Components Through 1 Year TLF = cardiac death, target vessel MI, or ischemia-driven TLR 1 Year = 365 ± 28 days

23. XIENCE V 2458 pts TAXUS 1195 pts P value Death, all1.0%1.3%0.61 - Cardiac0.4% 1.00 - Non cardiac0.6%0.8%0.52 MI, all1.9%3.1%0.02 - Q-wave0.1%0.4%0.13 - Non Q-wave1.7%2.8%0.05 All death or MI2.8%4.1%0.05 Cardiac death or MI2.2%3.3%0.07 MI = Target Vessel MI + Non-Target Vessel MI Categorical data, 365 ± 28 days Death and MI at 1 Year

24. Stent thrombosis (%) *ACS + angiographic thrombus, or unexplained death or STEMI/Q-wave MI in TL distribution within 30 days Stent Thrombosis (Protocol Definition)* Number at risk XIENCE V2458 242724132389 2377 TAXUS1229 119811871177 1169 0.82% 0.16% Months p=0.002 HR [95%CI] = 0.20 [0.06, 0.63] Δ 0.66% XIENCE V TAXUS

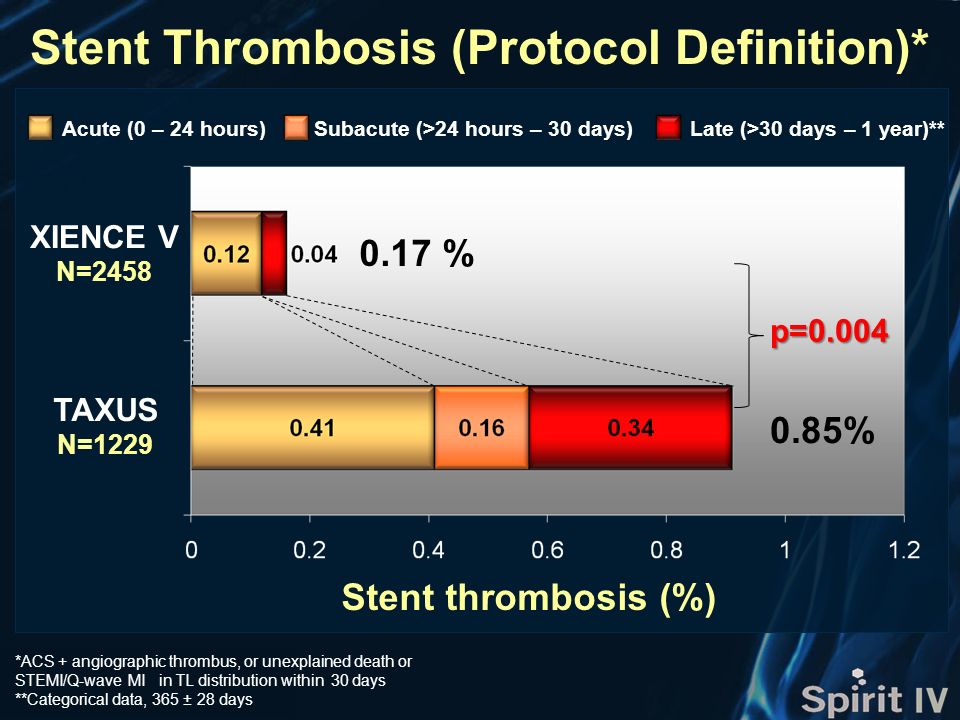

25. XIENCE V N=2458 TAXUS N=1229 Stent thrombosis (%) 0.17 % 0.85% p=0.004 Stent Thrombosis (Protocol Definition)* Acute (0 – 24 hours)Subacute (>24 hours – 30 days)Late (>30 days – 1 year)** *ACS + angiographic thrombus, or unexplained death or STEMI/Q-wave MI in TL distribution within 30 days **Categorical data, 365 ± 28 days

26. Stent Thrombosis (ARC Def or Prob) Number at risk XIENCE V2458 242624122388 2376 TAXUS1229 119511841174 1166 1.06% 0.29% Months p=0.003 HR [95%CI] = 0.27 [0.11, 0.67] Δ 0.77% Stent thrombosis (%) XIENCE V TAXUS

27. XIENCE V N=2458 TAXUS N=1229 Stent thrombosis (%) 0.29% 1.10% p=0.004 Stent Thrombosis (ARC Definition)* Acute (0 – 24 hours)Subacute (>24 hours – 30 days)Late (>30 days – 1 year)** *Definite or Probable per ARC definition **Categorical data, 365 ± 28 days

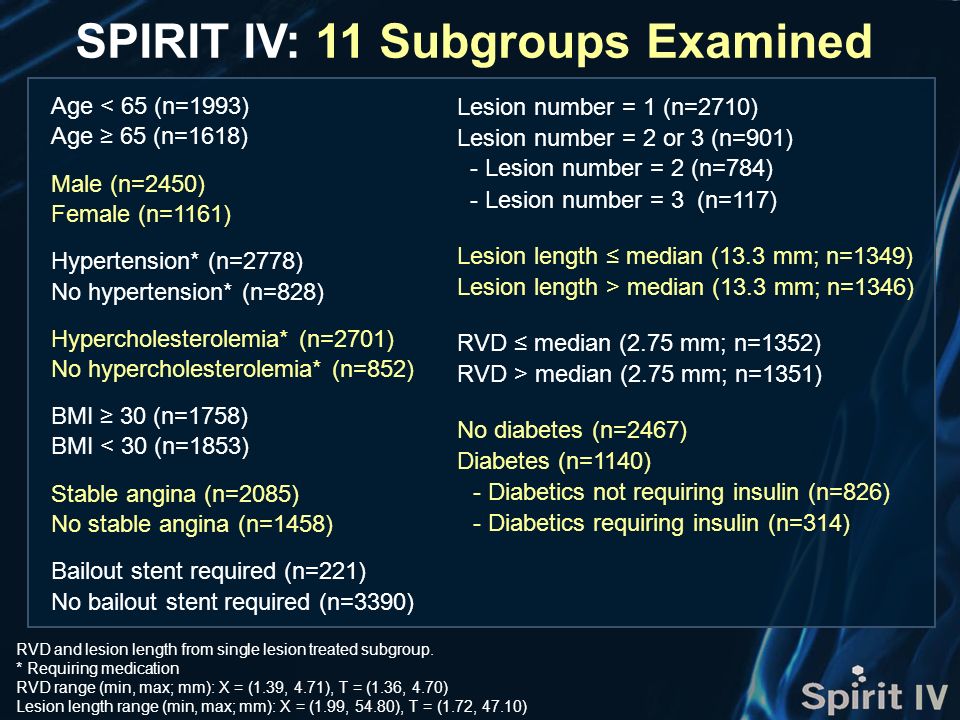

28. SPIRIT IV: 11 Subgroups Examined - Diabetics not requiring insulin (n=826) - Diabetics requiring insulin (n=314) Diabetes (n=1140) No diabetes (n=2467) - Lesion number = 2 (n=784) - Lesion number = 3 (n=117) Lesion number = 1 (n=2710) Lesion number = 2 or 3 (n=901) RVD median (2.75 mm; n=1352) RVD > median (2.75 mm; n=1351) Lesion length median (13.3 mm; n=1349) Lesion length > median (13.3 mm; n=1346) Age < 65 (n=1993) Age 65 (n=1618) RVD and lesion length from single lesion treated subgroup. * Requiring medication RVD range (min, max; mm): X = (1.39, 4.71), T = (1.36, 4.70) Lesion length range (min, max; mm): X = (1.99, 54.80), T = (1.72, 47.10) Bailout stent required (n=221) No bailout stent required (n=3390) Hypertension* (n=2778) No hypertension* (n=828) Hypercholesterolemia* (n=2701) No hypercholesterolemia* (n=852) BMI 30 (n=1758) BMI < 30 (n=1853) Stable angina (n=2085) No stable angina (n=1458) Male (n=2450) Female (n=1161)

29. Group EES (%) PES (%) Relative Risk (95% CI) Relative Risk (95% CI) P interaction All randomized (n=3687)4.26.80.62 [0.46, 0.82] Age 65 yrs (n=1618)3.85.50.69 [0.43, 1.09] 0.53 Age < 65 yrs (n=1993)4.57.80.57 [0.40, 0.82] Male (n=2450)4.26.30.67 [0.47, 0.95] 0.43 Female (n=1161)4.17.80.53 [0.33, 0.85] Hypertension* (n=2778)4.17.20.57 [0.41, 0.78] 0.30 No hypertension* (n=828)4.45.30.83 [0.44, 1.55] Hypercholesterolemia* (n=2701)4.26.40.65 [0.47, 0.91] 0.52 No hypercholesterolemia* (n=852)4.28.00.53 [0.30, 0.92] BMI 30 (n=1758)4.77.20.66 [0.45, 0.98] 0.63 BMI < 30 (n=1853)3.76.40.57 [0.38, 0.87] Stable angina (n=2085)4.27.40.56 [0.39, 0.81] 0.44 No stable angina (n=1458)4.36.00.70 [0.45, 1.11] SPIRIT IV Subgroup Analysis: TLF at 1 Year TLF = cardiac death, target vessel MI, or ischemia-driven TLR; 1 Year = 365 ± 28 days. *Requiring medication EES better PES better

30. Group EES (%) PES (%) Relative Risk (95% CI) Relative Risk (95% CI) P interaction All randomized (n=3687)4.26.80.62 [0.46, 0.82] Single lesion treated (n=2710)3.95.70.68 [0.48, 0.96] 0.34 Two or more lesions treated (n=901)5.110.00.51 [0.32, 0.83] RVD > 2.75 mm (n=1351)3.94.70.83 [0.49, 1.41] 0.29 RVD 2.75 mm (n=1352)3.96.80.57 [0.35, 0.91] Lesion length > 13.3 mm (n=1346)4.56.90.65 [0.41, 1.03] 0.79 Lesion length 13.3 mm (n=1349)3.24.50.71 [0.41, 1.23] Bailout stent required (n=221)5.014.50.35 [0.14, 0.86] 0.19 No bailout stent required (n=3390)4.16.40.65 [0.48, 0.87] Diabetes (n=1140)6.46.90.94 [0.59, 1.49] 0.02 No diabetes(n=2467)3.16.70.47 [0.32, 0.68] SPIRIT IV Subgroup Analysis: TLF at 1 Year TLF = cardiac death, target vessel MI, or ischemia-driven TLR; 1 Year = 365 ± 28 days Single lesion treated data are used for RVD & lesion length subgroup analyses EES better PES better

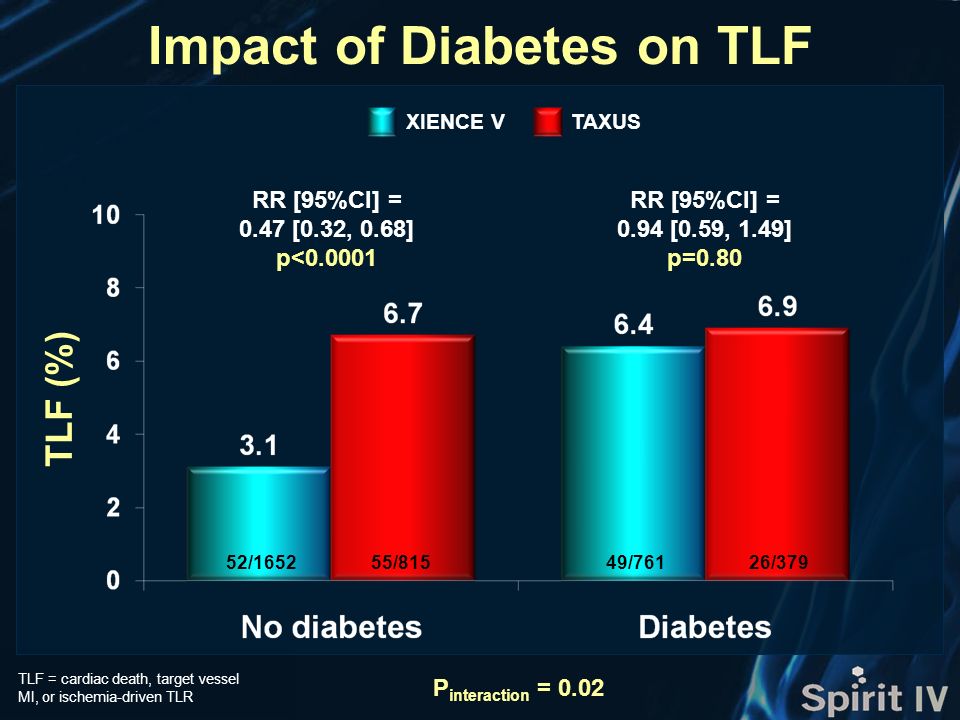

31. RR [95%CI] = 0.47 [0.32, 0.68] p<0.0001 49/76126/37952/165255/815 RR [95%CI] = 0.94 [0.59, 1.49] p=0.80 XIENCE VTAXUS Impact of Diabetes on TLF TLF (%) P interaction = 0.02 TLF = cardiac death, target vessel MI, or ischemia-driven TLR

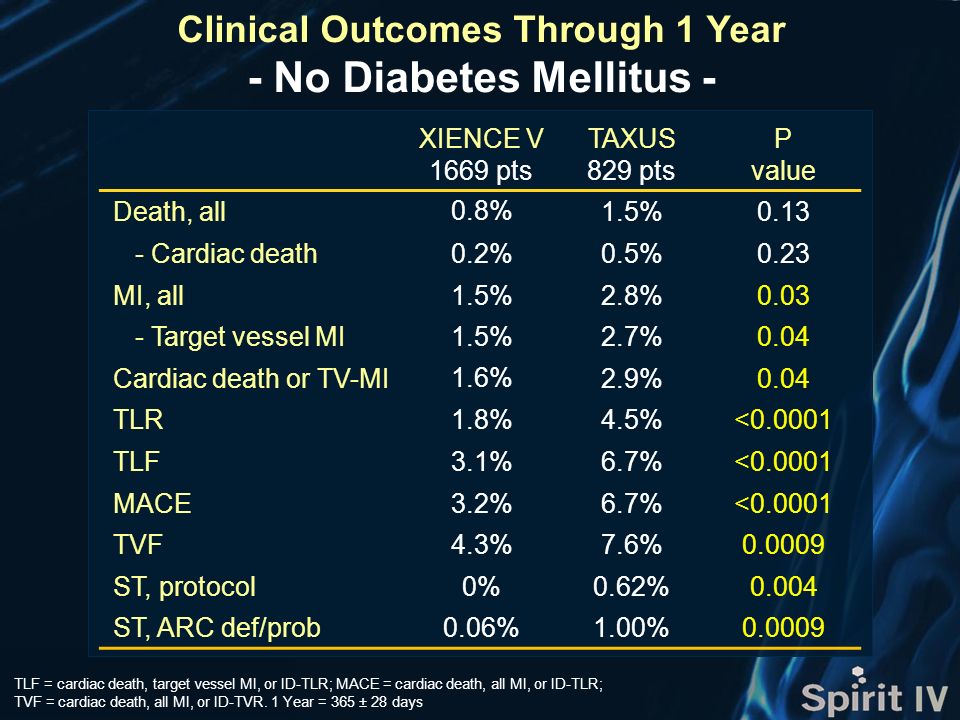

32. Clinical Outcomes Through 1 Year - No Diabetes Mellitus - XIENCE V 1669 pts TAXUS 829 pts P value Death, all0.8%1.5%0.13 - Cardiac death0.2%0.5%0.23 MI, all1.5%2.8%0.03 - Target vessel MI1.5%2.7%0.04 Cardiac death or TV-MI1.6%2.9%0.04 TLR1.8%4.5%<0.0001 TLF3.1%6.7%<0.0001 MACE3.2%6.7%<0.0001 TVF4.3%7.6%0.0009 ST, protocol0%0.62%0.004 ST, ARC def/prob0.06%1.00%0.0009 TLF = cardiac death, target vessel MI, or ID-TLR; MACE = cardiac death, all MI, or ID-TLR; TVF = cardiac death, all MI, or ID-TVR. 1 Year = 365 ± 28 days

33. XIENCE V 786 pts TAXUS 399 pts P value Death, all1.6%0.8%0.41 - Cardiac death0.9%0.3%0.28 MI, all2.6%3.7%0.36 - Target vessel MI2.6%3.4%0.46 Cardiac death or TV-MI3.4%3.7%0.87 TLR4.2%4.7%0.65 TLF6.4%6.9%0.80 MACE6.4%7.1%0.71 TVF8.4% 1.00 ST, protocol0.53%1.33%0.17 ST, ARC def/prob0.80%1.33%0.52 TLF = cardiac death, target vessel MI, or ID-TLR; MACE = cardiac death, all MI, or ID-TLR; TVF = cardiac death, all MI, or ID-TVR. 1 Year = 365 ± 28 days Clinical Outcomes Through 1 Year - Diabetes Mellitus -

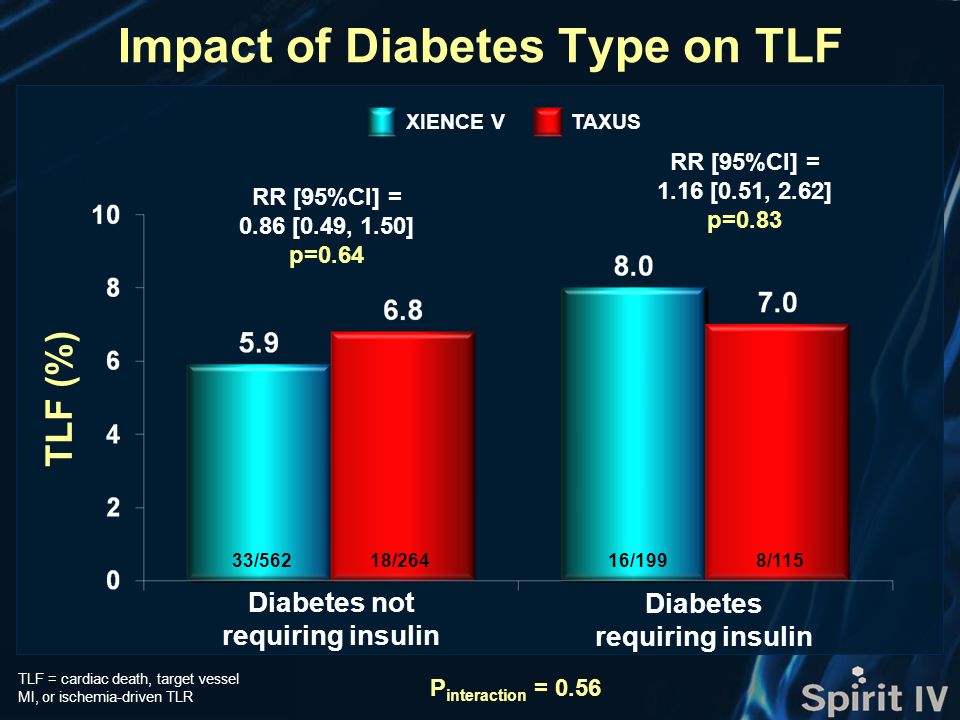

34. XIENCE VTAXUS Impact of Diabetes Type on TLF TLF (%) P interaction = 0.56 TLF = cardiac death, target vessel MI, or ischemia-driven TLR 16/1998/11533/56218/264 RR [95%CI] = 0.86 [0.49, 1.50] p=0.64 RR [95%CI] = 1.16 [0.51, 2.62] p=0.83 Diabetes not requiring insulin Diabetes requiring insulin

35. In the large-scale, prospective multicenter randomized SPIRIT IV trial, the everolimus-eluting XIENCE V stent compared to the paclitaxel-eluting TAXUS Express stent at 1-year follow-up demonstrated: Primary endpoint: Significantly reduced rate of TLF Major secondary endpoints: Significantly reduced rate of TLR and noninferior rate of cardiac death or target vessel MI Other secondary endpoints: Significantly reduced rates of stent thrombosis (protocol and ARC), target vessel MI and all MI, with comparable rates of cardiac death and all-cause death Diabetic subgroup: Comparable rate of TLF in pts with diabetes, and a marked reduction in TLF in pts without diabetes Other subgroups: Consistent relative reductions in TLF independent of clinical features, vessel size, and # and length of treated lesions SPIRIT IV Conclusions

36. Clinical Implications The results with the XIENCE V stent demonstrating enhanced safety and efficacy compared to TAXUS EXPRESS in this large-scale study without routine angiographic follow-up and with 100% monitoring set a new standard for event-free survival after DES The simultaneous reduction of stent thrombosis, MI and TLR with XIENCE V demonstrates that low late loss may be achieved with DES without sacrificing safety Outcomes in pts with diabetes may still be improved, and should represent an area of focus for future development of novel drugs and enhanced stent design
