1 © 2009 by OPENMIND Technologies AG. All rights reserved. Wessling, 30.04.2009 www.openmind-tech.com

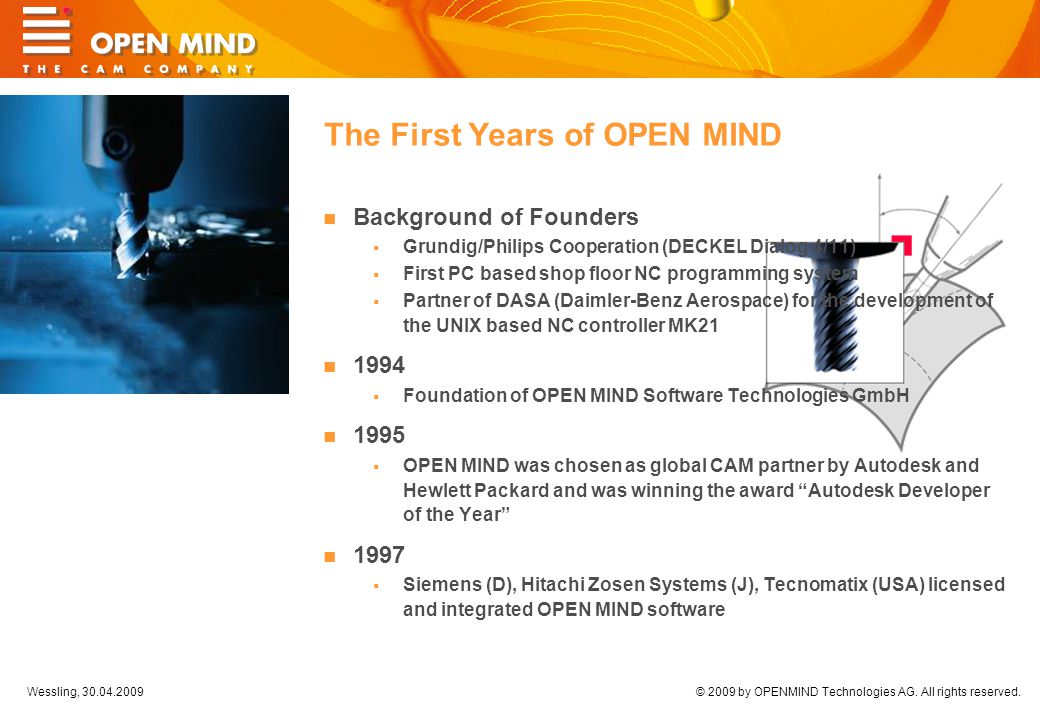

2 © 2009 by OPENMIND Technologies AG. All rights reserved. Wessling, 30.04.2009 The First Years of OPEN MIND Background of Founders  Grundig/Philips Cooperation (DECKEL Dialog 4/11)  First PC based shop floor NC programming system  Partner of DASA (Daimler-Benz Aerospace) for the development of the UNIX based NC controller MK21 1994  Foundation of OPEN MIND Software Technologies GmbH 1995  OPEN MIND was chosen as global CAM partner by Autodesk and Hewlett Packard and was winning the award “Autodesk Developer of the Year” 1997  Siemens (D), Hitachi Zosen Systems (J), Tecnomatix (USA) licensed and integrated OPEN MIND software

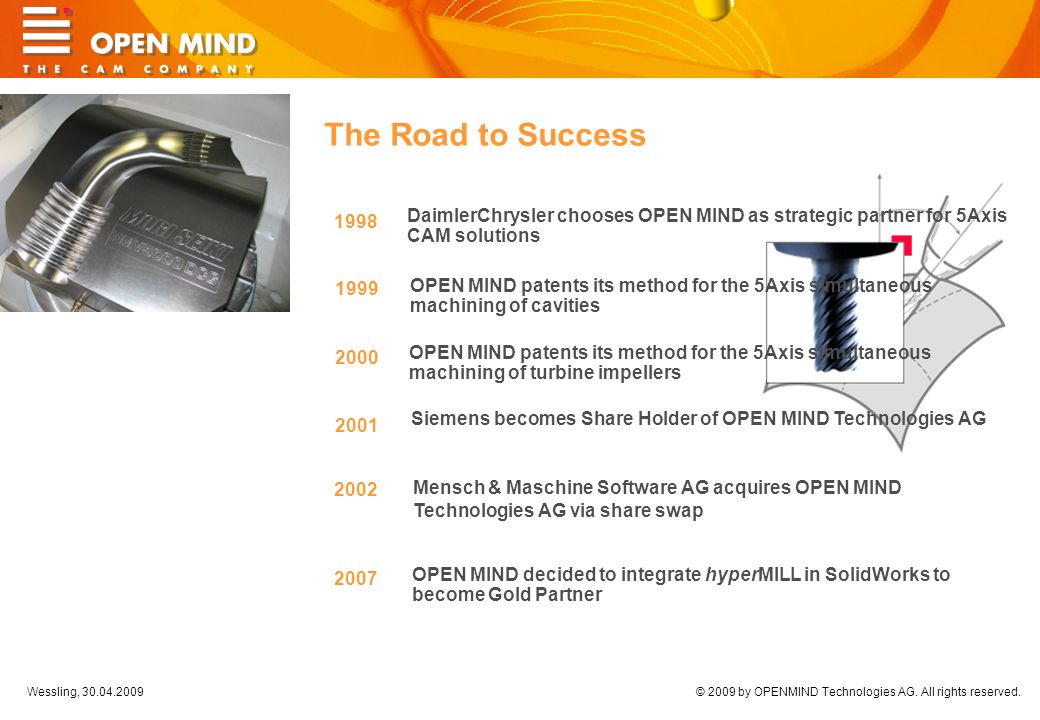

3 © 2009 by OPENMIND Technologies AG. All rights reserved. Wessling, 30.04.2009 The Road to Success 1998 DaimlerChrysler chooses OPEN MIND as strategic partner for 5Axis CAM solutions 1999 OPEN MIND patents its method for the 5Axis simultaneous machining of cavities 2000 OPEN MIND patents its method for the 5Axis simultaneous machining of turbine impellers Siemens becomes Share Holder of OPEN MIND Technologies AG 2001 Mensch & Maschine Software AG acquires OPEN MIND Technologies AG via share swap 2002 OPEN MIND decided to integrate hyperMILL in SolidWorks to become Gold Partner 2007

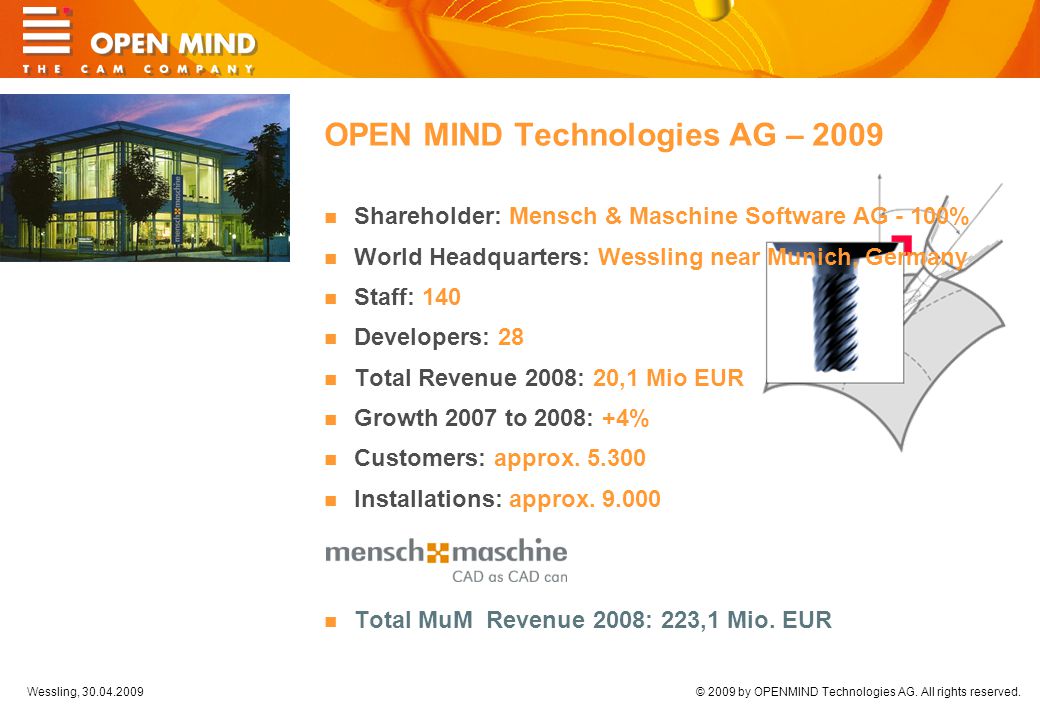

4 © 2009 by OPENMIND Technologies AG. All rights reserved. Wessling, 30.04.2009 OPEN MIND Technologies AG – 2009 Shareholder: Mensch & Maschine Software AG - 100% World Headquarters: Wessling near Munich, Germany Staff: 140 Developers: 28 Total Revenue 2008: 20,1 Mio EUR Growth 2007 to 2008: +4% Customers: approx. 5.300 Installations: approx. 9.000 Total MuM Revenue 2008: 223,1 Mio. EUR

5 5 © 2009 by OPENMIND Technologies AG. All rights reserved. Application Areas Injection molds, forging and die casting industry  Single part production  High demands on surface quality, accuracy, efficiency, flexibility Structural parts for aerospace industries  Special materials, high amount of material removal, special milling strategies Sheet metal parts, model making  More sophisticated design, shorter life cycle time, higher quality demands Turbo machinery  High sophisticated parts, undercuts, complex collision situation Cubical and production parts  Rapid programming of drilling as well as 2D operations with several fixed inclinations...  Mid and large scale production

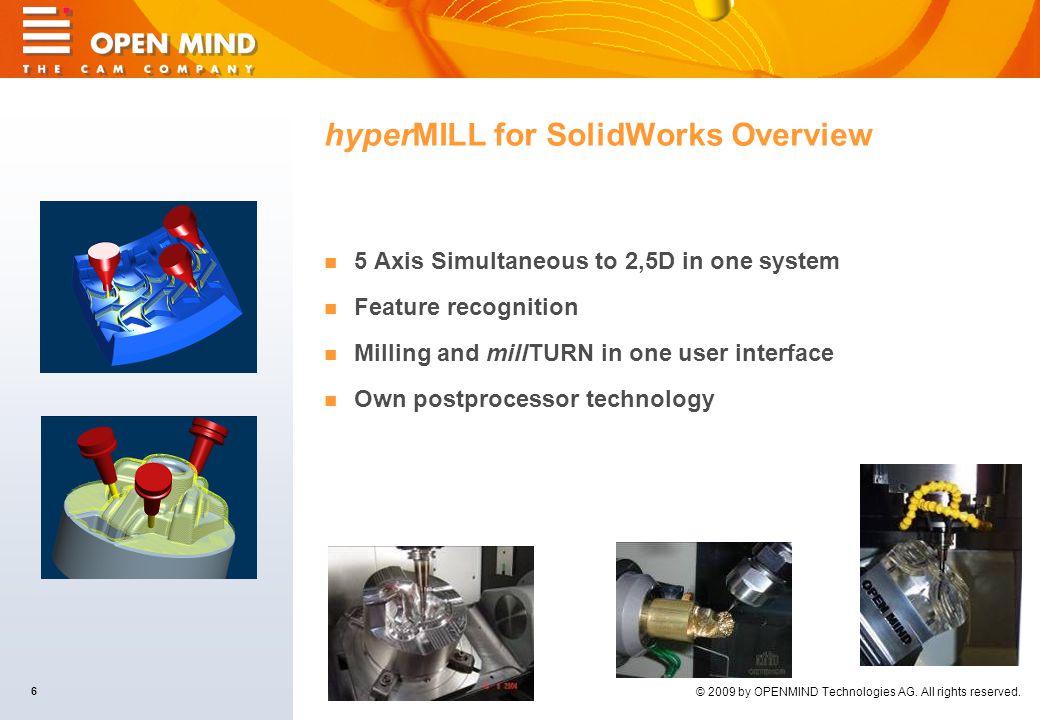

6 6 © 2009 by OPENMIND Technologies AG. All rights reserved. hyperMILL for SolidWorks Overview 5 Axis Simultaneous to 2,5D in one system Feature recognition Milling and millTURN in one user interface Own postprocessor technology

7 7 © 2009 by OPENMIND Technologies AG. All rights reserved. 2,5D Feature Machining

8 8 © 2009 by OPENMIND Technologies AG. All rights reserved. The hyperMILL Browser opens within SolidWorks with one click.

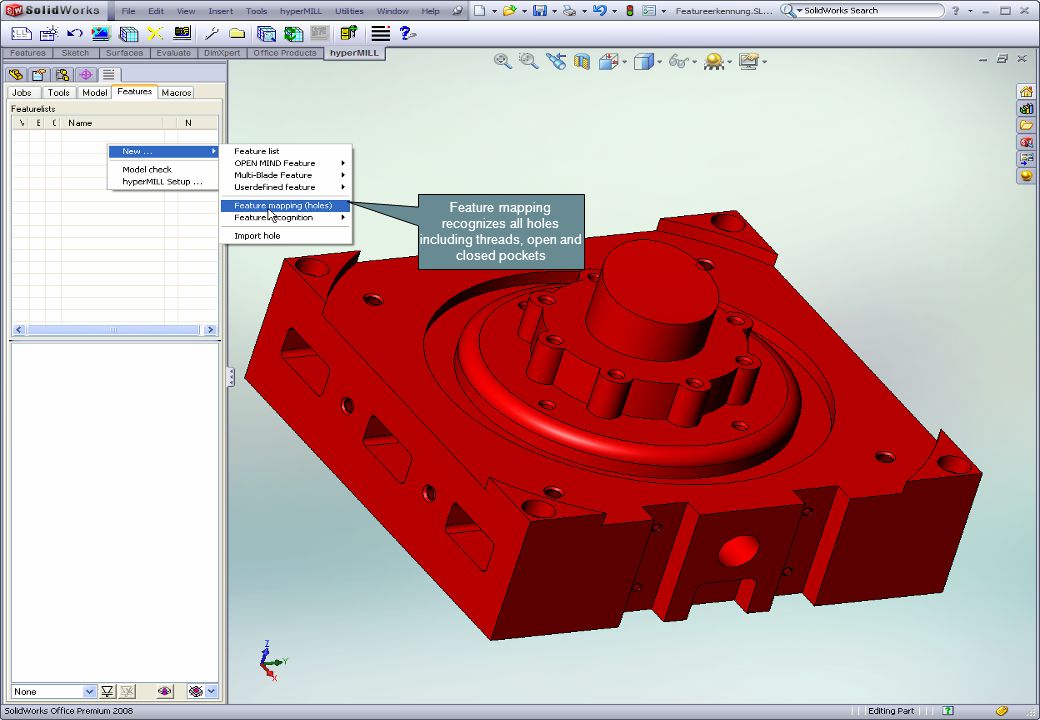

9 9 © 2009 by OPENMIND Technologies AG. All rights reserved. Feature mapping recognizes all holes including threads, open and closed pockets

10 10 © 2009 by OPENMIND Technologies AG. All rights reserved. All CAM- Features are recognized and are clearly displayed

11 11 © 2009 by OPENMIND Technologies AG. All rights reserved. hyperMILL opens the Technology Database and applies stored process data to the Features

12 12 © 2009 by OPENMIND Technologies AG. All rights reserved. Joblists are created automatically when applying the Technology macros to the geometry features

13 13 © 2009 by OPENMIND Technologies AG. All rights reserved. Then the toolpaths are calculated for the automatically created jobs.

14 14 © 2009 by OPENMIND Technologies AG. All rights reserved. After toolpath calculation, the internal simulation including holder is available

15 15 © 2009 by OPENMIND Technologies AG. All rights reserved. One click and the NC-file will be created

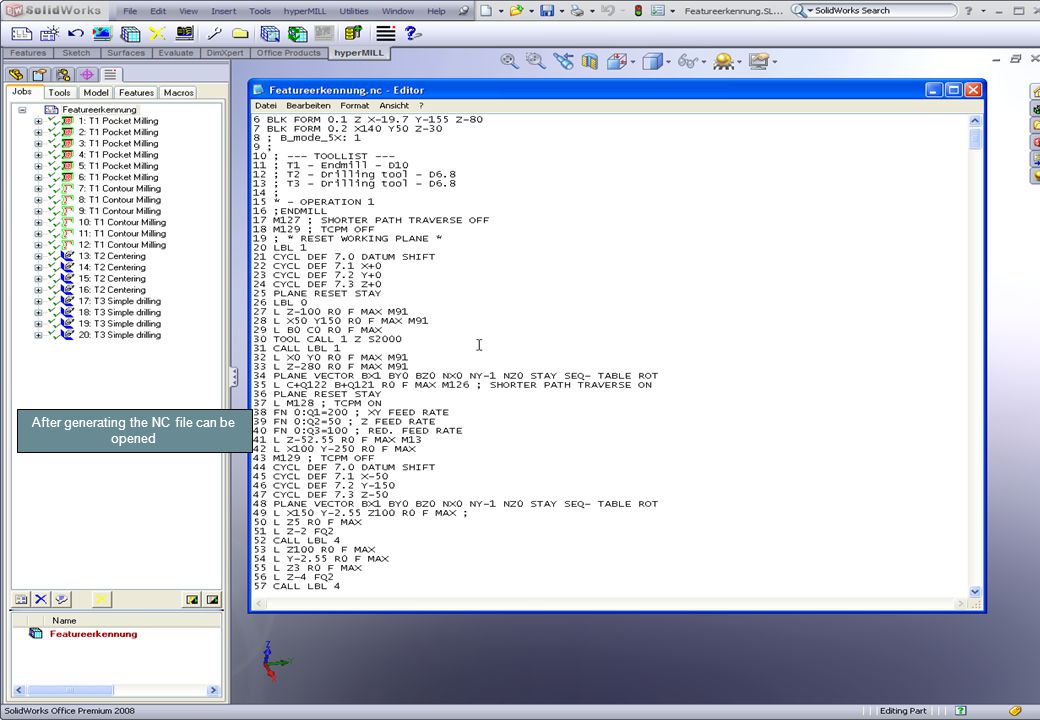

16 16 © 2009 by OPENMIND Technologies AG. All rights reserved. After generating the NC file can be opened

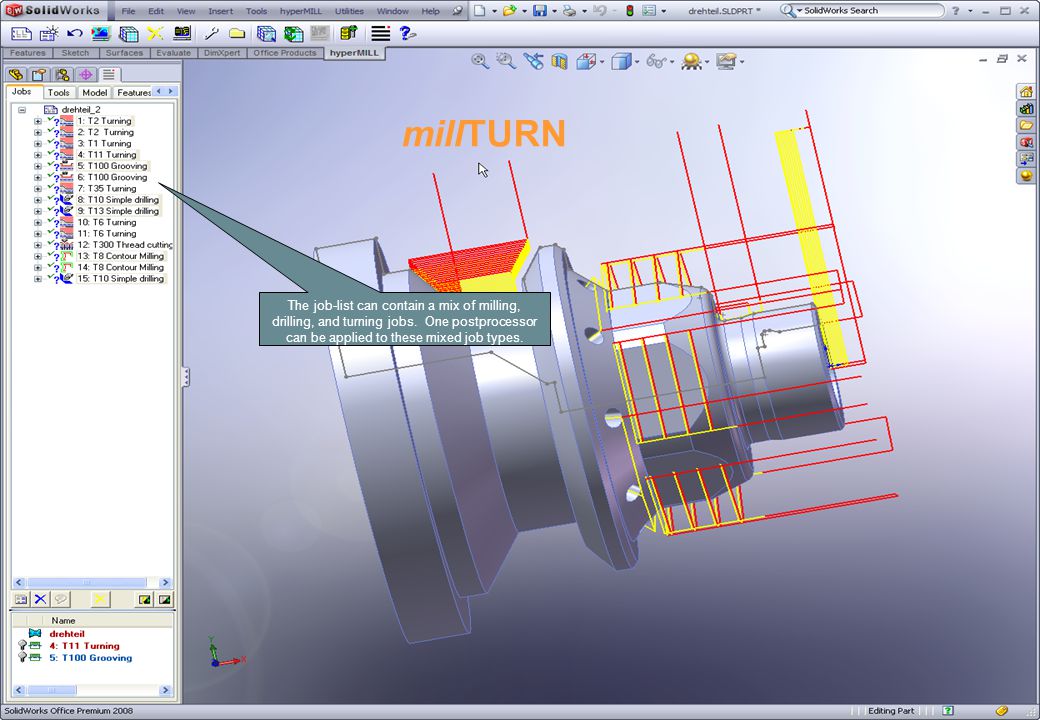

17 17 © 2009 by OPENMIND Technologies AG. All rights reserved. The job-list can contain a mix of milling, drilling, and turning jobs. One postprocessor can be applied to these mixed job types. millTURN

18 18 © 2009 by OPENMIND Technologies AG. All rights reserved. The stock model will be generated automatically as box or cylinder 3D-5axis Simultaneous Machining

19 19 © 2009 by OPENMIND Technologies AG. All rights reserved. The tool plunges outside the stock model using the roughing strategy “optimized in” The necessary tool length will be calculated. Toolpath fillets generate smooth motion for HSC technology

20 20 © 2009 by OPENMIND Technologies AG. All rights reserved. After the first roughing operation the stock model will be updated

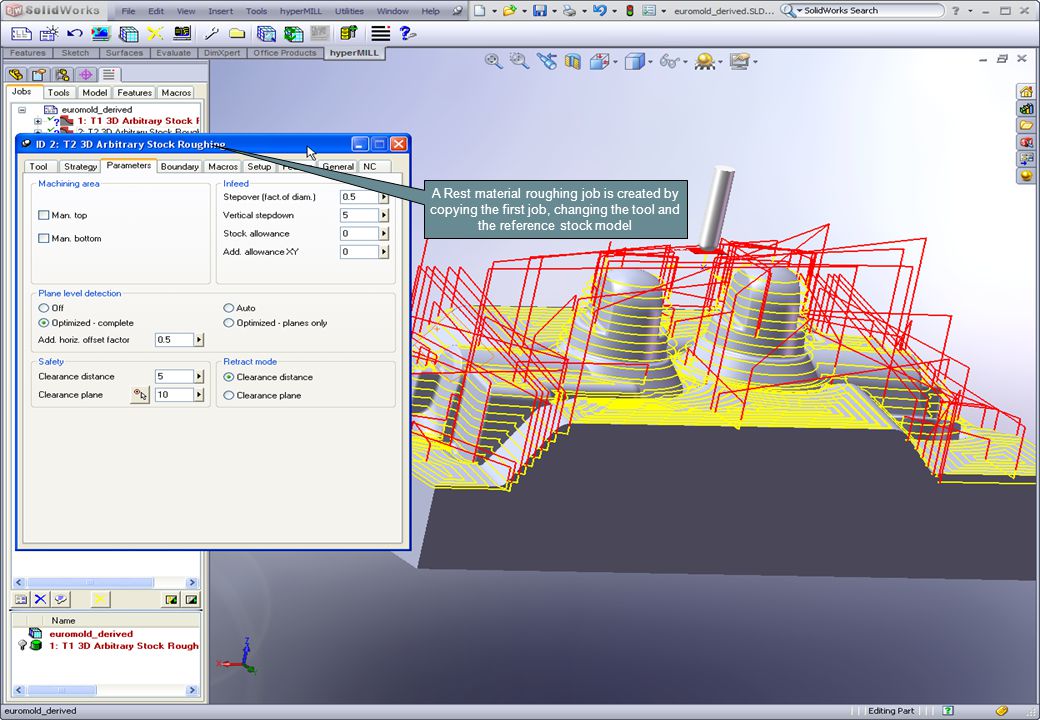

21 21 © 2009 by OPENMIND Technologies AG. All rights reserved. A Rest material roughing job is created by copying the first job, changing the tool and the reference stock model

22 22 © 2009 by OPENMIND Technologies AG. All rights reserved. Z-level finishing strategy with spiral step down

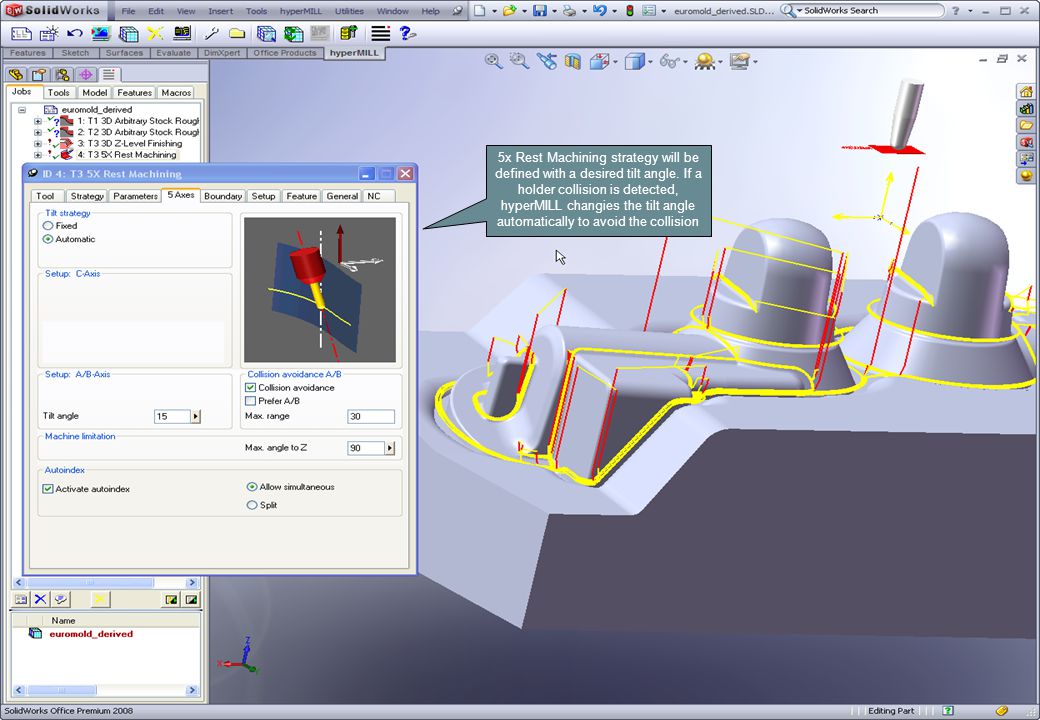

23 23 © 2009 by OPENMIND Technologies AG. All rights reserved. 5x Rest Machining strategy will be defined with a desired tilt angle. If a holder collision is detected, hyperMILL changies the tilt angle automatically to avoid the collision

24 24 © 2009 by OPENMIND Technologies AG. All rights reserved. The desired tilt angle will be constant as long as possible

25 25 © 2009 by OPENMIND Technologies AG. All rights reserved. Changing the inclination of the C-axis will be calculated automatically

26 26 © 2009 by OPENMIND Technologies AG. All rights reserved. 10 existing subsidiaries 1 new subsidiarie in the course of formation And a worldwide network of business partners A Worldwide Network OPEN MIND Technologies USA, Inc. Detroit/Boston OPEN MIND Technologies France S.a.r.l. Saverne, Paris, Toulouse, Oyonnax OPEN MIND Technologies UK Ltd. Oxfordshire OPEN MIND Technologies Japan Inc. Tokyo OPEN MIND Technoligies Italia SRL Rho/ Milano OPEN MIND Technologies AG Worldwide Headquarters Wessling/Munich OPEN MIND Technologies Schweiz GmbH Dietlikon OPEN MIND Technologies Asia/Pacific Pte. Ltd. Singapur OPEN MIND India (i.c.f.) Bangalore OPEN MIND China Co.LTD Shanghai / Beijing / Guangdong / ChengDu OPEN MIND Taiwan Inc.
