1. And so to Code

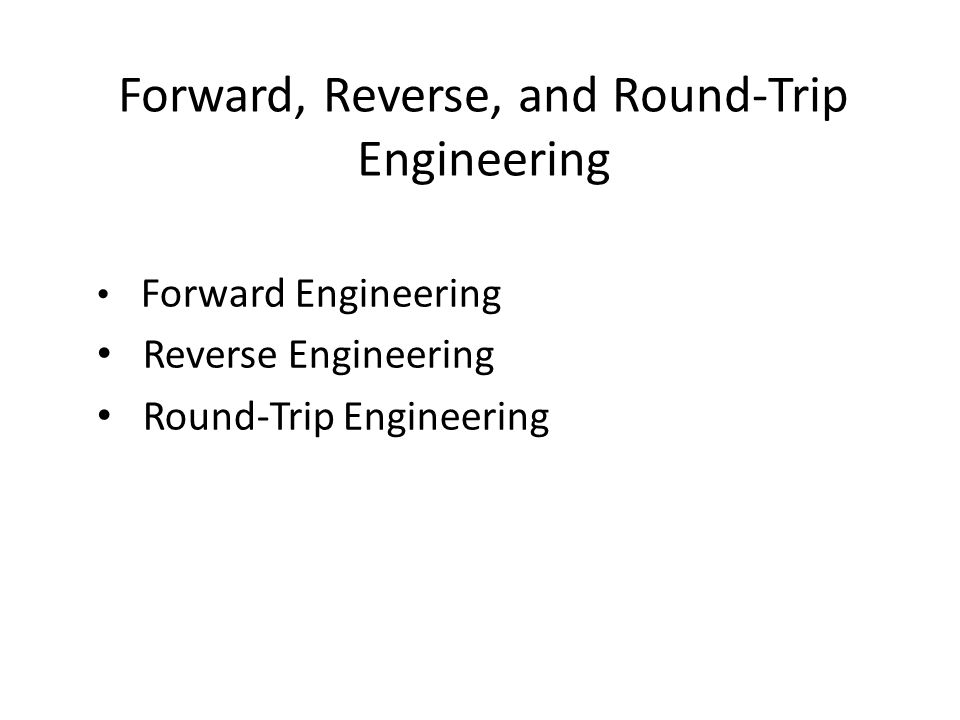

2. Forward, Reverse, and Round-Trip Engineering Forward Engineering Reverse Engineering Round-Trip Engineering

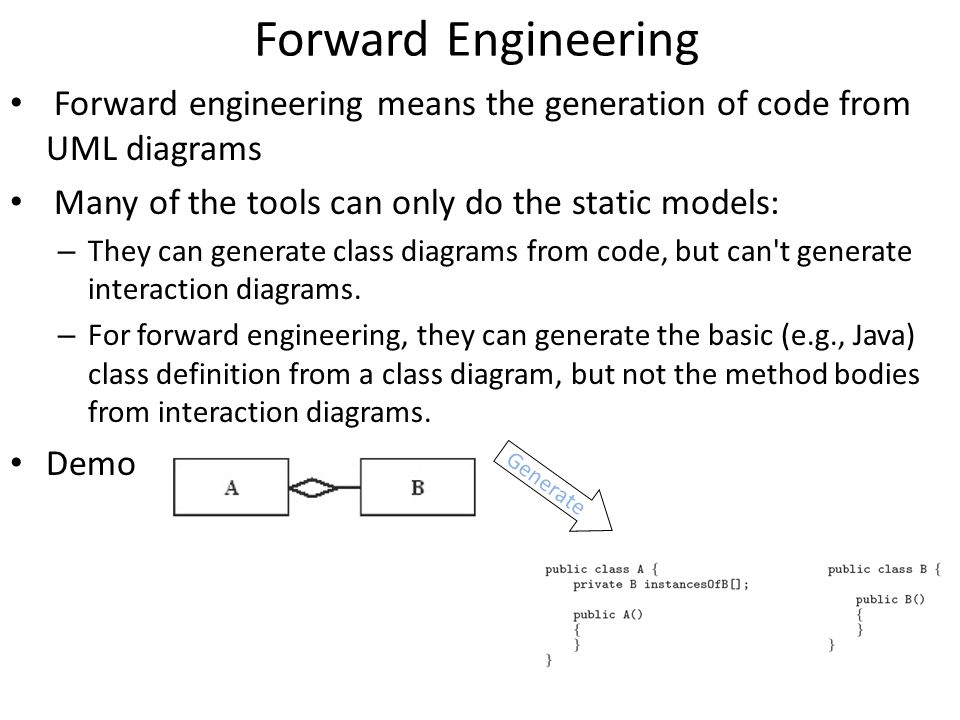

3. Forward Engineering Forward engineering means the generation of code from UML diagrams Many of the tools can only do the static models: – They can generate class diagrams from code, but can't generate interaction diagrams. – For forward engineering, they can generate the basic (e.g., Java) class definition from a class diagram, but not the method bodies from interaction diagrams. Demo Generate

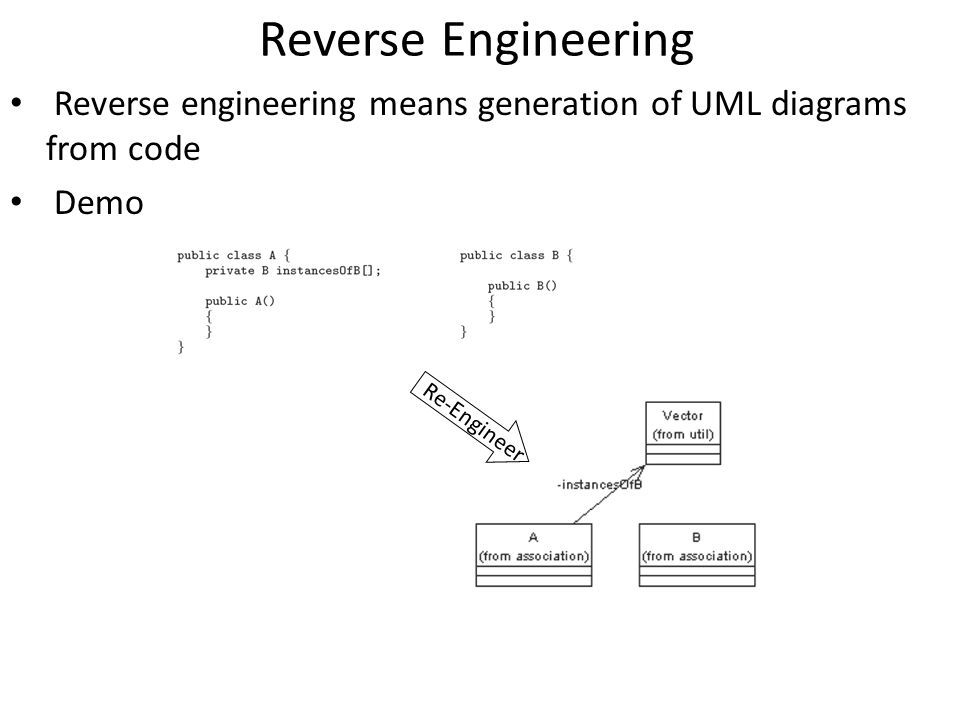

4. Reverse Engineering Reverse engineering means generation of UML diagrams from code Demo Re-Engineer

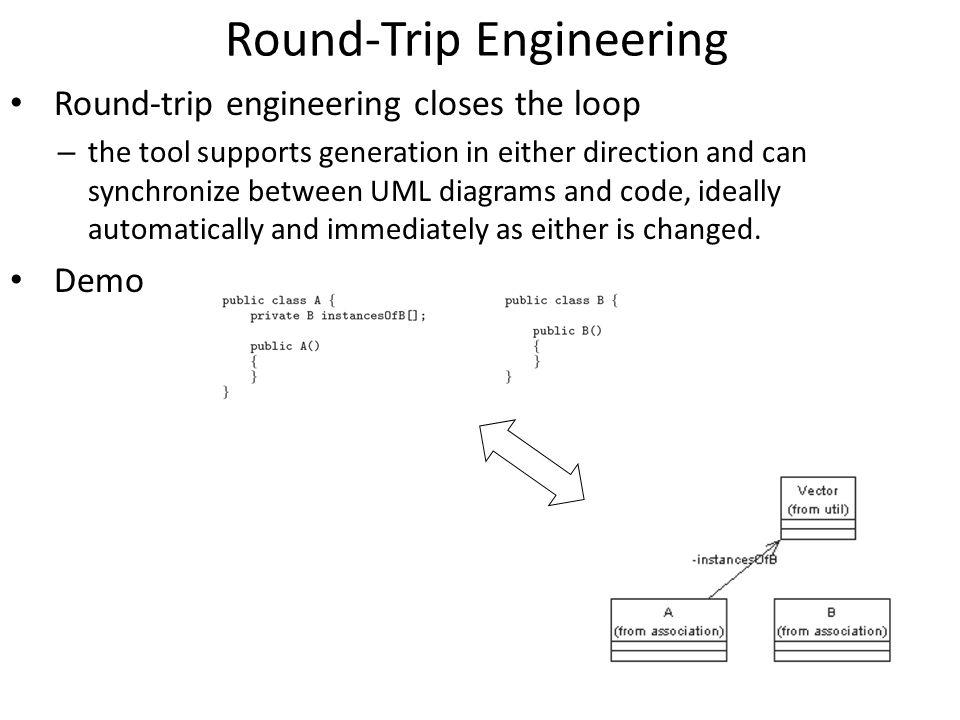

5. Round-Trip Engineering Round-trip engineering closes the loop – the tool supports generation in either direction and can synchronize between UML diagrams and code, ideally automatically and immediately as either is changed. Demo

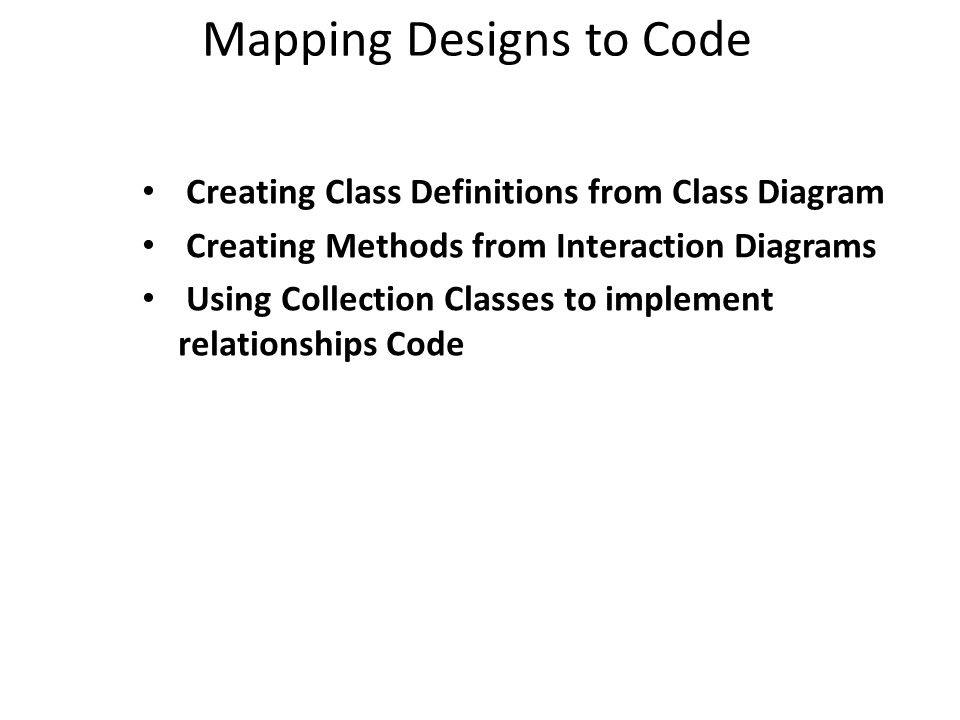

6. Mapping Designs to Code Creating Class Definitions from Class Diagram Creating Methods from Interaction Diagrams Using Collection Classes to implement relationships Code

7. Creating Class Definitions from Class Diagram

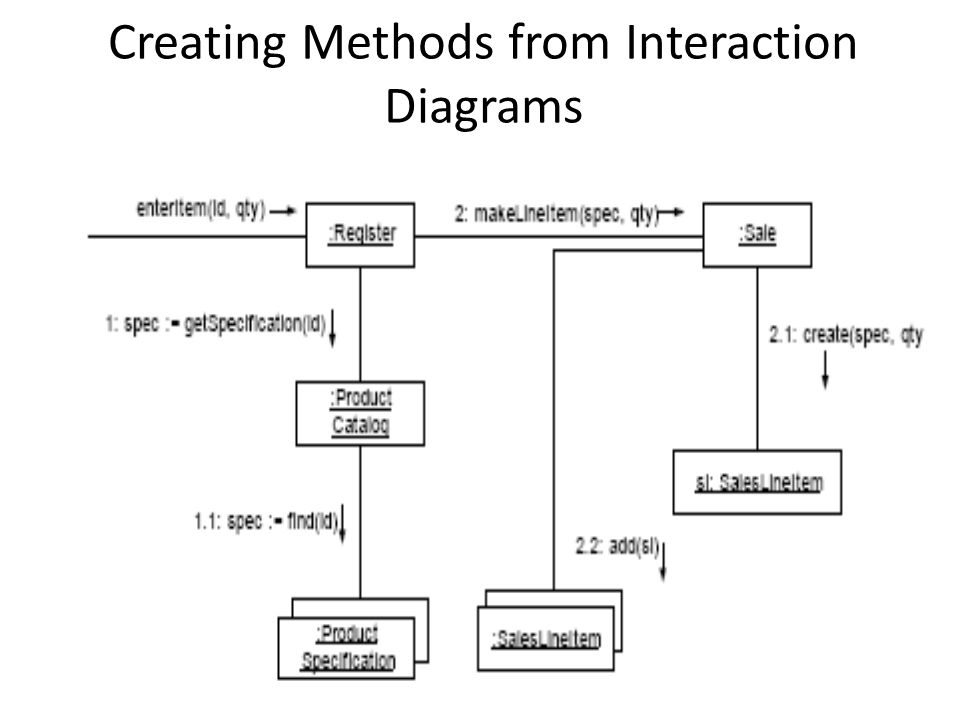

8. Creating Methods from Interaction Diagrams

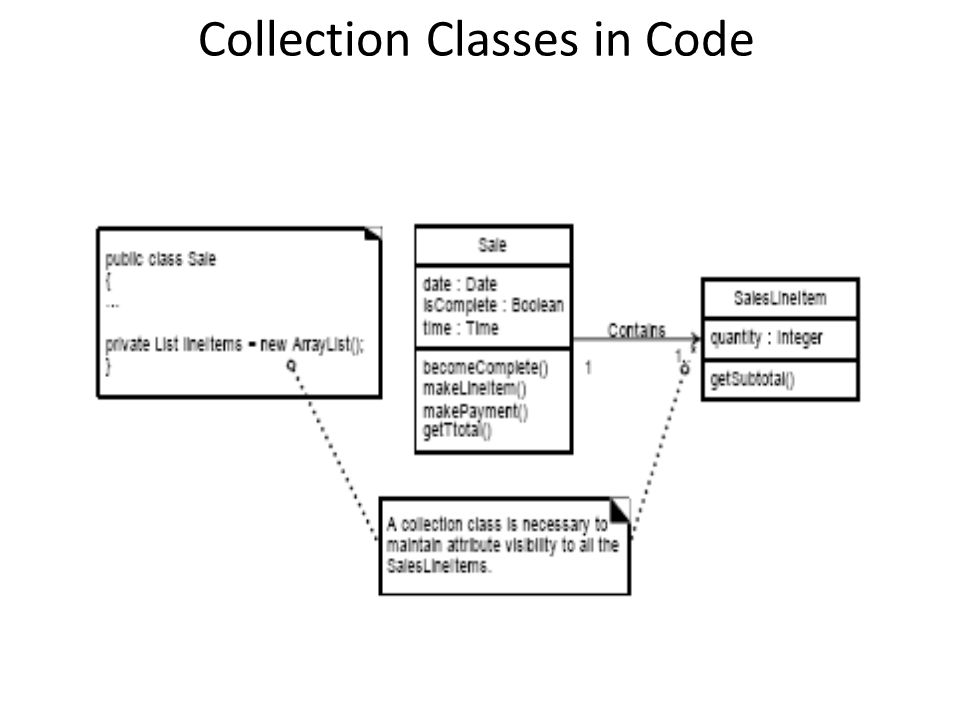

9. Collection Classes in Code

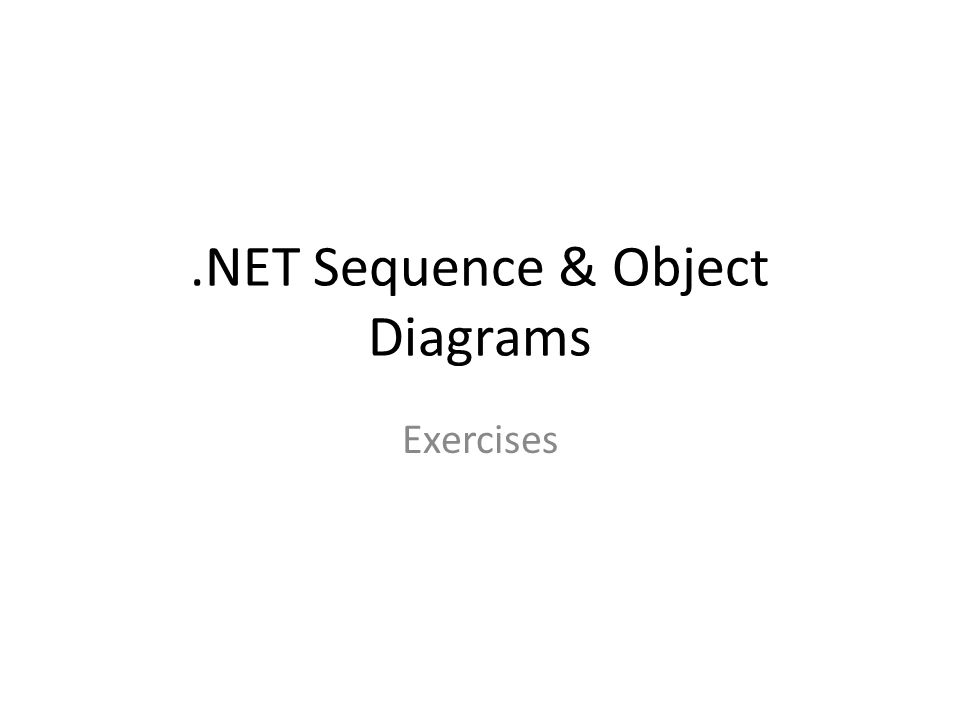

10. .NET Sequence & Object Diagrams Exercises

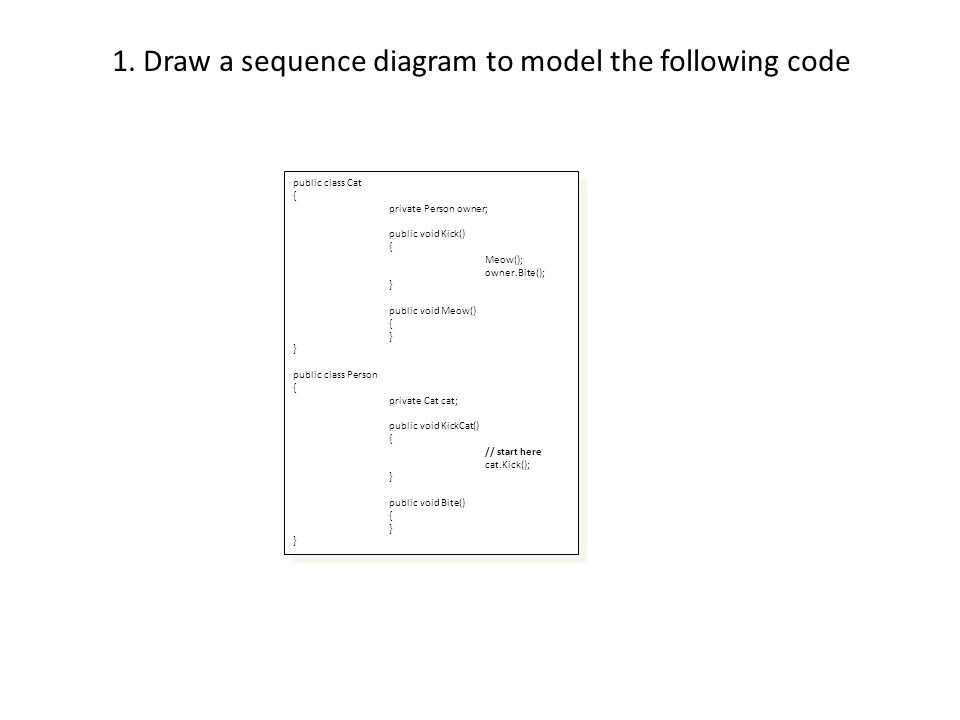

11. 1. Draw a sequence diagram to model the following code public class Cat { private Person owner; public void Kick() { Meow(); owner.Bite(); } public void Meow() { } public class Person { private Cat cat; public void KickCat() { // start here cat.Kick(); } public void Bite() { } public class Cat { private Person owner; public void Kick() { Meow(); owner.Bite(); } public void Meow() { } public class Person { private Cat cat; public void KickCat() { // start here cat.Kick(); } public void Bite() { }

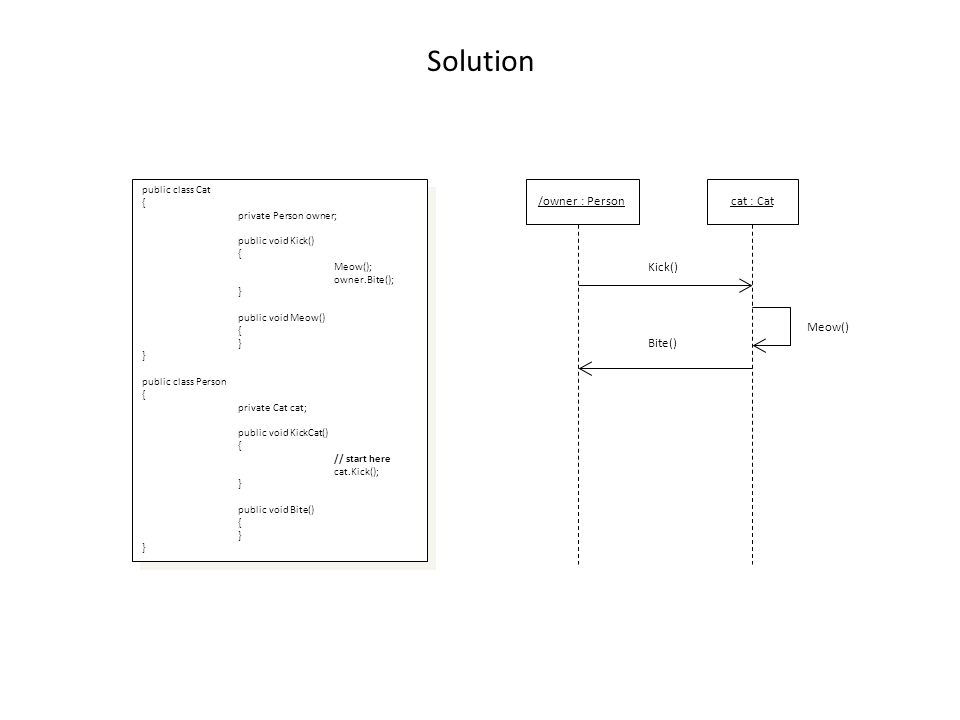

12. Solution public class Cat { private Person owner; public void Kick() { Meow(); owner.Bite(); } public void Meow() { } public class Person { private Cat cat; public void KickCat() { // start here cat.Kick(); } public void Bite() { } public class Cat { private Person owner; public void Kick() { Meow(); owner.Bite(); } public void Meow() { } public class Person { private Cat cat; public void KickCat() { // start here cat.Kick(); } public void Bite() { } /owner : Personcat : Cat Kick() Meow() Bite()

13. 2. Draw a sequence diagram to model the following code public class Cat { private Person owner; public void Kick() { Meow(); if(owner != null) { owner.Bite(); } public void Meow() { } public class Person { private IList cats; public void KickCat() { // start here foreach(Cat cat in cats) { cat.Kick(); } public void Bite() { } public class Cat { private Person owner; public void Kick() { Meow(); if(owner != null) { owner.Bite(); } public void Meow() { } public class Person { private IList cats; public void KickCat() { // start here foreach(Cat cat in cats) { cat.Kick(); } public void Bite() { } /owner : Personcat : Cat Kick() Meow() [owner != null] Bite() [for each cat in cats]

14. Solution public class Cat { private Person owner; public void Kick() { Meow(); if(owner != null) { owner.Bite(); } public void Meow() { } public class Person { private IList cats; public void KickCat() { // start here foreach(Cat cat in cats) { cat.Kick(); } public void Bite() { } public class Cat { private Person owner; public void Kick() { Meow(); if(owner != null) { owner.Bite(); } public void Meow() { } public class Person { private IList cats; public void KickCat() { // start here foreach(Cat cat in cats) { cat.Kick(); } public void Bite() { }

15. UML Exercises : Class Diagrams for.NET Developers

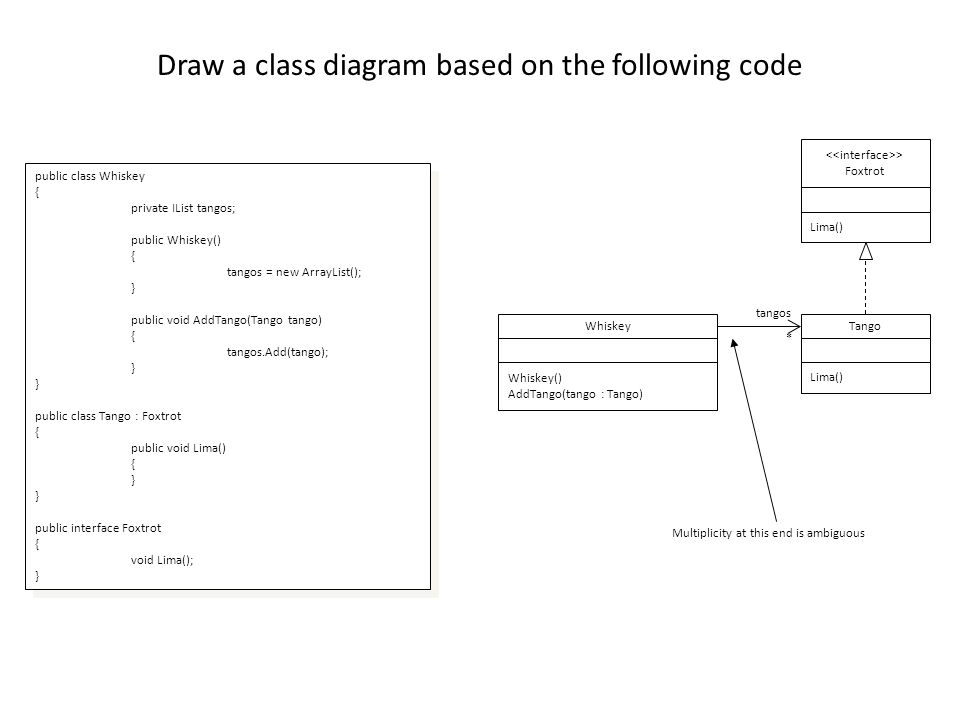

16. Draw a class diagram based on the following code public class Whiskey { private IList tangos; public Whiskey() { tangos = new ArrayList(); } public void AddTango(Tango tango) { tangos.Add(tango); } public class Tango : Foxtrot { public void Lima() { } public interface Foxtrot { void Lima(); } public class Whiskey { private IList tangos; public Whiskey() { tangos = new ArrayList(); } public void AddTango(Tango tango) { tangos.Add(tango); } public class Tango : Foxtrot { public void Lima() { } public interface Foxtrot { void Lima(); } Whiskey Whiskey() AddTango(tango : Tango) Tango Lima() * tangos > Foxtrot Lima() Multiplicity at this end is ambiguous

17. Solution public class Whiskey { private IList tangos; public Whiskey() { tangos = new ArrayList(); } public void AddTango(Tango tango) { tangos.Add(tango); } public class Tango : Foxtrot { public void Lima() { } public interface Foxtrot { void Lima(); } public class Whiskey { private IList tangos; public Whiskey() { tangos = new ArrayList(); } public void AddTango(Tango tango) { tangos.Add(tango); } public class Tango : Foxtrot { public void Lima() { } public interface Foxtrot { void Lima(); }

18. 4. Draw a class diagram based on the following code Party # id : int FullName() : string Person -firstName : string -lastName : string FirstName() : string FirstName(value : string) LastName() : string LastName(value : string) FullName() : string = firstName + “ “ + lastName

19. Solution public abstract class Party { protected int id; public abstract string FullName { get; } } public class Person : Party { private string firstName; private string lastName; public string FirstName { get { return firstName; } set { firstName = value; } } public string LastName { get { return lastName; } set {lastName = value; } } public override string FullName { get { return firstName + " " + lastName; } } public abstract class Party { protected int id; public abstract string FullName { get; } } public class Person : Party { private string firstName; private string lastName; public string FirstName { get { return firstName; } set { firstName = value; } } public string LastName { get { return lastName; } set {lastName = value; } } public override string FullName { get { return firstName + " " + lastName; } }

20. Three Very Simple Use Cases Create New Supplier Delete Supplier Update Supplier Details Let’s consider some coding issues!

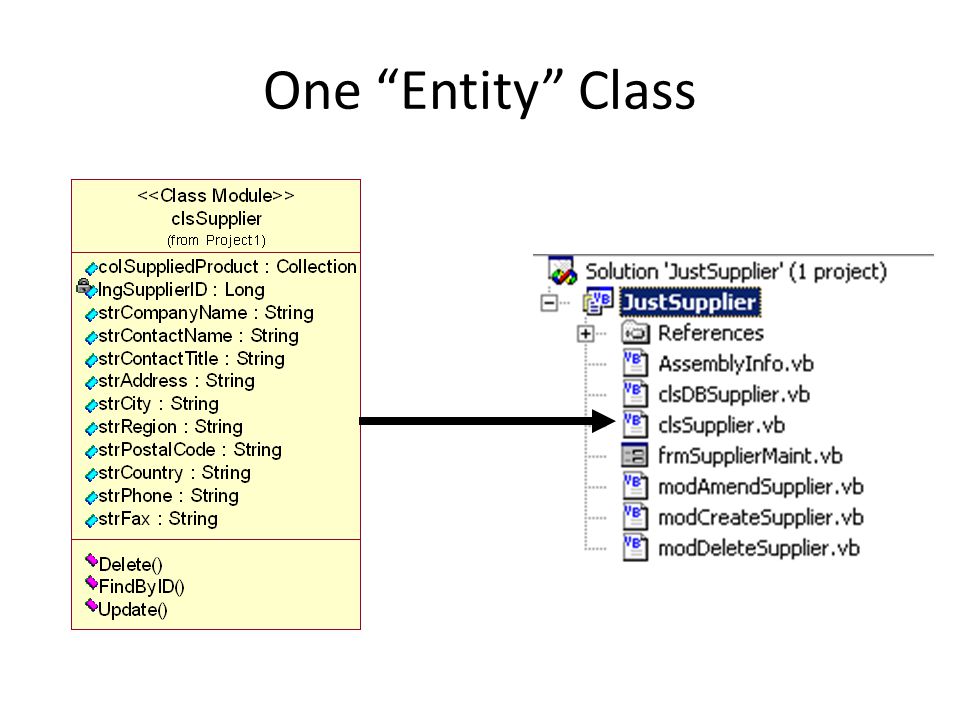

21. One “Entity” Class

22. Three Control Classes Create New Supplier Delete Supplier Update Supplier Details

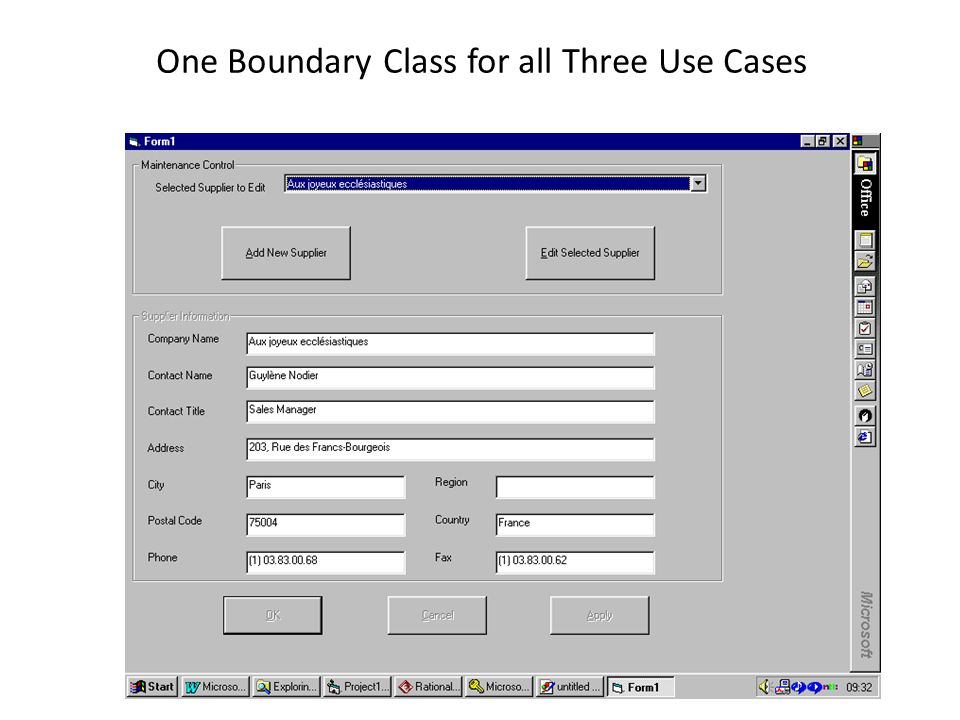

23. One Boundary Class for all Three Use Cases

24. One Boundary Class

25. One Class to Talk to the Database

26. Sequence Diagram for Create New Supplier Supplier Form Control Class “Create Supplier” Entity Class “Supplier” DB Connection DBSupplier

27. Overview of the System Architecture

28. Project Window for the entire application

29. More Sophisticated Use Cases Perhaps we could ask the Customer object to: – Project future sales to this customer. This would involve analysing past sales to identify trends. Implies the need for a “Customer Sales History” class not currently included in the model. – Collect overdue payments. This would involve generating standard letters to be sent to the customer. Implies collaboration with a “Payment” class (associated with Order or Invoice?) not currently included in the model.

30. Another Case Study

31. A Domain Model

32. A Class Diagram

35. Background to Naked Objects

36. ‘Best practice’ in contemporary business systems design splits an application into four principal layers Presentation Application, Process, Task or Controller Domain object model Persistence

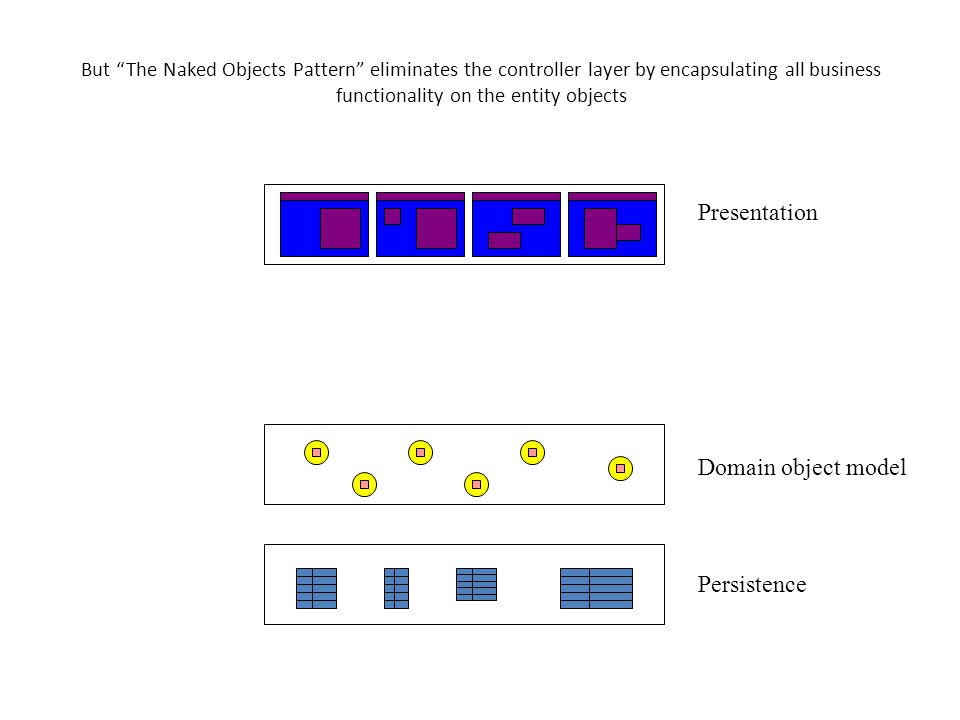

37. But “The Naked Objects Pattern” eliminates the controller layer by encapsulating all business functionality on the entity objects Presentation Application, Process or Use-case controller Domain object model Persistence

38. And has a generic presentation layer that automatically reflects the domain object model as an object-oriented user interface Presentation Application, Process or Use-case controller Domain object model Persistence

39. CarServ: A tale of two business applications

41. Good Idea? One of the research topics for the coursework element of this module Final project???
