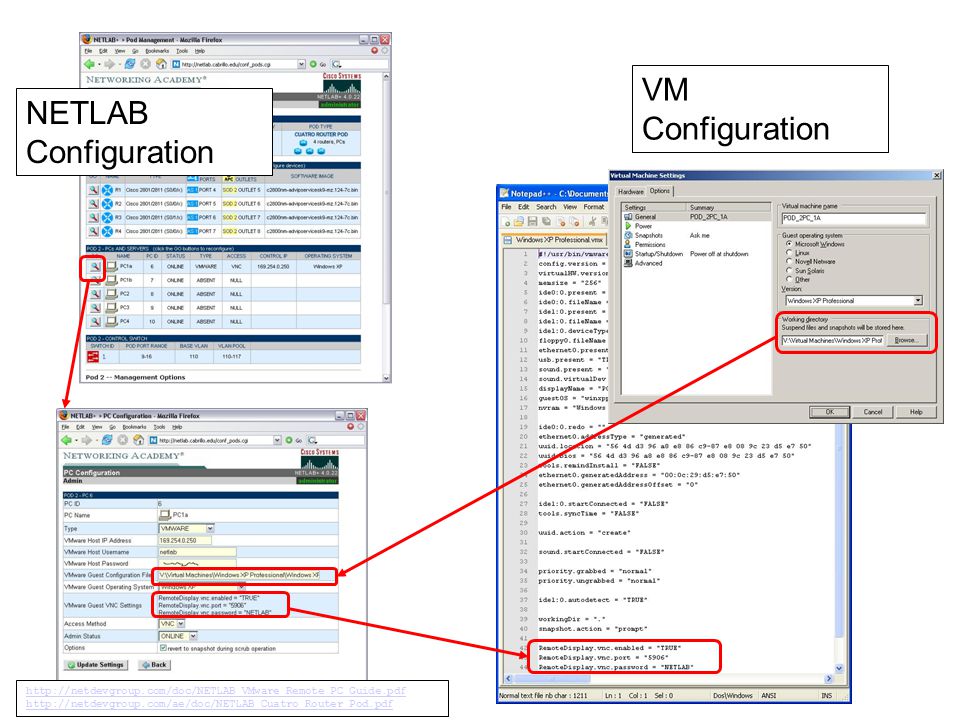

1. NETLAB Configuration VM Configuration http://netdevgroup.com/doc/NETLAB_VMware_Remote_PC_Guide.pdf http://netdevgroup.com/ae/doc/NETLAB_Cuatro_Router_Pod.pdf

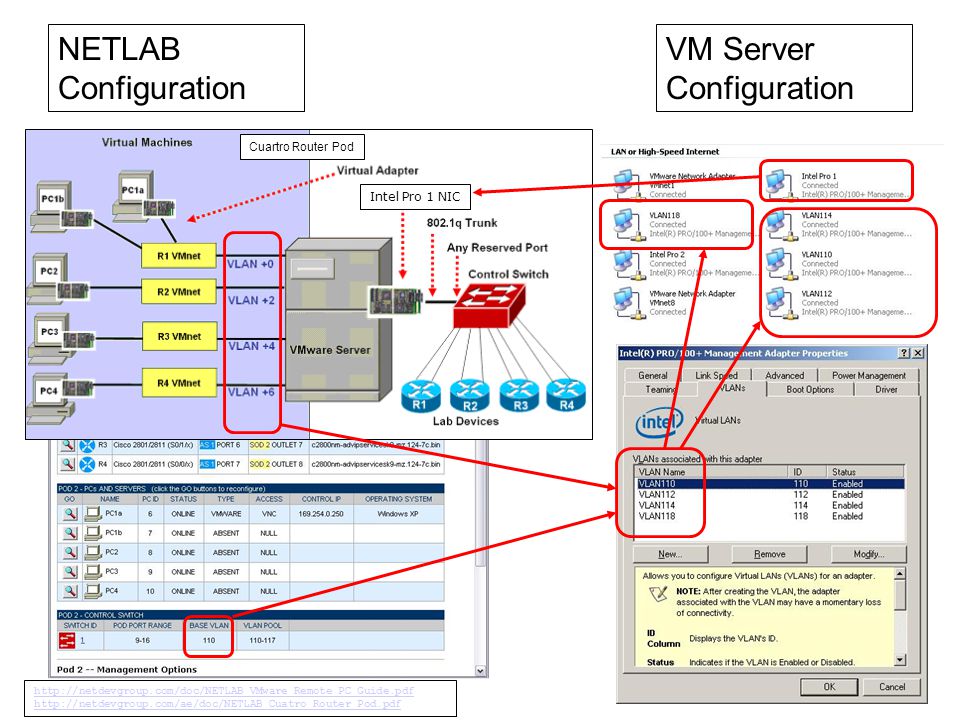

2. NETLAB Configuration VM Server Configuration Cuartro Router Pod Intel Pro 1 NIC http://netdevgroup.com/doc/NETLAB_VMware_Remote_PC_Guide.pdf http://netdevgroup.com/ae/doc/NETLAB_Cuatro_Router_Pod.pdf

3. VM Server Configuration VM Configuration Cuartro Router Pod Intel Pro 1 NIC R1 VMNet2 http://netdevgroup.com/doc/NETLAB_VMware_Remote_PC_Guide.pdf http://netdevgroup.com/ae/doc/NETLAB_Cuatro_Router_Pod.pdf

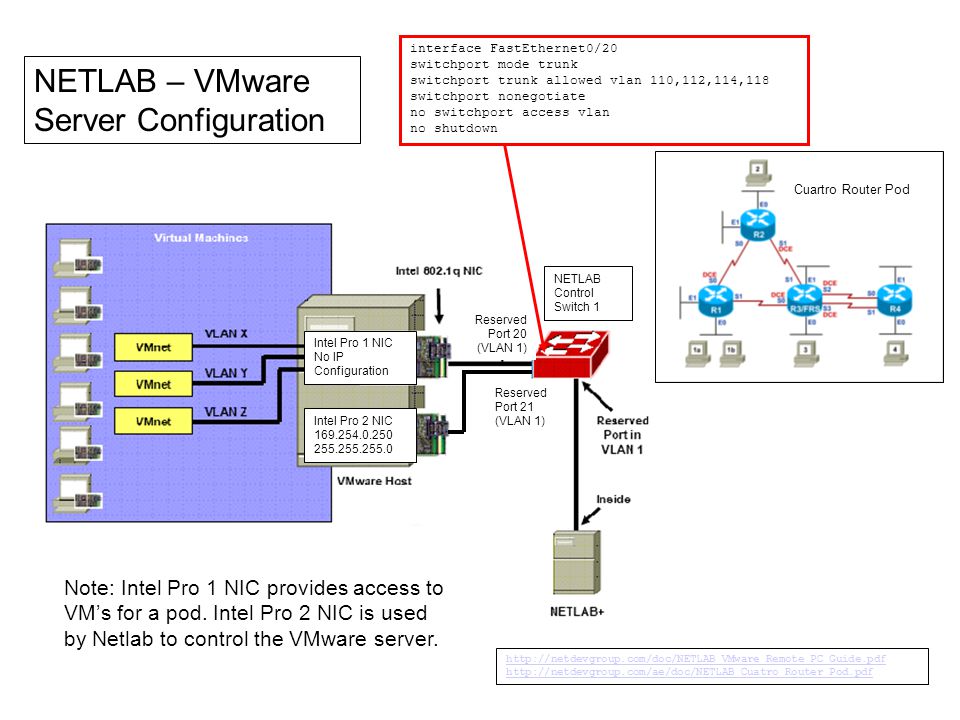

4. NETLAB – VMware Server Configuration Cuartro Router Pod Intel Pro 2 NIC 169.254.0.250 255.255.255.0 Intel Pro 1 NIC No IP Configuration Reserved Port 20 (VLAN 1) interface FastEthernet0/20 switchport mode trunk switchport trunk allowed vlan 110,112,114,118 switchport nonegotiate no switchport access vlan no shutdown Reserved Port 21 (VLAN 1) NETLAB Control Switch 1 http://netdevgroup.com/doc/NETLAB_VMware_Remote_PC_Guide.pdf http://netdevgroup.com/ae/doc/NETLAB_Cuatro_Router_Pod.pdf Note: Intel Pro 1 NIC provides access to VM’s for a pod. Intel Pro 2 NIC is used by Netlab to control the VMware server.

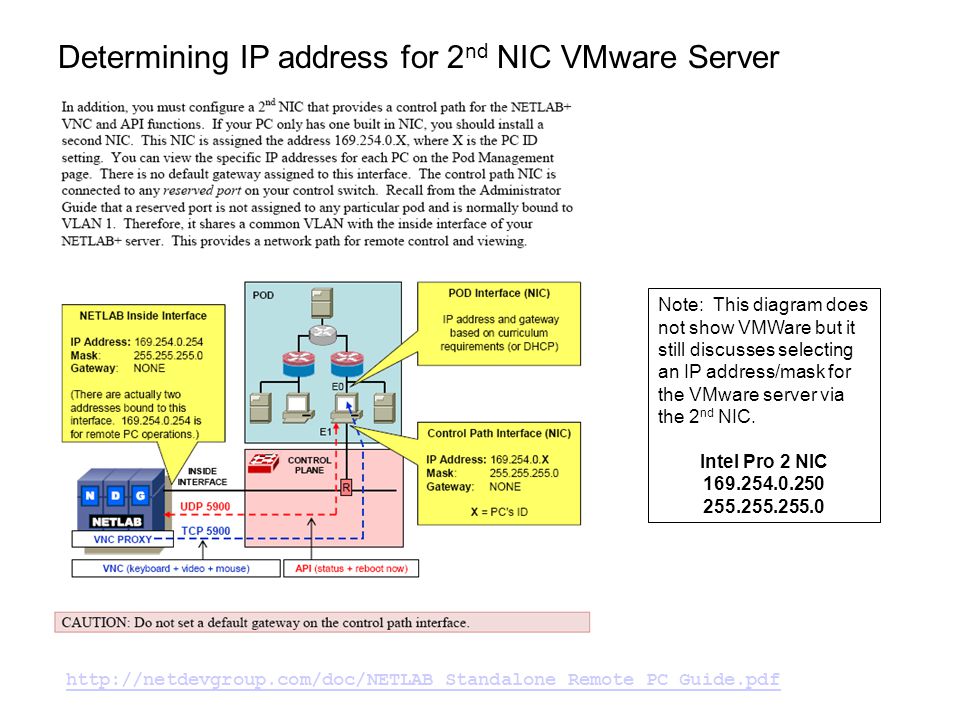

5. Note: This diagram does not show VMWare but it still discusses selecting an IP address/mask for the VMware server via the 2 nd NIC. Intel Pro 2 NIC 169.254.0.250 255.255.255.0 Determining IP address for 2 nd NIC VMware Server http://netdevgroup.com/doc/NETLAB_Standalone_Remote_PC_Guide.pdf

6. http://netdevgroup.com/doc/NETLAB_VMware_Remote_PC_Guide.pdf http://netdevgroup.com/ae/doc/NETLAB_Cuatro_Router_Pod.pdf http://netdevgroup.com/doc/NETLAB_Standalone_Remote_PC_Guide.pdf Must read Documents:
