1. Authentication Simon Cross Partner Engineer facebook.com/sicross An Overview

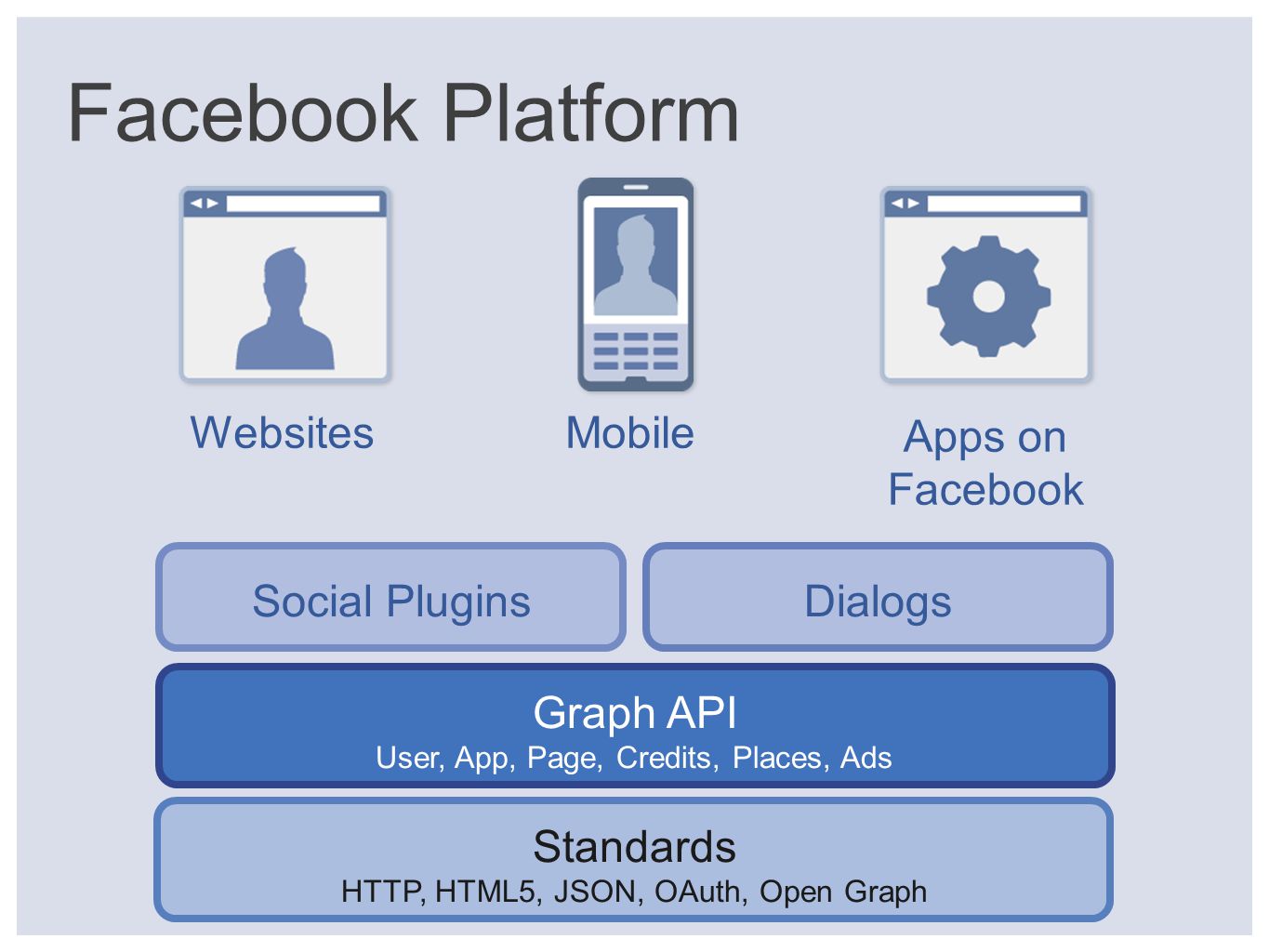

2. Facebook Platform Graph API User, App, Page, Credits, Places, Ads Standards HTTP, HTML5, JSON, OAuth, Open Graph WebsitesMobile Apps on Facebook Social PluginsDialogs

3. Permissions Auth Dialogs Server-side Auth Client-side Auth SDKs Mobile SSO “It’s All About The Access Token”

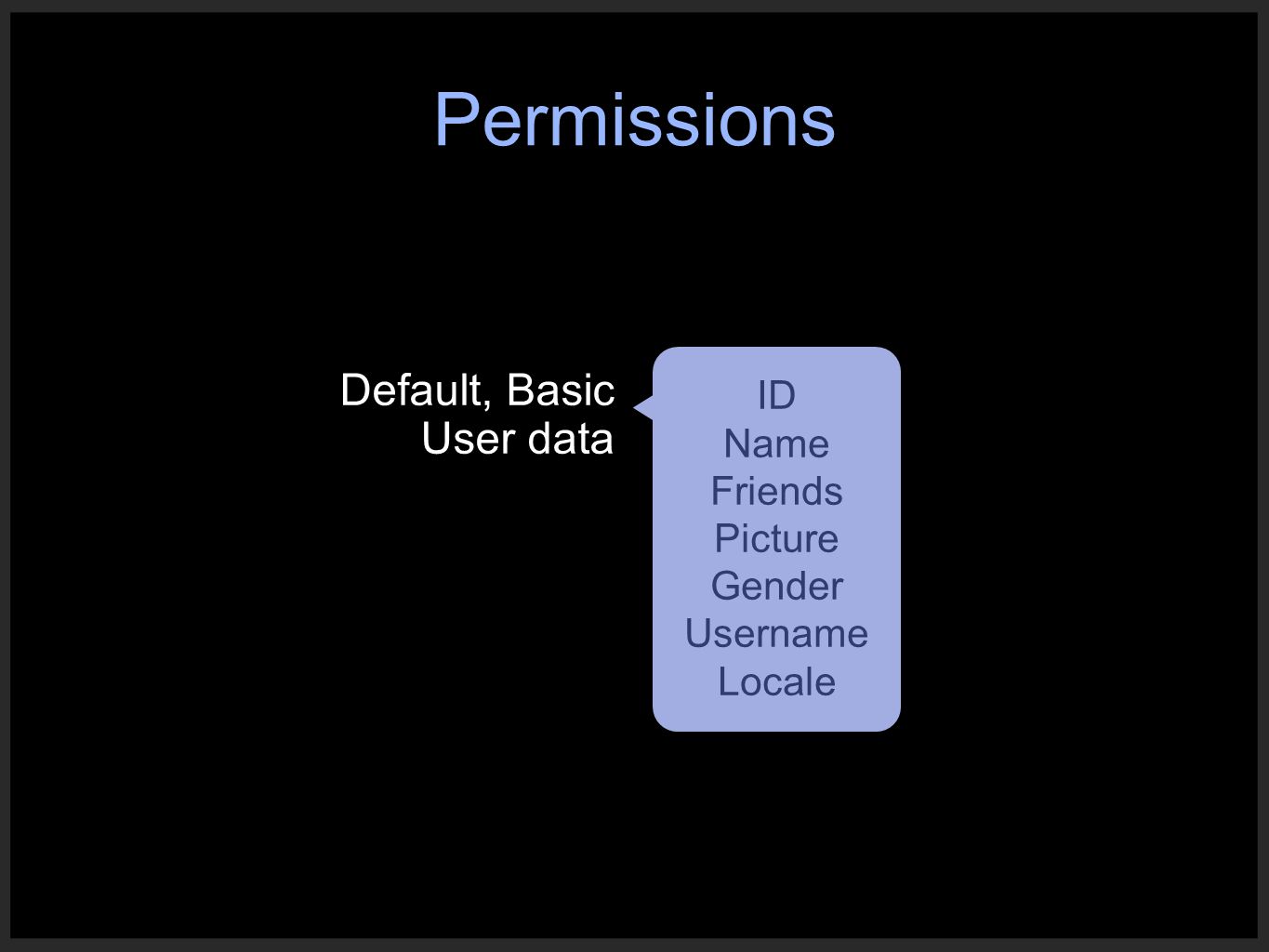

4. ID Name Friends Picture Gender Username Locale Permissions Default, Basic User data

5. { data: [ ] } Permissions Without Permissions, if you query the API for anything more than the basic user data, you’ll get:

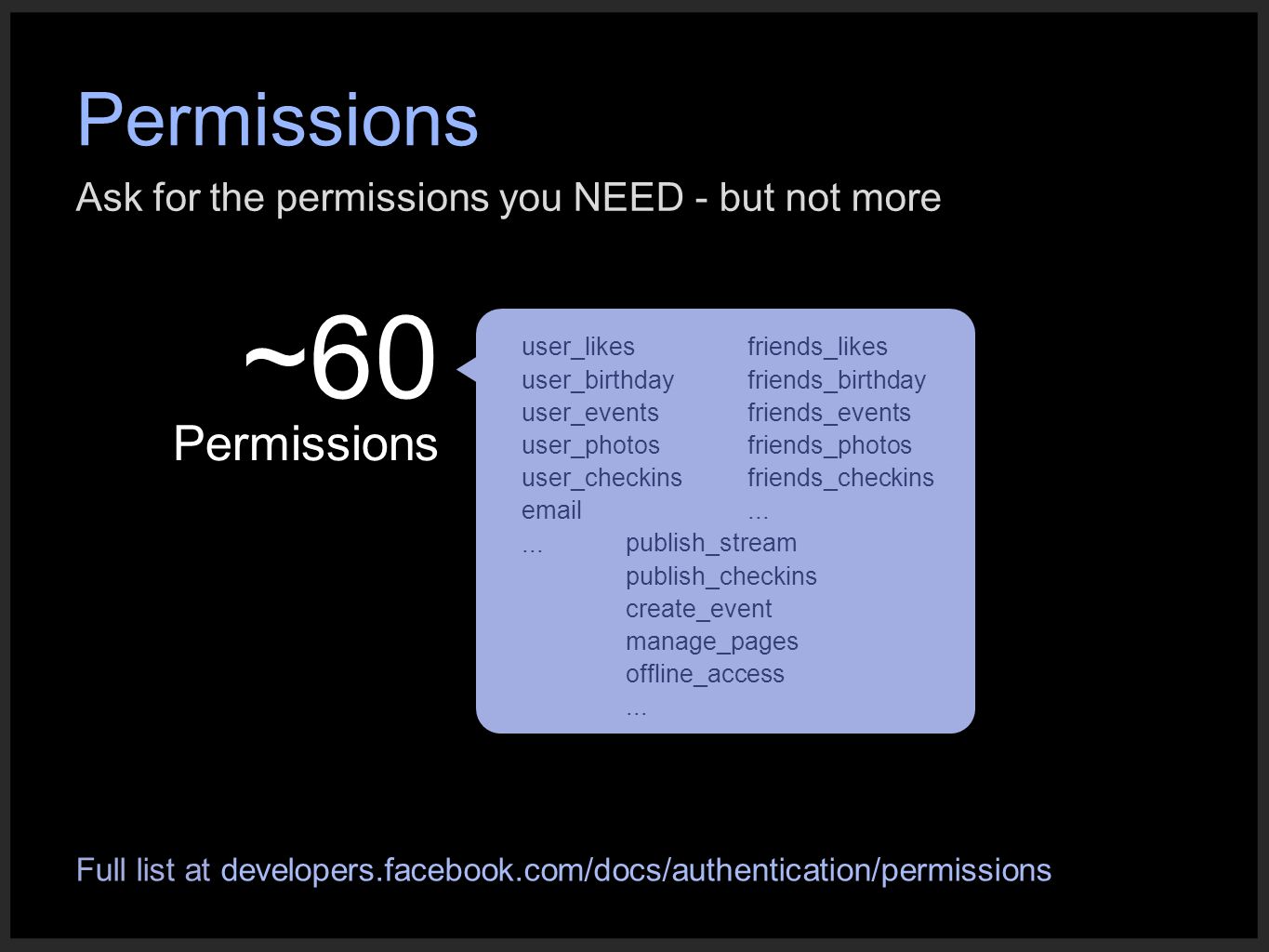

6. Permissions Ask for the permissions you NEED - but not more ~60 Permissions user_likes user_birthday user_events user_photos user_checkins email... friends_likes friends_birthday friends_events friends_photos friends_checkins... publish_stream publish_checkins create_event manage_pages offline_access... Full list at developers.facebook.com/docs/authentication/permissions

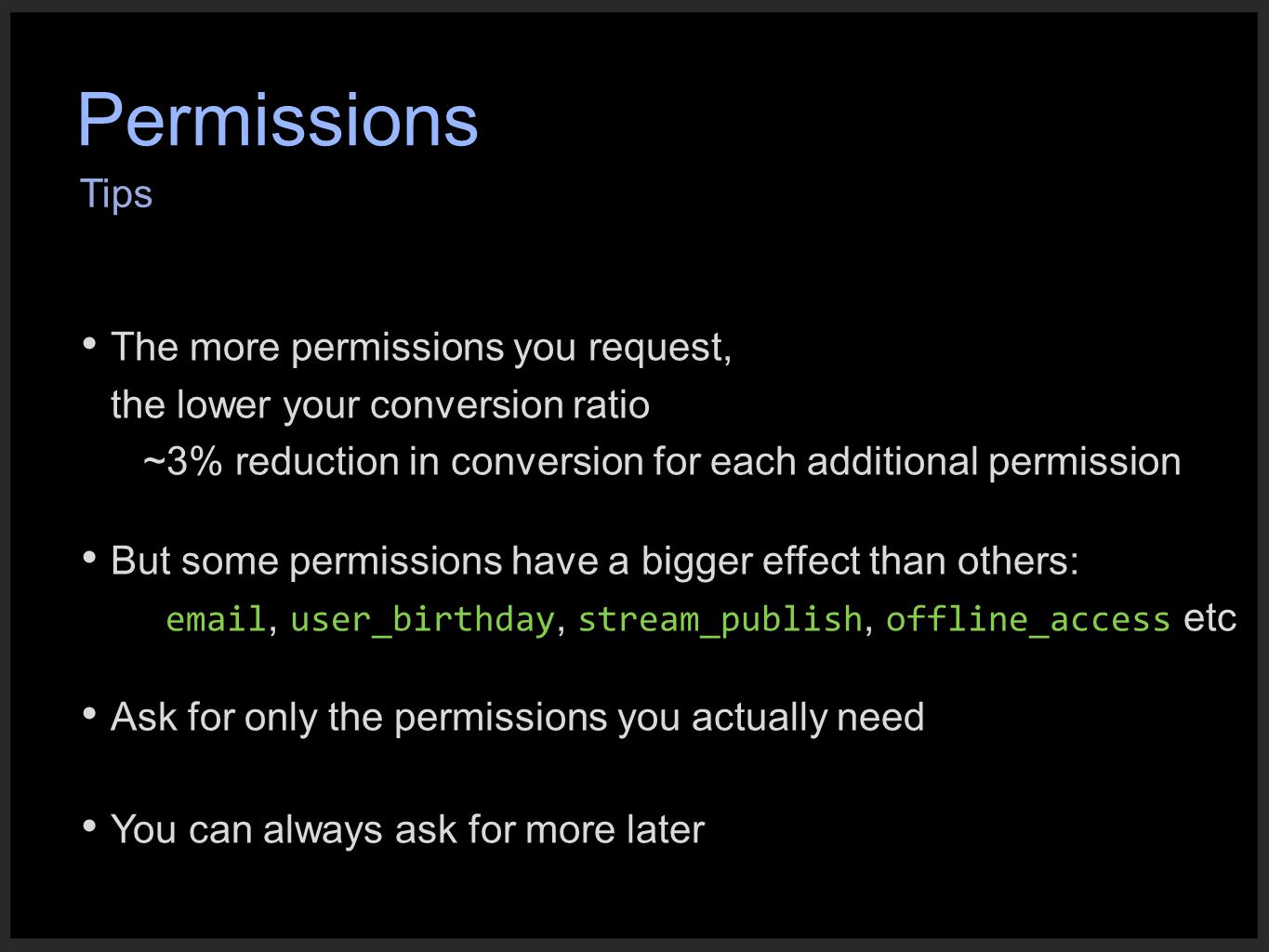

7. Permissions The more permissions you request, the lower your conversion ratio ~3% reduction in conversion for each additional permission But some permissions have a bigger effect than others: email, user_birthday, stream_publish, offline_access etc Ask for only the permissions you actually need You can always ask for more later Tips

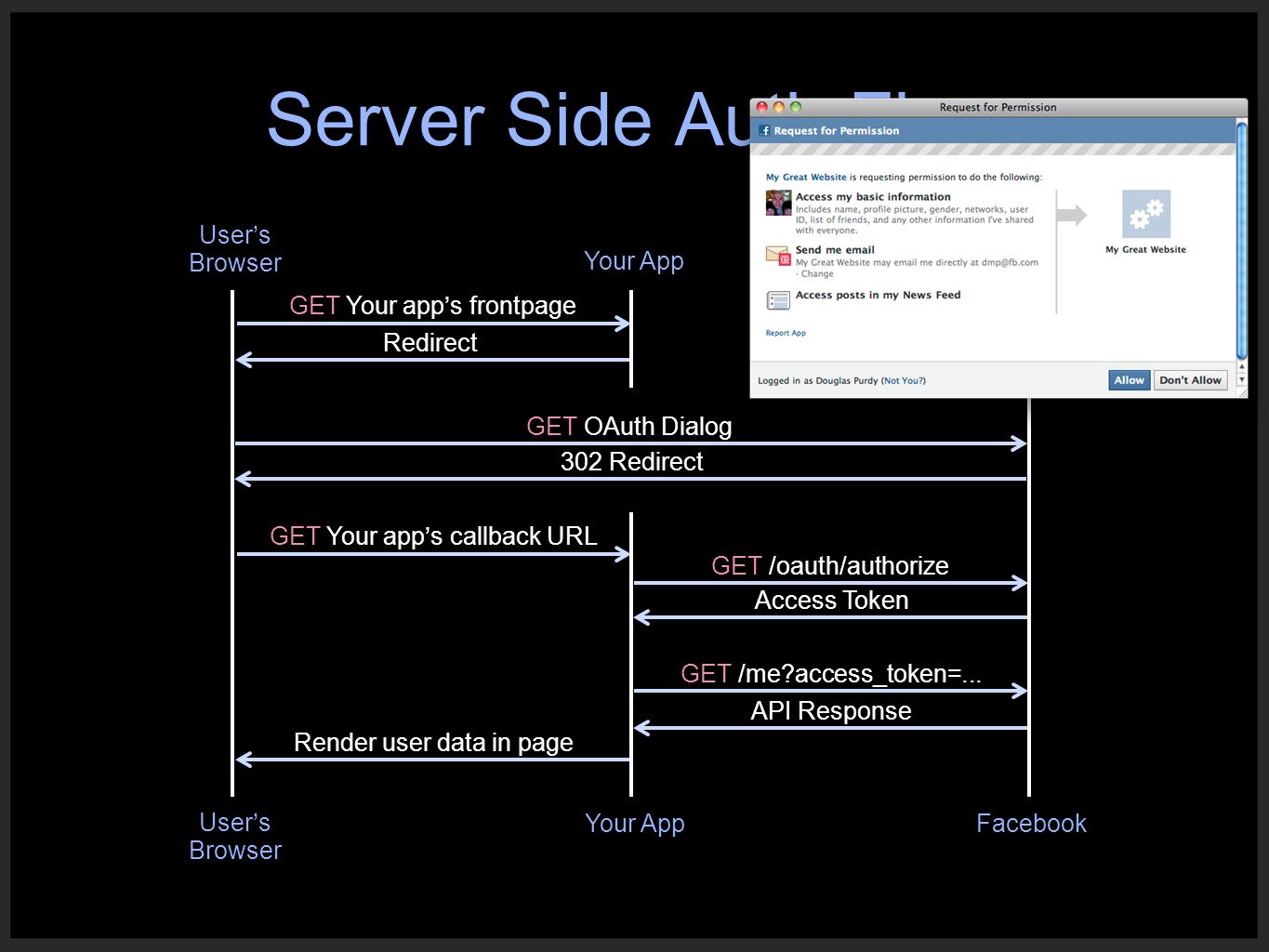

8. Server Side Auth Flow User’s Browser Your AppFacebook GET Your app’s frontpage Redirect GET OAuth Dialog User’s Browser Your AppFacebook 302 Redirect GET Your app’s callback URL GET /oauth/authorize Access Token GET /me?access_token=... API Response Render user data in page

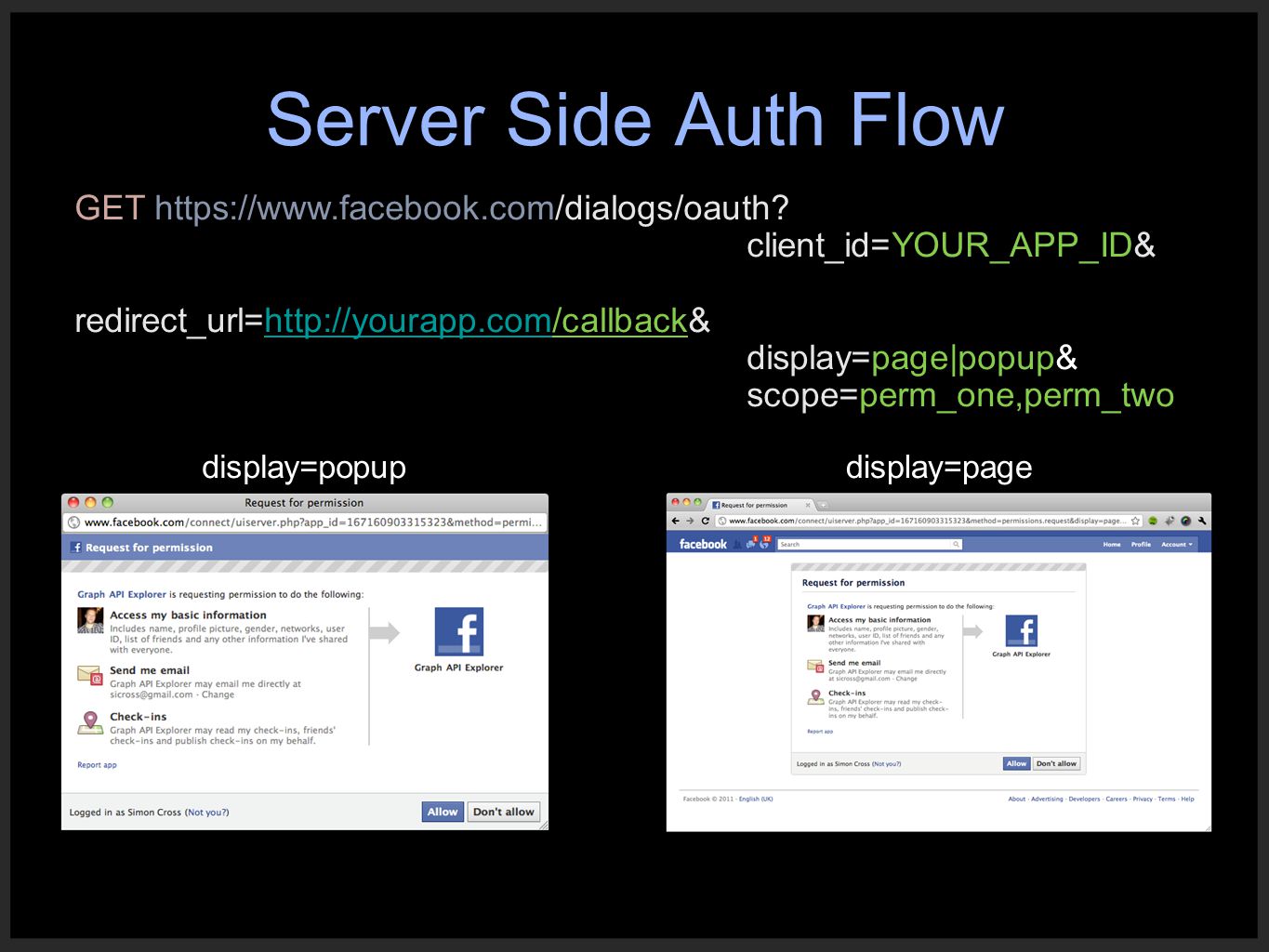

9. Server Side Auth Flow GET https://www.facebook.com/dialogs/oauth? client_id=YOUR_APP_ID& redirect_url=http://yourapp.com/callback& display=page|popup& scope=perm_one,perm_twohttp://yourapp.com display=popupdisplay=page

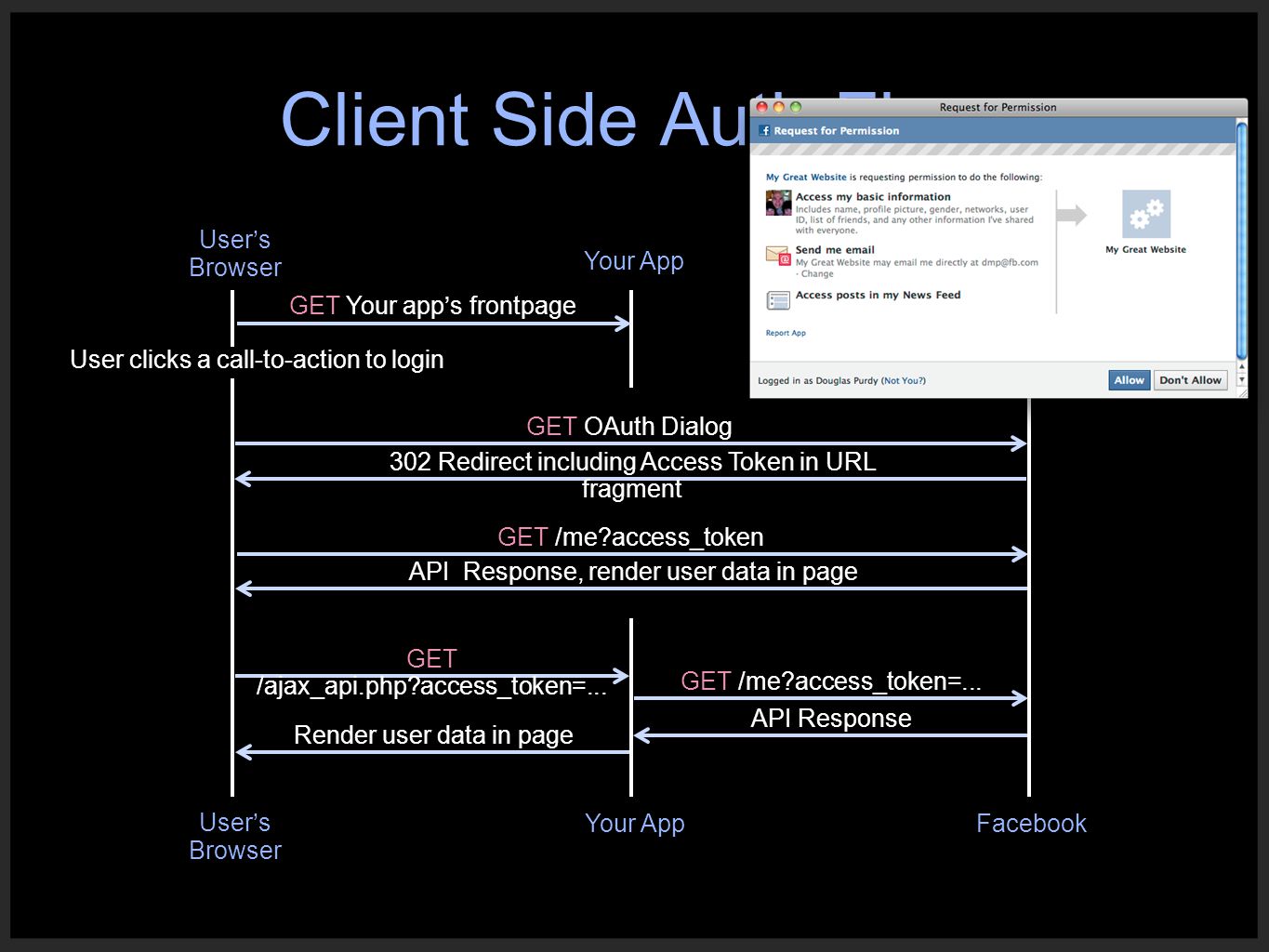

10. Client Side Auth Flow User’s Browser Your AppFacebook GET Your app’s frontpage GET OAuth Dialog User’s Browser Your AppFacebook 302 Redirect including Access Token in URL fragment GET /me?access_token API Response, render user data in page GET /me?access_token=... API Response Render user data in page User clicks a call-to-action to login GET /ajax_api.php?access_token=...

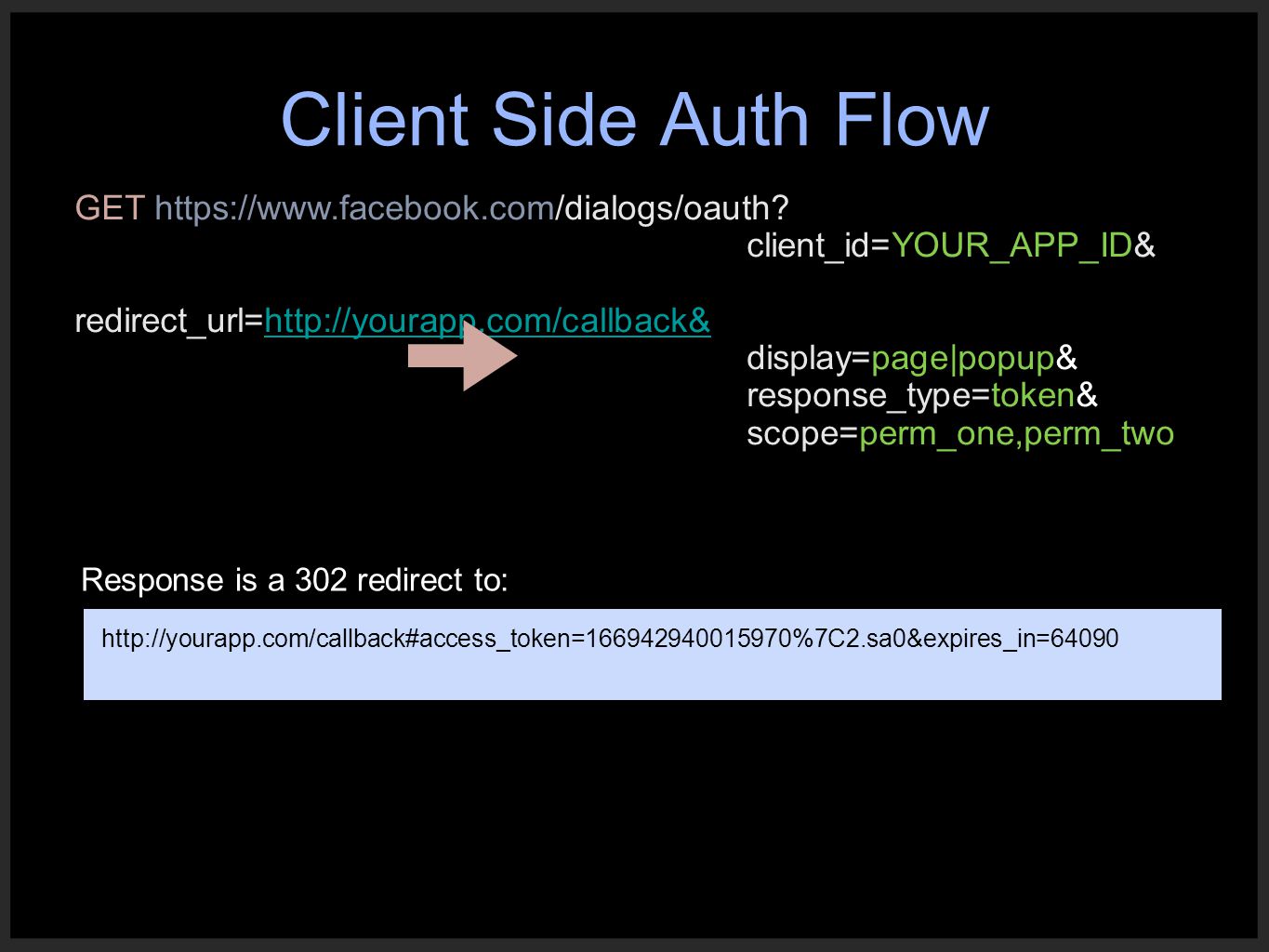

11. Client Side Auth Flow GET https://www.facebook.com/dialogs/oauth? client_id=YOUR_APP_ID& redirect_url=http://yourapp.com/callback& display=page|popup& response_type=token& scope=perm_one,perm_twohttp://yourapp.com/callback& http://yourapp.com/callback#access_token=166942940015970%7C2.sa0&expires_in=64090 Response is a 302 redirect to:

12. Javascript SDK

13. Mobile SDKs
