Lecture 4 2006

3

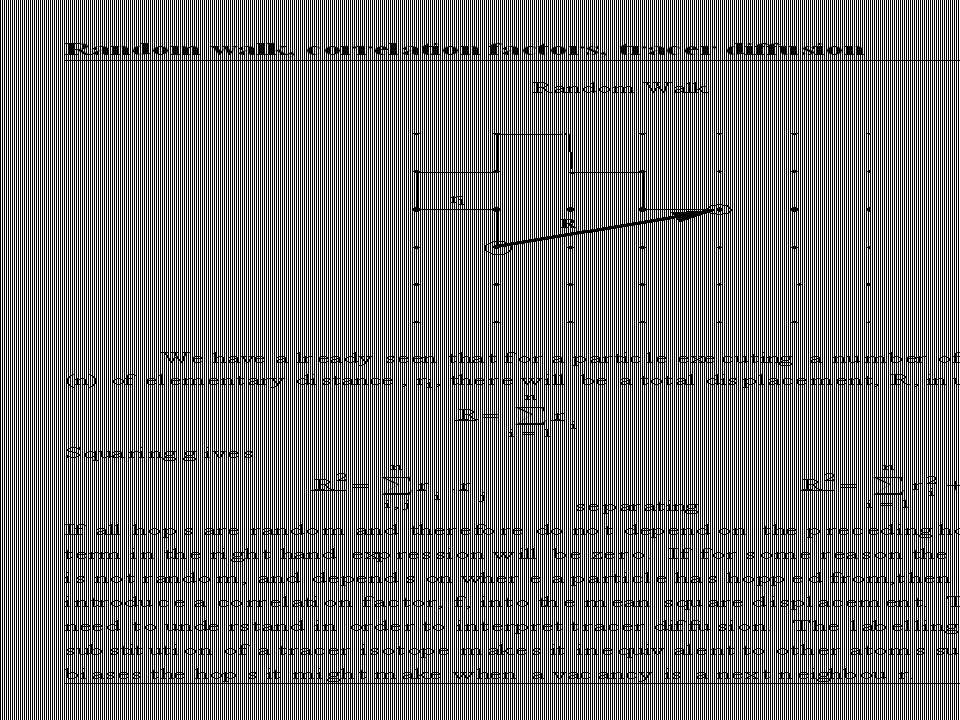

**Random walk - > each hop is independent of the previous hop**

4
**Random walk - > each hop is independent of the previous hop**

No ‘memory effect’

5
**Random walk - > each hop is independent of the previous hop**

No ‘memory effect’ Squared displacement

6
**Random walk - > each hop is independent of the previous hop**

No ‘memory effect’ Squared displacement Diagonal and off-diagonal terms

7
**Random walk - > each hop is independent of the previous hop**

No ‘memory effect’ Squared displacement Diagonal and off-diagonal terms If motion is not random then the off-diagonal terms no longer sum to zero for a large number of hops.

8
**Random walk - > each hop is independent of the previous hop**

No ‘memory effect’ Squared displacement Diagonal and off-diagonal terms If motion is not random then the off-diagonal terms no longer sum to zero for a large number of hops. They are correlated by a factor, f

9
**Random walk - > each hop is independent of the previous hop**

No ‘memory effect’ Squared displacement Diagonal and off-diagonal terms If motion is not random then the off-diagonal terms no longer sum to zero for a large number of hops. They are correlated by a factor, f

11
**Tracer diffusion is correlated (non-random) - why?**

12
**Tracer diffusion is correlated (non-random) - why?**

Origin of the problem is distinguishable and indistinguishable particles

13
**Tracer diffusion is correlated (non-random) - why?**

Origin of the problem is distinguishable and indistinguishable particles tracer atom has a higher probability of hopping back into a site it has just left because it is distinguishable.

14
**Tracer diffusion is correlated (non-random) - why?**

Origin of the problem is distinguishable and indistinguishable particles tracer atom has a higher probability of hopping back into a site it has just left because it is distinguishable. We call this a ‘correlation’ or a ‘memory effect’

15
**Tracer diffusion is correlated (non-random) - why?**

Origin of the problem is distinguishable and indistinguishable particles tracer atom has a higher probability of hopping back into a site it has just left because it is distinguishable. We call this a ‘correlation’ or a ‘memory effect’ Random walk of a tracer will be less than that of a self–diffusing atom by a factor, f.

17

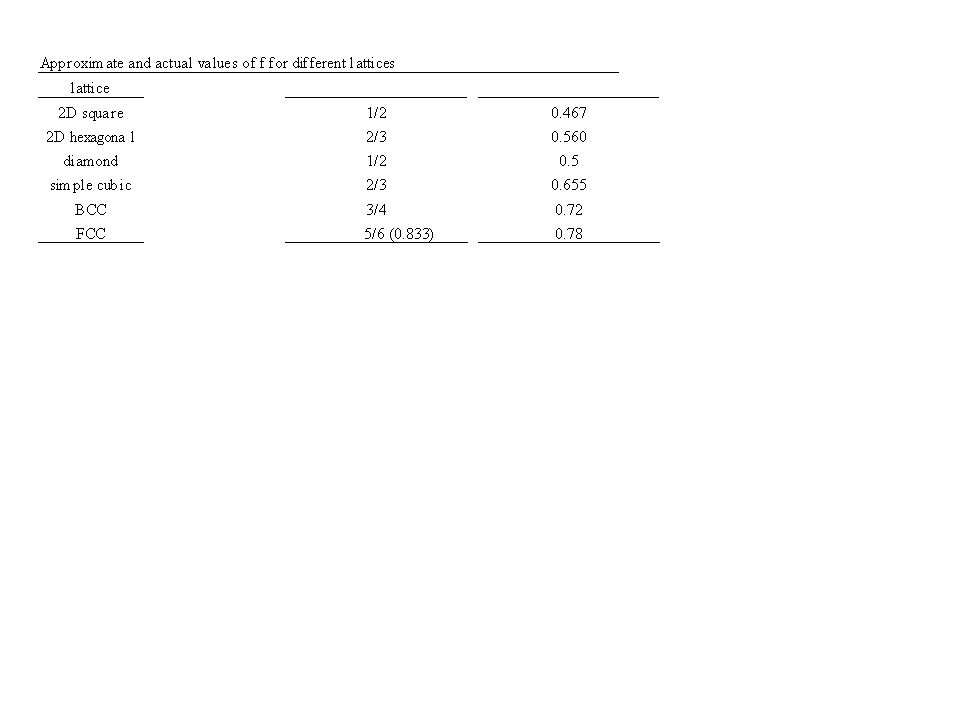

f = 1 - 2/z

18
f = 1 - 2/z Total displacement for n jumps (recall, d√n) for a tracer is less than for a true random walk because jumps are wasted back and forth on a site.

19
f = 1 - 2/z Total displacement for n jumps (recall, d√n) for a tracer is less than for a true random walk because jumps are wasted back and forth on a site. These hops do not contribute to the total displacement.

20
f = 1 - 2/z Total displacement for n jumps (recall, d√n) for a tracer is less than for a true random walk because jumps are wasted back and forth on a site. These hops do not contribute to the total displacement. Self–diffusion constant, Ds = DT / f

21
f = 1 - 2/z Total displacement for n jumps (recall, d√n) for a tracer is less than for a true random walk because jumps are wasted back and forth on a site. These hops do not contribute to the total displacement. Self–diffusion constant, Ds = DT / f Tracer diffusion

22
**Diffusion in the Presence of a Potential Gradient**

Diffusion will occur when a potential gradient exists which biases atomic mobility in a particular direction. Force due to a potential (V) gradient

23
**Diffusion in the Presence of a Potential Gradient**

Diffusion will occur when a potential gradient exists which biases atomic mobility in a particular direction. Force due to a potential (V) gradient F

24
**Diffusion in the Presence of a Potential Gradient**

Diffusion will occur when a potential gradient exists which biases atomic mobility in a particular direction. Force due to a potential (V) gradient F Average particle velocity

25
**Diffusion in the Presence of a Potential Gradient**

Diffusion will occur when a potential gradient exists which biases atomic mobility in a particular direction. Force due to a potential (V) gradient Diffusivity F Average particle velocity where u is a particle mobility,

26
**Diffusion in the Presence of a Potential Gradient**

Diffusion will occur when a potential gradient exists which biases atomic mobility in a particular direction. Force due to a potential (V) gradient Diffusivity F Average particle velocity where u is a particle mobility, Boltzmann’s constant temperature

27
**Diffusion in the Presence of a Potential Gradient**

Diffusion will occur when a potential gradient exists which biases atomic mobility in a particular direction. Force due to a potential (V) gradient Diffusivity F Average particle velocity where u is a particle mobility, Boltzmann’s constant temperature So

28
**Diffusion in the Presence of a Potential Gradient**

Diffusion will occur when a potential gradient exists which biases atomic mobility in a particular direction. Force due to a potential (V) gradient Diffusivity F Average particle velocity where u is a particle mobility, Boltzmann’s constant temperature Why does force, F result in ‘velocity’ and not acceleration? So

29
**Diffusion in the Presence of a Potential Gradient**

Diffusion will occur when a potential gradient exists which biases atomic mobility in a particular direction. Force due to a potential (V) gradient Diffusivity F Average particle velocity where u is a particle mobility, Boltzmann’s constant temperature Why does force, F result in ‘velocity’ and not acceleration? So Mobility is related to hopping from site to site. F causes bias in direction of hopping only.

30
**Diffusion in the Presence of a Potential Gradient**

Diffusion will occur when a potential gradient exists which biases atomic mobility in a particular direction. Force due to a potential (V) gradient Diffusivity F Average particle velocity where u is a particle mobility, Boltzmann’s constant temperature Why does force, F result in ‘velocity’ and not acceleration? So Mobility is related to hopping from site to site. F causes bias in direction of hopping only.

32
Field x charge

33
Field x charge For diffusion of charged particles in an electric field <V> = velocity down potential (dv/dx)

34
Field x charge For diffusion of charged particles in an electric field <V> = velocity down potential (dv/dx)

35
Field x charge For diffusion of charged particles in an electric field <V> = velocity down potential (dv/dx) Flux units: m2s-1

36
Field x charge For diffusion of charged particles in an electric field <V> = velocity down potential (dv/dx) Flux units: m2s-1 Compare with Ohm’s law (i = sE)

37
Field x charge For diffusion of charged particles in an electric field <V> = velocity down potential (dv/dx) Flux units: m2s-1 Compare with Ohm’s law (i = sE)

38
Field x charge For diffusion of charged particles in an electric field <V> = velocity down potential (dv/dx) Flux units: m2s-1 Compare with Ohm’s law (i = sE) Nernst-Einstein equation:

39
Field x charge For diffusion of charged particles in an electric field <V> = velocity down potential (dv/dx) Flux units: m2s-1 Compare with Ohm’s law (i = sE) Nernst-Einstein equation: relates conductivity to intrinsic mobility of charged ion (Ds)

40
**Combination of flux due to potential gradient and concentration gradient is now**

Fick’s 1st law Substituting for J in Fick’s 2nd law

42
**Solution for a thin finite source**

43
**Solution for a thin finite source**

44
**Solution for a thin finite source**

+ - Potential gradient

45
**Solution for a thin finite source**

<v>t + - Potential gradient

46
**+ - Solution for a thin finite source <v>t 2 x √2Dt**

Potential gradient

47
**+ - Solution for a thin finite source <v>t 2 x √2Dt**

Potential gradient Displacement <v>t is governed by the electric field

48
**+ - Solution for a thin finite source <v>t 2 x √2Dt**

Potential gradient Displacement <v>t is governed by the electric field Dispersion or width is determined by the self-diffusion

49
**Comparing conductivity to tracer diffusion**

50
**Comparing conductivity to tracer diffusion**

Correlation factor

52
**Radioactive 22Na coated onto the surface of a single crystal of NaCl.**

53
**Radioactive 22Na coated onto the surface of a single crystal of NaCl.**

DT was determined from analysis of concn at different depths for each temperature.

54
**Radioactive 22Na coated onto the surface of a single crystal of NaCl.**

DT was determined from analysis of concn at different depths for each temperature. NaCl FCC lattice - correlation factor = 0.78

55
**Radioactive 22Na coated onto the surface of a single crystal of NaCl.**

DT was determined from analysis of concn at different depths for each temperature. NaCl FCC lattice - correlation factor = 0.78 DT corrected to Ds and plotted as open circles vs 1/T

56
**Radioactive 22Na coated onto the surface of a single crystal of NaCl.**

DT was determined from analysis of concn at different depths for each temperature. NaCl FCC lattice - correlation factor = 0.78 DT corrected to Ds and plotted as open circles vs 1/T Filled circles are D determined from conductivity measurements

57
**Na diffusion in NaCl: Conductivity vs tracer diffusion**

Extrinsic + intrinsic vacancies Extrinsic vacancies

58
**Na diffusion in NaCl: Conductivity vs tracer diffusion**

Extrinsic + intrinsic vacancies Extrinsic vacancies Notice deviation in extrinsic region below 550˚C Difference due to ‘bound vacancies’

59
**Na diffusion in NaCl: Conductivity vs tracer diffusion**

Extrinsic + intrinsic vacancies Extrinsic vacancies Notice deviation in extrinsic region below 550˚C Difference due to ‘bound vacancies’

60
**Na diffusion in NaCl: Conductivity vs tracer diffusion**

Extrinsic + intrinsic vacancies Extrinsic vacancies Notice deviation in extrinsic region below 550˚C Difference due to ‘bound vacancies’ Vacancy bound to fixed 2+ impurity

61
**Na diffusion in NaCl: Conductivity vs tracer diffusion**

Extrinsic + intrinsic vacancies Extrinsic vacancies Notice deviation in extrinsic region below 550˚C Difference due to ‘bound vacancies’ Vacancy bound to fixed 2+ impurity Bound vacancies contribute to tracer diffusion but not to conductivity (through going transport)

62
**Na diffusion in NaCl: Conductivity vs tracer diffusion**

Extrinsic + intrinsic vacancies Extrinsic vacancies Notice deviation in extrinsic region below 550˚C Difference due to ‘bound vacancies’ Vacancy bound to fixed 2+ impurity Bound vacancies contribute to tracer diffusion but not to conductivity (through going transport) Transport of charge requires an equal movement (flux) of vacancies in opposite direction.

63
**Fast ionic diffusion -Silver Iodide (AgI)**

Iodine ions Octahedral sites (6) Tetrahedral sites (12) Trigonal sites (24) Z=2, but 42 available sites for Ag+

64
**First experiments on AgI fast ion conductor**

AgI heated to above 147˚C Cathode weighed before and after connection to circuit Charge flow recorded on coulometer Ag+ + e- -> Ag Ag-> Ag+ + e- Mass gained at cathode = current flow through coulometer

65
Phase transition Activation energy similar to alkali halides (Below a-phase) Frenkel schottky increases by 2-3 orders of magnitude at PT Activation energy is low above phase transition At high T, s is 10 orders of magnitude higher than KCL (schottky/direct vacancy mechanims)
