Procedural Textures

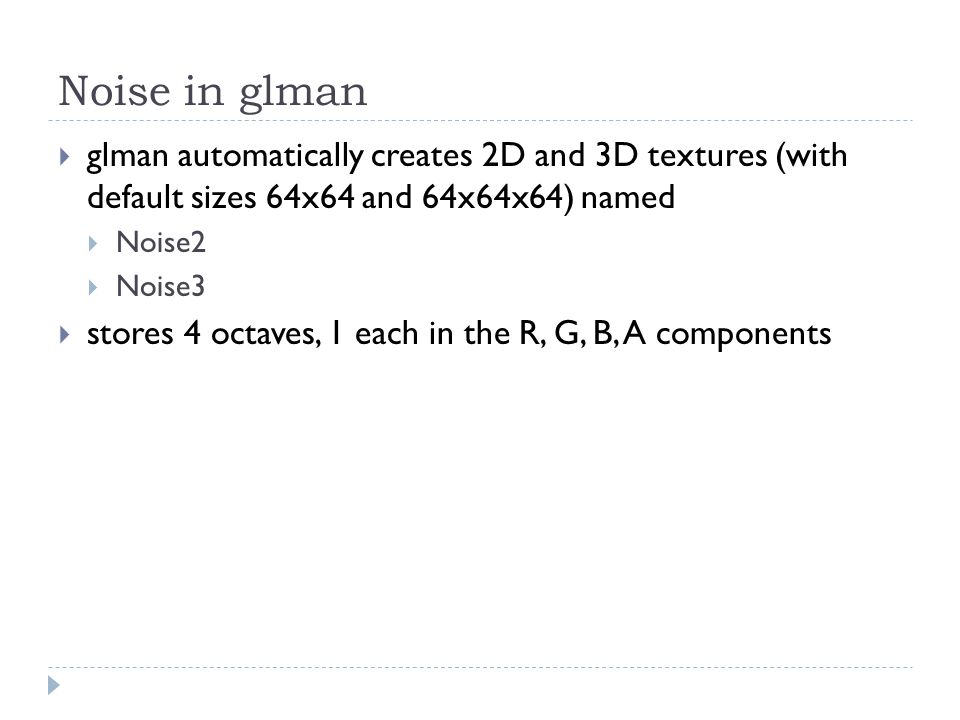

2
Noise in glman glman automatically creates 2D and 3D textures (with default sizes 64x64 and 64x64x64) named Noise2 Noise3 stores 4 octaves, 1 each in the R, G, B, A components

3
Noise in glman ComponentTermRangeLimits 0nv.r 0.5 ± 0.50.0 –1.0 1nv.g 0.5 ± 0.250.25 –0.75 2nv.b 0.5 ± 0.1250.375 –0.625 3nv.a 0.5 ± 0.06250.4375 –0.5625 sum 2.0 ± 1.01.0 –3.0 sum – 1 1.0 ± 1.00.0 –2.0 (sum – 1) / 2 0.5 ± 0.50.0 –1.0 (sum – 2) 0.5 ± 1.0-1.0 –1.0 Table 10.1

4
Clouds 1 vertex shader outputs modelling coordinates of each vertex (scaled so that the values are suitable for use as texture coordinates) light intensity (from ADS lighting or other) fragment shader retrieves a 3D noise texture value using the incoming modelling coordinate computes a noise value from the retrieved texture value blends a sky color with a cloud color using the noise value and modulates the incoming light intensity

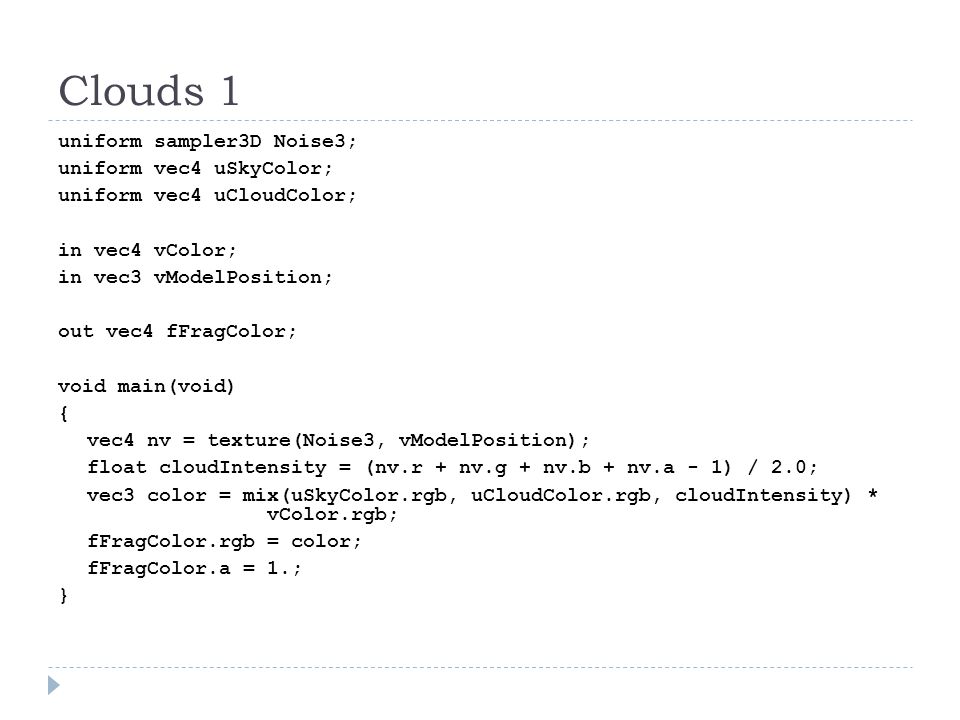

5
Clouds 1 uniform sampler3D Noise3; uniform vec4 uSkyColor; uniform vec4 uCloudColor; in vec4 vColor; in vec3 vModelPosition; out vec4 fFragColor; void main(void) { vec4 nv = texture(Noise3, vModelPosition); float cloudIntensity = (nv.r + nv.g + nv.b + nv.a - 1) / 2.0; vec3 color = mix(uSkyColor.rgb, uCloudColor.rgb, cloudIntensity) * vColor.rgb; fFragColor.rgb = color; fFragColor.a = 1.; }

6
Clouds 1

7
Clouds 2a you can choose to emphasize the large scale structure by increasing the contribution of the first octave float cloudIntensity = (3 * nv.r + nv.g + nv.b + nv.a - 2) / 2.0;

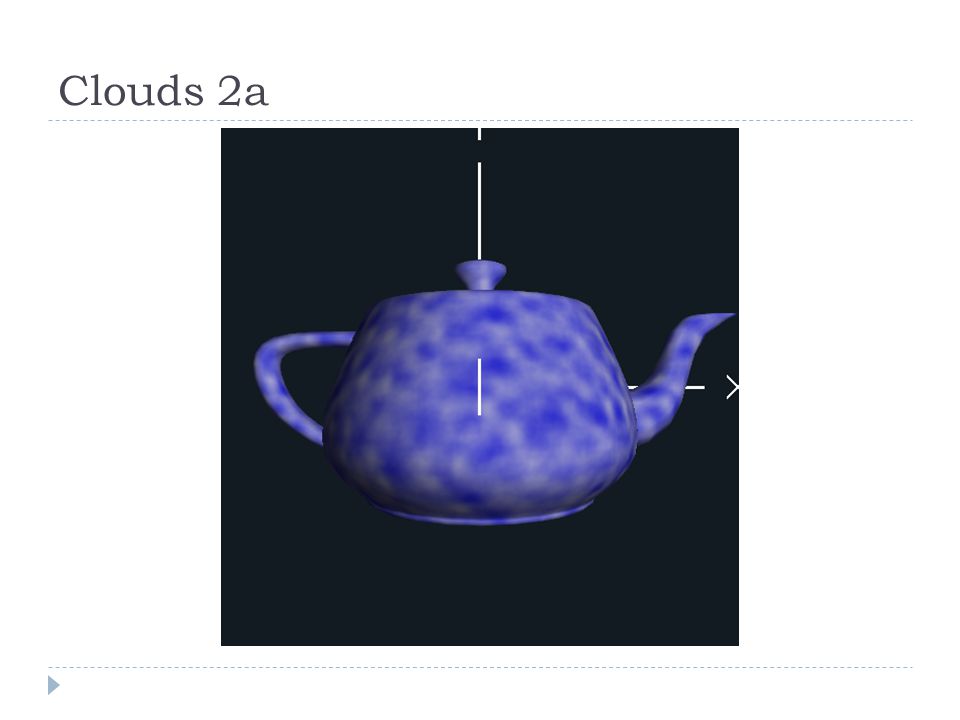

8
Clouds 2a

9
Clouds 2b you can emphasize the effect by modifying the cloud intensity with a cosine function float cloudIntensity = (3 * nv.r + nv.g + nv.b + nv.a - 2) / 2.0; cloudIntensity = (1. + cos(3.1415 * cloudIntensity)) / 2.;

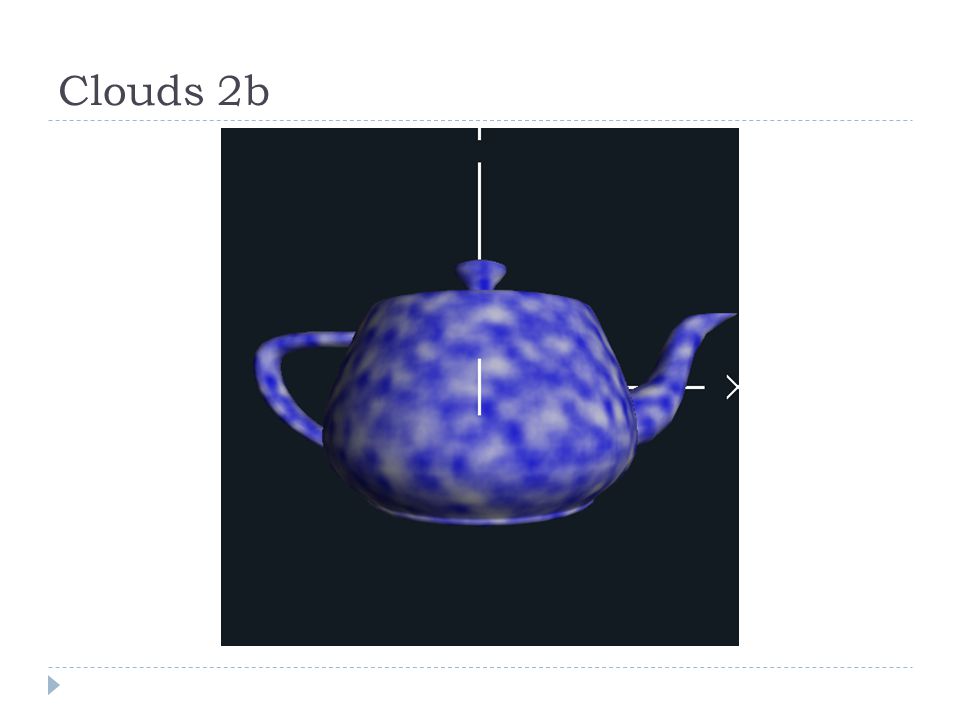

10
Clouds 2b

11
Turbulence the term “turbulence” is used when discussing noise textures to mean absolute value noise suppose you have noise functions f and g that both have range [-1, 1] ; then the noise function h = abs(f) + abs(g) is called a turbulence noise function the absolute value function causes discontinuities in the gradient of the noise which produces a visual effect similar to turbulent flow

12
Turbulence for glman noise, you subtract the middle of the range (0.5) from each of the components and take their absolute values float turbulence(in vec4 nv) { return abs(nv.r - 0.5) + abs(nv.g - 0.5) + abs(nv.b - 0.5) + abs(nv.a - 0.5); }

13
Clouds 3 using turbulence instead of normal fbm noise

14
Clouds 4 vorticity can be emulated by rotating the texture coordinates by an amount that varies with the distance from the center of the vortex

15
Clouds 4 void main(void) { const float TWIST = 3.5; const float MAX_RADIUS = 0.5; float radius = length(vModelPosition.xy); vec3 stp; if (radius < MAX_RADIUS) { float dist = pow(MAX_RADIUS - radius, 3); float angle = PI + TWIST * 2 * PI * (MAX_RADIUS - dist) / MAX_RADIUS; float c = cos(angle); float s = sin(angle); stp = vec3(dot(vec2(c, -s), vModelPosition.xy), dot(vec2(s, c), vModelPosition.xy), vModelPosition.z); }

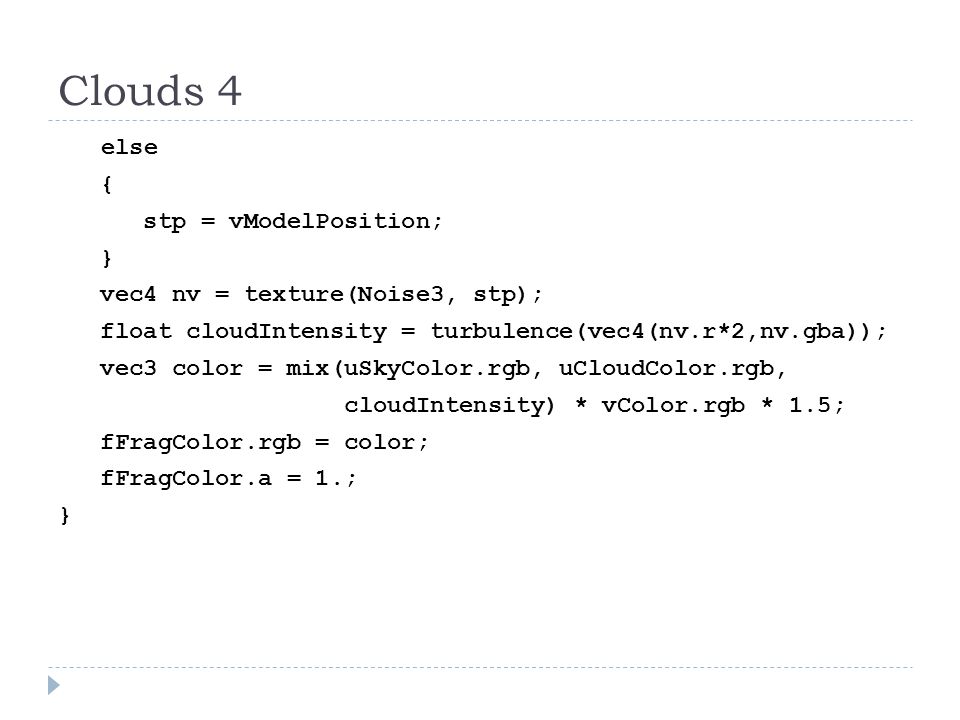

16
Clouds 4 else { stp = vModelPosition; } vec4 nv = texture(Noise3, stp); float cloudIntensity = turbulence(vec4(nv.r*2,nv.gba)); vec3 color = mix(uSkyColor.rgb, uCloudColor.rgb, cloudIntensity) * vColor.rgb * 1.5; fFragColor.rgb = color; fFragColor.a = 1.; }

17
Clouds techniques described here produce the illusion of clouds there is a large body of literature describing the modeling of real clouds see Chapter 9 of “Texturing and Modeling: A Procedural Approach, 3 rd Edition” a volume rendering approach a volume rendering approach

18
Marble marble (sort of) has the appearance of alternating color veins a marble effect can be achieved by using noise to modify a periodic function such as sin the choice of function to modify can be used to change the relative thickness of the bands

19
Marble uniform sampler3D Noise3; uniform vec4 uMarbleColor; uniform vec4 uVeinColor; uniform float uNoiseScale; uniform float uNoiseMag; in vec4 vColor; in vec3 vModelPosition; out vec4 fFragColor;

20
Marble void main(void) { vec4 nv = texture(Noise3, vModelPosition * uNoiseScale); float noise = clamp(turbulence(nv) * uNoiseMag, 0.0, 1.0); float sineval = sin(vModelPosition.y * 6.0 + noise * 12.0); vec3 color = mix(uVeinColor.rgb, uMarbleColor.rgb, sineval) * vColor.rgb; fFragColor = vec4(color, 1.0); }

21
Marble sinabs(sin)

22
Marble

23
Granite high frequency black and white patches with low frequency pink patches

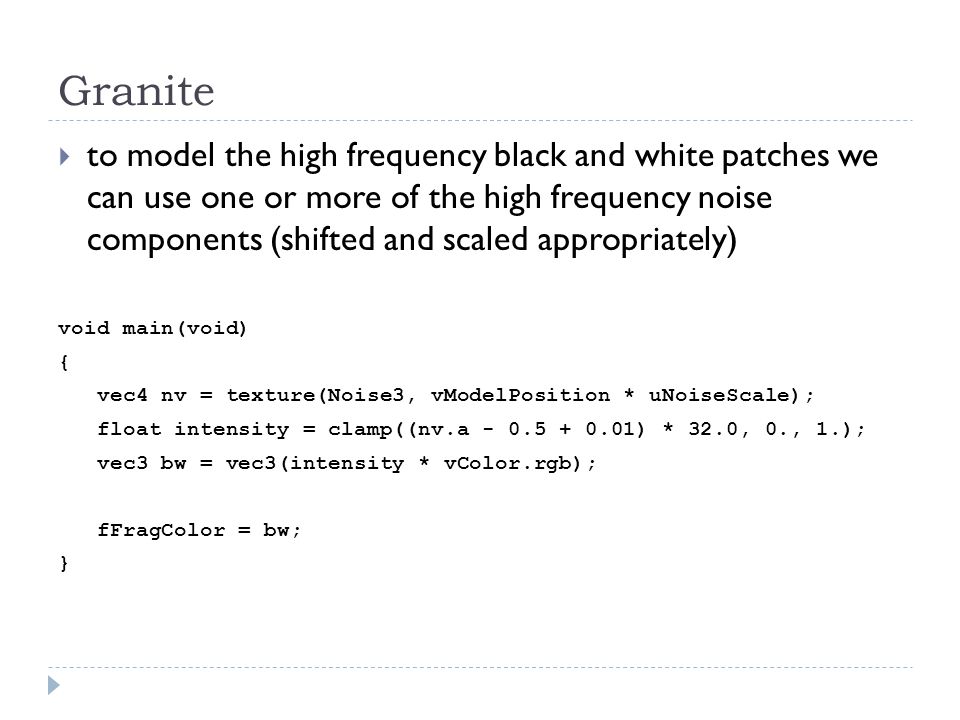

24
Granite to model the high frequency black and white patches we can use one or more of the high frequency noise components (shifted and scaled appropriately) void main(void) { vec4 nv = texture(Noise3, vModelPosition * uNoiseScale); float intensity = clamp((nv.a - 0.5 + 0.01) * 32.0, 0., 1.); vec3 bw = vec3(intensity * vColor.rgb); fFragColor = bw; }

25
Granite

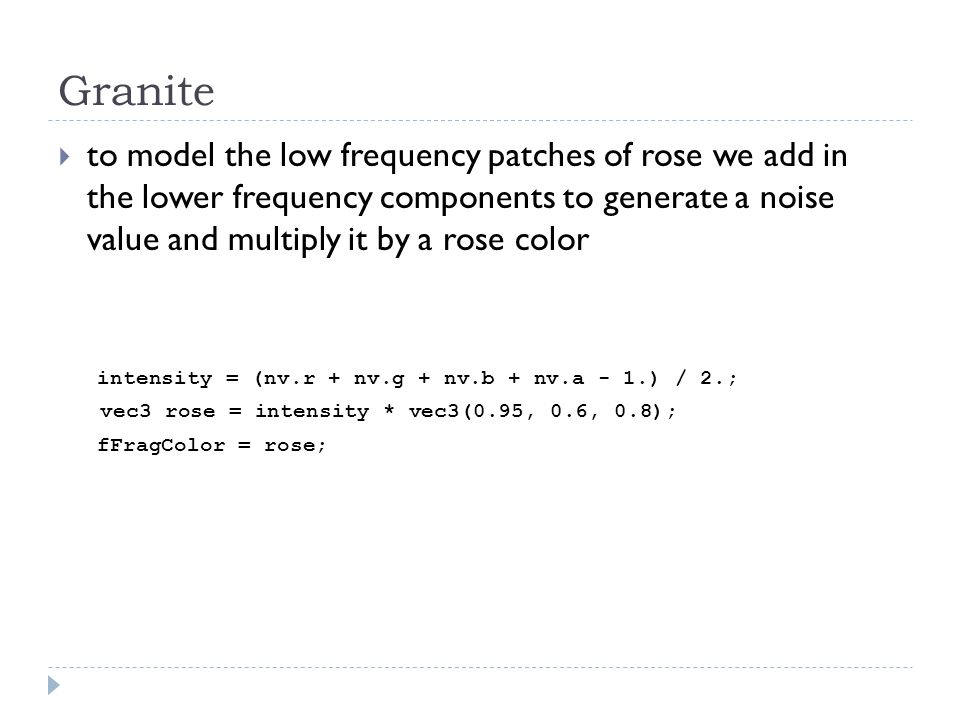

26
to model the low frequency patches of rose we add in the lower frequency components to generate a noise value and multiply it by a rose color intensity = (nv.r + nv.g + nv.b + nv.a - 1.) / 2.; vec3 rose = intensity * vec3(0.95, 0.6, 0.8); fFragColor = rose;

27
Granite

28
this is not quite what we want we want a small number of large islands of rose only the “strongest” patches of rose color should remain with the rest of the texture becoming darker two other primitive functions we can implement and use bias gain

29
Bias 0 and 1 are mapped to themselves all other values shifted down if bias < 0.5 up if bias > 0.5 bias(0.8, x) bias(0.2, x)

30
Bias float bias(in float b, in float x) { return pow(x, log(b)/log(0.5)); }

31
Gain 0, 0.5, and 1 mapped to themselves above and below 0.5 the function consists of scaled down bias curves forming an S gain(0.8, x) gain(0.2, x)

32
Gain float gain(in float g, in float x) { if (x < 0.5) { return bias(1 - g, 2 * x) / 2; } else { return 1.0 - bias(1 - g, 2 - 2 * x) / 2; }

33
Granite we want to bias the results strongly towards zero intensity = (nv.r + nv.g + nv.b + nv.a - 1.) / 2.; intensity = clamp(bias(0.005, intensity * 1.5), 0., 1.); vec3 rose = intensity * vec3(0.95, 0.6, 0.8); fFragColor = rose;

34
Granite

35
mixing the two results vec3 color = mix(bw, rose, 0.8); fFragColor = vec4(color, 1.);
