1 6th generation of P, B and E Line Displays ©2010 FUJITSU TECHNOLOGY SOLUTIONS

2 Copyright 2010 FUJITSU TECHNOLOGY SOLUTIONS Positioning 2

3 Display positioning Copyright 2010 FUJITSU TECHNOLOGY SOLUTIONS Advanced Line All-round Line ENERGY SAVING E Line 22-inch widescreen 19-inch widescreen 19-inch DVI VGA ERGONOMICS B Line 24-inch widescreen 22-inch widescreen 19-inch widescreen 19-inch Height Adjust DisplayPort**/* USB**/* DVI VGA Superior Line GRAPHICS PERFORMANCE P Line 27-inch widescreen** 24-inch widescreen 23-inch widescreen** 22-inch widescreen 19-inch IPS Panel Technology* Height Adjust DisplayPort** USB* DVI VGA Functionality * Featured on selected models ** As of Q4/2010 Value 3

4 Portfolio Displays  Ergonomic design  LED backlight **/*  HDCP, DVI, VGA, USB hub**/*  Display Port **/*  Height adjustable stand  Pivot*  ECO operation mode, ECO key and status LED  Ergonomic grey  TCO 5.0  EPA 5.0  Manageability  Windows® 7 certified B Line Advanced Ergonomics Superior Graphics Performance  LED backlight **/*  HDCP, DVI, VGA  ECO operation mode, ECO key and status LED  Matt black  TCO 5.0  EPA 5.0  Windows® 7 certified E Line All-round Energy Saving P Line  IPS wide viewing angle performance*  0 Watt standby*  LED backlight **/*  HDMI, DVI,VGA,USB hub*  Display Port **  Height adjustable stand  Auto Pivot */**  ECO operation mode, ECO key and status LED*  Ergonomic gray  ABC sensor  Manageability  Windows® 7 certified * Featured on selected models Copyright 2010 FUJITSU TECHNOLOGY SOLUTIONS 4 ** As of Q4/2010 4

5 ENERGY SAVING FUJITSU E (in black) 19-, 20, 22-inch wide GRAPHIC PERFORMANCE FUJITSU P 23-, 24, 27-inch wide 19-inch Copyright 2010 FUJITSU TECHNOLOGY SOLUTIONS Feature +++++++ Scenario Superior P Line VGADVIHeight adjust AutoPivot DisplayPortUSBIPSABC0-Watt** standby/ off Graphics Performance Advanced B Line VGADVIHeight Adjust Pivot DisplayPort*USB*Ergonomics All-round E Line VGADVIEnergy saving * Featured on selected models ** Featured for VGA and DVI 5 Detailed product view

6 Copyright 2010 FUJITSU TECHNOLOGY SOLUTIONS Product Information 6

7 Product highlights – Display P Line IPS panel technology for ultimate graphics performance 0-Watt in standy with DVI and VGA DisplayPort interface – ready for the future Up to 3.7 Mio pixels and 27-inch diagonal Future oriented 16:9 formats (27-inch and 23-inch) New Design with refined stand LED backlight technology* Copyright 2010 FUJITSU TECHNOLOGY SOLUTIONS 69 cm (27-inch) wide 61cm (24-inch) wide 58.4 cm (23-inch) wide * Featured on P23T-6 IPS ** Featured on P27T-6 IPS ** ** * 7

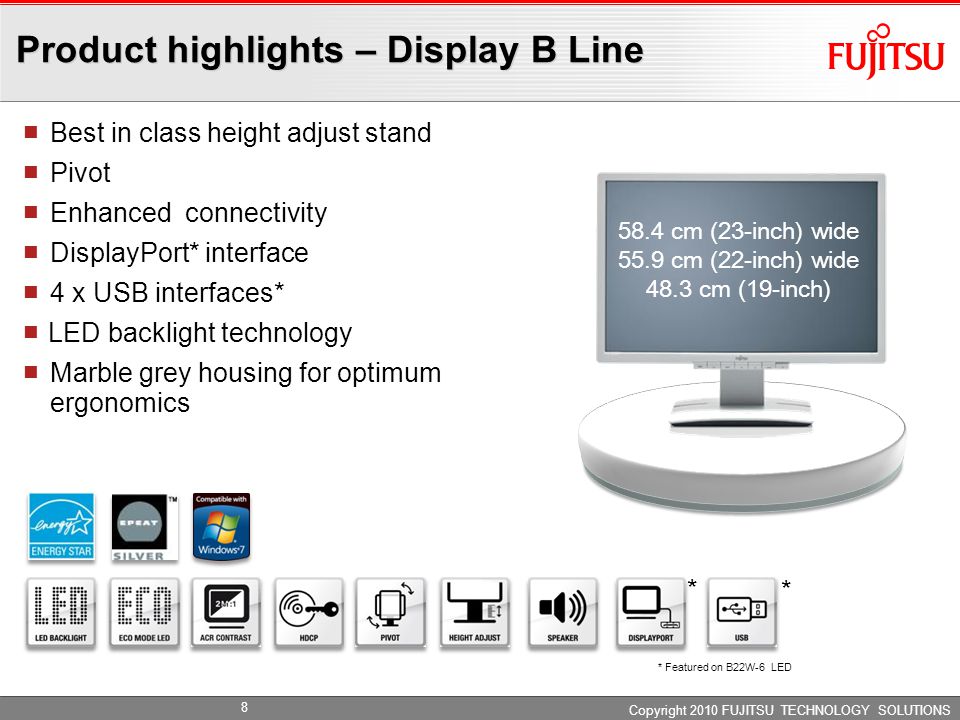

8 Product highlights – Display B Line Copyright 2010 FUJITSU TECHNOLOGY SOLUTIONS 58.4 cm (23-inch) wide 55.9 cm (22-inch) wide 48.3 cm (19-inch) Best in class height adjust stand Pivot Enhanced connectivity DisplayPort* interface 4 x USB interfaces* LED backlight technology Marble grey housing for optimum ergonomics * Featured on B22W-6 LED * * 8

9 Product highlights – Display E Line LED backlight technology Optimum luminance uniformity 2,000,000:1 ultra high ACR New OSD for better usability 6 keys for fast direct access Good accessibility from front Thin borders all around the screen Black design Copyright 2010 FUJITSU TECHNOLOGY SOLUTIONS 58.4 cm (23-inch) wide 55.9 cm (22-inch) wide 48.3 cm (19-inch) 9

10 Copyright 2009 FUJITSU TECHNOLOGY SOLUTIONS 6th generation design Best in class height adjust stand (P and B Line) Up to 120 mm height adjust 340° swivel - 5 to 35° tilt Rotation to portrait Down to ergonomic 50 mm picture over desk Cost optimized tilt stand (E Line) Thin borders all around the screen New OSD for better usability 6 keys for fast direct access Good accessibility from front 10 Product news

11 LED panel technology LED (Light-Emitting Diodes) according to the Edge type Absolute silent, no noise issue Low voltage to drive the panel Following the GreenIT philosophy with LED backlight technology Reduction of the electricity bill due to efficient LED technology Around 30% less power consumption than latest Energy Star requirements Reliable long lifetime of LED elements Reduction of hazard substances: Mercury-free LED panel Copyright 2010 FUJITSU TECHNOLOGY SOLUTIONS 11 Product news

12 Copyright 2010 FUJITSU TECHNOLOGY SOLUTIONS Display Actual P22W-5 ECO IPS New P23T-6 IPS Actual P24W-5 ECO IPS New P24W-6 IPS Actual P26W-5 ECO IPS New P27T-6 IPS Aspect ratio 16:1016:916:10 16:9 Diagonal size 55.9 cm (22-inch) 58.4 cm (23-inch) 61 cm (24-inch) 61 cm (24-inch) 65 cm (26-inch) 69 cm (27-inch) Panel IPS with CCFL IPS with LED IPS with CCFL Resolution 1680 x 10501920 x 1080 1920 x 1200 2560 x 1440 Video input 1 x HDMI, 1 x DVI (HDCP) 1 x D-SUB 1 x DisplayPort, 4 x USB, 1 x DVI (HDCP) 1 x D-SUB 1 x HDMI, 1 x DVI (HDCP) 1 x D-SUB 1 x DisplayPort, 4 x USB, 1 x DVI (HDCP) 1 x D-SUB 1 x HDMI, 1 x DVI (HDCP) 1 x D-SUB 1 x DisplayPort, 4 x USB, 2 x HDMI 1 x DVI (HDCP) 1 x D-SUB Stand Tilt 25°, swivel 180° Tilt 35°, swivel 340°, AutoPivot Tilt 25°, swivel 180° Tilt 35°, swivel 340°, AutoPivot Tilt 25°, swivel 180° Tilt 35°, swivel 340°, AutoPivot Min. pict. height over desk 55 mm50 mm85 mm50 mm90 mm55 mm 12 P Line - Comparison

13 Copyright 2010 FUJITSU TECHNOLOGY SOLUTIONS DisplayActual B19-5 ECONew B19-6 LEDActual B22W-5 ECONew B22W-6 LED Aspect ratio5:4 16:10 Diagonal size48.3 cm (19-inch) 55.9 cm (22-inch) PanelCCFLLEDCCFLLED Advanced Contrast 1,000:12,000,000:1 (ACR)10,000:1 (ACR)2,000,000:1 (ACR) Video input 1 x DVI (HDCP) 1 x D-SUB 1 x DVI (HDCP) 1 x D-SUB 1 x DVI (HDCP) 1 x D-SUB 1 x DisplayPort, 4 x USB, 1 x DVI (HDCP) 1 x D-SUB Stand Tilt 25°, swivel 90° Pivot Tilt 35°, swivel 340° Pivot Tilt 25°, swivel 90° Tilt 35°, swivel 340° Pivot Min. pict. height over desk 80 mm55 mm85 mm55 mm DisplayActual E19-5New E19-6 LEDActual E22W-5New E22W-6 LED Aspect ratio5:4 16:10 Diagonal size48.3 cm (19-inch) 55.9 cm (22-inch) PanelCCFLLEDCCFLLED Advanced Contrast 10,000:1 (ACR)2,000,000:1 (ACR)10,000:1 (ACR)2,000,000:1 (ACR) 13 B and E Line - Comparison

14 Copyright 2010 FUJITSU TECHNOLOGY SOLUTIONS Feature Function Benefit 14

15 IPS Panel Performance – P Line FunctionFeatureBenefits IPS panel technology (In Plane Switching) Extraordinary picture performance Outstanding brightness uniformity and grey scaling Ultra-wide viewing angle 102% color gamut and 1.07 billion colors (P27T-6 IPS) Razor-sharp picture quality Excellent for applications like process observation or clinical review Brilliant view from all perspectives,e.g. for consultants‘ desks or multi monitor applications Brilliant colors for demanding graphic applications like picture editing Copyright 2010 FUJITSU TECHNOLOGY SOLUTIONS 15

16 Refined Ergonomic Design FunctionFeatureBenefits Best in class height adjust stand (P and B Line) Marble grey frame New OSD for better usability Up to 120mm height adjust 340° swivel, - 5 to 35° tilt Down to ergonomic 50 mm picture over desk Thin borders all around the screen Rotation to portrait, AutoPivot (P Line) Pivot (B Line) Low contrast between application and housing 6 keys for fast direct access Individual user adjustment for long-term working sessions Healthy, tension-free and fatigue-free posture Excellent for applications like multi monitor and process observation Relaxation for the eyes in for long-time working Easy handling and fast adjustment Good accessibility from front Copyright 2010 FUJITSU TECHNOLOGY SOLUTIONS 16

17 LED Backlit Technology FunctionFeatureBenefits Latest display LED backlight technology Optimum luminance uniformity 2,000,000:1 ultra-high advanced contrast Excellent sharp picture quality No stressful view for the user’s eyes though all-over illumination Exciting designs for usage in office, home and representative areas Copyright 2010 FUJITSU TECHNOLOGY SOLUTIONS LED panel 17

18 GreenIT FunctionFeatureBenefits Environmentally conscious power saving features: 0-Watt standby technology* Auto Brightness Control ECO mode LED backlight technology Low power consumption Compliant with many certificates awarding environmental conscience such as EPEAT, ENERGY STAR® 5.0 and ECO declaration Mercury-free More than just the legal requirements: contribution to environmental protection Cut energy costs and save money Responsible usage of natural resources Avoid hazard substances Copyright 2010 FUJITSU TECHNOLOGY SOLUTIONS * Featured for VGA and DVI 18

19 Why us and not the others? We have… Fujitsu Displays – trendy, best in class technology Comprehensive portfolio From ease-of-use to maximum entertainment From standard office to high-end graphic performance and maximum ergonomic requirements Designed in Germany More than 20 years of display engineering experience First class testing in our accredited Fujitsu in-house Test & Compliance Center Trend-setter with display technologies E.g. first patent applied 0 watts power save solution E.g. first and only producer with “Blauer Engel” certification LED technology for ultra high dynamic contrast A new light source for LCD Display Ahead of the market: Fujitsu Displays offer future oriented and environmental friendly LED technology in all display lines Copyright 2010 FUJITSU TECHNOLOGY SOLUTIONS 19

20
