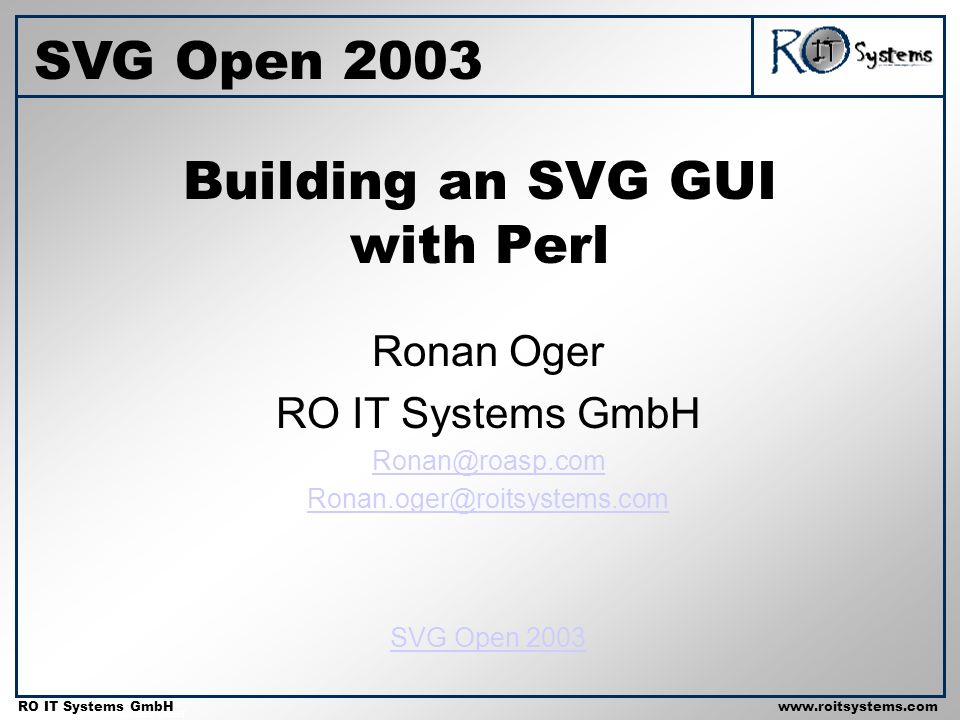

1. Copyright 2001 RO IT Systems GmbH RO IT Systems GmbHwww.roitsystems.com Building an SVG GUI with Perl Ronan Oger RO IT Systems GmbH Ronan@roasp.com Ronan.oger@roitsystems.com SVG Open 2003

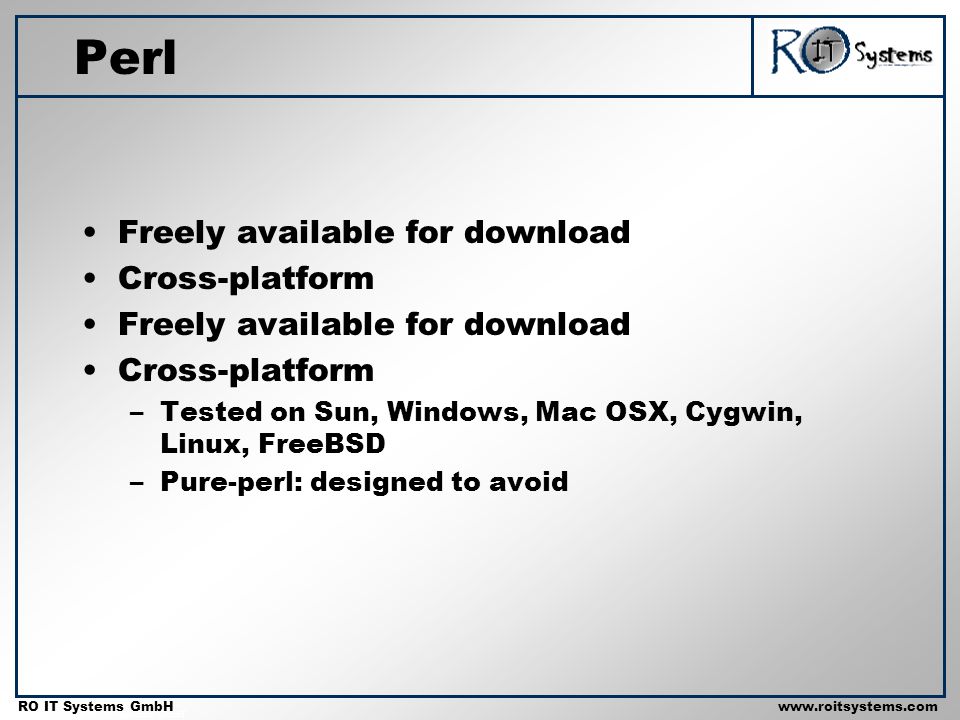

2. Copyright 2001 RO IT Systems GmbH RO IT Systems GmbHwww.roitsystems.com Perl Freely available for download Cross-platform Freely available for download Cross-platform –Tested on Sun, Windows, Mac OSX, Cygwin, Linux, FreeBSD –Pure-perl: designed to avoid

3. Copyright 2001 RO IT Systems GmbH RO IT Systems GmbHwww.roitsystems.com SVG.pm Freely available for download under Perl Artistic License Installable many ways: –PPM –FreeBSD –Make –CPAN installation through Perl Pure-Perl: –Root access not required to implement –Cross-platform

4. Copyright 2001 RO IT Systems GmbH RO IT Systems GmbHwww.roitsystems.com Installing SVG.pm CPAN: Perl –MCPAN –e `install SVG Perl Package Manager (win32): PPM PPM>Install SVG Make: Gunzip svg-xx.xxx.tar.gz Tar –xvf svg-xx-xxx.tar Make Make test Make install

5. Copyright 2001 RO IT Systems GmbH RO IT Systems GmbHwww.roitsystems.com SVG.pm Features Free – Perl Artistic License You get what you pay for... You can ask for special features...

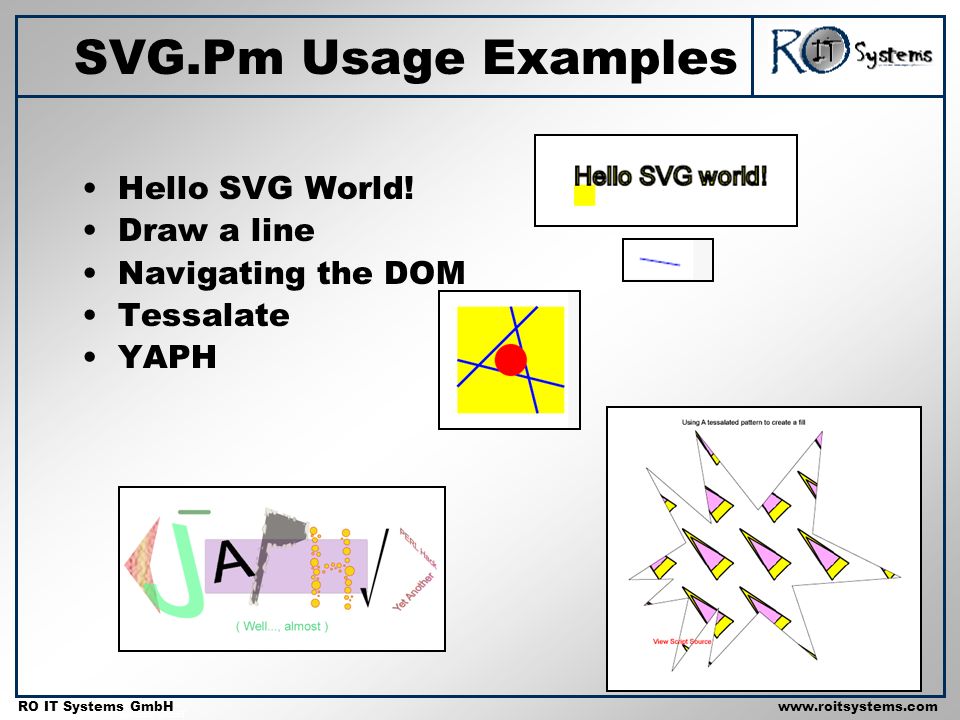

6. Copyright 2001 RO IT Systems GmbH RO IT Systems GmbHwww.roitsystems.com SVG.Pm Usage Examples Hello SVG World! Draw a line Navigating the DOM Tessalate YAPH

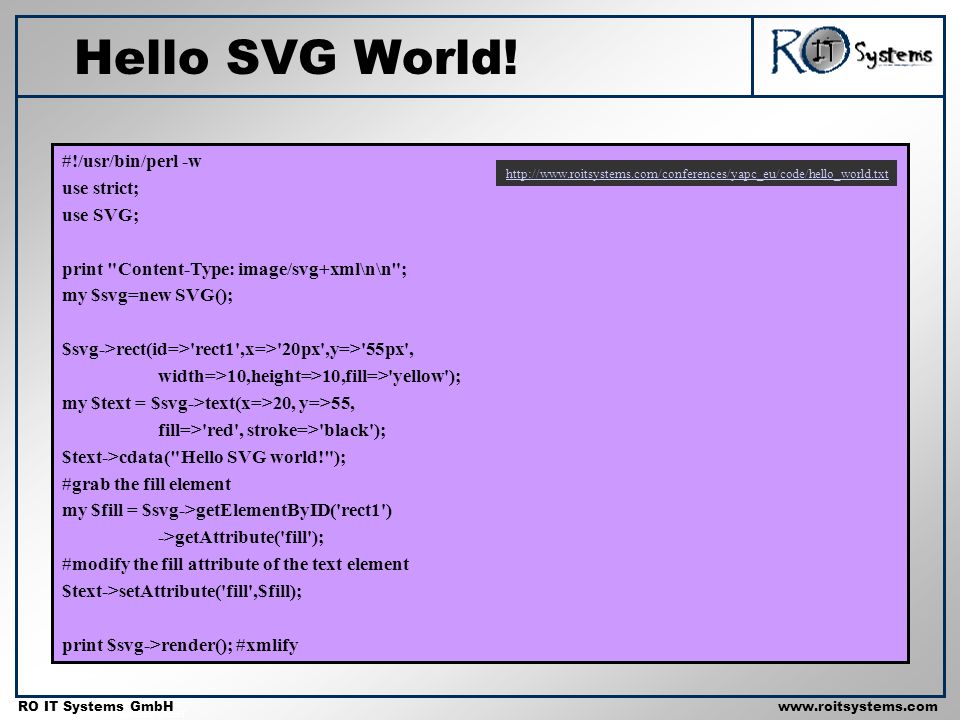

7. Copyright 2001 RO IT Systems GmbH RO IT Systems GmbHwww.roitsystems.com Hello SVG World! #!/usr/bin/perl -w use strict; use SVG; print "Content-Type: image/svg+xml\n\n"; my $svg=new SVG(); $svg->rect(id=>'rect1',x=>'20px',y=>'55px', width=>10,height=>10,fill=>'yellow'); my $text = $svg->text(x=>20, y=>55, fill=>'red', stroke=>'black'); $text->cdata("Hello SVG world!"); #grab the fill element my $fill = $svg->getElementByID('rect1') ->getAttribute('fill'); #modify the fill attribute of the text element $text->setAttribute('fill',$fill); print $svg->render(); #xmlify http://www.roitsystems.com/conferences/yapc_eu/code/hello_world.txt

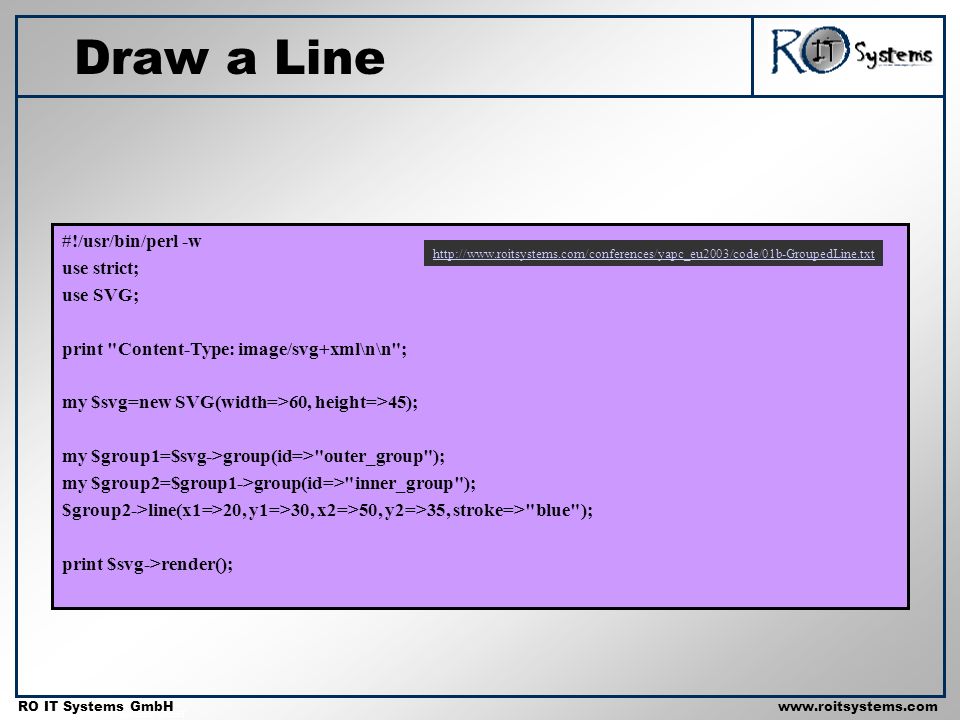

8. Copyright 2001 RO IT Systems GmbH RO IT Systems GmbHwww.roitsystems.com Draw a Line #!/usr/bin/perl -w use strict; use SVG; print "Content-Type: image/svg+xml\n\n"; my $svg=new SVG(width=>60, height=>45); my $group1=$svg->group(id=>"outer_group"); my $group2=$group1->group(id=>"inner_group"); $group2->line(x1=>20, y1=>30, x2=>50, y2=>35, stroke=>"blue"); print $svg->render(); http://www.roitsystems.com/conferences/yapc_eu2003/code/01b-GroupedLine.txt

9. Copyright 2001 RO IT Systems GmbH RO IT Systems GmbHwww.roitsystems.com Navigate the DOM...Part 1 #!/usr/bin/perl –w use strict; use SVG; print "Content-Type: image/svg+xml\n\n"; my $svg=new SVG(width=>60, height=>60); my $group1=$svg->group(id=>"outer_group"); $group1->rect(x=>10, y=>10, width=>40, height=>40, fill=>"yellow"); my $group2=$group1->group(id=>"inner_group", stroke=>"blue"); $group2->line(x1=>10, y1=>30, x2=>50, y2=>40); $group2->line(x1=>30, y1=>10, x2=>40, y2=>50); $group2->line(x1=>10, y1=>40, x2=>40, y2=>10); my $anchor = $group1->anchor(-href=>'http://example.net'); my $circle = $anchor->circle(cx=>30, cy=>30, r=>6, fill=>"red"); $circle->set(begin=>"mouseover", end=>"mouseout", attributeName=>'fill', to=>'cyan'); print $svg->render(); #or xmlify or serialize http://www.roitsystems.com/conferences/yapc_eu2003/code/01i-FirstNextIterator.txt

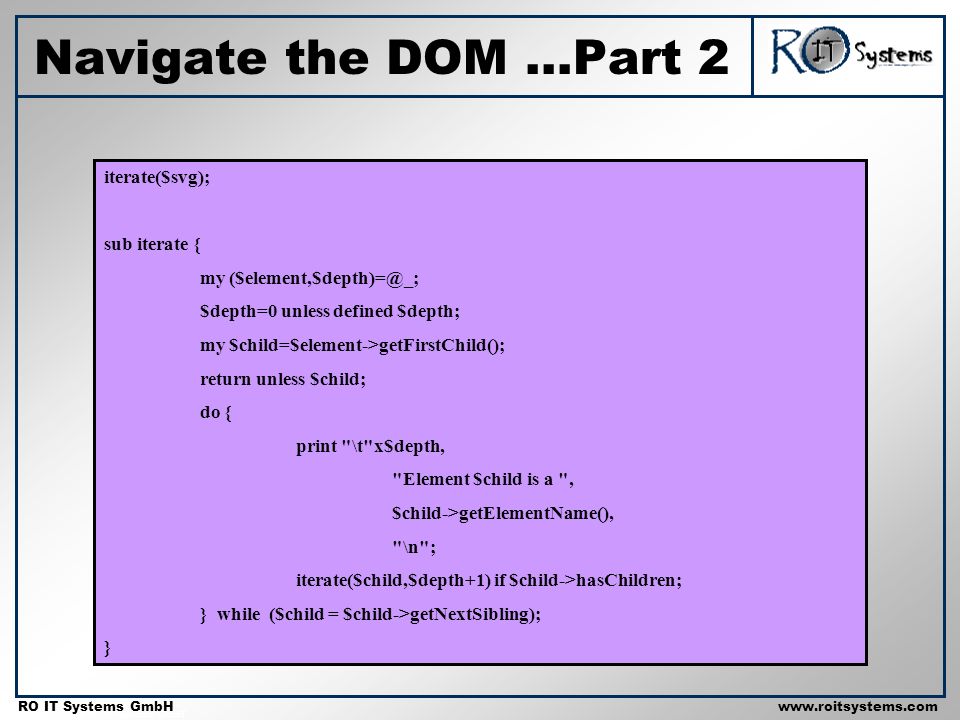

10. Copyright 2001 RO IT Systems GmbH RO IT Systems GmbHwww.roitsystems.com Navigate the DOM...Part 2 iterate($svg); sub iterate { my ($element,$depth)=@_; $depth=0 unless defined $depth; my $child=$element->getFirstChild(); return unless $child; do { print "\t"x$depth, "Element $child is a ", $child->getElementName(), "\n"; iterate($child,$depth+1) if $child->hasChildren; } while ($child = $child->getNextSibling); }

11. Copyright 2001 RO IT Systems GmbH RO IT Systems GmbHwww.roitsystems.com #!/usr/bin/perl -w use strict; use SVG; my $svg = SVG->new(width=>"100%", height=>"100%"); my $g = $svg->group(style=>{"fill-rule"=>"evenodd","stroke- linejoin"=>"round", "stroke-linecap"=>"round"}); my $d1 = $g->defs(); my $path = $svg->get_path(-type=>"path", x=>[0,90,60], y=>[0,60,90], - closed=>1); my $d1g1p = $d1->group(id=>"Tess0p")->path(%$path); my $d1g0 = $d1->group( id=>"Tess0", fill=>"rgb(255,255,0)", stroke=>"none")->use(-href=>"#Tess0p"); Tessalate...Part 1 http://www.roitsystems.com/conferences/yapc_eu2003/code/tessalate.txt

12. Copyright 2001 RO IT Systems GmbH RO IT Systems GmbHwww.roitsystems.com Tessalate...Part 2 my $d1g1 = $d1->group(id=>"Tess1", fill=>"none", stroke=>"rgb(0,0,0)", "stroke-width"=>"2.413")->use(-href=>"#Tess0p"); $path = $svg->get_path(-type=>"path", x=>[15,75,50], y=>[15,50,75], -closed=>1); my $d1g2p = $d1->group( id=>"Tess2p")->path(%$path); my $d1g2 = $d1->group(id=>"Tess2", fill=>"rgb(255,170,255)", stroke=>"none")- >use(-href=>"#Tess2p"); my $d1g3 = $d1->group( id=>"Tess3", fill=>"none", stroke=>"rgb(0,0,0)", "stroke-width"=>"2.413")->use(-href=>"#Tess2p"); my $d2p2 = $g->defs()->pattern(id=>"TessPattern", patternUnits=>"userSpaceOnUse", x=>"0", y=>"0", width=>"100", height=>"100", viewBox=>"0 0 100 100", overflow=>"visible"); $d2p2->group()->use(-href=>"#Tess0"); $d2p2->group()->use(-href=>"#Tess1"); $d2p2->group()->use(-href=>"#Tess2"); $d2p2->group()->use(-href=>"#Tess3");

13. Copyright 2001 RO IT Systems GmbH RO IT Systems GmbHwww.roitsystems.com Tessalate...Part 3 $svg->comment('Now let us define the polygon with the fill inside it refered to by url reference'); $svg->polygon(points=>"163.816,337.5 ".(140+rand(20)).",".(400+rand(60))." 234.868,344.079 334.868,428.289 291.447,299.342 480.921,284.868 326.974,".(160+rand(60))." 344.079,30.9211 232.237,167.763 123.026,29.6053 150.658,191.447 37.5,94.0789 ".(100+rand(10)).','.(200+rand(40))." 7.23684,288.816 84.8684,287.5 33.5526,333.553 111.184,320.395 82.2368,448.026",fill=>"url(#TessPattern)", stroke=>"black"); $svg->text(x=>100,y=>20)->cdata("Using A tessalated pattern to create a fill"); $svg->anchor(-href=>'http://roasp.com/tutorial/source/tessalate.txt')- >text(x=>50,y=>400, fill=>'red' )->cdata("View Script Source"); print "Content-type: image/svg+xml\n\n"; print $svg->xmlify;

14. Copyright 2001 RO IT Systems GmbH RO IT Systems GmbHwww.roitsystems.com Minimize client-side functional requirements Keep business logic on the server Facilitate functional extension Require planing and vision Thin-client Applications

15. Copyright 2001 RO IT Systems GmbH RO IT Systems GmbHwww.roitsystems.com Now: HTML-style form process model. –Render->modify->submit. –Familar with users. (Possibly) Later: XFORMS support in SVG. –Embedded form content within the XML vocabulary. –Problem: Not in 1.2. Not finalized. No processing model. –Too complex. Never worked with it... Forms Processing in SVG

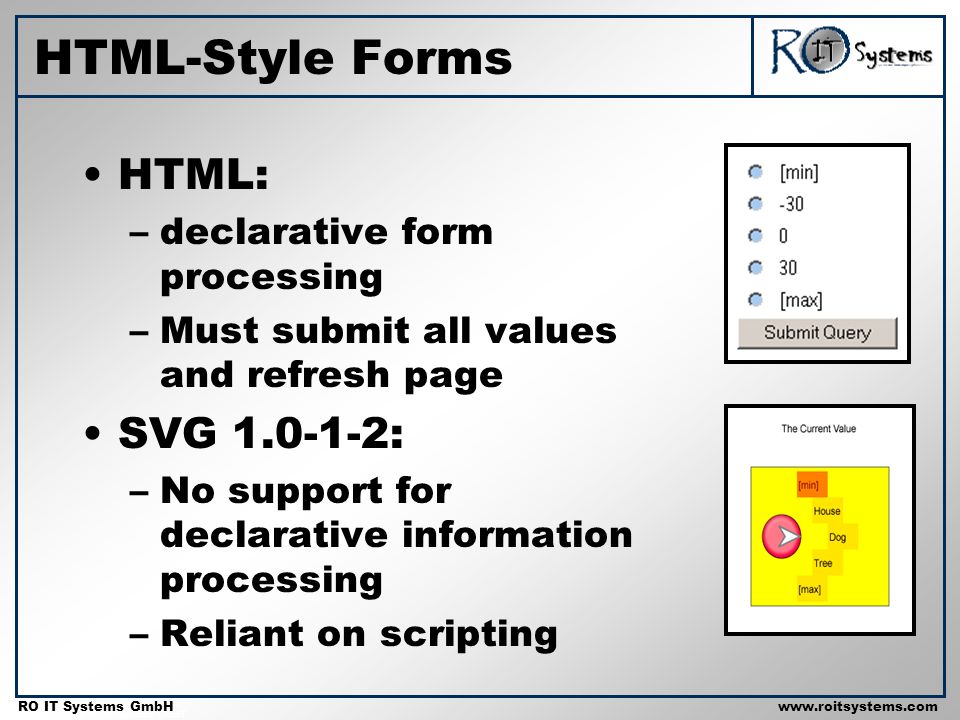

16. Copyright 2001 RO IT Systems GmbH RO IT Systems GmbHwww.roitsystems.com HTML: –declarative form processing –Must submit all values and refresh page SVG 1.0-1-2: –No support for declarative information processing –Reliant on scripting HTML-Style Forms

17. Copyright 2001 RO IT Systems GmbH RO IT Systems GmbHwww.roitsystems.com HTML-style Architecture Concept Keep the widget a black box Wiget changes modify a text field Maintain state at server Use commit event to update state

18. Copyright 2001 RO IT Systems GmbH RO IT Systems GmbHwww.roitsystems.com Examples Rotary control Sliding control Pull-down menu http://www.roitsystems.com/conferences/yapc_eu2003/svg/knob.svg http://www.roitsystems.com/conferences/yapc_eu2003/svg/slider.svg http://www.roitsystems.com/conferences/yapc_eu2003/svg/pulldown.svg

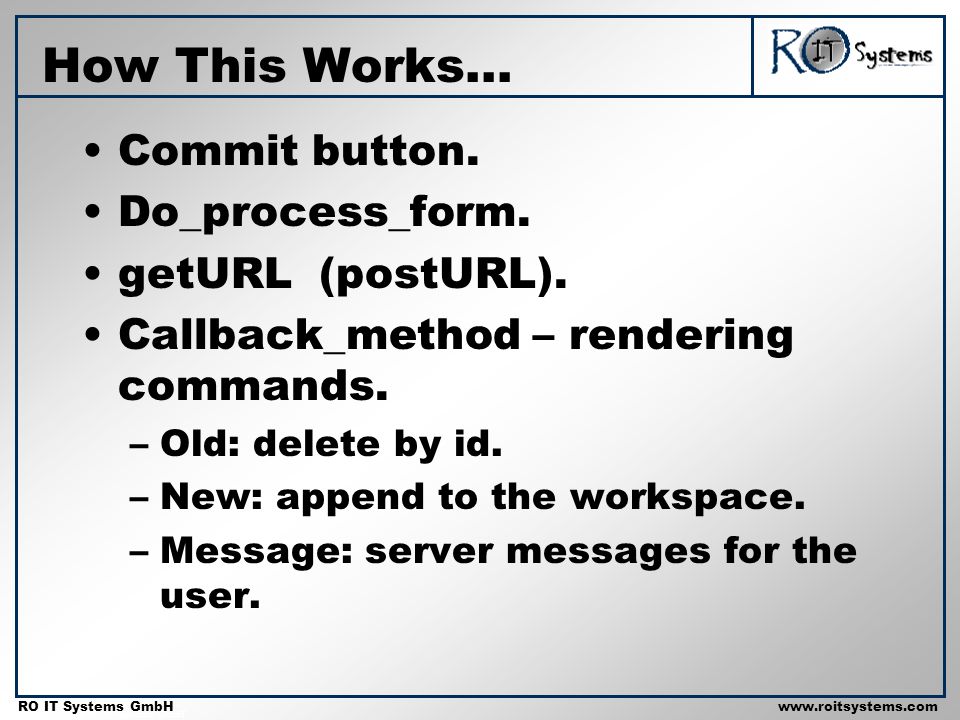

19. Copyright 2001 RO IT Systems GmbH RO IT Systems GmbHwww.roitsystems.com How This Works... Commit button. Do_process_form. getURL (postURL). Callback_method – rendering commands. –Old: delete by id. –New: append to the workspace. –Message: server messages for the user.

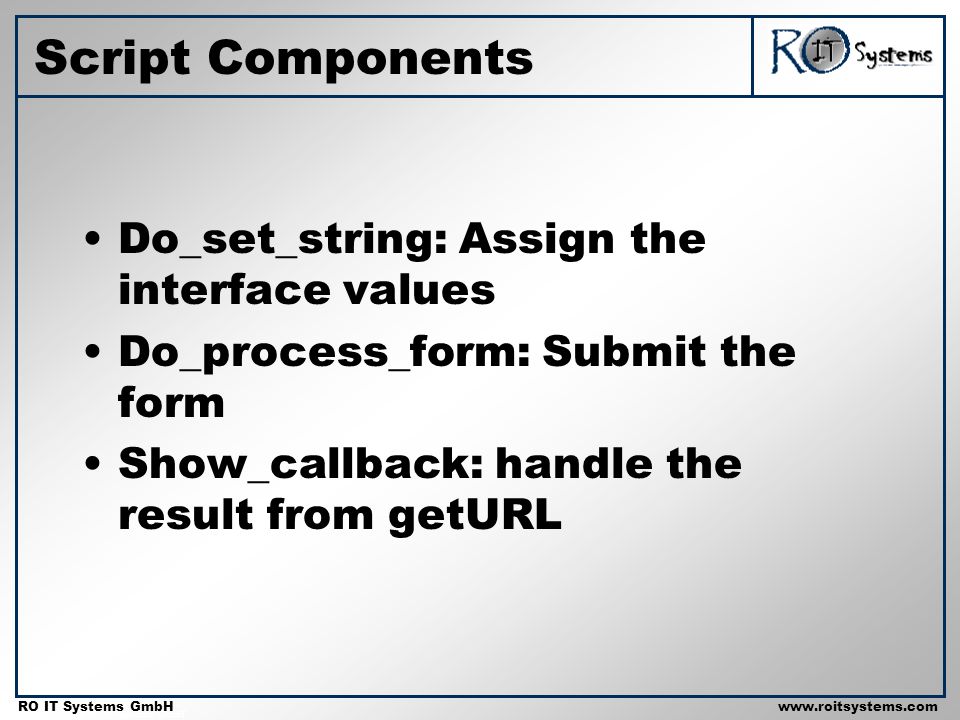

20. Copyright 2001 RO IT Systems GmbH RO IT Systems GmbHwww.roitsystems.com Script Components Do_set_string: Assign the interface values Do_process_form: Submit the form Show_callback: handle the result from getURL

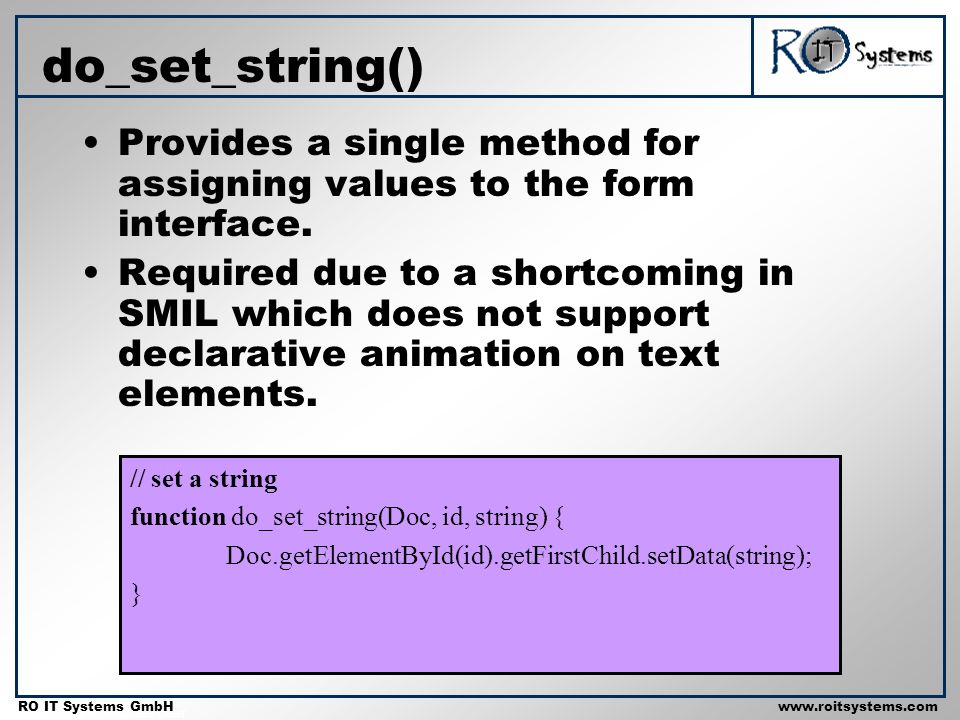

21. Copyright 2001 RO IT Systems GmbH RO IT Systems GmbHwww.roitsystems.com do_set_string() // set a string function do_set_string(Doc, id, string) { Doc.getElementById(id).getFirstChild.setData(string); } Provides a single method for assigning values to the form interface. Required due to a shortcoming in SMIL which does not support declarative animation on text elements.

22. Copyright 2001 RO IT Systems GmbH RO IT Systems GmbHwww.roitsystems.com do_process_form() // submit the form for processing function do_process_form(IDArray,ValueArray) { var url = 'GISMax.cgi?edit=;act=processform;'; for (var i=0; i<IDArray.length; i++) { url = url + eval("'"+IDArray[i]+"'") + "= + getFormFieldValue(evt,eval("'"+ValueArray[i]+"'"))+';'; } getURL(url+';uid='+uid,show_callback); setCommand(evt,''); } Form handler for submit. Required due to a shortcoming in SMIL which does not support declarative animation on text elements.

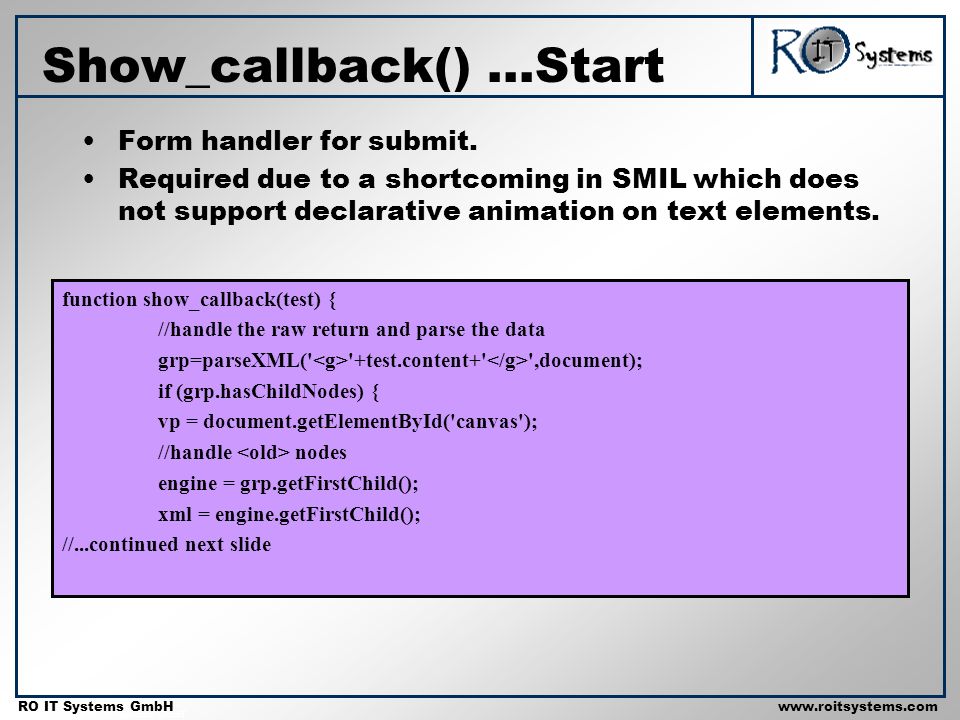

23. Copyright 2001 RO IT Systems GmbH RO IT Systems GmbHwww.roitsystems.com Show_callback()...Start function show_callback(test) { //handle the raw return and parse the data grp=parseXML(' '+test.content+' ',document); if (grp.hasChildNodes) { vp = document.getElementById('canvas'); //handle nodes engine = grp.getFirstChild(); xml = engine.getFirstChild(); //...continued next slide Form handler for submit. Required due to a shortcoming in SMIL which does not support declarative animation on text elements.

24. Copyright 2001 RO IT Systems GmbH RO IT Systems GmbHwww.roitsystems.com Show_callback()...Old oldgroup = xml.getElementsByTagName('obj'); // I think this is now an array var length = oldgroup.getLength(); i=0; var oldId = "none"; while (i < length) { thisElement=oldgroup.item(i); oldId = thisElement.getAttribute("id"); myself = document.getElementById("g."+oldId); if (myself) { myself.parentNode.removeChild(myself); myself = null; } i++; do_set_string(document,'message',"Attached anchor "+oldId); } //...continued Dispose of old elements by ID that the server declares as deletable

25. Copyright 2001 RO IT Systems GmbH RO IT Systems GmbHwww.roitsystems.com Show_callback()...msg //message handler //grab the message we recieved message_body = xml.getElementsByTagName('message'); if (message_body) { if (messageElement=message_body.item(0)) { message = messageElement.getAttribute('value'); do_set_string(SVGDoc,'message',message); } Message handler for feedback at the client side

26. Copyright 2001 RO IT Systems GmbH RO IT Systems GmbHwww.roitsystems.com Show_callback()...News //handle new elements. Each element to be added is actually a group. news = xml.getElementsByTagName('new'); length = news.getLength(); if (length == 0) {return} var i=0; while (i<length) { xml = news.item(0); newgroup = xml.getElementsByTagName('g'); var groups = newgroup.getLength(); //catch error (2): missing tags in tag if (groups == 0) {return} var j = 0; while (j<length) { vp.appendChild(newgroup.item(j)); j++; } } //for completeness. End of subroutine Insert new SVG snippet into workspace

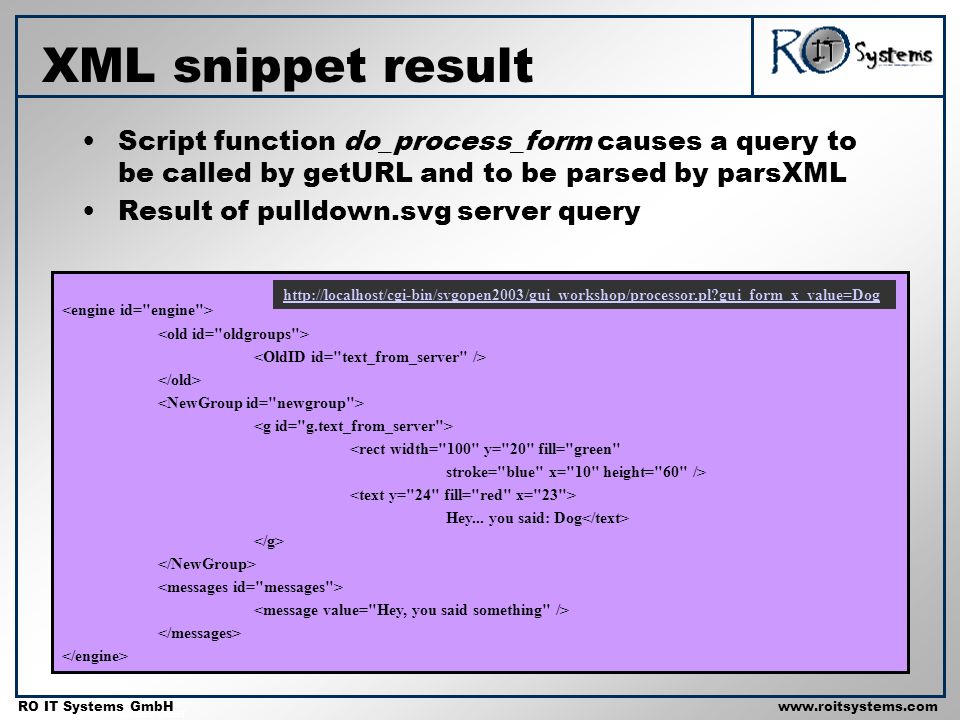

27. Copyright 2001 RO IT Systems GmbH RO IT Systems GmbHwww.roitsystems.com XML snippet result <rect width="100" y="20" fill="green" stroke="blue" x="10" height="60" /> Hey... you said: Dog Script function do_process_form causes a query to be called by getURL and to be parsed by parsXML Result of pulldown.svg server query http://localhost/cgi-bin/svgopen2003/gui_workshop/processor.pl?gui_form_x_value=Dog

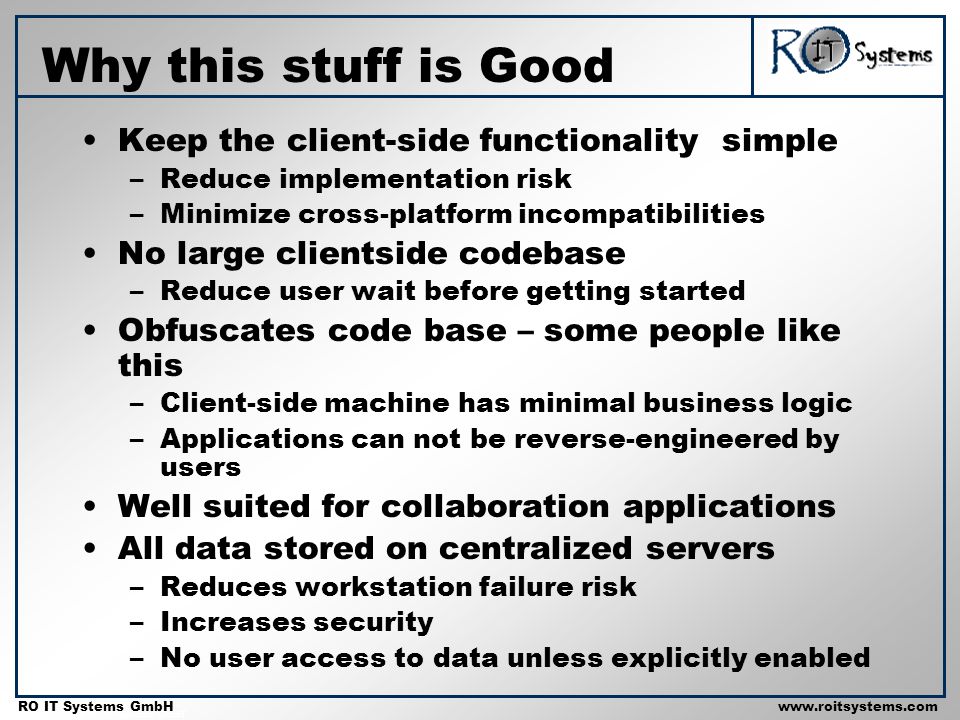

28. Copyright 2001 RO IT Systems GmbH RO IT Systems GmbHwww.roitsystems.com Why this stuff is Good Keep the client-side functionality simple –Reduce implementation risk –Minimize cross-platform incompatibilities No large clientside codebase –Reduce user wait before getting started Obfuscates code base – some people like this –Client-side machine has minimal business logic –Applications can not be reverse-engineered by users Well suited for collaboration applications All data stored on centralized servers –Reduces workstation failure risk –Increases security –No user access to data unless explicitly enabled

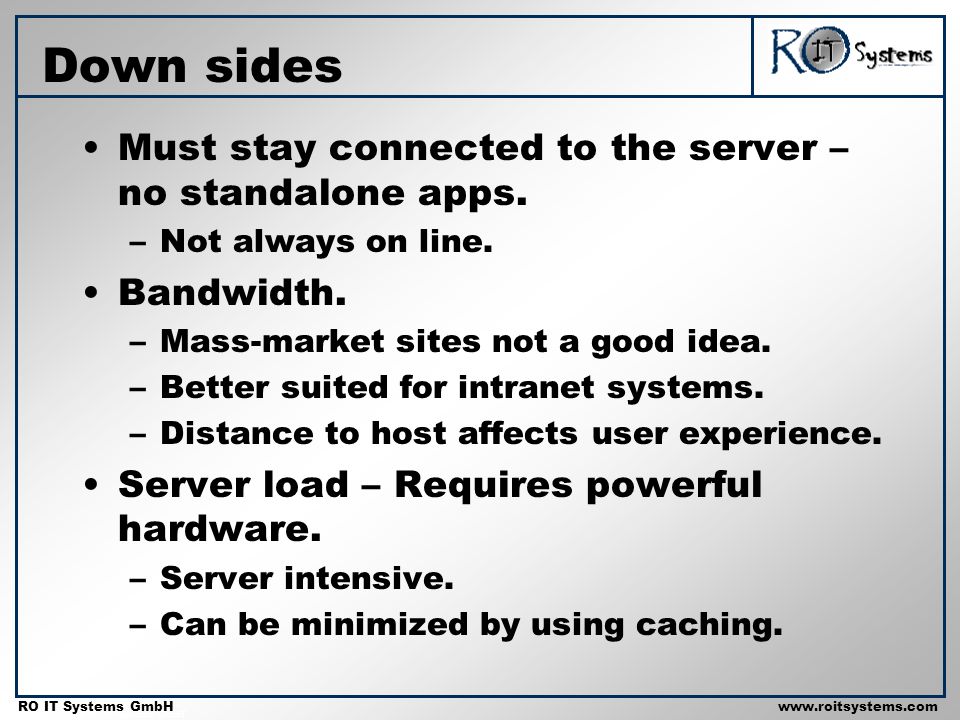

29. Copyright 2001 RO IT Systems GmbH RO IT Systems GmbHwww.roitsystems.com Down sides Must stay connected to the server – no standalone apps. –Not always on line. Bandwidth. –Mass-market sites not a good idea. –Better suited for intranet systems. –Distance to host affects user experience. Server load – Requires powerful hardware. –Server intensive. –Can be minimized by using caching.

30. Copyright 2001 RO IT Systems GmbH RO IT Systems GmbHwww.roitsystems.com Down sides...2 Lag: Round-tripping data takes time –Not suitabable for very fast response systems –Need to allow for communication failures Incomplete Browser support –Requires SVG and JS –Limited to Adobe 3+, Corel batik. –ASV3 is broken on Mozilla 1. –Native SVG support in Mozilla still experimental –JS/SVG has Issues on non-Windows platforms

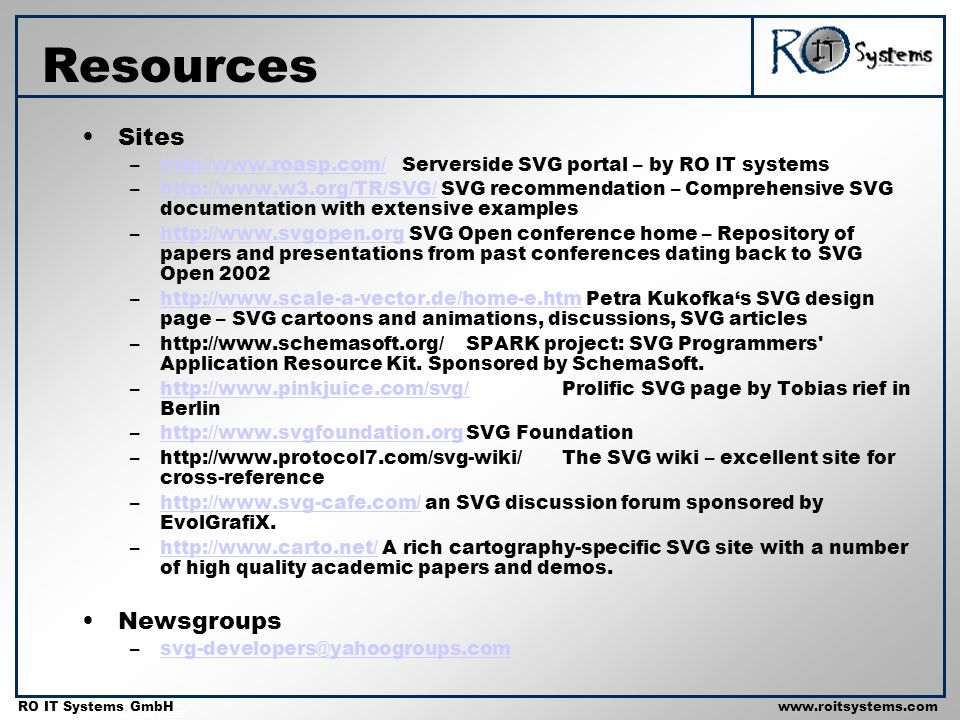

31. Copyright 2001 RO IT Systems GmbH RO IT Systems GmbHwww.roitsystems.com Resources Sites –http//www.roasp.com/ Serverside SVG portal – by RO IT systemshttp//www.roasp.com/ –http://www.w3.org/TR/SVG/ SVG recommendation – Comprehensive SVG documentation with extensive exampleshttp://www.w3.org/TR/SVG/ –http://www.svgopen.org SVG Open conference home – Repository of papers and presentations from past conferences dating back to SVG Open 2002http://www.svgopen.org –http://www.scale-a-vector.de/home-e.htm Petra Kukofkas SVG design page – SVG cartoons and animations, discussions, SVG articleshttp://www.scale-a-vector.de/home-e.htm –http://www.schemasoft.org/SPARK project: SVG Programmers' Application Resource Kit. Sponsored by SchemaSoft. –http://www.pinkjuice.com/svg/Prolific SVG page by Tobias rief in Berlinhttp://www.pinkjuice.com/svg/ –http://www.svgfoundation.orgSVG Foundationhttp://www.svgfoundation.org –http://www.protocol7.com/svg-wiki/The SVG wiki – excellent site for cross-reference –http://www.svg-cafe.com/ an SVG discussion forum sponsored by EvolGrafiX.http://www.svg-cafe.com/ –http://www.carto.net/ A rich cartography-specific SVG site with a number of high quality academic papers and demos.http://www.carto.net/ Newsgroups –svg-developers@yahoogroups.comsvg-developers@yahoogroups.com
