1. Christopher P. Brandt M.D. Associate Professor of Surgery Case Western Reserve University BURNS Initial Evaluation & Management

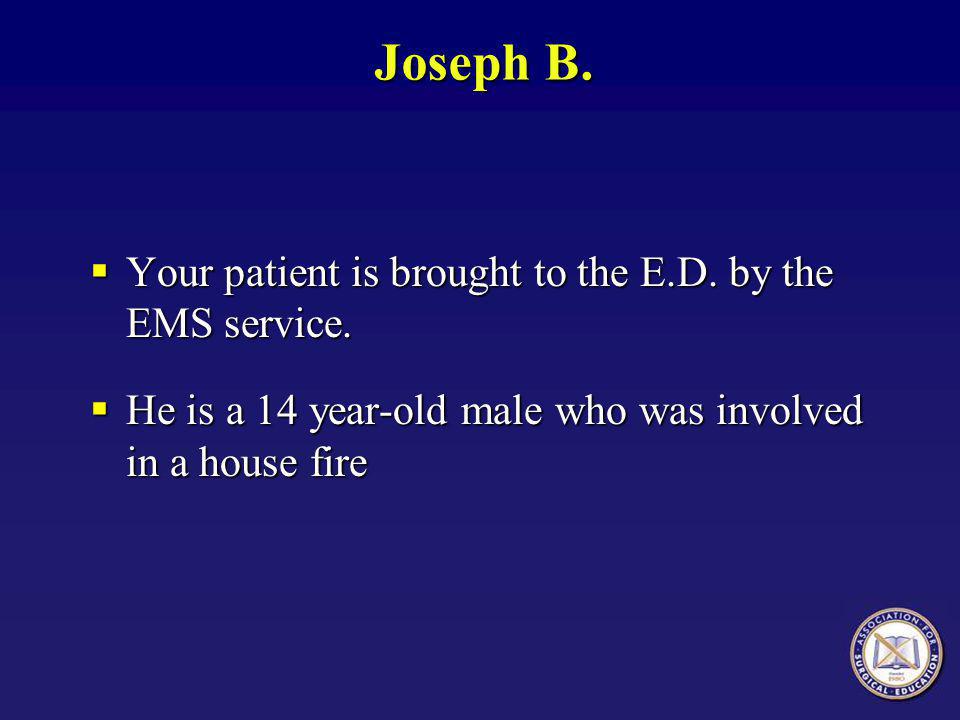

2. Joseph B.  Your patient is brought to the E.D. by the EMS service.  He is a 14 year-old male who was involved in a house fire

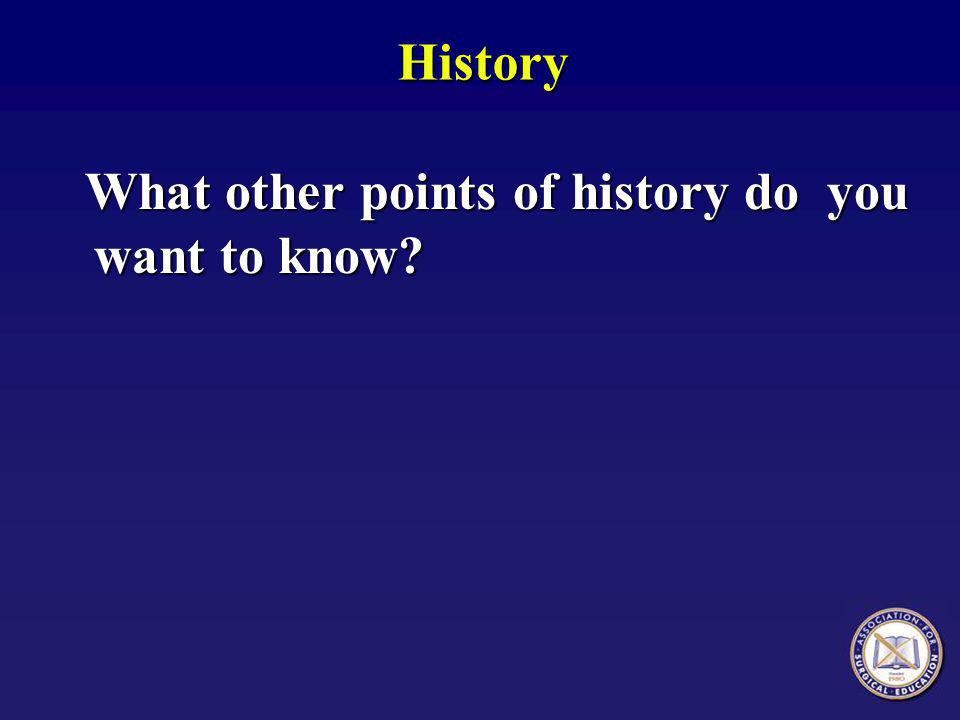

3. History What other points of history do you want to know? What other points of history do you want to know?

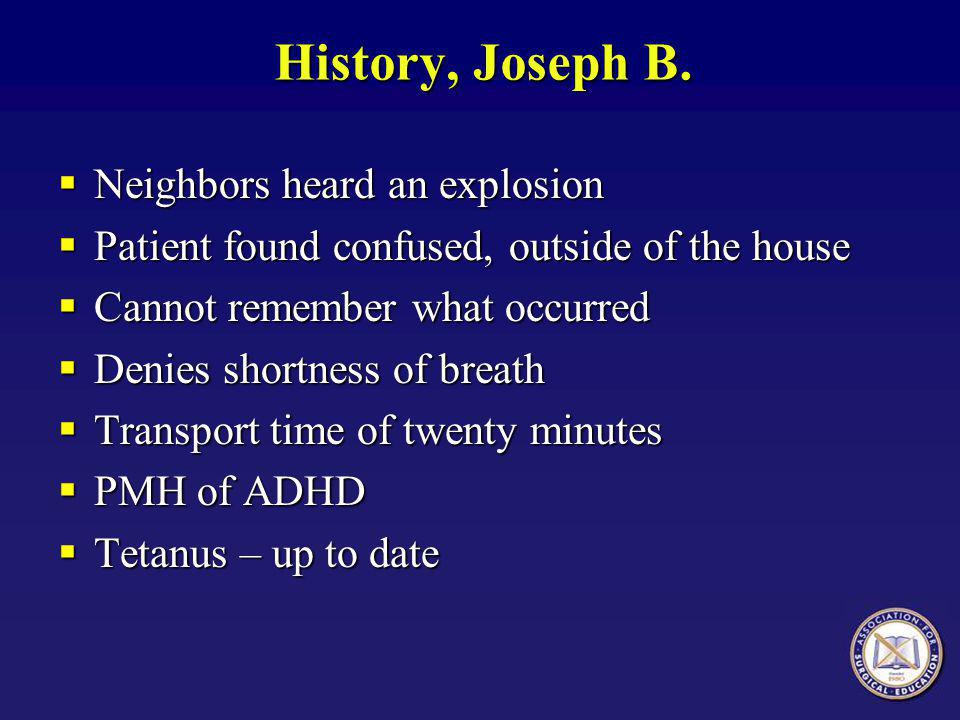

4. History, Joseph B.  Neighbors heard an explosion  Patient found confused, outside of the house  Cannot remember what occurred  Denies shortness of breath  Transport time of twenty minutes  PMH of ADHD  Tetanus – up to date

5. Physical Examination What would you look for? What would you look for?

6. Physical Examination  VS T=96.5 P=140 R=24 BP=90/60  Awake; No hoarseness or stridor  Soot in mouth  Clear breath sounds  Burns involving face, neck, trunk, arms and upper legs (see photos)  Doppler pulses in all extremities

9. Physical Examination  How do you determine the extent and depth of the burn injuries?  What findings suggest inhalation injury?

10. 1818 Extent of burn % total body surface area

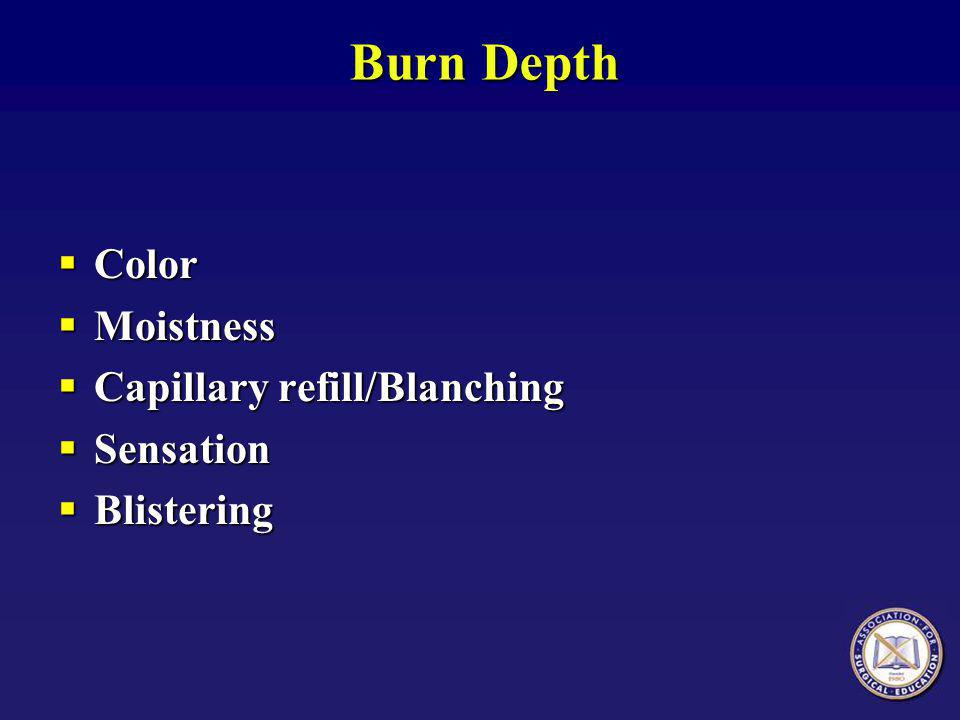

11. Burn Depth  Color  Moistness  Capillary refill/Blanching  Sensation  Blistering

12. Superficial Second Degree Deeper second degree Third Degree

13. Inhalation injury  Occurred in closed space  Cough, dyspnea, wheezing, hoarseness, stridor  Facial burns / Singed facial hair  Carbonaceous sputum  Hypoxia Indicators

14. Labs What would you obtain? What would you obtain?

15. Lab Results  CBC - WBC-12.0 Hct-49%  Electrolytes -Na-147 Cl-100 K-4.5 BUN-12  ABG - 7.31/35/125 on 50%VM  Carboxyhemoglobin- 21%  Tox. Screen - Negative  U/A - Normal

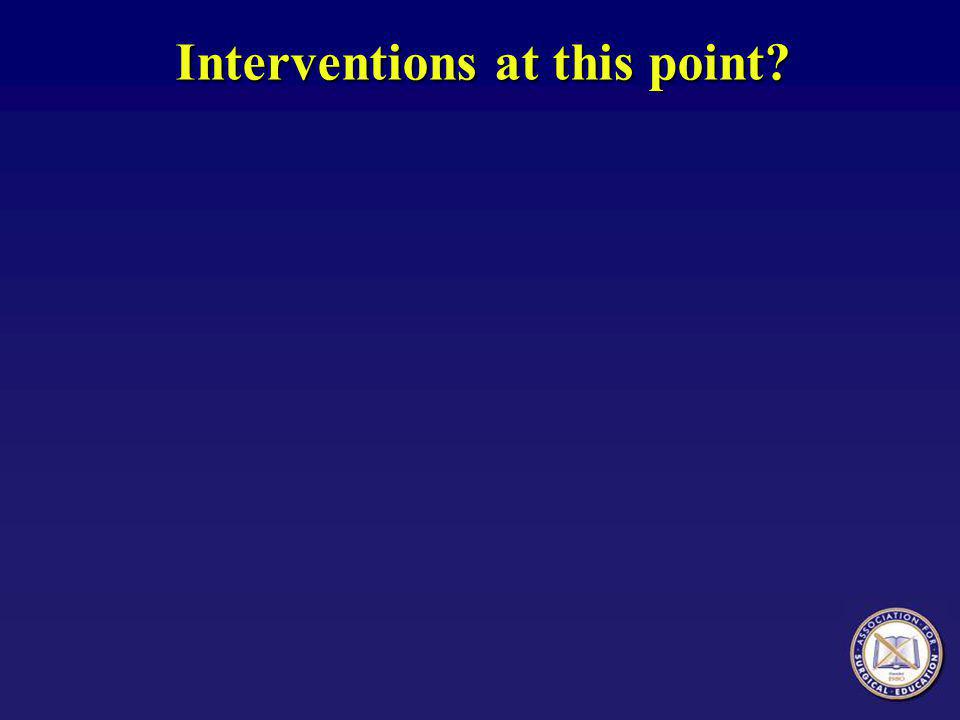

16. Interventions at this point?

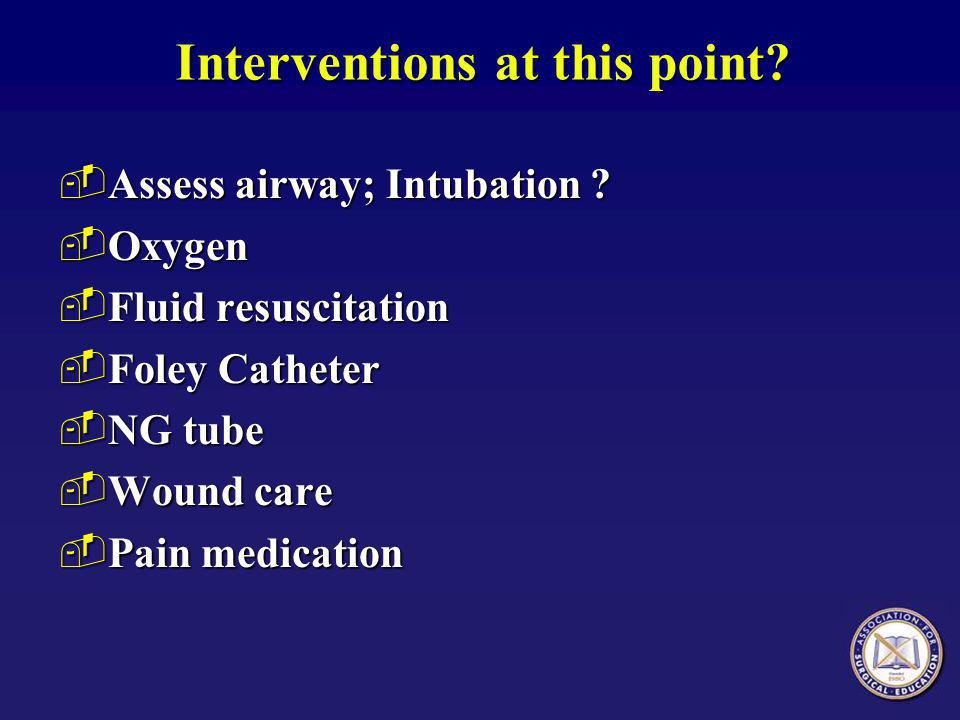

17. ­Assess airway; Intubation ? ­Oxygen ­Fluid resuscitation ­Foley Catheter ­NG tube ­Wound care ­Pain medication

18. Interventions ­Why is fluid resuscitation important? ­How do you estimate fluid requirements? ­How do you monitor response to initial fluid therapy? ­What complications can occur from over- or under- resuscitation?

19. Fluid Management ­Edema formation  Systemic inflammatory response  Capillary leak/ Increased vascular permeability  Loss of skin barrier ­Zones of injury ­Parkland formula  Crystalloid 4 x %TBSA x wt (kg)  ½ of total in first eight hours  Goal of ½ - 1 cc/kg/hr U.O.

20. Studies What further studies/tests would you want at this time? What further studies/tests would you want at this time?

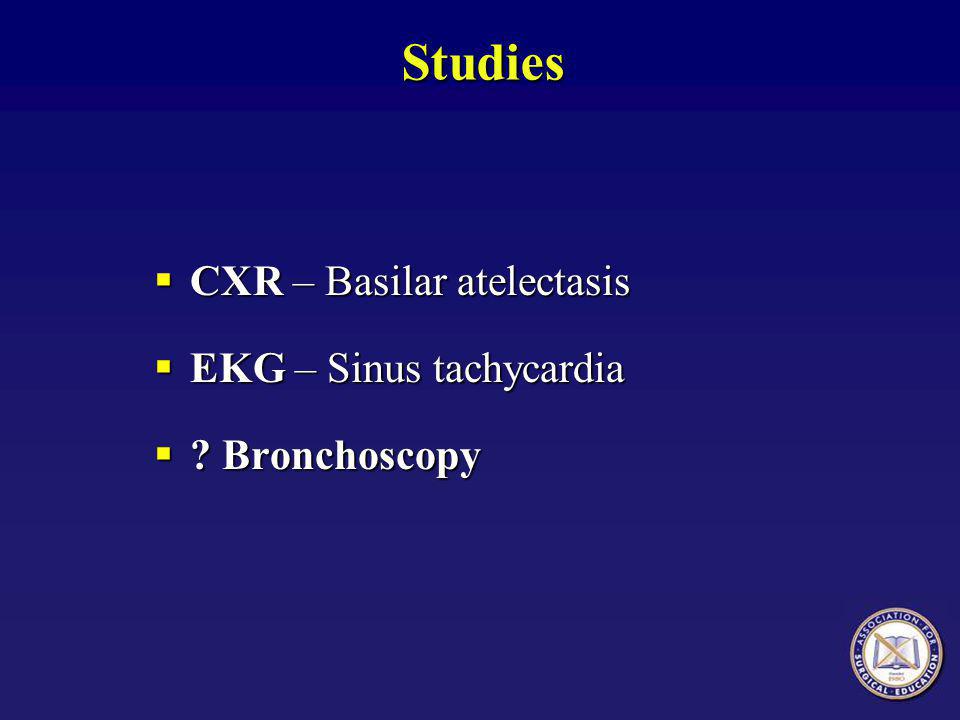

21. Studies  CXR – Basilar atelectasis  EKG – Sinus tachycardia  ? Bronchoscopy

22. Management  Low urine output  Loss of Doppler signals in the hands  Inadequate ventilation with high airway pressures? What would you do in the following scenarios?

23. Management Escharotomy

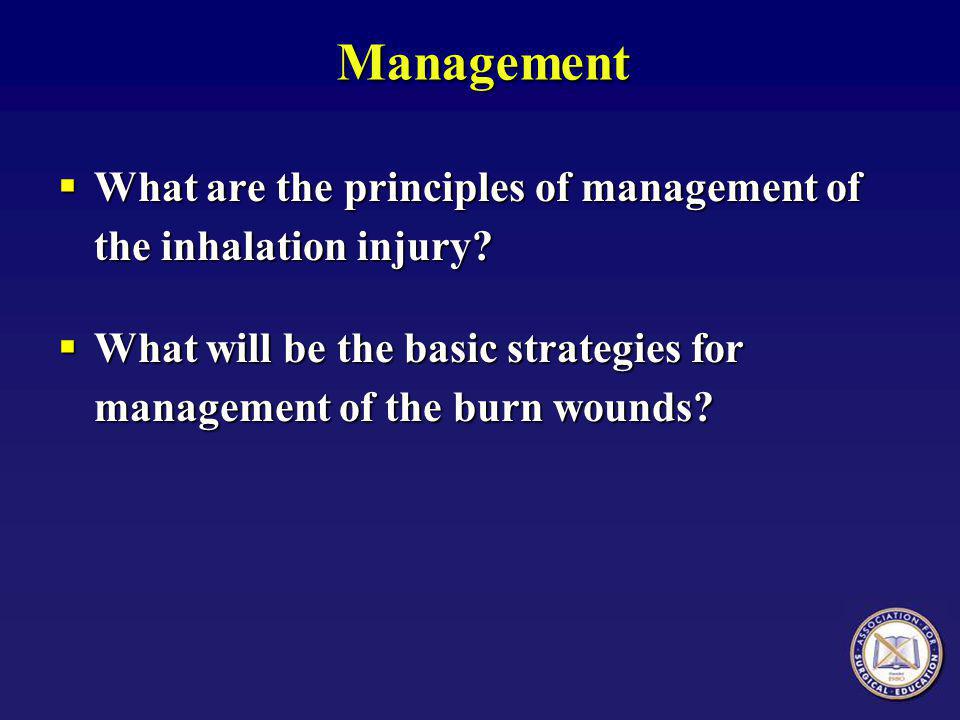

24. Management  What are the principles of management of the inhalation injury?  What will be the basic strategies for management of the burn wounds?

25. Questions?
