1. 1 EZ-Boom Florent CiracqTraining Specialist EMEA 26th March 2009

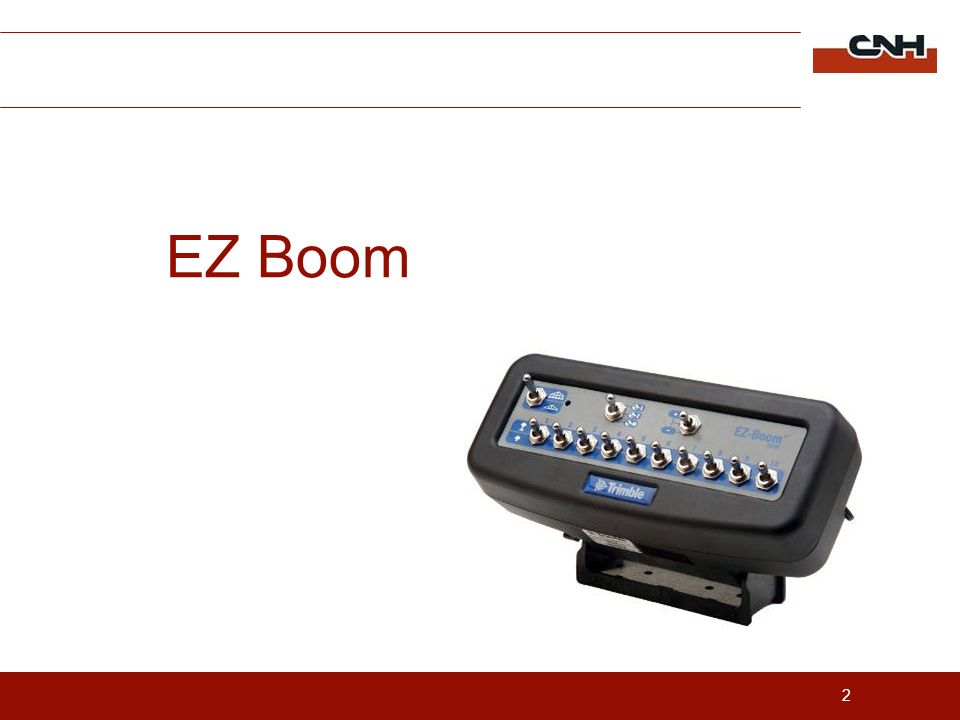

2. 2 EZ Boom

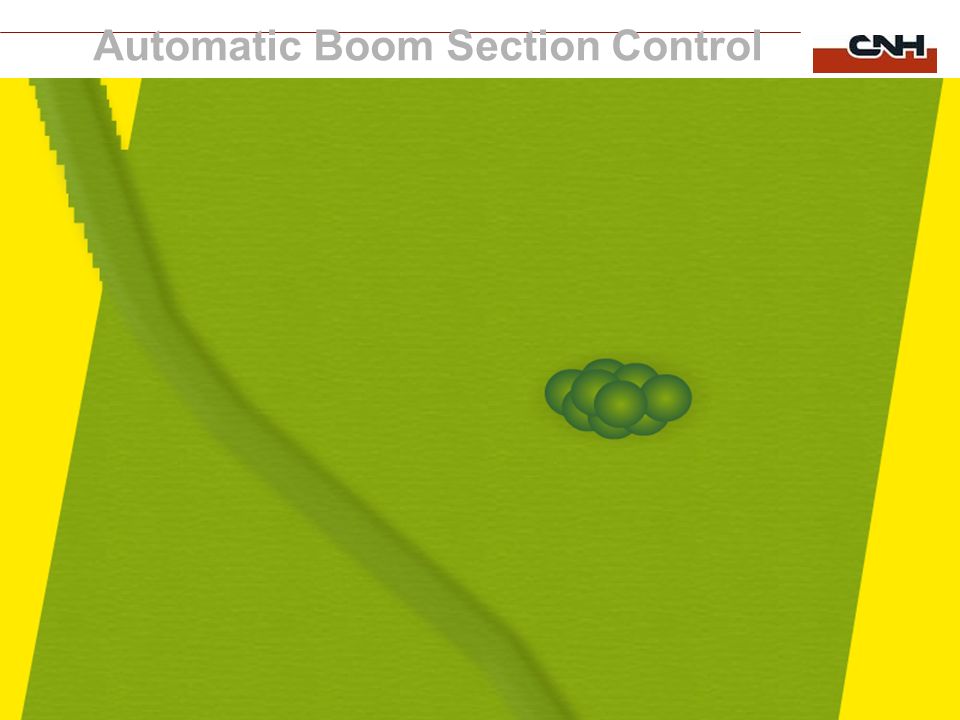

3. 3 Automatic Boom Section Control

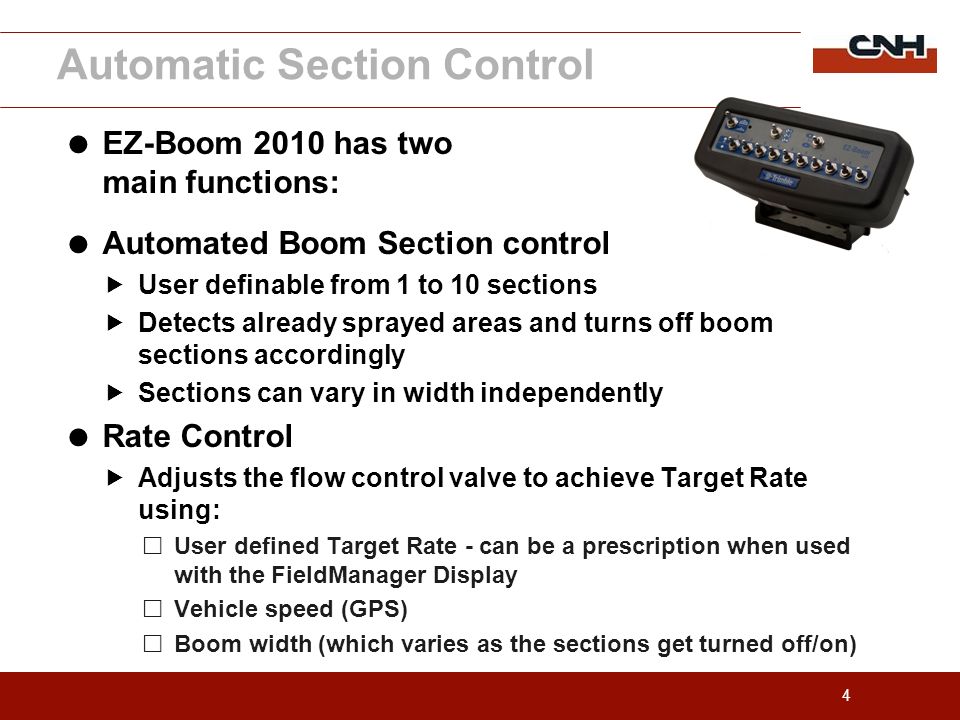

4. 4 EZ-Boom 2010 has two main functions: Automated Boom Section control User definable from 1 to 10 sections Detects already sprayed areas and turns off boom sections accordingly Sections can vary in width independently Rate Control Adjusts the flow control valve to achieve Target Rate using: User defined Target Rate - can be a prescription when used with the FieldManager Display Vehicle speed (GPS) Boom width (which varies as the sections get turned off/on) Automatic Section Control

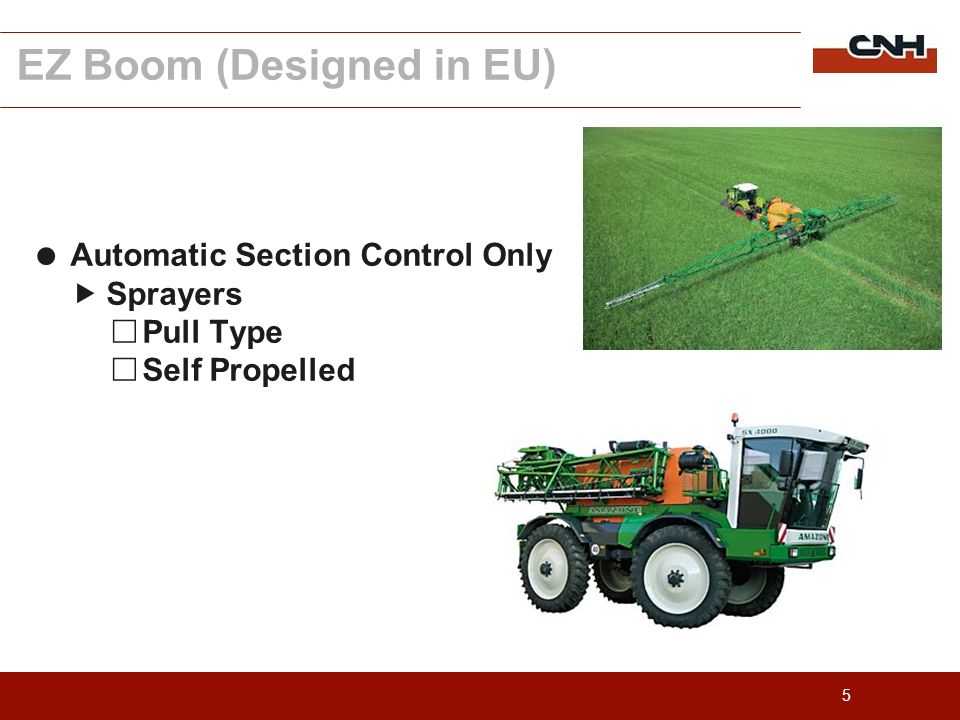

5. 5 Automatic Section Control Only Sprayers Pull Type Self Propelled EZ Boom (Designed in EU)

6. 6 Hardware Option

7. 7 Display Options EZ-Guide Plus EZ-Guide 500 Field Manager Display FM-1000

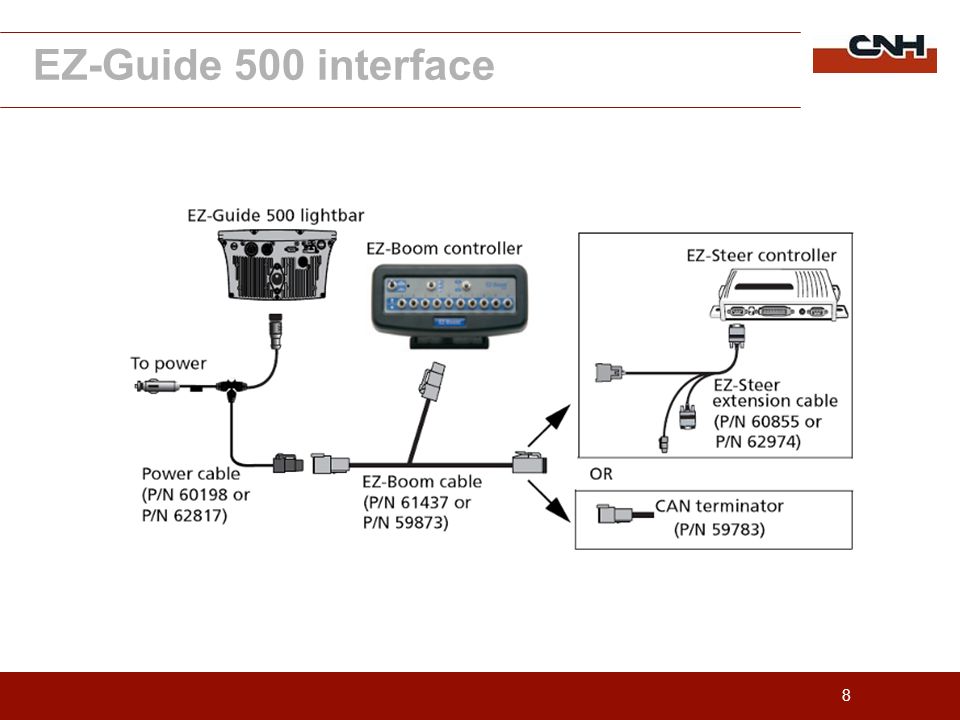

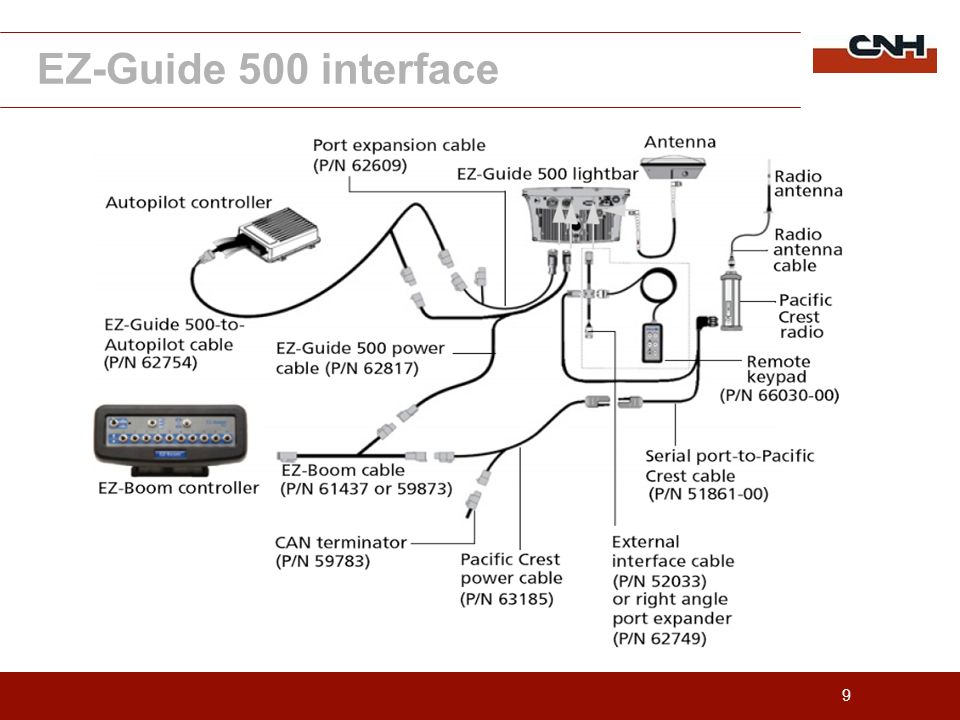

8. 8 EZ-Guide 500 interface

9. 9

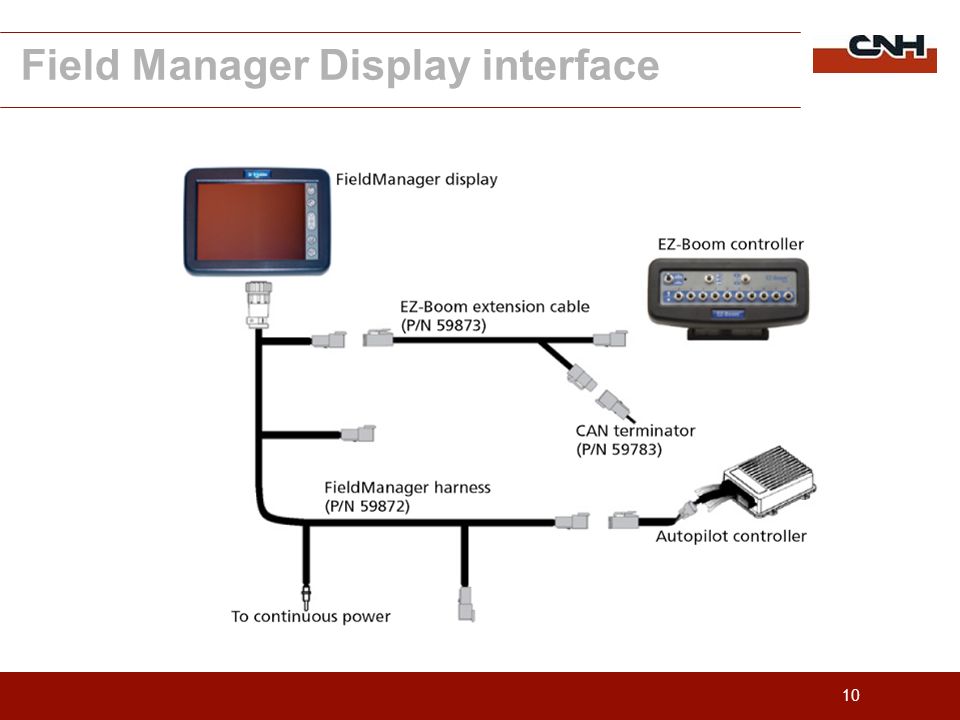

10. 10 Field Manager Display interface

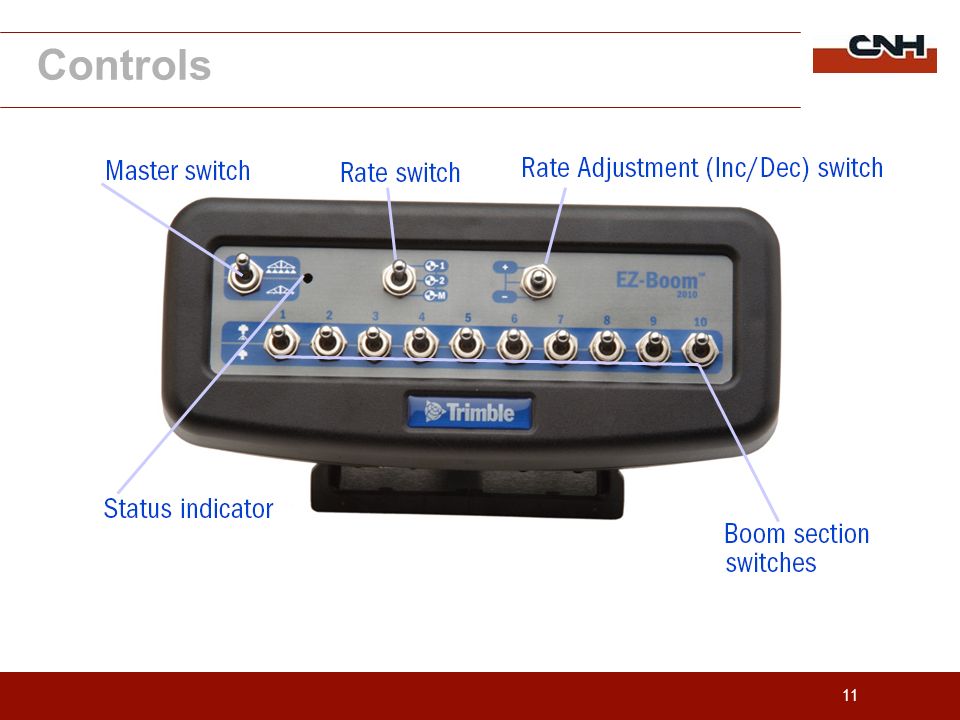

11. 11 Controls

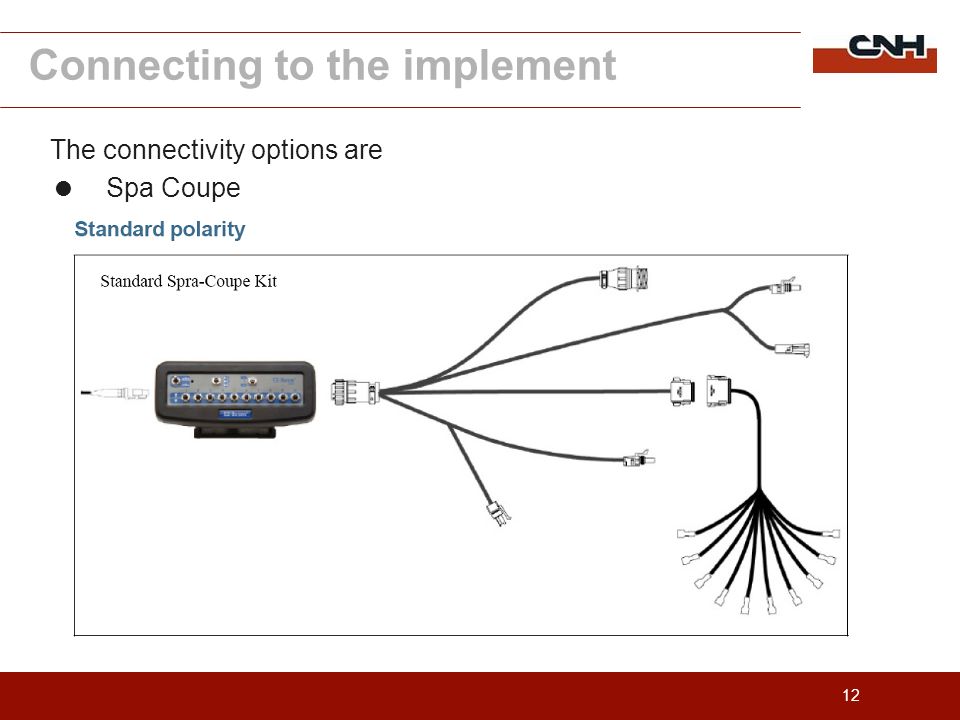

12. 12 The connectivity options are Spa Coupe Connecting to the implement

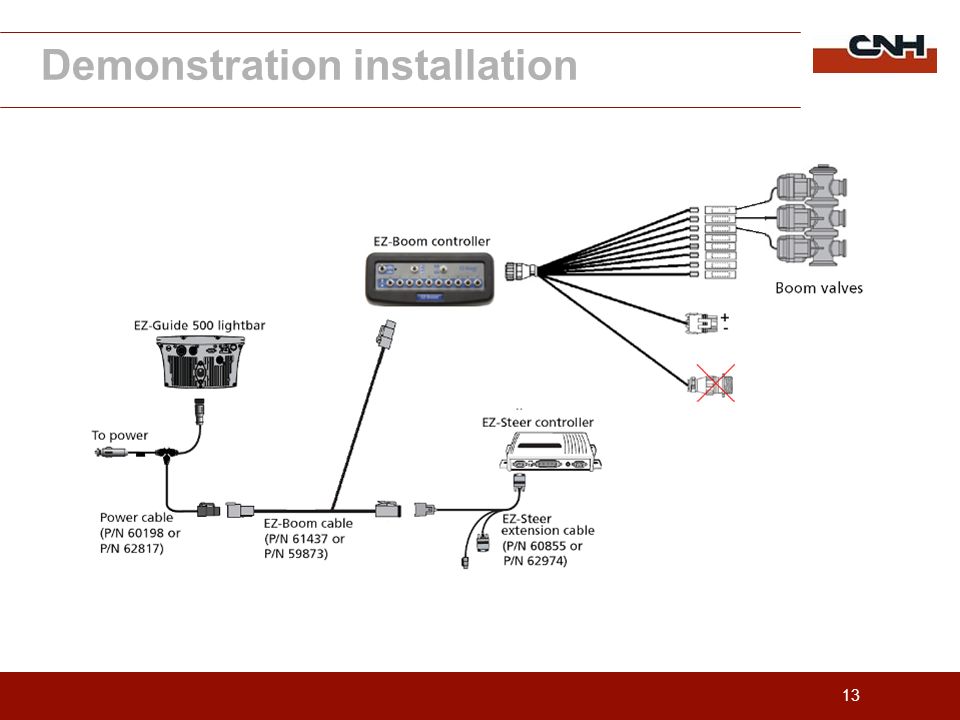

13. 13 Demonstration installation

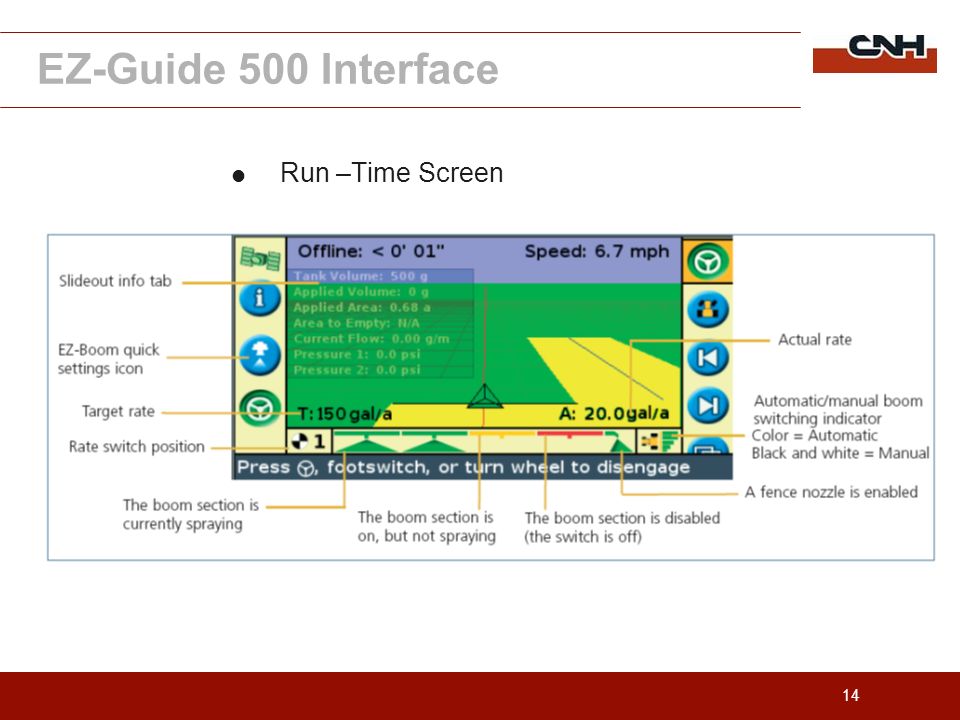

14. 14 Run –Time Screen EZ-Guide 500 Interface

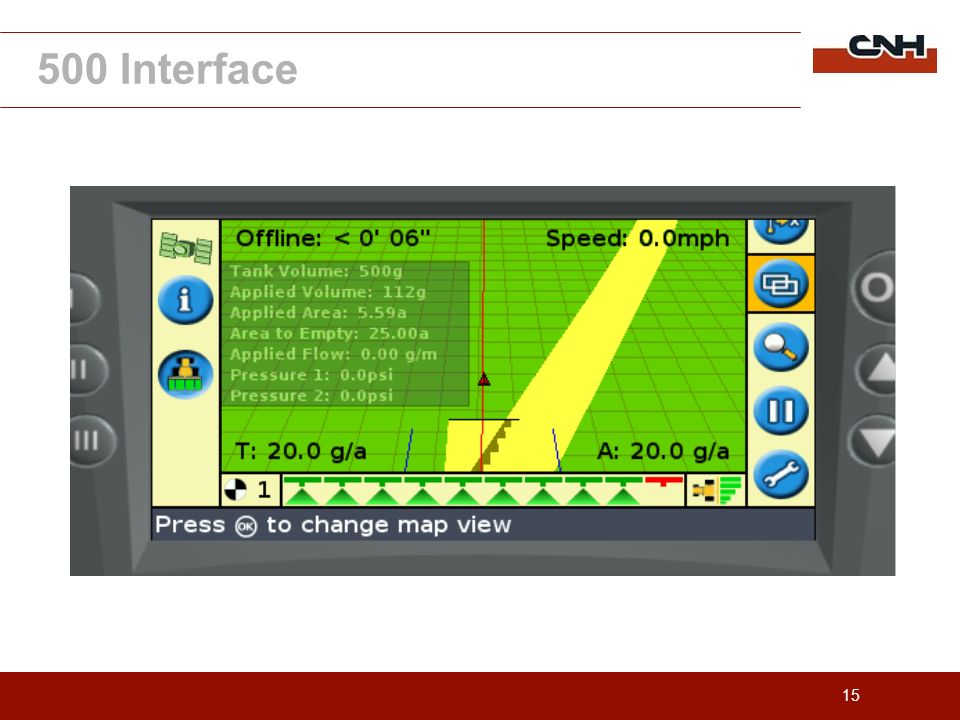

15. 15 500 Interface

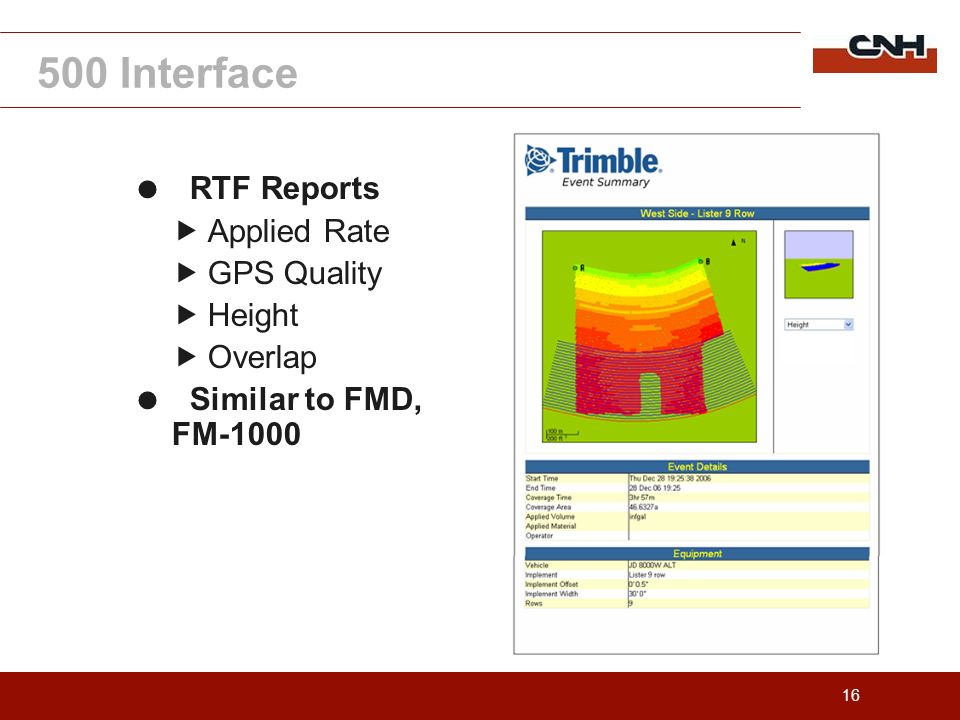

16. 16 RTF Reports Applied Rate GPS Quality Height Overlap Similar to FMD, FM-1000 500 Interface

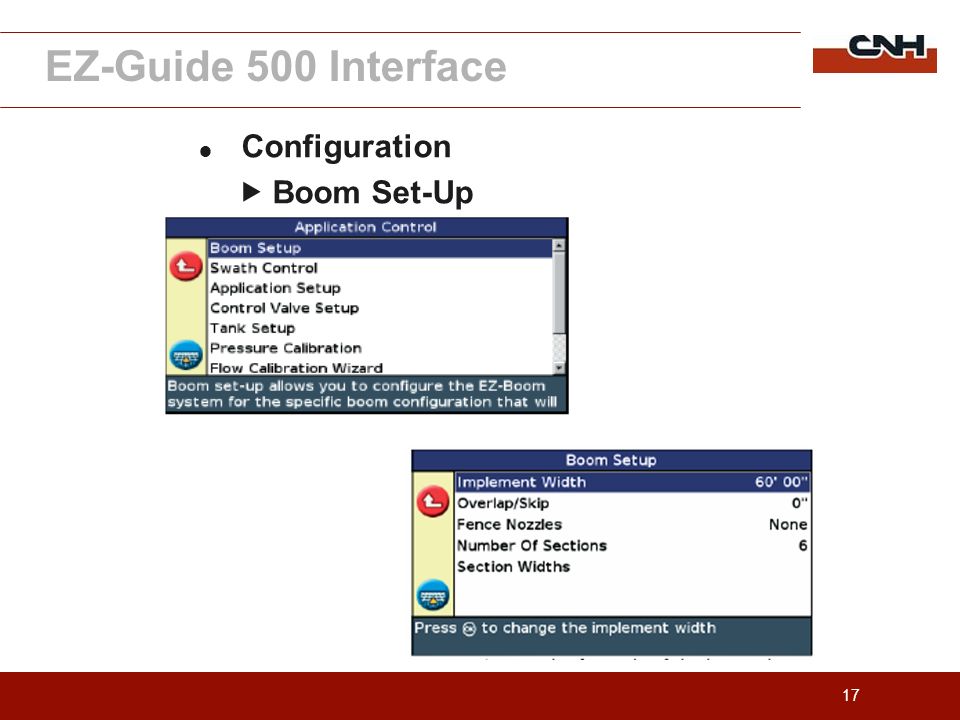

17. 17 EZ-Guide 500 Interface Configuration Boom Set-Up

18. 18 EZ-Guide 500 Interface Valve on latency – The time is takes to the system to start spraying once it switched on. Valve latency off – The time it takes for the system to stop spraying once it is turned off. Intension overlap – Metres or inches of overlap

19. 19 Questions
