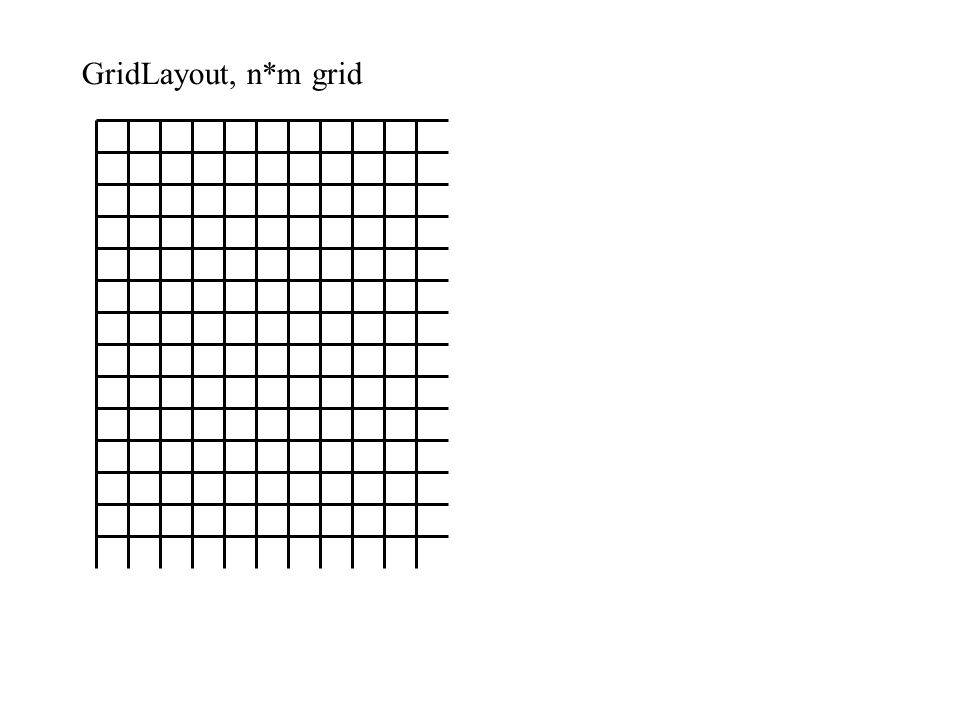

1. GridLayout, n*m grid

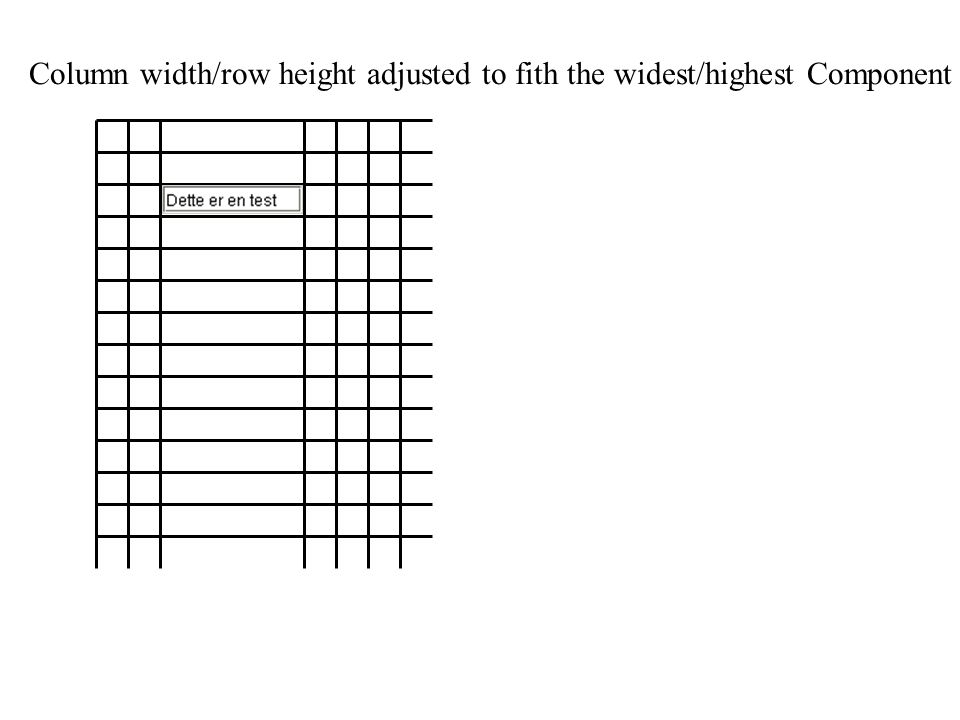

2. Column width/row height adjusted to fith the widest/highest Component

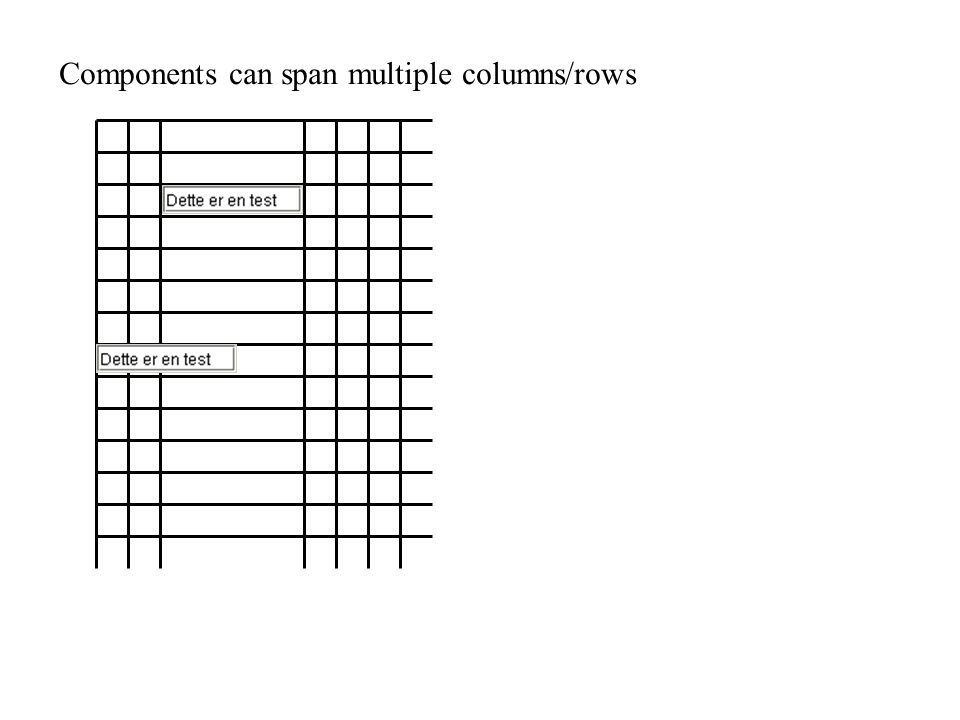

3. Components can span multiple columns/rows

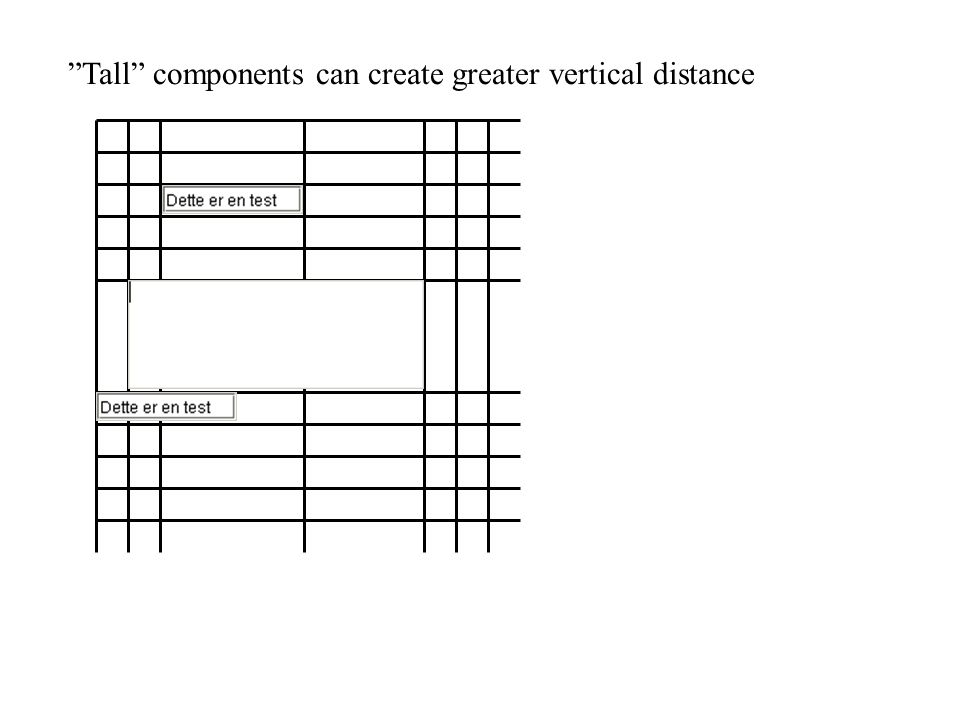

4. ”Tall” components can create greater vertical distance

5. Components will keep their original size as default

6. Components can also be stretched to fill the available space

7. Components can be placed towards any side of the cell

8. Hei import javax.swing.*; import java.awt.*; public class Test extends JPanel { public void lagLayout () { GridBagLayout layout = new GridBagLayout (); setLayout (layout); GridBagConstraints gbc = new GridBagConstraints ();

9. Hei gbc.fill = GridBagConstraints.NONE; gbc.insets = new Insets (2, 2, 2, 2); import javax.swing.*; import java.awt.*; public class Test extends JPanel { public void lagLayout () { GridBagLayout layout = new GridBagLayout (); setLayout (layout); GridBagConstraints gbc = new GridBagConstraints ();

10. Hei gbc.gridx = 0; gbc.gridy = 0; gbc.gridwidth = 1; gbc.gridheight = 1; JLabel label1 = new JLabel ("Hei"); layout.setConstraints (label1, gbc); add (label1); import javax.swing.*; import java.awt.*; public class Test extends JPanel { public void lagLayout () { GridBagLayout layout = new GridBagLayout (); setLayout (layout); GridBagConstraints gbc = new GridBagConstraints (); gbc.fill = GridBagConstraints.NONE; gbc.insets = new Insets (2, 2, 2, 2);

11. Hei gbc.gridy = 6; gbc.gridwidth = 3; gbc.anchor = GridBagConstraints.WEST; JTextField text2 = new JTextField ("Dette er en test"); layout.setConstraints (text2, gbc); add (text2); import javax.swing.*; import java.awt.*; public class Test extends JPanel { public void lagLayout () { GridBagLayout layout = new GridBagLayout (); setLayout (layout); GridBagConstraints gbc = new GridBagConstraints (); gbc.fill = GridBagConstraints.NONE; gbc.insets = new Insets (2, 2, 2, 2); gbc.gridx = 0; gbc.gridy = 0; gbc.gridwidth = 1; gbc.gridheight = 1; JLabel label1 = new JLabel ("Hei"); layout.setConstraints (label1, gbc); add (label1);

12. Hei gbc.gridy = 4; gbc.gridx = 2; gbc.gridwidth = 2; gbc.fill = GridBagConstraints.HORIZONTAL; JButton button2 = new JButton (”Fin knapp"); layout.setConstraints (button2, gbc); add (button2); GridBagLayout layout = new GridBagLayout (); setLayout (layout); GridBagConstraints gbc = new GridBagConstraints (); gbc.fill = GridBagConstraints.NONE; gbc.insets = new Insets (2, 2, 2, 2); gbc.gridx = 0; gbc.gridy = 0; gbc.gridwidth = 1; gbc.gridheight = 1; JLabel label1 = new JLabel ("Hei"); layout.setConstraints (label1, gbc); add (label1); gbc.gridy = 6; gbc.gridwidth = 3; gbc.anchor = GridBagConstraints.WEST; JTextField text2 = new JTextField ("Dette er en test"); layout.setConstraints (text2, gbc); add (text2);

13. Hei gbc.gridy = 5; gbc.gridx = 1; gbc.fill = GridBagConstraints.BOTH; JTextArea text3 = new JTekstArea (5,40); layout.setConstraints (text3, gbc); add (text3); gbc.gridy = 0; gbc.gridwidth = 1; gbc.gridheight = 1; JLabel label1 = new JLabel ("Hei"); layout.setConstraints (label1, gbc); add (label1); gbc.gridy = 6; gbc.gridwidth = 3; gbc.anchor = GridBagConstraints.WEST; JTextField text2 = new JTextField ("Dette er en test"); layout.setConstraints (text2, gbc); add (text2); gbc.gridy = 4; gbc.gridx = 2; gbc.gridwidth = 2; gbc.fill = GridBagConstraints.HORIZONTAL; JButton button2 = new JButton (”Fin knapp"); layout.setConstraints (button2, gbc); add (button2);

14. Hei Same for the rest of the components. : } gbc.gridy = 6; gbc.gridwidth = 3; gbc.anchor = GridBagConstraints.WEST; JTextField text2 = new JTextField ("Dette er en test"); layout.setConstraints (text2, gbc); add (text2); gbc.gridy = 4; gbc.gridx = 2; gbc.gridwidth = 2; gbc.fill = GridBagConstraints.HORIZONTAL; JButton button2 = new JButton (”Fin knapp"); layout.setConstraints (button2, gbc); add (button2); gbc.gridy = 5; gbc.gridx = 1; gbc.fill = GridBagConstraints.BOTH; JTextArea text3 = new JTekstArea (5,40); layout.setConstraints (text3, gbc); add (text3);

15. public static void main (String args[]) { Test t = new Test (); t.lagLayout (); JFrame f = new JFrame (); f.getContentPane ().add (t); f.pack (); f.setVisible (true); } Hei

23. GridLayout FlowLayout
