1. ME 423 Chapter 4 Centrifugal Compressors Prof. Dr. O. Cahit ERALP

2. Centrifugal Compressors 4. CENTRIFUGAL COMPRESSORS Attention was focused on the simple turbojet unit during the Second World War. It was recognized that development time was critical and much experience had been gained on the design of small high – speed centrifugal compressors for supercharging reciprocating engines. As power requirements grew for aircrafts, it became clear that the axial flow compressor was more suitable large engines. By the late fifties, it became clear that smaller gas turbines would have to use centrifugal compressors.

3. Centrifugal Compressors Advantages;  Primarily, suitable for handling small volume flows,  Shorter length than an equivalent axial compressor,  Better resistance to “Foreign Object Damage” (FOD),  Less susceptibility to loss of performance by build – up of deposits on blade surface,  Ability to operate over a wider range of mass flows at a particular rotational speed.

4. Centrifugal Compressors  A pressure ratio of around 4:1 can readily be obtained from a single–stage compressor made of aluminium alloys.  The advent of titanium alloys, permitting much higher tip speeds, combined with advances in aerodynamics now permit pressure ratios of greater than 8:1 to be achieved in a single–stage.  When higher pressure ratios are required, the centrifugal compressor may be used in conjunction with an axial flow compressor, or as a two–stage centrifugal.

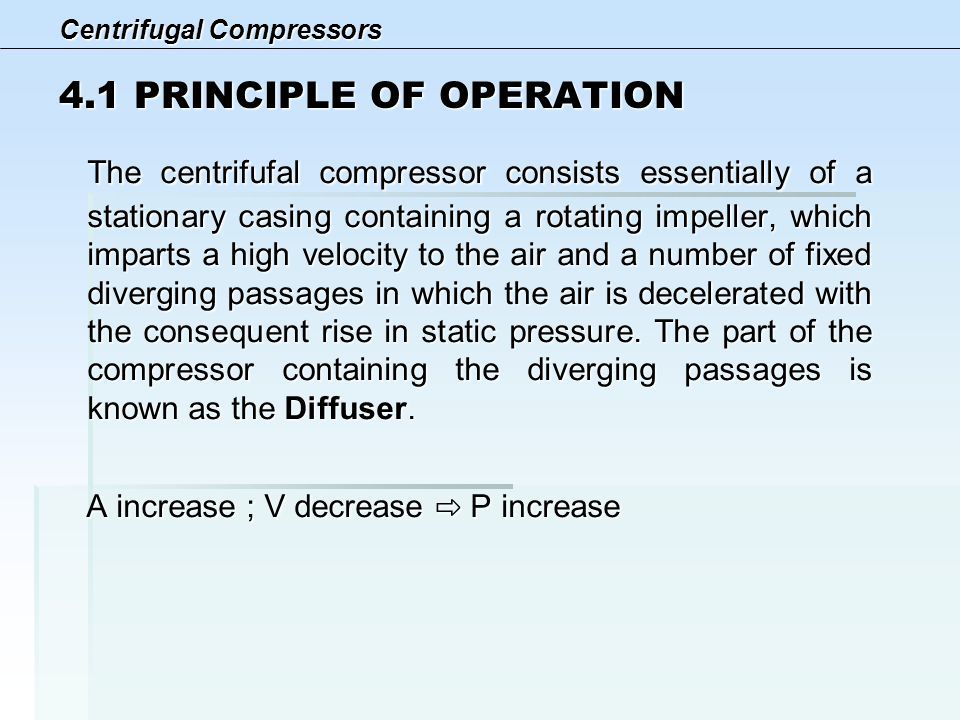

5. Centrifugal Compressors The centrifufal compressor consists essentially of a stationary casing containing a rotating impeller, which imparts a high velocity to the air and a number of fixed diverging passages in which the air is decelerated with the consequent rise in static pressure. The part of the compressor containing the diverging passages is known as the Diffuser. The centrifufal compressor consists essentially of a stationary casing containing a rotating impeller, which imparts a high velocity to the air and a number of fixed diverging passages in which the air is decelerated with the consequent rise in static pressure. The part of the compressor containing the diverging passages is known as the Diffuser. A increase ; V decrease ⇨ P increase A increase ; V decrease ⇨ P increase 4.1 PRINCIPLE OF OPERATION

6. Centrifugal Compressors 4.1 PRINCIPLE OF OPERATION Impeller Eye Mean Radius of Diffuser Throat Width of Diffuser Channel 90° Bend taking air to combustion chambers Vaneless Space Diffuser Throat

7. Centrifugal Compressors  Air is sucked into the impeller eye and whirled around at a high speed by the values of the impeller disc.  The static pressure of the air increases from the eye to the tip because of the centrifugal effects.  The remainder of the static pressure rise is obtained in the diffuser, where high velocity air leaving the impeller tip is reduced. 4.1 PRINCIPLE OF OPERATION

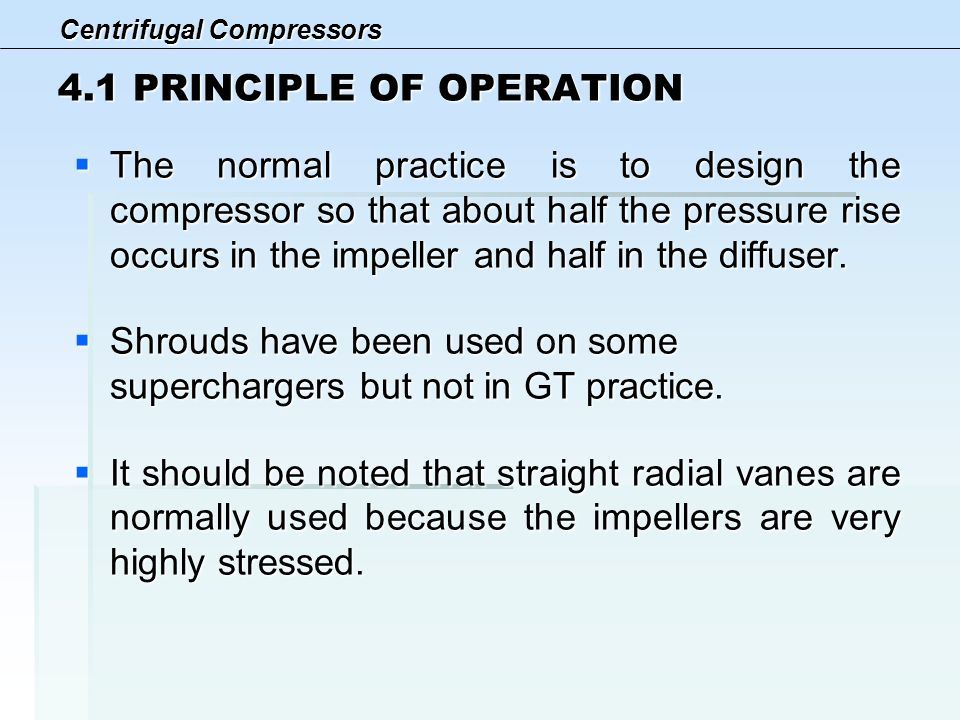

8. Centrifugal Compressors  The normal practice is to design the compressor so that about half the pressure rise occurs in the impeller and half in the diffuser.  Shrouds have been used on some superchargers but not in GT practice.  It should be noted that straight radial vanes are normally used because the impellers are very highly stressed. 4.1 PRINCIPLE OF OPERATION

9. Centrifugal Compressors  Since no work is done on the air in the diffuser, the energy absorbed by the compressor will be determined by the conditions of air at the inlet and exit of the impeller.  In the first instance it will be assumed that the air enters the impeller eye in the axial direction so that the initial angular momentum of the air is zero. 4.2 WORK DONE & PRESSURE RISE

10. Centrifugal Compressors 4.2 WORK DONE & PRESSURE RISE 4.2 WORK DONE & PRESSURE RISE r1r1 r2r2 Eye Root Ideal conditions at impeller tip V2V2 V r2 V Θ 2 =U V2V2 V r2 Velocity relative to the impeller V Θ2 < U Eye Tip ω (rad /s)

11. Centrifugal Compressors  The axial portion of the vanes must be curved so that the air can pass smoothly into the eye.  The angle which the leading edge of a vane makes with the tangential direction β 1 will be given by the relative velocity of the air at inlet w 1. 4.2 WORK DONE & PRESSURE RISE

12. Centrifugal Compressors V 2 : Absolute velocity with which the air leaves the impeller tip. V θ2 : Tangential or whirl component V r2 : Radial velocity component Under ideal conditions V θ2 = U 4.2 WORK DONE & PRESSURE RISE 4.2 WORK DONE & PRESSURE RISE

13. Centrifugal Compressors  Due its inertia, the air trapped between the impeller vanes is reluctant to move around with the impeller, and we have already noted that this results in a higher static pressure on the leading face of a vane than the trailing face.  It also prevents the air from acquiring a whirl velocity equal to the impeller speed. This effect is known as slip. 4.2 WORK DONE & PRESSURE RISE 4.2 WORK DONE & PRESSURE RISE

14. Centrifugal Compressors  Thus, slip is, how far the whirl velocity at the impeller tip falls short of the tip speed.  This depends largely upon the number of vanes on the impeller.  Greater the number of vanes, the smaller the slip. V θ2 ⇒ U as # of vanes (n) increase   Slip Factor ;  an emprical relation; 4.2 WORK DONE & PRESSURE RISE 4.2 WORK DONE & PRESSURE RISE

15. Centrifugal Compressors  For unit mass flow of air, the theoretical torque which is applied to the impeller : (theoretical torque/ ṁ ) = V θ2 r 2  Thus the work done on the air : (W done ) theor = V θ2 r 2 Ω = V θ2 U = σU 2  Due to friction between the casing and the air carried around by the vanes, and other losses which have a braking effect such as disc friction or "windage“ ; the applied torque and therefore the actual work input is greater than this theoretical value. 4.2 WORK DONE & PRESSURE RISE 4.2 WORK DONE & PRESSURE RISE

16. Centrifugal Compressors  A power input factor "ψ" can be introduced to take account of this, so that the actual work done on the air becomes Work done = ψ σ U 2 ψ = 1.03  1.04 (typical value)  For an isentropic efficiency of η c ; (T 03 -T 01 ) = (T’ 03 -T 01 )/ η c 4.2 WORK DONE & PRESSURE RISE 4.2 WORK DONE & PRESSURE RISE

17. Centrifugal Compressors  Overall pressure ratio; So:  ψ and σ are neither independent of one another nor of η c  ψ ⇨ frictional loss ⇨ degraded into thermal energy ⇨ net effect is an increase in outlet T. ψ decrease ⇨ η increase ψ decrease ⇨ η increase 4.2 WORK DONE & PRESSURE RISE 4.2 WORK DONE & PRESSURE RISE

18. Centrifugal Compressors  σ should be as large as possible. It is limited since the number of vanes (n) is limited.  As n increases the solidity of the impeller eye increases, the effective flow area decreases, which causes an increase in frictioanal losses.  So a suitable compromise must be found, and the present day practice is to use the number of vanes which will give a slip factor of about 0.9.  The other factor that influence the pressure ratio are the tip speed U and the inlet temperature T 01.  T 01 depends on ambient conditions. 4.2 WORK DONE & PRESSURE RISE 4.2 WORK DONE & PRESSURE RISE

19. Centrifugal Compressors  Centrifugal stresses in a rotating disc are proportional to the square of rim speed.  For a single sides impeller of light alloy, U is limited to about 460 m/s by the maximum allowable centrifugal stresses. Such a speed yields a pressure ratio of 4:1.  Higher compression ratios mean more expensive materials such as titanium alloys. 4.2 WORK DONE & PRESSURE RISE 4.2 WORK DONE & PRESSURE RISE

20. Centrifugal Compressors  The problem of designing an efficient combustion system is eased, if the velocity of the air entering the combustion chamber is low.  It is therefore necessary to design the diffuser so that only a small part of the stagnation temperature at the compressor outlet corresponds to kinetic energy.  It is much more difficult to arrange for an efficient deceleration of flow than an efficient acceleration. 4.3. THE DIFFUSER

21. Centrifugal Compressors  There is a natural tendency in a diffusing process, for air to breakaway from the walls of the diverging passage, reverse its direction and flow back in the direction of pressure gradient.  If the divergence is too rapid, this may result in the formation of eddies with consequent transfer of some KE into internal energy and a reduction in useful pressure rise.  Experiments have shown that the maximum permissible included angle of divergence of a rectangular channel with one pair of sides diverging is about At angles greater than this, the losses increase sharply.  Experiments have shown that the maximum permissible included angle of divergence of a rectangular channel with one pair of sides diverging is about 11 o. At angles greater than this, the losses increase sharply. 4.3. THE DIFFUSER

22. Centrifugal Compressors  Diffusing flows (declerating)  Expanding Flows (Accelerating)  The angle of the diffuser vanes at the leading edge must be designed to suit the direction of absolute velocity of the air at the radius of the leading edge, so that the air will follow smoothly over the vanes.  As there is always a radial gap between the impeller tip and the leading edges of the vanes, this direction will not be that the air leaves the impeller tip. 4.3. THE DIFFUSER

23. Centrifugal Compressors  To find the correct inlet angle for the diffuser vanes, the flow in the vaneless space must be considered.  After the air leaves the impeller (neglecting friction) Angular Momentum = V  r = constant "in the vaneless Space“  V  decreases from the impeller tip to diffuser vanes (as r increase)  In accordance with the equation of continuity; V r decreases with the increase in r.  The Net result : V decreases with increasing r. 4.3. THE DIFFUSER

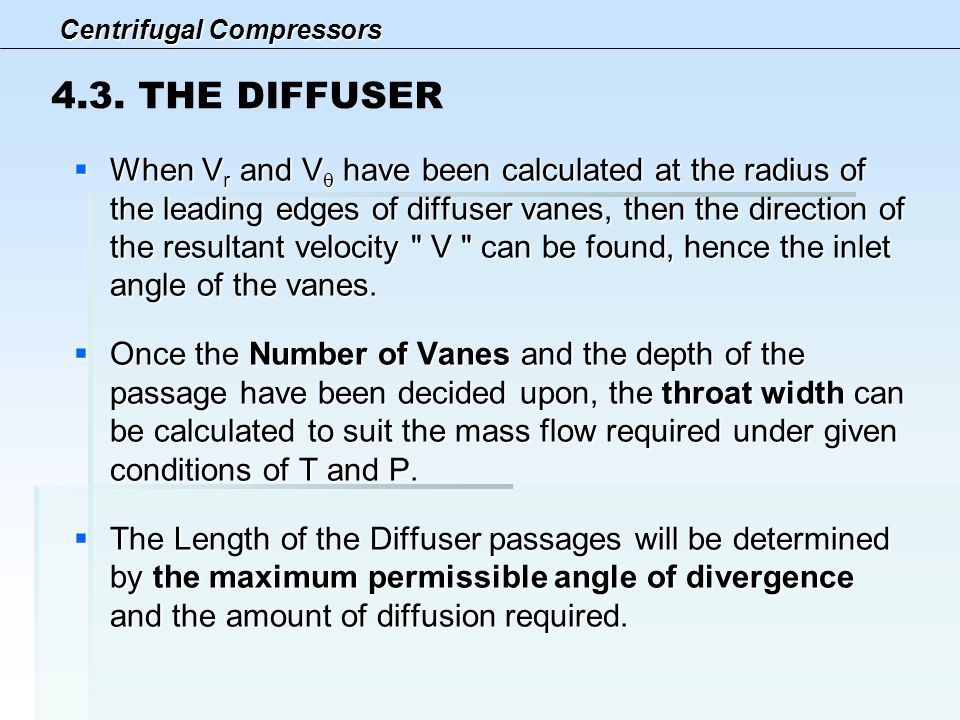

24. Centrifugal Compressors  When V r and V  have been calculated at the radius of the leading edges of diffuser vanes, then the direction of the resultant velocity " V " can be found, hence the inlet angle of the vanes.  Once the Number of Vanes and the depth of the passage have been decided upon, the throat width can be calculated to suit the mass flow required under given conditions of T and P.  The Length of the Diffuser passages will be determined by the maximum permissible angle of divergence and the amount of diffusion required. 4.3. THE DIFFUSER

25. Centrifugal Compressors  After leaving the diffuser vanes, the air may be passed into a Volute and hence to a single Combustion Chamber "CC". For aircraft GT, each (or few) diffuser passage can be connected to a seperate "CC", or the stream could be fed into an "annular CC" surrounding the shaft connecting the Turbine compressor. 4.3. THE DIFFUSER AθAθ C.G. _r_r θ

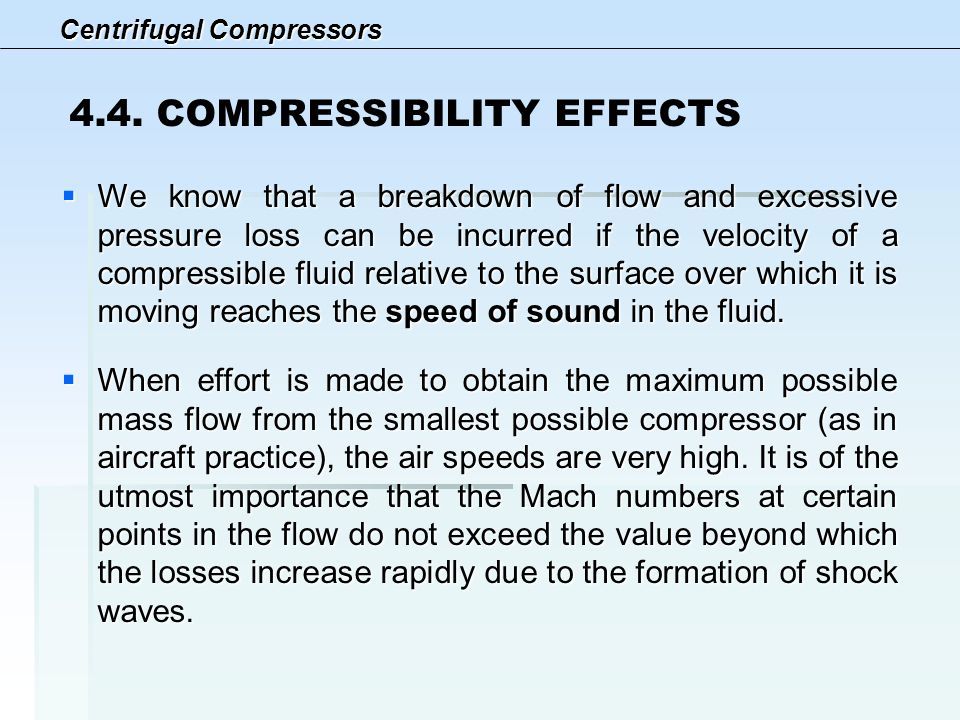

26. Centrifugal Compressors  We know that a breakdown of flow and excessive pressure loss can be incurred if the velocity of a compressible fluid relative to the surface over which it is moving reaches the speed of sound in the fluid.  When effort is made to obtain the maximum possible mass flow from the smallest possible compressor (as in aircraft practice), the air speeds are very high. It is of the utmost importance that the Mach numbers at certain points in the flow do not exceed the value beyond which the losses increase rapidly due to the formation of shock waves. 4.4. COMPRESSIBILITY EFFECTS

27. Centrifugal Compressors  The “critical Mach number” is usually less than unity when calculated on the basis of the mean velocity of the fluid relative to the boundary because the actual relative velocity near the surface of a curved boundary may be in access of the mean velocity. As a general rule, unless tests indicate otherwise, The Mach numbers are restricted to about 0.8.  At the intake, the air is deflected through a certain angle before it passes into the radial channels on the impeller. There is always a tendency for the air to break away from the convex face of the curved part of the impeller vane. Here then is a point at which the Mach number will be extremely important. 4.4. COMPRESSIBILITY EFFECTS

28. Centrifugal Compressors  The Mach number is given by: Where T 1 is the static temperature at the inlet. 4.4. COMPRESSIBILITY EFFECTS W1W1 Breakaway commencing at rear shockwave

29. Centrifugal Compressors 4.4. COMPRESSIBILITY EFFECTS Fixed inlet guide vane W1W1 V1V1 U1U1 V1V1 W1W1 Va1Va1 W1’W1’  Angle of prewhirl

30. Centrifugal Compressors  It is possible to reduce the relative velocity w 1 and hence the Mach number by introducing Prewhirl at the intake.  This is achieved by allowing the air be drawn into the impeller eye over curved IGV's attached to the compressor casing, For the same axial velocity and hence approximately the same mass flow, the relative velocity is reduced as shown by the modified Velocity .  This method of reducing Mach number, unfortunately reduces the work capacity of the compressor. 4.4. COMPRESSIBILITY EFFECTS

31. Centrifugal Compressors  The air now has an initial whirl component V  1 so that, the rate of change of angular momentum per unit mass flow is : H = V  2 r 2 - V  1 r 1 if V  1 is constant over the impeller eye.  But the Mach number is only high at the tip of the eye. It is clearly preferable to vary the prewhirl, gradually reducing it from a maximum value at the tip, to zero at the root of the eye. This may be done if the IGV are suitably twisted. 4.4. COMPRESSIBILITY EFFECTS

32. Centrifugal Compressors Impeller Exit:  It has been found that, as long as the radial velocity component is subsonic, Mach numbers greater than 1 can be used at the impeller without loss of efficiency.  It appears that supersonic diffusion can occur without the formation of shock waves if it is carried out at constant angular momentum with vortex motion in the vaneless space.  But if the Mach number at the leading edge of the diffuser vanes are rather high, and it would probably be advisable to increase the radial width of the VANELESS SPACE or the depth of the diffuser to reduce the velocity at that radius. 4.4. COMPRESSIBILITY EFFECTS

33. Centrifugal Compressors  High M (at the leading edge diffuser) is not desirable because of air resonance considerations.  Static pressure differences around the circumference from due to locally high pressures at stagnation points. The danger is the instability created convects upstream causing mechanical danger as well as spoiling the flow. To take care of this the # of impeller vanes and diffuser channels are selected properly.  Exciting frequency f [rpm,# impeller vanes / # diffuser vanes] = a natural frequency of impeller channels. # diffuser channels are selected to be prime number # impeller vanes selected to be even number 4.4. COMPRESSIBILITY EFFECTS

34. Centrifugal Compressors  As a result: The Vaneless space both The Vaneless space both  Decreases the danger of shock losses  Decrease the danger of excessive variations in static pressure due to Higher M near the impeller tip. 4.4. COMPRESSIBILITY EFFECTS

35. Centrifugal Compressors

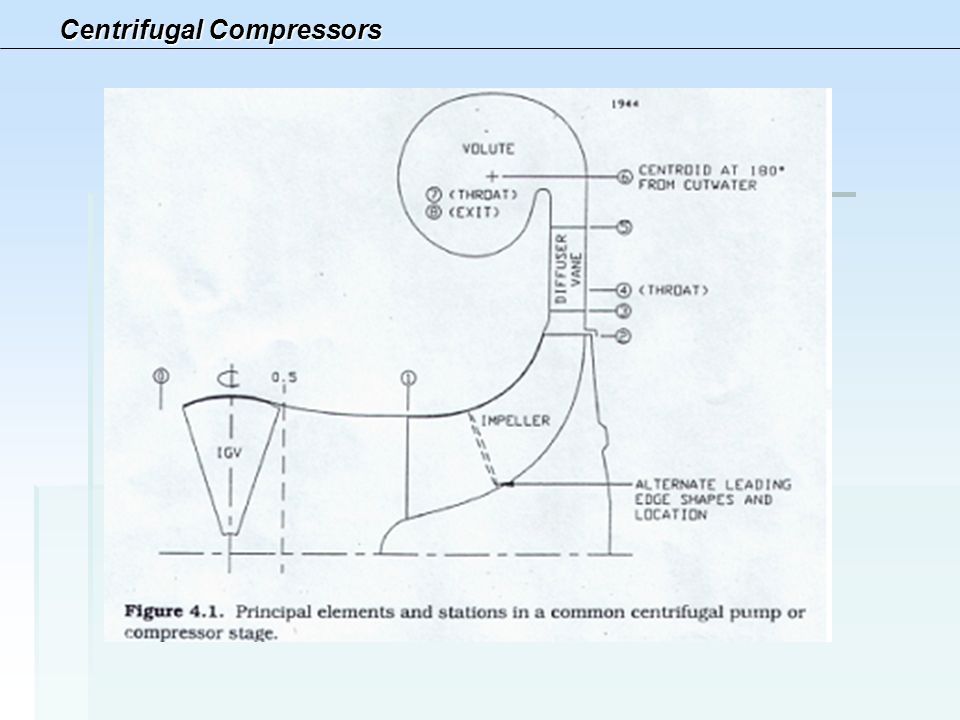

39.  The performance of a compressor may be specified by curves of delivery pressure and temperature (as a measure energy transfer) against mass flow for various fixed values of rotational speeds.  These characteristics (¢), however are dependent on other variables such as conditions of pressure and temperature at the entry of the compressor, and the physical properties of the working medium.  Any attempt to allow for full variations of all these quantities over the working range would involve an excessive number of experiments, and make concise presentation of the results impossible. 4.6. COMPRESSOR CHARACTERISTICS

40. Centrifugal Compressors 4.6. COMPRESSOR CHARACTERISTICS  Most of this complication may be eliminated by using the technique of “Dimensional Analysis” by which the variables involved may be combined to form a smaller number of more managable "Dimensionless Groups“  By Dimensional analysis the following groups may be formed

41. Centrifugal Compressors  When we are concerned with the performance of a machine of Fixed Size, compressing a Specified Gas, R and D in the above groups may be omitted from the groups, Leaving Dimensional Groups such that  If these are the variables affecting the performance, it is only necessary to plot two sets of curves in order to describe the performance of a compressor (at a fixed speed) completely. 4.6. COMPRESSOR CHARACTERISTICS

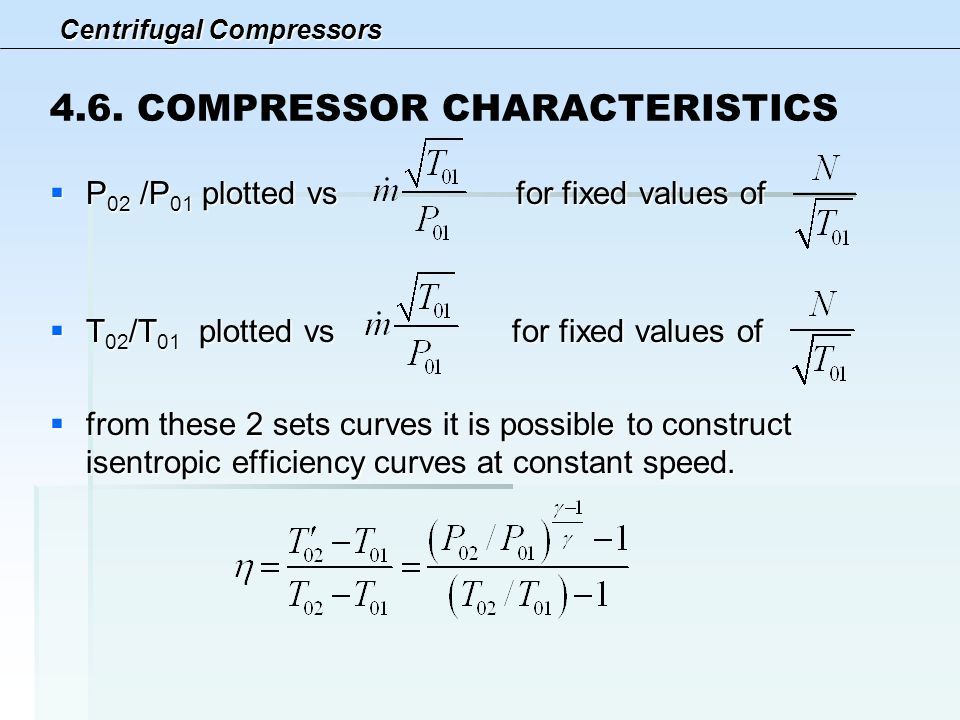

42. Centrifugal Compressors  P 02 /P 01 plotted vs for fixed values of  T 02 /T 01 plotted vs for fixed values of  from these 2 sets curves it is possible to construct isentropic efficiency curves at constant speed. 4.6. COMPRESSOR CHARACTERISTICS

43. Centrifugal Compressors 4.6. COMPRESSOR CHARACTERISTICS 2 5 4 3 1 0.60.8 1.01.20.4 0.20 0.6 0.8 0.7 1.0 0.9 Pressure Ratio p o2 /p o1 m√T o1 /p o1 N/√T o1 Relative to Design Value Surge Line Locus of Points of Maximum Efficiency

44. Centrifugal Compressors 4.6. COMPRESSOR CHARACTERISTICS 2 5 4 3 1 0.60.8 1.01.20.4 0.20 Isentropic efficiency η c % m√T o1 /p o1 (relative to design value) 0.60.70.8 0.9 1.0 N√T o1 /p o1 (relative to design value)

45. Centrifugal Compressors 4.6. COMPRESSOR CHARACTERISTICS  Consider what might be expected to occur when a valve placed at the delivery line slowly operated. Theoretically A : Valve is shut; m =0; P 02 /P 01 pressure head (for the air trapped) B :  and P 02 /P 01 is maximum C : All the power is absorbed in overcoming internal friction resistance (hypothetical case) In Actual Case Point A could be obtained if desired but most of the curve between A and B could not, owing to the phenomenon of SURGING.

46. Centrifugal Compressors 4.6. COMPRESSOR CHARACTERISTICS Mass flow Pressure ratio A D B E C 0 1 Constant speed curve Theoretical Characteristics

47. Centrifugal Compressors  Surging is associated with a sudden drop in delivery pressure and with violent aerodynamic pulsations which are transmitted throughout the whole machine.  If we suppose that the compressor is operating at some point D on the positive sloped part of the ¢, then a decrease in mass flow will be accompanied by a fall in delivery pressure.  If the pressure of air downstream of the compressor does not fall quickly enough the air will tend to reverse its direction and flow back in the direction of resulting pressure gradient. 4.6. COMPRESSOR CHARACTERISTICS

48. Centrifugal Compressors  When this occurs, the pressure ratio P 02 /P 01 drops rapidly. Meanwhile the pressure downstream of the compressor has fallen as well, so that the compressor will now be able to pick up again to repeat the cycle of events which occur at high (!) frequency.  Rotating Stall: When there is any non-uniformity in the flow or geometry of the channels between blades or vanes, a breakdown in the flow in one channel (say B), cause the air to be deflected in such a way that channel C receives fluid at a reduced angle of incidence. 4.6. COMPRESSOR CHARACTERISTICS

49. Centrifugal Compressors  Channel A then stalls (air flow reduces) resulting in a reduction of incidence to channel B enabling the flow in that channel to recover.  Thus the stall propagates in a direction opposite to the blade rotation relative to the blades, from channel to channel.  This results in aerodynamic vibrations → fatigue failure.  Passage blockage → Loss of performance 4.6. COMPRESSOR CHARACTERISTICS

50. Centrifugal Compressors 4.6. COMPRESSOR CHARACTERISTICS

51. Centrifugal Compressors  Choking: On theoretical ¢ curve, actually point C can not be reached, since some where beyond point E the flow will be choked. (i.e. maximum possible flow rate.)  The temperature ratio curve will be similar to the one for-pressure ratio since  From P 02 /P 01 and T 02 /T 01 one can plot  c vs 4.6. COMPRESSOR CHARACTERISTICS

52. Centrifugal Compressors  In some cases equivalent flow and equivalent speed are employed instead of the above Here: Generally: T ref = 288 o K P ref = 1.013 bar (ISA) 4.6. COMPRESSOR CHARACTERISTICS

53. Centrifugal Compressors  Similar to compressor ¢ Turbine performance is expressed in terms of similar dimensionless (or dimensional) groups  Turbine performance is plots are given by plotting vs for various vs for various TURBINE CHARACTERISTICS

54. Centrifugal Compressors  The efficiency plot is constant over a wide range of N and RT. This is because of the accelerating flow through the turbine blades permit an operation over a wide range of incidence without much loss.  The maximum corresponds to a choking condition at the existing pressure ratio. This choking might occur in the NGV nozzle (or sometimes at the outlet of the turbine depending on the design). choking condition at the existing pressure ratio. This choking might occur in the NGV nozzle (or sometimes at the outlet of the turbine depending on the design).  Even when unchoked, the constant curves do not seperate very much. Especially for multistage turbines, the curves converge to a single one.  This is very important especially for the part load performance of a gas turbine. TURBINE CHARACTERISTICS

55. Centrifugal Compressors TURBINE CHARACTERISTICS

56. Centrifugal Compressors  A centrifugal compressor which is fitted to an aircraft has the following data;  Mass flow rate of air:6 kg/s  Rotational speed:15000 rpm  Total pressure ratio:4.0  Slip factor (σ):0.9  Power input factor:1.04  Isentropic efficiency:0.82  Inner radius of impeller eye:8 cm  Outer radius of impeller eye:16 cm Problem on Centrifugal Compressors

57. Centrifugal Compressors  Ambient conditions P a :0.3565 bar T a :236 K  Forward speed of the aircraft:240 m/s  Inlet prewhirl(constant for all radii):30 0  At the impeller exit blades are straight β 2v = 90 0 FIND: FIND: a) Maximum Mach No at the impeller inlet b) Maximum Mach No at the impeller inlet for no prewhirl. For both a and b sketch velocity triangles For both a and b sketch velocity triangles c) The diameter of the impeller Problem on Centrifugal Compressors

58. Centrifugal Compressors d) Assume that meridional velocity is constant throughout the impeller, V m1 = V m2  V a1 = V r2  Find the impeller exit width b 2, sketch velocity triangles. e) If the diffuser inlet radius r 3 = 1.2r 2 and the width of the vaneless space at the diffuser inlet is 2mm in excess of impeller exit width, find the diffuser inlet Mach No. e) If the diffuser inlet radius r 3 = 1.2r 2 and the width of the vaneless space at the diffuser inlet is 2mm in excess of impeller exit width, find the diffuser inlet Mach No. Problem on Centrifugal Compressors

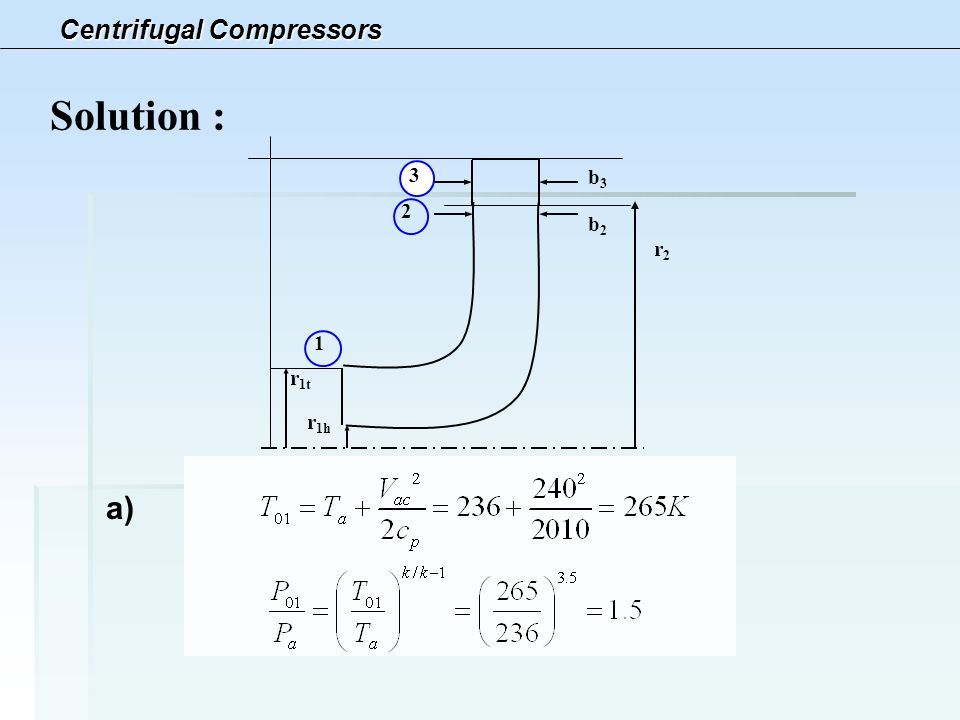

59. Centrifugal Compressors Solution : b2b2 r2r2 b3b3 r 1h r 1t 1 2 3 a)

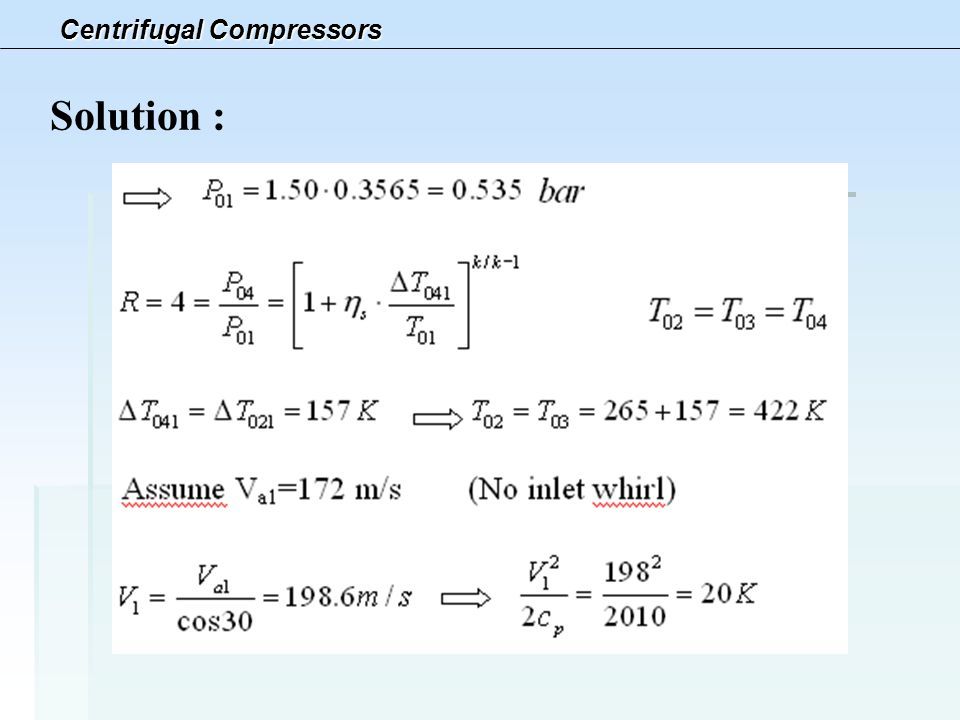

60. Centrifugal Compressors Solution :

61. Centrifugal Compressors Solution :

62. Centrifugal Compressors Solution :

63. Centrifugal Compressors Solution :

64. Centrifugal Compressors Solution :

65. Centrifugal Compressors Solution :

66. Centrifugal Compressors Solution :

67. Centrifugal Compressors Solution :

68. Centrifugal Compressors Solution :

69. Centrifugal Compressors Solution :

70. Centrifugal Compressors Solution :

71. Centrifugal Compressors Solution :

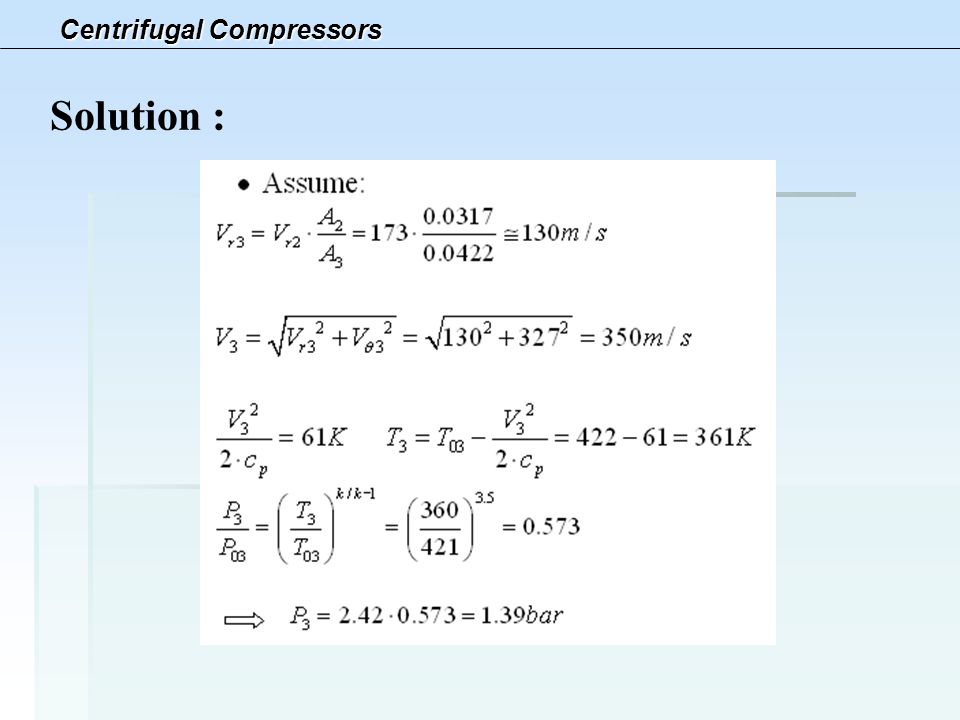

72. Centrifugal Compressors Solution :

73. Centrifugal Compressors Solution :

74. Centrifugal Compressors Solution :

75. Centrifugal Compressors Solution :
