1. EtherCAT ® Configuration and Diagnosis Tool Technical Presentation

2. EtherCAT System Architecture EtherCAT Network Information (ENI) File EtherCAT Slave Information (ESI) Files Real-Time Kernel/OS EtherCAT Application RAS Server (TCP) RAS Client (TCP) TCP/IP Online Functions V2.62

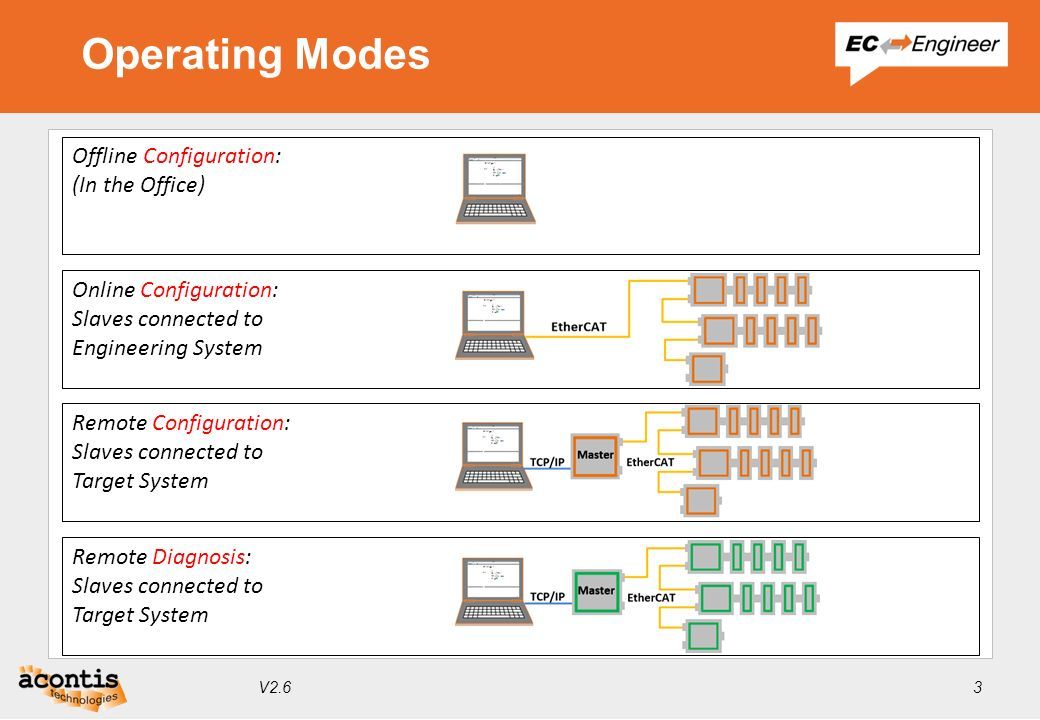

3. Operating Modes Offline Configuration: (In the Office) Online Configuration: Slaves connected to Engineering System Remote Configuration: Slaves connected to Target System Remote Diagnosis: Slaves connected to Target System V2.63

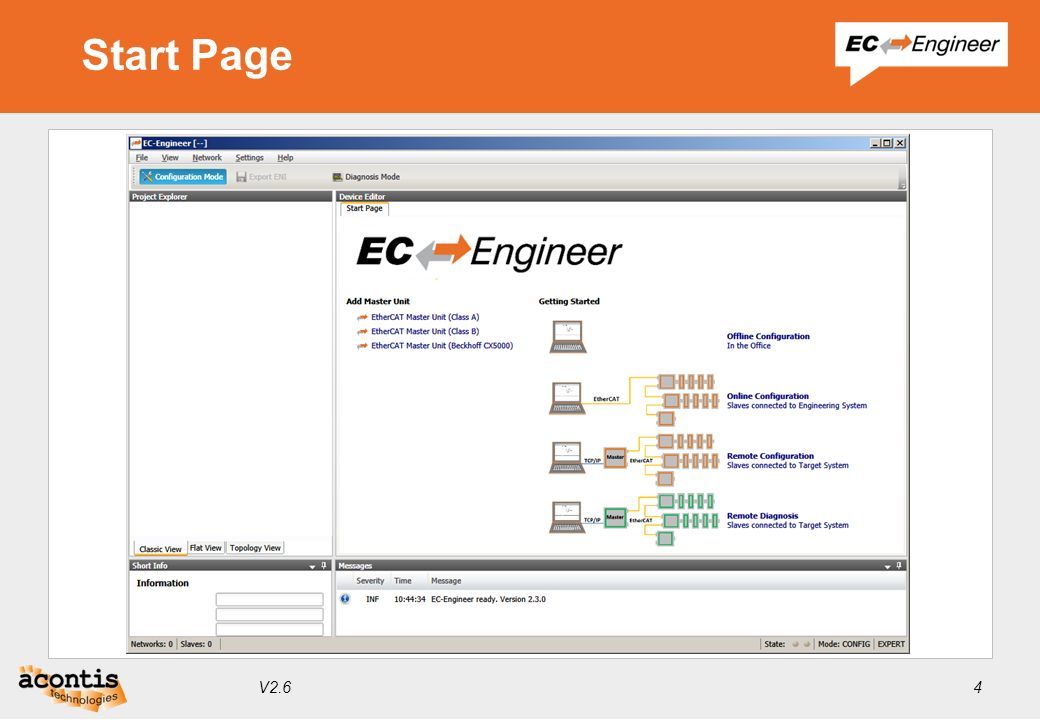

4. Start Page V2.64

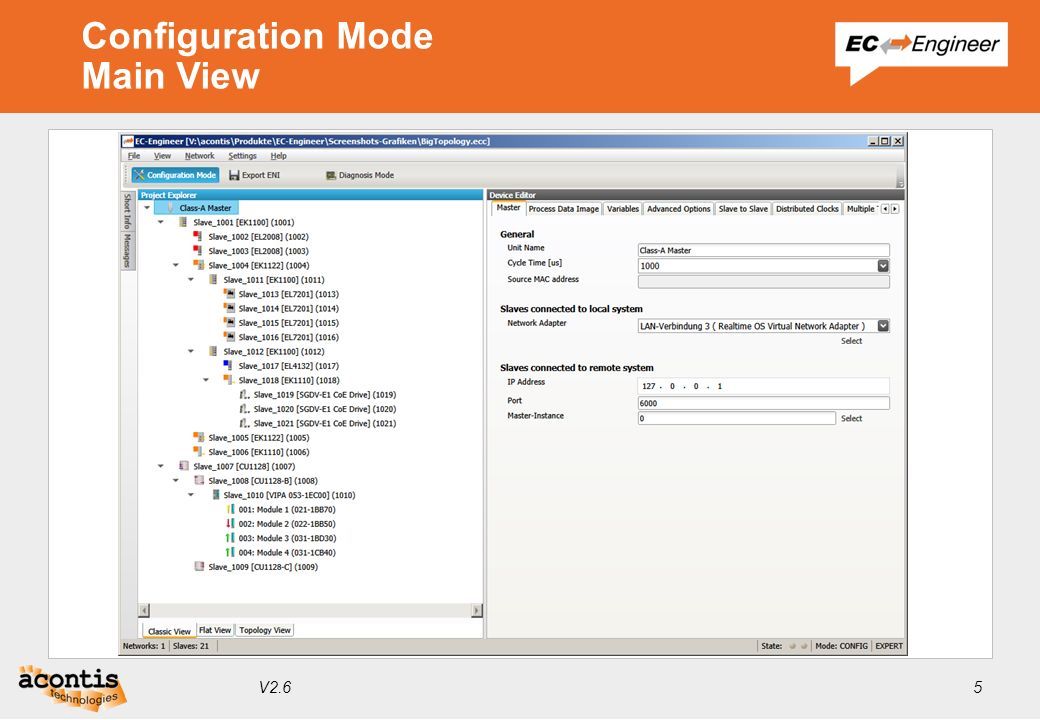

5. Configuration Mode Main View V2.65

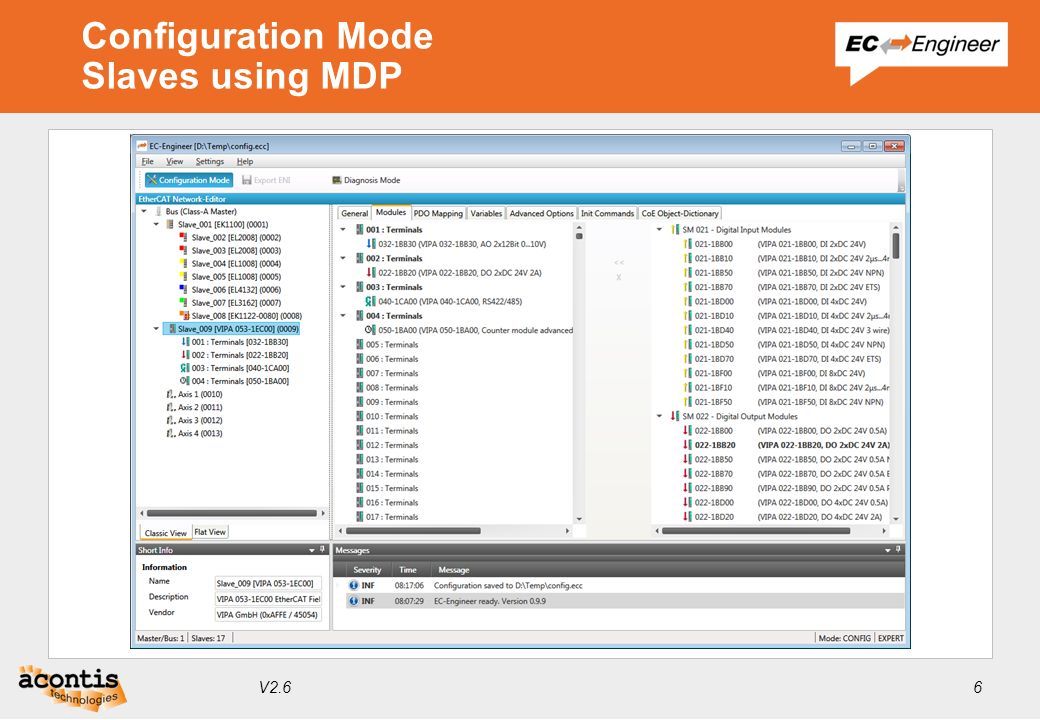

6. Configuration Mode Slaves using MDP V2.66

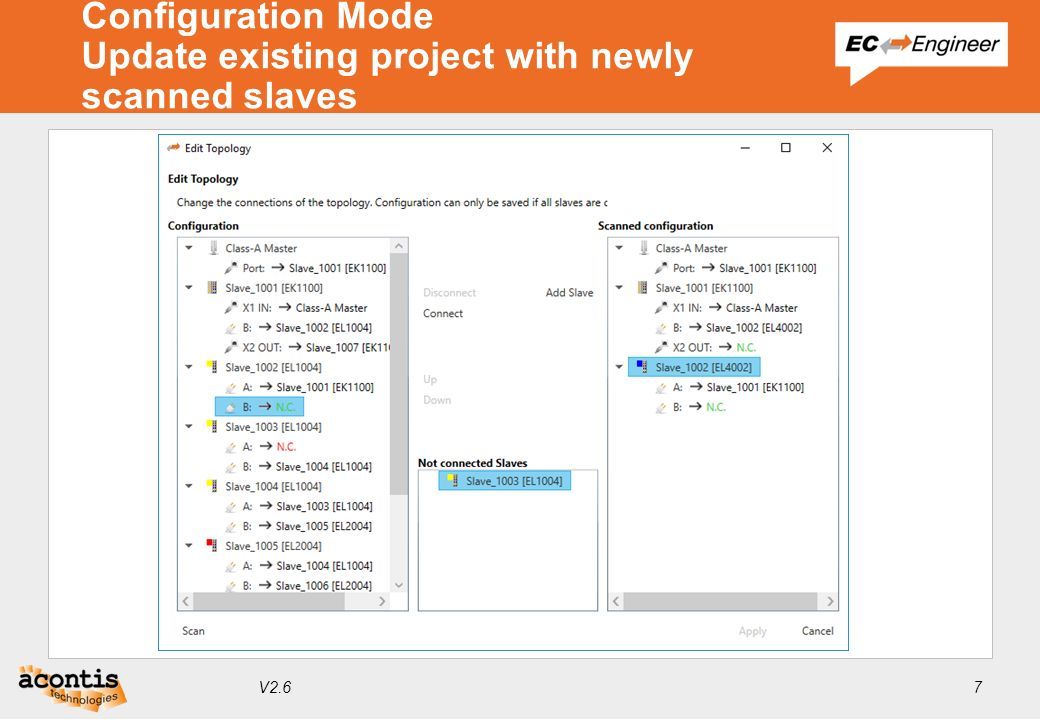

7. Configuration Mode Update existing project with newly scanned slaves V2.67

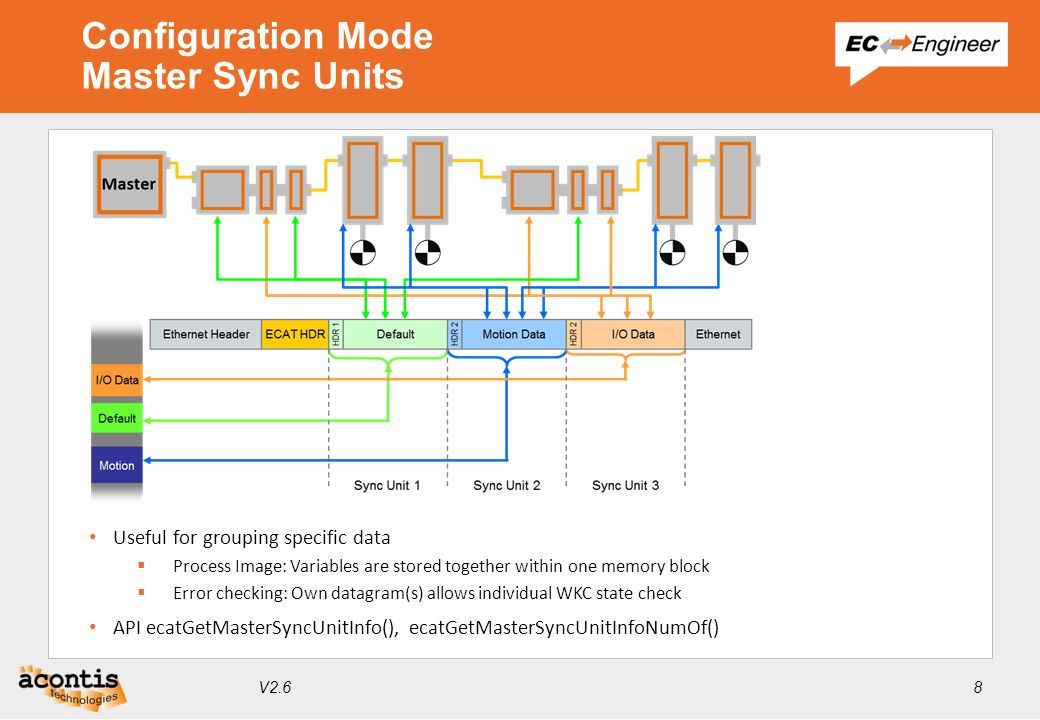

8. Configuration Mode Master Sync Units Useful for grouping specific data  Process Image: Variables are stored together within one memory block  Error checking: Own datagram(s) allows individual WKC state check API ecatGetMasterSyncUnitInfo(), ecatGetMasterSyncUnitInfoNumOf() V2.68

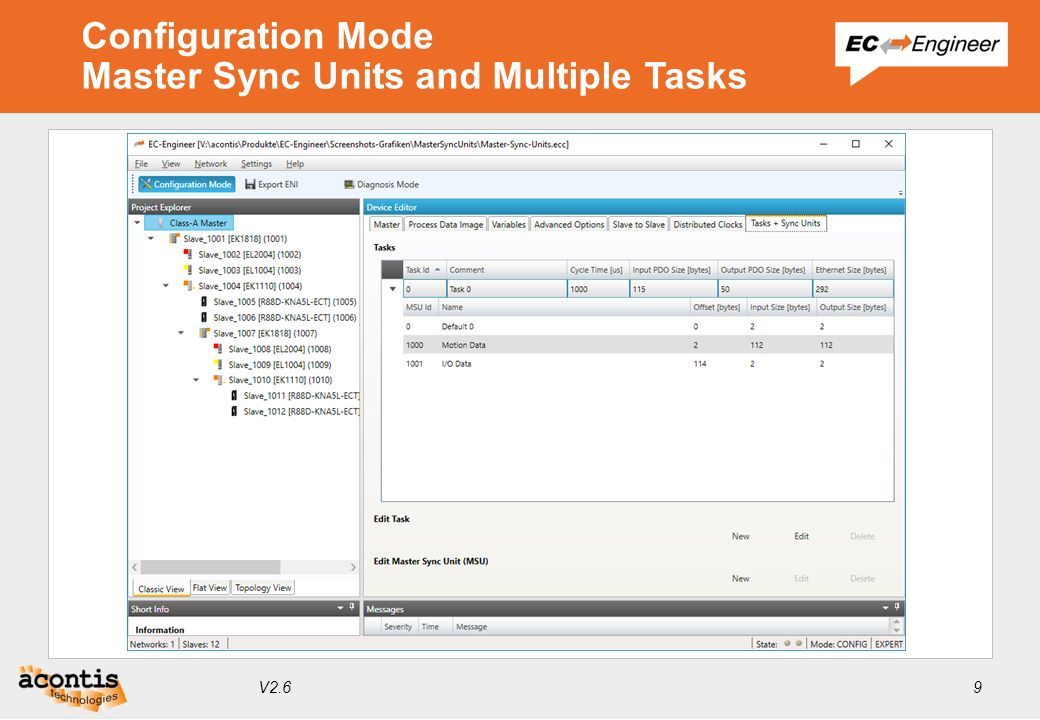

9. Configuration Mode Master Sync Units and Multiple Tasks V2.69

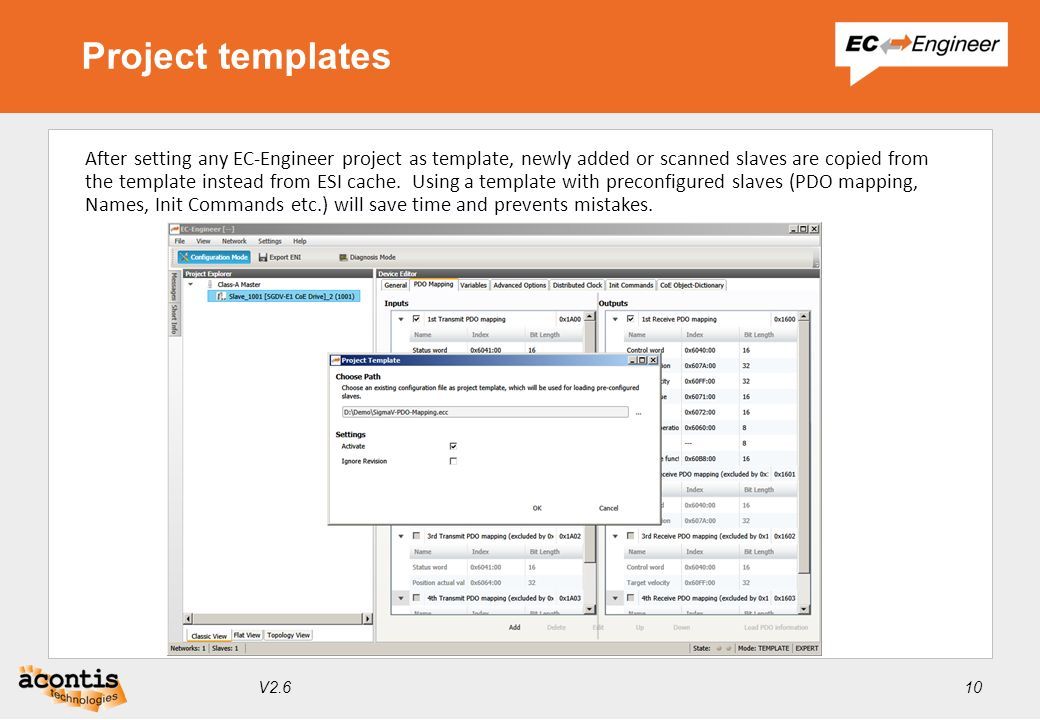

10. After setting any EC-Engineer project as template, newly added or scanned slaves are copied from the template instead from ESI cache. Using a template with preconfigured slaves (PDO mapping, Names, Init Commands etc.) will save time and prevents mistakes. Project templates V2.610

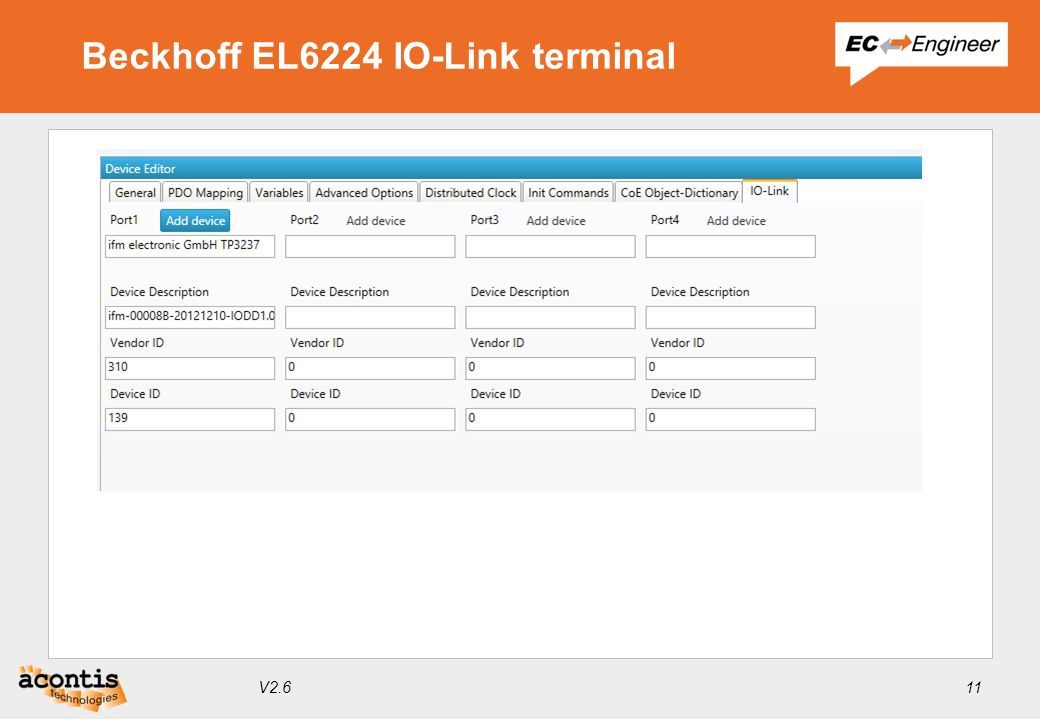

11. Beckhoff EL6224 IO-Link terminal V2.611

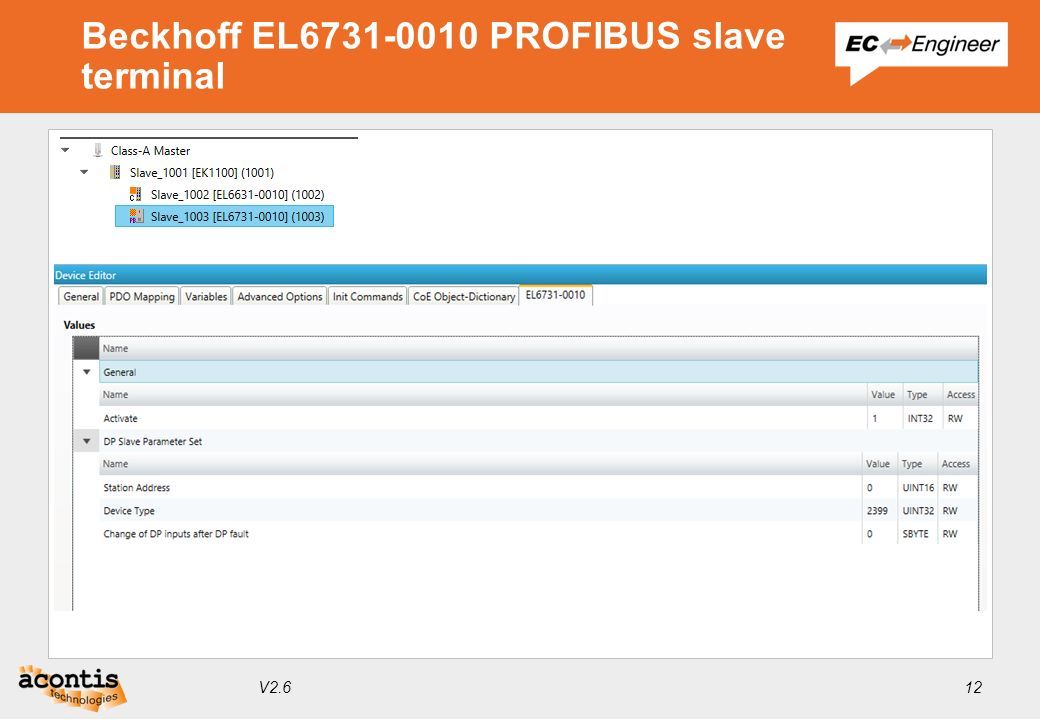

12. Beckhoff EL6731-0010 PROFIBUS slave terminal V2.612

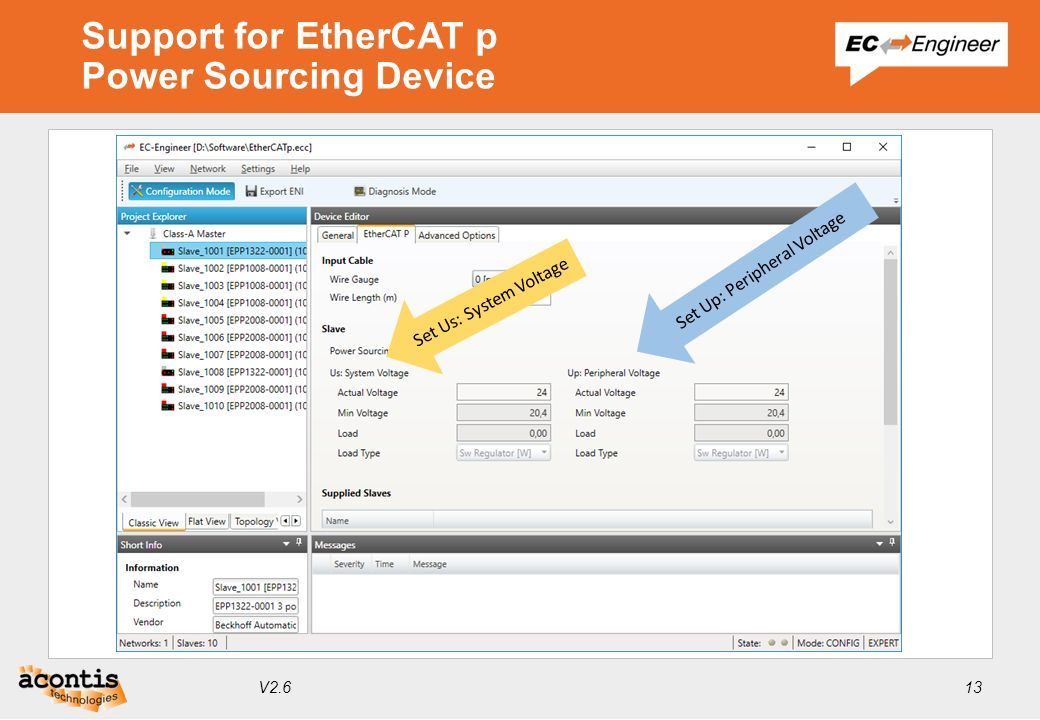

13. Support for EtherCAT p Power Sourcing Device Set Us: System Voltage Set Up: Peripheral Voltage V2.613

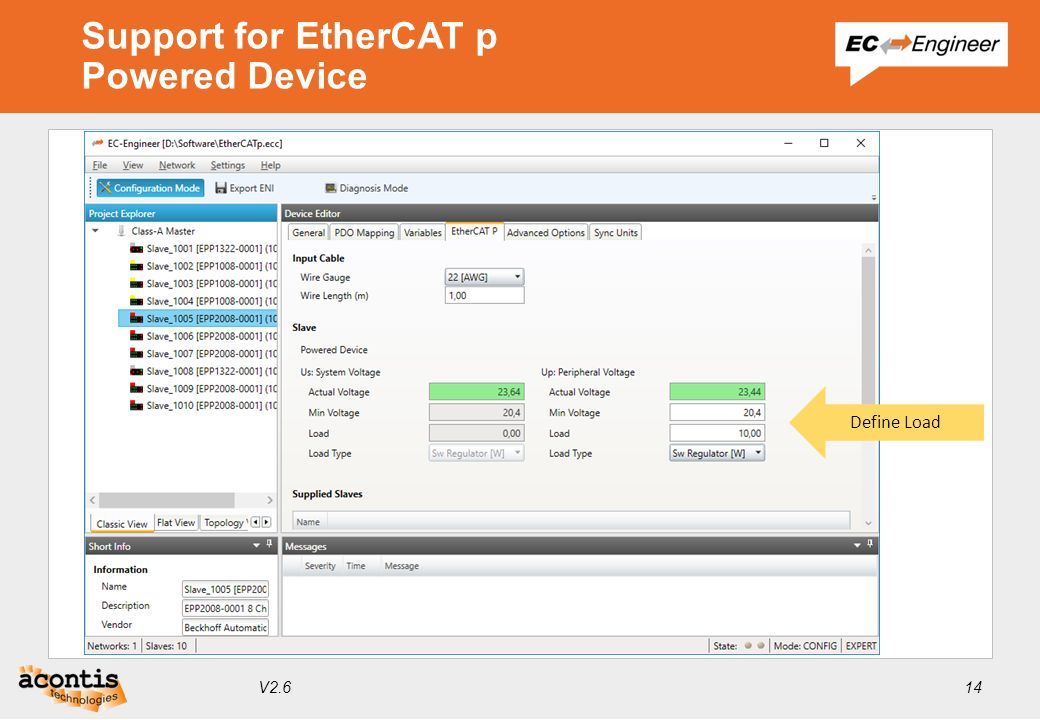

14. Support for EtherCAT p Powered Device Define Load V2.614

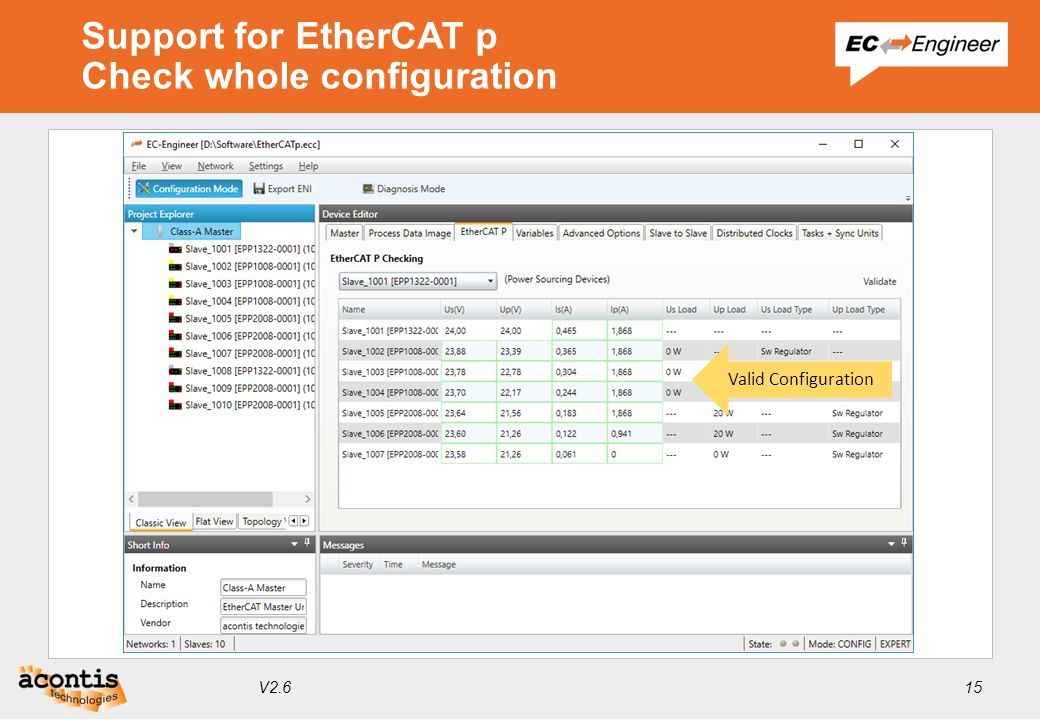

15. Support for EtherCAT p Check whole configuration Valid Configuration V2.615

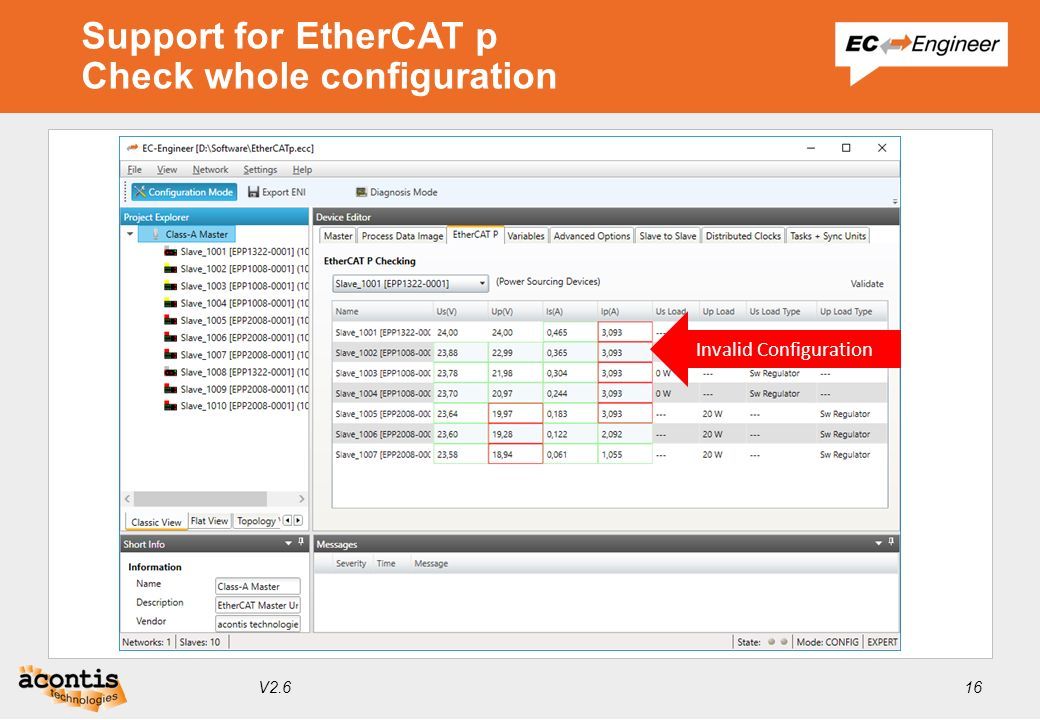

16. Support for EtherCAT p Check whole configuration Invalid Configuration V2.616

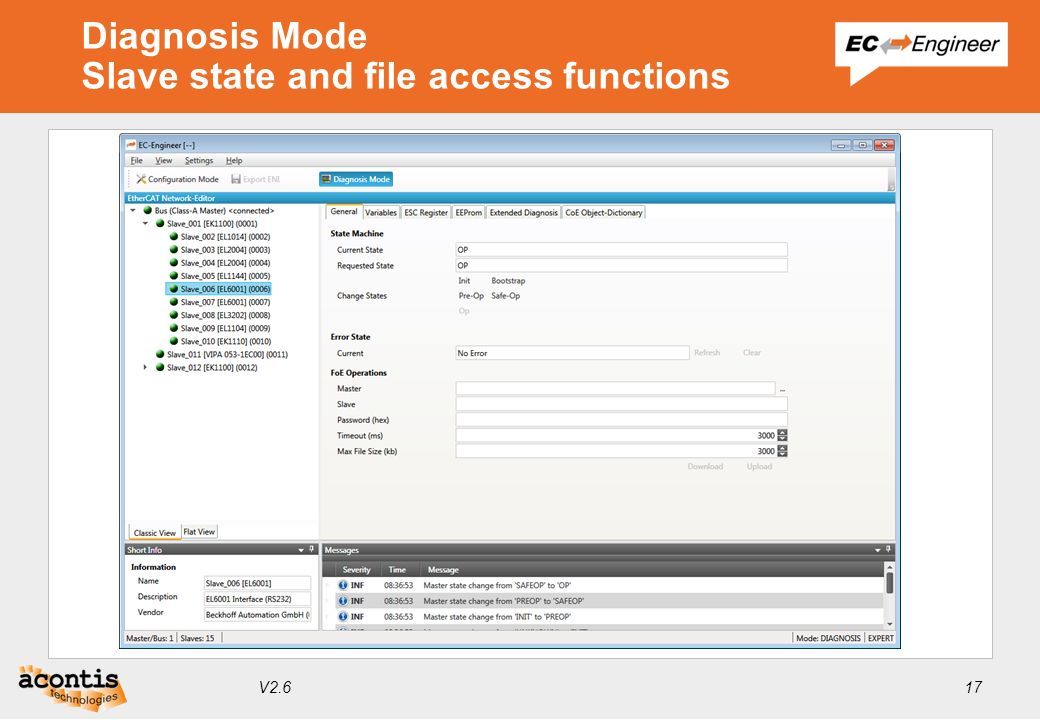

17. Diagnosis Mode Slave state and file access functions V2.617

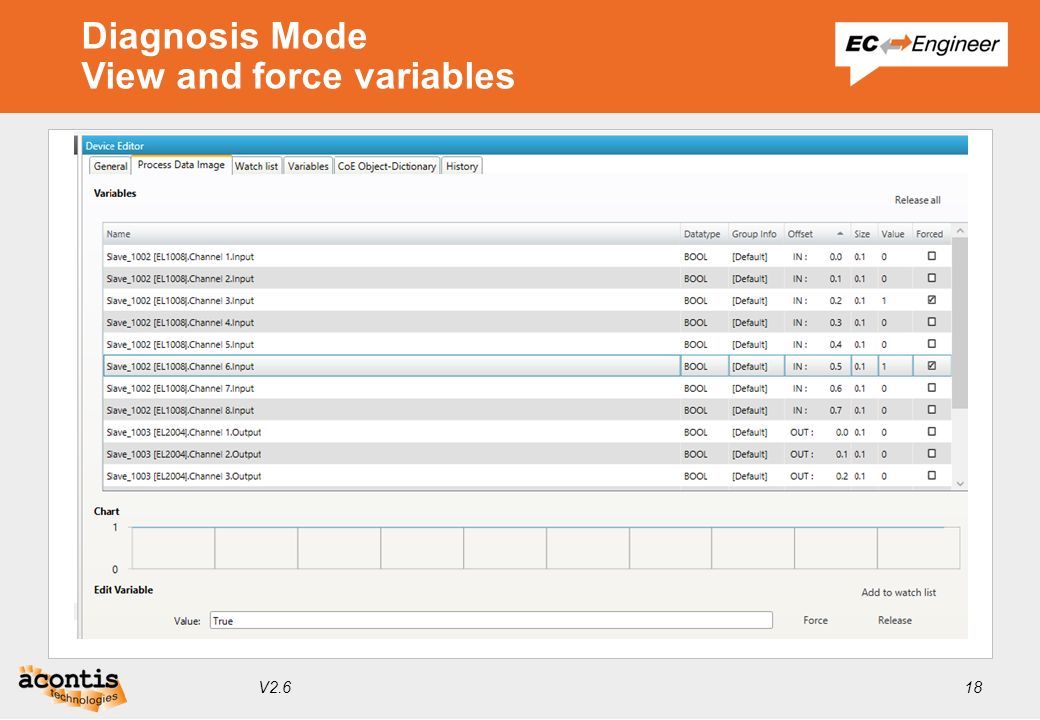

18. Diagnosis Mode View and force variables V2.618

19. Diagnosis Mode Access to CANOpen object dictionary V2.619

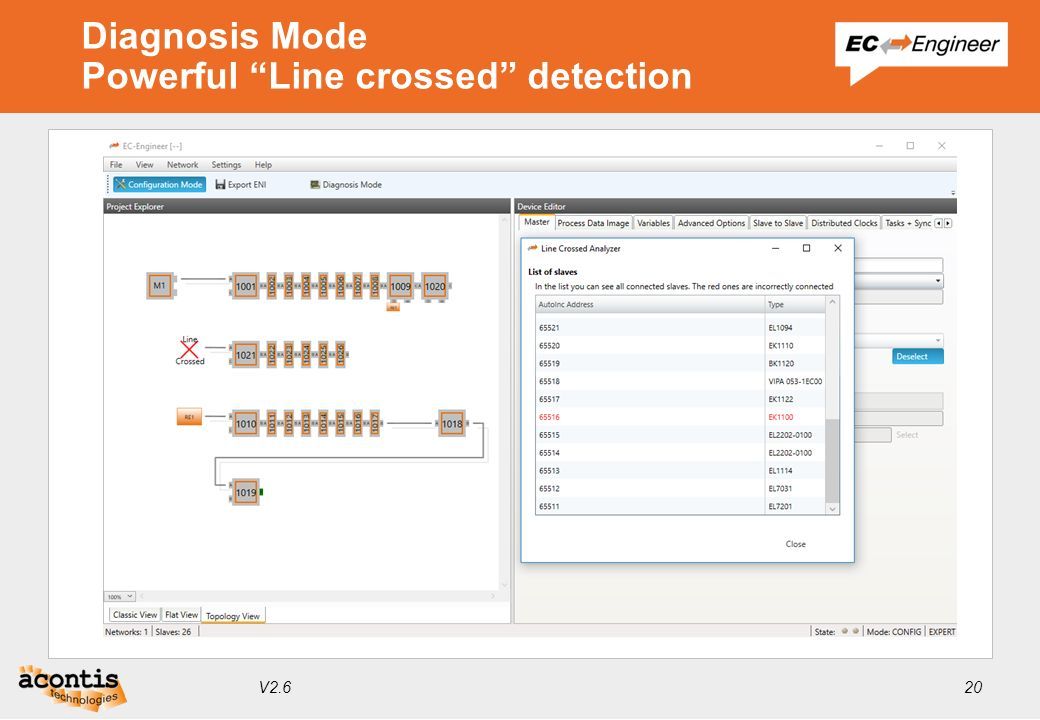

20. Diagnosis Mode Powerful “Line crossed” detection V2.620

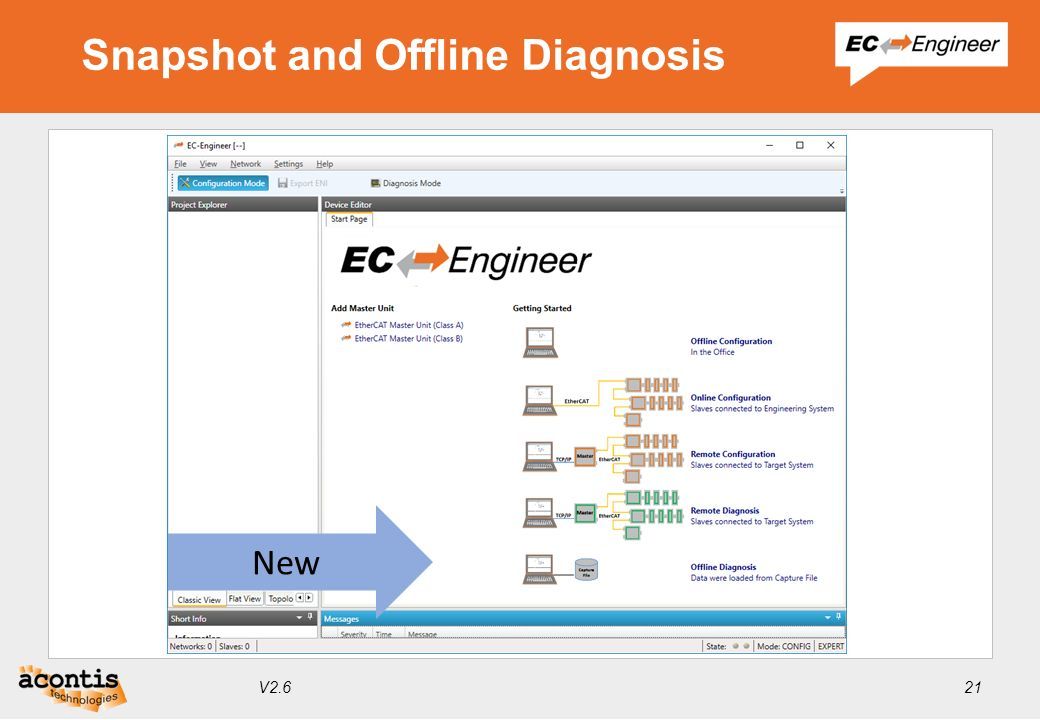

21. Snapshot and Offline Diagnosis New V2.621

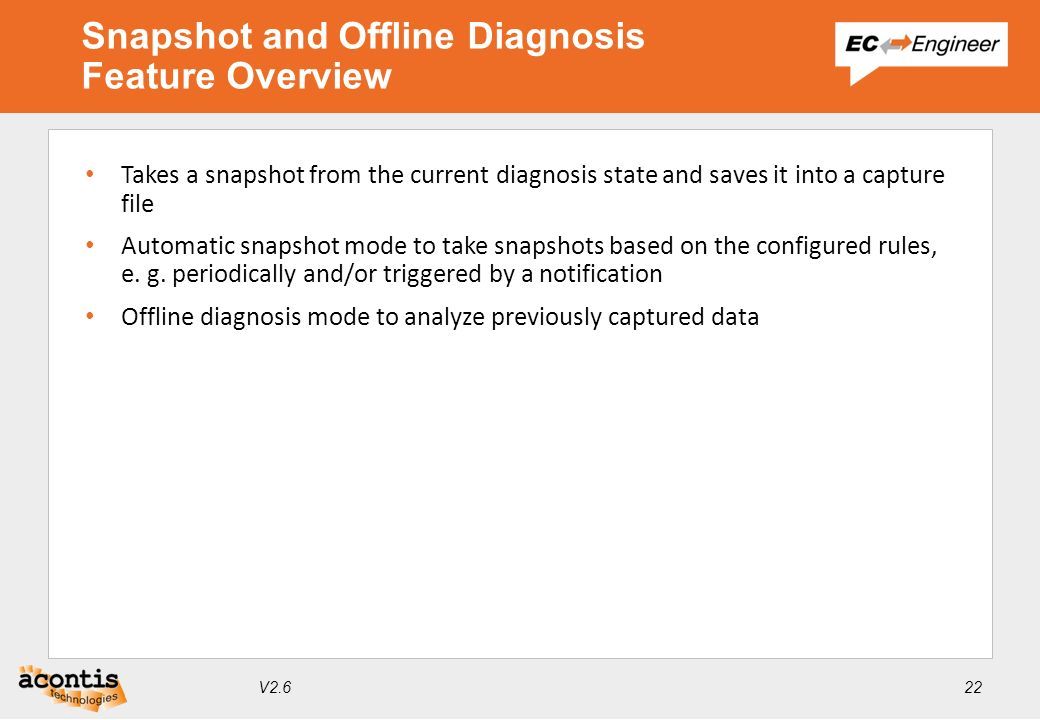

22. Takes a snapshot from the current diagnosis state and saves it into a capture file Automatic snapshot mode to take snapshots based on the configured rules, e. g. periodically and/or triggered by a notification Offline diagnosis mode to analyze previously captured data Snapshot and Offline Diagnosis Feature Overview V2.622

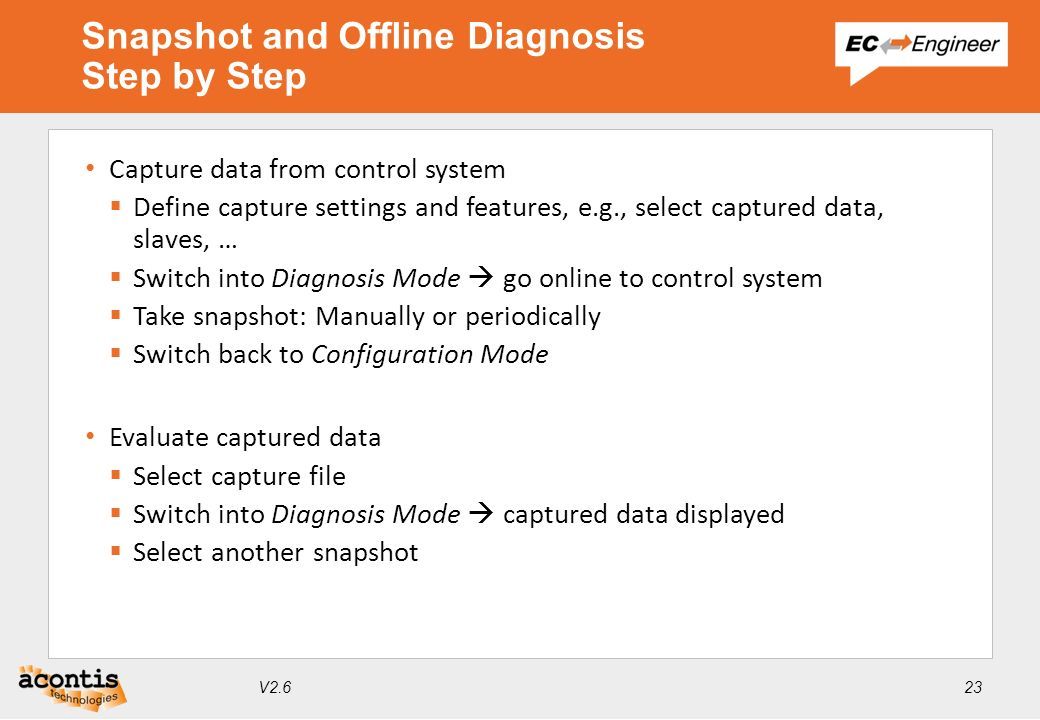

23. Capture data from control system  Define capture settings and features, e.g., select captured data, slaves, …  Switch into Diagnosis Mode  go online to control system  Take snapshot: Manually or periodically  Switch back to Configuration Mode Evaluate captured data  Select capture file  Switch into Diagnosis Mode  captured data displayed  Select another snapshot Snapshot and Offline Diagnosis Step by Step V2.623

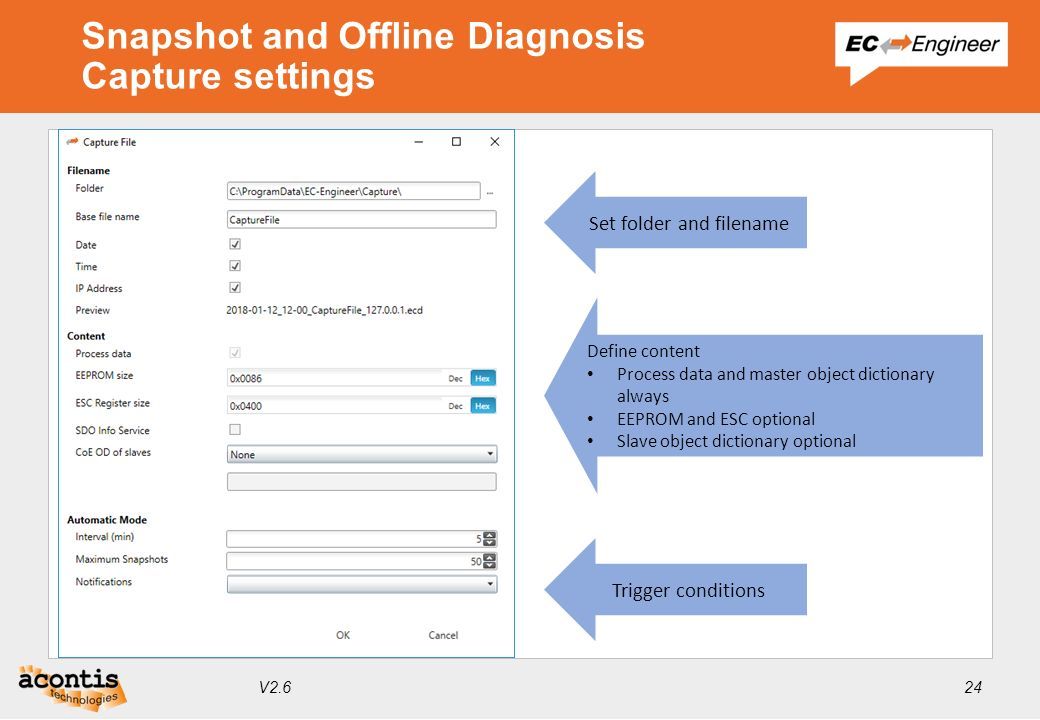

24. Snapshot and Offline Diagnosis Capture settings Set folder and filename Define content Process data and master object dictionary always EEPROM and ESC optional Slave object dictionary optional Trigger conditions V2.624

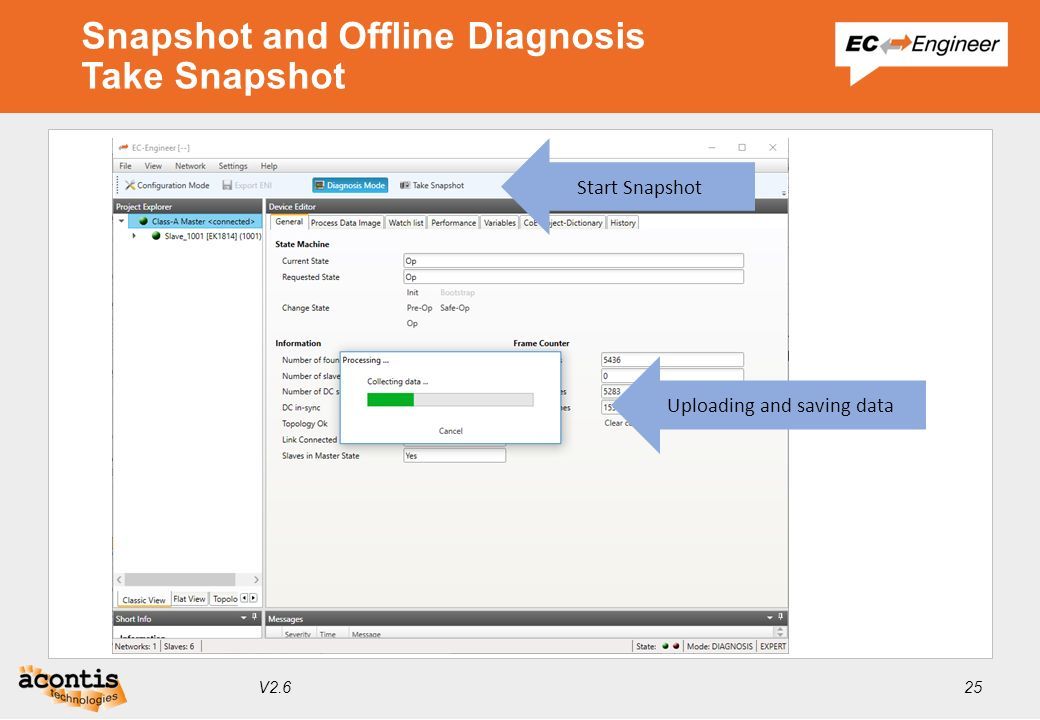

25. Snapshot and Offline Diagnosis Take Snapshot Start Snapshot Uploading and saving data V2.625

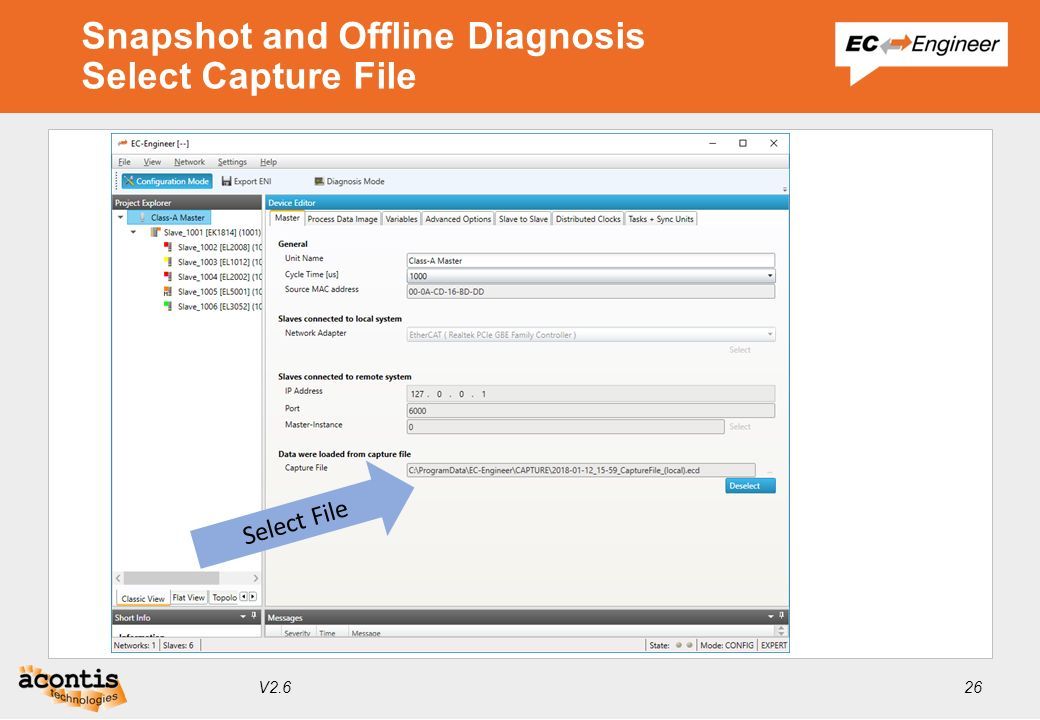

26. Snapshot and Offline Diagnosis Select Capture File Select File V2.626

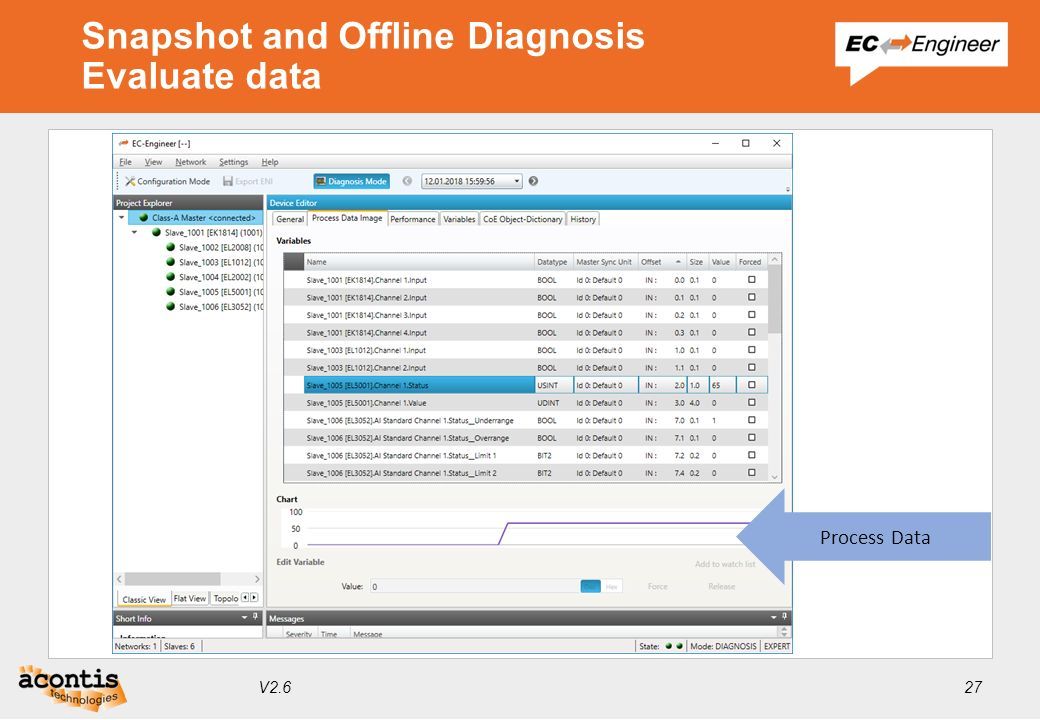

27. Snapshot and Offline Diagnosis Evaluate data Process Data V2.627

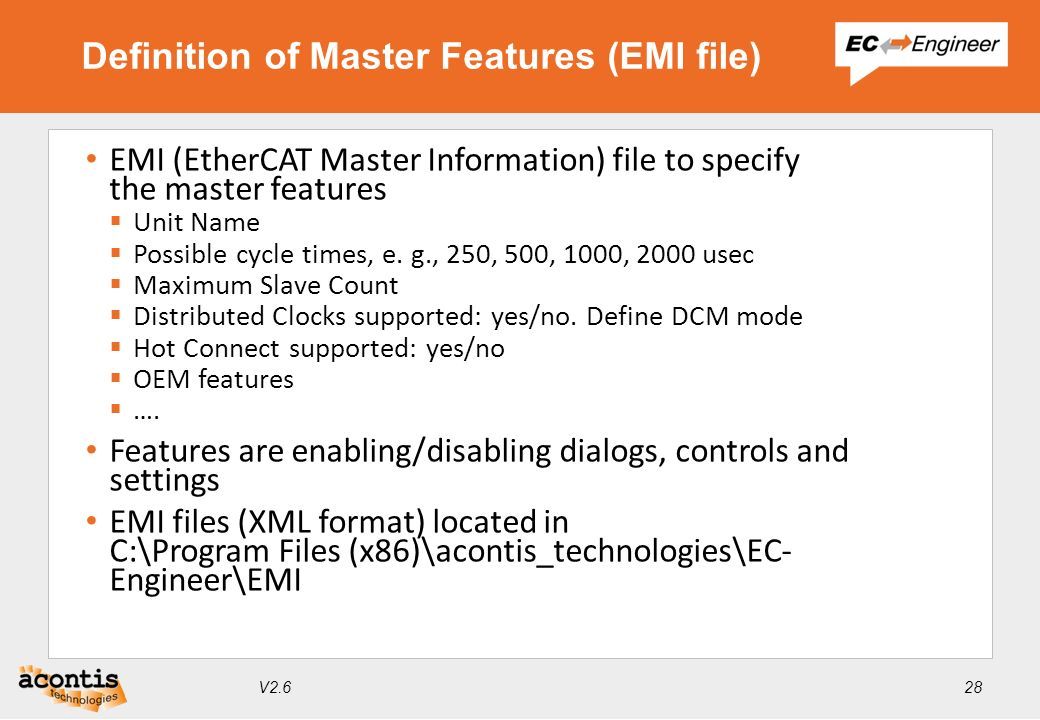

28. EMI (EtherCAT Master Information) file to specify the master features  Unit Name  Possible cycle times, e. g., 250, 500, 1000, 2000 usec  Maximum Slave Count  Distributed Clocks supported: yes/no. Define DCM mode  Hot Connect supported: yes/no  OEM features  …. Features are enabling/disabling dialogs, controls and settings EMI files (XML format) located in C:\Program Files (x86)\acontis_technologies\EC- Engineer\EMI V2.6 Definition of Master Features (EMI file) 28

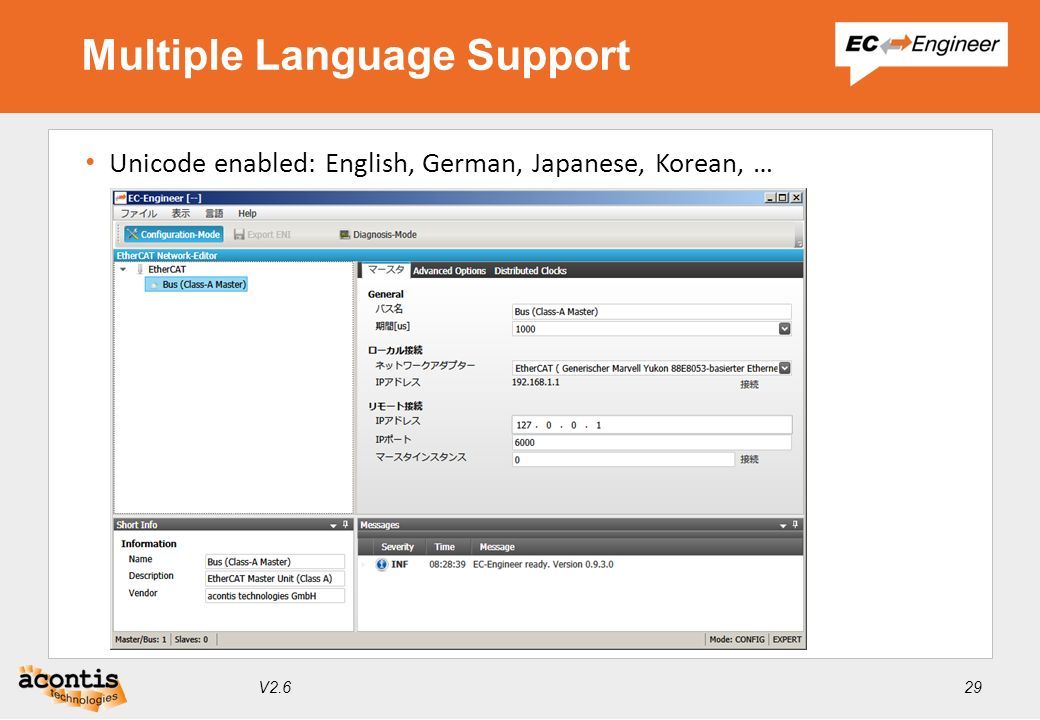

29. Unicode enabled: English, German, Japanese, Korean, … Multiple Language Support V2.629

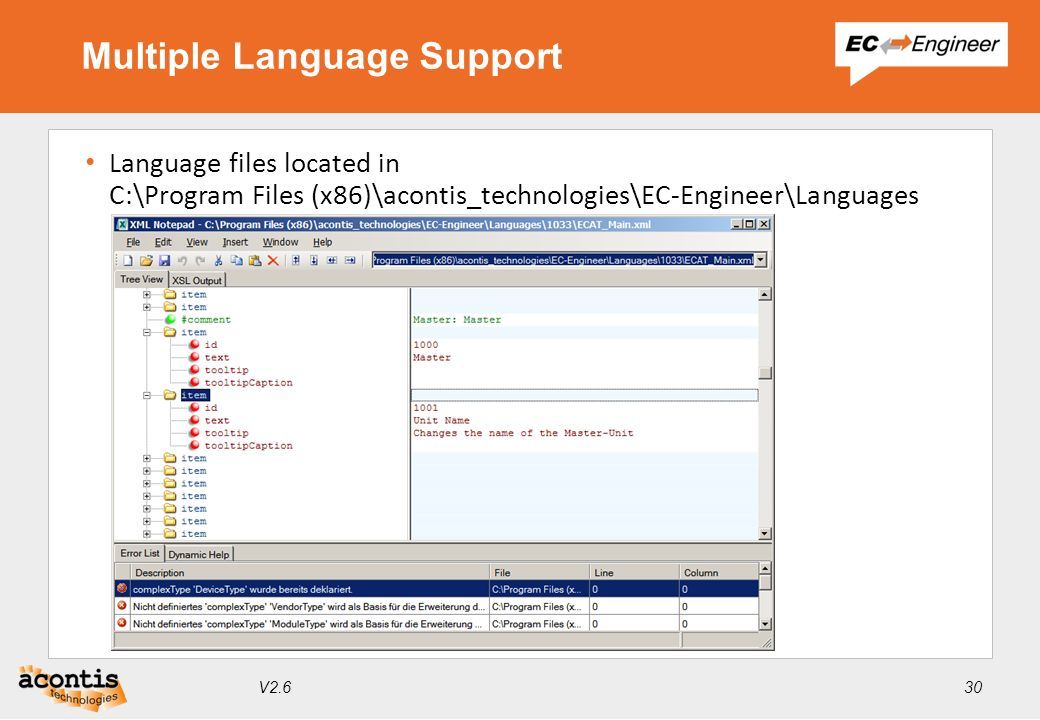

30. Language files located in C:\Program Files (x86)\acontis_technologies\EC-Engineer\Languages Multiple Language Support V2.630

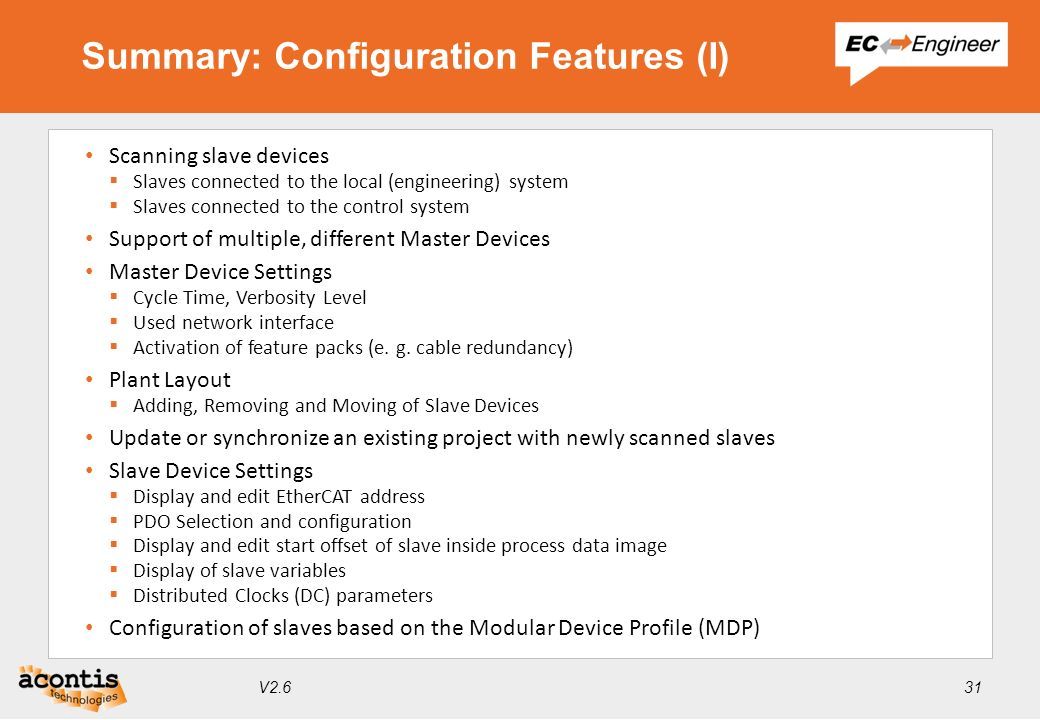

31. Scanning slave devices  Slaves connected to the local (engineering) system  Slaves connected to the control system Support of multiple, different Master Devices Master Device Settings  Cycle Time, Verbosity Level  Used network interface  Activation of feature packs (e. g. cable redundancy) Plant Layout  Adding, Removing and Moving of Slave Devices Update or synchronize an existing project with newly scanned slaves Slave Device Settings  Display and edit EtherCAT address  PDO Selection and configuration  Display and edit start offset of slave inside process data image  Display of slave variables  Distributed Clocks (DC) parameters Configuration of slaves based on the Modular Device Profile (MDP) Summary: Configuration Features (I) V2.631

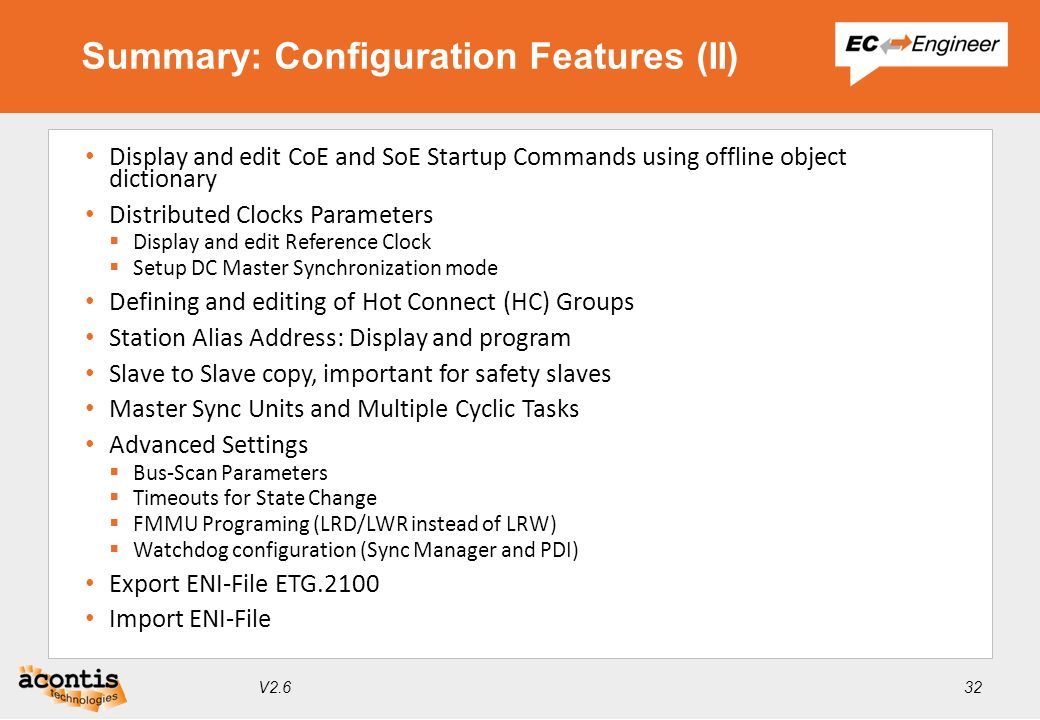

32. Display and edit CoE and SoE Startup Commands using offline object dictionary Distributed Clocks Parameters  Display and edit Reference Clock  Setup DC Master Synchronization mode Defining and editing of Hot Connect (HC) Groups Station Alias Address: Display and program Slave to Slave copy, important for safety slaves Master Sync Units and Multiple Cyclic Tasks Advanced Settings  Bus-Scan Parameters  Timeouts for State Change  FMMU Programing (LRD/LWR instead of LRW)  Watchdog configuration (Sync Manager and PDI) Export ENI-File ETG.2100 Import ENI-File V2.6 Summary: Configuration Features (II) 32

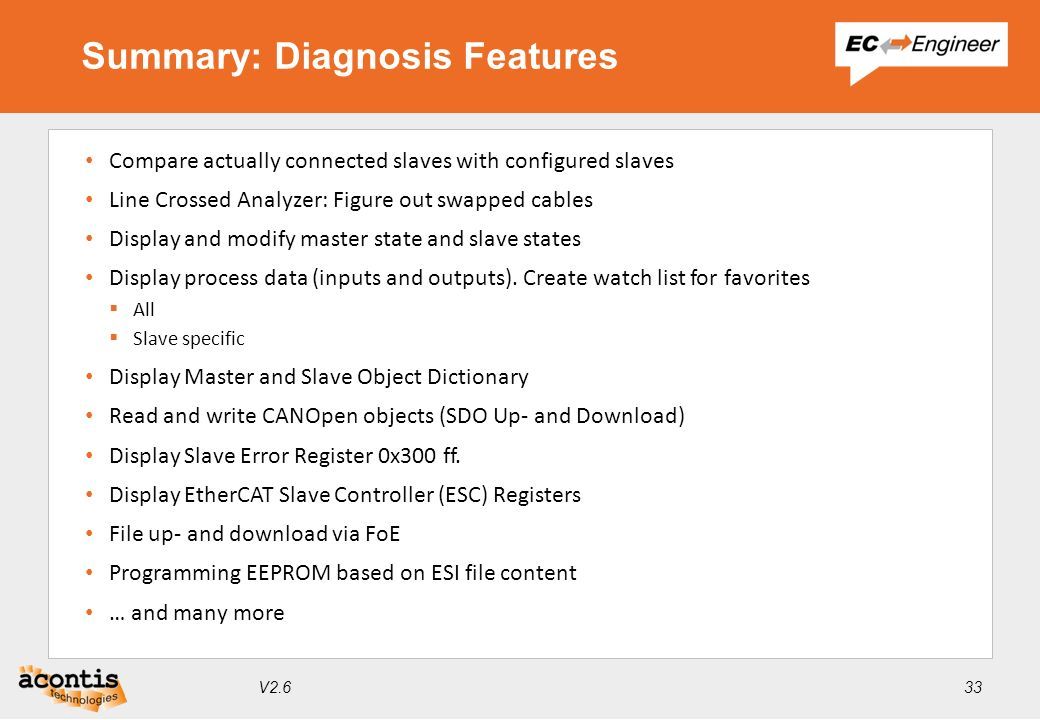

33. Compare actually connected slaves with configured slaves Line Crossed Analyzer: Figure out swapped cables Display and modify master state and slave states Display process data (inputs and outputs). Create watch list for favorites  All  Slave specific Display Master and Slave Object Dictionary Read and write CANOpen objects (SDO Up- and Download) Display Slave Error Register 0x300 ff. Display EtherCAT Slave Controller (ESC) Registers File up- and download via FoE Programming EEPROM based on ESI file content … and many more Summary: Diagnosis Features V2.633

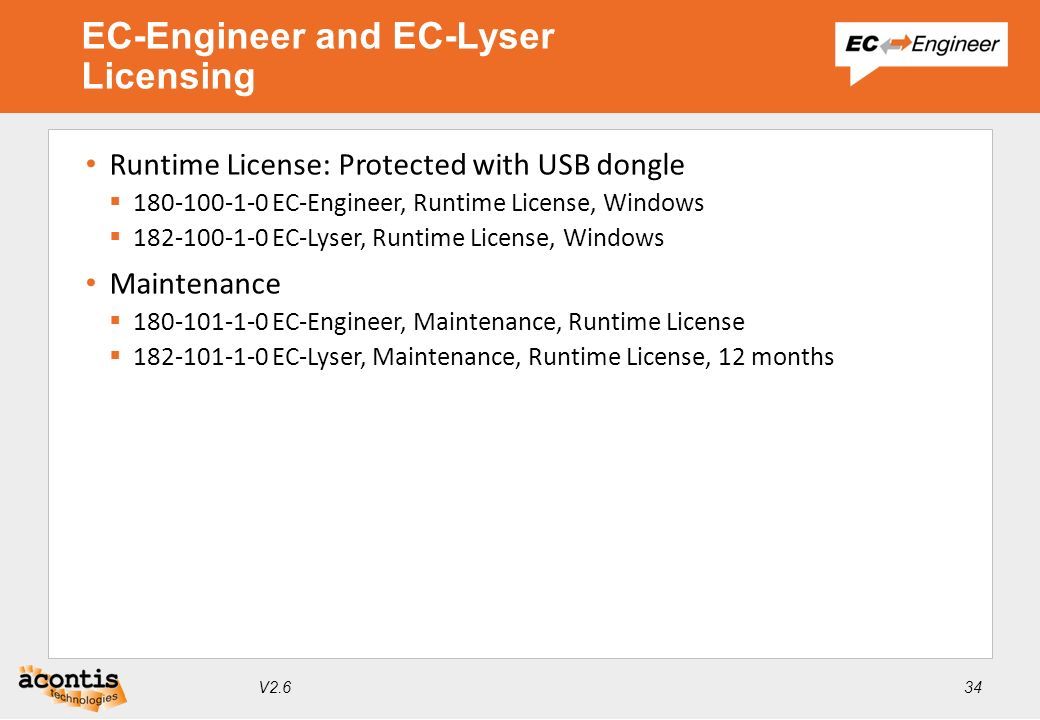

34. Runtime License: Protected with USB dongle  180-100-1-0 EC-Engineer, Runtime License, Windows  182-100-1-0 EC-Lyser, Runtime License, Windows Maintenance  180-101-1-0 EC-Engineer, Maintenance, Runtime License  182-101-1-0 EC-Lyser, Maintenance, Runtime License, 12 months V2.634 EC-Engineer and EC-Lyser Licensing

35. Plus Edition for Beckhoff Fieldbus Gateways and Slave-to-Slave communication in one cycle

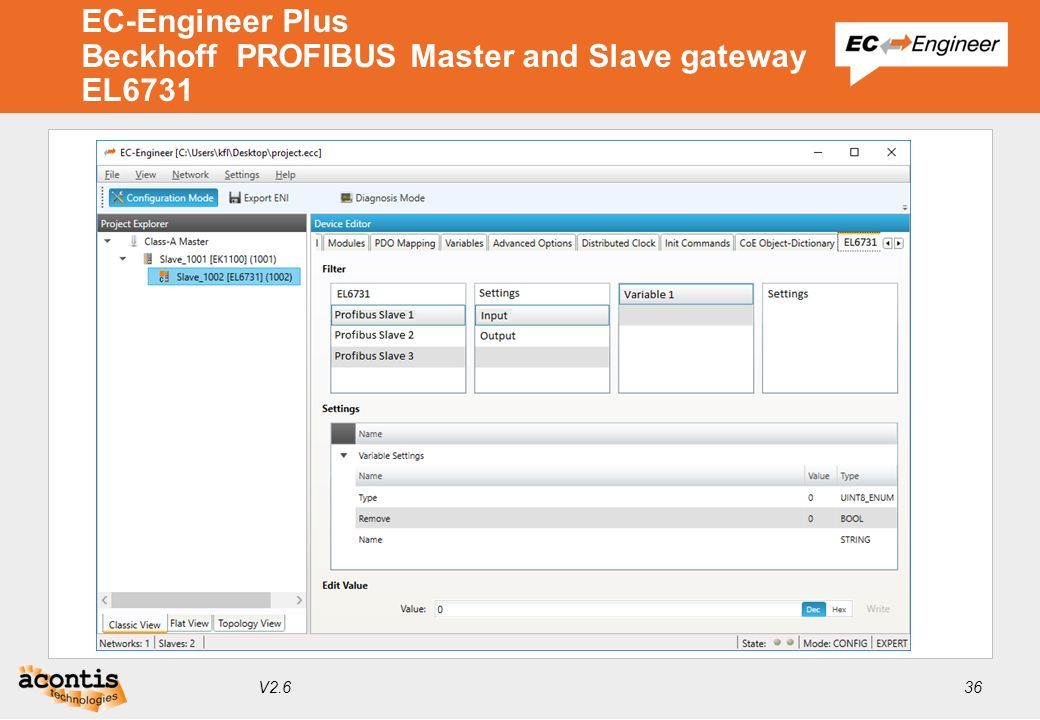

36. EC-Engineer Plus Beckhoff PROFIBUS Master and Slave gateway EL6731 V2.636

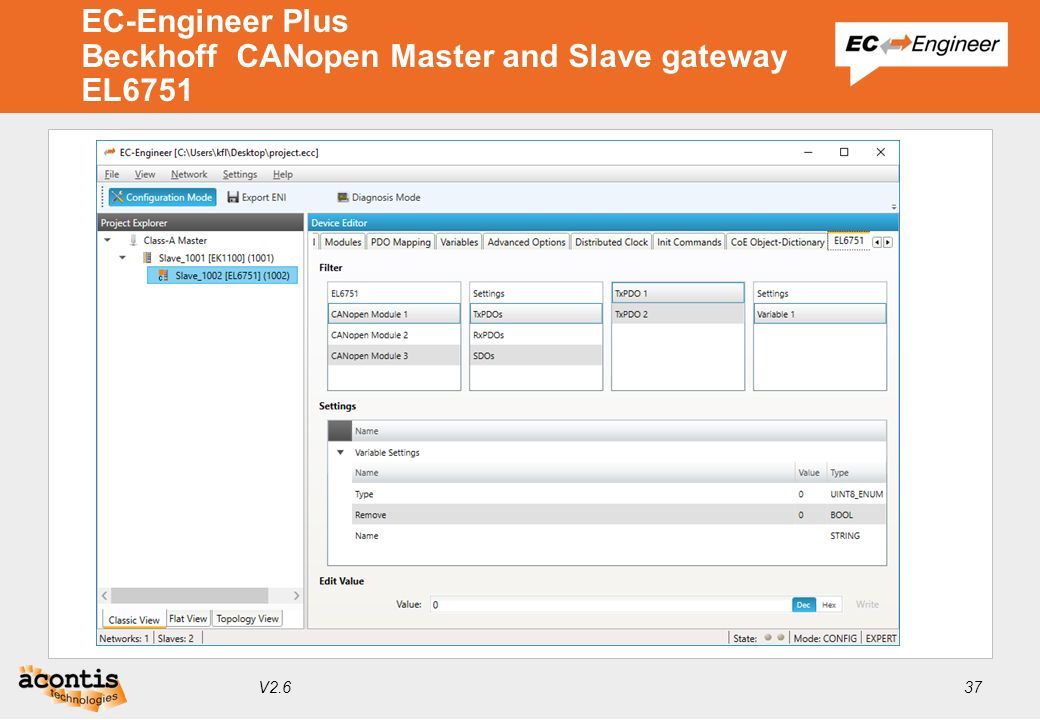

37. EC-Engineer Plus Beckhoff CANopen Master and Slave gateway EL6751 V2.637

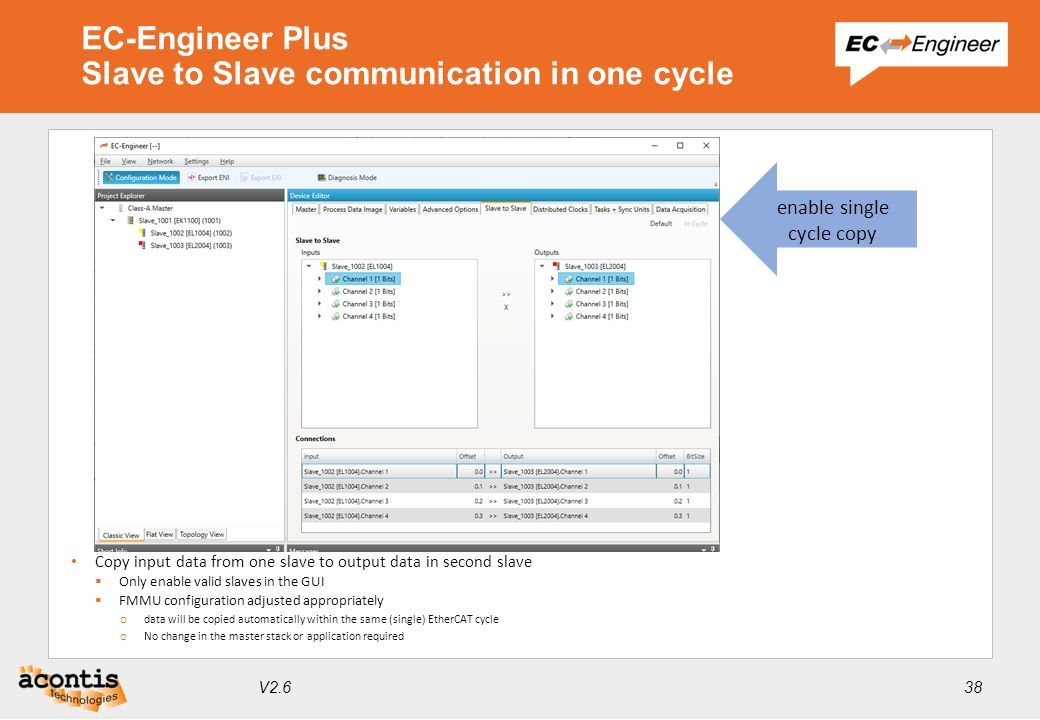

38. EC-Engineer Plus Slave to Slave communication in one cycle V2.638 Copy input data from one slave to output data in second slave  Only enable valid slaves in the GUI  FMMU configuration adjusted appropriately o data will be copied automatically within the same (single) EtherCAT cycle o No change in the master stack or application required enable single cycle copy

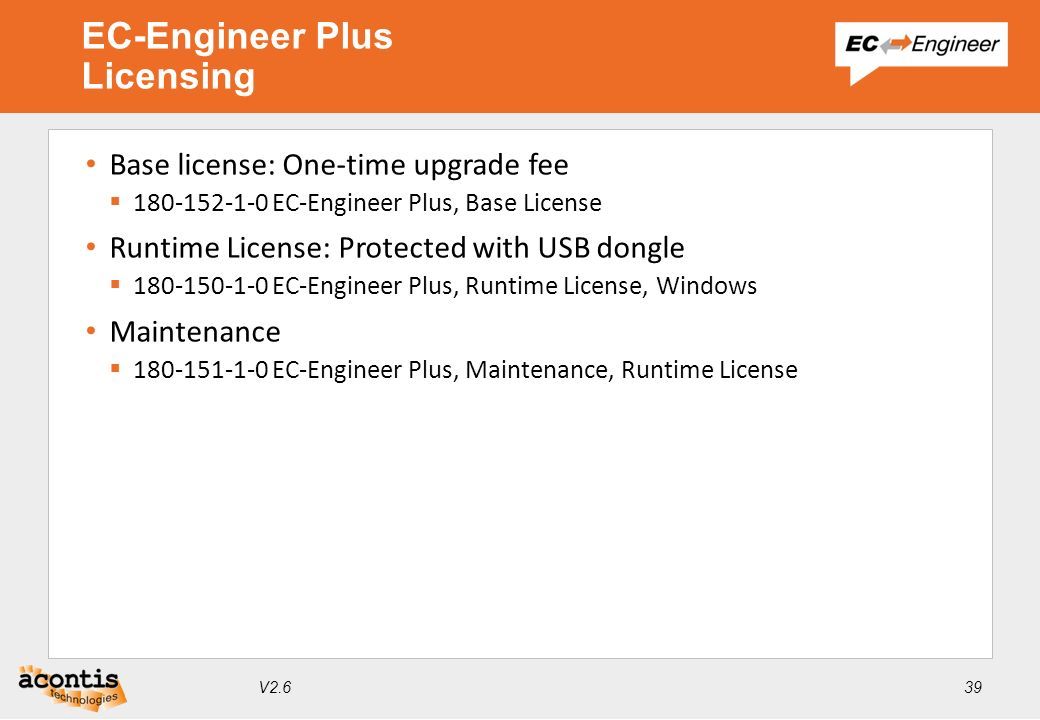

39. Base license: One-time upgrade fee  180-152-1-0 EC-Engineer Plus, Base License Runtime License: Protected with USB dongle  180-150-1-0 EC-Engineer Plus, Runtime License, Windows Maintenance  180-151-1-0 EC-Engineer Plus, Maintenance, Runtime License V2.639 EC-Engineer Plus Licensing

40. Software Development Kit

41. Customize EC-Engineer Enhance EC-Engineer Simplify EC-Engineer Integrate EC-Engineer Software Development Kit (SDK) SDK Software Development Kit to build your own EtherCAT Tool for configuration and diagnosis V2.641

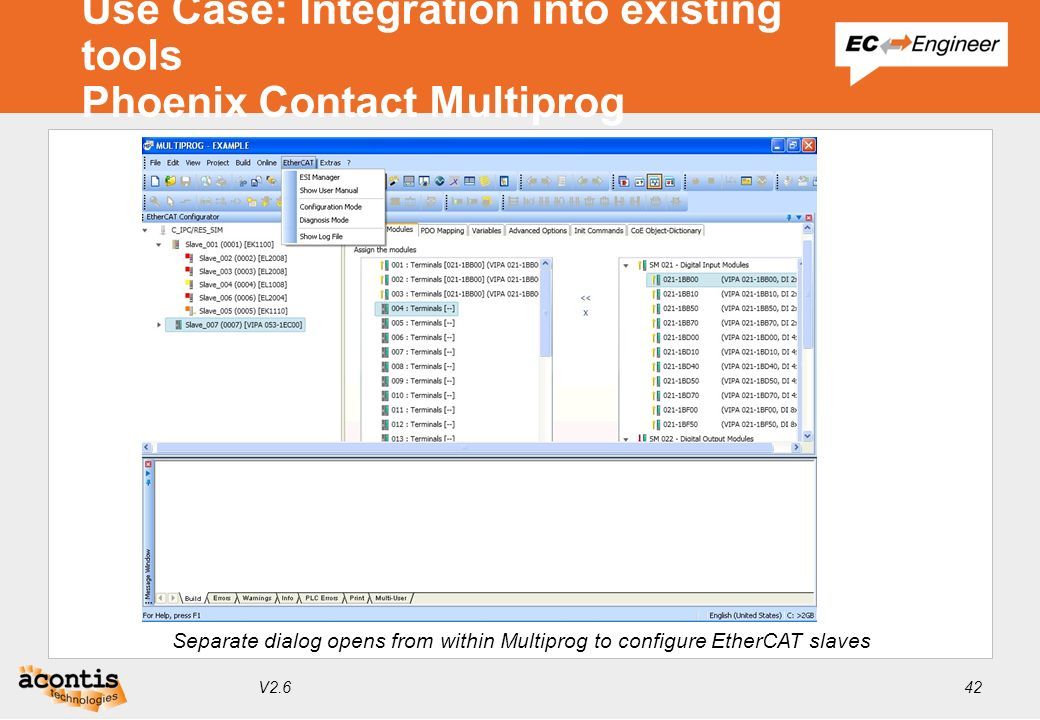

42. Use Case: Integration into existing tools Phoenix Contact Multiprog Separate dialog opens from within Multiprog to configure EtherCAT slaves V2.642

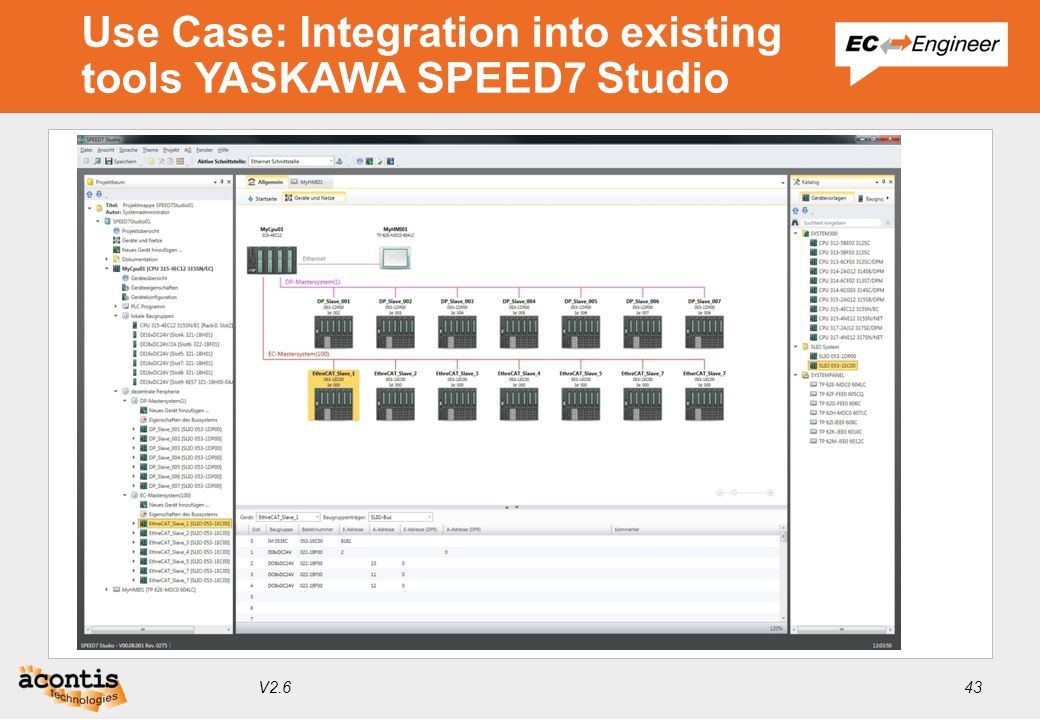

43. V2.6 Use Case: Integration into existing tools YASKAWA SPEED7 Studio 43

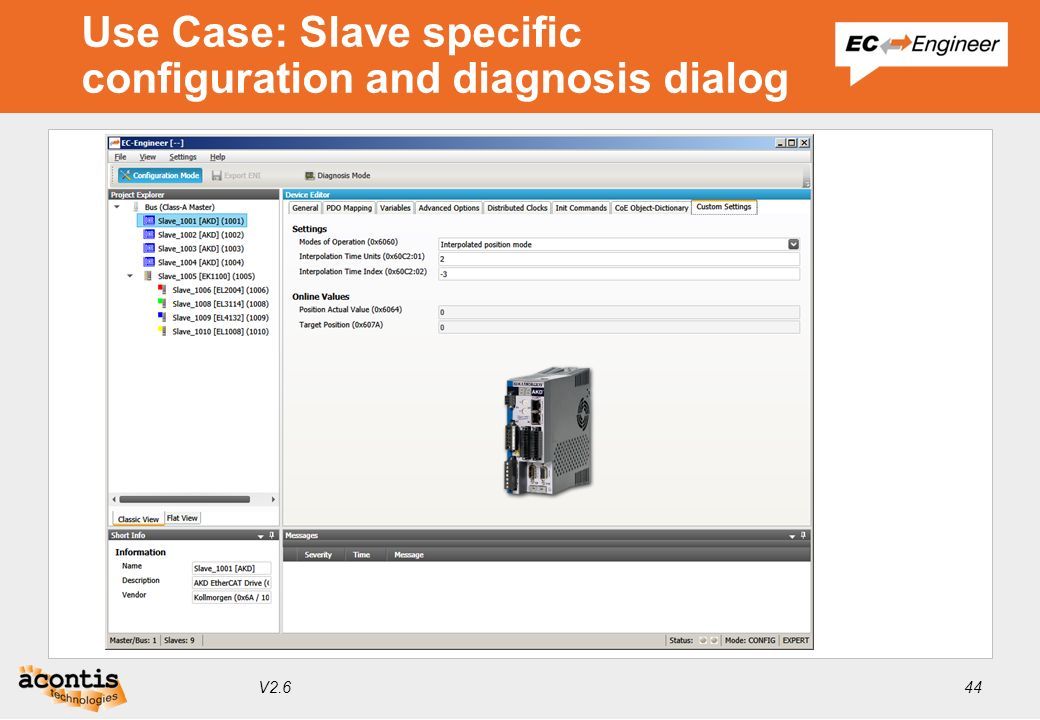

44. Use Case: Slave specific configuration and diagnosis dialog V2.644

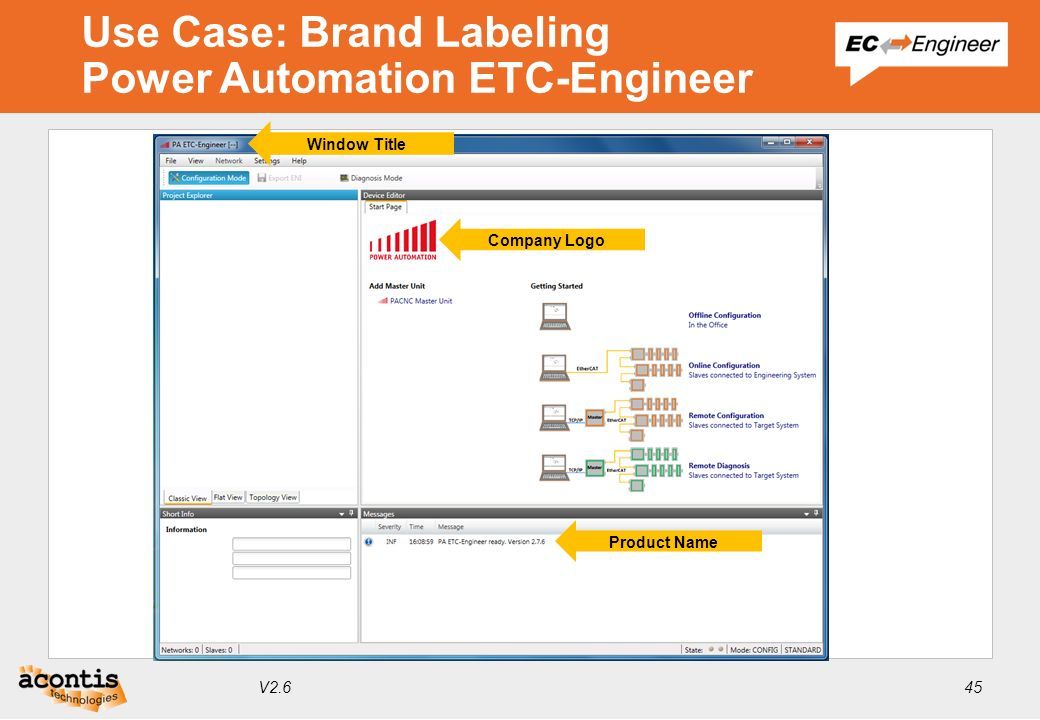

45. V2.6 Use Case: Brand Labeling Power Automation ETC-Engineer Product Name Window Title Company Logo 45

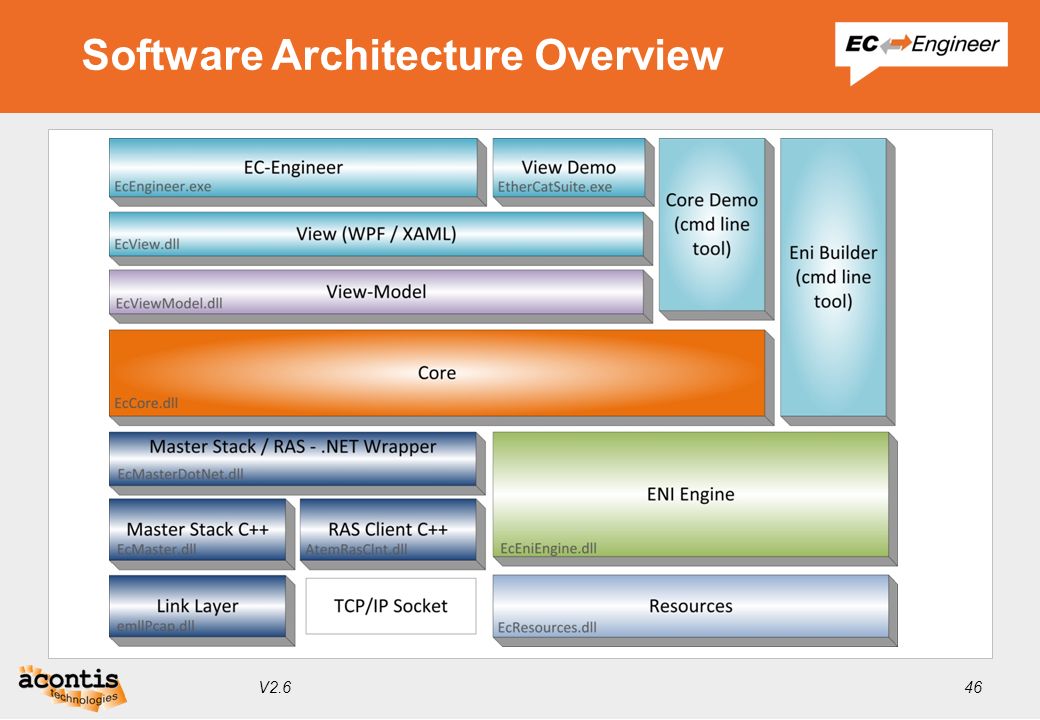

46. Software Architecture Overview V2.646

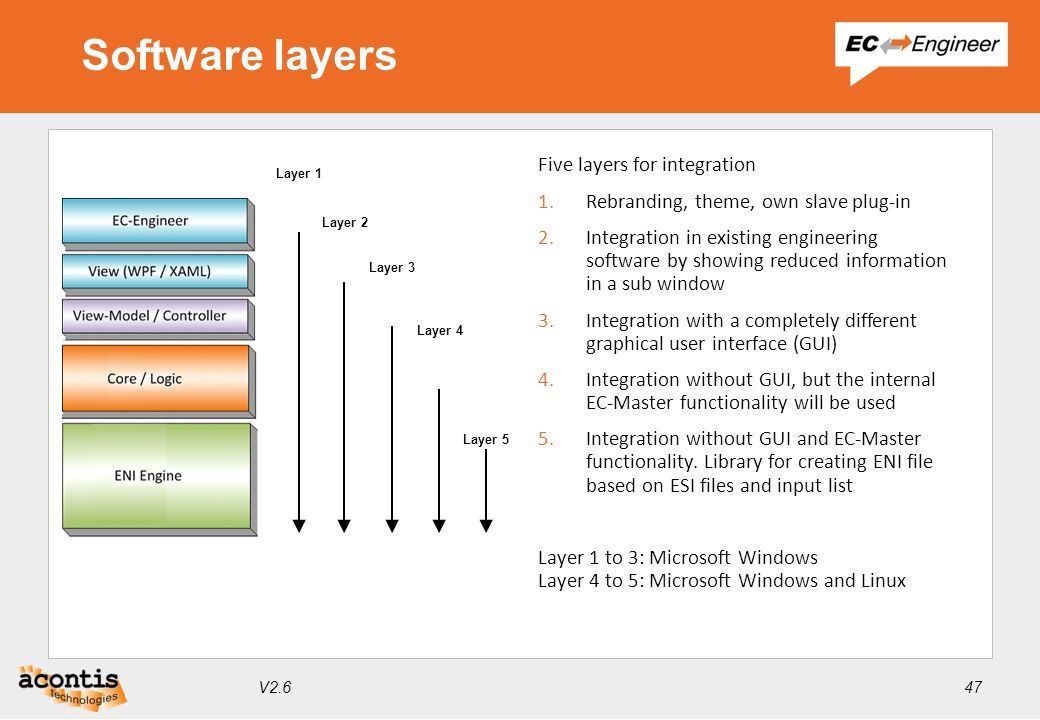

47. Five layers for integration 1.Rebranding, theme, own slave plug-in 2.Integration in existing engineering software by showing reduced information in a sub window 3.Integration with a completely different graphical user interface (GUI) 4.Integration without GUI, but the internal EC-Master functionality will be used 5.Integration without GUI and EC-Master functionality. Library for creating ENI file based on ESI files and input list Layer 1 to 3: Microsoft Windows Layer 4 to 5: Microsoft Windows and Linux Software layers Layer 1 Layer 2 Layer 3 Layer 4 Layer 5 V2.647

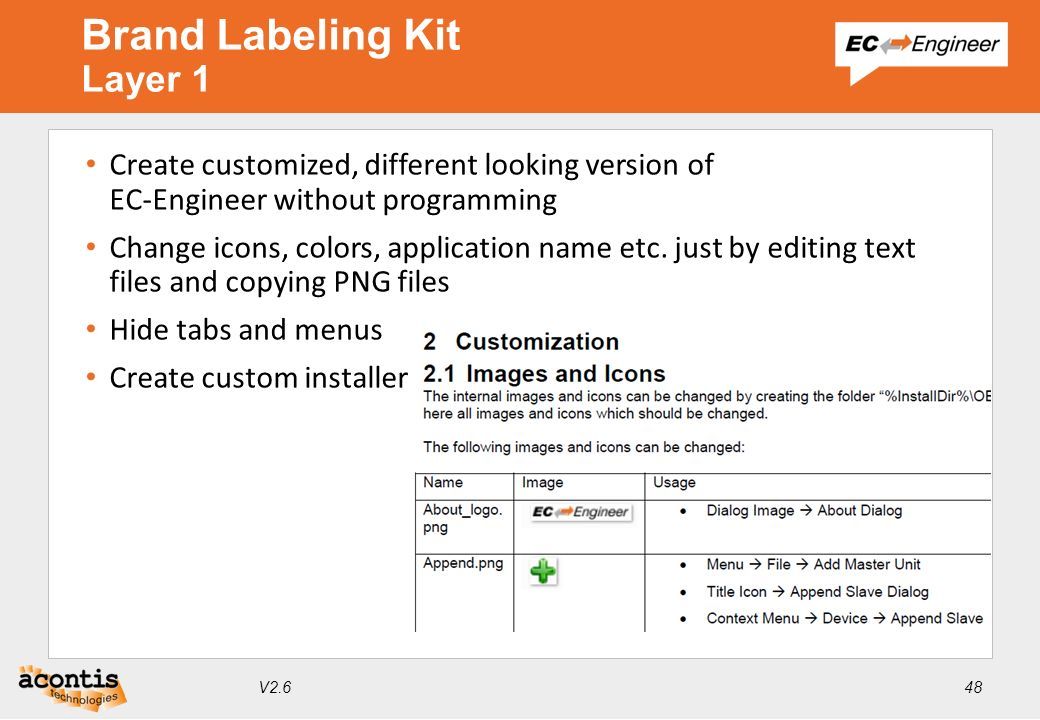

48. Create customized, different looking version of EC-Engineer without programming Change icons, colors, application name etc. just by editing text files and copying PNG files Hide tabs and menus Create custom installer V2.6 Brand Labeling Kit Layer 1 48

49. ENI Builder  Command line tool for creating ENI file based on a simple input file (EBI)  EBI file can be generated by customer´s application, e.g., existing configuration tool  All slave and master parameters, e.g., PDO, cycle time, variable names, bus topology, etc. defined by specific tags ENI Engine  Integrate business logic to create ENI file into customer´s application  Full-feature API (Classes) for specifying all slave and master parameters  Fast execution time, typically below two seconds Available on Windows and Linux EtherCAT Slave Information (ESI) according to ETG.2000 required for slaves V2.6 ENI Builder and ENI Engine Layer 5 49

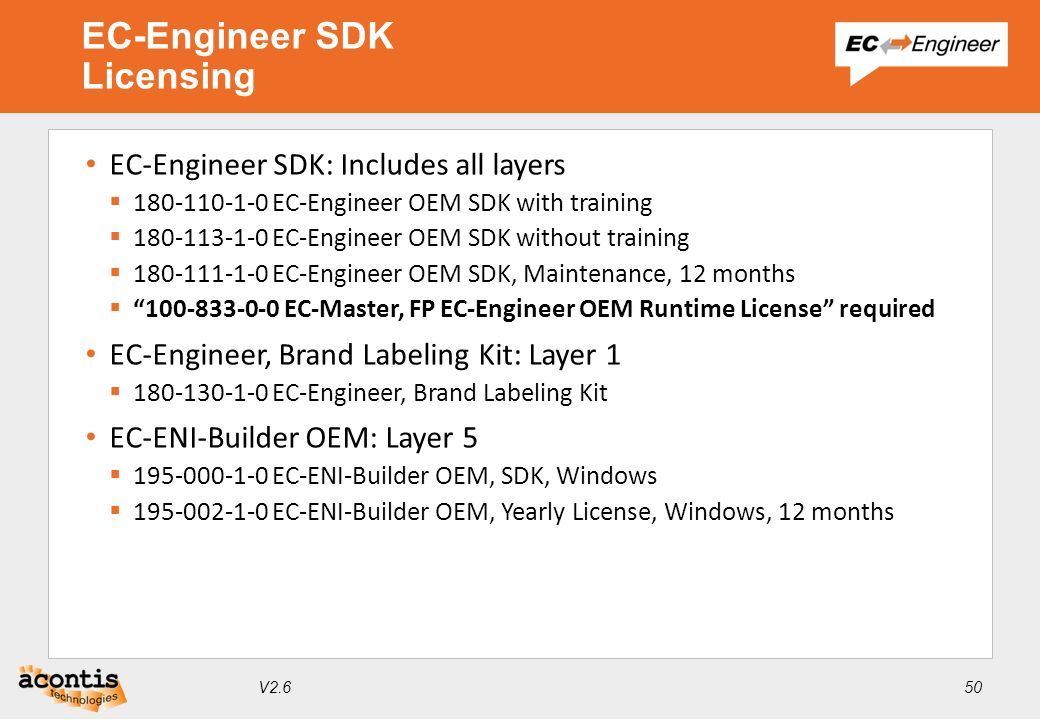

50. EC-Engineer SDK: Includes all layers  180-110-1-0 EC-Engineer OEM SDK with training  180-113-1-0 EC-Engineer OEM SDK without training  180-111-1-0 EC-Engineer OEM SDK, Maintenance, 12 months  “100-833-0-0 EC-Master, FP EC-Engineer OEM Runtime License” required EC-Engineer, Brand Labeling Kit: Layer 1  180-130-1-0 EC-Engineer, Brand Labeling Kit EC-ENI-Builder OEM: Layer 5  195-000-1-0 EC-ENI-Builder OEM, SDK, Windows  195-002-1-0 EC-ENI-Builder OEM, Yearly License, Windows, 12 months V2.650 EC-Engineer SDK Licensing

51. OEM Edition

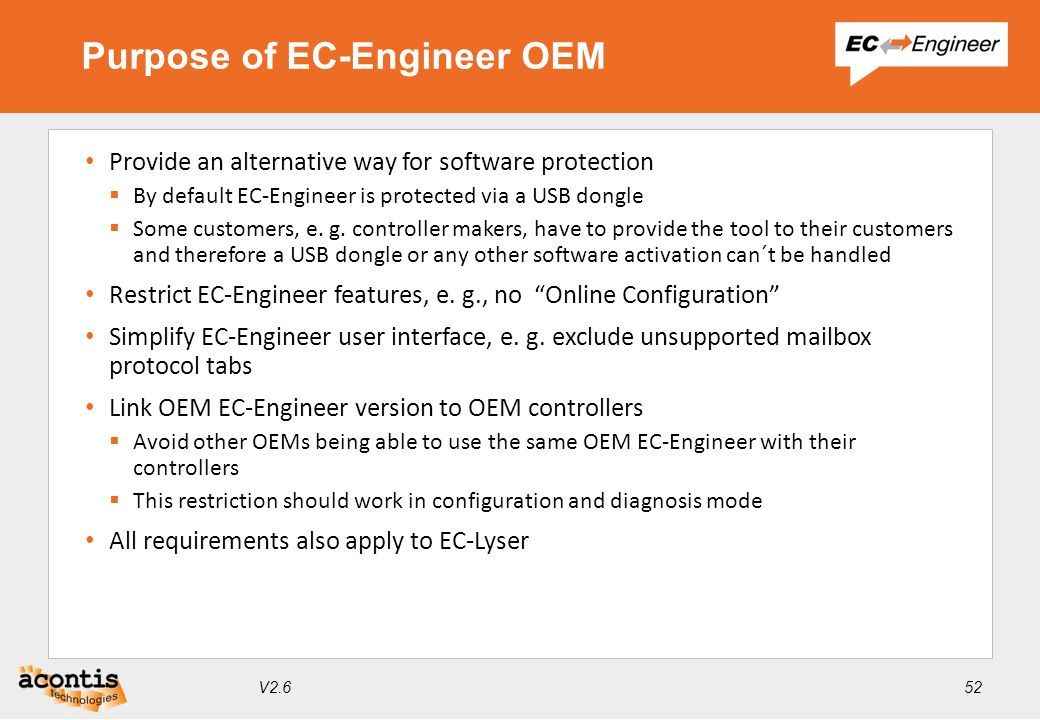

52. Provide an alternative way for software protection  By default EC-Engineer is protected via a USB dongle  Some customers, e. g. controller makers, have to provide the tool to their customers and therefore a USB dongle or any other software activation can´t be handled Restrict EC-Engineer features, e. g., no “Online Configuration” Simplify EC-Engineer user interface, e. g. exclude unsupported mailbox protocol tabs Link OEM EC-Engineer version to OEM controllers  Avoid other OEMs being able to use the same OEM EC-Engineer with their controllers  This restriction should work in configuration and diagnosis mode All requirements also apply to EC-Lyser Purpose of EC-Engineer OEM V2.652

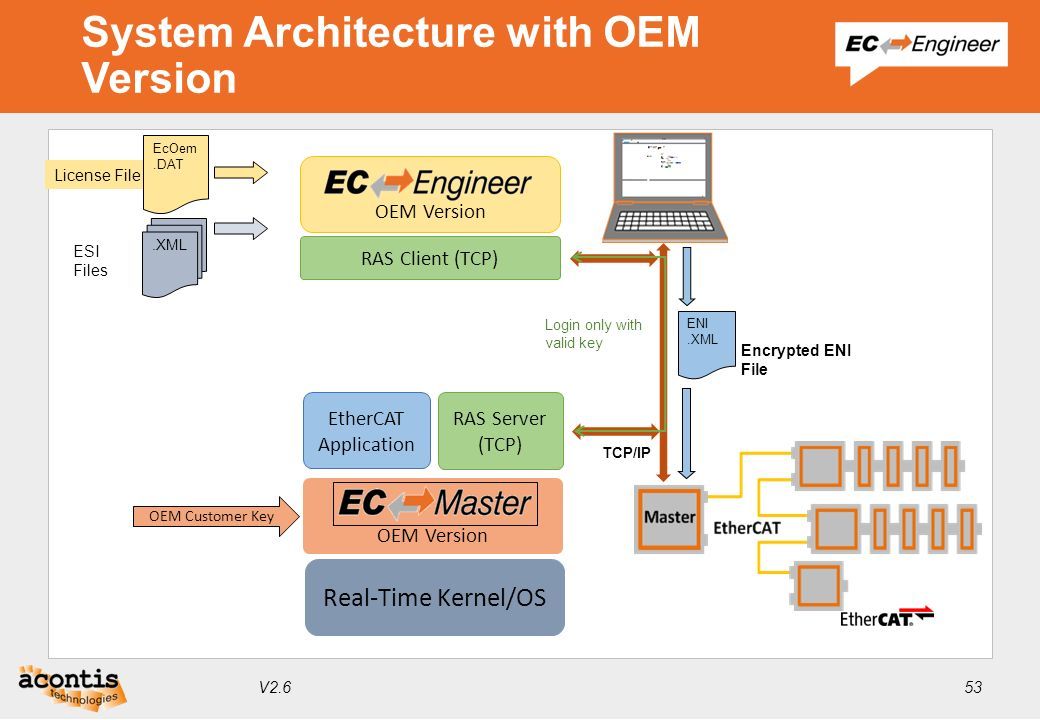

53. System Architecture with OEM Version Real-Time Kernel/OS OEM Version EtherCAT Application RAS Server (TCP) RAS Client (TCP) TCP/IP Login only with valid key ESI Files.XML License File EcOem.DAT Encrypted ENI File ENI.XML OEM Customer Key V2.653

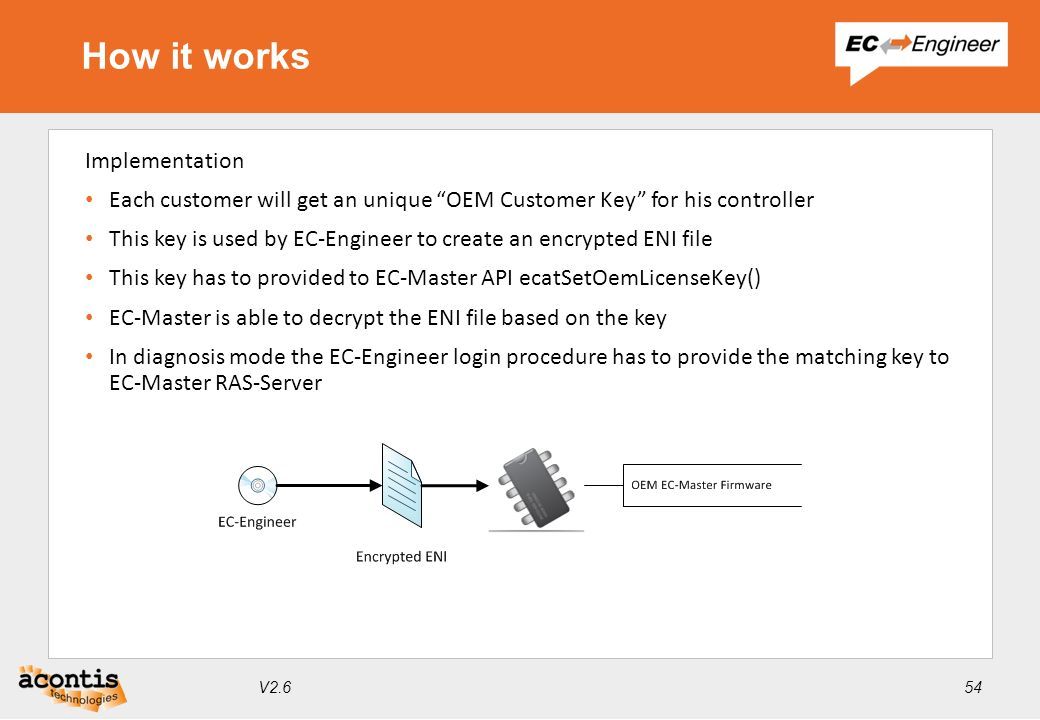

54. Implementation Each customer will get an unique “OEM Customer Key” for his controller This key is used by EC-Engineer to create an encrypted ENI file This key has to provided to EC-Master API ecatSetOemLicenseKey() EC-Master is able to decrypt the ENI file based on the key In diagnosis mode the EC-Engineer login procedure has to provide the matching key to EC-Master RAS-Server How it works V2.654

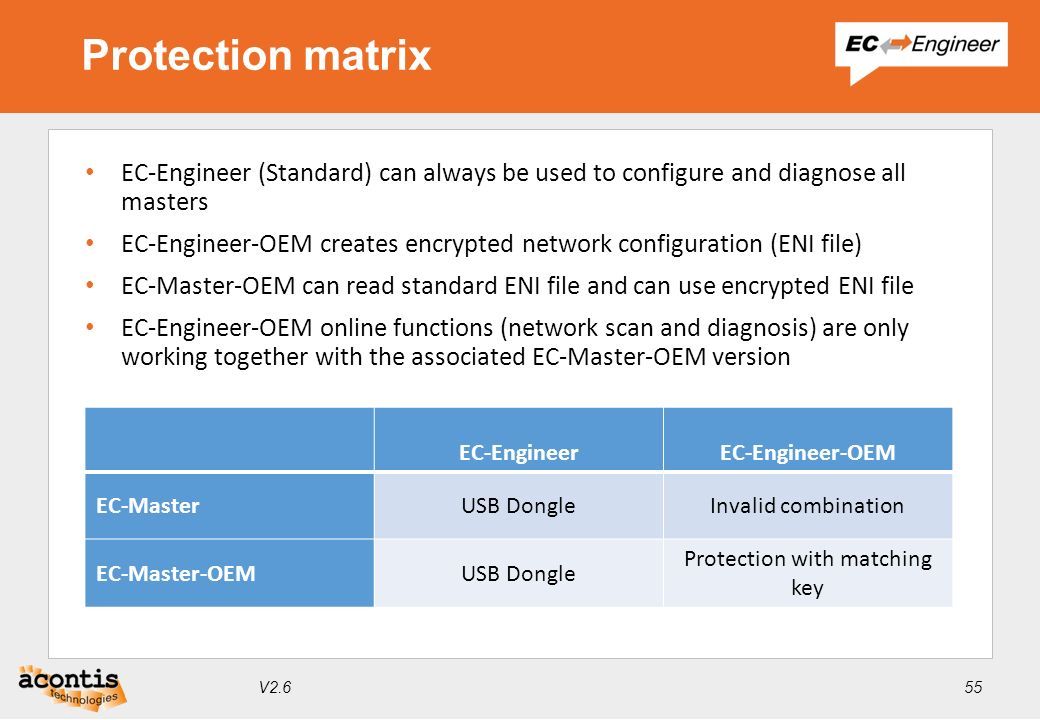

55. EC-Engineer (Standard) can always be used to configure and diagnose all masters EC-Engineer-OEM creates encrypted network configuration (ENI file) EC-Master-OEM can read standard ENI file and can use encrypted ENI file EC-Engineer-OEM online functions (network scan and diagnosis) are only working together with the associated EC-Master-OEM version Protection matrix EC-EngineerEC-Engineer-OEM EC-MasterUSB DongleInvalid combination EC-Master-OEMUSB Dongle Protection with matching key V2.655

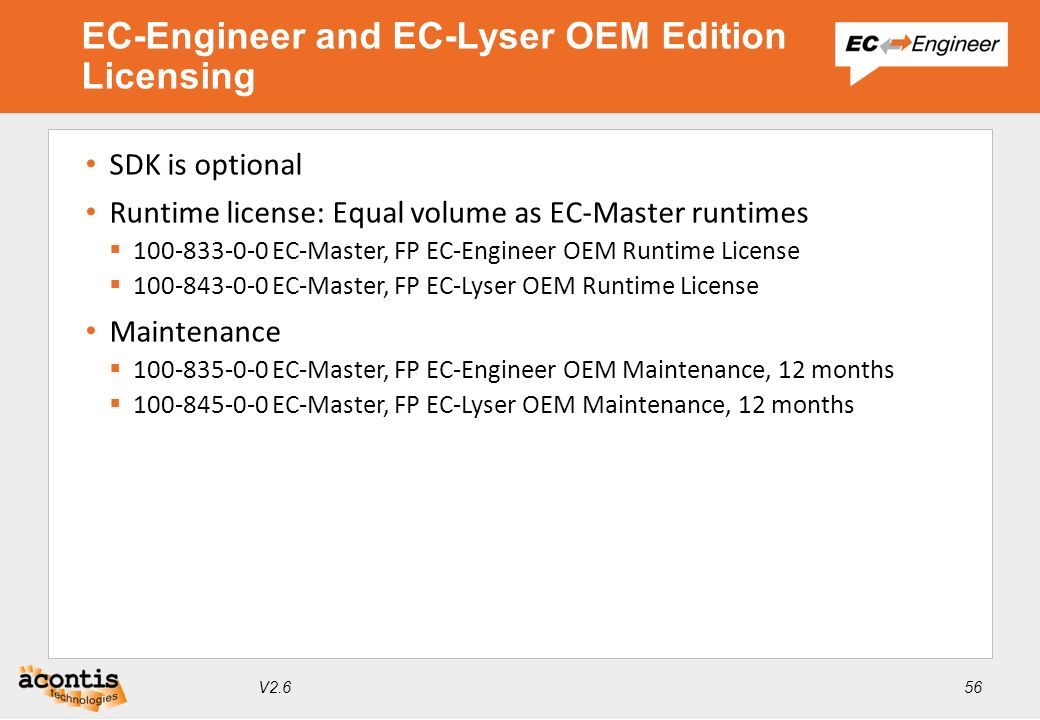

56. SDK is optional Runtime license: Equal volume as EC-Master runtimes  100-833-0-0 EC-Master, FP EC-Engineer OEM Runtime License  100-843-0-0 EC-Master, FP EC-Lyser OEM Runtime License Maintenance  100-835-0-0 EC-Master, FP EC-Engineer OEM Maintenance, 12 months  100-845-0-0 EC-Master, FP EC-Lyser OEM Maintenance, 12 months V2.656 EC-Engineer and EC-Lyser OEM Edition Licensing
