2. Topics
Interfaces
Abstract Classes
Final Classes
Enumerations

3. Using Interfaces for Algorithm Reuse
Interface types are used to express common operations.
An interface is a collection of method declarations.
An interface has no variable declarations or method bodies.
Describes a set of methods that a class can be forced to implement.
It is up to the class implementing the interface to implement ALL the method bodies

4. Syntax 10.1 Declaring an Interface
public interface InterfaceName {
// method signatures }
Example:Measuarable.java
public interface Measurable {
double getMeasure();
You can have more than 1 method declaration (no implementation)
Methods are public by default
Saved as Measuarable.java

5. Example1 Coin class implementing Measurable interface:
BankAccount class can implement Measurable interface too!
public class Coin implements Measurable {
public double getMeasure()
return value; }
. . .
public class BankAccount implements Measurable {
public double getMeasure()
return balance; }
. . .
X PERSON ^ ||
STUDENT PROFESSOR TA
TA implements Teachable{…
private int experience; }
Professor implements Teachable{..} OR
====================================
Professor extends Person Implements Employee
Student extends Person
TA extends Student Implements Employee
public class TA implements Employee {
void RaiseSalary( double d ) { // actual code here }
double GetSalary() { // actual code here }

6. <<Interface>> Emplyee
Example2
Person
Professor
Student
<<Interface>> Emplyee TA
public class TA extends Student implements Employee { void RaiseSalary( double d ) { // actual code here } double GetSalary() { // actual code here } } public class Professor extends Student implements Employee

7. Defining an Interface Type
You CAN create types of interface type:
E.g. Measurable measurable;
An interface type has no constructor.
You CANNOT create objects/instances from an interface
E.g. Measurable measurable = new Measurable() //WRONG!
You CAN create objects from a class implementing the interface
E.g. Measurable measurable = new Coin() //OK
Interface has NO instance variables
All interface methods are abstract

8. Example
Given that Measurable interface and BankAccount class implementing Measurable interface are implemented: OK
WRONG! OK OK
WRONG!
Cant call methods not in
Interface Measure

9. Syntax 10.2 Implementing an Interface
A class can implement multiple interfaces

10. Programming Question
Implement the Measurable interface (Measurable.java)
Then implement the Measurable interface in BankAccount class
Test BankAccount class:
public static void main(String[] args) {
Measurable account1 = new BankAccount(0);
System.out.println("account1.getMeasure() : "+account1.getMeasure()); }

11. Answer Measurable.java /**
Describes any class whose objects can be measured. */
public interface Measurable {
Computes the measure of the object.
@return the measure
double getMeasure(); }

12. Answer BankAccount.java
public class BankAccount implements Measurable{
private double balance;
public BankAccount() { balance = 0; }
public BankAccount(double initialBalance) { balance = initialBalance; }
public void deposit(double amount) { balance = balance + amount; }
public void withdraw(double amount) { balance = balance - amount; }
public double getBalance() { return balance; }
public double getMeasure() { return balance; }
public static void main(String args[]) {
Measurable account1 = new BankAccount(0);
System.out.println("account1.getMeasure() : "+account1.getMeasure()); }

13. Implementing an interface allows a class to become more formal about the behavior it promises to provide.
Interfaces form a contract between the class and the outside world, and this contract is enforced at build time by the compiler.
If your class claims to implement an interface, all methods defined by that interface must appear in its source code before the class will successfully compile.

14. <<interface>> Shape
Another Example
<<interface>> Shape
draw()
resize()
implements
Circle
draw()
resize()
Line
draw()
resize()
Rectangle
draw()
resize()
extends
Square
draw()
resize()

15. Example Defining static constants in interface is OK
public interface Shape {
double PI = 3.14; // static and final => upper case
void draw(); // automatic public
void resize(); // automatic public }
public class Rectangle implements Shape {
public void draw() {System.out.println ("Rectangle"); }
public void resize() { /* do stuff */ }
public class Square extends Rectangle {
public void draw() {System.out.println ("Square"); }
Defining static constants in interface is OK

16. Interfaces vs Inheritance
A class can implement more than one interface:
public class Country implements Measurable, Named
A class can only extend (inherit from) a single superclass.
An interface specifies the behavior that an implementing class should supply - no implementation.
A superclass provides some implementation that a subclass inherits.
Develop interfaces when you have code that processes objects of different classes in a common way.
E.g. Notepad, Word, PowerPoint, Excel applications print/display

17. Question What is wrong with this code?
Measurable meas = new Measurable();
System.out.println(meas.getMeasure());

18. Answer
Answer: Measurable is not a class. You cannot construct objects of type Measurable.

19. Question
Assuming Country class implements Measurable interface, What is wrong with this code?
Measurable meas = new Country("Uruguay", ); System.out.println(meas.getName());

20. Answer
Answer: The variable meas is of type Measurable, and that type has no getName method.

21. Converting From Classes to Interfaces
You can convert from a class type to an interface type, provided the class implements the interface.
BankAccount account = new BankAccount(1000);
Measurable meas = account; // OK if BankAccount implements
// Measurable interface
OK because BankAccount class
implements Measurable interface
NOT OK because String class
does NOT implement Measurable interface

22. Variables of Class and Interface Types
Figure 3 An Interface Reference Can Refer to an Object of Any Class that Implements the Interface
Method calls on an interface reference are polymorphic
The appropriate method is determined at run time.
Coin? Or BankAccount?

23. Example

24. Casting from Interfaces to Classes
Method to return the object with the largest measure:
public static Measurable larger( Measurable obj1, Measurable obj) {
if (obj1.getMeasure() > obj2.getMeasure())
return obj1;
return obj2; }
Returns the object with the larger measure, as a Measurable reference.
Country uruguay = new Country("Uruguay", );
Country thailand = new Country("Thailand", );
Measurable max = larger(uruguay, thailand);
You need a cast to convert from an interface type to a class type.
Country maxCountry = (Country) max; //cast to class OK
String name = maxCountry.getName();
If you are wrong and max doesn't refer to a Country object, the program throws an exception at runtime.

25. Abstract Classes
When you extend an existing class, you have the choice whether or not to override the methods of the superclass.
Sometimes, it is desirable to force programmers to override a method.
That happens when there is no good default for the superclass, and only the subclass programmer can know how to implement the method properly.
E.G
Employee {
getname(){ ….} //base implementation make sense
computeSalary(){return 2000;} //base implementation does not make sense b/s u have either salaried emps or commission emps in a company, not general emps
//subclasses should override it –WE WANT TO FORCE PROGRAMMER TO OVERRIDE IT
//but overriding is OPTIONAL– compiler will not complain even if programmer does not }
SalariedEmployee extends Emplyee {…………….}
CommissionEmployee extends Employee {………………}

26. Example Even if we implement this method, there is no
Employee
SalariedEmployee
CommissionEmployee
Even if we implement this method, there is no
Proper implementation. Only subclasses can provide a suitable implementation (why? There are only either Salaried employees or Commission employees in a company)
So we like to FORCE subclass to override the method.
Right now overriding this method is optional in subclasses

27. Solution: Abstract classes and methods
Use keyword abstract
declare class abstract
declare the method as an abstract method in superclass (no implementation)
Now any subclasses are FORCED to
implement this abstract method
(OR subclass needs to be declared
abstract too!)

28. Subclass implement inherited abstract method
Subclass chose not to implement inherited abstract method.
So subclass MUST be declared abstract

29. Even if subclass has no own/inherited abstract methods that are not implemented, it can choose to define class abstract.
This is to avoid creating objects from this class.

30. Abstract Classes An abstract method has no implementation.
This FORCE the implementers of subclasses to specify concrete implementations of this method.
You cannot construct objects of a abstract class
you can still have a variable whose type is an abstract class.
Actual object to which it refers must be an instance of a concrete subclass
A class for which you cannot create objects is called an abstract class.
A class for which you can create objects is sometimes called a concrete class.

31. Example: creating object
Employee: abstract class
CommissionEmployee: concrete class OK
NOT OK OK

32. Abstract Classes Which classes MUST be declared abstract?
A class that declares an abstract method
A class that inherits an abstract method without overriding it
Optionally, if you want, declare classes with no abstract methods as abstract.
Doing so prevents programmers from creating instances of that class but allows them to create their own subclasses.

33. Previous example again..
A class that declares an abstract method
A class that inherits an abstract method without overriding it
Optionally, if you want, declare classes with no abstract methods(not declared/not inherited) as abstract.

34. Abstract Classes Why use abstract classes?
To FORCE programmers to create subclasses.
By specifying certain methods as abstract you avoid the trouble of coming up with useless default methods that others might inherit by accident.
abstract classes can have:
instance variables,
concrete methods and
constructors.

35. Programming Question Implement the abstract class Shape:
Instance variables: color [type string]
Constructor: 1-arg constructor that initialize color
Instance method: toString that print “ Shape of color=the color”
Abstract method: getArea that return area of the shape
Subclass Rectangle:
Instance variables: length, width
Constructor: 3-arg constructor that initaize color,length,width
Instance method: override toString to print instance variable values
method: overrde getArea that return area of the Rectangle

36. Answer
Shape.java
public abstract class Shape { private String color; public Shape (String color) { this.color = color; public String toString() { return "Shape of color=" + color; public abstract double getArea();

37. Rectangle.java
public class Rectangle extends Shape { private int length; private int width; public Rectangle(String color, int length, int width) { super(color); this.length = length; this.width = width; public String toString() { return "Rectangle of length=" + length + " and width=" + width + ", subclass of " + super.toString(); public double getArea() { return length*width;

38. Triangle.java
public class Triangle extends Shape { private int base; private int height; public Triangle(String color, int base, int height) { super(color); this.base = base; this.height = height; public String toString() { return "Triangle of base=" + base + " and height=" + height + ", subclass of " + super.toString(); public double getArea() { return 0.5*base*height;

39. TestShape.java
public class TestShape { public static void main(String[] args) { Shape s1 = new Rectangle("red", 4, 5); System.out.println(s1); System.out.println("Area is " + s1.getArea()); Shape s2 = new Triangle("blue", 4, 5); System.out.println(s2); System.out.println("Area is " + s2.getArea()); // Cannot create instance of an abstract class //Shape s3 = new Shape("green"); // Compilation Error!! }

40. Final Methods and Classes
Occasionally, you may want to prevent other programmers from creating subclasses or from overriding certain methods.
Opposite of abstract methods
In these situations, you use the final reserved word
E.g. String class in Java library is final:
i.e. nobody can extend (create subclasses of) the String class

41. You can also declare individual methods as final:
Class need not be
final

42. Common Error Overriding Methods to Be Less Accessible
If a superclass declares a method to be publicly accessible, you cannot override it to be more private in a subclass.
E.g. superclass: BankAccount
E.g subclass: CheckingAccount
The compiler does not allow this

43. Enumeration Types
A special data type that enables for a variable to be a set of predefined constants
The variable must be equal to one of the predefined values.

45. An enumeration type variable can be null. E.g.
the status variable in the previous example can actually have three values:
SINGLE, MARRIED, and null.

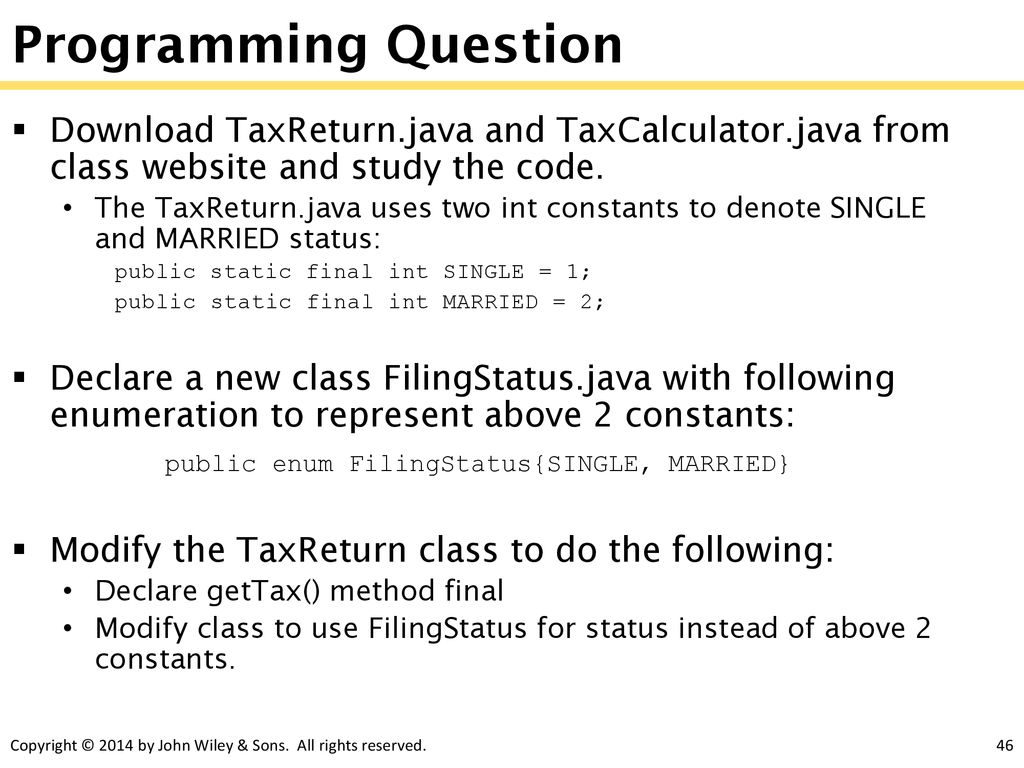

46. Programming Question
Download TaxReturn.java and TaxCalculator.java from class website and study the code.
The TaxReturn.java uses two int constants to denote SINGLE and MARRIED status:
public static final int SINGLE = 1;
public static final int MARRIED = 2;
Declare a new class FilingStatus.java with following enumeration to represent above 2 constants:
public enum FilingStatus{SINGLE, MARRIED}
Modify the TaxReturn class to do the following:
Declare getTax() method final
Modify class to use FilingStatus for status instead of above 2 constants.

47. Answer
FilingStatus.java
public enum FilingStatus{SINGLE, MARRIED}

48. TaxReturn.java CONTINUED.. 1 import java.util.Scanner; 2 /**
3 A tax return of a taxpayer in 2008.
4 */
5 public class TaxReturn
6 {
7 private static final double RATE1 = 0.10;
8 private static final double RATE2 = 0.25;
9 private static final double RATE1_SINGLE_LIMIT = 32000;
10 private static final double RATE1_MARRIED_LIMIT = 64000; 11
12 private double income;
13 private FilingStatus status; 14
15 /**
Constructs a TaxReturn object for a given income and
marital status.
@param anIncome the taxpayer income
@param aStatus either SINGLE or MARRIED
20 */
21 public TaxReturn(double anIncome, FilingStatus aStatus)
22 {
income = anIncome;
status = aStatus;
25 } 26
CONTINUED..

49. 27 public final double getTax()
28 {
double tax1 = 0;
double tax2 = 0; 31
if (status == FilingStatus.SINGLE) {
if (income <= RATE1_SINGLE_LIMIT) {
tax1 = RATE1 * income; }
else {
tax1 = RATE1 * RATE1_SINGLE_LIMIT;
tax2 = RATE2 * (income - RATE1_SINGLE_LIMIT); } }
else {
if (income <= RATE1_MARRIED_LIMIT) {
tax1 = RATE1 * income; }
else {
tax1 = RATE1 * RATE1_MARRIED_LIMIT;
tax2 = RATE2 * (income - RATE1_MARRIED_LIMIT); } } 56
return tax1 + tax2;
58 }

50. 59
60 public static void main(String[] args)
61 {
Scanner in = new Scanner(System.in); 63
System.out.print("Please enter your income: ");
double income = in.nextDouble(); 66
System.out.print("Are you married? (Y/N) ");
String input = in.next();
FilingStatus status;
if (input.equals("Y")) {
status = FilingStatus.MARRIED; }
else {
status = FilingStatus.SINGLE; } 78
TaxReturn aTaxReturn = new TaxReturn(income, status); 80
System.out.println("Tax: “ + aTaxReturn.getTax());
83 }
84}

51. Inner Classes
An inner class X is a class whose declaration is nested within the declaration of another class Y.
The syntax of an inner class declaration is as follows:
public class OuterClassX //outer class {
// Declare outer class features, as desired ... details omitted.
// We declare an INNER class wholly within the BODY of the OUTER class.
// Note: inner classes are NOT declared to be public - they are only
// "visible" as a type to the outer class in which they are declared.
class InnerClassY //inner class
// Declare the inner class's features ...
// details omitted. }

52. Inner Classes The purpose of declaring an inner class:
conceal the fact that the class exists from the application
Invents a private type that only the enclosing outer class knows about.
Enclosing outer class can declare variables of type inner class
Anywhere else, we cannot!
Attempting to do so will produce a “cannot find symbol” compiler error
E.g.
Let’s look at a specific example of an inner class called GradeBook, declared within the Course class.

53. Inner class Example: import java.util.*;
public class Course //OUTER CLASS {
private String name;
private ArrayList<Student> enrolledStudents;
private GradeBook gradeBook;
public Course(String name) {
this.name = name;
enrolledStudents = new ArrayList<Student>();
gradeBook = new GradeBook(); }
public void assignGrade(Student s, String grade) {
gradeBook.setGrade(s, grade);
public String lookUpGrade(Student s) {
return gradeBook.getGrade(s);
class GradeBook { //INNER CLASS
private HashMap<Student, String> grades;
public GradeBook() {
grades = new HashMap<Student, String>();
public void setGrade(Student s, String grade) {
grades.put(s, grade);
public String getGrade(Student s) {
return grades.get(s);
} // end inner class declaration
} // end outer class declaration
Inner class

54. Inner Classes Assume Student.java is as follows:
public class Student{
String name;
public Student(String name) { this.name = name; }
public String getName() { return this.name; } }
We may write client code as follows:
Here’s the output:
public class MyApp {
public static void main(String[] args) {
Course c = new Course("MATH 101");
Student s1 = new Student("Fred");
c.assignGrade(s1, "B-");
Student s2 = new Student("Cynthia");
c.assignGrade(s2, "A+");
System.out.println(s1.getName() +" received a grade of " + c.lookUpGrade(s1));
System.out.println(s2.getName() +" received a grade of " + c.lookUpGrade(s2)); }

55. Inner Classes
However, if we were to try to reference GradeBook as a type anywhere outside of the Course class:
We get the following compiler error
public class MyApp {
public static void main(String[] args) {
// This won't compile! GradeBook is not known as a type outside of the
// Course class boundaries.
GradeBook gb = new GradeBook();
// etc.

56. Inner Classes What happens in compilation?
When a class containing an inner class definition is compiled, we wind up with separate bytecode files named OuterClass.class and OuterClass$InnerClass.class, respectively
E.g. Course.class and Course$GradeBook.class

57. Programming Question
Implement the Company (outer) class with following:
Inner class: Employee
Instance variable: name
1-arg constructor that initialize employee name
Instance method getName that return employee name
Inner class: Department
1-arg constructor that initialize department name
Instance method getName that return department name
Instance method : newStarter:
Accepts employee name and department name as parameters
Create an employee object and department object
Print “employe XXX is a member of department “”YY”
main method:
Company c = new Company();
c.newStarter("Henry", "IT");

58. Answer Company.java public class Company { class Employee {
private String name;
Employee(String name) { this.name = name; }
public String getName() {return name; } }
class Department {
Department (String name) { this.name = name; }
public String getName() { return name; }
public void newStarter(String name, String department) {
Employee emp = new Employee(name);
Department dpt = new Department(department);
System.out.println(emp.getName() + " is a member of " + dpt.getName());
public static void main(String[] args) {
Company c = new Company();
c.newStarter("Henry", "IT");

59. Relationships Between Objects
Inheritance
Implementation (interfaces)
Association
Dependency
Aggregation
composition
Association
Implements/ Realizes
Inheritance
Dependency
Aggregation
Composition
UML Notation

60. Association A relationships between two different classes
E.g. Professor advises Student
One-to-many : one professor advises may students. A student is advised by only one Professor 1 *

61. * *

62. * Implementation: 1 Class Professor { …
ArrayList<Student> advisees; }
Class Student { …
Professor advisor; }

63. Aggregation A special form of association
Alternatively referred to as the
consists of,
is composed of, or
has a relationship

64. For example, a car is composed of an engine, a transmission, four wheels
so if Car, Engine, Transmission, and Wheel were all classes, then we could form the following aggregations:
A Car contains an Engine.
A Car contains a Transmission.
A Car is composed of many (in this case, four) Wheels.
UML Syntax:

65. E.g. University is composed of schools
Notice that we can get by without using aggregation:
Association and aggregation are rendered in code in precisely the same way

66. * Implementation: 1 Class Whole { … Arraylist<PartA> parAList;
PartB partB; } *
Class PartA
Whole whole;
Class PartB 1

67. Composition Composition is a strong form of aggregation
The “parts” cannot exist without the “whole.”
E.g., relationship = “a Book is composed of many Chapters”
we could argue that a chapter cannot exist if the book to which it belongs ceases to exist;
E.g. relationship = “a Car is composed of many Wheels”,
A wheel can be removed from a car and still serve a useful purpose.
Book–Chapter relationship as composition and the Car–Wheel relationship as aggregation.

68. UML Diagram: Book is composed of Chapters

69. Implementation * Class Book { … ArrayList<Chapter> chapters; }
Class Chapter
Book book; *
