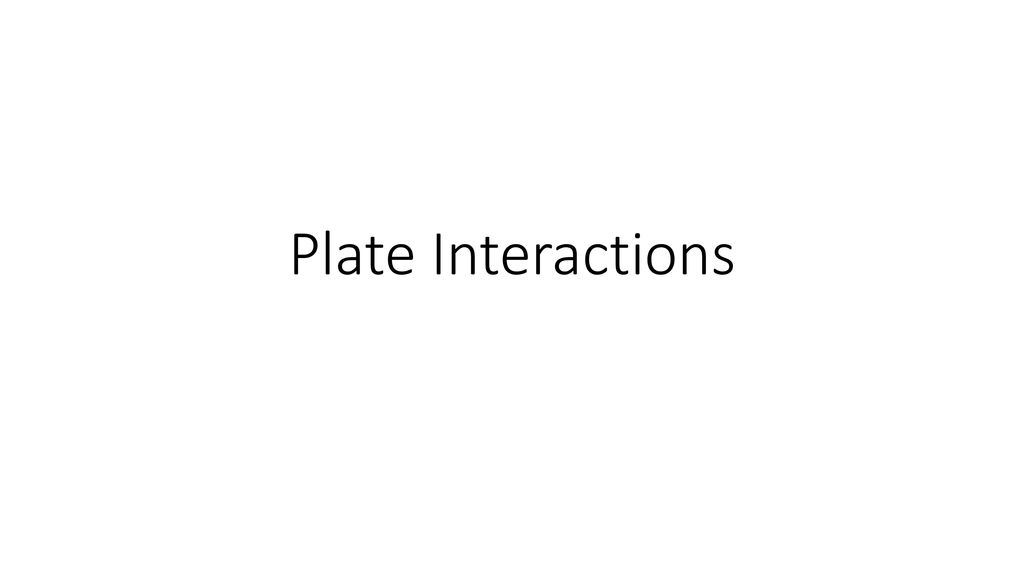

1. Plate Interactions What do you think we might see at a plate boudary?
What might we feel?

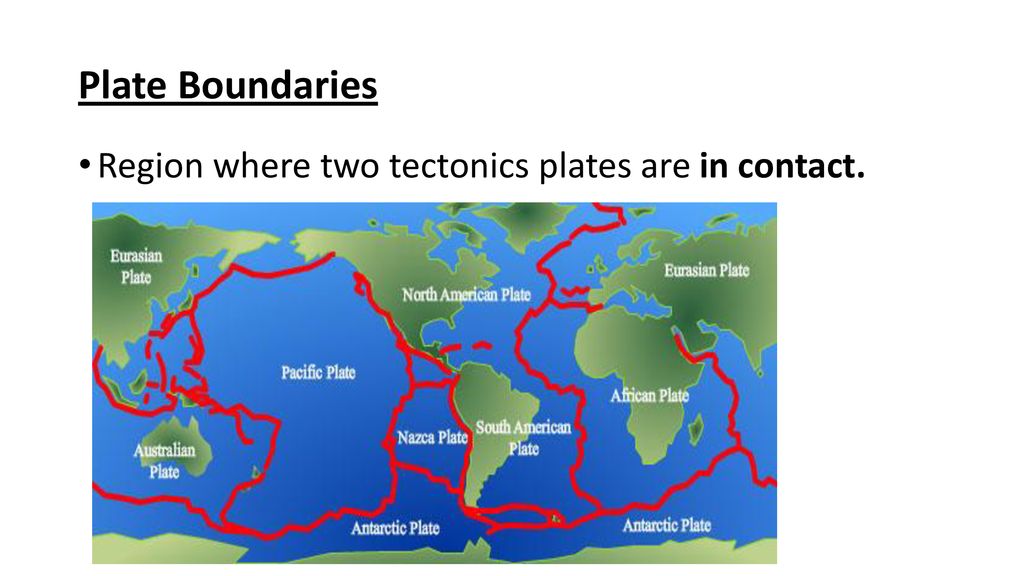

2. Plate Boundaries Region where two tectonics plates are in contact.
What boundary are we next to?
See: Ridges, Trenches, Action felt: volcanoes, earthquakes

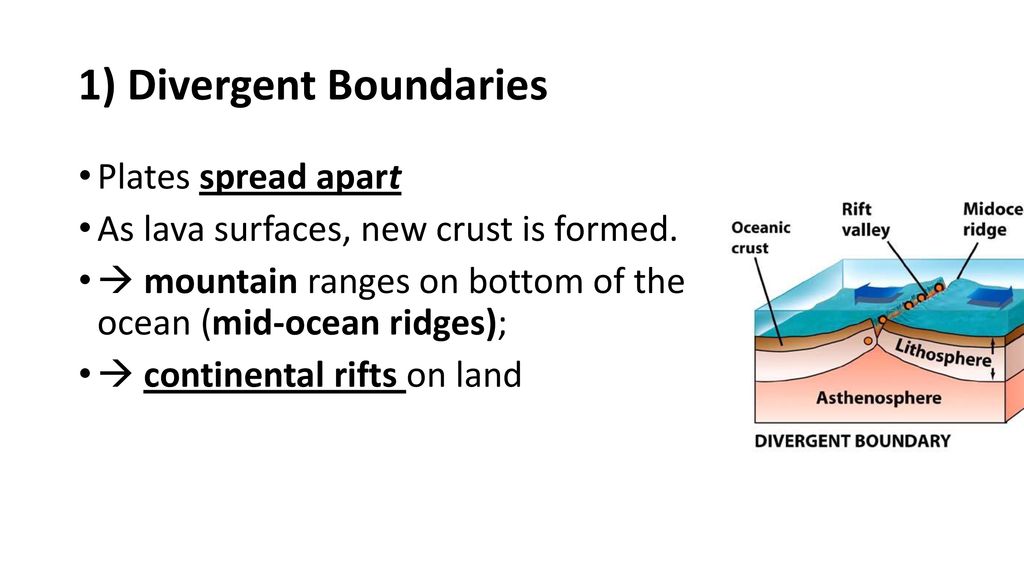

3. 1) Divergent Boundaries
Plates spread apart
As lava surfaces, new crust is formed.
 mountain ranges on bottom of the ocean (mid-ocean ridges);
 continental rifts on land
As tectonic plates move they sometimes move away from each other at divergent plate boundaries. The space left behind opens a large hole between the plates that is either filled with sediment, magma flowing from the mantle, or water. The major difference between different types is what type of plate the divergent boundary is between.
If the boundary is found between two continental plates you are left with a rift valley. This leads to steep mountainsides spreading apart from a widening valley. In the center of the valley either large gaps can form or the area will fill with water from water sources or rain creating rift lakes, much like what can be found in the African Rift Valley. Many lakes have sprung up in the valleys left behind as the plates there move slowly away from each other.
If two oceanic plates begin moving away from each other it creates a mid-oceanic ridge. Continental plates are less dense, and thus float much higher on the mantle. Magma is usually much farther away, so it's rare to find a splitting continental plate seeping magma. On the other hand, oceanic plates are thin and dense, meaning magma is much more likely to flow to the surface at one of these splits. At the Mid-Atlantic Ridge, the boundary between the North American plate and the Eurasian plate, the spreading boundary is constantly seeping hot magma out of the mantle below. This creates a constantly growing mountain chain.
The main difference between these two seismic structures would be what types of plates are creating the diverging zone and what is being created at the divide: a valley that may fill with water or sediment, or a growing mountain chain as magma fills the opening gap.

4. Divergent Boundaries Eg. Mid-Atlantic ridge
Mid-Atlantic -largest mountain range

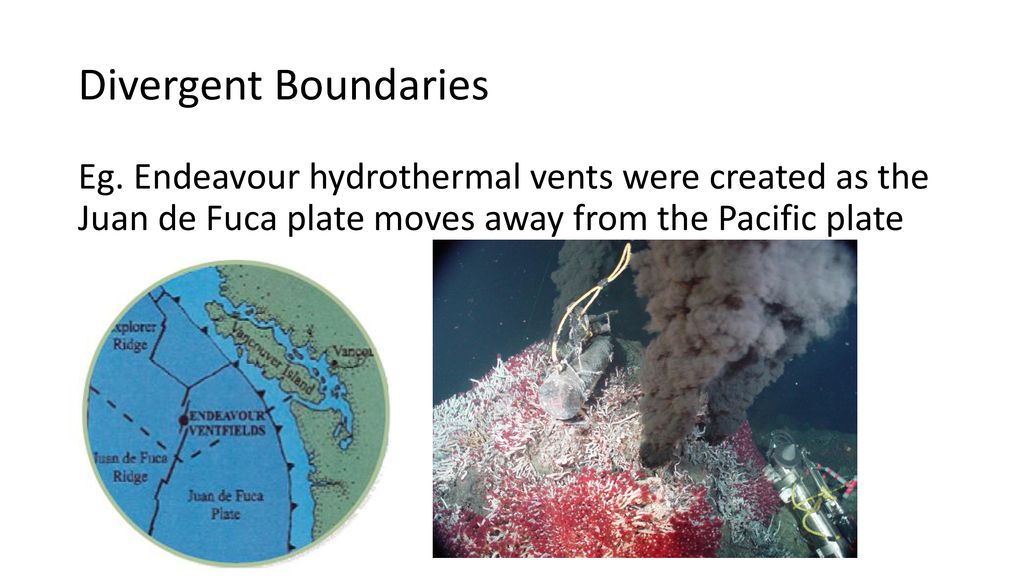

5. Divergent Boundaries
Eg. Endeavour hydrothermal vents were created as the Juan de Fuca plate moves away from the Pacific plate

6. Diverging Boundaries
Can also occur in middle of continents (continental rifting)

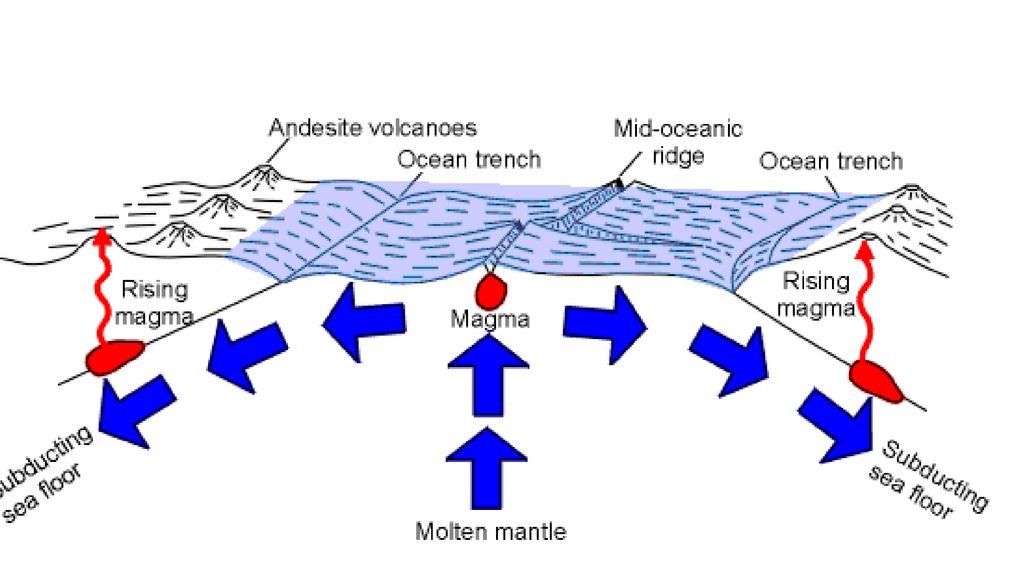

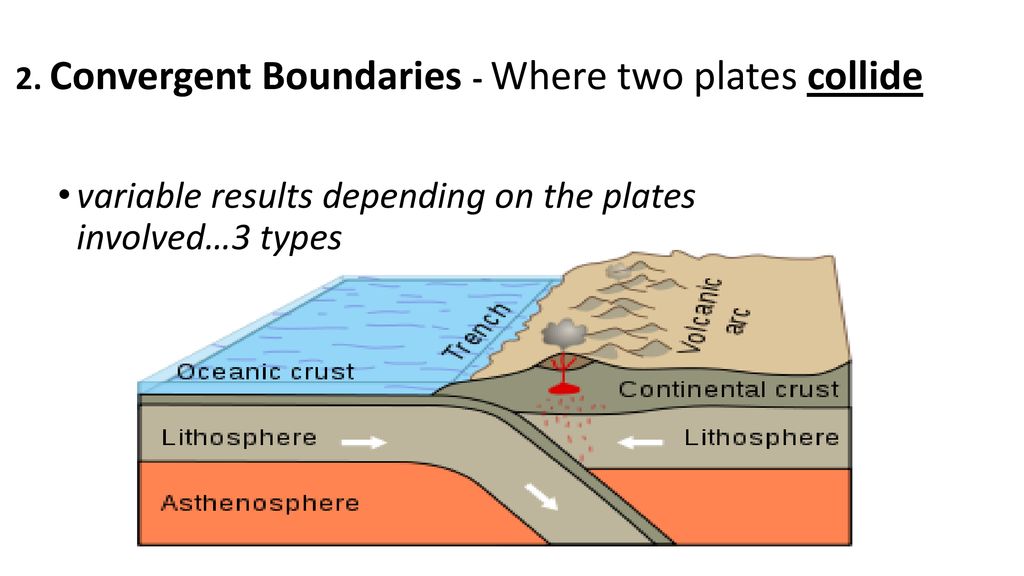

7. 2. Convergent Boundaries - Where two plates collide
variable results depending on the plates involved…3 types

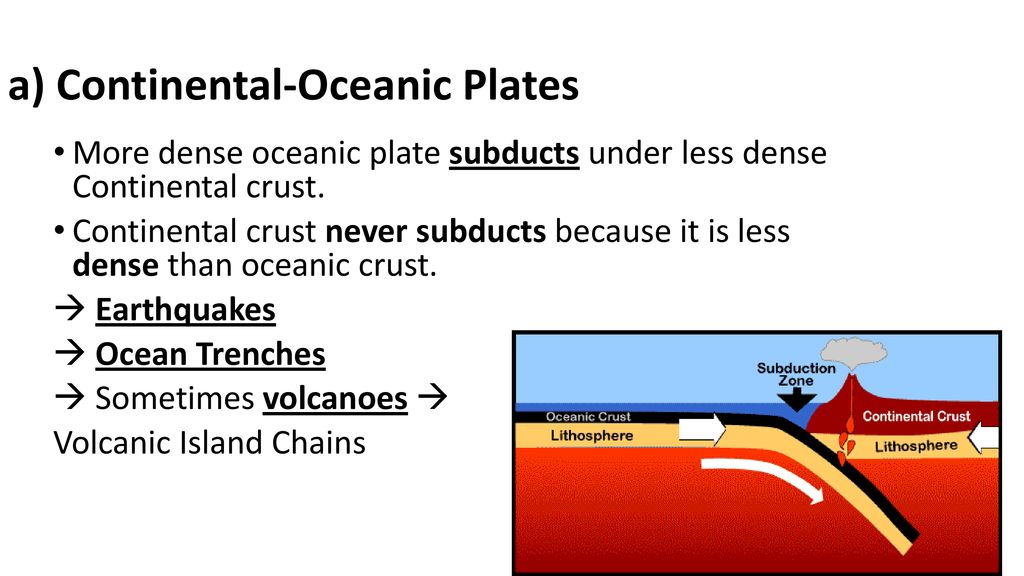

9. a) Continental-Oceanic Plates
More dense oceanic plate subducts under less dense Continental crust.
Continental crust never subducts because it is less dense than oceanic crust.
 Earthquakes
 Ocean Trenches
 Sometimes volcanoes 
Volcanic Island Chains
Trench forms
Sometimes volcanoes

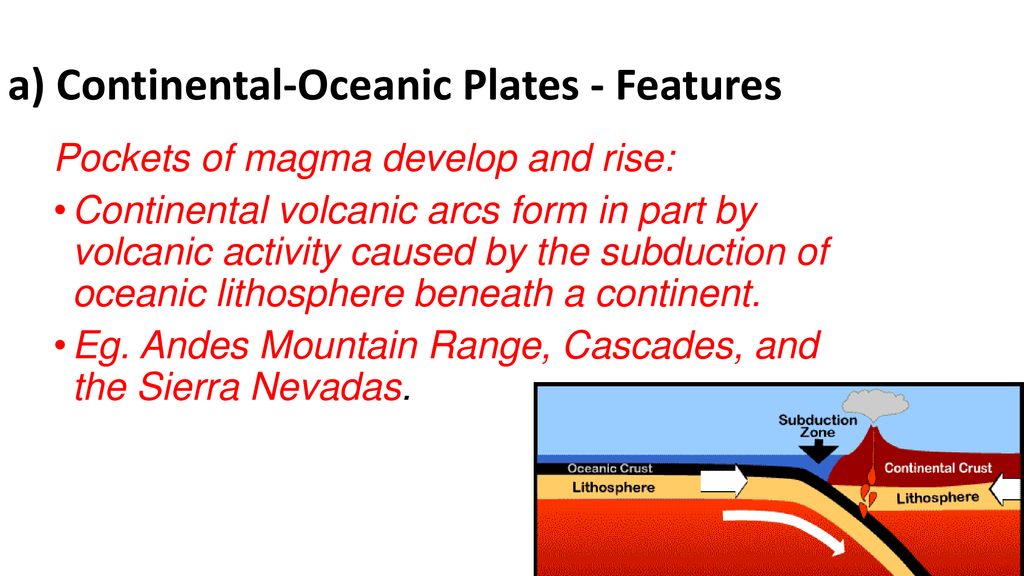

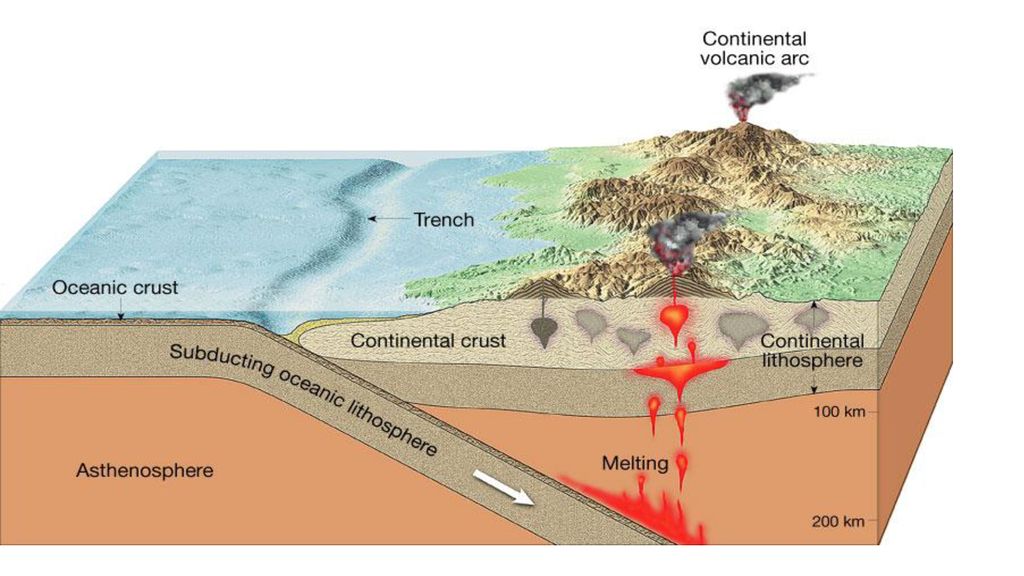

10. a) Continental-Oceanic Plates - Features
Pockets of magma develop and rise:
Continental volcanic arcs form in part by volcanic activity caused by the subduction of oceanic lithosphere beneath a continent.
Eg. Andes Mountain Range, Cascades, and the Sierra Nevadas.
Trench forms
Sometimes volcanoes

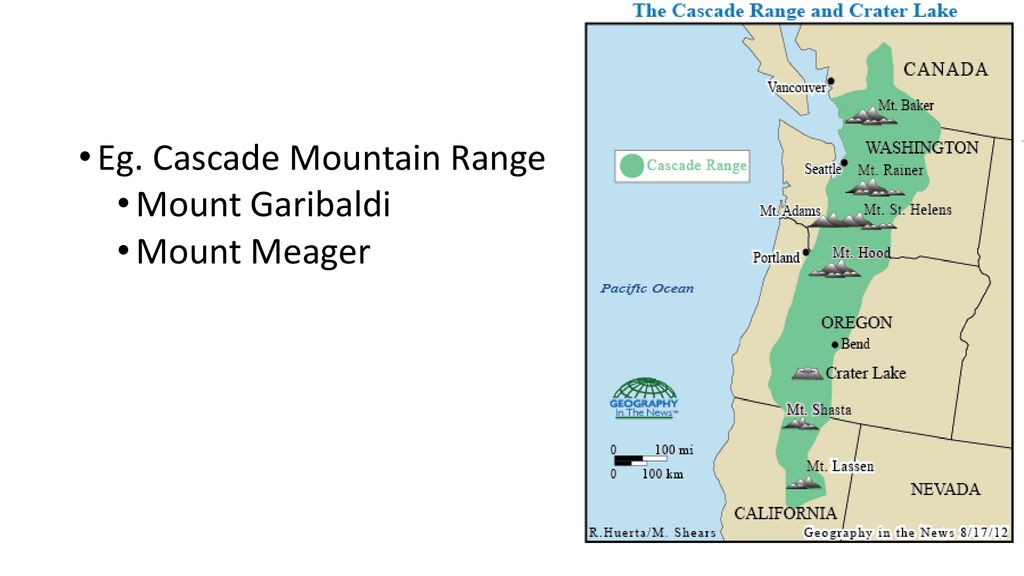

11. Eg. Cascade Mountain Range Mount Garibaldi Mount Meager
Although plates move slowly, great forces are involved. Colliding plates may resist the force of convection currents, ridge push and slab pull. Pressure builds as long as the plate remain stuck in place. When te stress is too great, energy released in earthquake.

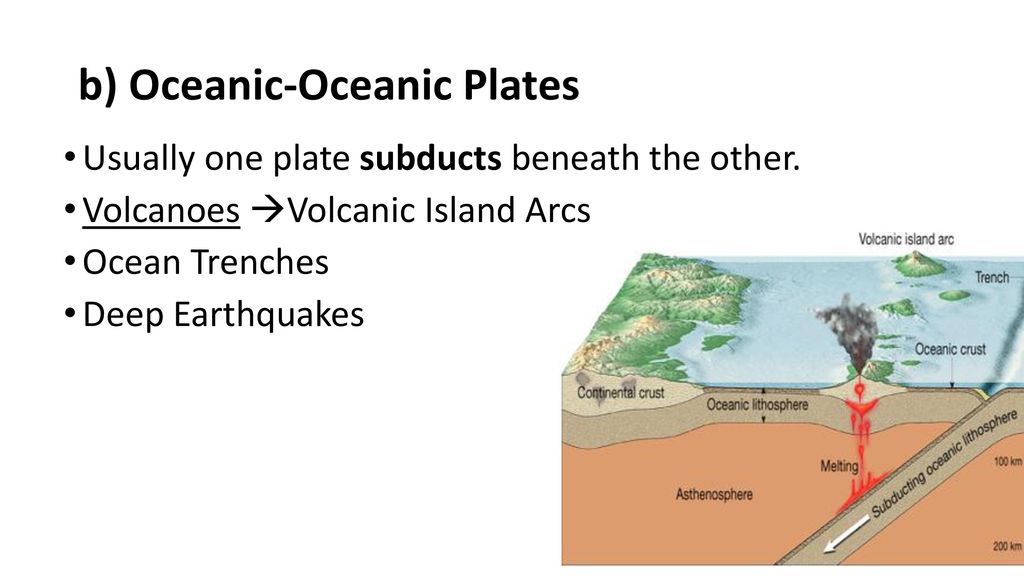

13. b) Oceanic-Oceanic Plates
Usually one plate subducts beneath the other.
Volcanoes Volcanic Island Arcs
Ocean Trenches
Deep Earthquakes
chain of volcanic islands=volcanic island arc
subduction zone is the biggest crash scene on Earth. These boundaries mark the collision between two of the planet's tectonic plates. The plates are pieces of crust that slowly move across the planet's surface over millions of years.
here two tectonic plates meet at a subduction zone, one bends and slides underneath the other, curving down into the mantle. (The mantle is the hotter layer under the crust.)
Tectonic plates can transport both continental crust and oceanic crust, or they may be made of only one kind of crust. Oceanic crust is denser than continental crust. At a subduction zone, the oceanic crust usually sinks into the mantle beneath lighter continental crust. (Sometimes, oceanic crust may grow so old and that dense that it collapses and spontaneously forms a subduction zone, scientists think.)

14. Eg. Aleutian Islands of Alaska

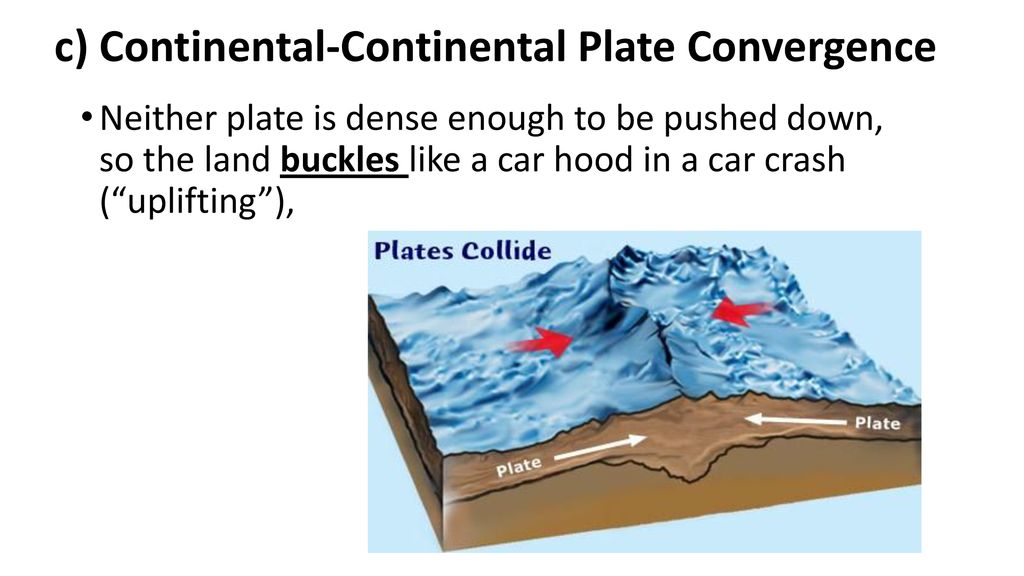

15. c) Continental-Continental Plate Convergence
Neither plate is dense enough to be pushed down, so the land buckles like a car hood in a car crash (“uplifting”),
Subduction does not occur due to similar densities.
If the same kind of crust collides, such as continent-continent, the plates may crash together without subducting and crumple together like crashing cars. The massive Himalaya mountain chain was created this way, when India slammed into Asia.

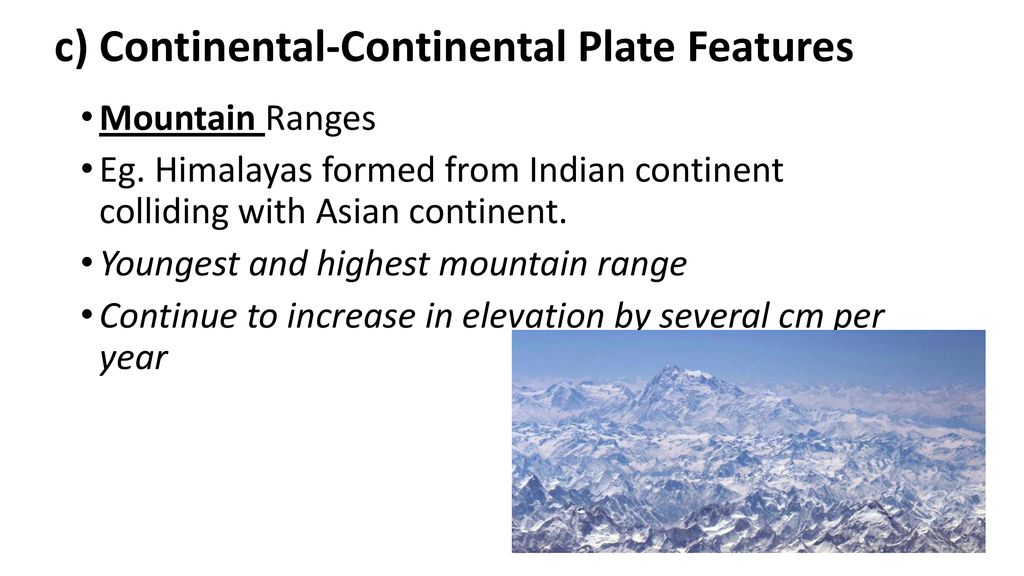

16. c) Continental-Continental Plate Features
Mountain Ranges
Eg. Himalayas formed from Indian continent colliding with Asian continent.
Youngest and highest mountain range
Continue to increase in elevation by several cm per year
Subduction does not occur due to similar densities.
If the same kind of crust collides, such as continent-continent, the plates may crash together without subducting and crumple together like crashing cars. The massive Himalaya mountain chain was created this way, when India slammed into Asia.

17. 3) Transform Boundaries
Where two plates grind past each other without destroying the lithosphere.
Results in frequent earthquakes and faults (fracture in the crust)
No mountains or volcanoes
First identified by Canadian geologist, John Tuzo Wilson.

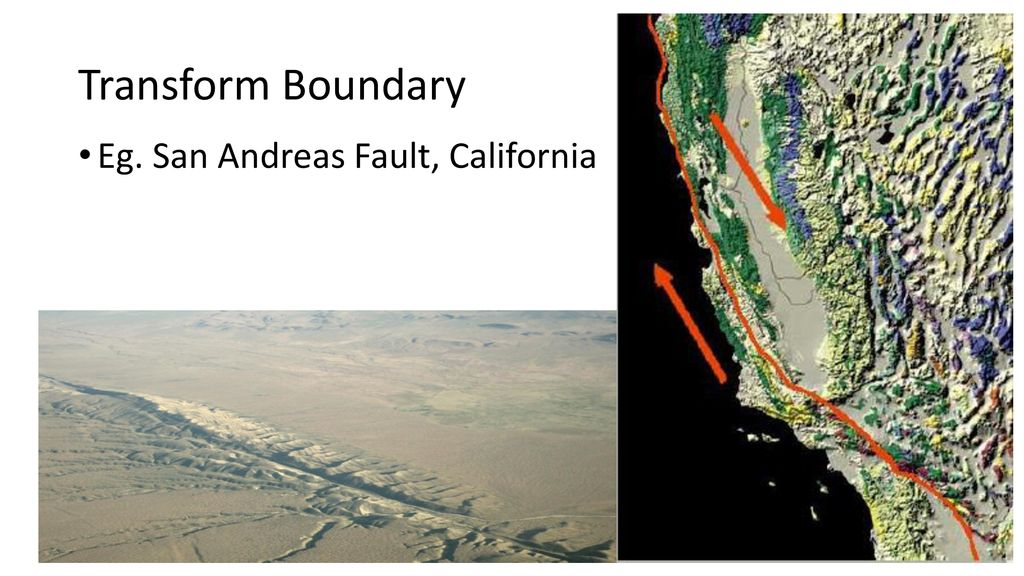

18. Transform Boundary
Eg. San Andreas Fault, California

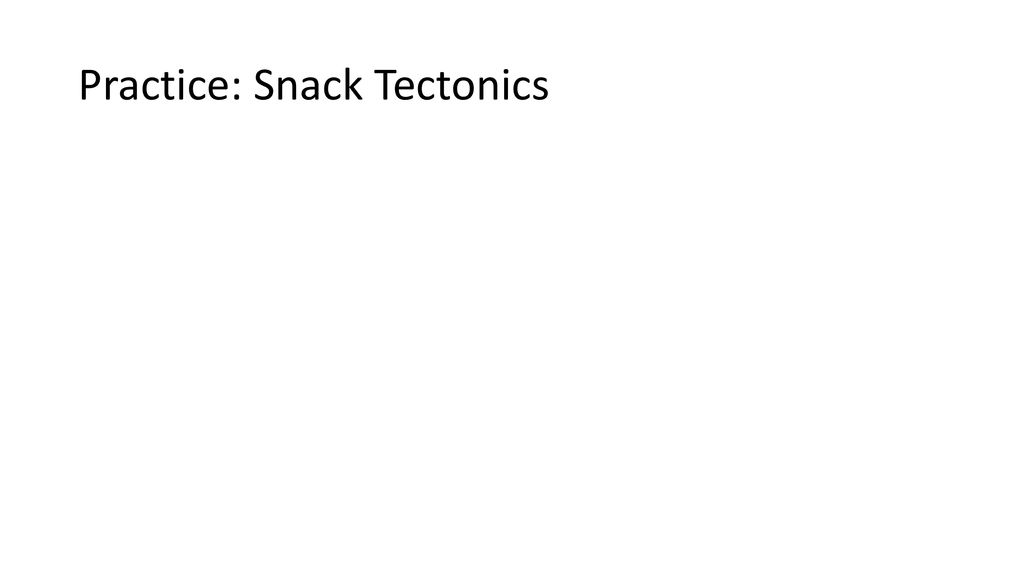

19. Practice: Snack Tectonics

20. Extras

21. 3) Transform Boundaries
Mostly occur near ocean ridges
Oct 2012, an earthquake of magnitude of 7.7 originated from movement along the Queen Charlotte Fault.
the boundary between the Pacific Plate and the Australian Plate, crossing New Zealand
the boundary between the Pacific Plate and the North American Plate in California

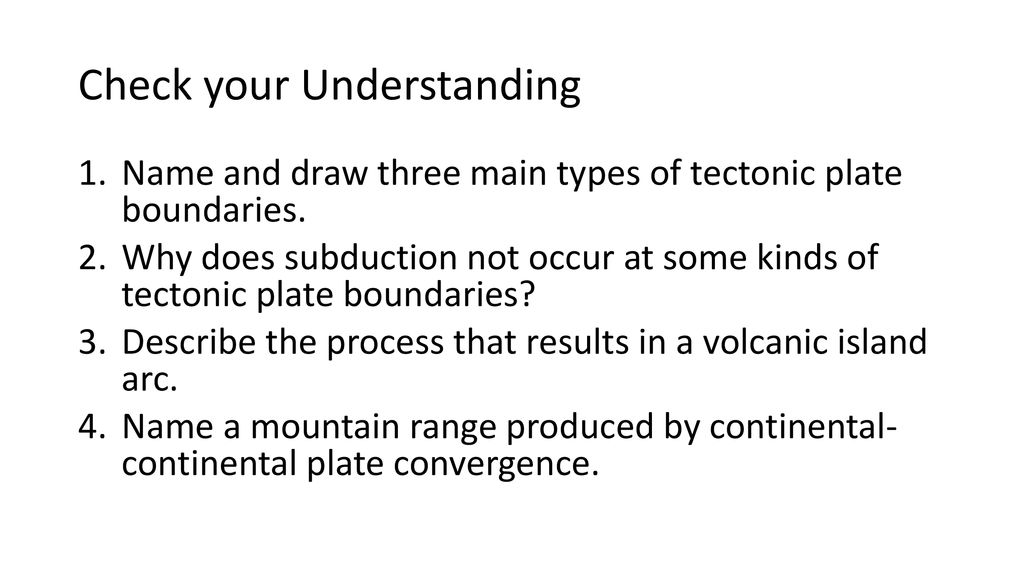

22. Check your Understanding
Name and draw three main types of tectonic plate boundaries.
Why does subduction not occur at some kinds of tectonic plate boundaries?
Describe the process that results in a volcanic island arc.
Name a mountain range produced by continental- continental plate convergence.

23. Homework
Snack Tectonics Activity

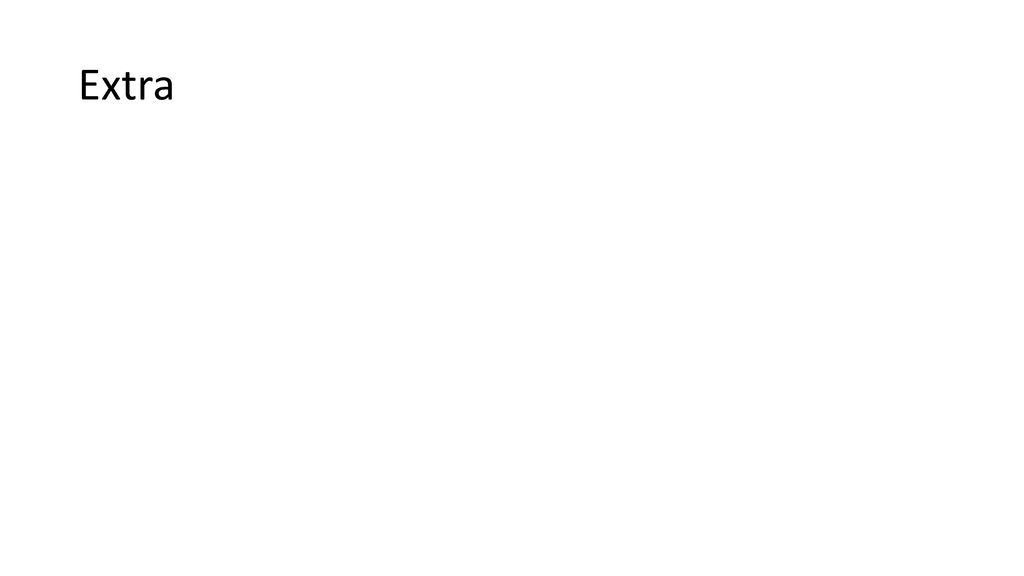

24. Extra

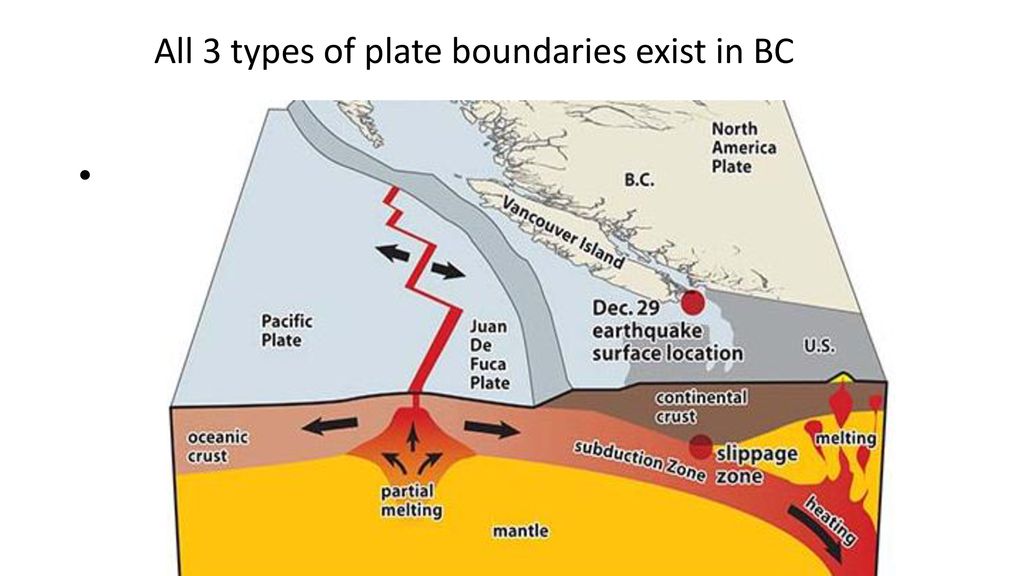

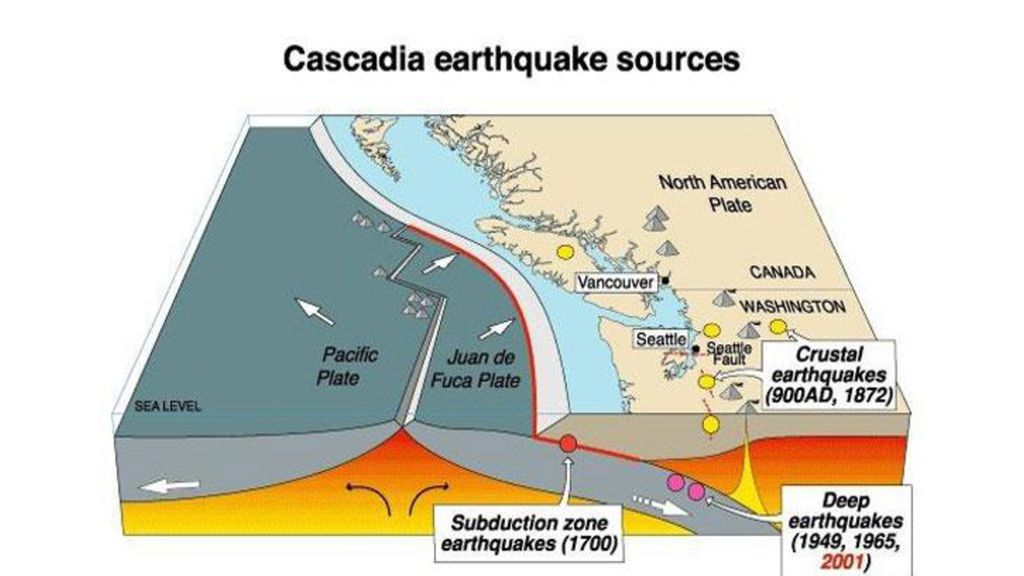

25. All 3 types of plate boundaries exist in BC
Transform: Pacific Plate grinds past NA Plate at Queen Charlotte Fault (earthquakes)
Divergent: Juan de Fuca Ridge sea floor spreading
Convergen :
Great Earthquakes in BC every years. First Nations recount one of the lartgest in the world on Jan 26, collapse houses of the Cowichan peplel; on Vancouver Island and produced a tsunami that destroyed a village a Pachena Bay . Tsunami travelled across the Pacific Ocean and cuased damage in Japan

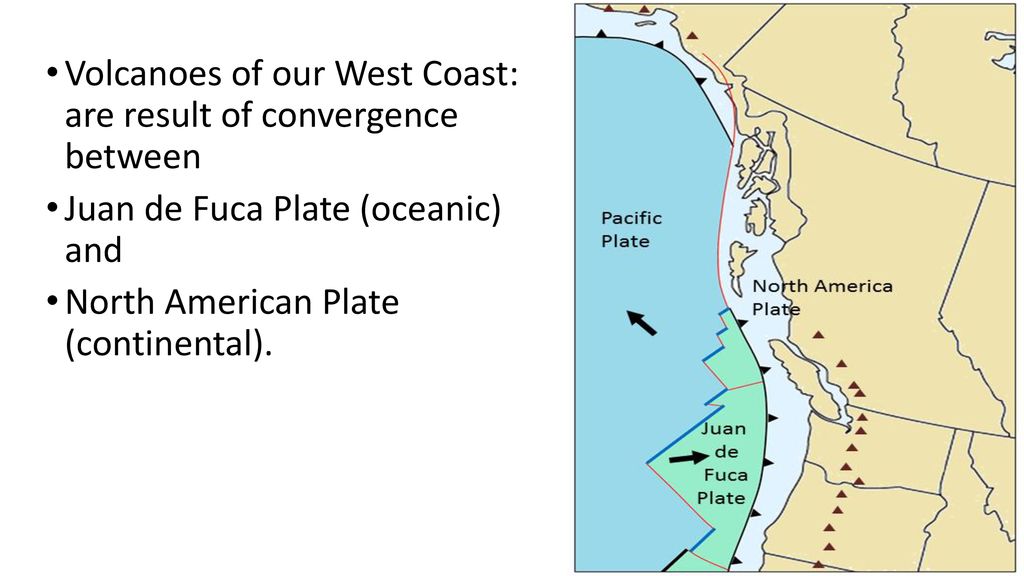

27. Volcanoes of our West Coast: are result of convergence between
Juan de Fuca Plate (oceanic) and
North American Plate (continental).

28. Eg. Cascade Mountain Range Mount Garibaldi Mount Meager
Although plates move slowly, great forces are involved. Colliding plates may resist the force of convection currents, ridge push and slab pull. Pressure builds as long as the plate remain stuck in place. When te stress is too great, energy released in earthquake.

29. Pacific Ring of Fire
The Ring of Fire is a string of volcanoes and earthquakes, around the edges of the Pacific Ocean.
Roughly 90% of all earthquakes occur along the Ring of Fire,
75% of all active volcanoes on Earth.
The island nation of Japan lies along the western edge of the Ring of Fire, and is one of the most tectonically active places on Earth. As much as 10% of the world’s volcanic activity takes place in Japan.

30. Plate Boundary Symbols

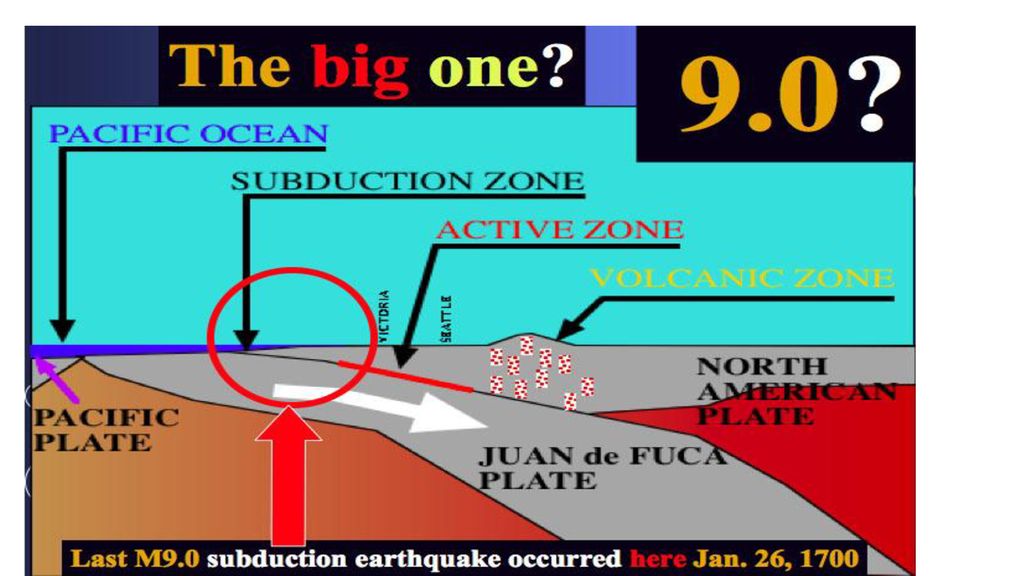

31. All 3 types of plate boundaries exist in BC
Transform: Pacific Plate grinds past NA Plate at Queen Charlotte Fault (earthquakes)
Divergent: Juan de Fuca Ridge sea floor spreading
Convergen :
Great Earthquakes in BC every years. First Nations recount one of the lartgest in the world on Jan 26, collapse houses of the Cowichan peplel; on Vancouver Island and produced a tsunami that destroyed a village a Pachena Bay . Tsunami travelled across the Pacific Ocean and cuased damage in Japan

33. Check your Understanding
Name and draw three main types of tectonic plate boundaries.
Why does subduction not occur at some kinds of tectonic plate boundaries?
Describe the process that results in a volcanic island arc.
Name a mountain range produced by continental- continental plate convergence.

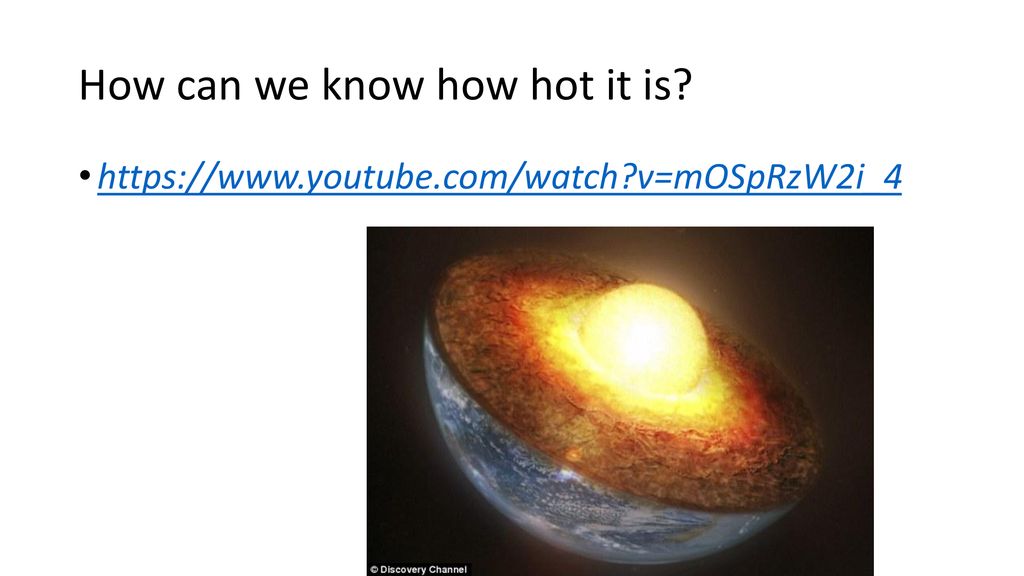

34. How can we know how hot it is?

35. How deep can we go?

36. In your own words describe continental drift hypothesis
How did Wegener support his hypothesis ?
Why do you think he chose this type of information?
Why was the continental drift hypothesis rejected?

37. Check your Understanding
In your own words describe Continental Drift Hypothesis
How did Wegener support his hypothesis?
Why do you think he chose this type of information?
Why was the continental drift hypothesis rejected?

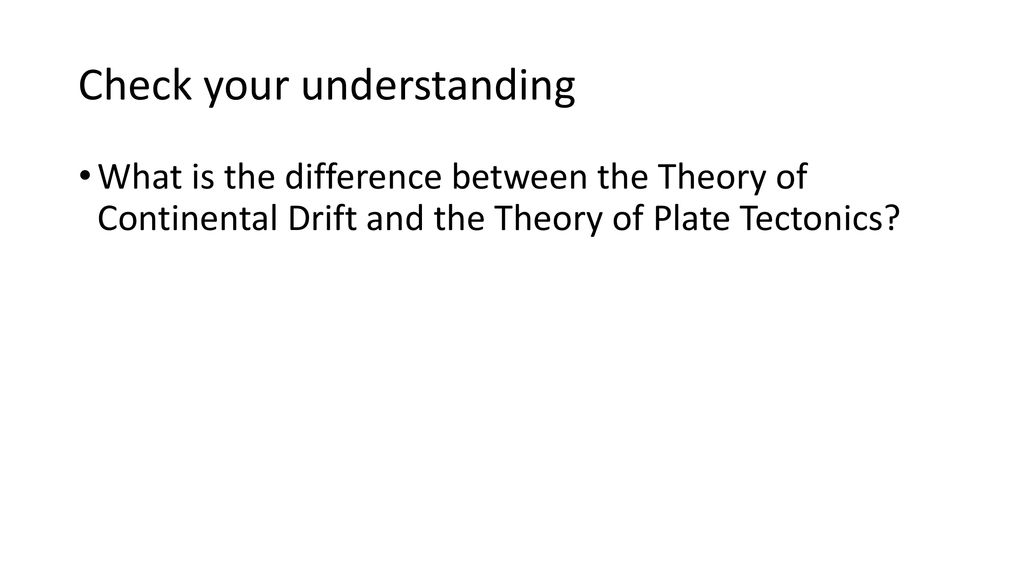

38. Check your understanding
What is the difference between the Theory of Continental Drift and the Theory of Plate Tectonics?

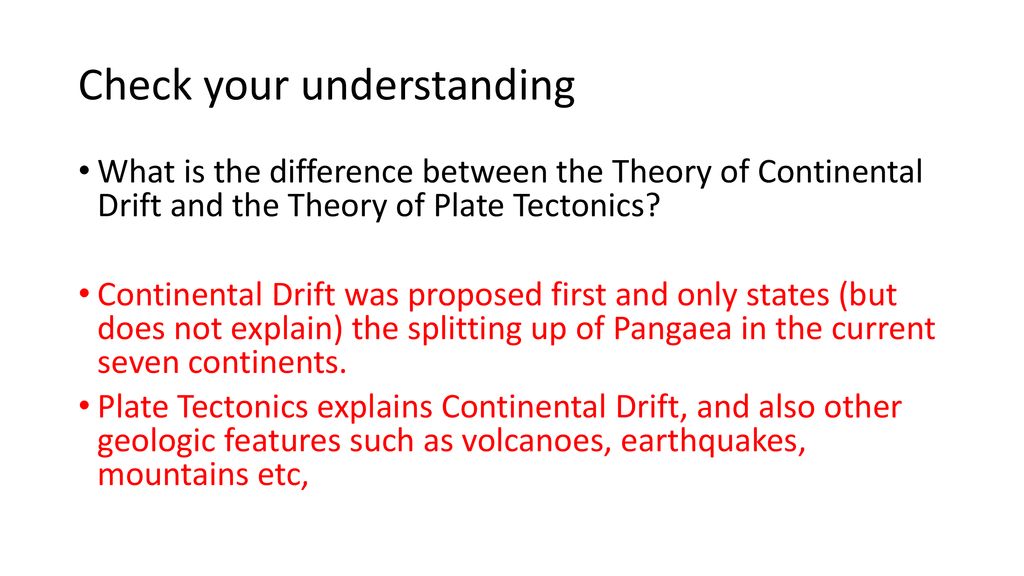

39. Check your understanding
What is the difference between the Theory of Continental Drift and the Theory of Plate Tectonics?
Continental Drift was proposed first and only states (but does not explain) the splitting up of Pangaea in the current seven continents.
Plate Tectonics explains Continental Drift, and also other geologic features such as volcanoes, earthquakes, mountains etc,
