1. Oracle XML DB and XQuery
Chris Gianfrancesco
Aruna Apuri
Oleg Rekutin
Jason Wilson

2. Introduction XML Type abstraction Storage Publishing
Shredded or LOB
Publishing
XML Views of relational tables
SQL / XML functions and constructs
XMLQuery, XMLTable, and more...
XML Updates
XQuery evaluation and processing

3. XML Type XML Type abstraction XQuery XPath XSLT SQL / XML
Physical Storage
XML Type Views
Relational Data
CLOB
Shredded
Hybrid
Binary XML

4. XML View Create virtual XML version of object-relational data
Allows XQuery to access relational data
Uses XML Publishing
ora:view()

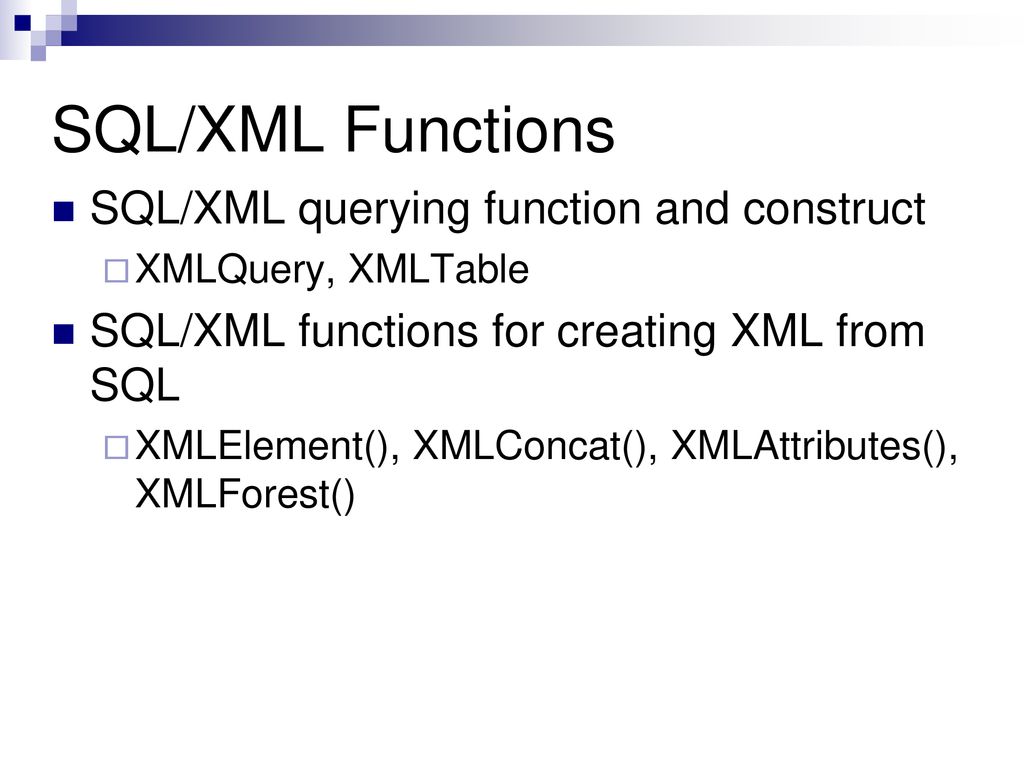

5. SQL/XML Functions SQL/XML querying function and construct
XMLQuery, XMLTable
SQL/XML functions for creating XML from SQL
XMLElement(), XMLConcat(), XMLAttributes(), XMLForest()

6. More XML Functions Other XML functions To support XML updates
XMLColAttVal(), XMLSequence(), ExtractValue(), Extract(), XMLTransform()
To support XML updates
UpdateXML(), DeleteXML(), InsertChildXML(), InsertXMLBefore(), AppendChildXML()

7. XQuery Hybrid Evaluation
Transform XMLTable into XMLQuery
Static analysis and type checking
If possible, compiles into native SQL data structures
If not possible, XMLQuery is left as is for processing by XMLQuery processor

8. XQuery Hybrid Evaluation
SQL query containing
XMLQuery/XMLTable
Transform XMLTable to XMLQuery
SQL query containing
XMLQuery
Native compilation of XMLQuery
SQL structures with
XML operators
SQL structures containing
XMLQuery
XQuery evaluated natively
Co-processor evaluates
XMLQuery expressions

9. Input & Data Representation
All data in one row, one XMLType column

10. Input & Data Representation
Each data row in separate DB row, column of XMLType

11. Input & Data Representation
Each data row in separate DB row, contents in separate columns

12. Input Tools Straight XML in SQL JDBC using special XMLType (also C)
INSERT VALUES( XMLType(‘<xml>goes here</xml>’))
JDBC using special XMLType (also C)
SQL*Loader w/ direct path load mode
XML-SQL Utility (XSU)
Maps XML to columns
Rigid default mapping
No support for attributes

13. Storage in Database XMLType CLOB
File preserved as complete text (whitespace, comments, etc) [textual fidelity]
Can still be validated against a schema
Data internally is not “typed”
Slow querying
Fastest storage and retrieval

14. Storage in Database XMLType View
Create a virtual XML document on top of relational tables
Fast querying, manipulation using pure SQL
Deeply nested views are slow
Updating/inserting requires triggers
Lose strict order guarantee, no textual fidelity
Supports multiple XML schemas on top of one relational schema

15. Storage in Database Native XML type (Structured Storage)
Preserves textual fidelity
Shreds into SQL tables
Complete validation, full SQL support
No triggers to update tables (built-in rewriting)
Some overhead
Cannot change schema w/o reloading all data
Requires a schema

16. Structured Storage Detail
Annotate XML schema to control nested collections storage, as:
CLOB
Array of serialized SQL objects
Nested table of serialized SQL objects
Array of XMLType

17. Working with XML Schema
Registering schema
begin dbms_xmlschema.registerSchema( ‘ xdbURIType('schema.xsd').getClob(), TRUE,TRUE,FALSE,TRUE);
end;
Creating table w/ schema
CREATE TABLE TableName of XMLType
XMLSCHEMA "

18. XQuery Support in Oracle
XMLDB integrated database engine
SQL / XML standard support
Optimized queries – rewrite to relational
Standalone Java query engine
100% Java
Integrated into Oracle App Server -XDS
Interoperates with XSLT/XPath

19. XQuery database support
Production in Oracle Database 10gr2
Supports XMLQuery and XMLTable construct
Native compilation into SQL /XML structures
Returns XMLType(Content)
Can query over relational, O-R, XMLType data
fn:doc - Maps to XDB Repository on server
SQLPlus provides xquery command to execute XQuery
XSL-T will also get compiled to XQuery

20. Statically Type checked Tree XML Indexes, Text Indexes
Architecture
XQUERY
Normalization
XQuery XSL-T Parser
Statically Type checked Tree
XQueryX
Normalized Tree (casts, treat )
Compiler
Rewrite to SQLX
Compiled XQuery Tree
SQL/XML Operand Tree S Q L
XQuery Type check
SQLX rewrite
SQL Operand Tree
XML Indexes, Text Indexes
SQL Metadata
XMLSchema
Repository
Relational Optimizer
Execution Structures
Execution engine
XQuery F&O

21. XQuery Java implementation
XQuery or XQueryX input
Extensible function implementation
Compiles into rowsource like structures
Optimization – push XQuery to XMLDB
XQJ API driver – for accessing mid tier/backend
Shared data model with XSL/XPath
Shared F&O – pre-defined & external
Standard implementation interfaces
Write Java Function once use it in XQuery/XSLT

22. Processing XQuery Oracle XQuery Compilation Engine
Parser convert XQuery into XQueryX
XQueryX is an XML representation of XQuery (another W3C candidate recommendation)
XML parser construct a DOM tree from XQueryX
Work on the DOM afterward
Corresponding components are extended for XQuery too

23. Sample XQuery
For each author in the bibliography, list the author's name and the titles of all books
by that author, grouped inside a "result" element."
<results>
FOR $a IN distinct(document("
RETURN
<result>
$a,
FOR $b IN document(" = $a]
RETURN $b/title
</result>
</results>

24. WHAT IS XQueryX Is an XML representation of an XQuery.
Created by mapping the productions of the XQuery abstract syntax directly into XML productions.
The result is not particularly convenient for humans to read and write.
Easy for programs to parse, and because XQueryX is represented in XML, standard XML tools can be used to create, interpret, or modify queries

25. Environments in which XQueryX useful
Parser Reuse. In heterogeneous data environments, a variety of systems may be used to execute a query. One parser can generate XQueryX for all of these systems.
Queries on Queries. Because XQueryX is represented in XML, queries can be queried and can be transformed into new queries.
For instance, a query can be performed against a set of XQueryX queries to determine which queries use FLWOR expressions to range over a set of invoices.
Generating Queries. In some XML-oriented programming environments, it may be more convenient to build a query in its XQueryX representation than in the corresponding XQuery representation, since XML tools can be used to do so.
Embedding Queries in XML. XQueryX can be embedded directly in an XML document

26. Why XQuery static type checking?
XQuery static type checking is very
useful when the input XML structure is known during compile time.
The feature itself enables early error recovery.

27. XQuery Static Type-Checking in Oracle XML DB
Oracle XML DB performs static (that is, compile-time) type-checking of XQuery expressions. It also performs dynamic (runtime) type-checking.
Example Static Type-Checking of XQuery Expression
The XML view produced on the fly by Oracle XQuery function ora:view has ROW as its top-level element, but this example incorrectly lacks that ROW wrapper element. This omission raises a compile-time error. Forgetting that ora:view wraps relational data in this way is an easy mistake to make, and one that could be difficult to diagnose without static type-checking.

28. Static Type-Checking of XQuery Expressions: ora:view
This produces a static-type-check error, because "ROW" is missing.
SELECT XMLQuery('for $i in ora:view("REGIONS"), $j in ora:view("COUNTRIES")
where $i/REGION_ID = $j/REGION_ID and $i/REGION_NAME = "Asia"
return $j'
RETURNING CONTENT) AS asian_countries
FROM DUAL; *
ERROR at line 1:
ORA-19276: XP XPath step specifies an invalid element/attribute name:
(REGION_ID)

29. Correct code
SELECT XMLQuery('for $i in ora:view("REGIONS"), $j in ora:view("COUNTRIES")
where $i/ROW/REGION_ID = $j/ROW/REGION_ID
and $i/ROW/REGION_NAME = "Asia"
return $j'
RETURNING CONTENT) AS asian_countries
FROM DUAL;

30. Result Sequence
<ROW><DEPARTMENT_ID>10</DEPARTMENT_ID><DEPARTMENT_NAME>Administration</DEPARTMENT_NAME><MANAGER_ID>200</MANAGER_ID><LOCATION_ID>1700</LOCATION_ID></ROW>
<ROW><DEPARTMENT_ID>20</DEPARTMENT_ID><DEPARTMENT_NAME>Marketing</DEPARTMENT_NAME><MANAGER_ID>201</MANAGER_ID><LOCATION_ID>1800</LOCATION_ID></ROW>
<ROW><DEPARTMENT_ID>30</DEPARTMENT_ID><DEPARTMENT_NAME>Purchasing</DEPARTMENT_NAME><MANAGER_ID>114</MANAGER_ID><LOCATION_ID>1700</LOCATION_ID></ROW>
<ROW><DEPARTMENT_ID>40</DEPARTMENT_ID><DEPARTMENT_NAME>Human Resources</DEPARTMENT_NAME><MANAGER_ID>203</MANAGER_ID><LOCATION_ID>2400</LOCATION_ID></ROW>

31. XQuery Processing Choices: co-processor or native compilation?
“off-the-shelf” XQuery processor
opaque to DBMS
Native compilation:
XQuery processing added to database engine
DBMS-specific processor

32. Co-processor Advantages
Easy to implement and install
Modularity of XQuery processor
Standard XQuery processor between applications
Third-party development
Flexibility

33. Co-processor Limitations
Storage Optimization
Advanced Oracle XML DB features being wasted (e.g. indexed XML)
Query Optimization
Cannot use already-established Oracle query engine optimizations
No support for SQL/XML query optimization

34. Oracle's Native Processing
XQueries are compiled into sub-blocks and execution structures usable by existing DB engine
“tightly integrate XQuery and SQL/XML support within the database kernel”
Focuses on utilizing existing optimization techniques (algebra optimizations)
XQuery interpreter for unsupported operations

35. Native Processor Architecture

36. Advantages of Oracle's Approach
Fully utilizes mature optimization techniques
Integration of SQL and XQueries
Much stronger support for SQL/XML mixed query optimizations
No need for development of a separate set of optimizations
“performance that is orders of magnitude faster than the co-processor approach”

37. Conclusion XMLType Variety of ways for data to be stored
XQuery parsing and static type checking
XQuery native processing and co-processor

38. References
Zhen Hua Liu, Maralidhar Krishnaprasad, Vikas Aora. Native XQuery Processing in Oracle XMLDB. SIGMOD2005.
Ravi Murthy, Zhen Hua Liu, Muralidhar Krishnaprasad, et al. Towards An Enterprise XML Architecture. SIGMOD2005.
Mark Scardina. XML Storage Models: One Size Does Not Fit All.
XML Query (XQuery) Support in Oracle Database 10g Release 2. Oracle White Paper. May 2005.
XML and Datenbanken.
