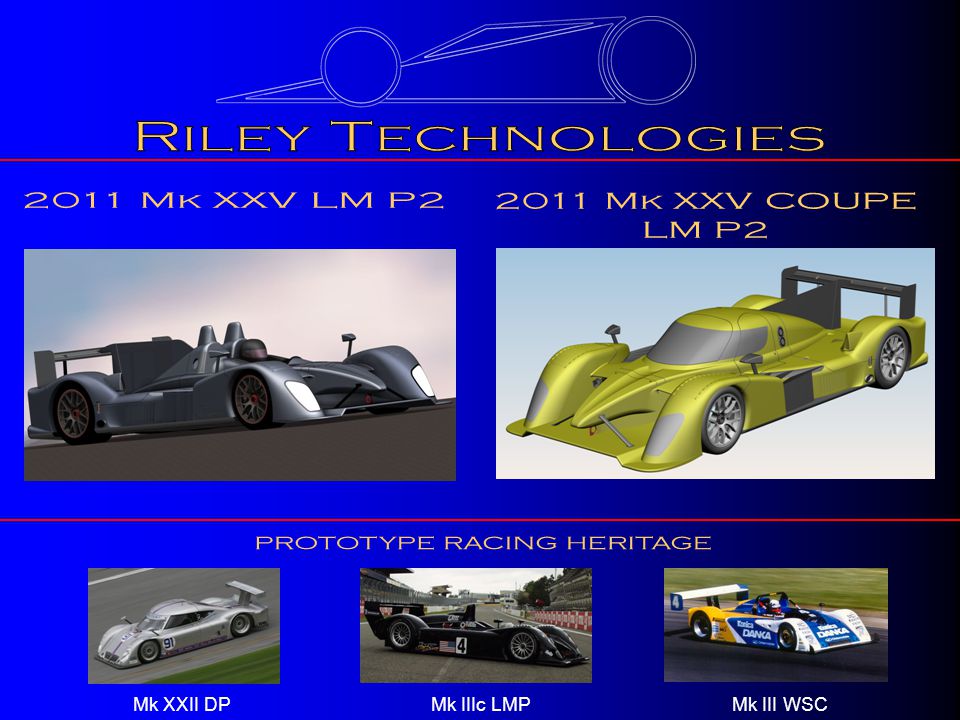

1 Mk XXII DP Mk IIIc LMP Mk III WSC

2 Riley Technologies, formed in 2001 by Bob and Bill Riley, is headquartered in "Race City USA", Mooresville, NC. Riley Technologies specializes in the design, manufacture and competition of complete racing cars, as well as prototype development for racing and manufacturing applications. The Riley Technologies legacy includes overall race wins and championships in some of the worlds elite series including the Grand-Am Rolex Sports Car Championship, Japanese Super GT, ALMS, IRL, and WSC. Most recently in 2010 Riley Technologies claimed its 7 th Consecutive Manufacturers Championship in the highly competitive Daytona Prototype Class of the Grand-Am Rolex Sports Car Series. www.RileyTech.com Riley Technologies 40,000 sqft(3,700m^2) Headquarters in Mooresville, NC

3 The new 2011 ACO Regulations represent an opportunity for clean sheet designs to explore new areas where contemporary designs are lacking. The Mk XXV LM P2 design is focused on these areas to maximize on-track performance.

4

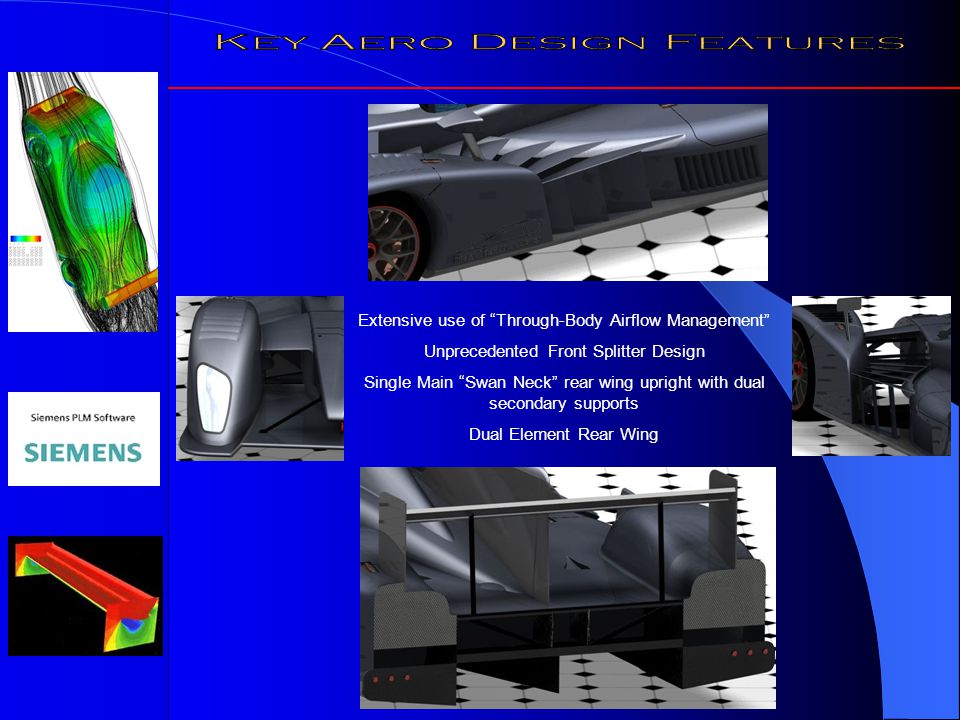

5 Extensive use of Through-Body Airflow Management Unprecedented Front Splitter Design Single Main Swan Neck rear wing upright with dual secondary supports Dual Element Rear Wing

6 Length Width Height(Ref. Plane) Wheelbase Front Overhang Rear Overhang Weight Engine Chassis Body Steering Shocks Gearbox Clutch Brakes Wheels Fuel Capacity Exhaust Electronics Data 180.8 / 4594 inches / mm 78.7 / 2000 inches / mm 41.0 / 1041 inches / mm 112 / 2844 inches / mm 39.3 / 1000 inches / mm 29.5 / 750 inches / mm 1985 lbs / 900 kg All 2011 ACO LM P2 Homologated Engines Carbon Composite Tub Composite bodywork Rack and Pinion with KYB Variable Electric Power Assist Latest Penske F1 Derived Style Six Speed Xtrac Sequential Dog Ring Transaxle Carbon 3-Plate, 5.5 OD 6 Piston Frt / 6 Piston Rr Calipers 15 Frt 14 Rr Carbon Rotors BBS Front 18 * 12.5 / Rear 18 * 13, Center Lock 24 Gallons / 90 Liters Inconel Headers with Mufflers Motec PDM32 Power Management (Optional) Motec Data System with Digital Display Paddle Shift Traction Control 3 rd Spring/Shock on both Frt/Rr Suspension Single Point Dry Break Fuel System Lightweight Composite Body Panels Side Mounted Radiators Electric Power Adjustable Mirrors Headlights / Tail Lights Front/Rear Energy Absorbing Crush Structures Adjustable 2-Element Rear Wing

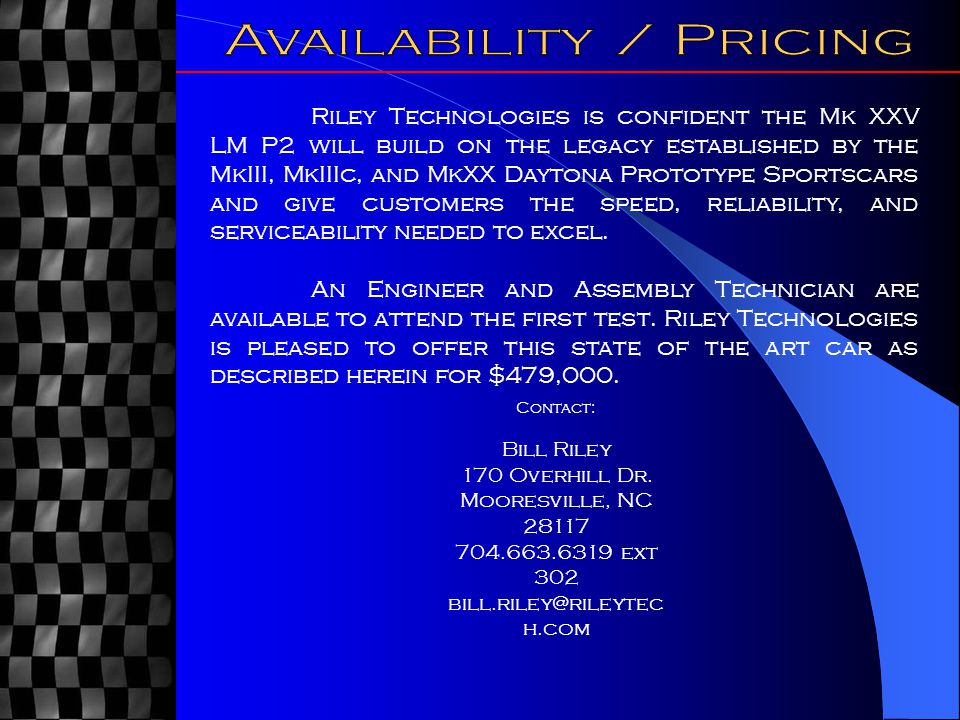

7 Riley Technologies is confident the Mk XXV LM P2 will build on the legacy established by the MkIII, MkIIIc, and MkXX Daytona Prototype Sportscars and give customers the speed, reliability, and serviceability needed to excel. An Engineer and Assembly Technician are available to attend the first test. Riley Technologies is pleased to offer this state of the art car as described herein for $479,000. Contact: Bill Riley 170 Overhill Dr. Mooresville, NC 28117 704.663.6319 ext 302 bill.riley@rileytec h.com
