1. Greg Stein Mark Hammond
Python and COM
Greg Stein
Mark Hammond

2. Tutorial Agenda Introduction to COM PythonCOM Framework
Using Python as a COM client
Using Python as a COM server
Advanced topics
Futures

3. Introduction to COM

4. COM/OLE and ActiveX Component Object Model
Specification for implementing and defining objects
OLE is the old name, COM is the official name, ActiveX is the marketing name
All the same - the Microsoft Marketing Machine

5. What is a COM interface? A technique for implementing objects
Uses a “vtable” to define methods
Does not have properties
Basically a C++ object with only public methods
But not C++ specific - just borrowed implementation technique
Allows implementation from other languages
All interfaces have a unique ID

6. IUnknown Base class of all interfaces Defines object lifetimes
Every COM object must implement
Defines object lifetimes
Reference counted using “AddRef” and “Release” methods
Defines techniques for querying the object for something useful
QueryInterface method
No other functionality - simply defines these 3 methods

7. Custom interfaces Any interface derived from IUnknown Derived?
Therefore must follow IUnknown rules for lifetimes
Derived?
Means object can be used as its base. Simple implementation using vtables
All interfaces are custom interfaces
Not a standard part of COM per-se, just follow its rules

8. Objects vs. Interfaces Interfaces simply define functionality
Objects, once instantiated, implement the interface
Object class also has unique ID
Objects always provide multiple interfaces
At least IUnknown and some other functional interface

9. CLSIDs, GUIDs, UUIDs, IIDs
COM defines 128 bit identifier, and API for creating them
“High degree of certainty” that these are globally unique
All use the same type and implementation, acronym reflects different usage
IID == Interface ID, GUID == Globally Unique Identifier, CLSID == Class ID, UUID == Universally Unique Identifier, etc
API for converting to and from Strings

10. Registering Objects
Objects register themselves in the Windows Registry
Register with their Unique CLSID
Also register a name for the object
COM provides API for translating, but names are not guaranteed unique
Many objects self register

11. Creating Objects Standard COM API for creation
CoCreateInstance, passing:
CLSID identifying the object to create
IID identifying the initial interface requested

12. C++ Pseudo Code // Create an object, but only get back
// IUnknown pointer, with new reference
IUnknown *pUnk = CoCreateInstance(“MyObject”, ...)
// Ask the object for a pointer to a useful implementation!
pUseful = pUnk->QueryInterface( IID_IUseful, ...)
pUnk->Release(); // finished with this.
pUseful->DoSomethingUseful(); …
pUseful->Release(); // Object now dies…

13. Custom Interface Example 1 of 2
Native Interfaces using Word
You would be unlikely to use Word this way
Demonstrative purposes only!
>>> import ni, win32com, pythoncom >>> o=pythoncom.CoCreateInstance \ ("Word.Application", None, pythoncom.CLSCTX_ALL, pythoncom.IID_IUnknown) >>> o <PyIUnknown at 0x834b04 with obj at 0x423474>

14. Custom Interface Example 2 of 2
>>> o.QueryInterface( \ pythoncom.IID_IPersist) <PyIPersist at 0x85dd54 with obj at 0x423464>
Almost identical to the pseudo code above
In fact, Python is far better than C++, as long as we support the required interfaces natively
No AddRef or Release required, or even exposed
Release() currently exposed, but not for long!

15. IDispatch - poor man’s COM 1 of 2
Also known as “Automation”
Derived from IUnknown
Defines vtable methods to determine “dispatch methods and properties” at runtime
Perfect for scripting languages which have no compile step, or which are not C++!
Optionally uses Type Libraries so optimizations can be made at compile time

16. IDispatch - poor man’s COM 2 of 2
What many people know as COM
Microsoft marketing machine
In reality, a small, but somewhat useful part of COM
Many useful COM interfaces do not support IDispatch
Native MAPI, Active Scripting/Debugging, ActiveX Controls, Speech Recognition, etc
Very hard from C/C++, very easy from VB

17. Core Interfaces Introduction
COM tends to use interfaces for everything. Example:
Instead of using a file pointer/handle, a “Stream” interface is used, which provides file like semantics
Anyone free to implement the stream interface using any technique they choose
Such interfaces not necessarily part of COM per-se, but we consider them “core interfaces”

18. Core Interfaces Enumerators
Enumerators provide access into a list of values
Provides Next, Skip, Reset and Clone methods
Different enumerator interfaces for different types:
IEnumGUID - Enumerate list of GUID’s
IEnumFooBar - Enumerate list of FooBars!

19. Core Interfaces Collections
Alternative technique for accessing lists
Usually only used via IDispatch
Uses “tricks” only IDispatch has available, such as properties!
Therefore not a real interface
Used to provide array like semantics for VB, etc
Methods include Count() and Item(). Count often implied by len(), Item() often omitted.

20. Core Interfaces Streams and Storage
IStream provides file like semantics
IStorage provides file system like semantics
Programs can write to this specification without needing to know the destination of the data
COM provides implementations of these for “structured storage files”

21. Core Interfaces Monikers
Provide file name to object mapping semantics
Fundamental concept is to provide an indirection level to an underlying object, and a program neutral way of accessing the underlying object
File and URL Monikers do just that
Pointer monikers allow anyone to implement an abstract indirection to an object (e.g., into a message store, etc)

22. Core Interfaces ConnectionPoints
Provides simple callback functionality
Client sets up connection point object
Object passed to Connection Point Container object
Container calls methods on the Connection Point when appropriate
Typically used as an event mechanism (e.g., ActiveX Controls). This is how VB finds the list of events for an object.

23. Core Interfaces And the Rest
Plenty of others not listed here
Anything in core PythonCOM is considered core
By us, anyway - YMMV :-)
Check out the sources, Help Files, or forthcoming documentation
Who was going to write that?
Extensions to PythonCOM - present and future

24. Error Handling All methods use HRESULT return code
Multiple “success” codes, and many failure codes
ISupportErrorInfo interface for richer error information
IDispatch uses EXCEP_INFO structure
PythonCOM transparently maps these
More detail in Server section

25. PythonCOM Framework

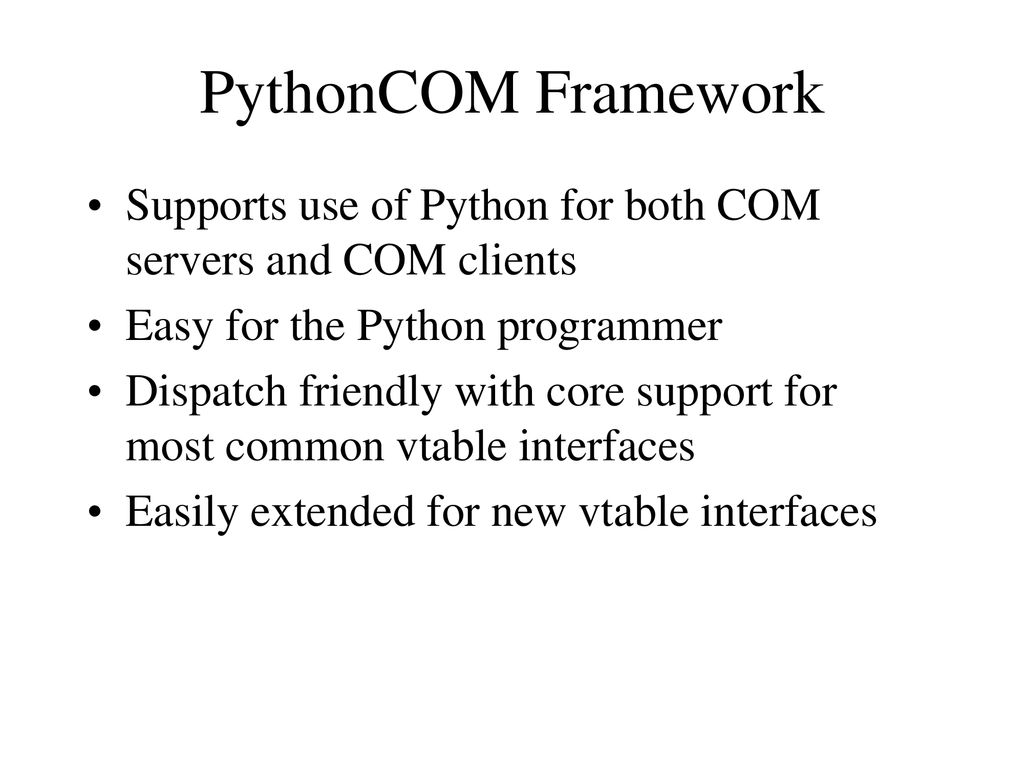

26. PythonCOM Framework
Supports use of Python for both COM servers and COM clients
Easy for the Python programmer
Dispatch friendly with core support for most common vtable interfaces
Easily extended for new vtable interfaces

27. PythonCOM Extensions Model allows for COM extension DLLs
Once loaded, looks like native support to the Python programmer
MAPI, ActiveX Scripting and Debugging all use this technique
Import them once, and PythonCOM will serve up their interfaces
Makes for stable core, with more frequent extension releases

28. Using Python as a COM client

29. Python COM Clients The Problem
Calling a COM object from Python
COM = vtable = C++ (not Python)
IDispatch removes vtable requirement
Imposes coding burden on client
IDispatch is still vtable based, so core problem remains

30. Python COM Clients The Answer
We need an intermediary between a Python object and COM’s vtables
These are called “interfaces” (c.f. “gateways” for the server side - poor choice of terminology, but this is what we use!)

31. PythonCOM Interfaces 1 of 3
Very similar to standard Python extension modules
Conceptually identical to wrapping any C++ object in Python
1:1 mapping between the COM pointer and Python object
Pulls apart arguments using PyArg_ParseTuple
Makes call on underlying pointer
Handles errors, exceptions, and return values

32. PythonCOM Interfaces 2 of 3
v-table interface
Interface
Server
Client
Interface
Interface

33. PythonCOM Interfaces 3 of 3
IDispatch interface
Interface
IDispatch
Client
Wrapper
Server

34. IDispatch vs. vtable
IDispatch implemented in PythonCOM.dll like any other interface
No Dynamic logic implemented in DLL
Only GetIDsOfNames and Invoke exposed
win32com.client Python code implements all IDispatch logic
Calls the above 2 methods dynamically to obtain method and property information

35. IDispatch Implementation
2 modes of IDispatch usage
Dynamic, where no information about an object is known at runtime
All determination of methods and properties made at runtime
Static, where full information about an object is known before hand
Information comes from a “Type Library”
Not all objects have Type Libraries (including Python objects!)

36. Dynamic IDispatch Implementation 1 of 5
Implemented by win32com.client.dynamic
Also makes use of win32com.client.build
Uses __getattr__ and __setattr__ methods in Python to implement its magic

37. Dynamic IDispatch Implementation 2 of 5
Not perfect solution as
__getattr__ has no idea if the attribute being requested is a property reference or a method reference
No idea if the result of a method call is required (i.e., is it a sub or a function)
Python must guess at the variable types
Big problem tends to be “byref” params - by default these are not handled

38. Dynamic IDispatch Implementation 3 of 5
win32com.client.Dispatch kicks it all off
Demo
>>> import ni
>>> from win32com.client import Dispatch
>>> w=Dispatch(“Word.Application”)
>>> w.Visible = 1
Starts Winword, and makes it visible

39. Dynamic Dispatch Implementation 4 of 5
Pros
No setup steps - just works
Provides quick scripting access to components
Cons
Relatively slow
You need to know the object model of the target. Not self documenting.
Actually, Python can make many objects self documenting, but this is beyond the scope of this

40. Dynamic Dispatch Implementation 5 of 5
Smart Dispatch vs. Dumb Dispatch
To overcome some potential problems, Python attempts to use Type Info even for dynamic objects
Slows down considerably for certain objects
win32com.client.DumbDispatch provides alternative implementation which does not attempt to locate type information
For many servers, will provide excellent results and speed

41. Static Dispatch Implementation 1 of 4
Generates .py file from Type Information
win32com.client.makepy does this
Python code then imports this module
Python knows everything about the object
No confusion between methods and properties
Byref args handled correctly
No dynamic lookups - much faster

42. Static Dispatch Implementation 2 of 4
Demo
C:\> cd “\Program Files\Microsoft Office\Office”
C:\> \python\python \python\win32com\client\makepy.py msword8.olb > \python\msword8.py
...
C:> start python
>>> import msword8 # grind, grind :-)
>>> w = msword8.Application()
>>> w.Visible = 1

43. Static Dispatch Implementation 3 of 4
Pros
ByRef args handled correctly
Result becomes a tuple in that case
All types handled correctly
Python knows the type required, so doesnt have to guess. More scope to coerce
Significantly faster
Python source file documents methods and properties available

44. Static Dispatch Implementation 4 of 4
Cons
Need to hunt down type library
Need to enter cryptic command to generate code
No standard place to put generated code
Compiling code may take ages
Not real problem, as this is a once only step
Type library may not be available
Many Cons listed are not permanent - help would be appreciated!

45. Dispatch, VARIANTs and Python Types
COM concept for IDispatch interface
Just a C union, with a flag for the type, and an API for manipulating and converting
IDispatch always uses VARIANT objects
In reality, COM is not typeless - most servers assume a particular type in the variant
Most (only!) complex code in PythonCOM deals with VARIANT conversions

46. Dispatch, VARIANTs and Python Types
Python has 2 modes of conversion
Python type drives VARIANT type
Python knows no better
Creates VARIANT based on type of Python object
Known type drives VARIANT type
For static IDispatch, Python often known exactly type required
Attempt to coerce the Python object to VARIANT of this type

47. win32com.client Files 1 of 2 makepy.py, dynamic.py build.py
Static and dynamic IDispatch implementations respectively
build.py
Utility code used by both modules above
CLSIDToClass.py
Manages dictionary of Python classes, mapped by CLSID. Code generated by makepy.py automatically populates this.

48. win32com.client Files 2 of 2 combrowse.py tlbrowse.py util.py
Basic COM browser that requires Pythonwin. Simply double-click on it.
tlbrowse.py
Basic Type Library browser that requires Pythonwin
util.py
Utiility helpers
connect.py
Connection point client base class

49. Client Side Error Handling 1 of 2
Client interfaces raise pythoncom.com_error exception
Exception consists of:
HRESULT
32 bit error code, defined by OLE
Error Message
Should be language independant
(cont.)

50. Client Side Error Handling 2 of 2
COM Exception Tuple
Tuple of (wcode, AppName, AppMessage, HelpFile, HelpContext, scode), all of which are application defined
Exception object itself, or any part of it, may be None
Arg Error
Integer containing the argument number that caused the error
Often None if error does not relate to specific argument

51. SWIG and COM Client Interfaces 1 of 3
Recent changes to SWIG allow it to generate client side native interfaces
ie, any custom interface not based on IDispatch can be generated
Uses existing SWIG functionality and M.O.
ie, maintain .i files, and SWIG generates .c files
Native MAPI support generated this way
Pretty serious API, and it works a treat!

52. SWIG and COM Client Interfaces 2 of 3
Sample .i from MAPI
#define TABLE_SORT_DESCEND TABLE_SORT_DESCEND HRESULT MAPIInitialize( MAPIINIT_0 *INPUT); HRESULT MAPILogonEx( ULONG INPUT, TCHAR *inNullString, IMAPISession **OUTPUT );

53. SWIG and COM Client Interfaces 3 of 3
Notes
#defines are carried into module
Many functions are completely trivial
SWIG handles input/output params
Scope for even better integration with COM
e.g., maybe the first cut at the .i could be generated from the Type Info.
More work and discussions with Dave Beazley needed!

54. Using Python as a COM server

55. Python COM Servers The Problem
Exposing a Python object as a COM object
COM = vtable = C++ (not Python)
IDispatch removes vtable requirement
Imposes coding burden on client
Some interfaces are defined as a vtable
Answer: we need an intermediary between COM’s vtables and a Python object
These are called “gateways”

56. Gateways 1 of 2 Gateways act as the intermediary
Hold reference to the Python object
Map C++ method calls into Python calls
Map parameters and return values
A gateway is a C++ object implementing a particular COM interface
Gateways are registered with the framework and instantiated as needed to support particular interfaces as they are requested

57. Gateways 2 of 2 The default gateway supports IDispatch
All Python COM servers automatically support IDispatch
Default also supports ISupportErrorInfo, a standard interface for returning extended error information

58. Gateways 3 of 3 Gateway Wrapper Server Client Gateway Gateway
PythonCOM
v-table interface
C++
Python
Gateway
Wrapper
Server
Client
Gateway
Gateway

59. Calling Python Methods
The Python COM framework defines an IDispatch-oriented protocol for how the gateways call into Python:
_QueryInterface_ : determine support for a particular COM interface
_GetIDsOfNames_ : look up a dispatch identifier (DISPID) for a given name
_Invoke_ : invoke a method with specified parameters

60. Policies 1 of 2 “Features” of the gateway protocol:
Non-intuitive for a Python programmer
Usually requires support structures for the DISPID handling
Subtleties with some of the parameters and return values
Result: hard for Python programmers to write a COM server
Answer: “policy objects”

61. Policies 2 of 2
A “policy” specifies how to implement a Python COM server
The policy object maps the gateway protocol to the given implementation policy
The default policy is usually sufficient
Custom policies may be created and used
An advanced topic (discussed later)

62. Instantiation 1 of 3
The framework calls the CreateInstance function in the win32com.server.policy module
Hard-wired call to CreateInstance, but behavior can easily be hooked through custom policies
When your COM object is registered, an additional registry key specifies the creator function
Typically “mymodule.MyClass”

63. Instantiation 2 of 3
The registry key is read by the default policy and used to instantiate your object
COM does not provide additional parameters to your creator function (the __init__ method)
Make sure that any parameters have defaults
COM+ will provide this capability
Registry can specify a custom policy

64. Instantiation 3 of 3 PythonCOM policy.py CreateInstance(clsid, riid)
returned
returned
creates
Interface
pUnk

65. The Default Policy
Python server objects (instances) are annotated with special attributes
Typically specified as class attributes
Most are optional
_public_methods_
A list of strings specifying the methods that clients are allowed to call
This is the only required attribute

66. A Quick Example
class MyPythonServer:
_public_methods_ = [ ‘SomeMethod’ ]
def SomeMethod(self, arg1, arg2):
do_some_work(arg1)
return whatever(arg2)
Note that the only difference for the Python programmer is the addition of the _public_methods_ attribute

67. Useful Attributes
_public_attrs_ : what Python attributes should be exposed as COM Properties
_readonly_attrs_ : which of the above should be considered read-only
_com_interfaces_ : what COM interfaces beyond IDispatch are supported

68. Wrapping 1 of 3
The process of associating a gateway instance and a policy instance with a particular Python instance is known as “wrapping”
Similarly, retrieving the Python instance is known as “unwrapping”
Objects returned by Python COM servers must be wrapped (the framework does not automatically wrap)

69. Wrapping 2 of 3 This diagram shows the organization of the
Gateway
Policy
Server
This diagram shows the organization of the
objects involved in a Python COM server and
where the “wrapping” term came from

70. Wrapping 3 of 3
Wrapping an object that will be returned: from win32com.server import util ... def method(self, arg): ob = whatever(arg) return util.wrap(ob)
Unwrapping (of an argument) is rare
You must know the object is a Python object (and what to do with it once unwrapped)
Usually used in relatively closed systems

71. Error Handling 1 of 3
COM defines simple result codes with the HRESULT type and associated constants
Extended error information includes description, help file, context, etc
Returned via EXCEP_INFO structure in IDispatch or through ISupportErrorInfo
Framework maps Python exceptions to COM result codes and exceptions

72. Error Handling 2 of 3
If the Python exception is an instance, then framework looks for special attributes to fill in COM extended exception information
Just raise an instance with the right attributes
See exception.Exception utility class
Otherwise, the framework does its best

73. Error Handling 3 of 3
When called via IDispatch, it returns the exception via EXCEP_INFO
For non-Dispatch calls, the caller may follow up by using ISupportErrorInfo to retrieve the exception
ISupportErrorInfo is part of the base gateway class and is always present

74. Collections 1 of 3
Collections are sequence-like objects that typically implement the Add, Remove, and Item methods and a Count property
Some Collections (such as those provided natively by VB) can be indexed using numbers (acts as a sequence) or using strings (acts as a mapping)
win32com.server.util.Collection is a simple numerically indexed Collection class

75. Collections 2 of 3 The Item method is special
It should be the “default” method, meaning that VB can implicitly call it without using its name
The predefined DISPID_VALUE value refers to the default method
Item can be called with one parameter (the index) or with two parameters (an index and a new value to place at that index)
This duality is not handled well by the default policy nor server.util.Collection
Also beware the numeric vs. string indexing

76. Collections 3 of 3
The Python COM framework defines returning a list or tuple to mean returning a SAFEARRAY of VARIANT values
This means your object must explicitly return an object that obeys the Collection protocol
A custom policy could be used to automatically wrap sequences with a Collection
Only recognizes list and tuple
avoids treating a string as a sequence
instances are not checked for sequence behavior

77. Enumerators 1 of 3
Enumerators are used by clients to enumerate a collection (sequence)
VBScript automatically fetches an enumerator for script code such as: for each item in collection
Standard COM protocol uses the predefined DISPID_NEWENUM value and calls IDispatch::Invoke()
Default policy calls your _NewEnum method

78. Enumerators 2 of 3
IEnumVARIANT is the interface used by Automation clients (such as VB)
Your returned enumerator must implement the IEnumVARIANT interface
Values returned from Next() are VARIANTs (see client section for discussion of COM enumerator interfaces)
Support for IEnumVARIANT part of core
Python datatypes are easily coerced into VARIANTs by the IEnumVARIANT gateway

79. Enumerators 3 of 3
win32com.server.util.NewEnum(seq) will return an enumerator for a given sequence
Custom enumerators are easily written:
Dynamic sequences
Special handling of enumerated values
Subclass from server.util.ListEnumerator, ListEnumeratorGateway, or write from scratch
New gateways needed for interfaces other than IEnumVARIANT

80. Server Utilities Various functionality available in win32com.server.*
...connect : connection points
...exception : exception handling
...policy : framework support
...register : server object registration
...util : miscellaneous utilities

81. win32com.server.connect
Supplies utilities and classes for the server side of connection points

82. win32com.server.exception
Exports a single class: Exception
Constructor has keyword arguments for the status code, description, help file, etc.
The Exception class places these values into instance variables
The Python COM framework picks up the values for returning to the caller

83. win32com.server.policy Framework knows about this file
Hard-coded reference, so it must exist
Provides CreateInstance for the framework
Provides hooks for custom policies and dispatchers
Defines various standard policies and dispatchers
Future: the policies and dispatchers will move out to separate files for easier maintainability

84. win32com.server.register
Utilities for registering your COM servers
Two primary functions:
RegisterServer()
UnregisterServer()
Typically, registration for servers in a file is performed when the file is run from the command line (e.g. “python myservers.py”)
RegisterServer() has many options; see its doc string for more information

85. win32com.server.register Example
class MyClass:
_public_methods_ = [ “MyMethod” ]
# … class definition
if __name__ == “__main__”:
import sys
from win32com.server import register
if len(sys.argv) > 1 and sys.argv[1] == “--unregister”:
register.UnregisterServer(“{…}”, “The.ProgID”)
else:
register.RegisterServer(“{…}”, “MyModule.MyClass”,
progID=“The.ProgID”)

86. win32com.server.util wrap() unwrap() NewEnum() Collection class
ListEnumerator class
ListEnumeratorGateway class
Collection class

87. win32com.makegw Tool for interfaces and gateways
SWIG now my preference for interfaces - gateways somewhat harder
Generate once, and never again
compare with SWIG, which allows multiple generations - particularly useful as support is added after initial generation
Better than hand-coding
Active Scripting, Debugging and some others done this way

88. Advanced Topics

89. Advanced: Dispatchers 1 of 2
Debugging and tracing utility
Almost identical to policies; simply delegate to actual policy
Only used during development, so zero runtime overhead in release
Implementation is not for speed, but for assistance in debugging
e.g., IIDs translated if possible to names, often using the registry or dictionary lookups, etc

90. Advanced: Dispatchers 2 of 2
Log information about your server
All method calls made
All IDispatch mapping
All QueryInterface requests
Dispatchers available that send to various debugging “terminals”
win32dbg debugger, win32trace utility, existing stdout, etc.
Easy to write your own if you have specific debugging requirements

91. Advanced: Wrapping 1 of 5
All Python server objects are wrapped with at least two objects: the policy and the gateway
Caveat: a custom policy may implement the actual server rather than using another object (see win32com.servers.dictionary)
Dispatchers can actually add a third layer into this group

92. Advanced: Wrapping 2 of 5
Since a gateway is referenced with a C++ interface pointer, Python cannot hold the reference
Wrap once more with a framework “interface” (we’ll call it a PyInterface to distinguish from COM interfaces)
The PyInterface is removed by the framework (exposing the C++ pointer) when a PyInterface is returned by a server

93. Advanced: Wrapping 3 of 5 Interface Gateway Policy Server Python C++
Returned to COM client
(the framework removes the PyInterface)

94. Advanced: Wrapping 4 of 5
win32com.pythoncom.WrapObject() wraps a Python object with a gateway and a PyInterface
Pass it the policy object (which is wrapping the Python server object)
Optional parameter specifies the IID of a gateway to use for the wrapping (the gateway must be registered with the COM framework)

95. Advanced: Wrapping 5 of 5
Unwrapping is performed through a special COM interface: IUnwrapPythonObject
pythoncom.UnwrapObject() queries for this interface on the COM object held within the PyInterface object that is passed
The base gateway class implements this COM interface (so all gateways have it)
The interface’s single method returns the gateway’s underlying Python object

96. Advanced: Custom Policies 1 of 7
Why use a custom policy?
Special error handling, creation, calling mechanisms, validation, etc
Write the policy class and enter the appropriate information into the registry so that the framework will use your policy
Be sure to use your custom policy when wrapping your objects

97. Advanced: Custom Policies 2 of 7
Other provided policies
BasicWrapPolicy : handy base class
MappedWrapPolicy : low level mapping-based handling of names and properties and methods
DesignatedWrapPolicy : build onto the Mapped policy a way for objects to easily specify the properties and methods
DynamicPolicy : determine methods and properties dynamically

98. Advanced: Custom Policies 3 of 7
Example: custom instantiation
A single Python COM server was used to represent multiple COM objects
At instantiation time, it used the CLSID passed to the policy to look in the registry for more detailed information
A child/sub object was created, based on the registered information; the COM server provided some generic behavior for all of the child objects

99. Advanced: Custom Policies 4 of 7
Example: error handling
Returning “KeyError” or other Python exceptions to callers was undesirable
Wrap all Invokes with an exception handler that would map Python errors into a generic error
Let through pythoncom.com_error unchanged
If a “magic” registry value was present, then a full traceback was placed into the exception (rather than simply “internal error”)

100. Advanced: Custom Policies 5 of 7
Example: data validation
If the server object had a _validation_map_ attribute, then a custom validation method would be called for all Property “puts”
_validation_map_ would map a Property name to a type signature that the _validate_() method would test against
The Invoke method was hooked to call the _validate_() method

101. Advanced: Custom Policies 6 of 7
Example: functions for Property get/put
The Item() method in Collections is really treated as a parameterized property
Using a custom policy, get_Item() can be differentiated from put_Item()
Allowed for get_Count() and the absence of put_Count() implied read-only

102. Advanced: Custom Policies 7 of 7
Example: alter mechanism for specifying the available properties
Using the _validation_map_ from a previous example, the available properties are easily derived (simply the keys of the mapping)
Avoided duplication of property specification (one in _validation_map_ and one in _public_attrs_)

103. Advanced: Threading 1 of 2
Python is normally “single threaded”; the least capable COM threading model
With care, it could be possible to mark an object as “free threaded” to fool how COM handles the object, but Python will continue to allow only one thread per process to run
This behavior is fine for many applications where Python is a COM client, but it breaks down for some server scenarios

104. Advanced: Threading 2 of 2
The problem can be reduced by applying patches with allow Python to be truly free-threaded
Slows down single thread case
Applies mainly to multiprocessor use
More work on threading is needed and is in progress on the Thread-SIG

105. Futures

106. Future Directions
Auto wrap and unwrap
COM+
SWIG
makepy

107. Future: Auto Wrapping This could be done today, but wasn’t:
Leaving it to Python increased flexibility
Complexity involved with needing a way to specify two things during any wrapping process: the policy and the gateway
Moving to COM+ will be an opportune time to change
Annotation through attributes will control wrapping process

108. Future: COM+ 1 of 3 What is COM+ ? Upcoming revision of COM
Runtime services: memory management, interceptors, object model changes, language independence, etc
see:

109. Future: COM+ 2 of 3
Python already has most of COM+’s facilities and matches its model strongly
Huge win for Python:
Simplify COM programming even more
Will reduce the framework and associated overheads
Better language compatibilities
Major reduction in dependence on vtables
Better type handling

110. Future: COM+ 3 of 3
Any Python object can be a COM+ server, provided it is registered appropriately
Note that COM+ registration will be easier
Auto wrapping
“import somedll” will load the “metadata” from the DLL and automatically make its classes and constants available

111. Future: SWIG
Depends largely on what Dave Beazley is willing to support!
Interface support needs more work
Framework is OK
Mainly adding all interfaces and types to SWIG library
Gateways still a long way off
Future here quite uncertain
Some sort of IDL parsing highly desirable

112. Future: makepy Functionally quite complete
Some cleanup desirable, but works well
Architectural issues outstanding
Where does generated code go?
Utilities for automatic generation
From program ID
Integration with COM browser
Integration with some GUI interface
