1 Emittance Diagnostics
Extended Coupling Correction and Emittance Diagnostic Section for “optimal” ATF2 Coupling Correction / Emittance Diagnostics FONT nBPM (KEK) nBPM (SLAC) Compton / laserwire Existing ATF Extraction Line ODR June 7, 2005 ILC BDS Meeting

2 June 7, 2005 ILC BDS Meeting

3 FF Optics Modifications
From Tauchi-san’s ([bds 117] June 2, 2005): 5. Optics modifications: (1) concentrate on "optimal" design (straight) … done (2) change bends from sector bends to rectangular … done (3) use 0.8 m bends (as used in ATF) instead of 1 m for better field stability and more space … done (4) remove octupoles (do not use them, and they are tight) … done (OC0 removed; OC1 moved away from SF1) (5) extend diagnostics section (use up to ~10 m additional space) … done (6) QM14 is the strongest quad, and is close to max field of BT quads, need to check if its strength can be reduced by reoptimizing the matching section … done (QM14[K1L] = -1.1 m-1) June 7, 2005 ILC BDS Meeting

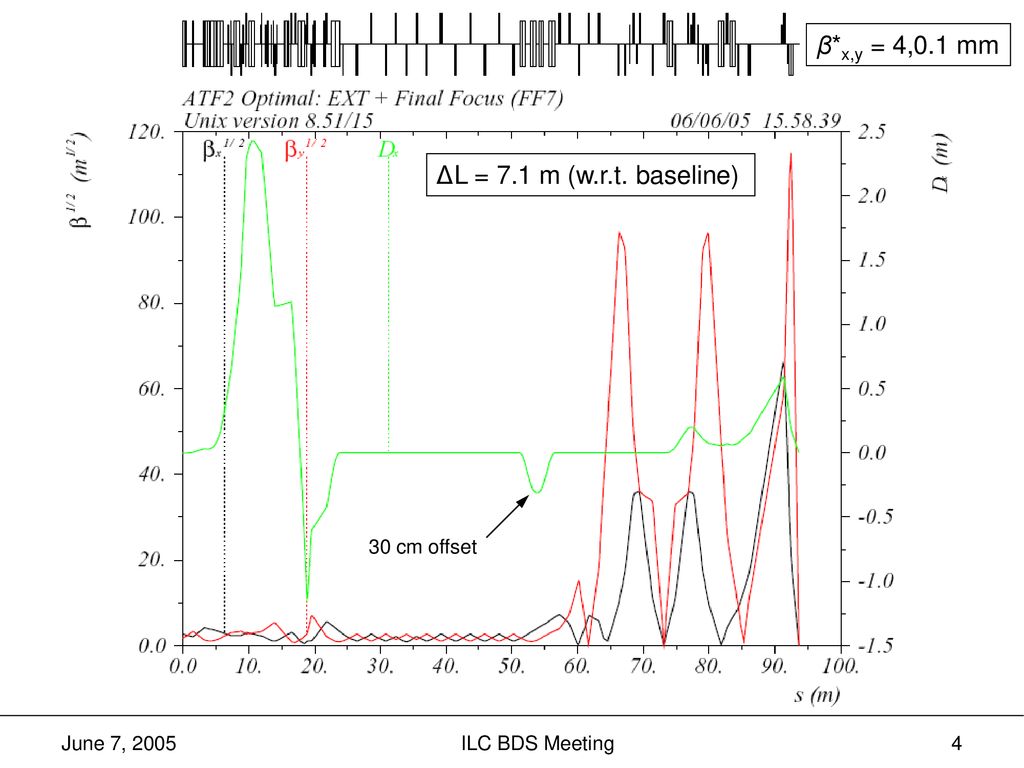

4 β*x,y = 4,0.1 mm ΔL = 7.1 m (w.r.t. baseline) 30 cm offset
June 7, 2005 ILC BDS Meeting

5 Assembly Hall optimal baseline June 7, 2005 ILC BDS Meeting

6 -1% +1% June 7, 2005 ILC BDS Meeting

7 Coupling Correction ideally
correction section with 4 independent skew quadrupoles, followed by 2D (4 wire scanner) emittance measurement section optics for orthogonal control of the 4 coupling phases minimize εy once with each skew quadrupole in present ATF extraction line non-optimal optics in EXT straight section wire scanners and skew quads interspersed each wire scanner has x, y, and “u/v” (small angle, ~10°) wires one attempt at full 4D beam matrix measurement and correction was inconclusive1 1 See June 7, 2005 ILC BDS Meeting

8 “Ideal” skew correction / ε diagnostic section
SQ SQ SQ SQ WS WS WS WS – x – y 90° 180° 90° 90° 45° 45° 45° See June 7, 2005 ILC BDS Meeting

9 SQ SQ SQ SQ 2.0 2.0 2.0 2.0 2.0 2.0 2.0 1.3 1.3 1.3 1.3 2.0 2.0 WS WS WS WS WS – x – y 90° 180° 90° 90° 33° 57° 57° 33° 33° 57° 57° 33° σ (μm) 59.2 10.8 108.0 5.9 59.2 10.8 108.0 5.9 59.2 10.8 For MAD files see June 7, 2005 ILC BDS Meeting

10 new quadrupole (between QF3X and BH1X.3)
June 7, 2005 ILC BDS Meeting

11 A ‘Drift’ e-Diagnostic Section
from Paul Emma … b s L w1 w2 w3 3 wire scanners (or profile monitors) June 7, 2005 ILC BDS Meeting

12 – x – y σmin = 3 μm June 7, 2005 ILC BDS Meeting

13 Continuing Work optimize system bandwidth and performance
add BPMs and dipole correctors simulate steering and dispersion/coupling correction with machine/diagnostic errors verify what space is needed for diagnostic equipment in chicane investigate drift ε–diagnostic section writeup for ATF2 proposal document June 7, 2005 ILC BDS Meeting
