1. Mario Čagalj University of Split 2013/2014. Security of Cellular Networks: Man-in-the Middle Attacks ‘Security in the GSM system’ by Jeremy Quirke, 2004

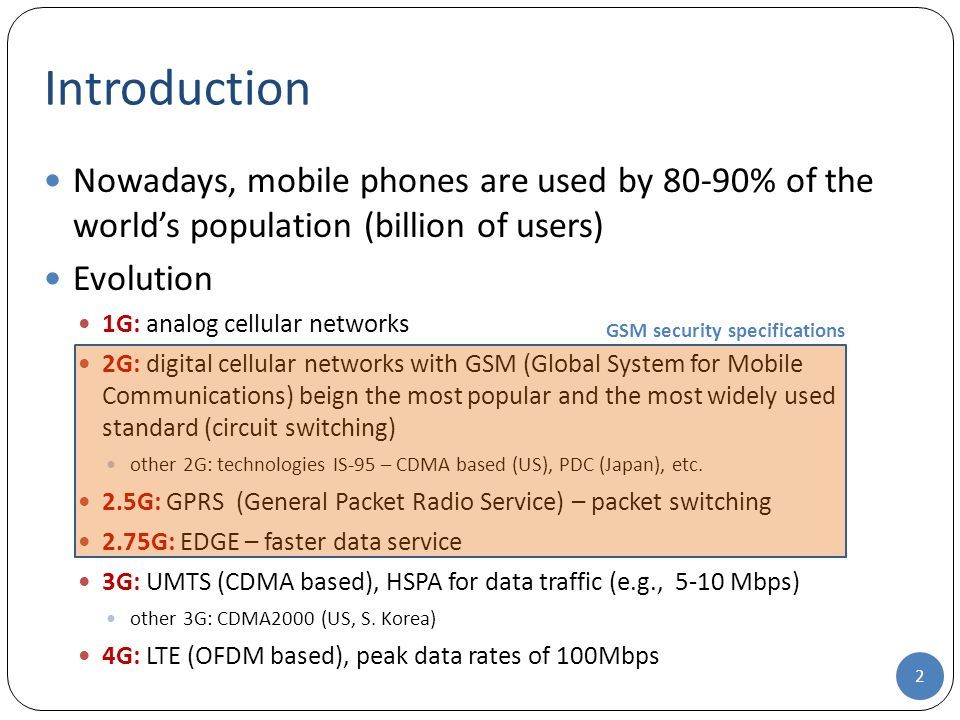

2. Introduction Nowadays, mobile phones are used by 80-90% of the world’s population (billion of users) Evolution 1G: analog cellular networks 2G: digital cellular networks with GSM (Global System for Mobile Communications) beign the most popular and the most widely used standard (circuit switching) other 2G: technologies IS-95 – CDMA based (US), PDC (Japan), etc. 2.5G: GPRS (General Packet Radio Service) – packet switching 2.75G: EDGE – faster data service 3G: UMTS (CDMA based), HSPA for data traffic (e.g., 5-10 Mbps) other 3G: CDMA2000 (US, S. Korea) 4G: LTE (OFDM based), peak data rates of 100Mbps 2 GSM security specifications

3. Cellular Network Architecture A high level view 3 External Network Cellular Network Mobile Station Base Station Mobile Switching Center Databases (e.g., Home Location Register) EPFL, JPH

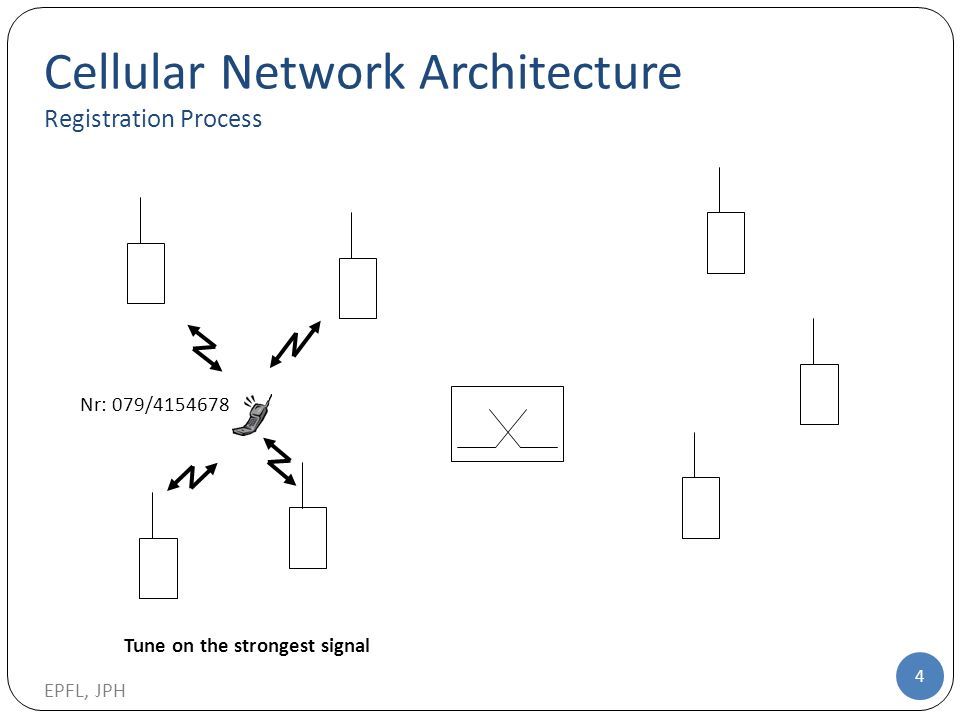

4. Cellular Network Architecture Registration Process 4 Tune on the strongest signal Nr: 079/4154678 EPFL, JPH

5. Cellular Network Architecture Service Request 5 079/4154678 079/8132627 079/4154678 079/8132627 EPFL, JPH

6. Cellular Network Architecture Paging Broadcast (locating a particular mobile station in case of mobile terminated call) 6 079/8132627? Note: paging makes sense only over a small area EPFL, JPH

7. Cellular Network Architecture Response 7 079/8132627 EPFL, JPH

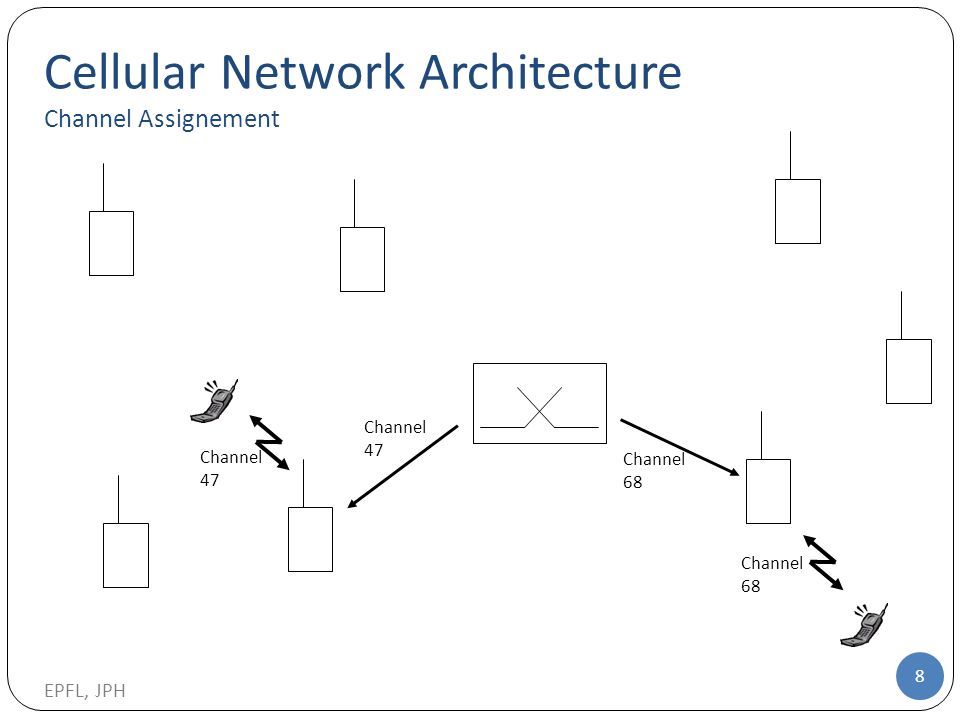

8. Cellular Network Architecture Channel Assignement 8 Channel 47 Channel 47 Channel 68 Channel 68 EPFL, JPH

9. Cellular Network Architecture Conversation 9 EPFL, JPH

10. Cellular Network Architecture Handover (or Handoff) 10 EPFL, JPH

11. Cellular Network Architecture Message Sequence Chart 11 Caller Base Station Switch Base Station Callee Periodic registration Service request Ring indication Page request Paging broadcast Paging response Assign Ch. 47 Tune to Ch.47 Assign Ch. 68 Tune to Ch. 68 Alert tone User response Stop ring indication EPFL, JPH

12. GSM System Architecture Based on ‘Mobile Communications: Wireless Telecommunication Systems’

13. Architecture of the GSM system GSM is a PLMN (Public Land Mobile Network) several providers setup mobile networks following the GSM standard within each country components MS (mobile station) BS (base station) MSC (mobile switching center) LR (location register) subsystems RSS (radio subsystem): covers all radio aspects NSS (network and switching subsystem): call forwarding, handover, switching OSS (operation subsystem): management of the network 13

14. GSM: overview fixed network BSC MSC GMSC OMC, EIR, AUC VLR HLR NSS with OSS RSS VLR 14 Please check http://gsmfordummies.com/architecture/arch.shtml

15. BSS radio subsystem MS BTS BSC BTS BSC BTS network and switching subsystem MSC fixed networks IWF ISDN PSTN PSPDN CSPDN SS7 EIR HLR VLR ISDN PSTN GSM: system architecture 15

16. System architecture: radio subsystem Components MS (Mobile Station) BSS (Base Station Subsystem): consisting of BTS (Base Transceiver Station): sender and receiver BSC (Base Station Controller): controlling several transceivers BSS radio subsystem network and switching subsystem MS BTS BSC MSC BTS BSC BTS MSC 16

17. Radio subsystem The Radio Subsystem (RSS) comprises the cellular mobile network up to the switching centers  Components Base Station Subsystem (BSS): Base Transceiver Station (BTS): radio components including sender, receiver, antenna - if directed antennas are used one BTS can cover several cells Base Station Controller (BSC): switching between BTSs, controlling BTSs, managing of network resources, mapping of radio channels onto terrestrial channels Mobile Stations (MS) 17

18. possible radio coverage of the cell idealized shape of the cell cell segmentation of the area into cells GSM: cellular network use of several carrier frequencies not the same frequency in adjoining cells cell sizes vary from some 100 m up to 35 km depending on user density, geography, transceiver power etc. hexagonal shape of cells is idealized (cells overlap, shapes depend on geography) if a mobile user changes cells handover of the connection to the neighbor cell 18

19. System architecture: network and switching subsystem Components o MSC (Mobile Services Switching Center) o IWF (Interworking Functions) o ISDN (Integrated Services Digital Network) o PSTN (Public Switched Telephone Network) o PSPDN (Packet Switched Public Data Net.) o CSPDN (Circuit Switched Public Data Net.) Databases o HLR (Home Location Register) o VLR (Visitor Location Register) o EIR (Equipment Identity Register) network subsystem MSC fixed partner networks IWF ISDN PSTN PSPDN CSPDN SS7 EIR HLR VLR ISDN PSTN 19

20. Network and switching subsystem NSS is the main component of the public mobile network GSM switching, mobility management, interconnection to other networks, system control Components Mobile Services Switching Center (MSC) controls all connections via a separated network to/from a mobile terminal within the domain of the MSC - several BSC can belong to a MSC Databases (important: scalability, high capacity, low delay) Home Location Register (HLR) central master database containing user data, permanent and semi-permanent data of all subscribers assigned to the HLR (one provider can have several HLRs) Visitor Location Register (VLR) local database for a subset of user data, including data about all user currently in the domain of the VLR 20

21. Mobile Services Switching Center The MSC (mobile switching center) plays a central role in GSM switching functions additional functions for mobility support management of network resources interworking functions via Gateway MSC (GMSC) integration of several databases 21

22. Operation subsystem The OSS (Operation Subsystem) enables centralized operation, management, and maintenance of all GSM subsystems Components Authentication Center (AUC) generates user specific authentication parameters on request of a VLR authentication parameters used for authentication of mobile terminals and encryption of user data on the air interface within the GSM system Equipment Identity Register (EIR) registers GSM mobile stations and user rights stolen or malfunctioning mobile stations can be locked and sometimes even localized Operation and Maintenance Center (OMC) different control capabilities for the radio subsystem and the network subsystem 22

23. Mobile Terminated Call PSTN calling station GMSC HLR VLR BSS MSC MS 12 3 4 5 6 7 89 10 1112 13 16 10 11 1415 17 1: calling a GSM subscriber 2: forwarding call to GMSC 3: signal call setup to HLR 4, 5: request MSRN (roaming number) from VLR 6: forward responsible MSC to GMSC 7: forward call to current MSC 8, 9: get current status of MS 10, 11: paging of MS 12, 13: MS answers 14, 15: security checks 16, 17: set up connection 23 Please check http://gsmfordummies.com/gsmevents/mobile_terminated.shtml

24. Mobile Originated Call PSTN GMSC VLR BSS MSC MS 1 2 65 34 9 10 78 1, 2: connection request 3, 4: security check 5-8: check resources (free circuit) 9-10: set up call 24

25. Mobile Terminated and Mobile Originated Calls BTSMS paging request channel request immediate assignment paging response authentication request authentication response ciphering command ciphering complete setup call confirmed assignment command assignment complete alerting connect connect acknowledge data/speech exchange BTSMS channel request immediate assignment service request authentication request authentication response ciphering command ciphering complete setup call confirmed assignment command assignment complete alerting connect connect acknowledge data/speech exchange MTCMOC 25

26. Security in GSM Based on: ‘Security in the GSM system’ by Jeremy Quirke ‘The GSM Standard (An overview of its security)’ by SANS Institute InfoSec Reading Room ‘Mobile Communications: Wireless Telecommunication Systems’

27. Security Services in GSM Access control/authentication user <-- x -- SIM (Subscriber Identity Module): secret PIN (personal identification number) SIM <-- x -- network: challenge response method Confidentiality voice and signaling encrypted on the wireless link (after successful authentication) Anonymity temporary identity TMSI (Temporary Mobile Subscriber Identity) newly assigned at each new location update (LUP) encrypted transmission 27

28. Security Services in GSM Authentication SIM (Subscriber Identity Module) card smartcard inserted into a mobiel phone contains all necessary details to obtain access to an account unique IMSI (International Mobile Subscriber Identity) K i - the individual subscriber authentication key (128bit, used to generate all other encryption and authentication keying GSM material) highly protected – the mobile phone never learns this key, mobile only forwards any required material to the SIM known only to the SIM and network AUC (Authentication Center) SIM unlocked using a PIN or PUK authentication (A3 algorithm) and key generation (A8 algorithm) is performed in the SIM SIM contains a microprocessor 28

29. Security Services in GSM Authentication A3 RANDKiKi 128 bit SRES* 32 bit A3 RANDKiKi 128 bit SRES 32 bit SRES* =? SRES SRES RAND SRES 32 bit mobile network SIM AC MSC SIM K i : individual subscriber authentication keySRES: signed response 29

30. Security Services in GSM Authentication K c : Session encryption key generated together with SRES 30

31. Security Services in GSM Encryption A8 RANDKiKi 128 bit K c 64 bit A8 RANDKiKi 128 bit SRES RAND encrypted data mobile network (BTS) MS with SIM AC BTS SIM A5 K c 64 bit A5 MS data cipher key 31

32. Security Services in GSM Authentication and Encryption A3 and A8 algorithms are both run in SIM at the same time on the same input (RAND, K i ) A3A8 = COMP128v1, COMP128v2, COMP123v3 (serious weaknesses known) not used in UMTS Encryption algorithm A5 symmetric encryption algorithm voice/data encryption performed by a phone using generated encryption key K c 32

33. Security Services in GSM Encryption A5 algorithms A5/0 – no encryption used A5/1 and A5/2 developed far from public domain and later found flawed stream ciphers based on linear feedback shift registers A5/2 completely broken (not used anymore in GSM) A5/1 is a bit stronger but also broken by many researchers A5/3 – is a block cipher based on Kasumi encryption algorithm used in UMTS, GSM, and GPRS mobile communications systems public and reasonably secure (at least at the moment) 33

34. Security Services in GSM Summary 34

35. Security Weaknesess in GSM A mobile phone does not authenticate the base station! only mobile authenticate to BS (one-way authentication) fake BS and man-in-the middle attacks possible attacker does not have to know authentication key K i A5/0 - No Encryption algorithm is a valid choice in GSM for voice, SMS, GPRS, EDGE services Many weaknesses in A5 family of encryption algorithms 35

36. Security Weaknesess in GSM 36

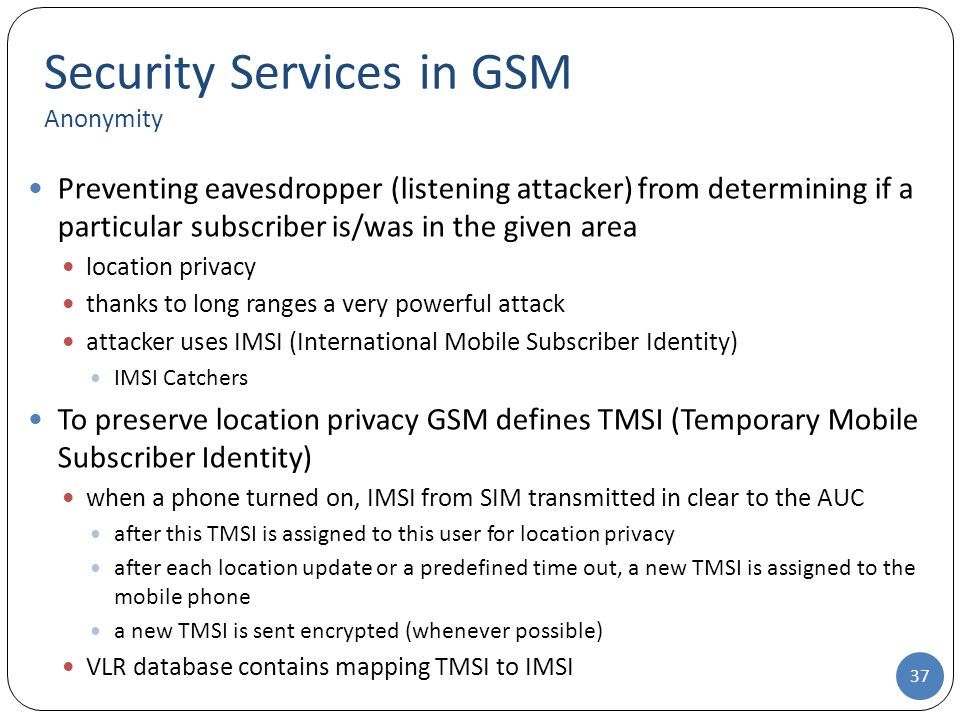

37. Security Services in GSM Anonymity Preventing eavesdropper (listening attacker) from determining if a particular subscriber is/was in the given area location privacy thanks to long ranges a very powerful attack attacker uses IMSI (International Mobile Subscriber Identity) IMSI Catchers To preserve location privacy GSM defines TMSI (Temporary Mobile Subscriber Identity) when a phone turned on, IMSI from SIM transmitted in clear to the AUC after this TMSI is assigned to this user for location privacy after each location update or a predefined time out, a new TMSI is assigned to the mobile phone a new TMSI is sent encrypted (whenever possible) VLR database contains mapping TMSI to IMSI 37

38. Security Services in GSM Anonymity 38

39. Security Services in GSM Anonymity 39

40. Security Weaknesess in GSM Attack Against the Anonymity Service GSM provisions for situation when the network somhow loses track of a particular TMSI in this case the network must ask the subscriber its IMSI over the radio link using the IDENTITY REQUEST and IDENTITY RESPONSE mechanism however, the connection cannot be encrypted if the network does not know the IMSI and so the IMSI is sent in plain text the attacker can use this to map known TMSI and unknown and user-specific IMSI 40

41. Countermeasures: UMTS UMTS defines 2-way authentication and mandates the use of stronger encryption and authentication primitives prevents MITM attacks by a fake BS, but be cautious... Still many reasons to worry about most mobiles support < 3G standards (GPRS, EDGE) when signal is bad, hard to supprot UMTS rates mobile providers already invested a lot of money and do not give up upon ‘old’ BSS equippment femtocells 41

42. Many Reason to Worry About Your Privacy http://www.theregister.co.uk/2008/05/20/tracking_phones/ http://www.theregister.co.uk/2011/10/31/met_police_datong_mo bile_tracking/ (check also http://www.pathintelligence.com) http://www.theregister.co.uk/2011/10/31/met_police_datong_mo bile_tracking/ http://docs.google.com/viewer?url=https%3A%2F%2Fmedia.black hat.com%2Fbh-dc-11%2FPerez-Pico%2FBlackHat_DC_2011_Perez- Pico_Mobile_Attacks-Slides.pdf http://docs.google.com/viewer?url=https%3A%2F%2Fmedia.black hat.com%2Fbh-dc-11%2FPerez-Pico%2FBlackHat_DC_2011_Perez- Pico_Mobile_Attacks-Slides.pdf http://docs.google.com/viewer?url=http%3A%2F%2Ffemto.sec.t- labs.tu-berlin.de%2Fbh2011.pdf http://docs.google.com/viewer?url=http%3A%2F%2Ffemto.sec.t- labs.tu-berlin.de%2Fbh2011.pdf 42
