Test process essentials Riitta Viitamäki, 14.4.2004 riitta.viitamaki@iki.fi
2
Principles What is a bug ? Error: a human action that produces an incorrect result Fault: a manifestation of an error in sw –Also known as a defect or bug –If executed, a fault may cause a failure Failure: deviation of the sw from its expected delivery or service Failure is an event; fault is a state of the sw, caused by an error
3
Why do faults occur in sw? Sw is written by human beings, –Who know something but not everything –Who have skills but are not perfect –Who do make mistakes (errors) Under increasing pressure to deliver to strict deadlines –No time to check, but the assumptions may be wrong –Systems may be incomplete If you have ever written sw…
4

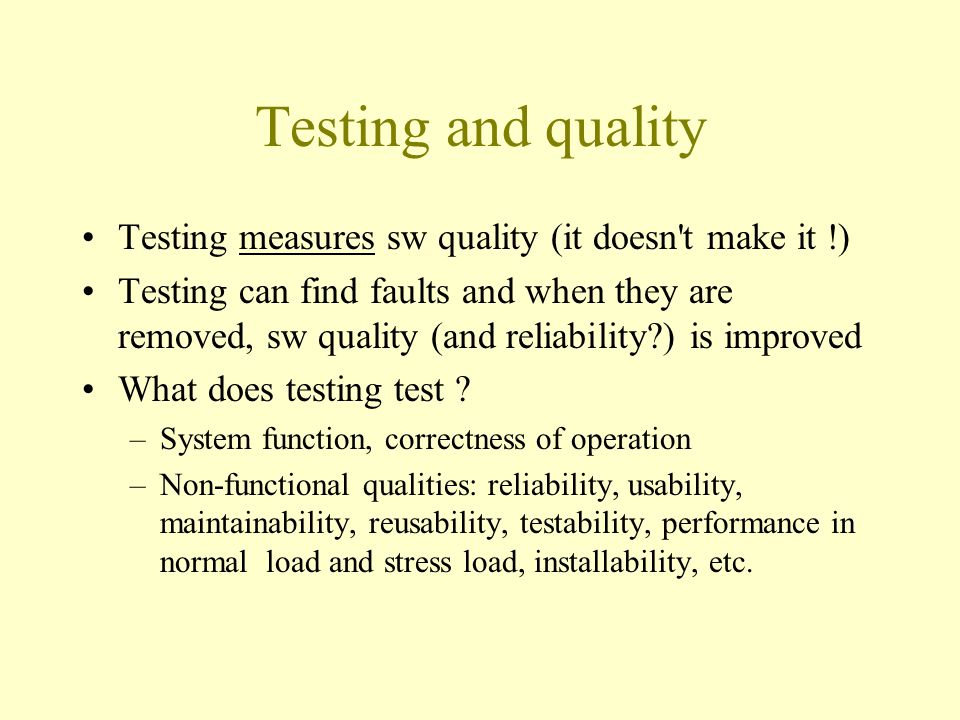

Testing and quality Testing measures sw quality (it doesn't make it !) Testing can find faults and when they are removed, sw quality (and reliability?) is improved What does testing test ? –System function, correctness of operation –Non-functional qualities: reliability, usability, maintainability, reusability, testability, performance in normal load and stress load, installability, etc.
5
Other factors that influence testing Contractual requirements Legal requirements Industry-specific requirements –GSM specs and standards –Air traffic control It is difficult to determine how much testing is enough but it is not impossible
6
Test planning – different levels Test policy (company level) Test strategy (company level) High level test plan (one for each project, IEEE 829) Detailed test plan for each test stage level (IEEE 829) within a project. For example Component, System, Security, Regression test plans.
7

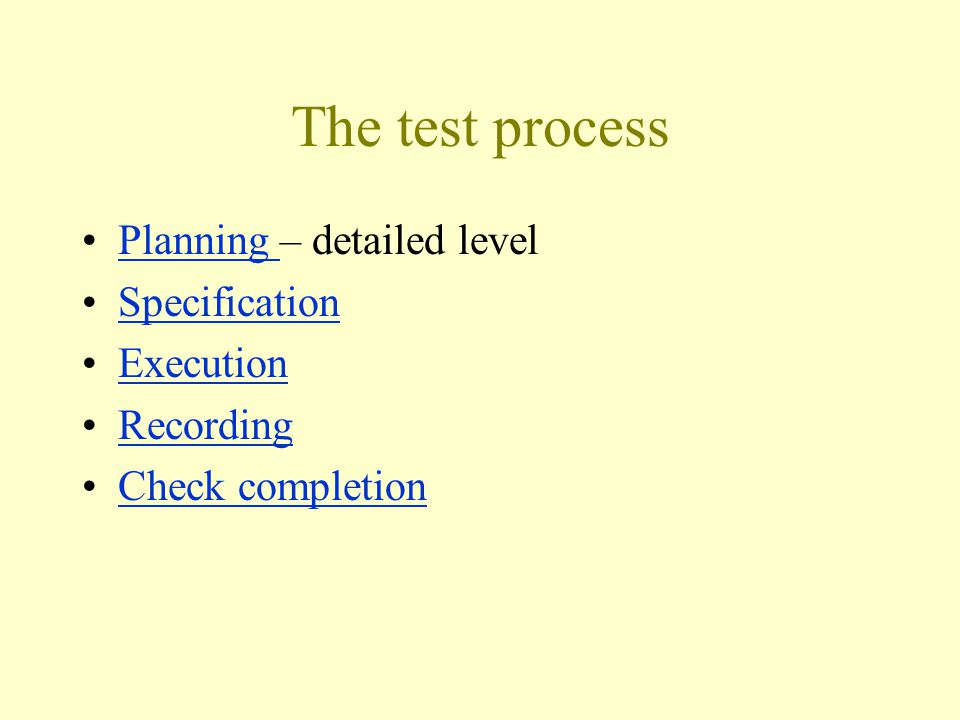

The test process Planning – detailed levelPlanning Specification Execution Recording Check completion
8
Test planning – detailed level How the test strategy and project test plan apply to the software under test (SUT) Document in the plan any exceptions to the test strategy –for example; only one test design technique needed for this functional area, because it is less critical. List other sw needed for the tests and environment details. (Start ordering the software, lisences and hardware) Set test completion criteria
9

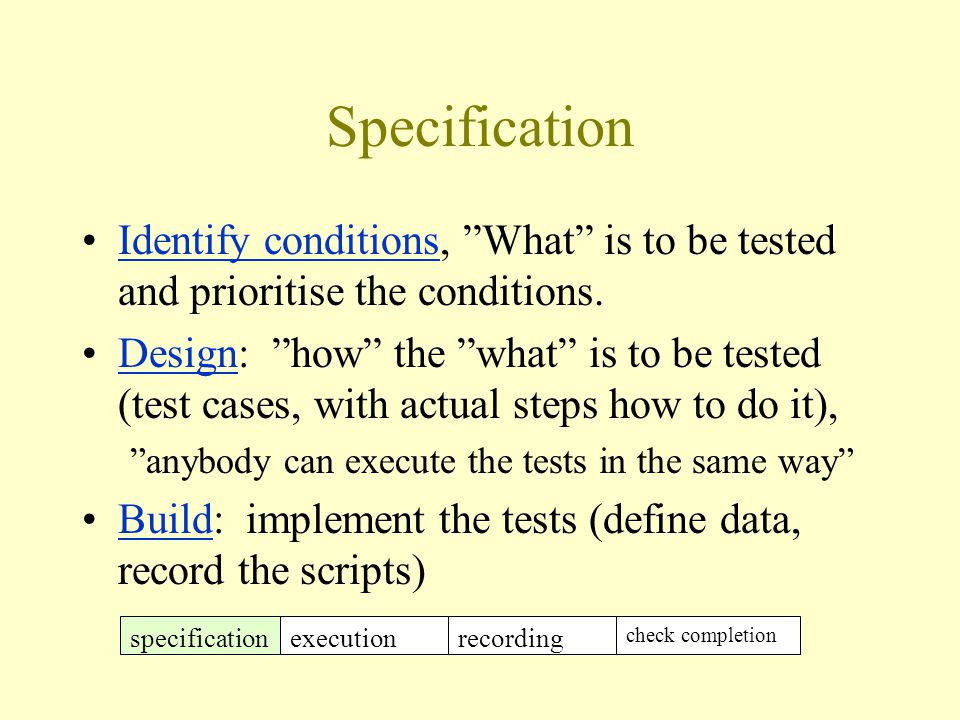

Specification Identify conditions, What is to be tested and prioritise the conditions.Identify conditions Design: how the what is to be tested (test cases, with actual steps how to do it),Design anybody can execute the tests in the same way Build: implement the tests (define data, record the scripts)Build specificationrecording check completion execution
10
Identify test conditions List the conditions that we would like to test: –use the test design techniques specified in the test plan (EP, BVA) –There may be many conditions for each system function or attribute. Prioritise the test conditions: –we cant test everything –there is never enough time to do all the testing you would like –so what testing you should do ?
11

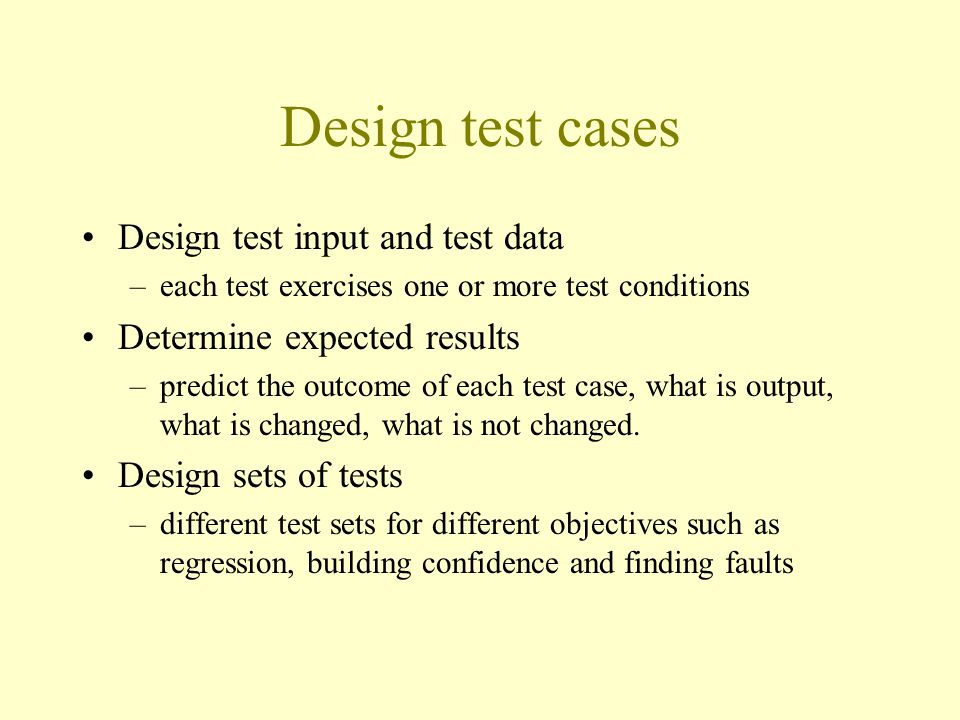

Design test cases Design test input and test data –each test exercises one or more test conditions Determine expected results –predict the outcome of each test case, what is output, what is changed, what is not changed. Design sets of tests –different test sets for different objectives such as regression, building confidence and finding faults
12

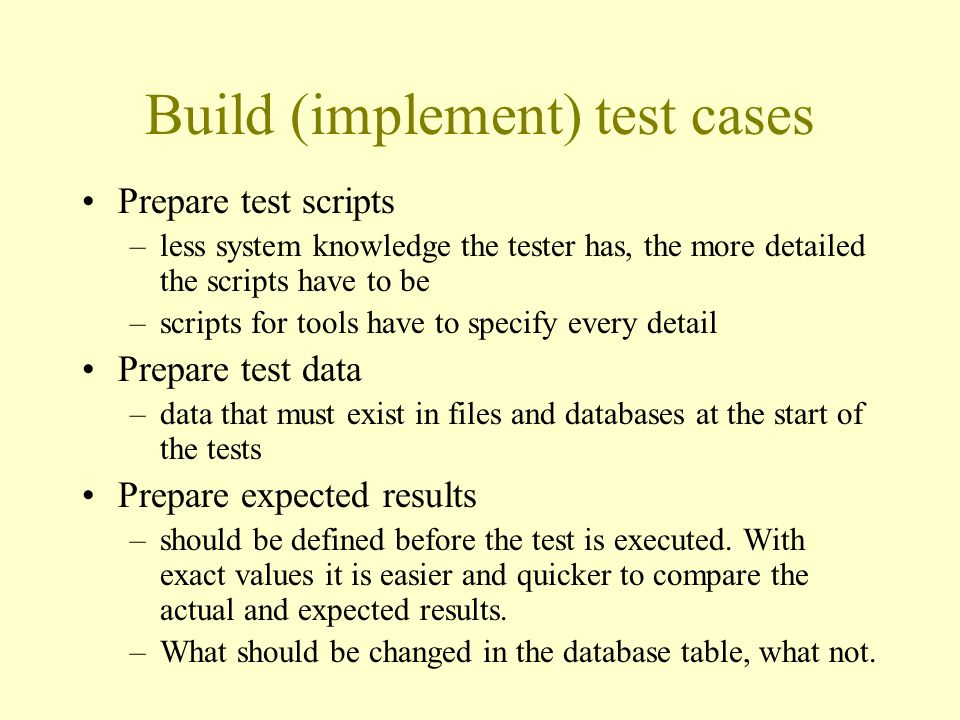

Build (implement) test cases Prepare test scripts –less system knowledge the tester has, the more detailed the scripts have to be –scripts for tools have to specify every detail Prepare test data –data that must exist in files and databases at the start of the tests Prepare expected results –should be defined before the test is executed. With exact values it is easier and quicker to compare the actual and expected results. –What should be changed in the database table, what not.
13
Execution Execute the prescribed test cases –Most important ones first –Would not execute all test cases if Testing only fault fixes To many faults found early test cases Time pressure Can be performed manually or automated. If actual results do not match with the expected ones, try to repeat, analyse, log the incident. specificationrecording check completion execution
14
Recording 1/2 The test record contains: –Identities and versions of Software under test Test specifications Follow the plan –Mark off progress on test script –Document actual outcomes from the test –Capture any other ideas you have for new test cases –Note that these records are used to establish that all test activities have been carried out as specific. specificationrecording check completion execution
15
Recording 2/2 Compare actual outcome with expected outcome. Log discrepancies accordingly: –Software fault –Test fault (expected results were wrong, or steps missing) –Environment or version fault –Test run incorrectly Log coverage levels achieved (compare with test completion criteria) After the fault has been fixed, repeat the required test activities (execute, design, plan)
16

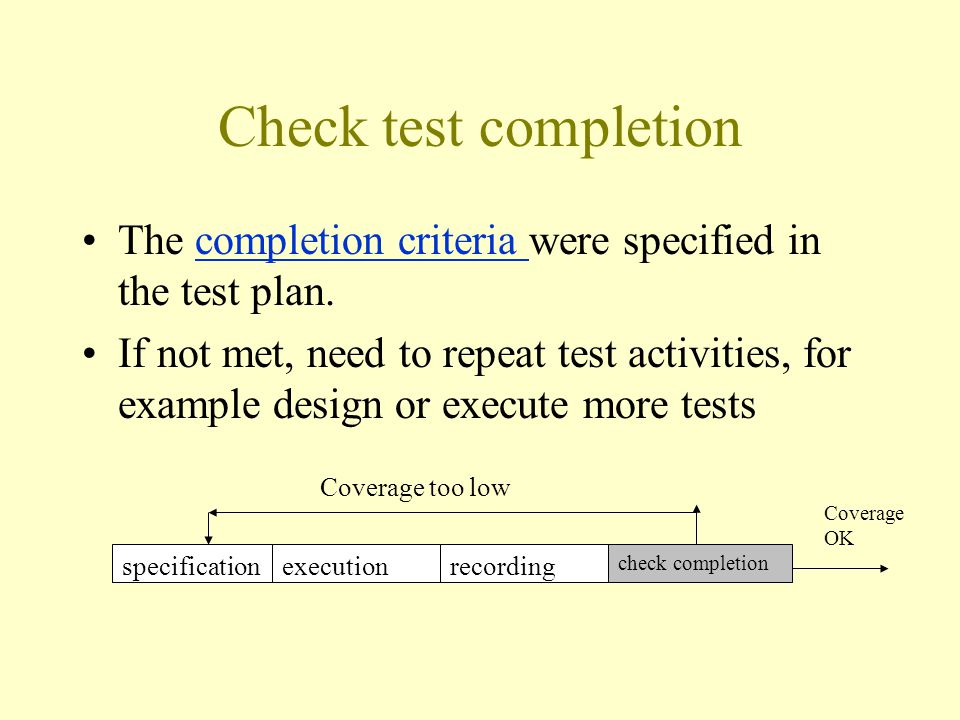

Check test completion The completion criteria were specified in the test plan.completion criteria If not met, need to repeat test activities, for example design or execute more tests specificationrecording check completion execution Coverage too low Coverage OK
17
Completion criteria Completion or exit criteria apply all levels of testing – to determine when to stop –Coverage, using a measurement technique Branch coverage for component testing User requirements (most important?) covered for acceptance testing Most frequently used transactions covered for system testing Faults found vs. expected. Too many serious faults found in an business critical area. Cost or time
18
True or false ? The purpose of testing is to prove that the system works. Neither True or False, because… One purpose of the testing is to show that the system is working. For testers in development another major purpose is to try and prove that the system is not working. No amount of testing can prove that the system has no bugs. Testing can show the presence of bugs but not their absence.
19

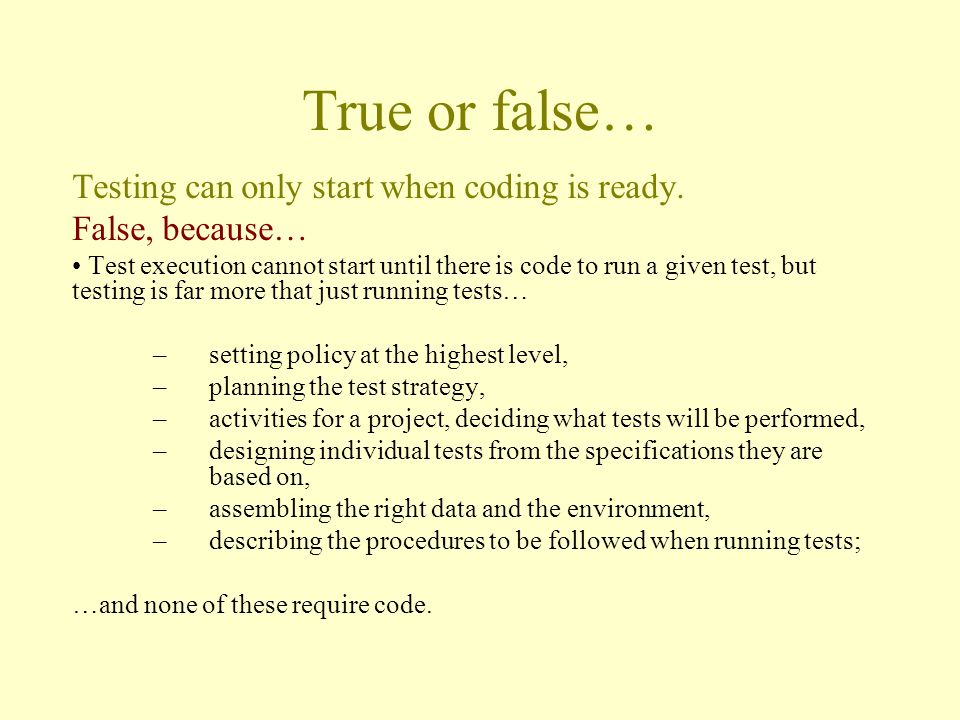

True or false… Testing can only start when coding is ready. False, because… Test execution cannot start until there is code to run a given test, but testing is far more that just running tests… –setting policy at the highest level, –planning the test strategy, –activities for a project, deciding what tests will be performed, –designing individual tests from the specifications they are based on, –assembling the right data and the environment, –describing the procedures to be followed when running tests; …and none of these require code.
20

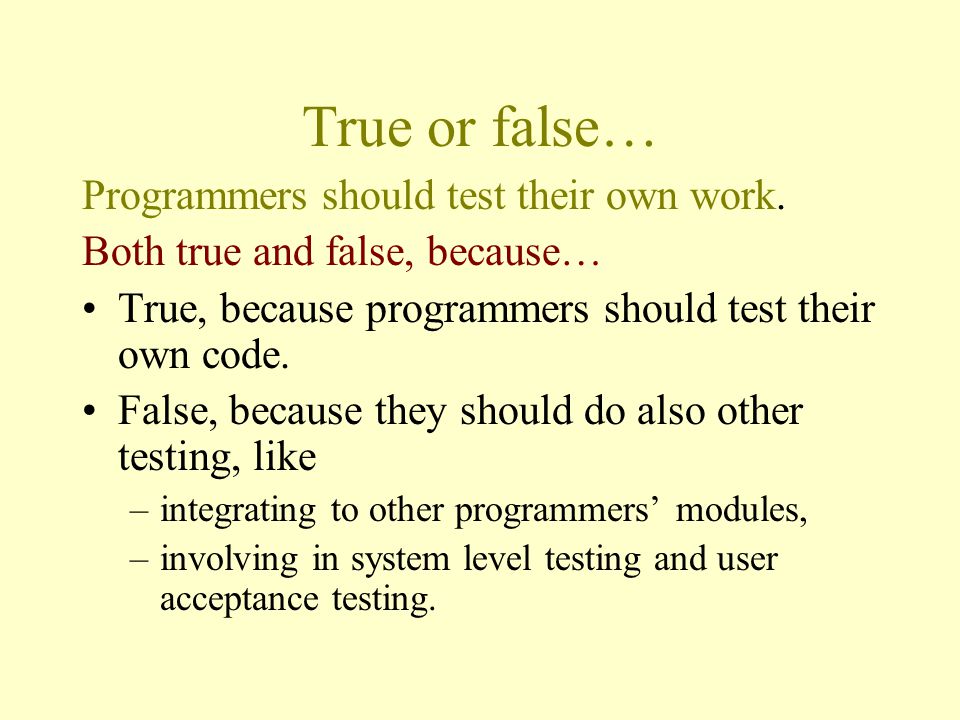

True or false… Programmers should test their own work. Both true and false, because… True, because programmers should test their own code. False, because they should do also other testing, like –integrating to other programmers modules, –involving in system level testing and user acceptance testing.
21

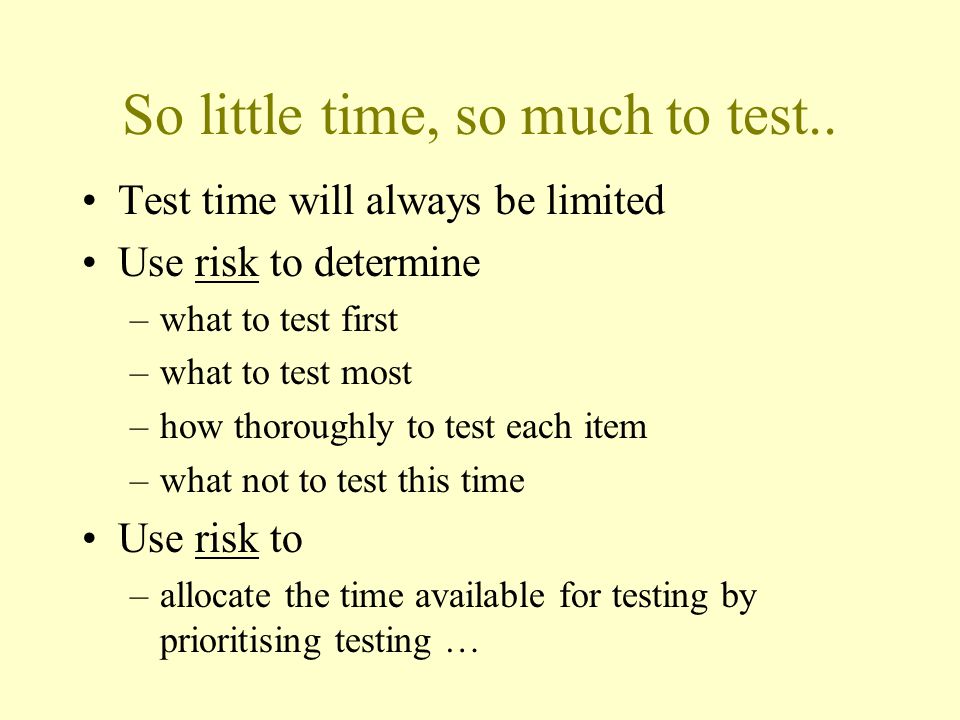

So little time, so much to test.. Test time will always be limited Use risk to determine –what to test first –what to test most –how thoroughly to test each item –what not to test this time Use risk to –allocate the time available for testing by prioritising testing …
22
Most important principle Prioritise tests so that, whenever you stop testing, you have done the best testing in the time available.
