1. Vijay Rachamadugu and David Snyder September 7, 2006
MITRE’s 1st Federal Enterprise Architecture (FEA) TEM Federal Enterprise Architecture Security and Privacy Profile (FEA SPP)
Vijay Rachamadugu and
David Snyder
September 7, 2006

2. Outline
Program Background
FEA SPP Challenges
Overview of the FEA SPP
FEA SPP Methodology
Review of the validation effort
Questions

3. FEA SPP
Background

4. Federal CIO Council Architecture and Infrastructure Committee (AIC)
Early 2003, called for the development of an “Information Security Architecture”
OBJECTIVE:
Overlay the existing reference models
Provide managers and systems architects with guidelines regarding the design and deployment of appropriate measures to ensure protection of information and information resources.
Develop an Information Security Architecture Profile that will become a part of the FEA.
APPROACH:
Assemble a suitable set of architectural principles and guidelines
Based on existing FEA reference models, legislation, government agencies, as well as private companies
Quickly produce an initial version of an Information Security Architecture Profile that will be available for use by Federal agencies and used to guide future updates to the FEA reference models.
PARTICIPATION:
Industry Advisory Council (IAC) Security Committee and industry organizations as appropriate
Provide information security and privacy architecture experts to review, refine and expand the Phase I product.
RESOURCES:
Sponsoring government and industry organizations will provide the necessary resources to complete this effort.
From Federal CIO Council Architecture and Infrastructure Committee Terms of Reference

5. Background
John Gilligan, Former Air Force CIO, develops statement of need for security guidance in the FEA
Phase 1: (August – September 2003)
A small working group is formed to define the content of an FEA “Security Profile”
Output shared with the Industry Advisory Council and government for review and comment
Phase 2: (June – December 2004)
FEA Security Profile under development based on the ideas and feedback from phase 1.
Phase 3: (October 2005 – April 2006)
FEA SPP Validation & Draft

6. FEA SPP Timeline

7. Security Implementation
MITRE R&D Results: Roadmap of Information Security Across the Enterprise (RISE)
Mission
Develop/
Acquire
Test &
Evaluate
Authorize &
Deploy
Business Strategy
Security Strategy
Security Implementation
& Management
Business
Drivers
Legislative
Governance
/ Standards
Personnel
/ Training
Operations
/ Processes
Environment /
Infrastructure
Assess
&/or
Construct
Enterprise
Policies
Capabilities
Assets
Security
Risks
Strategy
for
Addressing
Target
Architecture
with
Integrated
Throughout
Gap
Analysis
Prioritization
Sequencing
Plan
Security Management

8. RISE Relationship to EA Components
Mission
Assess
&/or
Construct
Enterprise
Policies
Capabilities
Assets
Security
Risks
Strategy
for
Addressing
Target EA
with
Integrated
Architecture
Gap
Analysis
Prioritization
Sequencing
Plan
As-Is EA
Security As
Enablers
Target
Goals and
Req’ments
Akin to
FIPS 199
Data Arch
Business Arch
Infrastructure Arch
Trade-offs
“SLAs”
Information Security
Control Selection
Executive
Decisions
Release
Planning
Develop/
Acquire
Test &
Evaluate
Authorize &
Deploy

9. FEA SPP
Challenges

10. FEA SPP Challenges
Address security and privacy at the enterprise level
Ensure that security and privacy are considered in the earliest stages of an initiative
Support project planning
Costing
Exhibit 300 and 53 development
Integrate security and privacy across the entire EA
Address requirements of the FEA Reference Models
Development of guidance relevant and applicable to agencies with widely varying levels of EA maturity
Integrate planning across cultures and domains
EA folks
Financial folks
Business domain folks
Security folks
Integrate best practices and avoid creating new work!

11. FEA SPP
Overview

12. What is the FEA SPP
A scaleable and repeatable methodology for addressing information security and privacy from a business-centric enterprise perspective.
Integrates the disparate perspectives of program, security, privacy, and capital planning into a coherent process, using an organization’s enterprise architecture efforts.
Enterprise architecture provides a common language for discussing security and privacy in the context of agencies’ business and performance goals, enabling better coordination and integration of efforts and investments across organizational or business activity stovepipes

13. What is the FEA SPP (cont’d)
Evaluates enterprise-level security and privacy in the context of the Federal Enterprise Architecture (FEA)
FEA focused on analyzing operations from common business, performance, services, technologies, and data views.
EA enables enterprise change management by describing how an organization operates today, intends to operate in the future, and intends to invest in technology to transition to that future state.

14. Overview of the Relationship of the FEA SPP to NIST Guidance
… the FEA SPP methodology focuses on enterprise-level decisions at the front end of the development life cycle as a program is initiated, providing a bridge to NIST’s system development and risk mitigation guidance.

15. FEA SPP Value Proposition
Promotes an understanding of an organization’s security and privacy requirements, its capability to meet those requirements, and the risks to its business associated with failures to meet requirements.
Helps program executives select the best solutions for meeting requirements and improving current capabilities, leveraging standards and services that are common to the enterprise or the Federal government as appropriate.
Improves agencies’ processes for incorporating privacy and security into major investments and selecting solutions most in keeping with enterprise needs.

16. FEA SPP
Methodology

17. FEA SPP Methodology Overview
Consists of 3 stages
Stage 1: Identification
Stage 2: Analysis
Stage 3: Selection
Each stage consists of a set of standard questions

18. FEA SPP Methodology Overview (cont’d)
Outcomes of Stage
Fully identify program and enterprise-level security and privacy requirements, including previously unknown requirements.
Fully identify program and enterprise-level security and privacy capabilities, including current and planned future requirements.
Document requirements and capabilities in an agency’s enterprise architecture using a nomenclature that is common across the Federal government.
Identify gaps between requirements and current or planned capabilities.
Identify opportunities to increase interoperability between or reduce costs of current or planned capabilities.
Propose solutions to address gaps or improve capabilities based on an informed trade-off analysis of alternatives.
Evaluation of individual proposals so that each fully reflects the outputs of Stages I and II.
Selection of individual proposals that best support the business, security, and privacy needs of the organization.
Documentation of the updated to-be architecture and sharing of reusable components.

19. Stage 1 - Identification
Outcomes of Stage
Fully identify program and enterprise-level security and privacy requirements, including previously unknown requirements.
Fully identify program and enterprise-level security and privacy capabilities, including current and planned future requirements.
Document requirements and capabilities in an agency’s enterprise architecture using a nomenclature that is common across the Federal government.

20. Stage 1 - Identification

21. Stage 1 – Identification Objectives
Identify and understand security and privacy drivers, and ensure that they are documented in the agency EA. Drivers include:
Legal requirements
Business requirements
Organizational commitments
Identify currently deployed security and privacy-supportive processes and technologies (components), and ensure that they are documented in the agency EA.
Match drivers to components, and ensure that the connections are documented in the agency EA.
Assess risks associated with unmatched drivers to determine which driver will require a component in the next zero to five years.

22. Stage 2 – Analysis Overview
Outcomes of Stage
Identify gaps between requirements and current or planned capabilities.
Identify opportunities to increase interoperability between or reduce costs of current or planned capabilities.
Propose solutions to address gaps or improve capabilities based on an informed trade-off analysis of alternatives.

23. Stage 2 – Analysis Overview

24. Stage 2 – Analysis Overview (cont’d)

25. Stage 2 – Analysis Objectives
Identify gaps between requirements and current or planned capabilities
Identify opportunities to increase interoperability between or reduce costs of current or planned capabilities
Propose solutions to address gaps or improve capabilities based on an informed trade-off analysis of alternatives

26. Stage 3 – Selection Overview
Outcomes of Stage
Evaluation of individual proposals so that each fully reflects the outputs of Stages I and II.
Selection of individual proposals that best support the business, security, and privacy needs of the organization.
Documentation of the updated to-be architecture and sharing of reusable components.

27. Stage 3 – Selection Overview
…an enterprise evaluation of the solutions proposed in Stage II and the selection of major investments. In Stage III the FEA SPP implementation team works with the CFO and ITIRB to integrate outputs from previous stages into the agency wide CPIC process.

28. Stage 3 – Selection Objectives
Evaluation of individual proposals so that each fully reflects the outputs of Stages I and II.
Selection of individual proposals that best support the business, security, and privacy needs of the organization.
Documentation of the updated to-be architecture and sharing of reusable components.

29. FEA SPP
Validation Effort

30. Review of the Validation Effort
Validation exercises were conducted at the Department of Housing and Urban Development (HUD)(11/05), and the Department of Justice (DOJ) (1/06). The assumptions for each validation effort were:
An enterprise architecture compliant with or with mappings to the FEA.
A governance process that requires the use of the EA in the IT Investment Review process.
An existing security program that has responded to FISMA reporting requirements and a designated CISO (or equivalent).
An existing privacy program and a designated Chief Privacy Officer (or equivalent).
Willingness of the agency to share security and privacy policies, risk assessments, plans, controls, and budget information.
Agencies gained increased awareness of their security and privacy risks and support infrastructure. This will support improved processes for managing security and privacy risks, and investment processes.
Validation staff observed validation activities to gather frank and constructive feedback on the utility and adequacy of the FEA SPP methodology.
June 2006, FEA Version 2.0 was approved by the CIO Council and released to the public.

31. FEA SPP
Questions

32. FEA SPP
Backup Slides

33. Steps Applied During Stage 1 – Identification

34. Steps Applied During Stage 1 – Identification (cont’d)

35. Steps Applied During Stage 1 – Identification (cont’d)

36. Steps Applied During Stage 1 – Identification (cont’d)

37. Steps Applied During Stage 2 – Analysis

38. Steps Applied During Stage 2 – Analysis (cont’d)

39. Steps Applied During Stage 2 – Analysis (cont’d)

40. Steps Applied During Stage 2 – Analysis (cont’d)

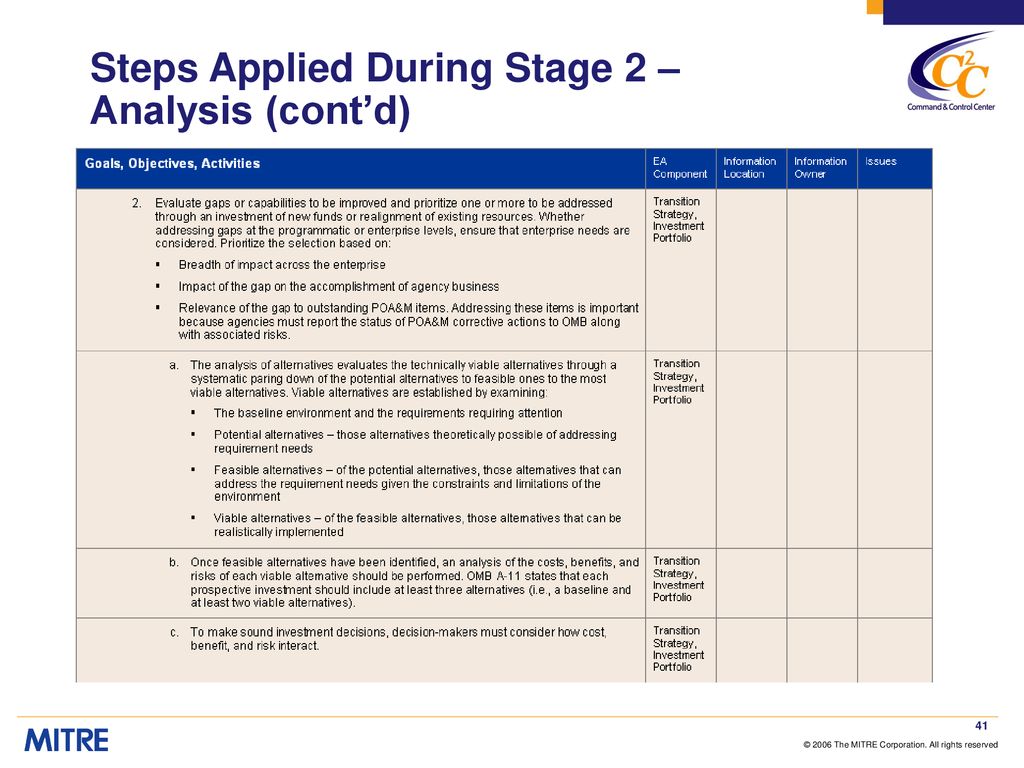

41. Steps Applied During Stage 2 – Analysis (cont’d)

42. Steps Applied During Stage 2 – Analysis (cont’d)

43. Steps Applied During Stage 2 – Analysis (cont’d)

44. Exhibition 300 Business Case Evaluation Criteria as Supported by the FEA SPP

45. Exhibition 300 Business Case Evaluation Criteria as Supported by the FEA SPP

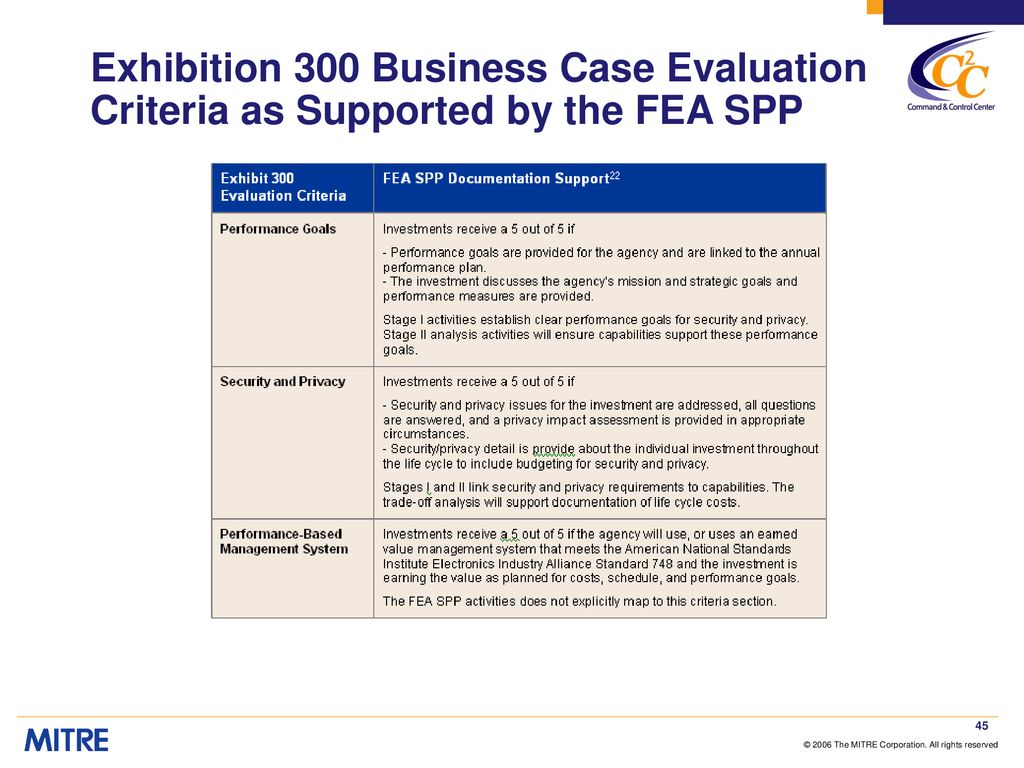

46. Exhibition 300 Business Case Evaluation Criteria as Supported by the FEA SPP

47. Steps Applied During Stage 3 – Selection

48. Steps Applied During Stage 3 – Selection (cont’d)

49. Steps Applied During Stage 3 – Selection (cont’d)

50. Steps Applied During Stage 3 – Selection (cont’d)

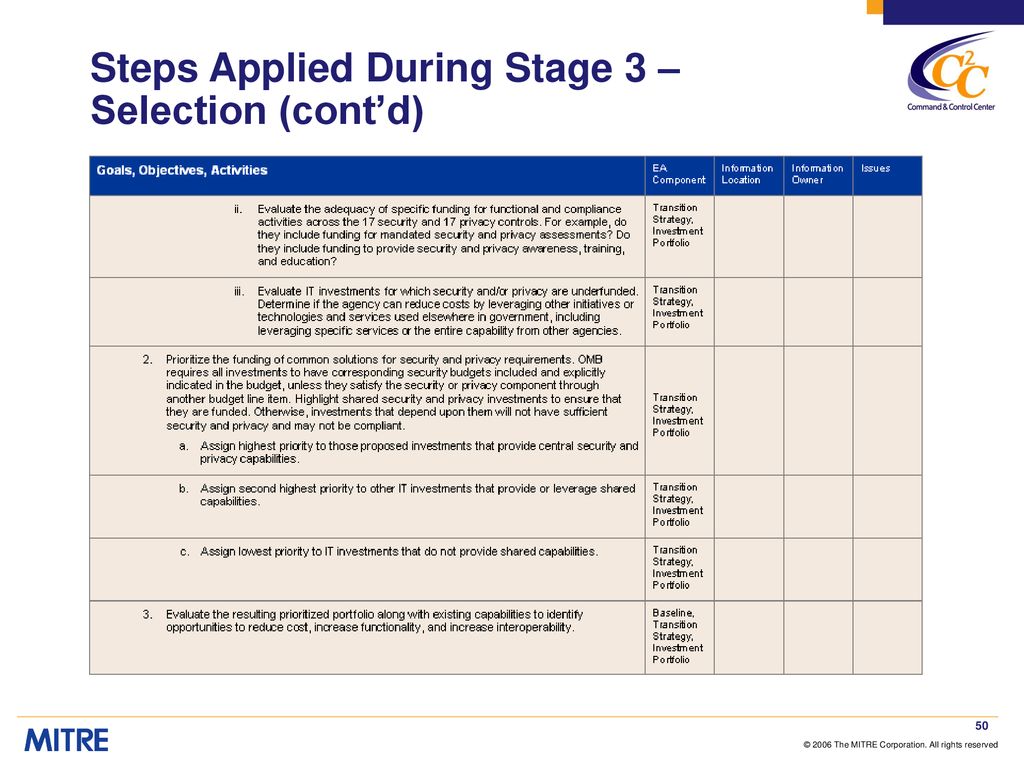

51. Steps Applied During Stage 3 – Selection (cont’d)

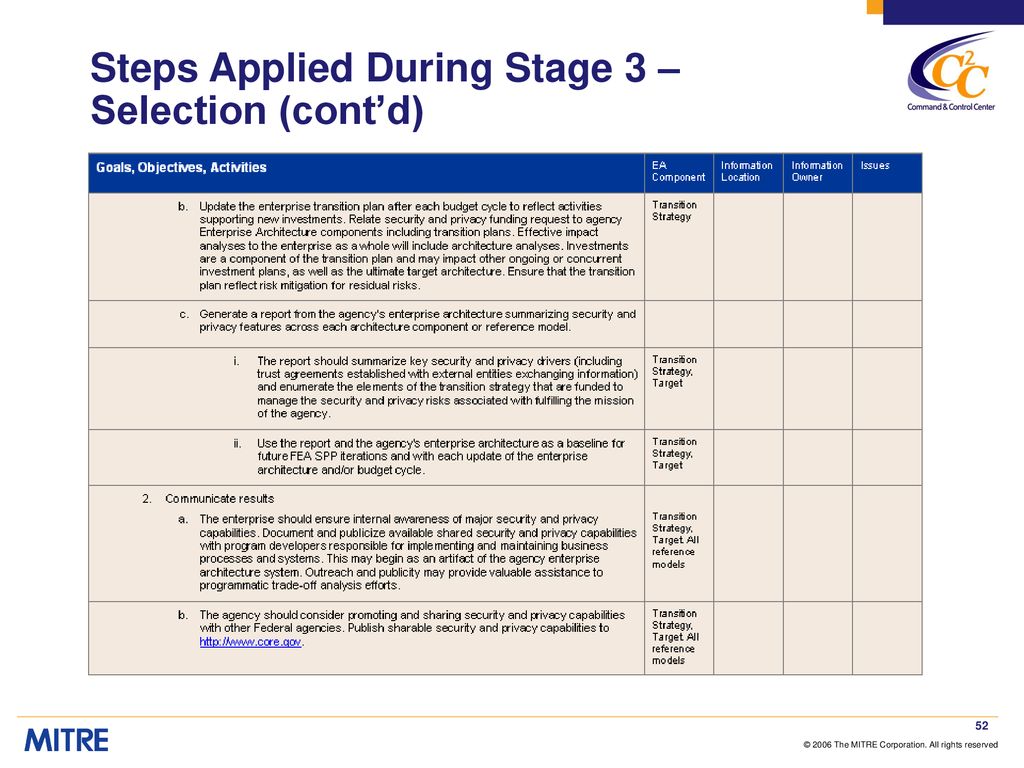

52. Steps Applied During Stage 3 – Selection (cont’d)
