1. Transaction Management Overview
CS542
Transaction Management Overview
Professor Elke A. Rundensteiner

2. Integrity of data ?
We would like data in our database to be “accurate” ( “correct” ) at all times.
EMP
How DBMS decides if data is consistent?
Name
White
Green
Gray
Age 52
3421 1

3. Integrity constraints for data consistency
Utilize predicates data must satisfy
Examples:
- x is key of relation R
- x  y holds in R
- Domain(x) = {Red, Blue, Green}
- a is valid index for attribute x of R
- no employee should make more than twice the average salary

4. Definitions: Consistent state: satisfies all constraints
Consistent DB: DB in consistent state

5. Such constraints may not capture “full correctness”
Example 1 : Transaction constraints
When salary is updated,
new salary > old salary
When account record is deleted,
balance = 0

6. Observation: DB cannot be consistent always Example:
Constraint : a1 + a2 +…. an = TOT
Action:
Deposit $100 in a2: a2  a
TOT  TOT + 100

7. Example: a1 + a2 +…. an = TOT (constraint) TOT  TOT + 100
Deposit $100 in a2: a2  a
TOT  TOT + 100 a2
TOT . . . 50
150
150 . . .
1000
1000
1100

8. Transaction: a collection of actions that preserve consistency
Consistent DB
Consistent DB’ T

9. Transactions
Concurrent execution of user programs is essential for good DBMS performance.
Because disk accesses are frequent and slow, must keep CPU busy by working on several user programs concurrently.
A user’s program may carry out many operations on data, but DBMS only concerned about what data is read/written from/to database.
Transaction is DBMS’s abstract view of user program: a sequence of reads and writes.

10. Transaction ACID Properties
Atomic
Either all actions are carried out or none are.
Not worry about incomplete transaction.
Consistency
DBMS assumes that the consistency holds for each transaction.
User is responsible.
Isolation
Transactions are isolated, or protected, from effects of concurrently scheduling other transactions.
Durability
The effects of transaction persist if DBMS informs the user about successful execution.

11. Atomicity of Transactions
A transaction is seen by DBMS as a series of actions.
read/write database object.
A transaction might :
commit after completing all its actions, or
could abort (aborted by DBMS) after executing some actions.
Transactions are atomic:
user can think of a transaction as always executing all its actions in one step, or not executing any actions at all.
DBMS logs all actions so that it can undo actions of aborted transactions.

12. Concurrency in a DBMS Issues:
Users submit transactions, and can think of each transaction as executing by itself.
Concurrency : DBMS interleaves actions (reads/writes of DB objects) of various transactions.
Each transaction must leave database in consistent state if DB is consistent when transaction begins.
DBMS will enforce ICs declared in CREATE TABLE statements.
Beyond this, DBMS does not understand semantics of data.
Issues:
Effect of interleaving transactions, and crashes.

13. Big assumption: If T starts with consistent state AND
T executes in isolation
 T leaves consistent state

14. Correctness (informally)
If we stop running transaction(s), DB left consistent
Each transaction sees a consistent DB

15. How can constraints be violated?
Transaction bug
DBMS bug
Hardware failure
e.g., disk crash alters balance of account
Data sharing
e.g.: T1: give 10% raise to programmers T2: change programmers  systems analysts
Violations due to sharing (concurrency control)!

16. Concurrency Control
T1 T2 … Tn DB
(consistency
constraints)

17. Example: T1: Read(A) T2: Read(A) A  A+100 A  A2 Write(A) Write(A)
Read(B) Read(B)
B  B+100 B  B2
Write(B) Write(B)
Constraint: A=B

18. Why interleave operations?
A schedule
An ordering of operations inside
one or more transactions over time
Why interleave operations?

19. Schedule A A B 25 25 T1 T2 Read(A); A  A+100 125 Write(A);
25 25
125
250
T1 T2
Read(A); A  A+100
Write(A);
Read(B); B  B+100;
Write(B);
Read(A);A  A2;
Read(B);B  B2;

20. Schedule B A B 25 25 T1 T2 Read(A);A  A2; 50 Write(A);
25 25 50
150
T1 T2
Read(A);A  A2;
Write(A);
Read(B);B  B2;
Write(B);
Read(A); A  A+100
Read(B); B  B+100;

21. Serial Schedules !
Any serial schedule is “good”.

22. Interleave Transactions in a Schedule?

23. Schedule C A B 25 25 T1 T2 Read(A); A  A+100 125 Write(A);
25 25
125
250
T1 T2
Read(A); A  A+100
Write(A);
Read(A);A  A2;
Read(B); B  B+100;
Write(B);
Read(B);B  B2;

24. Schedule D A B 25 25 T1 T2 Read(A); A  A+100 125 Write(A);
25 25
125
250 50
150
T1 T2
Read(A); A  A+100
Write(A);
Read(A);A  A2;
Read(B);B  B2;
Write(B);
Read(B); B  B+100;

25. Schedule E A B 25 25 T1 T2’ Read(A); A  A+100 125 Write(A);
Same as Schedule D
but with new T2’
A B
25 25
125 25
T1 T2’
Read(A); A  A+100
Write(A);
Read(A);A  A1;
Read(B);B  B1;
Write(B);
Read(B); B  B+100;

26. What is a ‘good’ schedule?

27. Sc=r1(A)w1(A)r2(A)w2(A)r1(B)w1(B)r2(B)w2(B)
We want :
schedules that are “good” regardless of
initial state and
transaction semantics
Hence we consider :
Only order of read and writes
Example:
Sc=r1(A)w1(A)r2(A)w2(A)r1(B)w1(B)r2(B)w2(B)

28. Example:
Sc=r1(A)w1(A)r2(A)w2(A)r1(B)w1(B)r2(B)w2(B)
Sc’=r1(A)w1(A) r1(B)w1(B)r2(A)w2(A)r2(B)w2(B)
T T2

29. Remember Schedule C Sc=r1(A)w1(A)r2(A)w2(A)r1(B)w1(B)r2(B)w2(B)
T1  T2 T1  T2
 no cycles  C is “equivalent” to a
serial schedule,
I.e., in this case (T1,T2).

30. Schedule D A B 25 25 T1 T2 Read(A); A  A+100 125 Write(A);
25 25
125
250 50
150
T1 T2
Read(A); A  A+100
Write(A);
Read(A);A  A2;
Read(B);B  B2;
Write(B);
Read(B); B  B+100;

31. Let’s look at schedule Sd:
Sd=r1(A)w1(A)r2(A)w2(A) r2(B)w2(B)r1(B)w1(B)
Sd=r1(A)w1(A) r1(B)w1(B)r2(A)w2(A)r2(B)w2(B) T1 T2

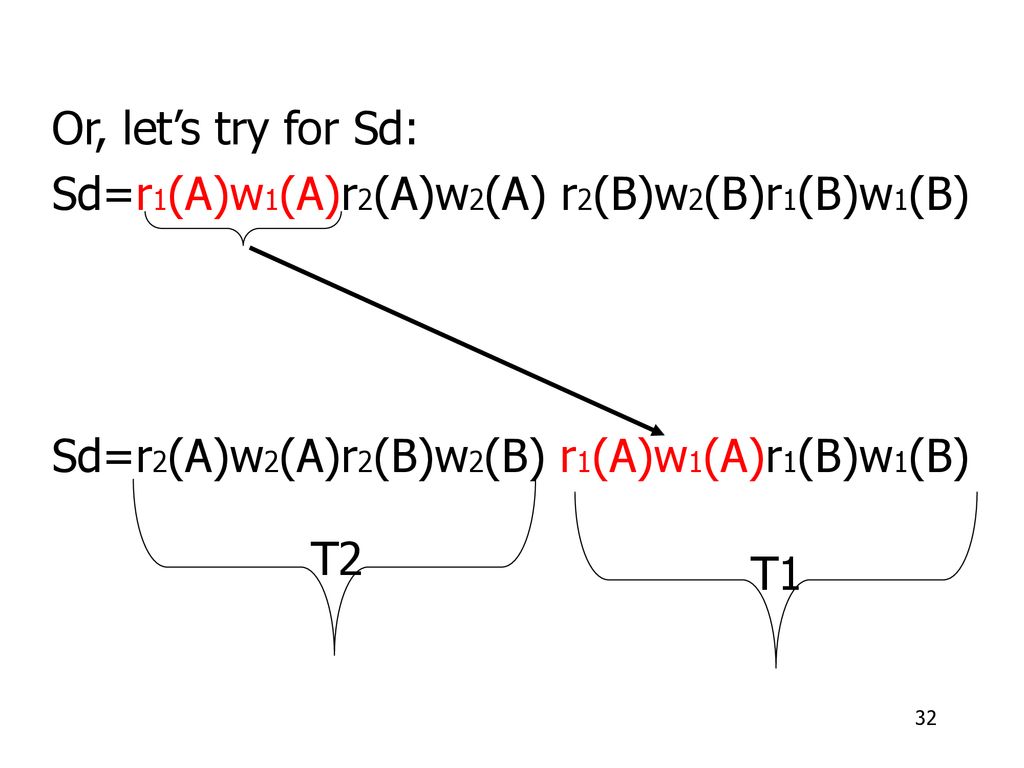

32. Or, let’s try for Sd:
Sd=r1(A)w1(A)r2(A)w2(A) r2(B)w2(B)r1(B)w1(B)
Sd=r2(A)w2(A)r2(B)w2(B) r1(A)w1(A)r1(B)w1(B) T2 T1

33. We cannot do the needed swaps for Sd:
Sd=r1(A)w1(A)r2(A)w2(A) r2(B)w2(B)r1(B)w1(B)
there seems to be no save way to transform Sd into an equivalent serial schedule !?!

34. For Schedule D:
Sd=r1(A)w1(A)r2(A)w2(A) r2(B)w2(B)r1(B)w1(B)
T1  T2 T2  T1
T1 T2

35. For Schedule D:
Sd=r1(A)w1(A)r2(A)w2(A) r2(B)w2(B)r1(B)w1(B)
T1  T2 T2  T1
T1 T2
Cycle in schedule D.

36. If cycle of dependencies between transactions:
If T2  T1
and T1  T2
T1 T2
If cycle of dependencies between transactions:
Sd cannot be rearranged
into a serial schedule
Sd is not “equivalent” to
any serial schedule
Sd thus is a “bad” schedule!

37. Algorithm Idea: Swap non-conflicting operation pairs to see if you can go to a serial schedule.

38. Summary : Review of Concepts
Transaction: sequence of ri(x), wi(x) actions
Conflicting actions (if on same resource):
r1(A) w2(A) w1(A)
w2(A) r1(A) w2(A)
Schedule: represents chronological order in which actions are executed
Serial schedule: no interleaving of actions or transactions
