2. Chapter 15 Exploratory data analysis: graphical summaries
The set of observations is called a dataset.
By exploring the dataset we can gain insight into what probability model suits the phenomenon.
To graphically represent univariate datasets, consisting of repeated measurements of one particular quantity, we discuss the classical histogram, the more recently introduced kernel density estimates and the empirical distribution function.
To represent a bivariate dataset, which consists of repeated measurements of two quantities, we use the scatterplot.

3. 15.2 Histograms: The term histogram appears to have been used first by Karl Pearson.

4. How to construct the histogram?
Denote a generic (univariate) dataset of size n by First we divide the range of the data into intervals. These intervals are called bins and denoted by The length of an interval Bi is denoted by ǀBiǀ and is called the bin width. We want the area under the histogram on each bin Bi to reflect the number of elements in Bi. Since the total area 1 under the histogram then corresponds to the total number of elements n in the dataset, the area under the histogram on a bin Bi is equal to the proportion of elements in Bi: The height of the histogram on bin Bi must be equal to

5. Choice of the bin width
Consider a histogram with bins of equal width. In that case the bins are of the from where r is some reference point smaller than the minimum of the dataset and b denotes the bin width. Mathematical research, however, has provided some guide- line for a data-based choice for b or m.

6. 15.3 Kernel density estimates

7. A kernel K is a function K:RR and a kernel K typically satisfies the following conditions.

8. Examples of Kernel Construction

9. Scaling the kernel K
Then put a scaled kernel around each element xi in the dataset
Scale the kernel K into the function

10. The bandwidth is too big
The bandwidth is too small

11. The function g in blue is a mixture of two Gaussians

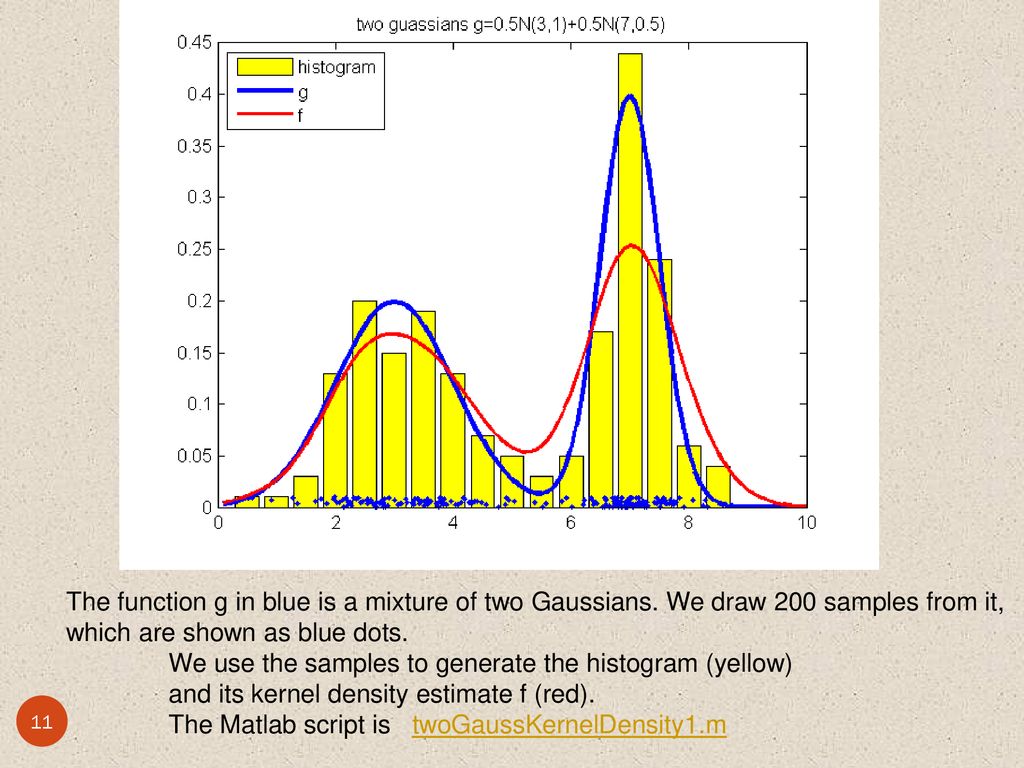

The function g in blue is a mixture of two Gaussians. We draw 200 samples from it, which are shown as blue dots.
We use the samples to generate the histogram (yellow)
and its kernel density estimate f (red).
The Matlab script is twoGaussKernelDensity1.m

12. 15.4 The empirical distribution function
Another way to graphically represent a dataset is to plot the data in a cumulative manner. This can be done by using the empirical cumulative distribution function .

13. Empirical distribution function Continued

14. 15.5 Scatterplot
In some situation we might wants to investigate the relationship between two or more variable. In the case of two variables x and y, the dataset consists of pairs of observations: We call such a dataset a bivariate dataset in contrast to the univariate. The plot the points (Xi, Yi) for i = 1, 2, …,n is called a scatterplot.
