Proving Triangles Congruent

Similar presentations


Presentation on theme: "Proving Triangles Congruent"— Presentation transcript:

1 Proving Triangles Congruent
Lesson 4-3 Proving Triangles Congruent (SSS, SAS, ASA)

2 Postulates If the sides of one triangle are congruent to the sides of a second triangle, then the triangles are congruent. SSS A B C D E F Included Angle: In a triangle, the angle formed by two sides is the included angle for the two sides. Included Side: The side of a triangle that forms a side of two given angles.

3 Included Angles & Sides
* * * Included Side:

4 Postulates If two angles and the included side of one triangle are congruent to the two angles and the included side of another triangle, then the triangles are congruent. ASA A B C D E F A B C D E F If two sides and the included angle of one triangle are congruent to the two sides and the included angle of another triangle, then the triangles are congruent. SAS

5 Steps for Proving Triangles Congruent
Mark the Given. Mark … Reflexive Sides / Vertical Angles Choose a Method. (SSS , SAS, ASA) List the Parts … in the order of the method. Fill in the Reasons … why you marked the parts. Is there more?

6 Problem 1  SSS AB @ CD BC DA AC CA 1. 2. 3. A B D C
Step 1: Mark the Given Step 2: Mark reflexive sides SSS Step 3: Choose a Method (SSS /SAS/ASA ) Step 4: List the Parts in the order of the method Step 5: Fill in the reasons Statements Reasons Step 6: Is there more? 1. AB @ CD 2. BC DA 3. AC CA Given A B D C Given Reflexive Property SSS Postulate

7 Problem 2  SAS Step 1: Mark the Given Step 2: Mark vertical angles
Step 3: Choose a Method (SSS /SAS/ASA) Step 4: List the Parts in the order of the method Step 5: Fill in the reasons Statements Reasons Step 6: Is there more? Given Vertical Angles. Given SAS Postulate

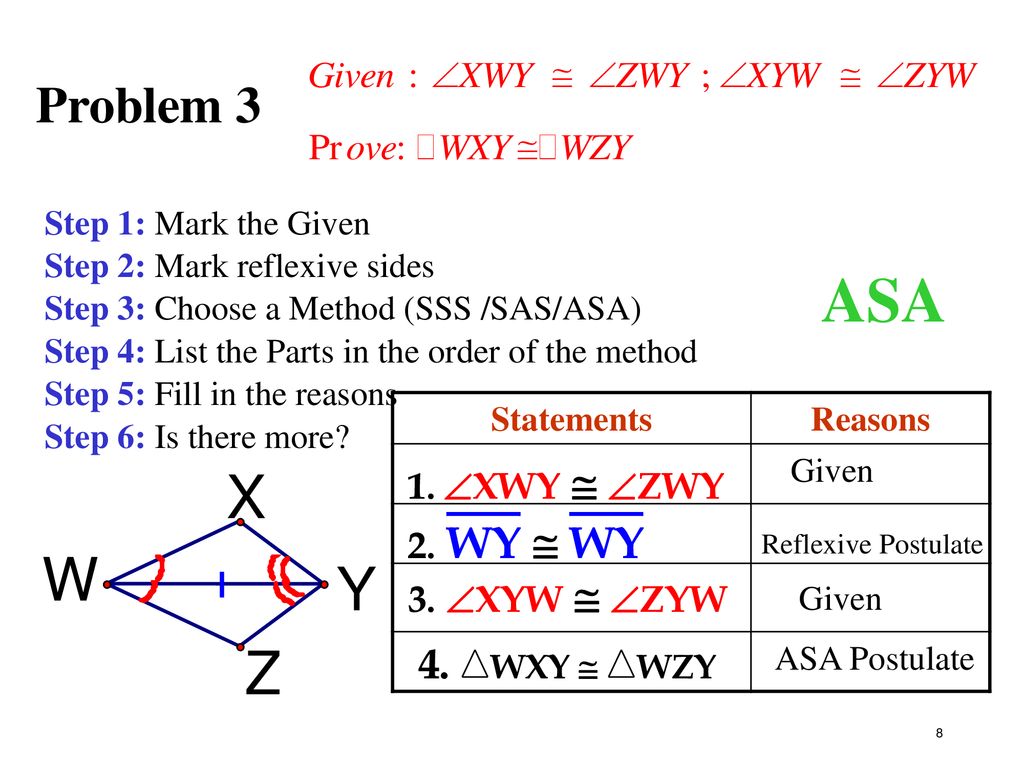

8 ASA X W Y Z Problem 3 Step 1: Mark the Given
Step 2: Mark reflexive sides ASA Step 3: Choose a Method (SSS /SAS/ASA) Step 4: List the Parts in the order of the method Step 5: Fill in the reasons Statements Reasons Step 6: Is there more? Z W Y X Given Reflexive Postulate Given ASA Postulate

9 Thanks for coming!
