Many pre-calculus concepts can be taught from a discrete dynamical systems viewpoint. This approach permits the teacher to cover exciting applications and enrichment topics. Helmut Knaust, Ph.D. Associate Professor Department of Mathematical Sciences University of Texas at El Paso January 7, 2003

2
2 We use Discrete Dynamical Systems (=first order difference equations) –To study some classical functions seen in an algebra course –To study some mathematical models in population biology

3

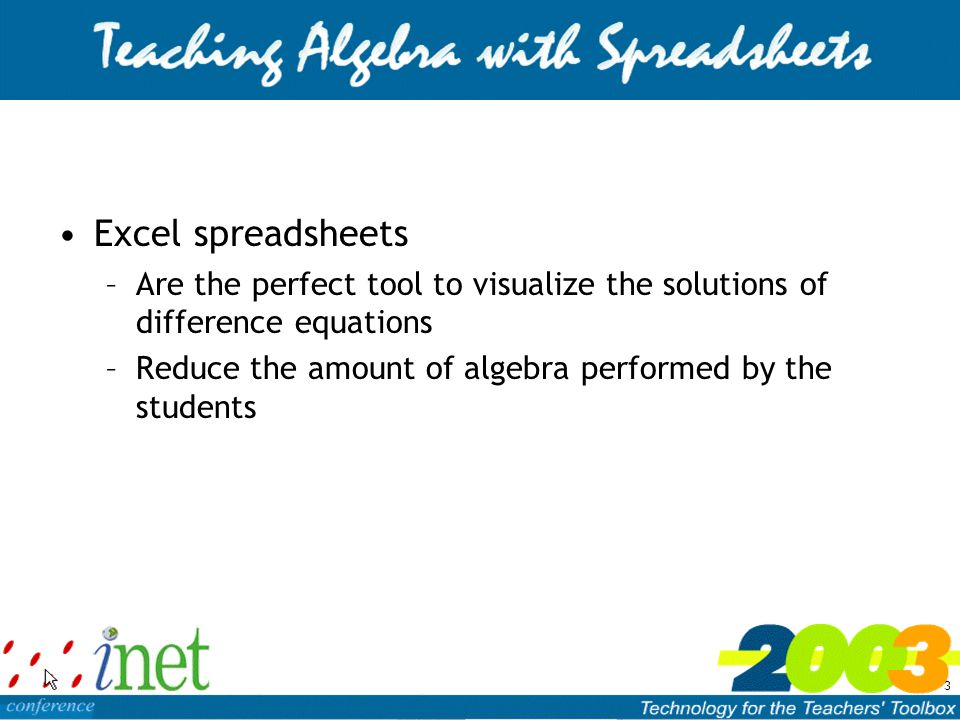

3 Excel spreadsheets –Are the perfect tool to visualize the solutions of difference equations –Reduce the amount of algebra performed by the students

4

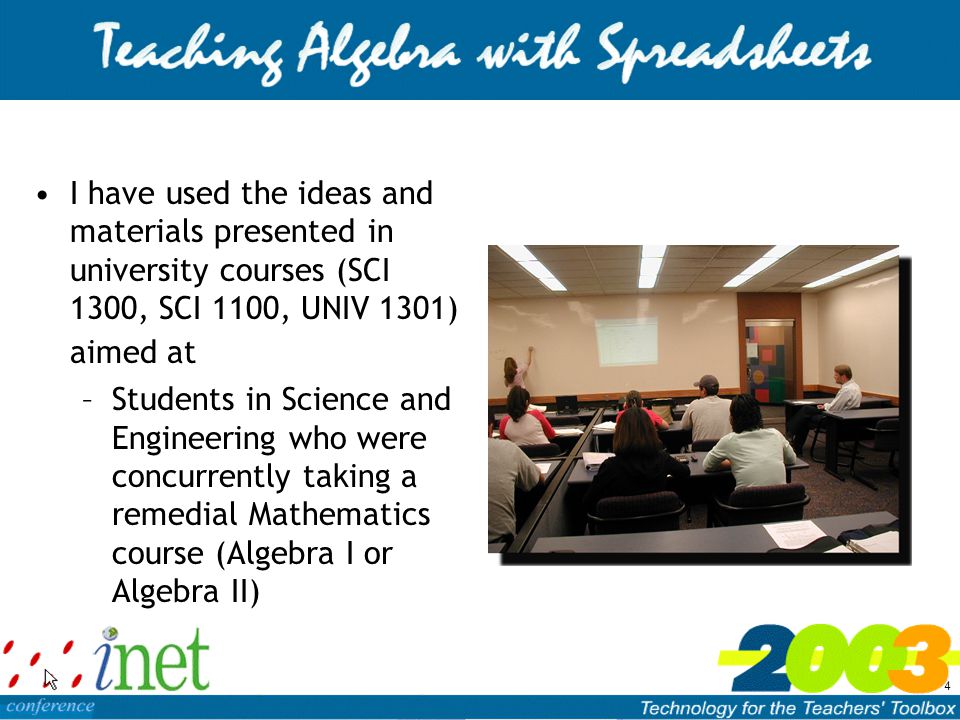

4 I have used the ideas and materials presented in university courses (SCI 1300, SCI 1100, UNIV 1301) aimed at –Students in Science and Engineering who were concurrently taking a remedial Mathematics course (Algebra I or Algebra II)

5
5 Objectives of these Courses: –Strengthen the students mathematical and critical thinking skills –Increase the students motivation to study mathematics by portraying mathematics as a useful tool in science and engineering –Improve students computer skills

6
6 What I like about this material: –This is pre-calculus in the true sense of the word - a preview of the power of differential equations –A nice illustration of how to use technology in mathematics –Conceptually hard, but algebraically not too challenging

7
7 The simplicity of nature is not to be measured by that of our conceptions. Infinitely varied in its effects, nature is simple only in its causes, and its economy consists in producing a great number of phenomena, often very complicated, by means of a small number of general laws. Pierre-Simon Laplace (1749-1827)

8
8 An Introductory Example: Linear Models –Converting temperature from º C to º F –The defining ingredients: 0 º C corresponds to 32 º F Every 1 degree increase in º C corresponds to a 1.8 degree increase in º F Initial Data Difference Equation

9

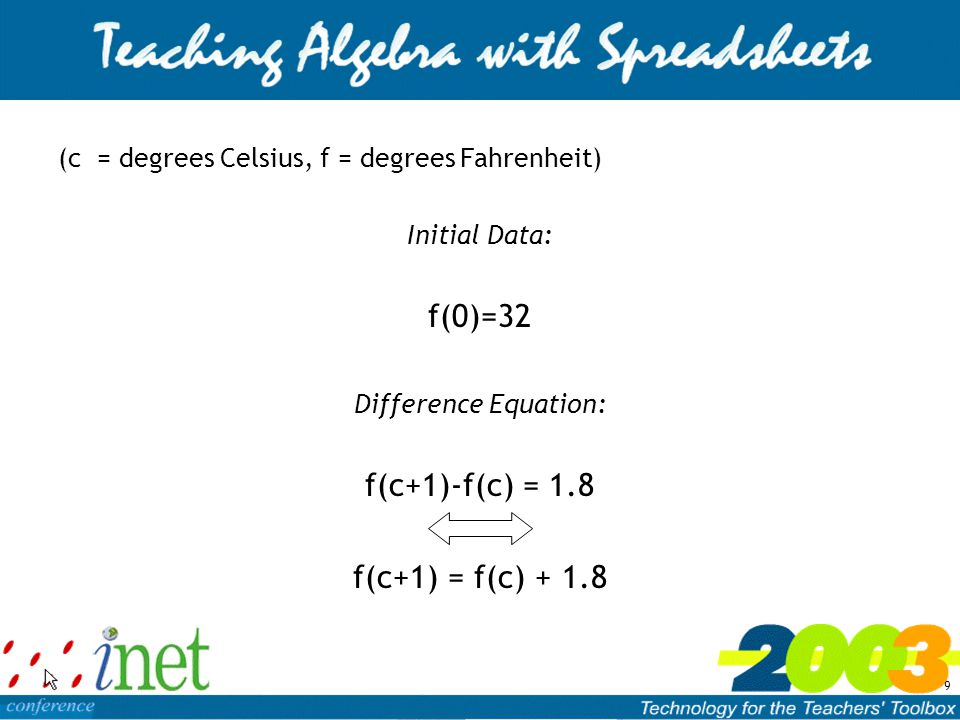

9 (c = degrees Celsius, f = degrees Fahrenheit) Initial Data: f(0)=32 Difference Equation: f(c+1)-f(c) = 1.8 f(c+1) = f(c) + 1.8

10
10 cf 032.0 133.8 235.6 337.4 439.2 541.0 642.8 744.6 846.4 Initial Data f(5) = f(4)+1.8 = 39.2+1.8 = 41.0

11
11 cf 032.0 133.8 235.6 337.4 439.2 541.0 642.8 744.6 846.4 Linear Models Data on the left are in arithmetic progression (= constant differences between consecutive terms) Data on the right are in arithmetic progression (= constant differences between consecutive terms)

12
12

13
13 Exponential Models: Population Growth The change in population from one year to the next is proportional to the present population Difference Equation: P(n+1) - P(n) = k P(n) (P = population at time n, n = time (in years)) The change in population from one year to the next… …is proportional to… …to the present population

14

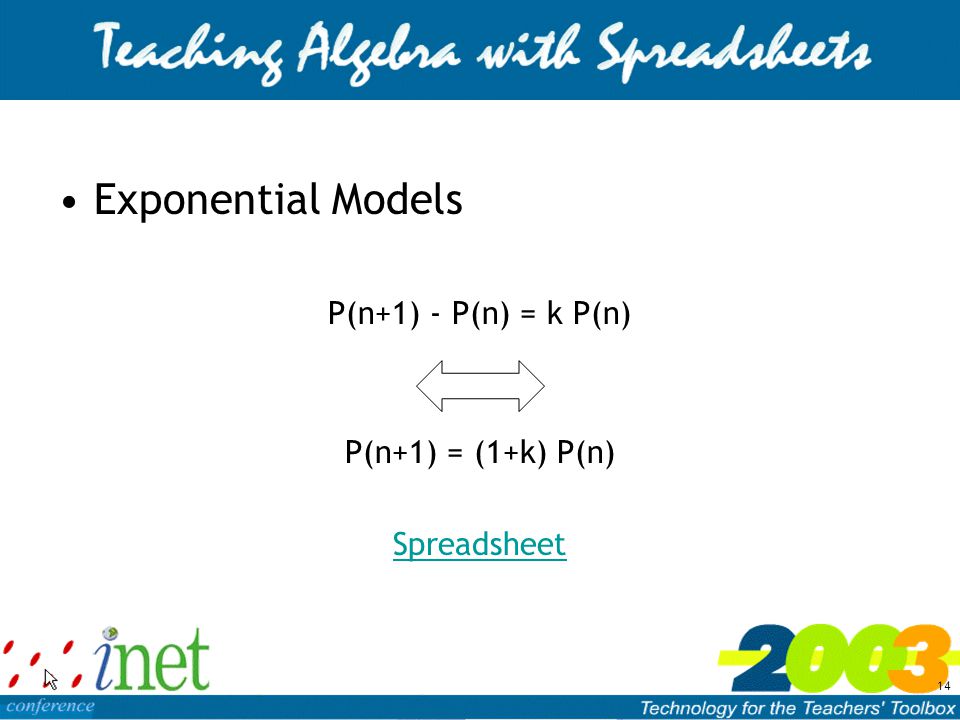

14 Exponential Models P(n+1) - P(n) = k P(n) P(n+1) = (1+k) P(n) Spreadsheet

15
15 Exponential Models: Population Growth nP(n) 05000 15500 26050 36655 47321 58053 68858 79744 810718 Data on the left are in arithmetic progression (= constant differences between consecutive terms) Data on the right are in geometric progression (= constant ratios between consecutive terms)

16
16 Student Activity Fill in the missing data in the table on the right such that the y- data are in geometric progression: xy 0.01.000 0.5 1.02.000 1.5 2.04.000 2.5 3.08.000

17
17 First Historical Aside: The Babylonian Algorithm –Compute approximations for the square root of 2. –Take as a first guess x(0)=1. x(0)=1 is too small, since 1 2 < 2; consequently 2/x(0)=2 is too big; try their average next: –x(1)=1/2 [ x(0) + 2/(x(0) ]=1.5

18
18 First Historical Aside: The Babylonian Algorithm –This leads to the recurrence relation x(n+1)=1/2 [ x(n) + 2/x(n) ]

19
19 First Historical Aside: The Babylonian Algorithm nx(n)x(n) 2 01.000000000000 11.5000000000002.250000000000 21.4166666666672.006944444444 31.4142156862752.000006007305 41.4142135623752.000000000005 51.4142135623732.000000000000

20

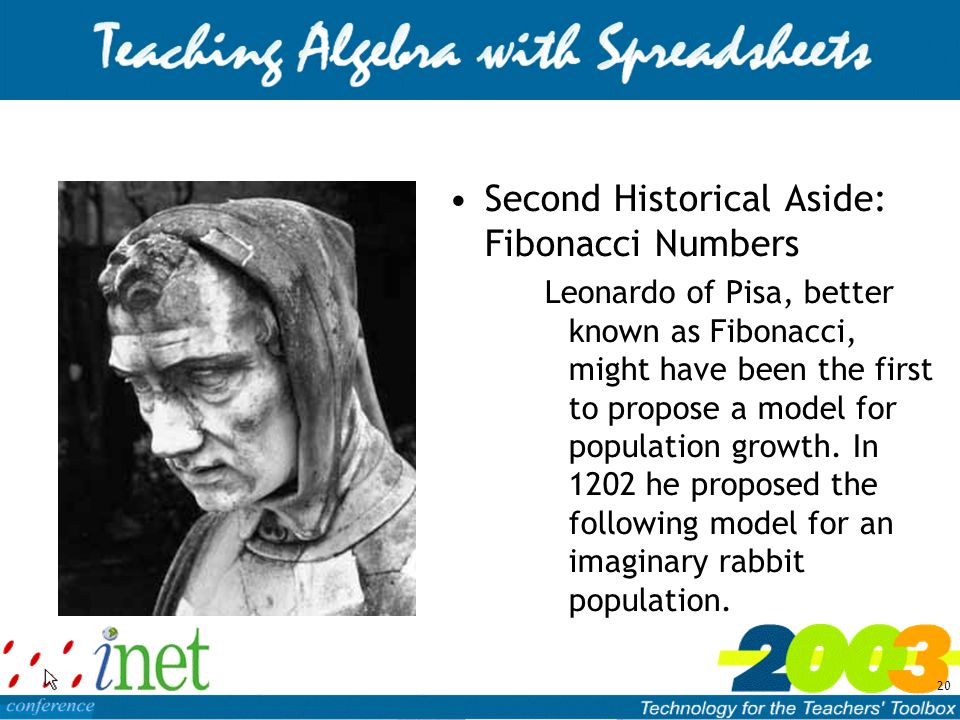

20 Second Historical Aside: Fibonacci Numbers Leonardo of Pisa, better known as Fibonacci, might have been the first to propose a model for population growth. In 1202 he proposed the following model for an imaginary rabbit population.

21

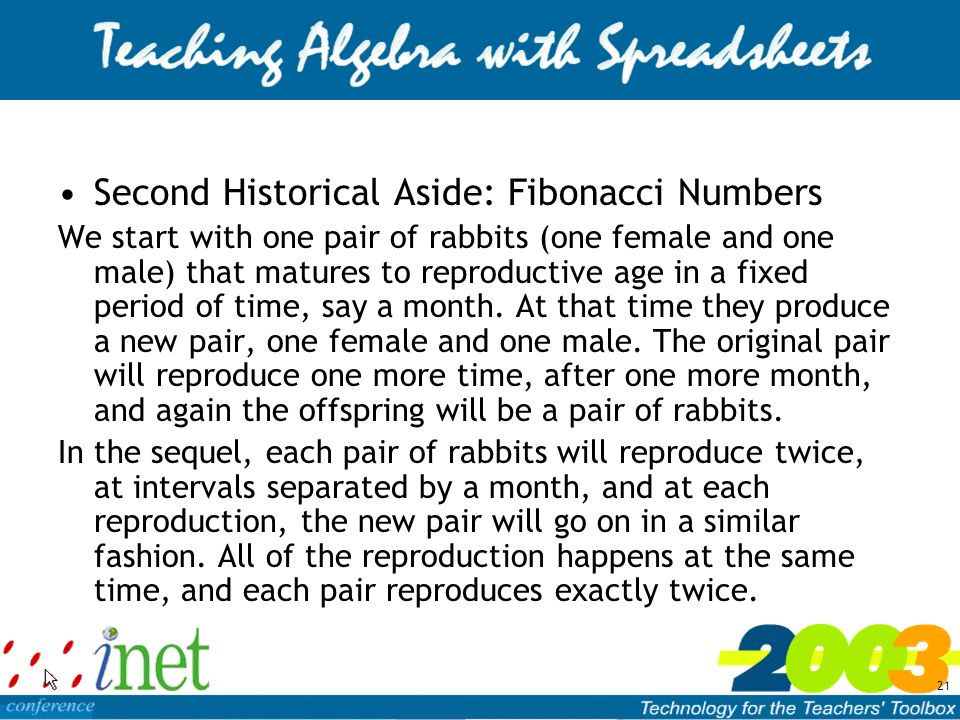

21 Second Historical Aside: Fibonacci Numbers We start with one pair of rabbits (one female and one male) that matures to reproductive age in a fixed period of time, say a month. At that time they produce a new pair, one female and one male. The original pair will reproduce one more time, after one more month, and again the offspring will be a pair of rabbits. In the sequel, each pair of rabbits will reproduce twice, at intervals separated by a month, and at each reproduction, the new pair will go on in a similar fashion. All of the reproduction happens at the same time, and each pair reproduces exactly twice.

22
22 Second Historical Aside: Fibonacci Numbers We can model Fibonaccis model as follows: Let R(t) be the number of rabbit pairs that are born at the beginning of the tth month. The first pair appears at time t = 0. R(0) = 1 This first pair bears another pair at time t = 1. R(1) = 1 It follows from the description above that for all later times R(t) = R(t-1) + R (t-2).

23
23 Second Historical Aside: Fibonacci Numbers nR(n)R(n)/R(n-1)nR(n)R(n)/R(n-1) 01111441.6179775 111.0000000122331.6180556 222.0000000133771.6180258 331.5000000146101.6180371 451.6666667159871.6180328 581.60000001615971.6180344 6131.62500001725841.6180338 7211.61538461841811.6180341 8341.61904761967651.6180340 9551.617647120109461.6180340 10891.618181821177111.6180340

24
24 Second Historical Aside: Fibonacci Numbers Cheating, by assuming that the ratio r of consecutive terms is eventually constant, we can compute r: –r = R(n+2)/R(n+1) = R(n+1)/R(n) –Using R(n+2)=R(n+1)+R(n), we obtain r = 1 + 1/r, i.e. r 2 – r – 1 = 0 –Solving for r yields the Golden Ratio as the positive solution:

25

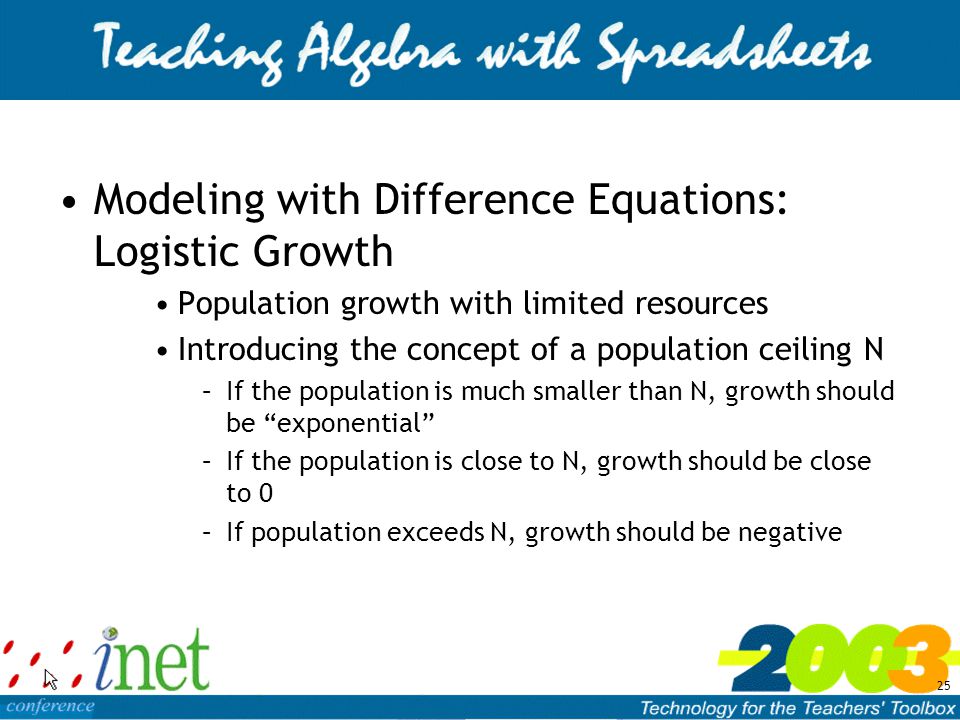

25 Modeling with Difference Equations: Logistic Growth Population growth with limited resources Introducing the concept of a population ceiling N –If the population is much smaller than N, growth should be exponential –If the population is close to N, growth should be close to 0 –If population exceeds N, growth should be negative

26
26 Modeling with Difference Equations: Logistic Growth Spreadsheet

27

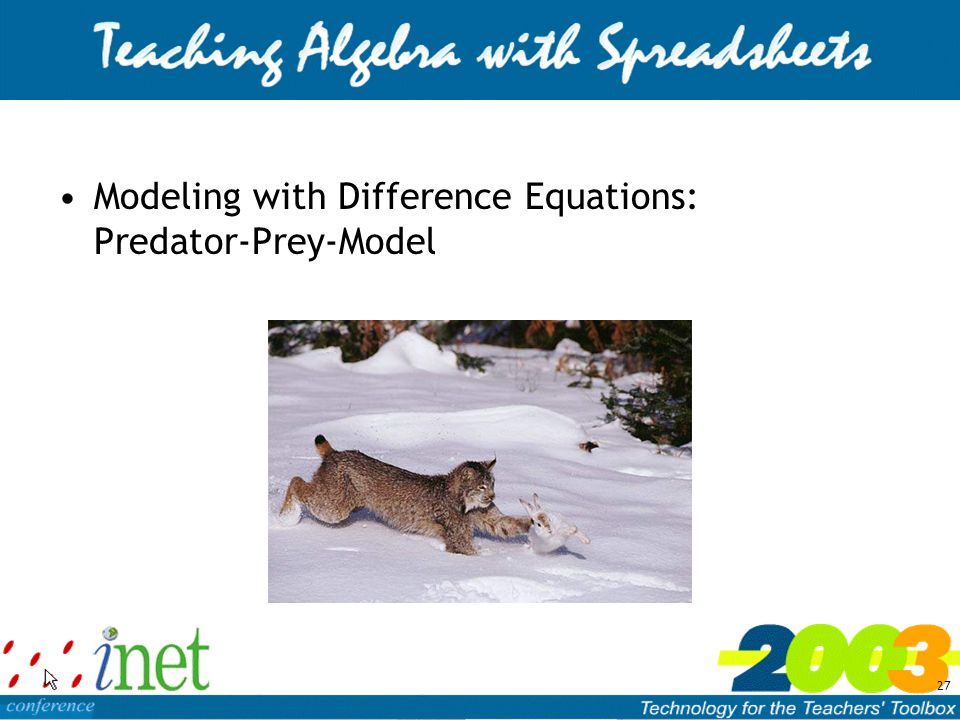

27 Modeling with Difference Equations: Predator-Prey-Model

28
28 Modeling with Difference Equations: Predator-Prey-Model

29
29 Modeling with Difference Equations: Predator-Prey-Model Spreadsheet (a, b, c, d and N are positive constants)

30
30 All Questions Answered, All Answers Questioned * Contact: helmut@math.utep.eduhelmut@math.utep.edu Web: http://www.math.utep.edu/Faculty/helmuthttp://www.math.utep.edu/Faculty/helmut *Borrowed from D. Knuth
