2. Principles of I/O Hardware I/O Devices Block devices, Character devices, Others Speed Device Controllers Separation of electronic from mechanical components Memory-Mapped I/O Direct Memory Access Interrupts Revisited

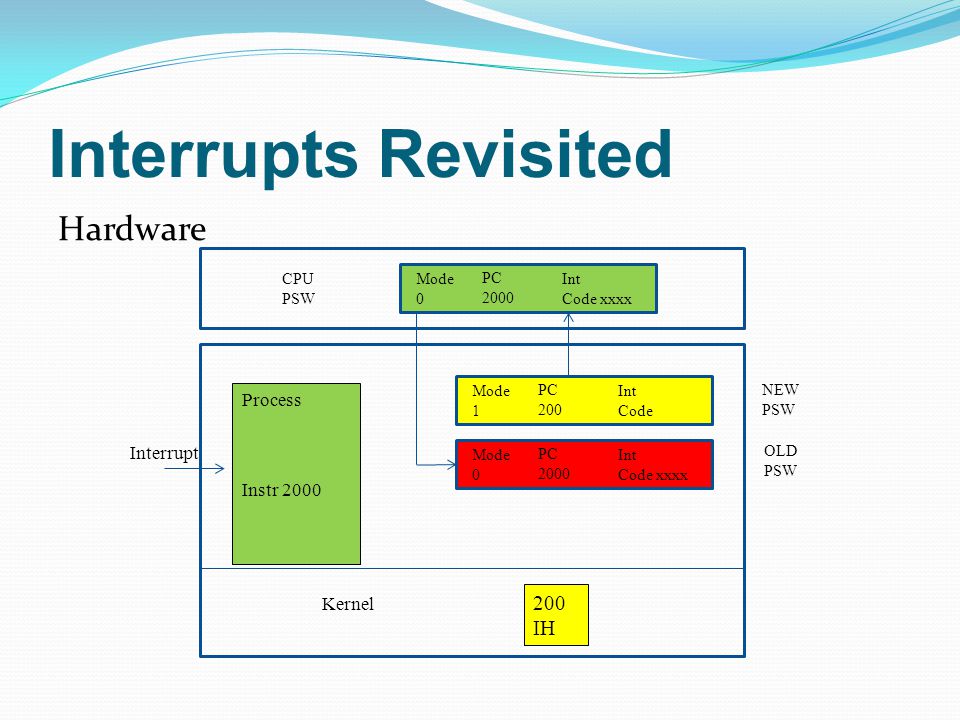

3. Hardware Mode 0 PC 2000 Int Code xxxx CPU PSW Mode 1 PC 200 Int Code Mode 0 PC 2000 Int Code xxxx NEW PSW OLD PSW 200 IH Process Instr 2000 Kernel Interrupt

4. Principles of I/O Software Goals of the I/O Software Device independence Uniform naming Error handling Synchronous vs. asynchronous transfers Buffering Sharable vs. dedicated devices Programmed I/O Interrupt-Driven I/O I/O using DMA

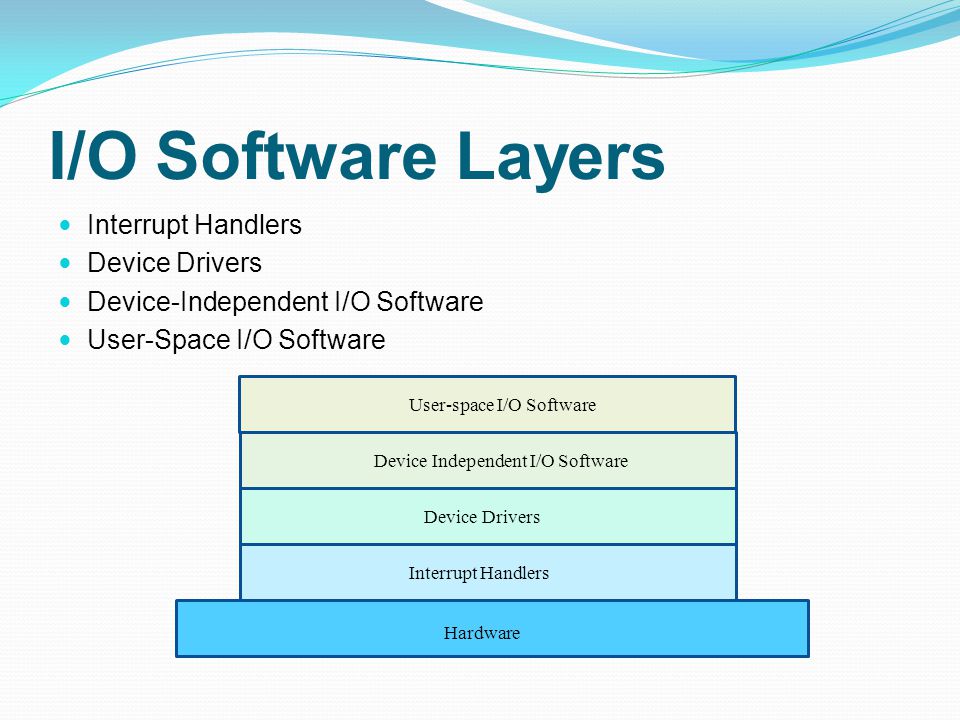

5. I/O Software Layers Interrupt Handlers Device Drivers Device-Independent I/O Software User-Space I/O Software Hardware Interrupt Handlers Device Drivers Device Independent I/O Software User-space I/O Software

6. User-Space I/O Software Libraries Spooling

7. Device-Independent I/O Software Uniform Interfacing for device drivers Buffering Error Reporting Allocating and Releasing Dedicated Devices Device-Independent Block Size

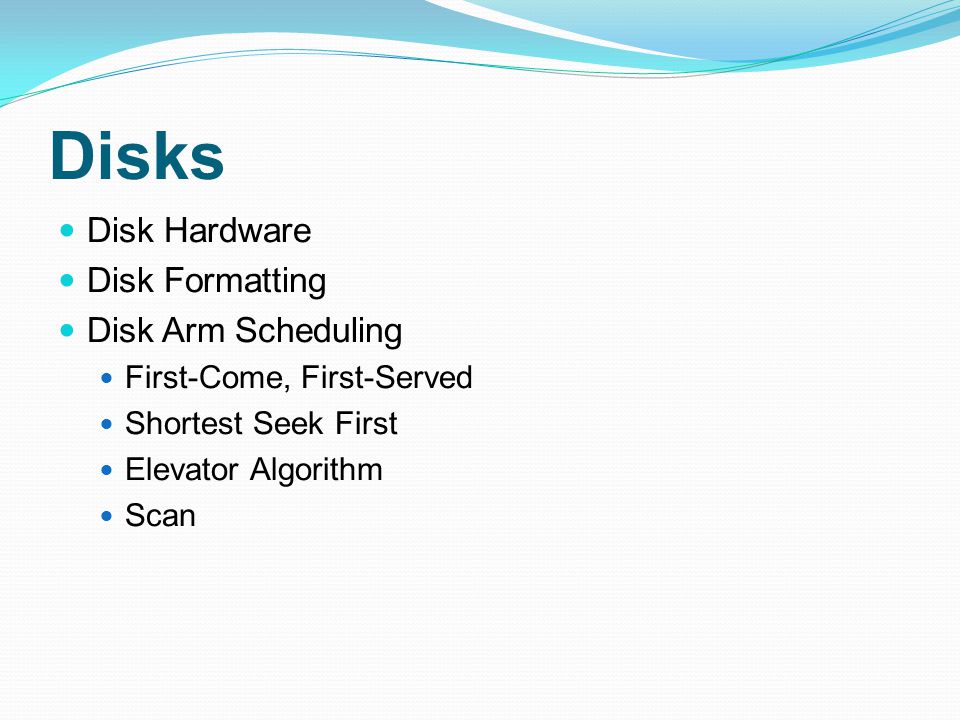

8. Disks Disk Hardware Disk Formatting Disk Arm Scheduling First-Come, First-Served Shortest Seek First Elevator Algorithm Scan

9. Disks Error Handling Controller Operating System List of bad sectors Stable Storage Stable writes Stable reads Crash recovery
