1. Goodfellow: Chapter 14 Autoencoders
Dr. Charles Tappert
The information here, although greatly condensed, comes almost entirely from the chapter content.

2. Chapter 14 Sections Introduction 1. Undercomplete Autoencoders
2. Regularized Autoencoders
3. Representational Power, Layer Size and Depth
4. Stochastic Encoders and Decoders
5. Denoising Autoencoders
6. Learning Manifolds with Autoencoders
7. Contractive Autoencoders
8. Predictive Sparse Decomposition
9. Applications of Autoencoders

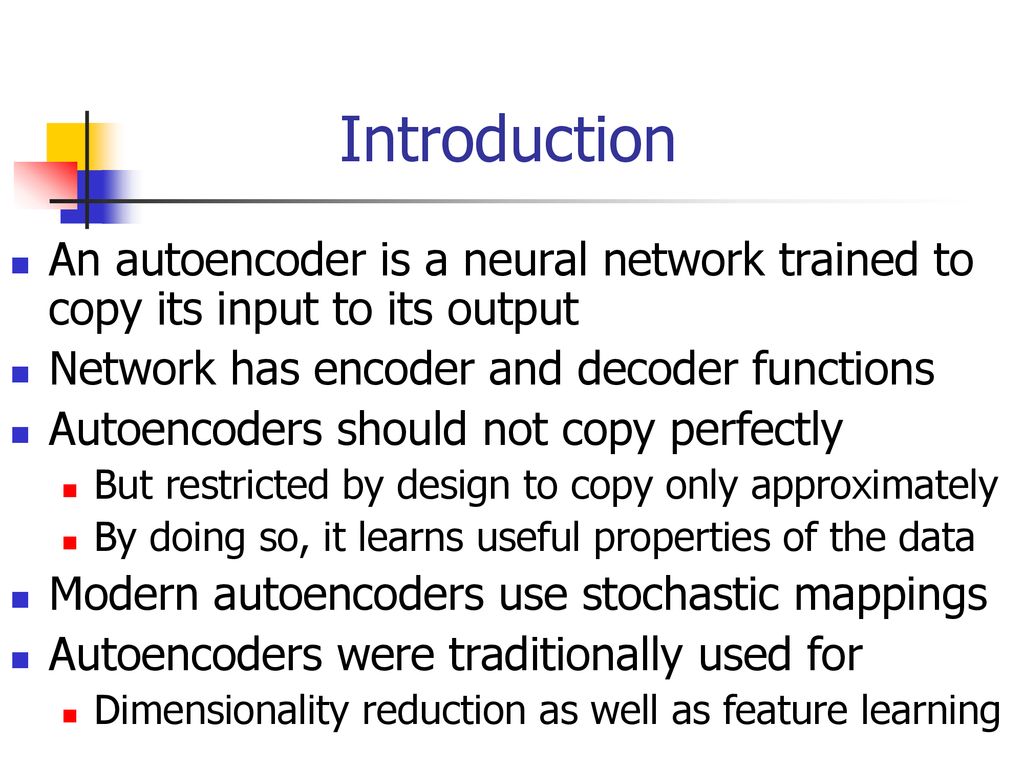

3. Introduction
An autoencoder is a neural network trained to copy its input to its output
Network has encoder and decoder functions
Autoencoders should not copy perfectly
But restricted by design to copy only approximately
By doing so, it learns useful properties of the data
Modern autoencoders use stochastic mappings
Autoencoders were traditionally used for
Dimensionality reduction as well as feature learning

4. Structure of an Autoencoder
Hidden layer (code) h g f x r
Input
Reconstruction
Figure 14.1
(Goodfellow 2016)

5. 1. Undercomplete Autoencoders
There are several ways to design autoencoders to copy only approximately
The system learns useful properties of the data
One way makes dimension h < dimension x
Undercomplete: h has smaller dimension than x
Overcomplete: h has greater dimension than x
Principle Component Analysis (PCA)
An undercomplete autoencoder, linear decoder and MSE loss function, learns same subspace as PCA
Nonlinear encoder/decoder functions yield more powerful nonlinear generalizations of PCA

6. Avoiding Trivial Identity•
Undercomplete autoencoders •
h has lower dimension than x •
f or g has low capacity (e.g., linear g) •
Must discard some information in h •
Overcomplete autoencoders •
h has higher dimension than x •
Must be regularized
(Goodfellow 2016)

7. 2. Regularized Autoencoders
Allow overcomplete case but regularize
Use a loss model that encourages properties other than copying the input to the output
Sparsity of representation
Smallness of the derivative of the representation
Robustness to noise or missing inputs

8. 3. Representational Power, Layer Size, and Depth
Autoencoders are often trained with only a single layer encoder and a single layer decoder
Using deep encoders and decoders offers the advantages of usual feedforward networks

9. 4. Stochastic Encoders and Decoders
Modern autoencoders use stochastic mappings
We can generalize the notion of the encoding and decoding functions to encoding and decoding distributions

10. Stochastic Autoencoders
pencoder(h | x)
pdecoder(x | h) x r
Figure 14.2
(Goodfellow 2016)

11. 5. Denoising Autoencoders
A denoising autoencoder (DAE) is one that receives a corrupted data point as input and is trained to predict the original, uncorrupted data point as its output
Learn the reconstructed distribution
Choose a training sample from the training data
Obtain corrupted version from corruption process
Use training sample pair to estimate reconstruction

12. Denoising Autoencoderh g f x˜ L
C: corruption process
(introduce noise)
C(x˜ | x)
L = - log pdecoder(x | h = f (x˜)) x
Figure 14.3
(Goodfellow 2016)

13. Gray circle of equiprobable corruptions
Denoising Autoencoders Learn a Manifold
Gray circle of equiprobable corruptions x˜
g o f x˜
C(x˜ | x)
Corrupted point falls back to nearest point on the manifold
Figure 14.4
(Goodfellow 2016)

14. Vector Field Learned by a Denoising Autoencoder
(Goodfellow 2016)

15. 6. Learning Manifolds with Autoencoders
Like other machine learning algorithms, autoencoders exploit the idea that data concentrates around a low-dimensional manifold
Autoencoders take the idea further and aim to learn the structure of the manifold

16. Tangent Hyperplane of a Manifold
Amount of vertical translation defines a coordinate along a 1D manifold tracing out a curved path through image space
Figure 14.6
(Goodfellow 2016)

17. Learning a Collection of 0-D Manifolds by Resisting Perturbation
1.0
Identity
Optimal reconstruction
0.8
0.6
0.4
0.2
r(x)
0.0 x0 x1 x2 x
Reconstruction invariant to small perturbations near data points
Figure 14.7
(Goodfellow 2016)

18. Non-Parametric Manifold Learning with Nearest-Neighbor Graphs
Figure 14.8
(Goodfellow 2016)

19. Tiling a Manifold with Local Coordinate Systems
Each local patch is like a flat Gaussian “pancake”
Figure 14.9
(Goodfellow 2016)

20. 7. Contractive Autoencoders
The contractive autoencoder (CAE) uses a regularizer to make the derivatives of f(x) as small as possible
The name contractive arises from the way the CAE warps space
The input neighborhood is contracted to a smaller output neighborhood
The CAE is contractive only locally

21. Contractive Autoencoders
@f (x) 2
⌦(h) = A
. (14.18) @x F
Input point
Tangent vectors
Local PCA (no sharing across regions)
Contractive autoencoder
Figure 14.10
Dog from
CIFAR-10 dataset
(Goodfellow 2016)

22. 8. Predictive Sparse Decomposition
Predictive Sparse Decomposition (PSD) is a model that is a hybrid of sparse coding and parametric autoencoders
The model consists of an encoder and decoder that are both parametric
Predictive sparse coding is an example of learned approximate inference (section 19.5)

23. 9. Applications of Autoencoders
Autoencoder applications
Feature learning
Good features can be obtained in the hidden layer
Dimensionality reduction
For example, a 2006 study resulted in better results than PCA, with the representation easier to interpret and the categories manifested as well-separated clusters
Information retrieval
A task that benefits more than usual from dimensionality reduction is the information retrieval task of finding entries in a database that resemble a query entry
