1. meteor research processes Single Station Observation Measurement
Simultaneous observation determination
Orbit computation
Mass estimation
Touch down point computation
Spectrum analysis
- New shower detection
Shower Catalog management
UFOseries
UFOCapture
UFOAnalyzer
UFOOrbit
FireBallInspector
UA2forResearchers
UFORadiant
Etc Apr/2010 SonotaCo

2. FireBallInspector (FBI) A trial for new trajectory analysis on video observation using time synchronization
Video field time determination using light curve  1msec accuracy
Re-sampling to get synchronized data
Moment position determination by pure triangulation
Handles non-linear trajectory and deceleration by the atmosphere
Mass estimation by dynamical model
Dark flight simulation using hi-altitude air density and wind
Etc Apr/2010 SonotaCo

3. Etc Apr/2010 SonotaCo

4. Raw data (includes time error)
Etc Apr/2010 SonotaCo

5. Synchronization using light curve
Etc Apr/2010 SonotaCo

6. Trajectory linearity and velocity measurement
Etc Apr/2010 SonotaCo

7. Dark flight and touch down point estimation
Etc Apr/2010 SonotaCo

8. conclusion
Momentary position analysis will show us detail behavior of the body in the atmosphere.
Time synchronization will be powerful tool for us!
Synchronized video recording may be possible in the future,
but re-sampling is feasible way now.
Etc Apr/2010 SonotaCo

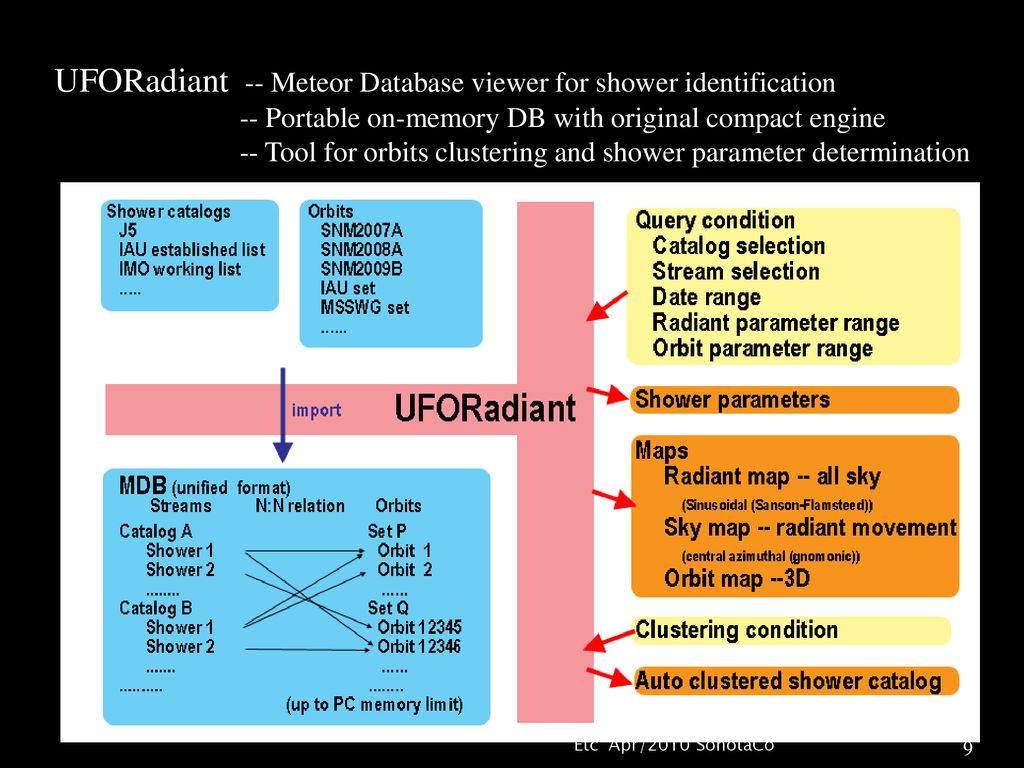

9. UFORadiant -- Meteor Database viewer for shower identification
-- Portable on-memory DB with original compact engine
-- Tool for orbits clustering and shower parameter determination
Etc Apr/2010 SonotaCo

10. SCcode : universal shower code
Automated decidable 4 char shower code, independent from constellations
-- expression of sol, ra, dec, vg at the shower peak
-- 36 number system using in 4 dimension space
abcdefghijklmnopqrstuvwxyz
“srdv”
s: peak appearance solar longitude of the Sun, / 10 degree step
r: ra of radiant / 10 degree step
d: dec of radiant / 5 degree step
v: vg / 2 km/s step
Ex.) PER (139.0, 47.0, 57.6, 58.6) -> d46t
LEO (235.5,154,0,21.8,69.9) -> nfdy
GEM (262.3,112.7,32.3,33.6) -> qbbg
QUA (283.3, 230.0,49.4,40.1)-> sn8k
Etc Apr/2010 SonotaCo

11. UFOseries Utilities INF2MCSV MetRec to UFOOrbitV2 data converter
inputs: *.inf, *.ref (MetRec)
output: M*.csv (R80 format, UFOOrbitV2)
NightSchedular
Day time relative program launcher
(to avoid Low priority I/O of Windows Vista)
SpriteAnalyzerV2
Triangulation program for TLEs
inputs M*clicks.csv (UFOAnalyzerV2)
Etc Apr/2010 SonotaCo

12. Utility functions in UA2
FOV ground plot
Mask pattern editing
Leaped peak hold image
Move/delete of class clips
Trim avi files
Time correction
Etc Apr/2010 SonotaCo

13. csv2klm ( by
Etc Apr/2010 SonotaCo

14. UFOseries demonstration
UFOCaptureV2 installation to operation (… 60 min)
UFOAnalyzerV2 profile making and manual analysis (… 40 min)
UFOOrbitV2 examples (… 30 min)
INF2MCSV (… 5 min)
NightSchedular (… 5 min)
UFORadiant automated clustering ….
Etc Apr/2010 SonotaCo
