2. Windows Server 2012 R2: IP Address Management (IPAM)
Morgan Webb | Technical Evangelist
@morgan_msft

3. 03 | Plan and Design IPAM

4. Module Overview IPAM Architecture IPAM Deployment Planning IPAM Server
IPAM Managed Servers
IPAM Client
IPAM Deployment Planning
Deployment topologies
IPAM specifications

5. IPAM Architecture IPAM Architecture IPAM Server IPAM Managed Servers
11/28/2018
IPAM Architecture
IPAM Architecture
IPAM Server
IPAM Managed Servers
IPAM Client
© 2014 Microsoft Corporation. All rights reserved. Microsoft, Windows, and other product names are or may be registered trademarks and/or trademarks in the U.S. and/or other countries. The information herein is for informational purposes only and represents the current view of Microsoft Corporation as of the date of this presentation. Because Microsoft must respond to changing market conditions, it should not be interpreted to be a commitment on the part of Microsoft, and Microsoft cannot guarantee the accuracy of any information provided after the date of this presentation. MICROSOFT MAKES NO WARRANTIES, EXPRESS, IMPLIED OR STATUTORY, AS TO THE INFORMATION IN THIS PRESENTATION.

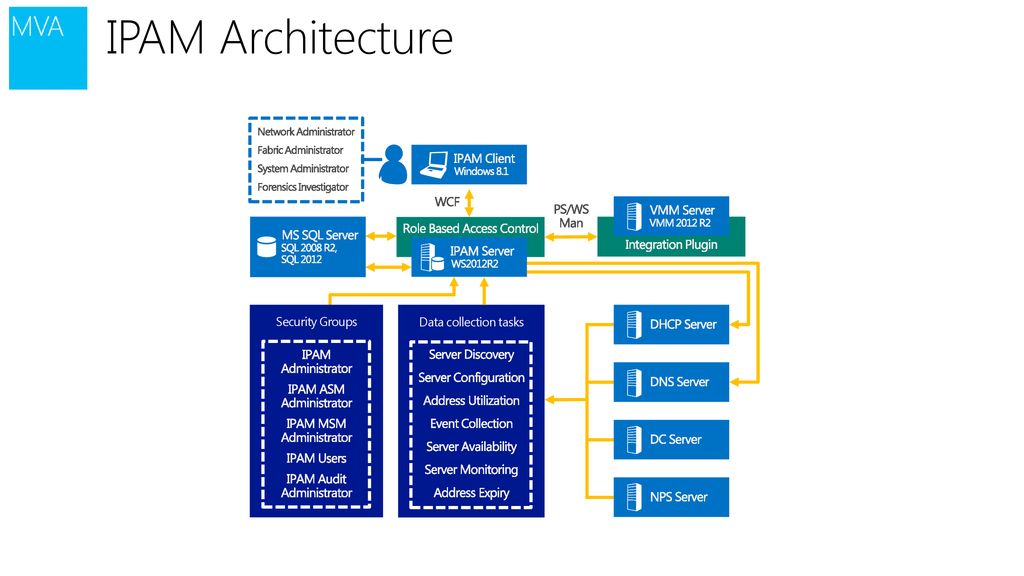

6. IPAM Architecture 11/28/2018 IPAM Client WCF VMM Server PS/WS Man
Role Based Access Control
IPAM Client
Windows 8.1
WCF
Network Administrator
Fabric Administrator
System Administrator
Forensics Investigator
Integration Plugin
VMM Server
VMM 2012 R2
PS/WS
Man
MS SQL Server
SQL 2008 R2,
SQL 2012
IPAM Server
WS2012R2
DHCP Server
DNS Server
DC Server
NPS Server
IPAM
Administrator
IPAM ASM Administrator
IPAM MSM Administrator
IPAM Users
IPAM Audit Administrator
Server Discovery
Server Configuration
Address Utilization
Event Collection
Server Availability
Server Monitoring
Address Expiry
Security Groups
Data collection tasks
© 2014 Microsoft Corporation. All rights reserved. Microsoft, Windows, and other product names are or may be registered trademarks and/or trademarks in the U.S. and/or other countries. The information herein is for informational purposes only and represents the current view of Microsoft Corporation as of the date of this presentation. Because Microsoft must respond to changing market conditions, it should not be interpreted to be a commitment on the part of Microsoft, and Microsoft cannot guarantee the accuracy of any information provided after the date of this presentation. MICROSOFT MAKES NO WARRANTIES, EXPRESS, IMPLIED OR STATUTORY, AS TO THE INFORMATION IN THIS PRESENTATION.

7. Deployment Planning IPAM Deployment Planning Deployment topologies
11/28/2018
Deployment Planning
IPAM Deployment Planning
Deployment topologies
IPAM specifications
© 2014 Microsoft Corporation. All rights reserved. Microsoft, Windows, and other product names are or may be registered trademarks and/or trademarks in the U.S. and/or other countries. The information herein is for informational purposes only and represents the current view of Microsoft Corporation as of the date of this presentation. Because Microsoft must respond to changing market conditions, it should not be interpreted to be a commitment on the part of Microsoft, and Microsoft cannot guarantee the accuracy of any information provided after the date of this presentation. MICROSOFT MAKES NO WARRANTIES, EXPRESS, IMPLIED OR STATUTORY, AS TO THE INFORMATION IN THIS PRESENTATION.

8. IPAM Deployment Topologies
11/28/2018
IPAM Deployment Topologies
Domain corp.contoso.com
Domain europe.corp.contoso.com
DHCP, DNS, DC, and NPS servers
Site: UK Branch office
IPAM Server (UK)
IPAM server (Redmond)
Domain fareast.corp.contoso.com
DHCP, DNS, DC, and NPS servers
Site: Hyderabad Branch office
DHCP, DNS, DC, and NPS servers
Site: Bangalore Branch office
IPAM Server (Hyderabad)
IPAM Server (Bangalore)
DHCP, DNS, DC, and NPS servers
Site: Redmond Head office
© 2014 Microsoft Corporation. All rights reserved. Microsoft, Windows, and other product names are or may be registered trademarks and/or trademarks in the U.S. and/or other countries. The information herein is for informational purposes only and represents the current view of Microsoft Corporation as of the date of this presentation. Because Microsoft must respond to changing market conditions, it should not be interpreted to be a commitment on the part of Microsoft, and Microsoft cannot guarantee the accuracy of any information provided after the date of this presentation. MICROSOFT MAKES NO WARRANTIES, EXPRESS, IMPLIED OR STATUTORY, AS TO THE INFORMATION IN THIS PRESENTATION.

9. 11/28/2018
03 | Summary
